Ultra-capacitor hybrid radically boosts power and efficiency of lithium batteries

Ultra-capacitor hybrid radically boosts power and efficiency of lithium batteries
These carbon nanotube ultra-capacitors could have radical repercussions in the electric vehicle world, boosting power, range and efficiency
These carbon nanotube ultra-capacitors could have radical repercussions in the electric vehicle world, boosting power, range and efficiency
View 6 Images
Advantages of the Nawa carbon ultra-capacitor
1/6
Advantages of the Nawa carbon ultra-capacitor

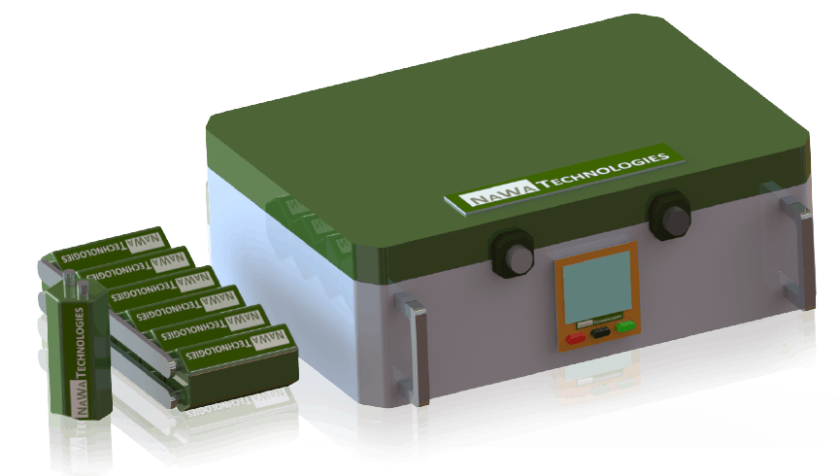

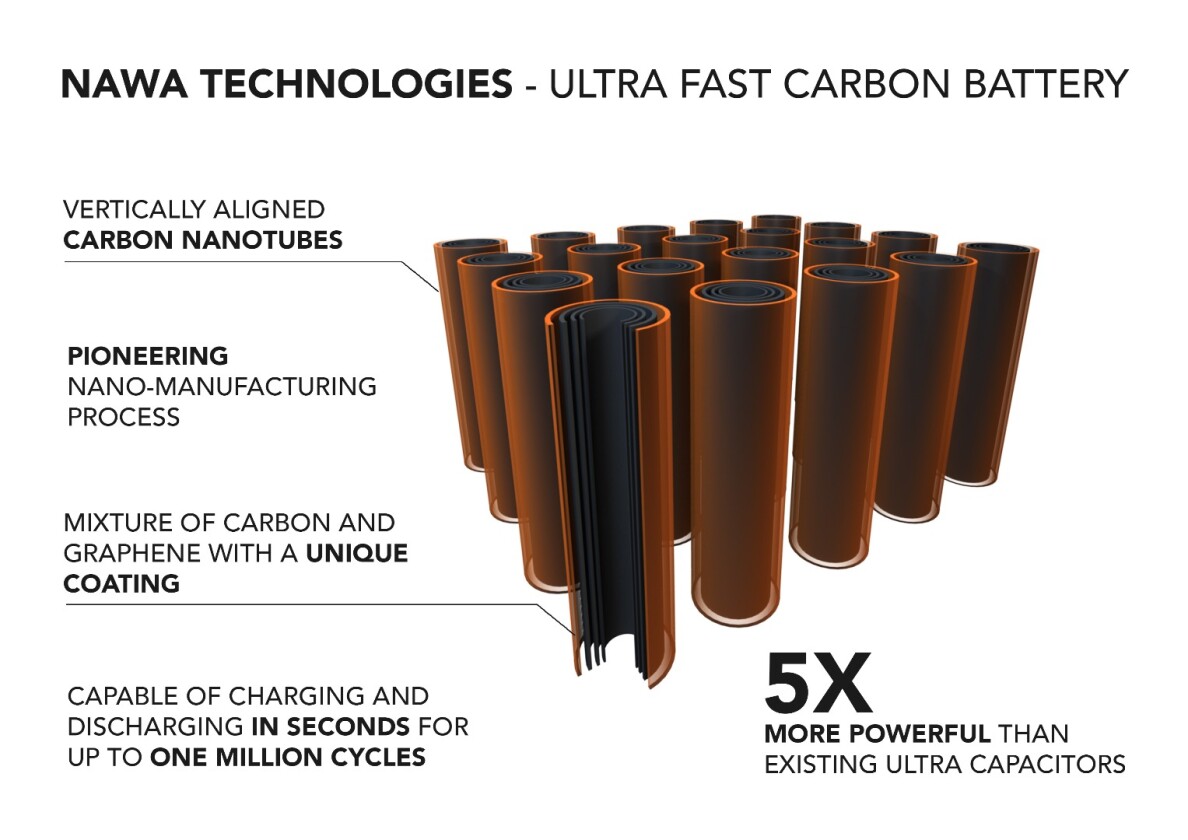

Carbon nanotube construction makes for what Nawa calls an efficient, proven and cost-effective manufacturing process, as well as extreme strength, enabling the construction of structural batteries
2/6
Carbon nanotube construction makes for what Nawa calls an efficient, proven and cost-effective manufacturing process, as well as extreme strength, enabling the construction of structural batteries
These carbon nanotube ultra-capacitors could have radical repercussions in the electric vehicle world, boosting power, range and efficiency
3/6
These carbon nanotube ultra-capacitors could have radical repercussions in the electric vehicle world, boosting power, range and efficiency
Other applications Nawa is exploring include industrial tools and vehicles, automated inventory robots, buses, trucks and public transport, and power tools
4/6
Other applications Nawa is exploring include industrial tools and vehicles, automated inventory robots, buses, trucks and public transport, and power tools
Nawa is at the prototype stage right now, but claims it'll have full scale production online by the second half of 2019
5/6
Nawa is at the prototype stage right now, but claims it'll have full scale production online by the second half of 2019
Nawa's ultra-capacitors charge up to 1,000 times faster than a lithium battery, last up to a million cycles and run rings around lithium batteries for power density
6/6
Nawa's ultra-capacitors charge up to 1,000 times faster than a lithium battery, last up to a million cycles and run rings around lithium batteries for power density
View gallery - 6 images

Combining the unique strengths of lithium batteries with crazy-fast charging, carbon ultra-capacitors could save a ton of weight and add significant range and power to electric vehicles, according to Nawa Technologies. Based outside Marseilles, this fascinating French startup is working on a new type of battery it believes could offer some huge advantages in the EV space, among many others.

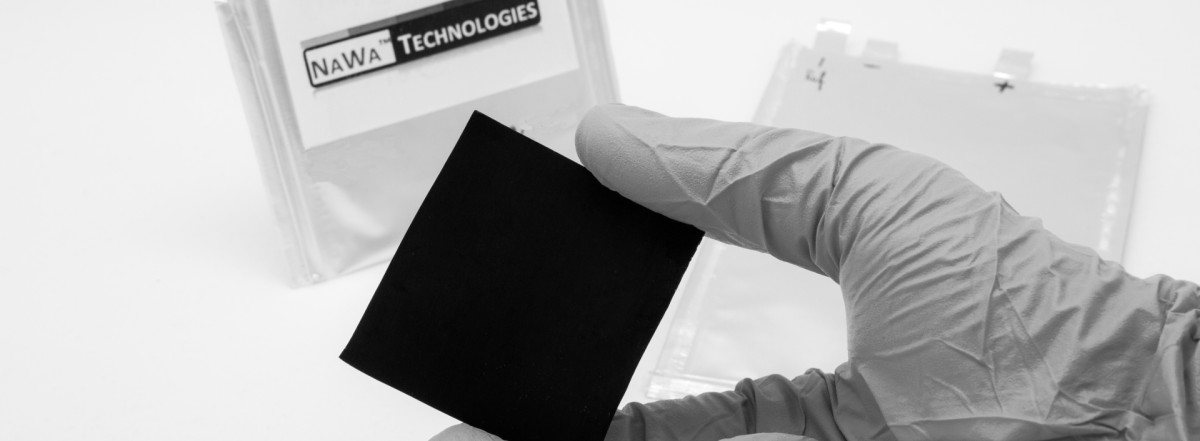

Nawa Technologies' core product is a new type of carbon ultra-capacitor with a set of remarkable advantages over typical lithium-ion battery cells.

Advantages of the Nawa carbon ultra-capacitor
Advantages of the Nawa carbon ultra-capacitor

Ultra-capacitor advantages

To start with, as a capacitor, its charge and discharge rates are absolutely spectacular compared with batteries – up to 1,000 times faster. We're talking about charging an entire car battery in a matter of seconds, maybe three times quicker than filling a tank with fossil fuel.

And since there's no chemical reaction taking place, merely a physical separation of protons and electrons, super-fast charging doesn't cause any heat build-up or swelling of the battery. That gives the carbon ultra-capacitor an exceptionally long lifetime, up to a million charge cycles.

The ultra-capacitor's monster discharge rate also offers another advantage over lithium batteries. In high-powered EVs, the slow discharge rate of the batteries often means you need to up battery capacity in order to add performance. The Tesla Model S, for example, wouldn't be able to activate its Ludicrous speed mode with a smaller battery pack, because the slow discharge rates of the batteries would cause a power bottleneck. That's absolutely not a problem with an ultra-capacitor; these things discharge fast enough to output enormous power with a very small battery.

It's also very cheap and simple to manufacture, using a process that Nawa Founder and COO Pascal Boulanger describes to us over the phone as "the same process used to create photovoltaic panels. It's industry proven, highly efficient and cost effective."

But these remarkable advantages are not the key driver for Boulanger. He believes the carbon ultra-capacitor's environmental benefits are its biggest calling card.

"For me, the dream comes from the fact that we're not using lithium, cobalt, rare earth metals," says Boulanger. "These materials are polluting, and very complicated to extract from the Earth. We're moving from a society where we extract oil to put in the car, to the same theme, but extracting metals and minerals to put in electric cars. It's not good, because we're destroying our planet.

"Nawa's ultra-capacitors only use carbon and aluminum. Our carbon comes from natural, sustainable sources. We don't need to mine. When I created Nawa, that was what I wanted to promote: a real, sustainable way. That's the dream. Building safer and cleaner batteries."

Could you run a vehicle completely on Nawa's carbon technology? Yes, says Nawa CEO Ulrik Grape.

"People looking for small cars that are used mainly for small drives, like around city centers, our technology would be perfect," Grape says. "You can do 50 to 100 kilometers (31 to 62 mi) on our technology alone, and you can recharge the car in less than 10 or 20 seconds. It's perfect for a fleet of electric cars for sharing."

But this ultra-capacitor technology does have drawbacks.

Nawa's ultra-capacitors charge up to 1,000 times faster than a lithium battery, last up to a million cycles and run rings around lithium batteries for power density
Nawa's ultra-capacitors charge up to 1,000 times faster than a lithium battery, last up to a million cycles and run rings around lithium batteries for power density

Drawbacks and the hybrid solution

For starters, while power density (the amount of power output per unit of weight) is off the charts, energy density doesn't compete with lithium. An ultra-capacitor will only hold about 25 percent of the energy per unit of weight that a lithium battery can manage, so a car battery with the same sized ultra-capacitor would have only a quarter the range.

Secondly, capacitors suck at long-term energy storage. Leave your car charged up in your garage, and you could expect to leak around 10-20 percent of your energy out each day.

The Nawa team believes that the full potential of the ultra-capacitor, at least in the EV space, becomes unlocked when it's combined with a lithium battery.

A hybrid lithium/carbon battery system could offer the best of both worlds – long-range continuous driving and long-term power storage thanks to the lithium unit, plus ultra-fast partial charging and extreme power output thanks to the ultra-capacitor.

This kind of hybrid system has another hidden advantage: regenerative braking would become about 450 percent better at recouping energy. Current re-gen systems are forced to throw away the vast majority of energy generated back through the wheels under braking simply because lithium charges so slowly that there's nowhere to put it all.

"Most of the energy in regenerative braking is lost as heat, maybe 80 percent," says Grape. "Perhaps 20 percent is recouped. The electric motors are very efficient at generating that power, but the battery just can't accept the charge rate. If you combine our technology with the lithium battery, we can accept up to 90 percent of that energy."

In a regular driving situation, that could handily extend your battery range. In an electric race car, this kind of system would be even more effective, storing almost all of your braking energy coming into a corner, and then pumping it back out at a massive rate for huge acceleration out of the turn.

"For example, let's take Formula E racing," says Grape. "If you look at the batteries they have on those cars, we've done a simulation using data from a co-operation partner of ours, and we've analyzed it. When you combine our technology with the lithium battery, we could reduce the size and weight of the battery pack from 300 kg (661 lb) to about 200 kg (441 lb) – and you'd have a longer driving distance as well, because we're much more efficient."

We're fairly sure we don't need to point out what an enormous advantage a 100-kg (220-lb) weight saving would be in a racing application; it would significantly extend your range and acceleration figures, while adding the extra power of that enormous discharge rate.

The advantages could also carry over into electric trucking applications.

"There's so much energy there to be harvested when a truck is going downhill or braking, and the energy recovery systems on those vehicles just can't handle all the energy that's coming back," says Grape.

Other applications Nawa is exploring include industrial tools and vehicles, automated inventory robots, buses, trucks and public transport, and power tools
Other applications Nawa is exploring include industrial tools and vehicles, automated inventory robots, buses, trucks and public transport, and power tools

Other applications

There are plenty of other places a carbon ultra-capacitor could come in handy. Nawa is working with industrial power tool manufacturers who see the ultra-fast-charging capabilities and long cycle lives as opportunities to build longer-life tools for production line use that would charge in seconds between jobs. Then there's factory and warehouse robots.

"We have a project where we're working on AGV solutions – Automatic Guided Vehicles like you might see in warehouses," says Grape. "These small, robot things that are running about picking up packages and moving them around. You can think of companies like Amazon, large warehouses. We're working on a project with a European AGV manufacturer to demonstrate this in that kind of an application."

The carbon ultra-capacitors might find uses in an Internet of Things type application as well.

"In the IoT domain, people are talking about battery-free sensors," says Boulanger. "You have an energy source inside the sensors, and the sensors need to take some kind of measurement, then transmit the information. You need a very short buffer. Our technology is absolutely fantastic for that."

And back in the automotive world, there are no limits on how you might charge these things, opening up some interesting ideas for inductive charging. Imagine simply driving your car over a surface at a charge station, paying for a top-up and driving away 10-20 seconds later. The range of an electric car would become almost irrelevant if you could charge it so quickly.

"If you want to take that a little further, you could imagine having ultra-capacitors buried under the road surface," says Grape. "And when a bus passes over, it could charge very rapidly. And the ultra-capacitor itself could charge more slowly off the grid while the next bus is coming."

Nawa is at the prototype stage right now, but claims it'll have full scale production online by the second half of 2019
Nawa is at the prototype stage right now, but claims it'll have full scale production online by the second half of 2019

Another key benefit: structural batteries

One final thing we haven't yet touched on is the outstanding mechanical properties of the carbon ultra-capacitor. It's lightweight and super-strong, opening up the opportunity to build ultra-capacitors into the very structure of an item in ways lithium simply can't be used.

"We had a project with Airbus where we tested our technology to see how it would act from a mechanical point of view and for storage," says Boulanger. "We can integrate a battery into any carbon fiber structure."

"The mechanical property of our electrode is very, very strong, adds Grape. "It can be used to enforce the mechanical structure of a composite. You can integrate the battery into the shell of a car. The chassis, the doors, the roof, wherever you like."

Indeed, the idea of a vehicle with no discrete battery unit to speak of is very much possible.

Nawa is currently testing and working with prototype units, but the team says by the second half of 2019, the company will have a full-scale production line in operation not far from Marseilles. The potential of these super-fast carbon ultra-capacitors sounds terrific. We look forward to seeing Nawa's technology tested in earnest.

Source: Nawa Technologies

View gallery - 6 images
