Pinarello and Jaguar create soft-riding road bike

By Scott Collie
April 06, 2015
Pinarello and Jaguar create soft-riding road bike
The suspension system adds just 95 grams (3.4 oz) to the weight of the bike
The suspension system adds just 95 grams (3.4 oz) to the weight of the bike
View 8 Images

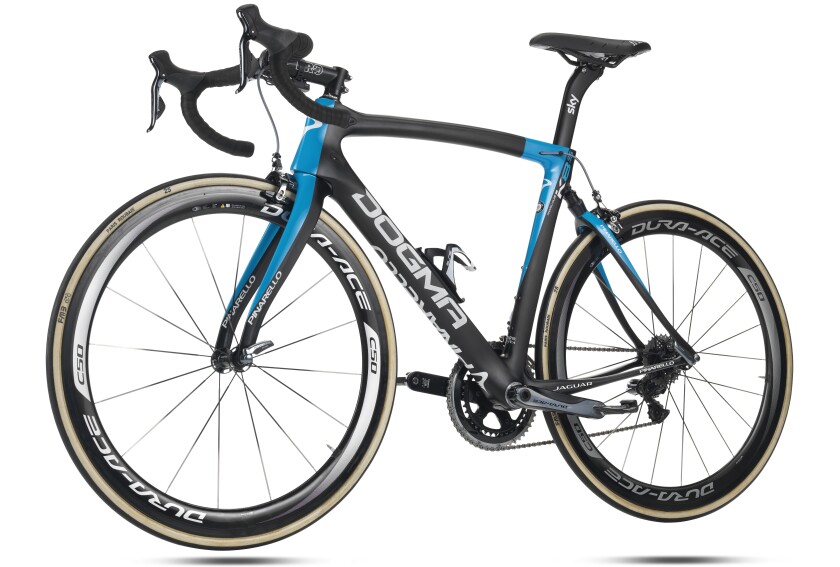

Team Sky's latest bike was designed by Jaguar and Pinarello
1/8
Team Sky's latest bike was designed by Jaguar and Pinarello
The Dogma's suspension system has been designed to provide a comfy ride over rough terrain, such as cobblestones
2/8
The Dogma's suspension system has been designed to provide a comfy ride over rough terrain, such as cobblestones
Pinarello is claiming a 50 percent increase in rider comfort
3/8
Pinarello is claiming a 50 percent increase in rider comfort
Team Sky testing out its new rides
4/8
Team Sky testing out its new rides
Jaguar and Pinarello have teamed up to create bikes before
5/8
Jaguar and Pinarello have teamed up to create bikes before
The Dogma K8-S takes advantage of flexible flat carbon chainstays
6/8
The Dogma K8-S takes advantage of flexible flat carbon chainstays
A full breakdown of the design details on the new Dogma K8-S
7/8
A full breakdown of the design details on the new Dogma K8-S
The suspension system adds just 95 grams (3.4 oz) to the weight of the bike
8/8
The suspension system adds just 95 grams (3.4 oz) to the weight of the bike
View gallery - 8 images

Jaguar and Pinarello have struck up a properly productive partnership in the last few years – the two brands combined to create Pinarello's Tour de France bike in 2014, while Jaguar modified its F-Type Coupe to act as a support car for the Pinarello-backed Team Sky. The most recent collaboration between the two brands has led to the Pinarello Dogma K8-S, which has been engineered to provide Team Sky’s cyclists with a smooth ride across rough terrain.

Pinarello has taken advantage of Jaguar's expertise in dealing with vibrations to engineer the bike's new rear suspension system. It utilizes flexible flat carbon fiber chainstays and an elastomer shock to provide a total of 10 mm of rear wheel travel.

This setup is designed to provide a more comfortable ride for cyclists pedaling across challenging terrain, such as cobblestones. According to Jaguar, the result is a 50-percent reduction in road vibration transmission as compared to the bicycle's predecessor, the Dogma K.

Despite the new suspension system, however, the Dogma K8-S' frame is still incredibly light, weighing in at just 900 grams (2 lb). It also retains the Dogma K's carefully-considered aerodynamics.

The Dogma K8-S takes advantage of flexible flat carbon chainstays
The Dogma K8-S takes advantage of flexible flat carbon chainstays

"From the moment you get on it, you realize the difference, especially on the cobbles" said Team Sky's Bradley Wiggins. "I've never ridden anything like it on cobbles before, which is the most extreme terrain you can ride a bike on."

Team Sky’s riders debuted Pinarello and Jaguar’s latest creation at the Tour of Flanders, which took place on April 5th.

More information on the technology is available in the following video.

Source: Jaguar
