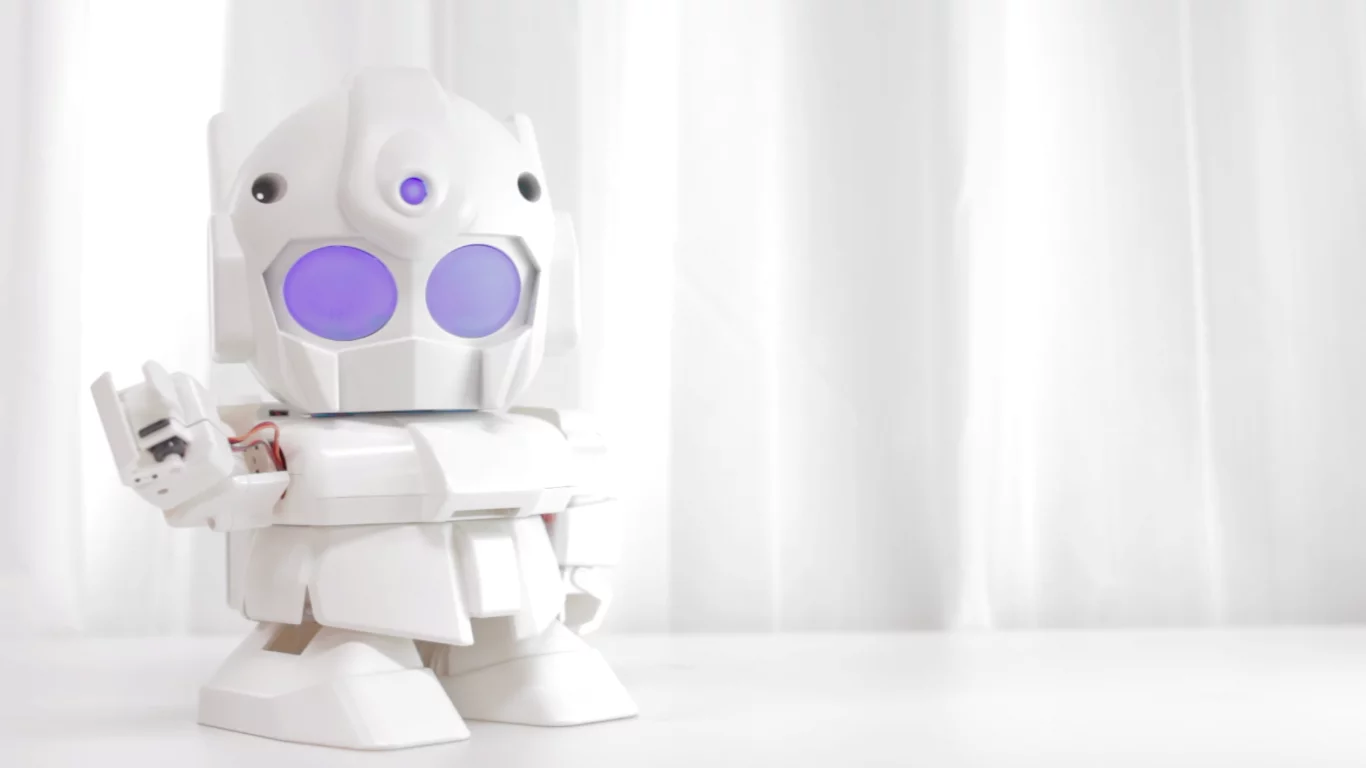

At US$354, RAPIRO is a fraction the cost of other hobby robot kits
At US$354, RAPIRO is a fraction the cost of other hobby robot kits
View 16 Images

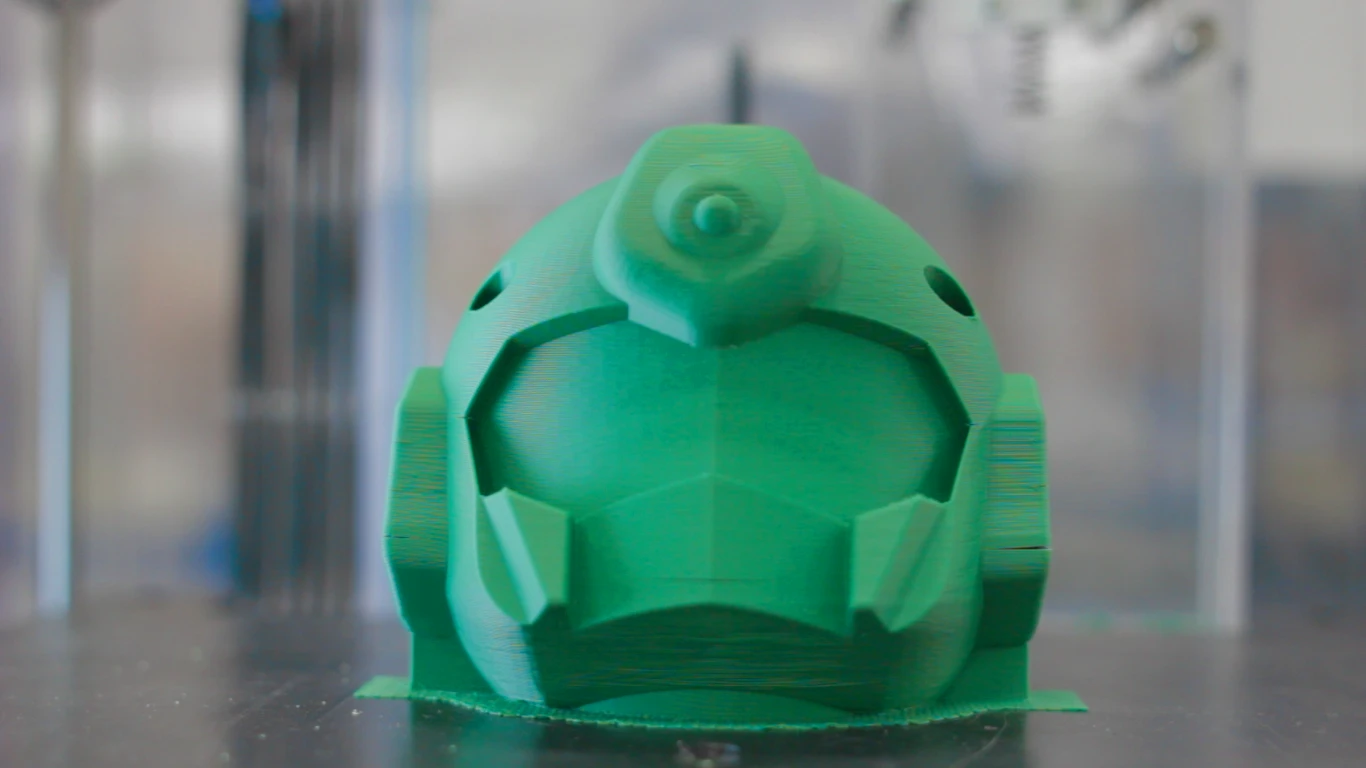

Shota Ishawatari designed CAD files for RAPIRO himself and had them 3D printed to fabricate the prototype
1/16
Shota Ishawatari designed CAD files for RAPIRO himself and had them 3D printed to fabricate the prototype

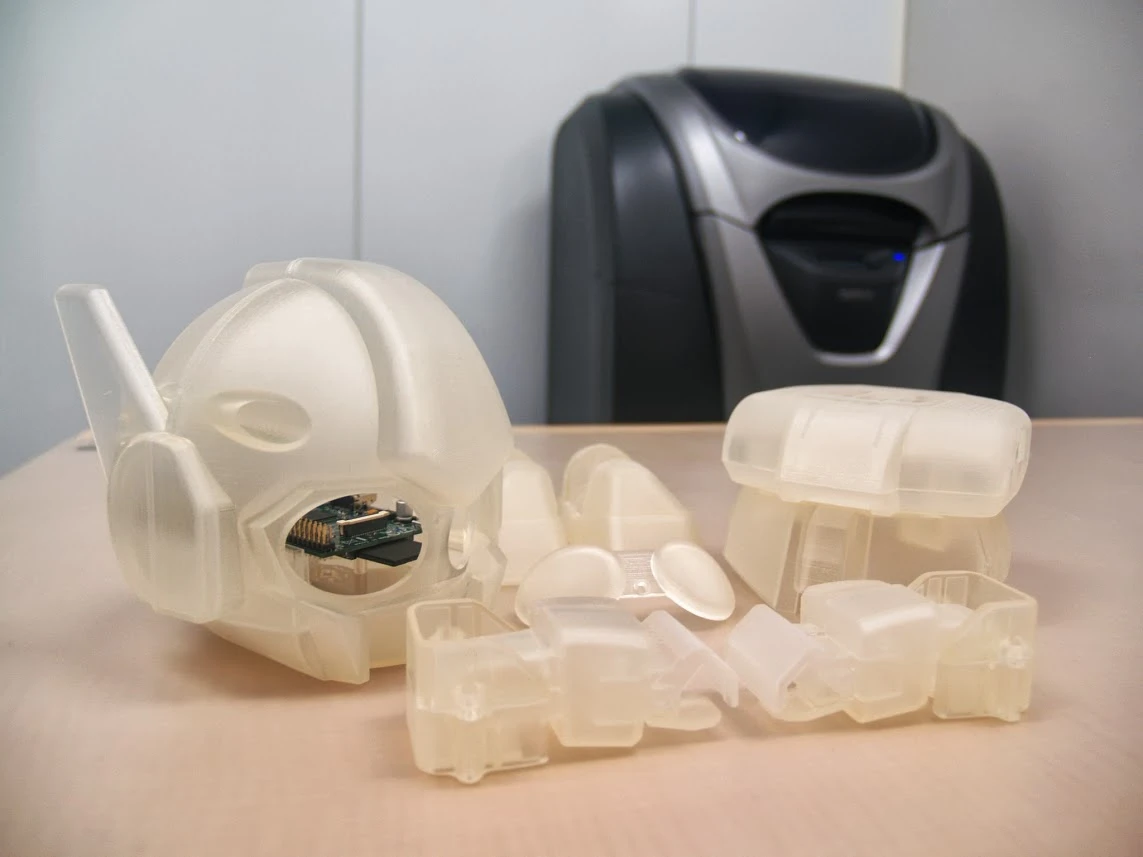

Once the initial prototype was tested for a proper fit, RAPIRO's exoskeleton was output by a high quality professional 3D printer
2/16
Once the initial prototype was tested for a proper fit, RAPIRO's exoskeleton was output by a high quality professional 3D printer

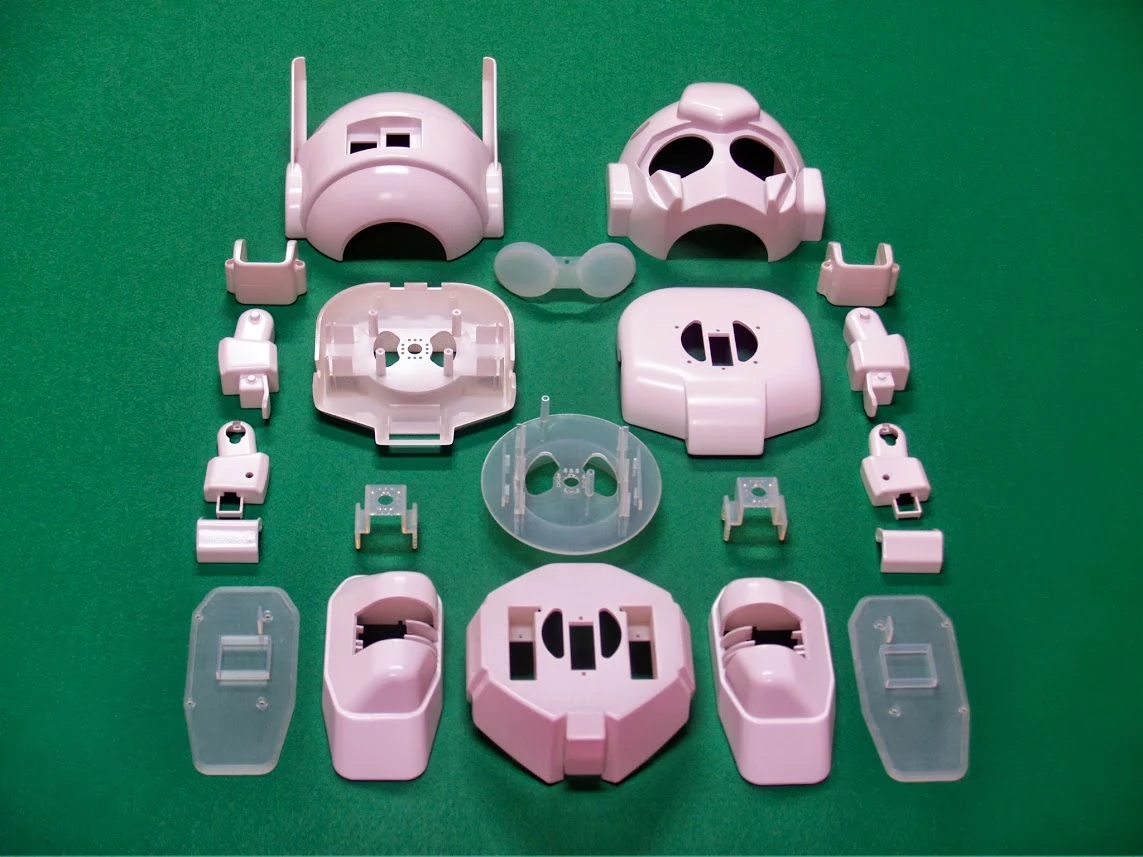

RAPIRO's exoskeleton contains translucent parts such as the eyes, which can light up with RGB LEDs
3/16
RAPIRO's exoskeleton contains translucent parts such as the eyes, which can light up with RGB LEDs

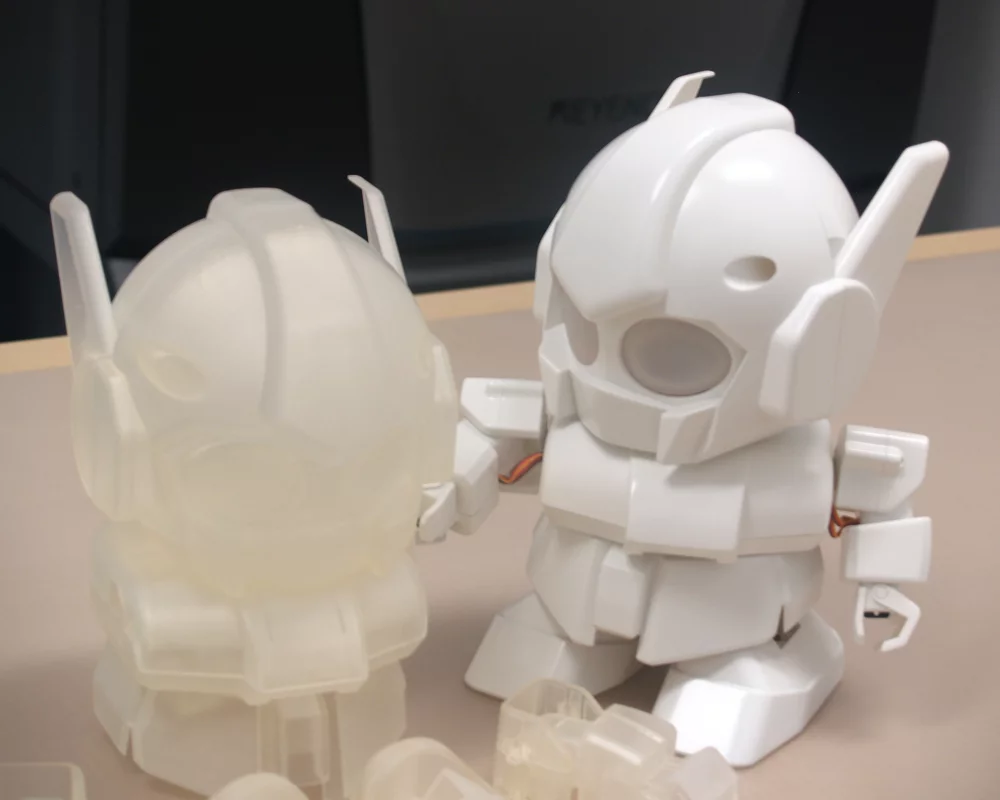

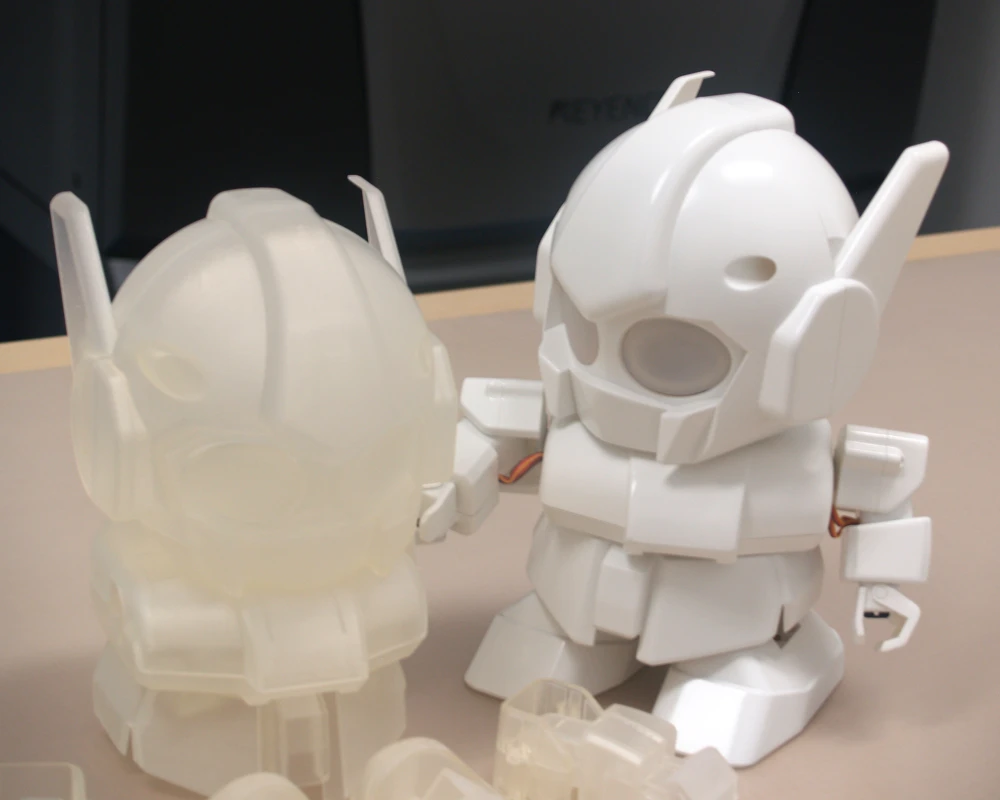

RAPIRO's exoskeleton will be mass-produced using high quality injection molded plastic parts
4/16
RAPIRO's exoskeleton will be mass-produced using high quality injection molded plastic parts

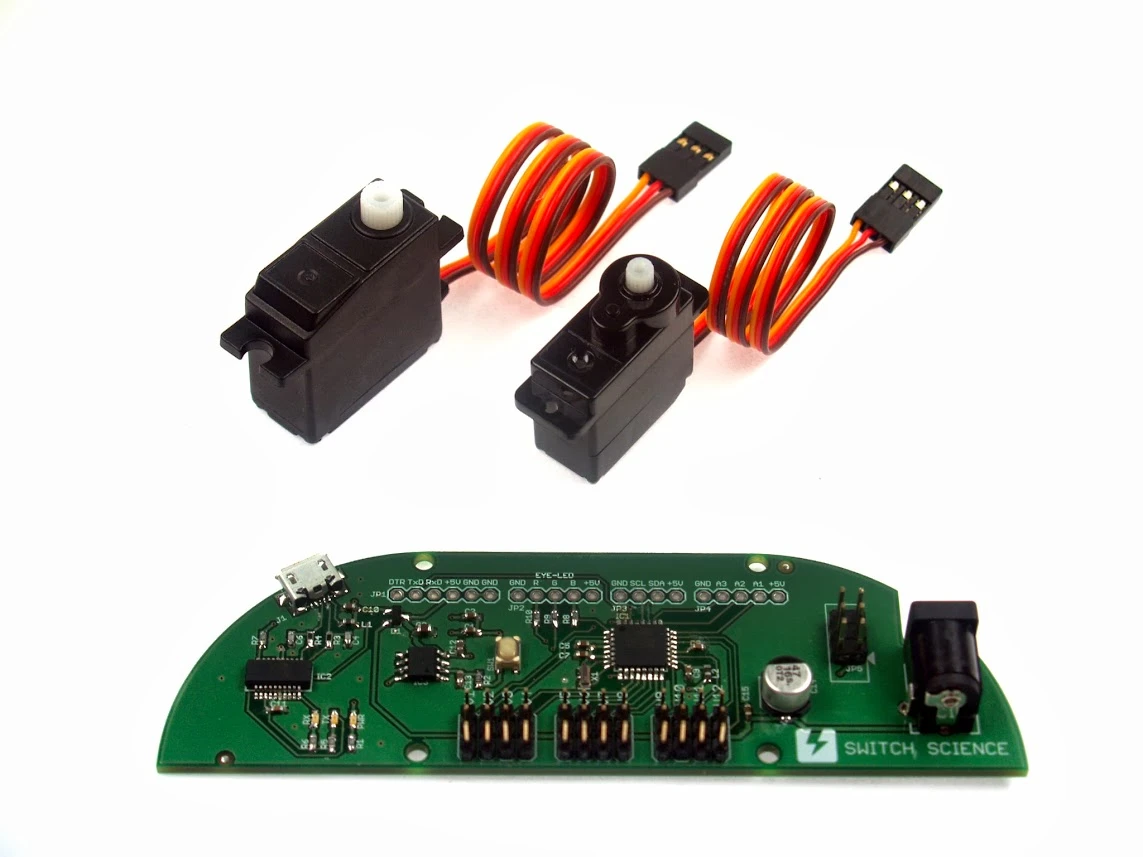

RAPIRO comes with servos of two sizes (torque: 2.5 kgf-cm and 1.5 kgf-cm) and an Arduino-based control board
5/16
RAPIRO comes with servos of two sizes (torque: 2.5 kgf-cm and 1.5 kgf-cm) and an Arduino-based control board
Assembling RAPIRO doesn't require any soldering or expert know-how
6/16
Assembling RAPIRO doesn't require any soldering or expert know-how

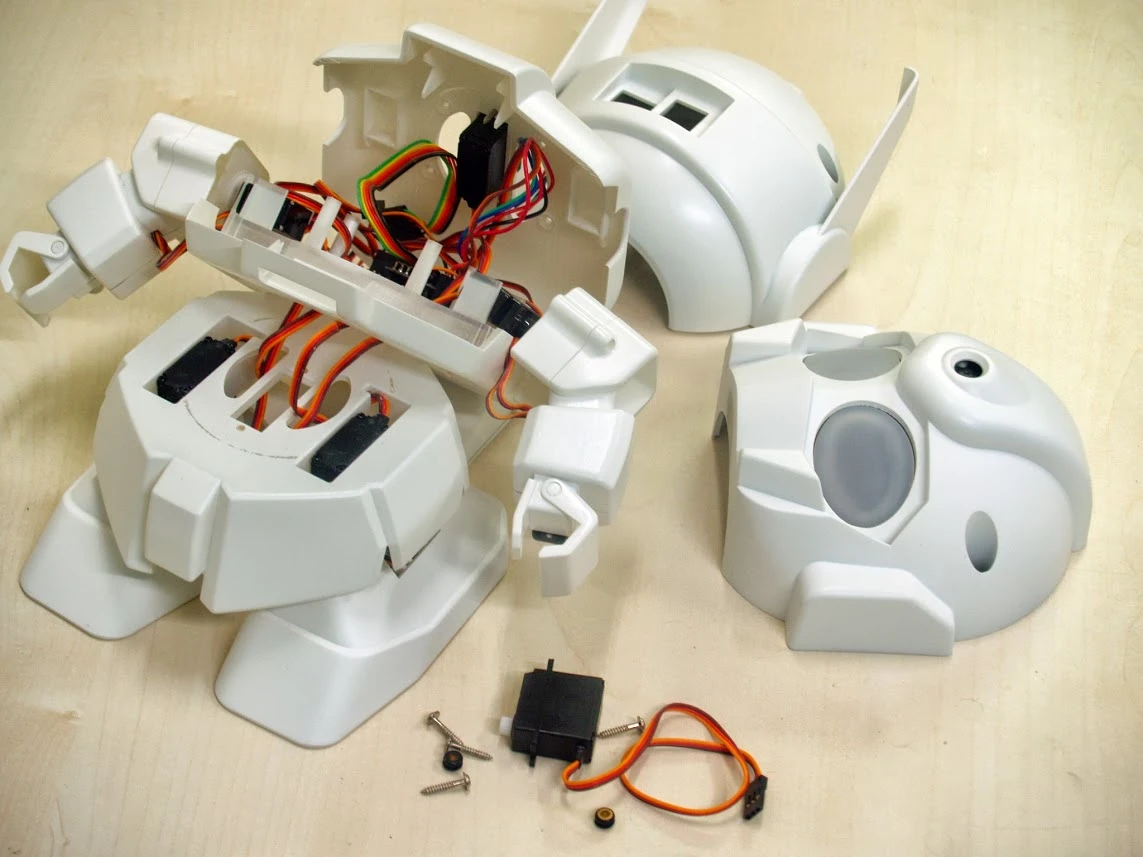

RAPIRO begins to come together
7/16
RAPIRO begins to come together

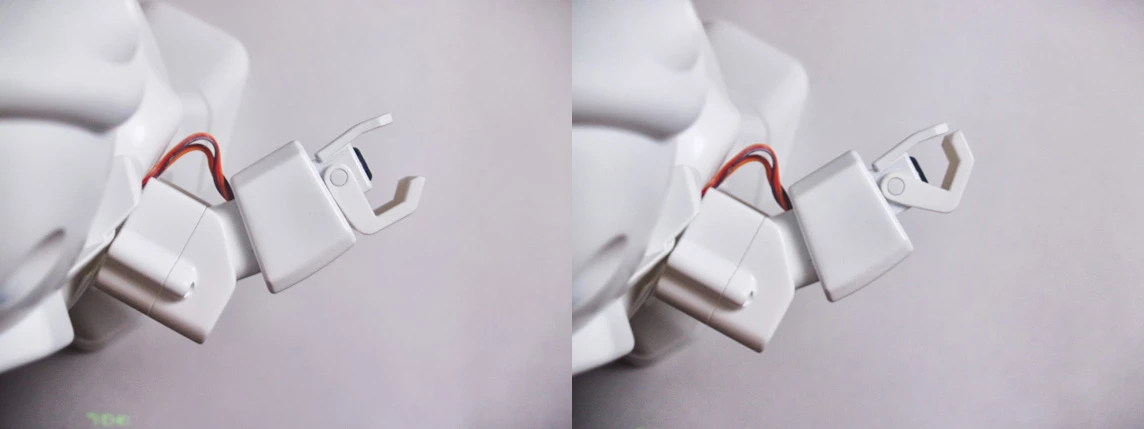

RAPIRO's gripper hands can open and close to grab light objects
8/16
RAPIRO's gripper hands can open and close to grab light objects

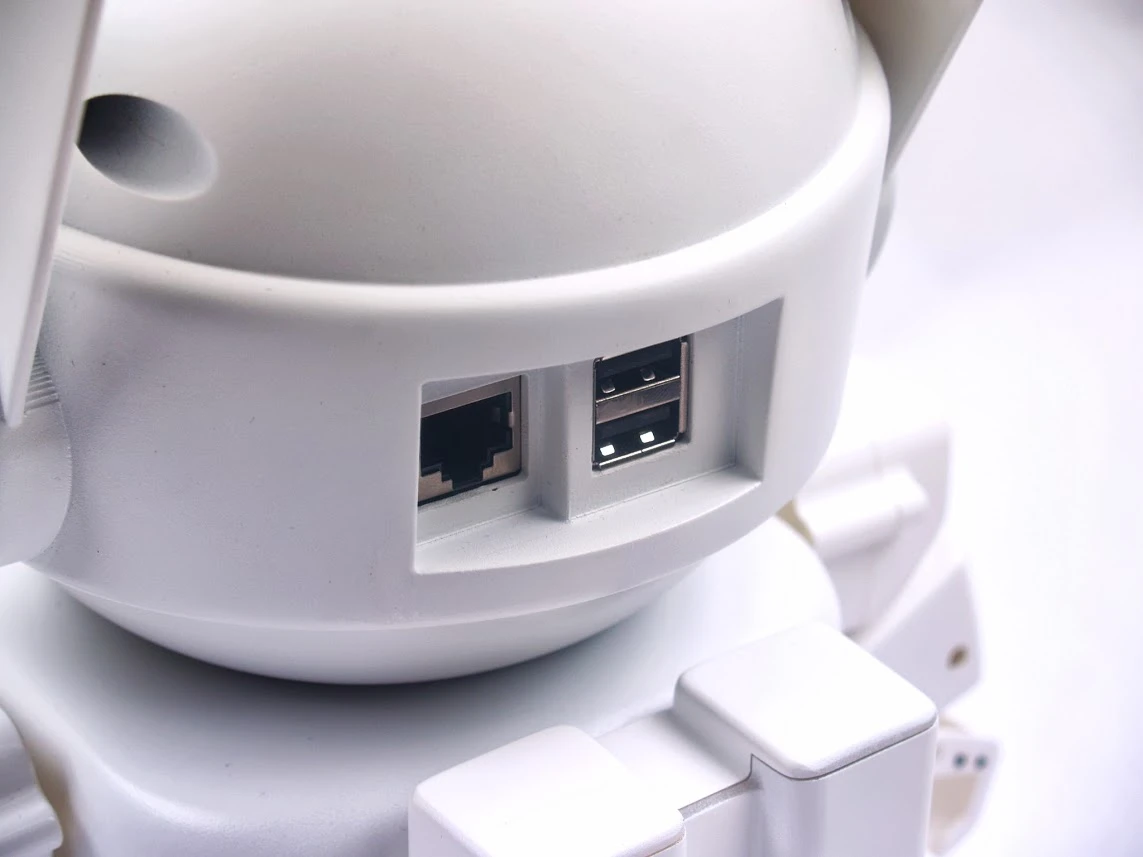

RAPIRO's head is designed with slots ready for USB and Ethernet cables
9/16
RAPIRO's head is designed with slots ready for USB and Ethernet cables

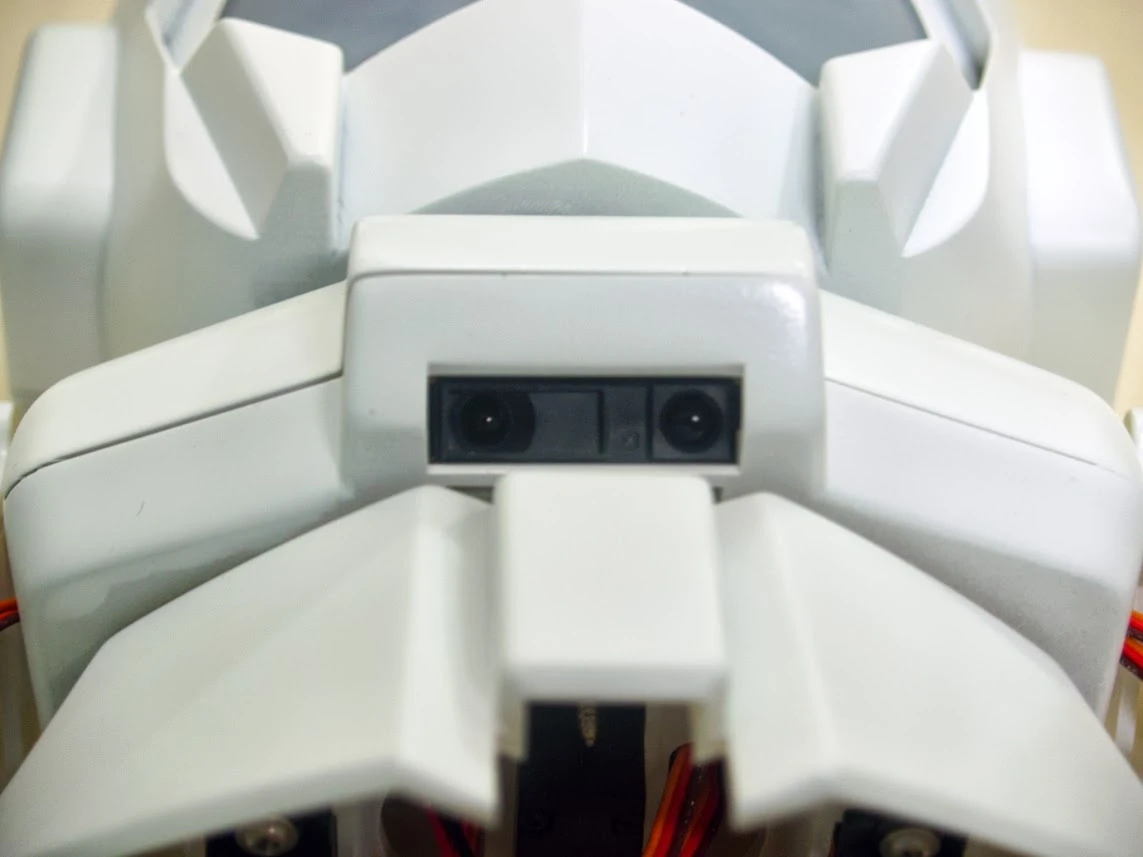

RAPIRO's belt can be fitted with a PSD distance sensor to avoid falling off of ledges (sensor sold separately)
10/16
RAPIRO's belt can be fitted with a PSD distance sensor to avoid falling off of ledges (sensor sold separately)

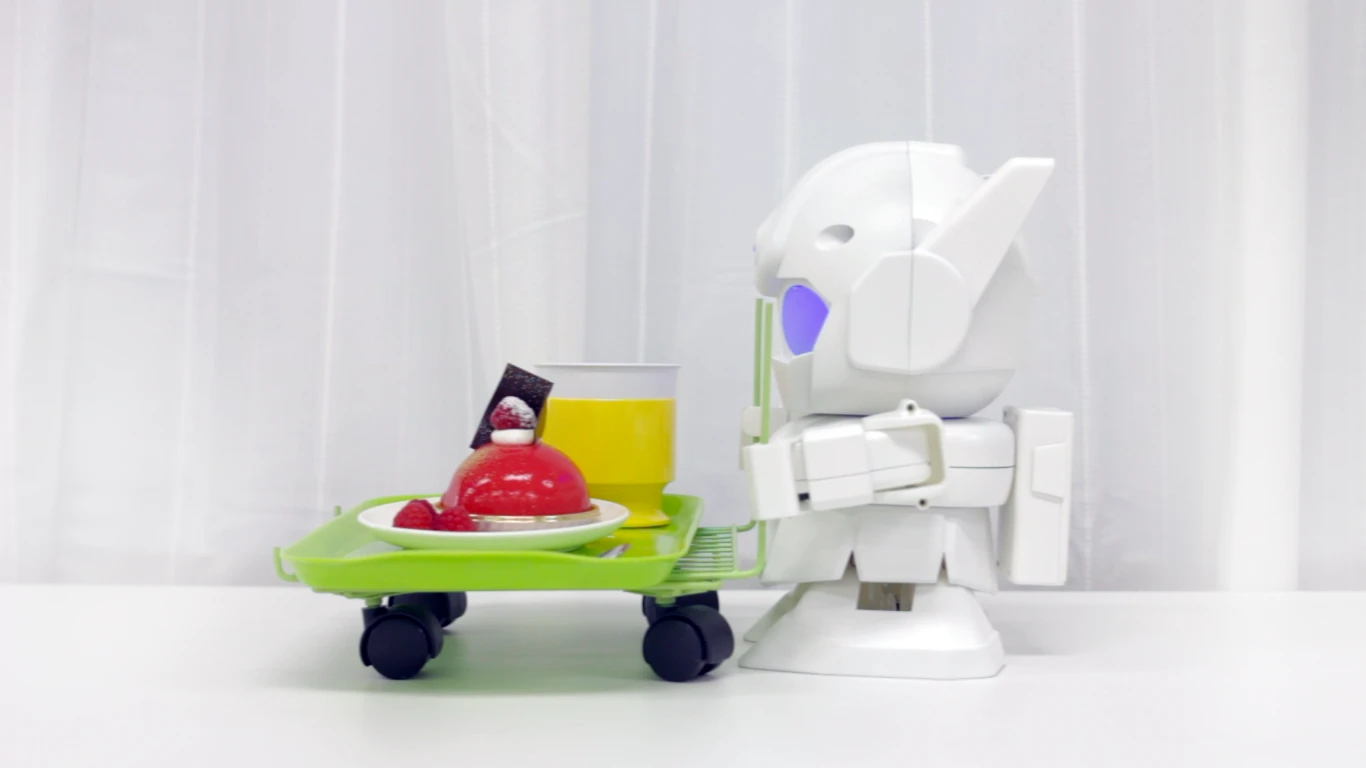

RAPIRO becomes a desktop butler, pushing a breakfast tray
11/16
RAPIRO becomes a desktop butler, pushing a breakfast tray

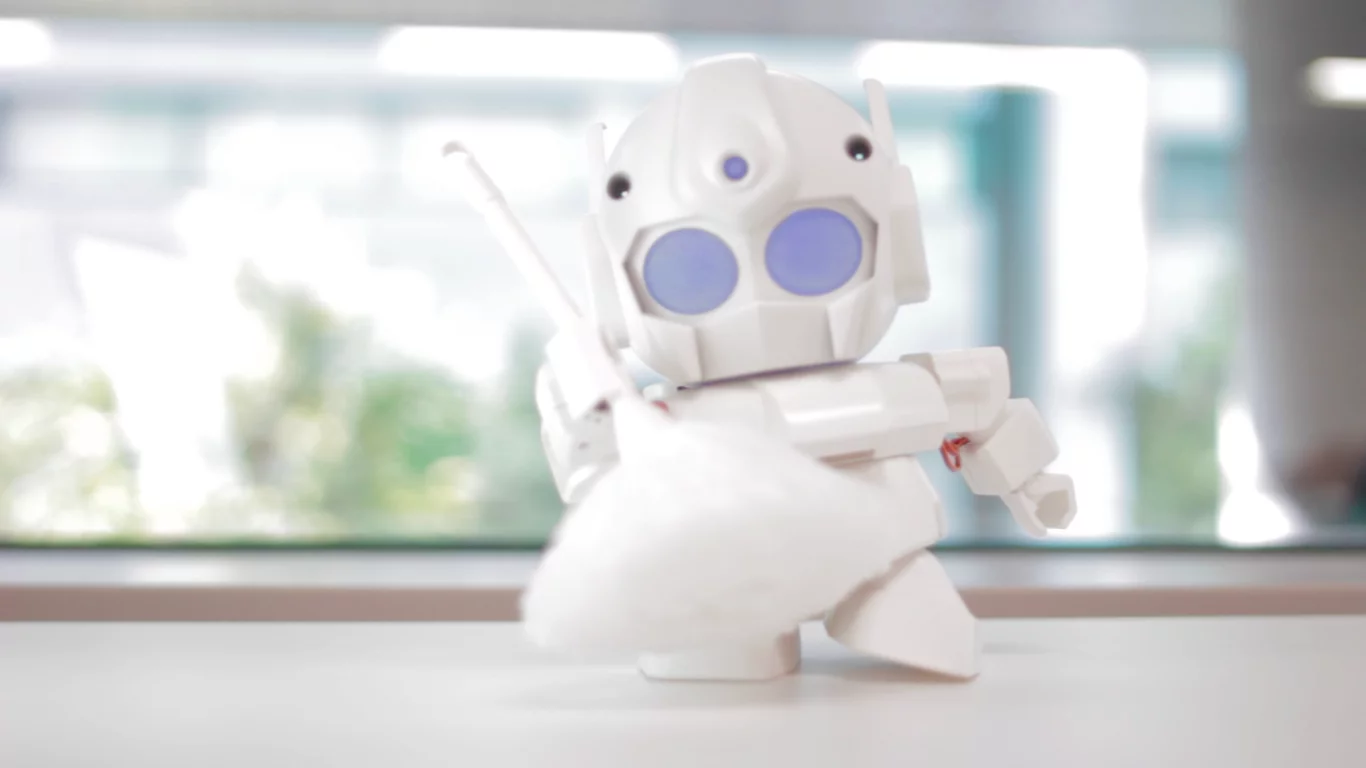

RAPIRO becomes a maid and dusts your desktop
12/16
RAPIRO becomes a maid and dusts your desktop

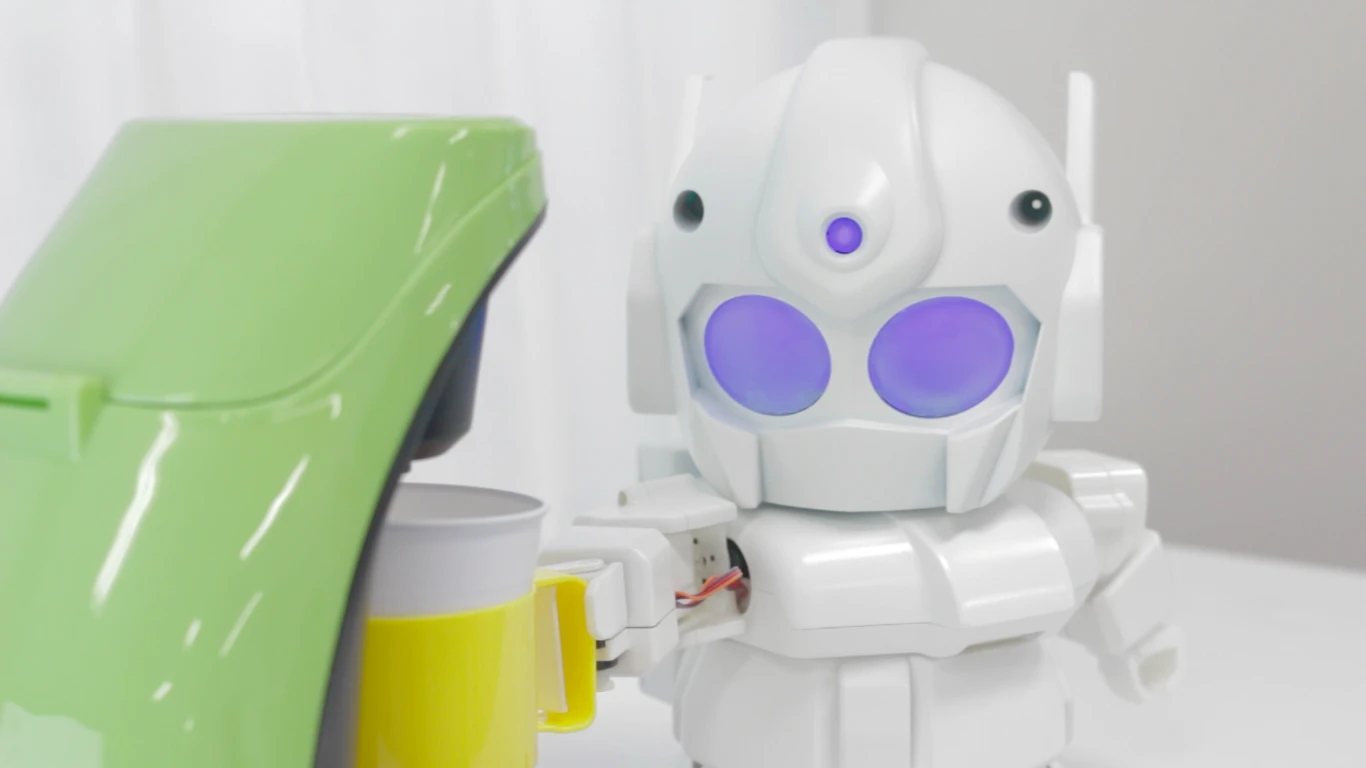

RAPIRO pushes your coffee mug into a coffee maker
13/16
RAPIRO pushes your coffee mug into a coffee maker

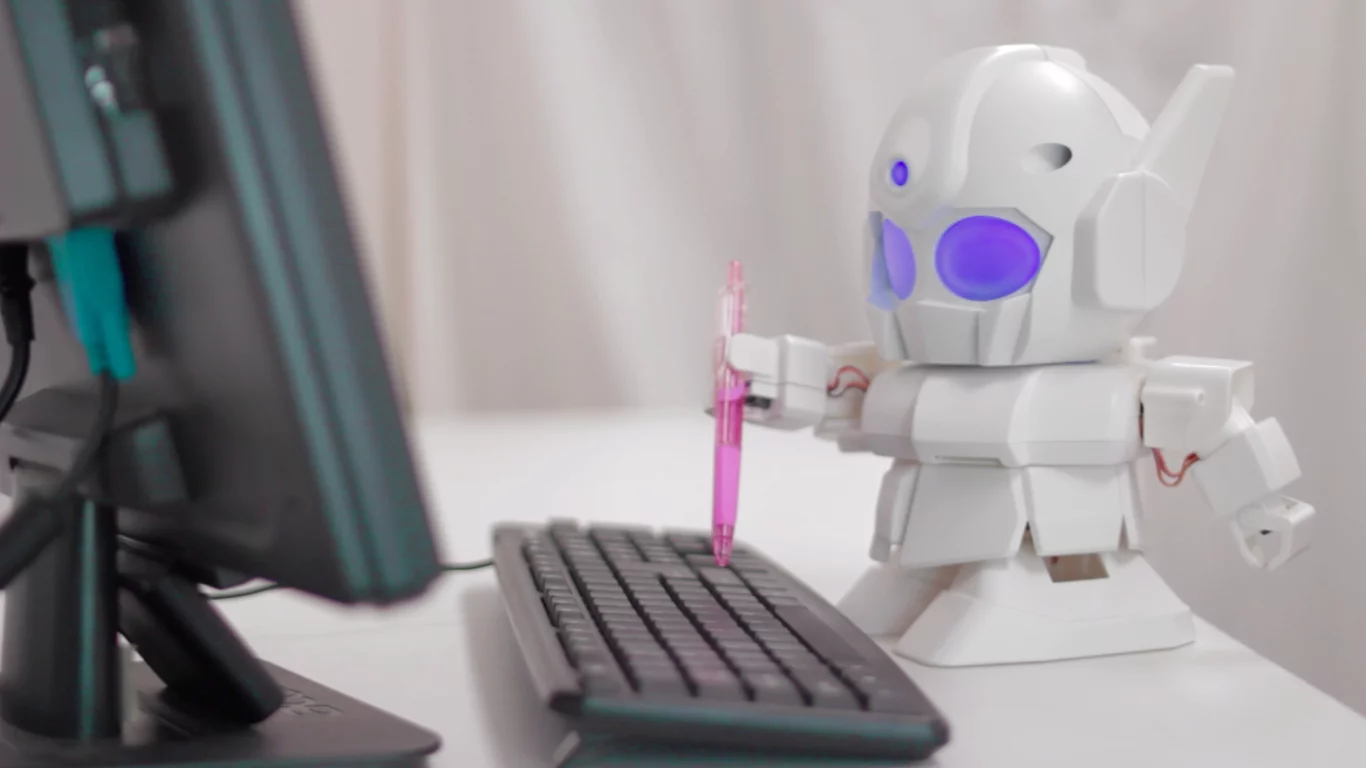

RAPIRO grabs a pen and types a message on a keyboard
14/16
RAPIRO grabs a pen and types a message on a keyboard

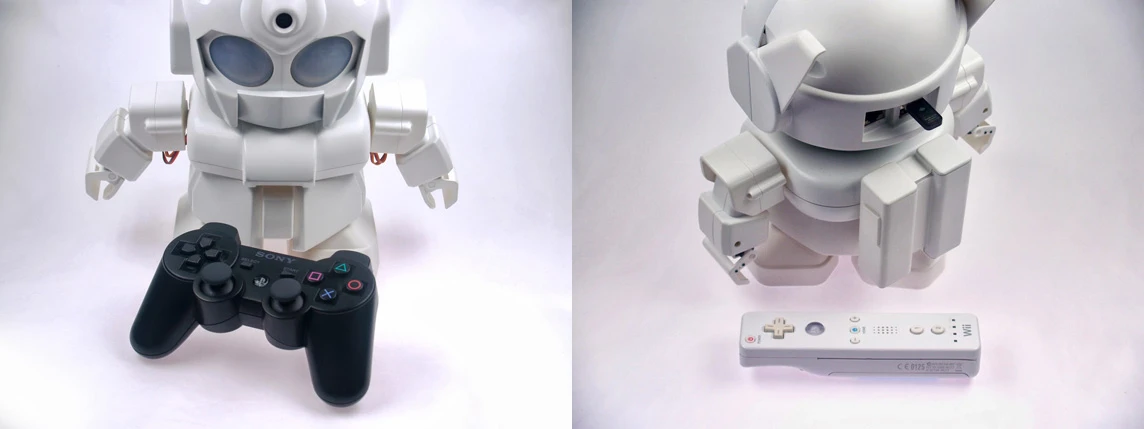

Developers can program the robot to function with common game controllers
15/16
Developers can program the robot to function with common game controllers

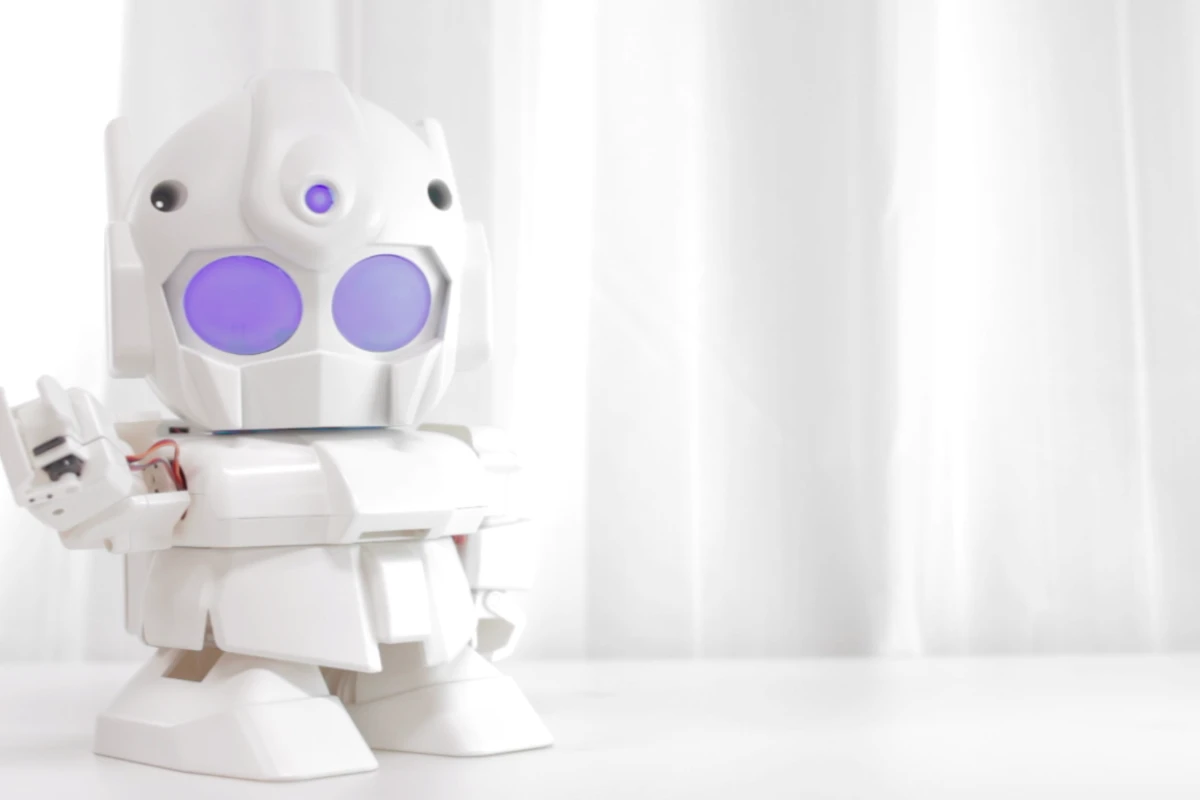

At US$354, RAPIRO is a fraction the cost of other hobby robot kits
16/16
At US$354, RAPIRO is a fraction the cost of other hobby robot kits
View gallery - 16 images

Have you been reading Gizmag's robot articles and ever thought you'd like to get your hands dirty with a robot of your own? Well, there's a Kickstarter for that. Shota Ishiwatari has just launched RAPIRO, his custom designed Raspberry Pi Robot. The robot is easy to assemble, and comes with RGB LEDs, 12 servos, and an Arduino-compatible servo control board. And the best part is it will only set you back £229 (US$354).

Shota isn't new to robotics. His fledgling company, Kiluck Corp., created a robot mascot for a Japanese television channel, and helped design those crazy robot cat ears we covered last year. Now he wants to bring the fun of robotics to as many people as he can with RAPIRO.

He designed the robot in CAD, and worked with JMC (a 3D printing bureau) to fabricate the prototype. Each of its 12 joints are powered by a small, inexpensive servo. They keep the cost down to a fraction of other hobby robots, but don't expect amazing performance out of them. That said, the robot can move its head, arms, open and close its gripper hands, and waddle around.

Its exoskeleton will be made from high quality injection molded parts, but if you want to change something about the robot you'll be able to. The robot's CAD file will be provided on the company's website so you can tinker with it to design and 3D print your own parts.

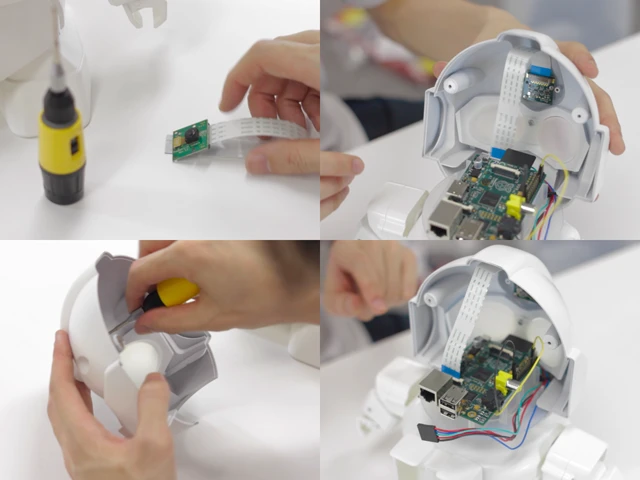

Assembling RAPIRO doesn't require any soldering or expert know-how
Assembling RAPIRO doesn't require any soldering or expert know-how

Of course, RAPIRO is designed to work with the Raspberry Pi and its camera module, but these aren't included with the kit. The Raspberry Pi is a tiny computer that runs Linux, and can be connected to a PC display, speakers, and USB devices like Wi-Fi and Bluetooth. Possible applications include Facebook or Twitter notifications, or game controller support.

The robot can also be outfitted with a PSD distance sensor and speakers, which must be purchased separately. The PSD sensor (which commonly runs at about $15) fits into a slot on the robot's chest and is pointed toward the ground. The distance data it provides could be used to stop the robot from falling off a ledge. These are just some of the potential uses for the robot, and hopefully the RAPIRO community will share more ideas.

Considering humanoid robot kits begin at about twice the asking price of the RAPIRO, it seems like a pretty good deal. Just be prepared to learn to do some of the programming work on your own!

You can watch the Kickstarter campaign video below, or head to Shota's YouTube channel to check out other videos. You can also follow its development on Facebook.

Sources: RAPIRO, Kickstarter
