Yamaha to launch YMR-01 multi-rotor drone in 2018

Yamaha to launch YMR-01 multi-rotor drone in 2018
Combining coaxial rotor technology with a lightweight carbon body, the YMR-01 can efficiently spray one hectare per flight
Combining coaxial rotor technology with a lightweight carbon body, the YMR-01 can efficiently spray one hectare per flight
View 8 Images

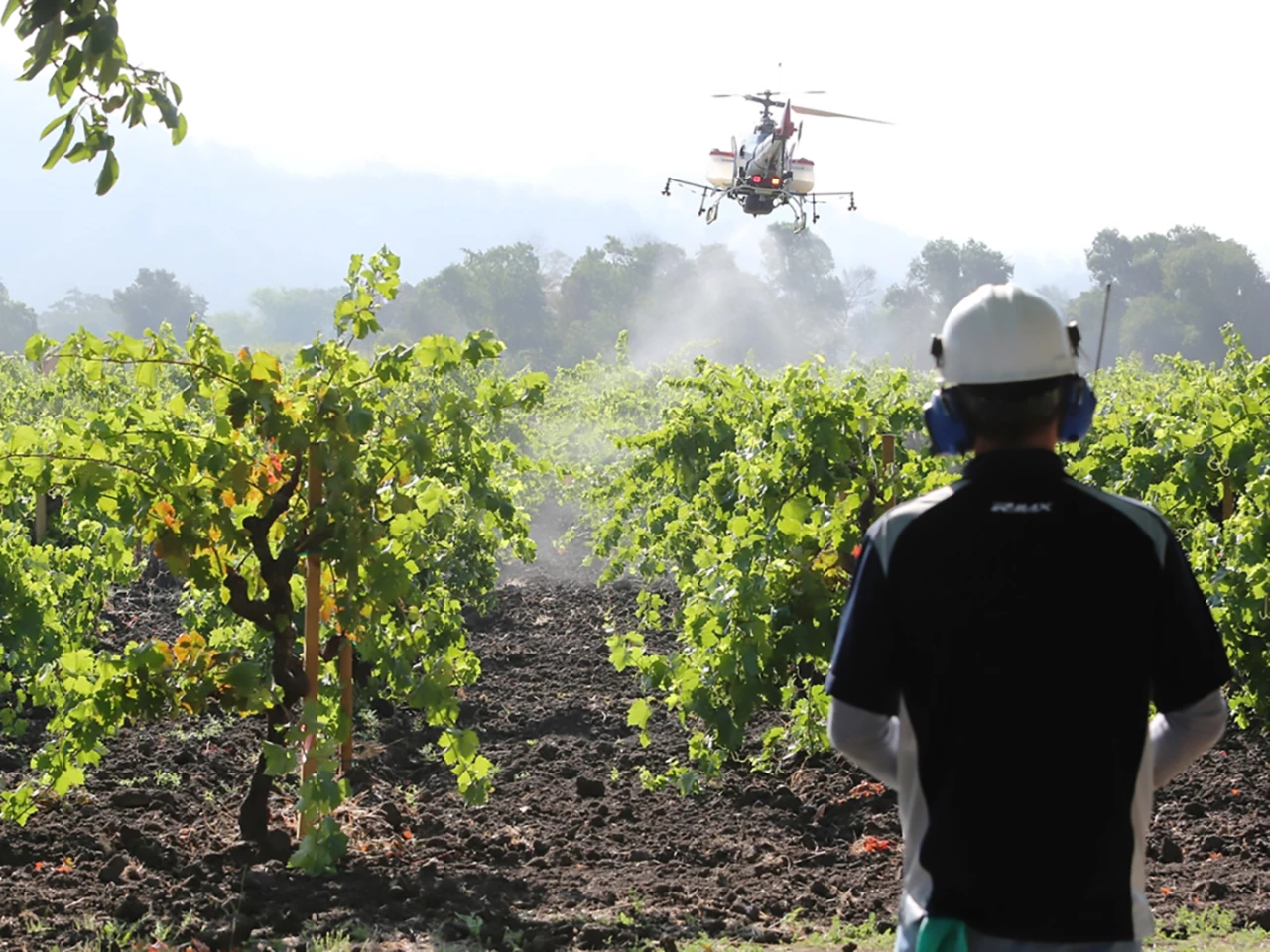

Yamaha's unmanned helicopters have now been engaged spraying agrochemicals since 1989, and Yamaha helicopters now spray more than 40 percent of the total rice paddy cultivation area in Japan
1/8
Yamaha's unmanned helicopters have now been engaged spraying agrochemicals since 1989, and Yamaha helicopters now spray more than 40 percent of the total rice paddy cultivation area in Japan

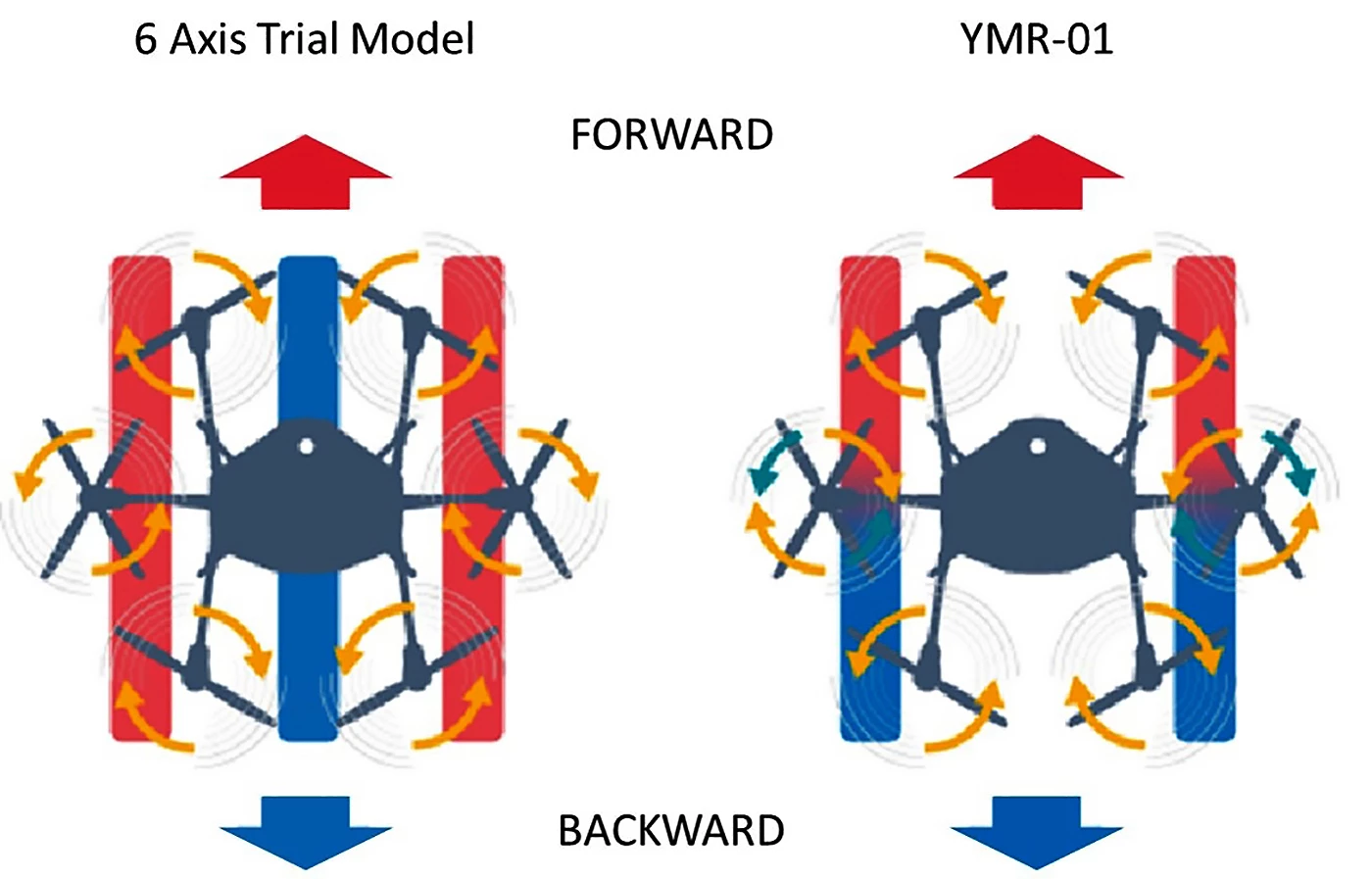

A comparison of a typical six-rotor layout in which opposite rotors counter-rotate and the Yamaha YMR-01. By adopting the “vertical coaxial” layout for two rotor axes (one each on the left and right), the YMR-01 creates a consistent downwash, enabling consistent spraying quality regardless of the direction of travel of the aircraft.
2/8
A comparison of a typical six-rotor layout in which opposite rotors counter-rotate and the Yamaha YMR-01. By adopting the “vertical coaxial” layout for two rotor axes (one each on the left and right), the YMR-01 creates a consistent downwash, enabling consistent spraying quality regardless of the direction of travel of the aircraft.
The dedicated transmitter for the 2018 Yamaha Water Strider unmanned boat. The Water Strider is 1.6 m in length, and is driven by the wind power generated from its 34 cc engine-driven propeller.
3/8
The dedicated transmitter for the 2018 Yamaha Water Strider  unmanned boat. The Water Strider is 1.6 m in length, and is driven by the wind power generated from its 34 cc engine-driven propeller.

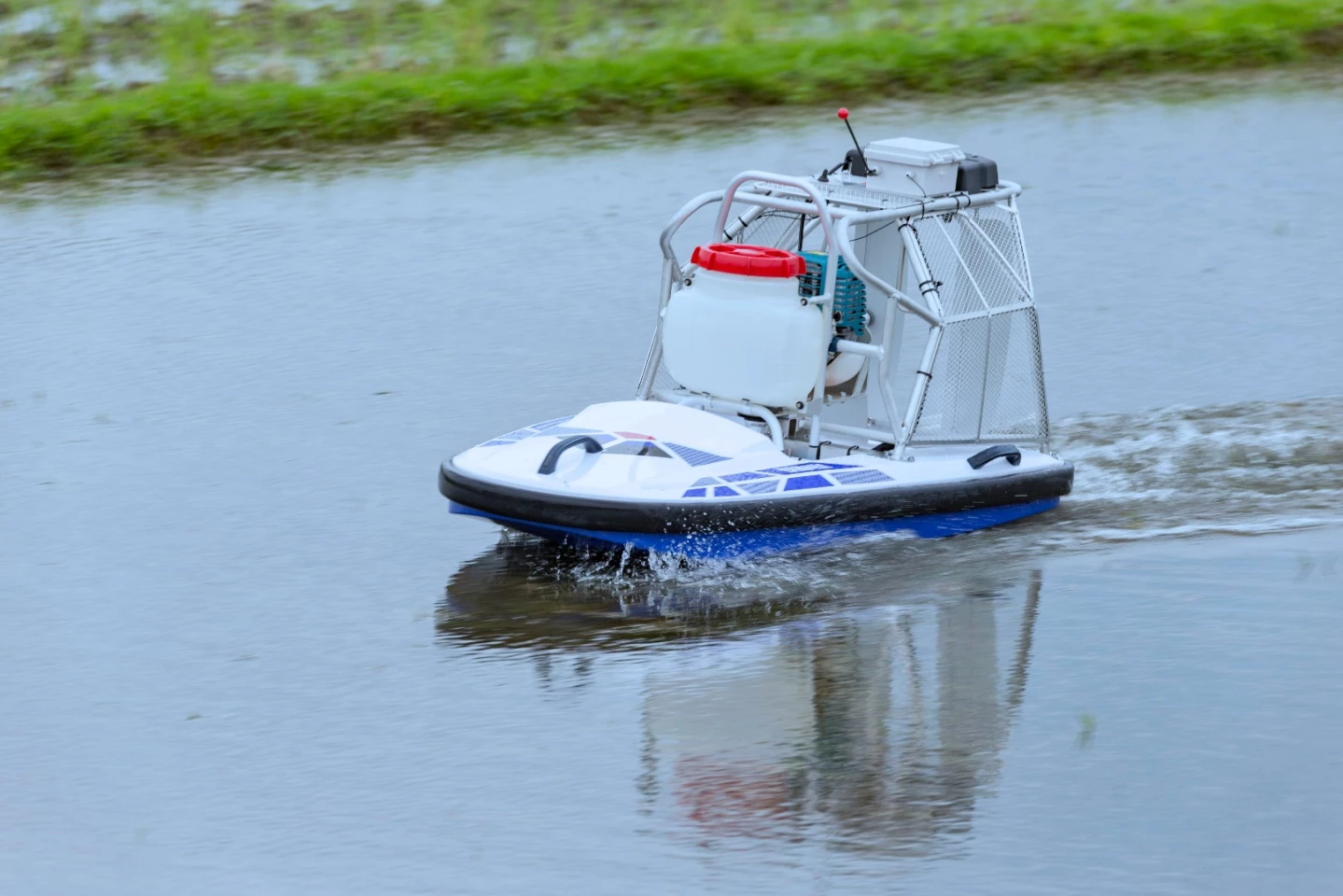

The 2018 Yamaha Water Strider unmanned boat is built specifically for remotely controlled herbicide spraying in rice paddies and includes a gyroscope and a revised chemical discharge volume valve (2-stage to 3-stage) in comparison to the 2017 model
4/8
The 2018 Yamaha Water Strider  unmanned boat is built specifically for remotely controlled herbicide spraying in rice paddies and includes a gyroscope and a revised chemical discharge volume valve (2-stage to 3-stage) in comparison to the 2017 model
The new turn-assist function on Yamaha's Fazer Unmanned helicopter
5/8
The new turn-assist function on Yamaha's Fazer Unmanned helicopter

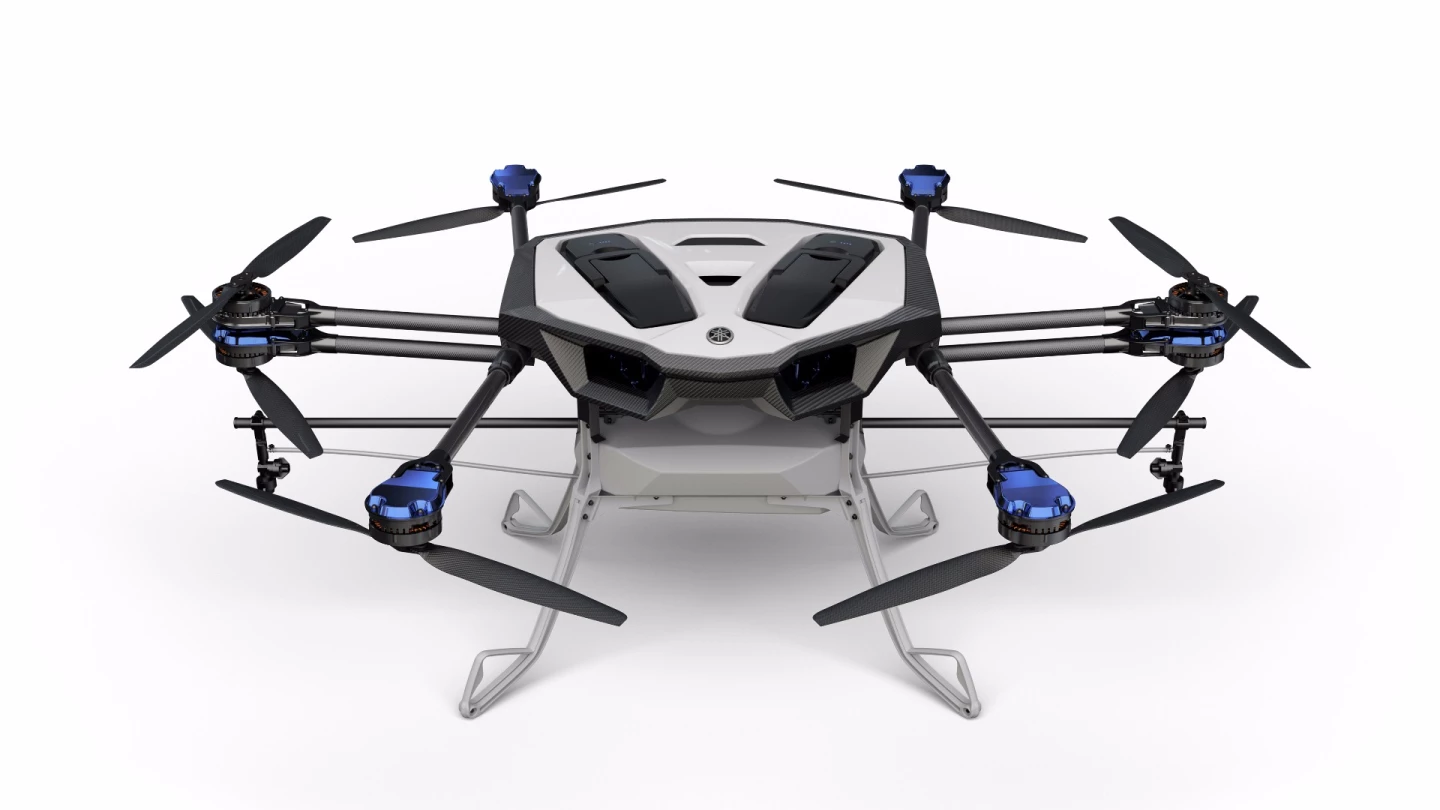

Yamaha will exhibit the YMR-01 prototype industrial multi-rotor drone at the 4th Next Generation Agriculture Expo Tokyo from October 11 to 13, 2017
6/8
Yamaha will exhibit the YMR-01 prototype industrial multi-rotor drone at the 4th Next Generation Agriculture Expo Tokyo from October 11 to 13, 2017
Combining coaxial rotor technology with a lightweight carbon body, the YMR-01 can efficiently spray one hectare per flight
7/8
Combining coaxial rotor technology with a lightweight carbon body, the YMR-01 can efficiently spray one hectare per flight

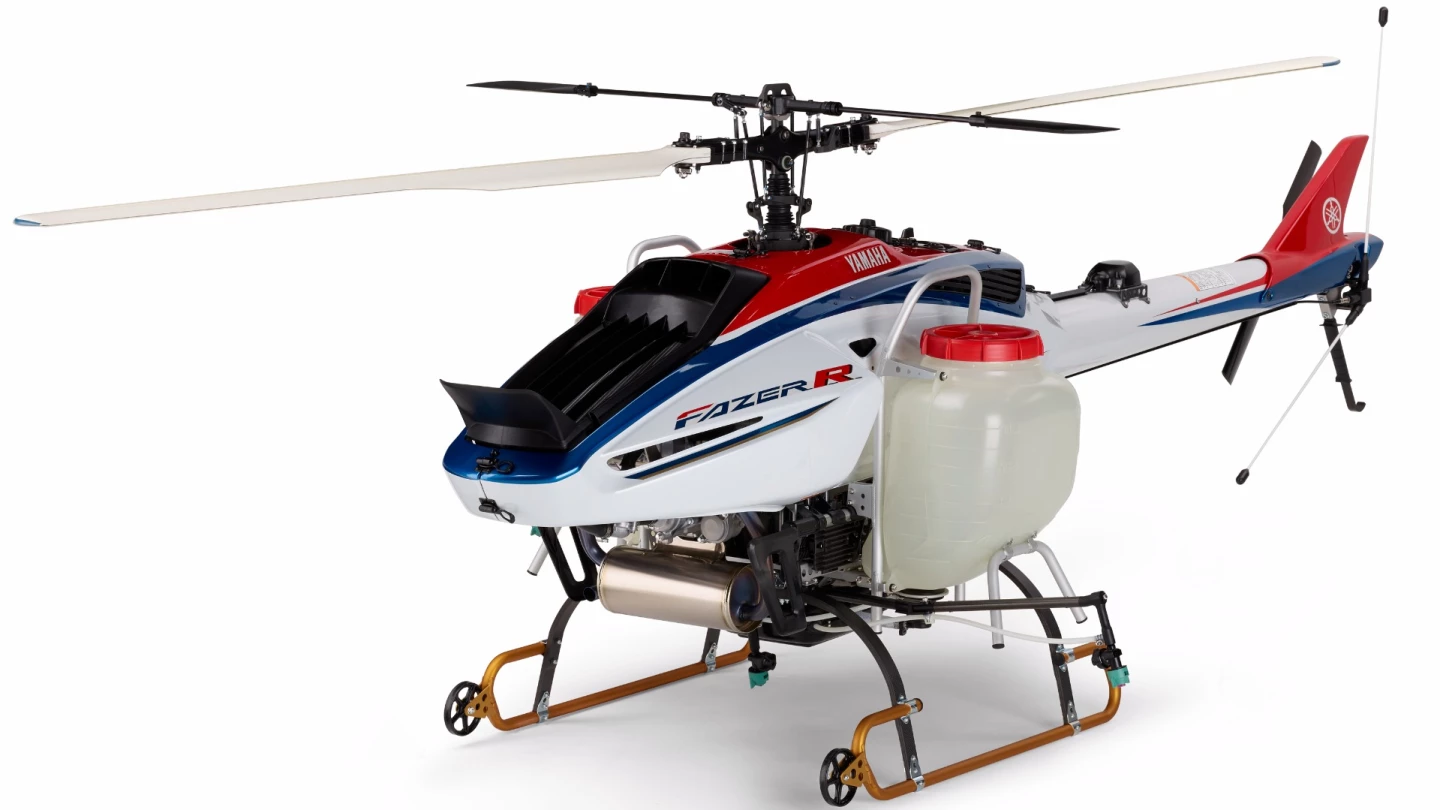

First launched in November 2016, the FAZER R features a class-leading maximum 32 liter agrochemical payload, allowing the spraying of four hectares without reloading chemicals or refueling
8/8
First launched in November 2016, the FAZER R  features a class-leading maximum 32 liter agrochemical payload, allowing the spraying of four hectares without reloading chemicals or refueling
View gallery - 8 images

Yamaha announced today that it will show a new prototype industrial multi-rotor YMR-01 industrial drone at tomorrow's Next Generation Agriculture Expo Tokyo. The new Yamaha drone is just one of many new drones aimed at the Japanese agricultural industry that will be launched at the expo, but it is somewhat of a landmark in that it is the first multicopter to be shown by Yamaha.

Yamaha first began selling industrial-use unmanned helicopters in 1989 and its share of the marketplace for spraying agricultural chemicals covers 42.5 percent of rice paddy cultivation in Japan, and its unmanned agricultural helicopters are being used in Korea, the United States, Australia, New Zealand and Thailand.

Yamaha's unmanned helicopters have now been engaged spraying agrochemicals since 1989, and Yamaha helicopters now spray more than 40 percent of the total rice paddy cultivation area in Japan
Yamaha's unmanned helicopters have now been engaged spraying agrochemicals since 1989, and Yamaha helicopters now spray more than 40 percent of the total rice paddy cultivation area in Japan

Though the tried-and-true Yamaha Fazer unmanned helicopter has been under development for three decades, the massive competition from alternative manufacturers in the last few years is obviously driving innovation still faster within Yamaha and the YMR-01multicopter is obviously designed to create a buffer to the new competitors, which are headed by China's DJI that's claiming a 70 percent share of the world drone market.

First launched in November 2016, the FAZER R features a class-leading maximum 32 liter agrochemical payload, allowing the spraying of four hectares without reloading chemicals or refueling
First launched in November 2016, the FAZER R  features a class-leading maximum 32 liter agrochemical payload, allowing the spraying of four hectares without reloading chemicals or refueling

The JPY12.852 million (US$115,000) FAZER R pictured above is capable of carrying a 32 kg payload and can spray four hectares of agricultural land per flight, but it is a far more capable aircraft that can be retasked with different payloads for many duties thanks to its sophisticated flight control systems.

Yamaha will exhibit the YMR-01 prototype industrial multi-rotor drone at the 4th Next Generation Agriculture Expo Tokyo from October 11 to 13, 2017
Yamaha will exhibit the YMR-01 prototype industrial multi-rotor drone at the 4th Next Generation Agriculture Expo Tokyo from October 11 to 13, 2017

The new lightweight carbon YMR-01 offers a more cost-efficient purpose-built solution for farmers and can spray one hectare per flight with aspraying quality comparable to the FAZER R.

A comparison of a typical six-rotor layout in which opposite rotors counter-rotate and the Yamaha YMR-01. By adopting the “vertical coaxial” layout for two rotor axes (one each on the left and right), the YMR-01 creates a consistent downwash, enabling consistent spraying quality regardless of the direction of travel of the aircraft.
A comparison of a typical six-rotor layout in which opposite rotors counter-rotate and the Yamaha YMR-01. By adopting the “vertical coaxial” layout for two rotor axes (one each on the left and right), the YMR-01 creates a consistent downwash, enabling consistent spraying quality regardless of the direction of travel of the aircraft.

Yamaha has achieved this spraying consistency by using a layout in which two of the sixrotor axes use coaxial rotors, and then placing the spraying nozzles for the agrochemicals near the coaxial rotors.

The 2018 Yamaha Water Strider unmanned boat is built specifically for remotely controlled herbicide spraying in rice paddies and includes a gyroscope and a revised chemical discharge volume valve (2-stage to 3-stage) in comparison to the 2017 model
The 2018 Yamaha Water Strider  unmanned boat is built specifically for remotely controlled herbicide spraying in rice paddies and includes a gyroscope and a revised chemical discharge volume valve (2-stage to 3-stage) in comparison to the 2017 model

Yamaha also today showed the 2018 model of its WaterStrider unmanned boat which is designed for remotely controlled herbicide spraying work in rice paddies.
