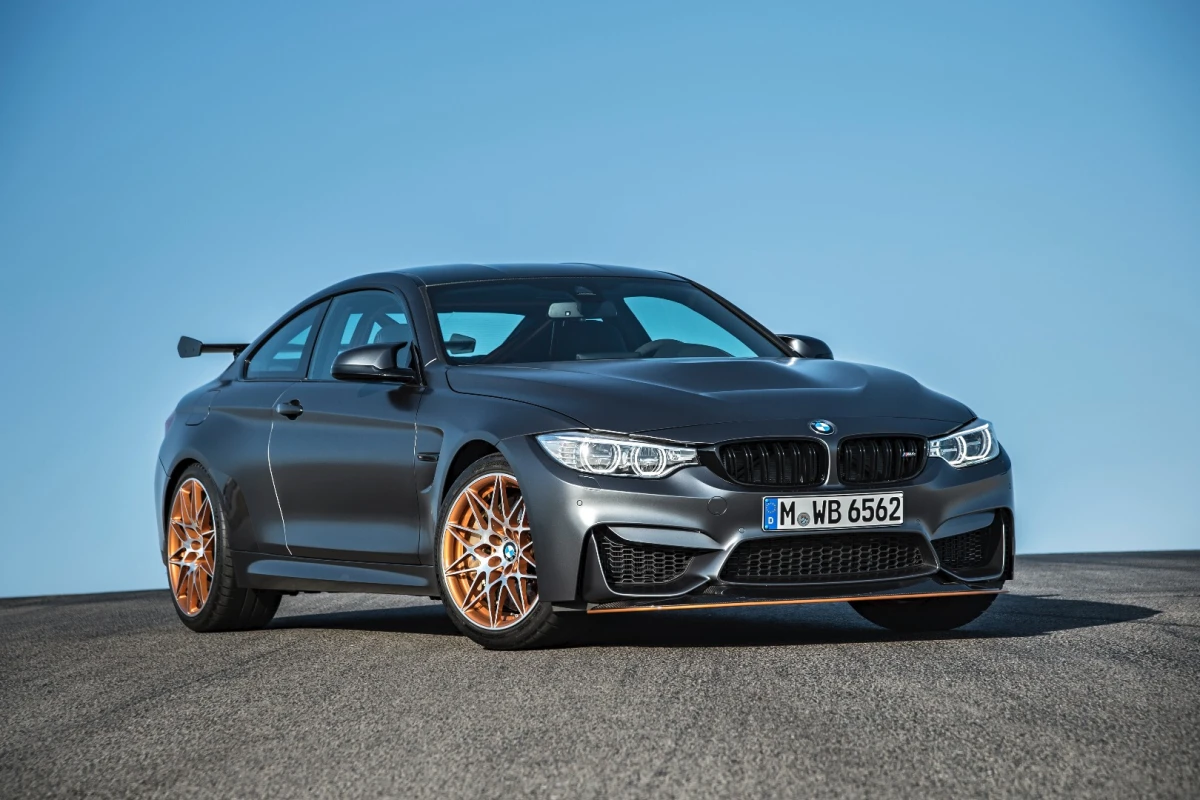

A special edition of the BMW M4 GTS previewed at Pebble Beach earlier this year is set to hit the road
A special edition of the BMW M4 GTS previewed at Pebble Beach earlier this year is set to hit the road
View 38 Images

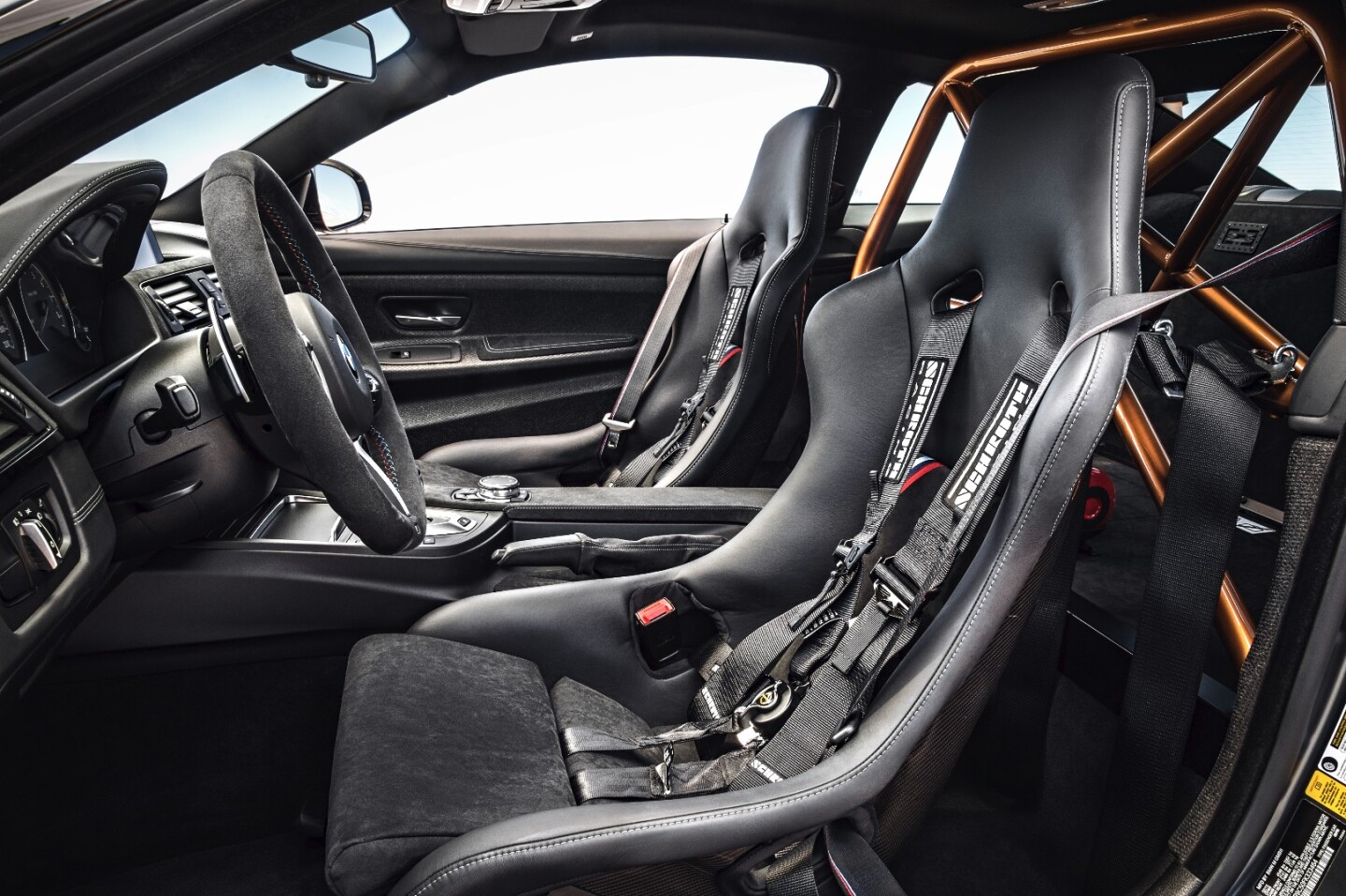

Speccing the Clubsport package in the M4 GTS gives you a bright orange rollcage
1/38
Speccing the Clubsport package in the M4 GTS gives you a bright orange rollcage
Just in case you weren't sure what you're driving
2/38
Just in case you weren't sure what you're driving
The M4 GTS' racetrack focus is clear in the way it's laid out inside
3/38
The M4 GTS' racetrack focus is clear in the way it's laid out inside
The GTS' bucket seats have been designed with heavy cornering in mind
4/38
The GTS' bucket seats have been designed with heavy cornering in mind
The Clubsport Package includes six-point race harnesses
5/38
The Clubsport Package includes six-point race harnesses
That front splitter is adjustable, and made of carbon fiber
6/38
That front splitter is adjustable, and made of carbon fiber

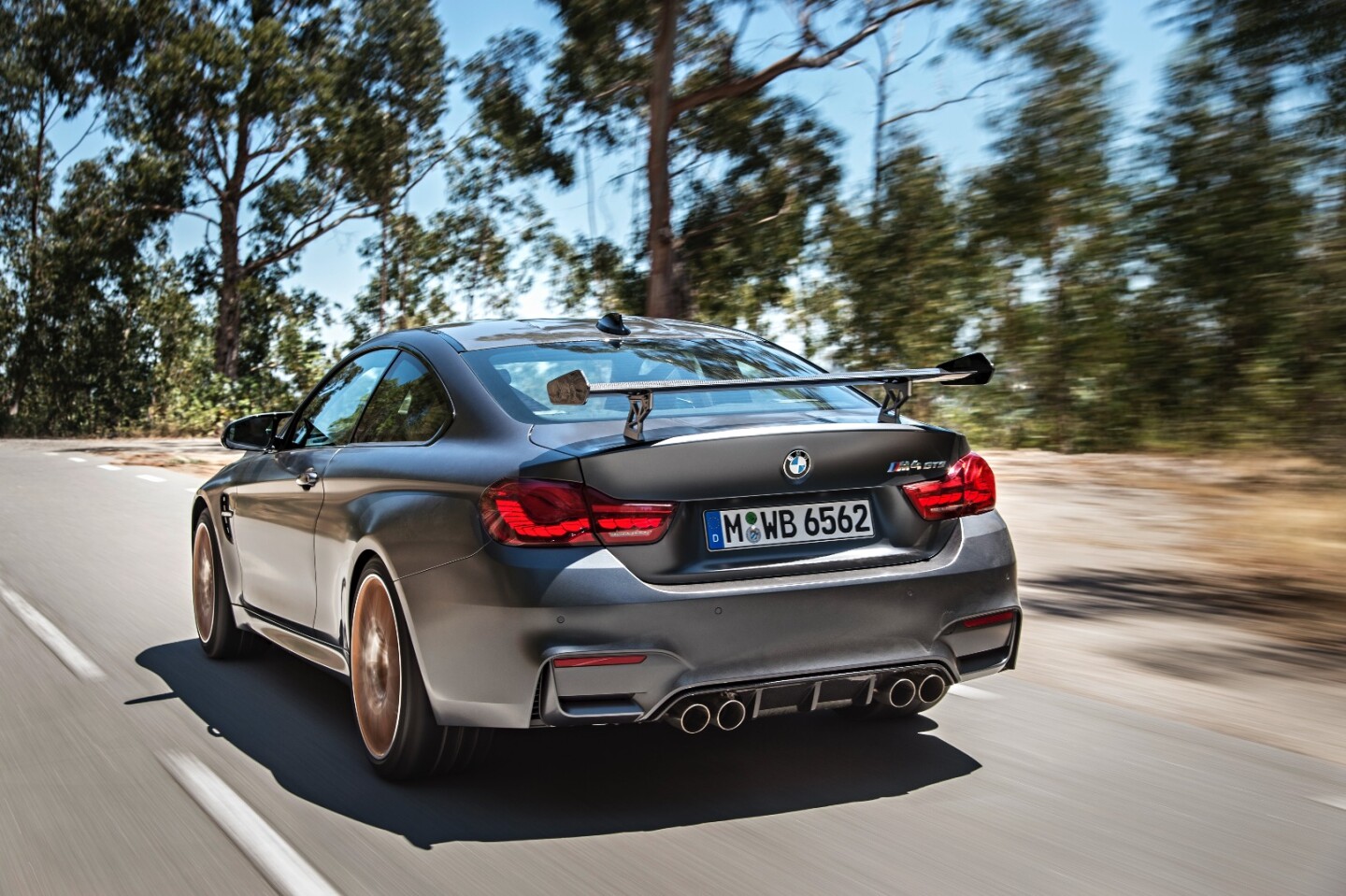

The car's CFRP rear wing is one of the biggest giveaways to its potential
7/38
The car's CFRP rear wing is one of the biggest giveaways to its potential
OLED taillights are a part of the GTS package
8/38
OLED taillights are a part of the GTS package
Because they're so thin, OLEDs let designers create interesting shapes and designs
9/38
Because they're so thin, OLEDs let designers create interesting shapes and designs
A titanium exhaust has been fitted to save weight and create a rorty sound
10/38
A titanium exhaust has been fitted to save weight and create a rorty sound
The carbon rear diffuser works with the front splitter and rear wing to create more downforce
11/38
The carbon rear diffuser works with the front splitter and rear wing to create more downforce

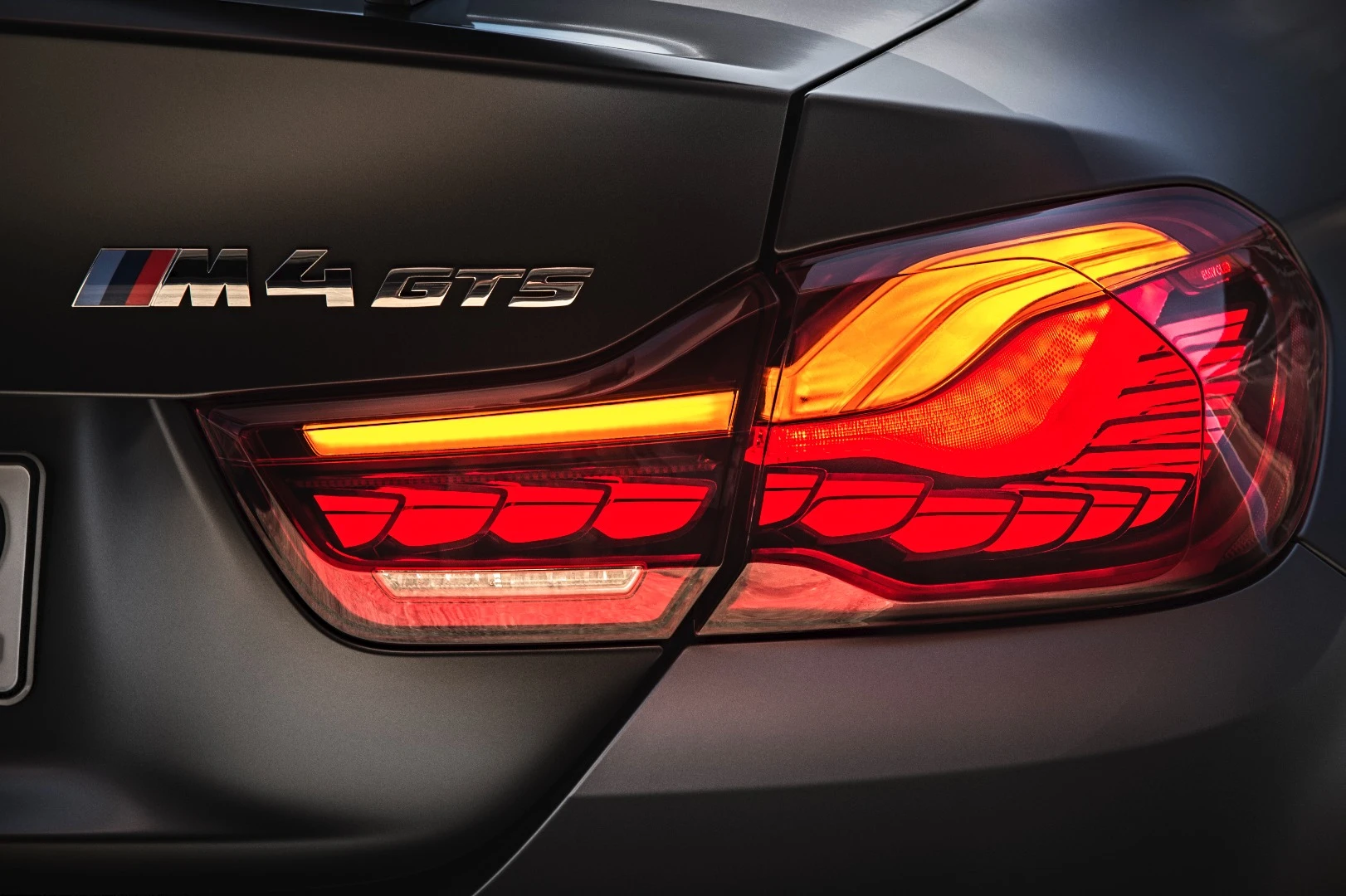

The GTS is the first production BMW to be fitted with OLED lights
12/38
The GTS is the first production BMW to be fitted with OLED lights
The car's orange highlights make it stand out in a crowd
13/38
The car's orange highlights make it stand out in a crowd
The GTS' sticky Michelin tires should give it more grip on the track
14/38
The GTS' sticky Michelin tires should give it more grip on the track

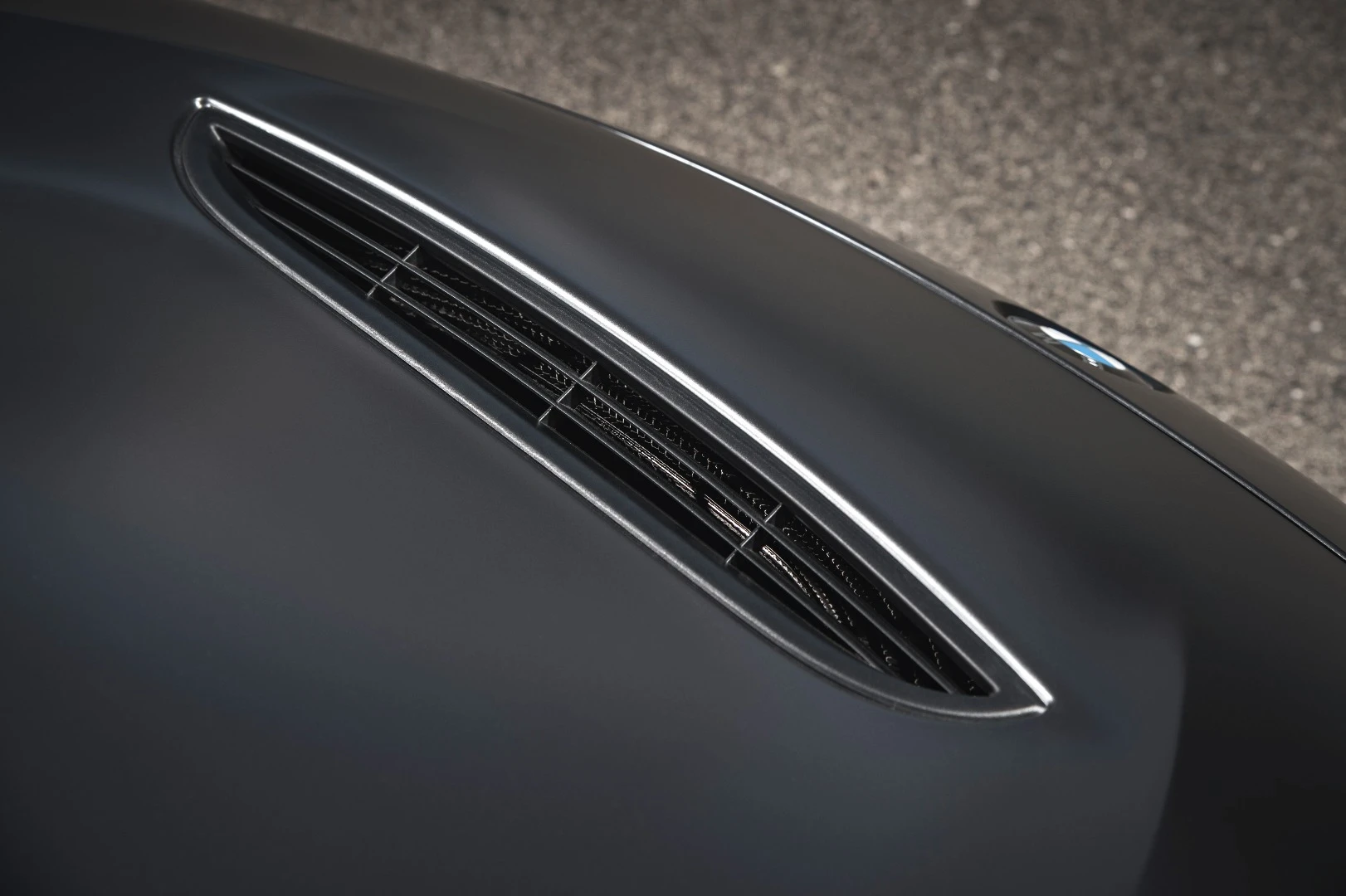

The CFRP bonnet and boot contribute to a 50 kg weight saving
15/38
The CFRP bonnet and boot contribute to a 50 kg weight saving
The wheels measure 19 inches at the front and 20 inches at the back
16/38
The wheels measure 19 inches at the front and 20 inches at the back
Under the bonnet is where BMW has wrought most of the changes to the M4
17/38
Under the bonnet is where BMW has wrought most of the changes to the M4
Water injection offers owners a faster 0-100 sprint with no economy penalty
18/38
Water injection offers owners a faster 0-100 sprint with no economy penalty
Only 700 GTS' will be built
19/38
Only 700 GTS' will be built

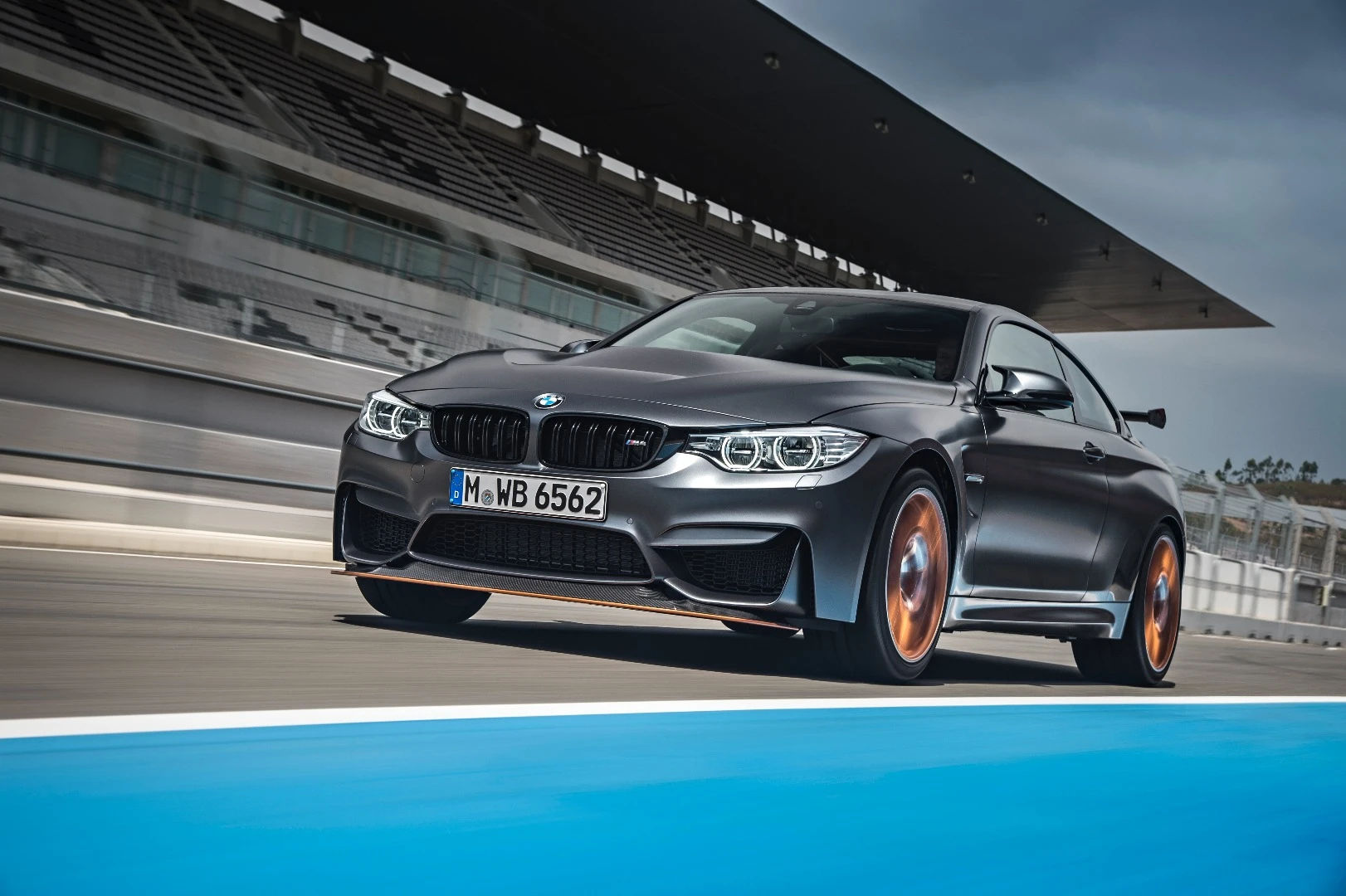

The car is designed to celebrate 30 years since the original BMW M3 launched
20/38
The car is designed to celebrate 30 years since the original BMW M3 launched
The strip atop the steering wheel is another racing touch
21/38
The strip atop the steering wheel is another racing touch
BMW has remapped the GTS' gearbox to handle the engine's extra power
22/38
BMW has remapped the GTS' gearbox to handle the engine's extra power
Carbon fiber is everywhere on the GTS, and it contributes to a 50 kg weight saving
23/38
Carbon fiber is everywhere on the GTS, and it contributes to a 50 kg weight saving
The water injection system in the M4 has been used in the MotoGP pace car all year
24/38
The water injection system in the M4 has been used in the MotoGP pace car all year
The M4 GTS' engine still doesn't make as much power as the C63 AMG S' V8, but the GTS is quicker from 0-100
25/38
The M4 GTS' engine still doesn't make as much power as the C63 AMG S' V8, but the GTS is quicker from 0-100

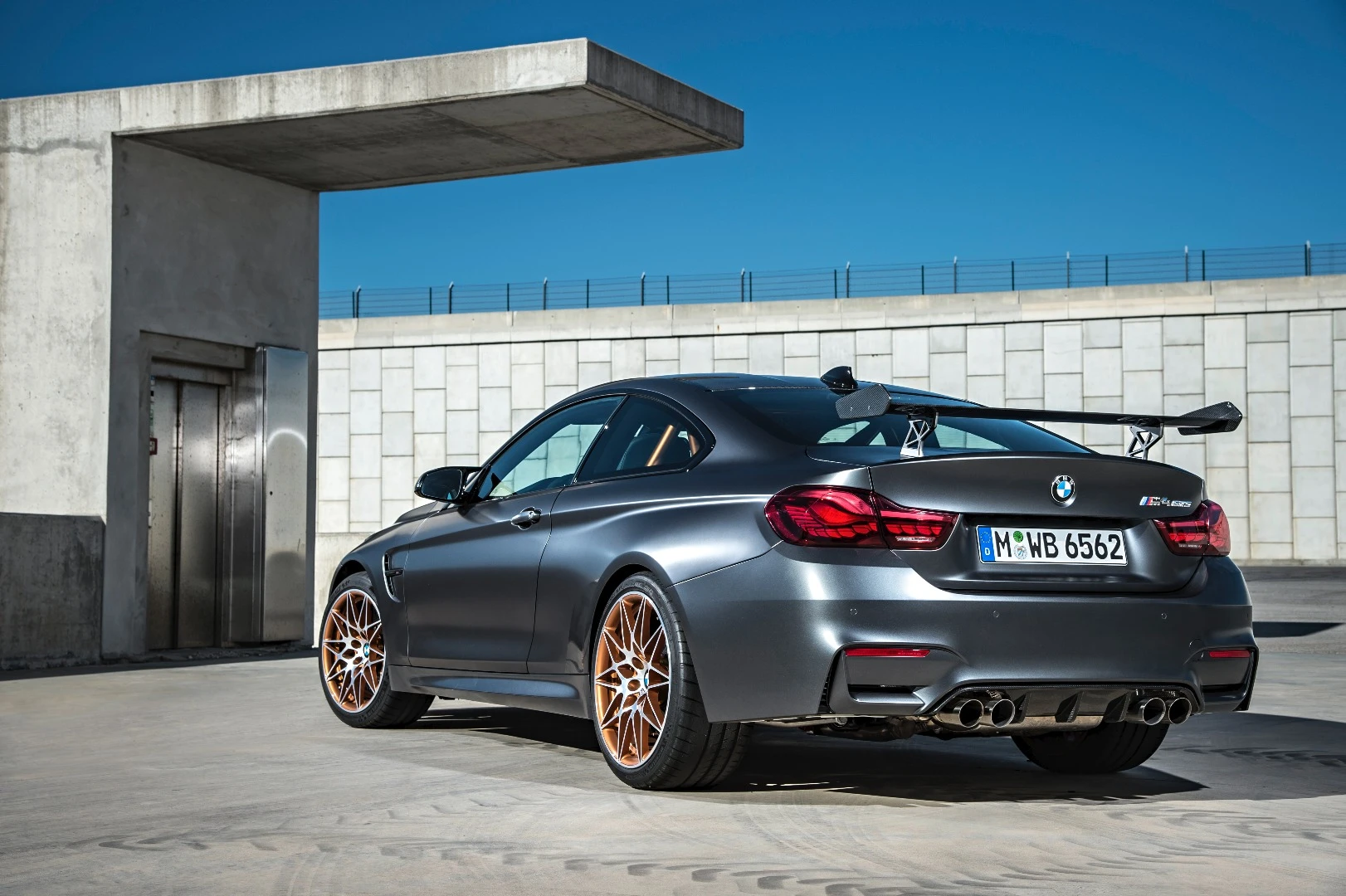

Water injection has been around for a while, but BMW is one of the first to put it into series production
26/38
Water injection has been around for a while, but BMW is one of the first to put it into series production
The water injection system in the M4 has been used in the MotoGP pace car all year
27/38
The water injection system in the M4 has been used in the MotoGP pace car all year
Interior detail - M4 GTS
28/38
Interior detail - M4 GTS
BMW's classic motorsport colors are spread around the cabin
29/38
BMW's classic motorsport colors are spread around the cabin
The car will hit 305 km/h before the limiter kicks in
30/38
The car will hit 305 km/h before the limiter kicks in
The M4's sharp design looks good with gaudy orange highlights
31/38
The M4's sharp design looks good with gaudy orange highlights

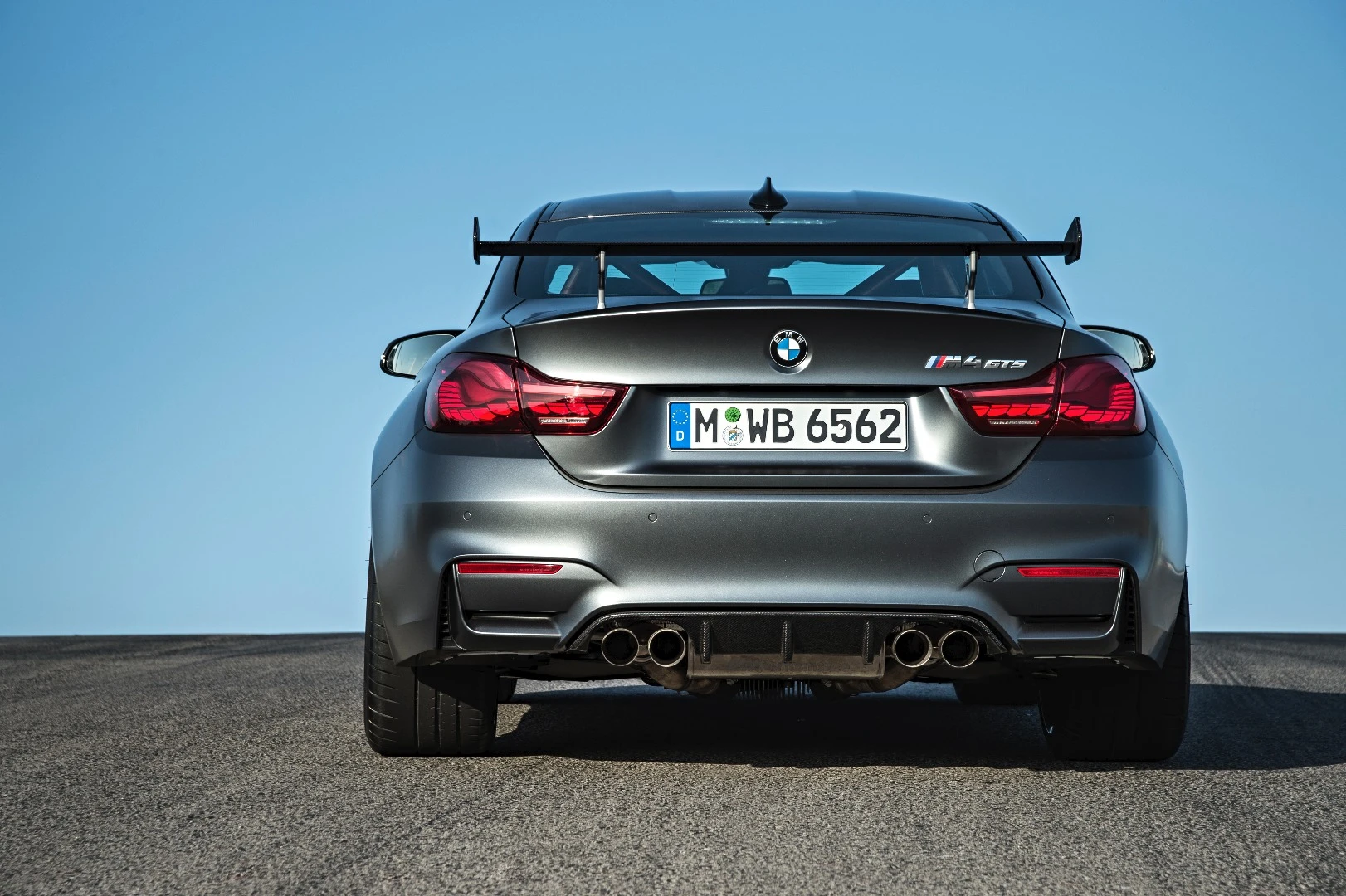

The car's OLED taillights accentuate its width
32/38
The car's OLED taillights accentuate its width
The car's front splitter and spoiler are fully adjustable
33/38
The car's front splitter and spoiler are fully adjustable

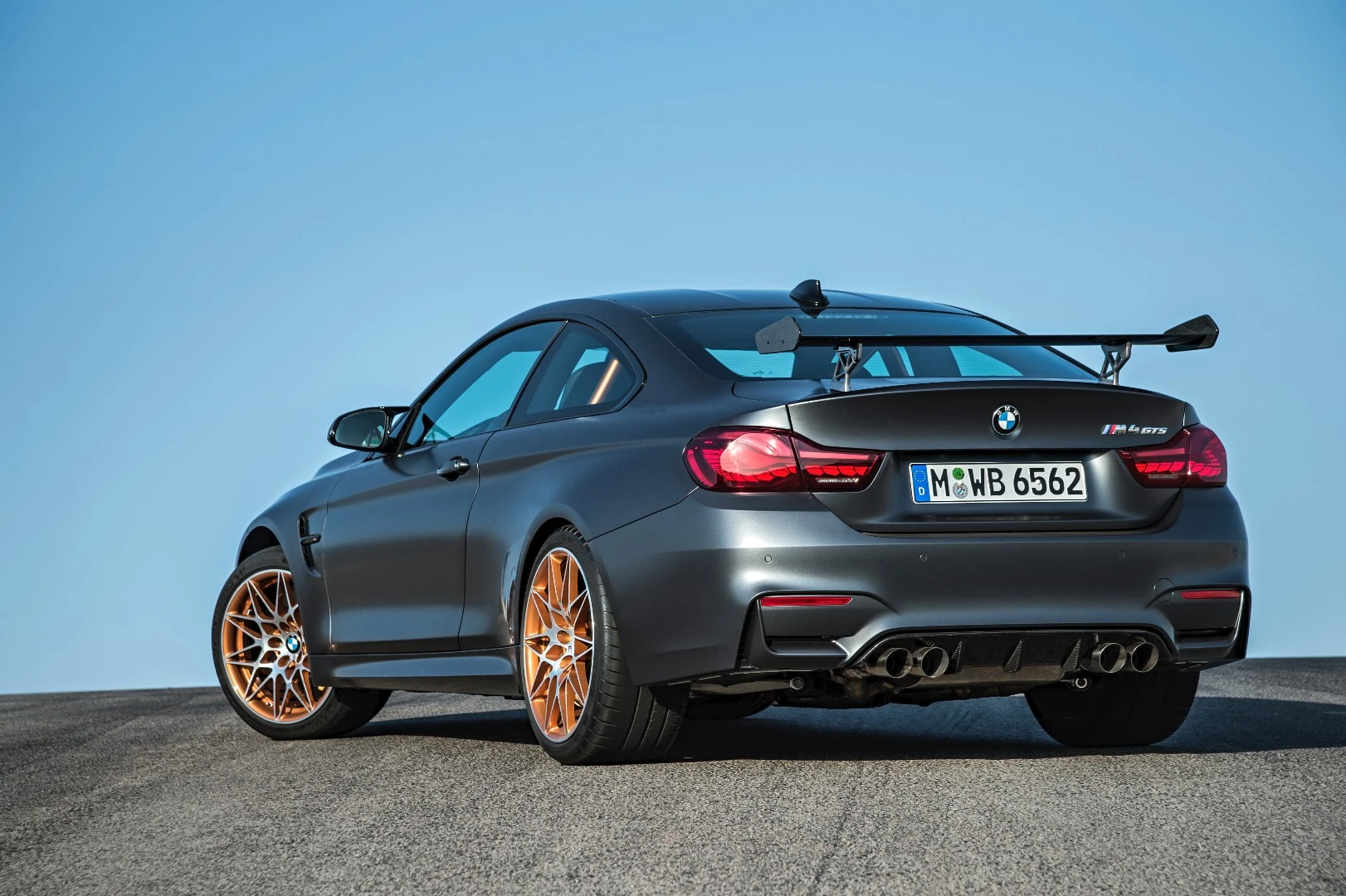

Water injection has been around for a while, but BMW is one of the first to put it into series production
34/38
Water injection has been around for a while, but BMW is one of the first to put it into series production
A special edition of the BMW M4 GTS previewed at Pebble Beach earlier this year is set to hit the road
35/38
A special edition of the BMW M4 GTS previewed at Pebble Beach earlier this year is set to hit the road
The M4's broad rear haunches are accentuated by its big wheels and the carbon diffuser
36/38
The M4's broad rear haunches are accentuated by its big wheels and the carbon diffuser
The M4's sharp handling will no doubt be aided by the BMW's aero and mechanical upgrades
37/38
The M4's sharp handling will no doubt be aided by the BMW's aero and mechanical upgrades

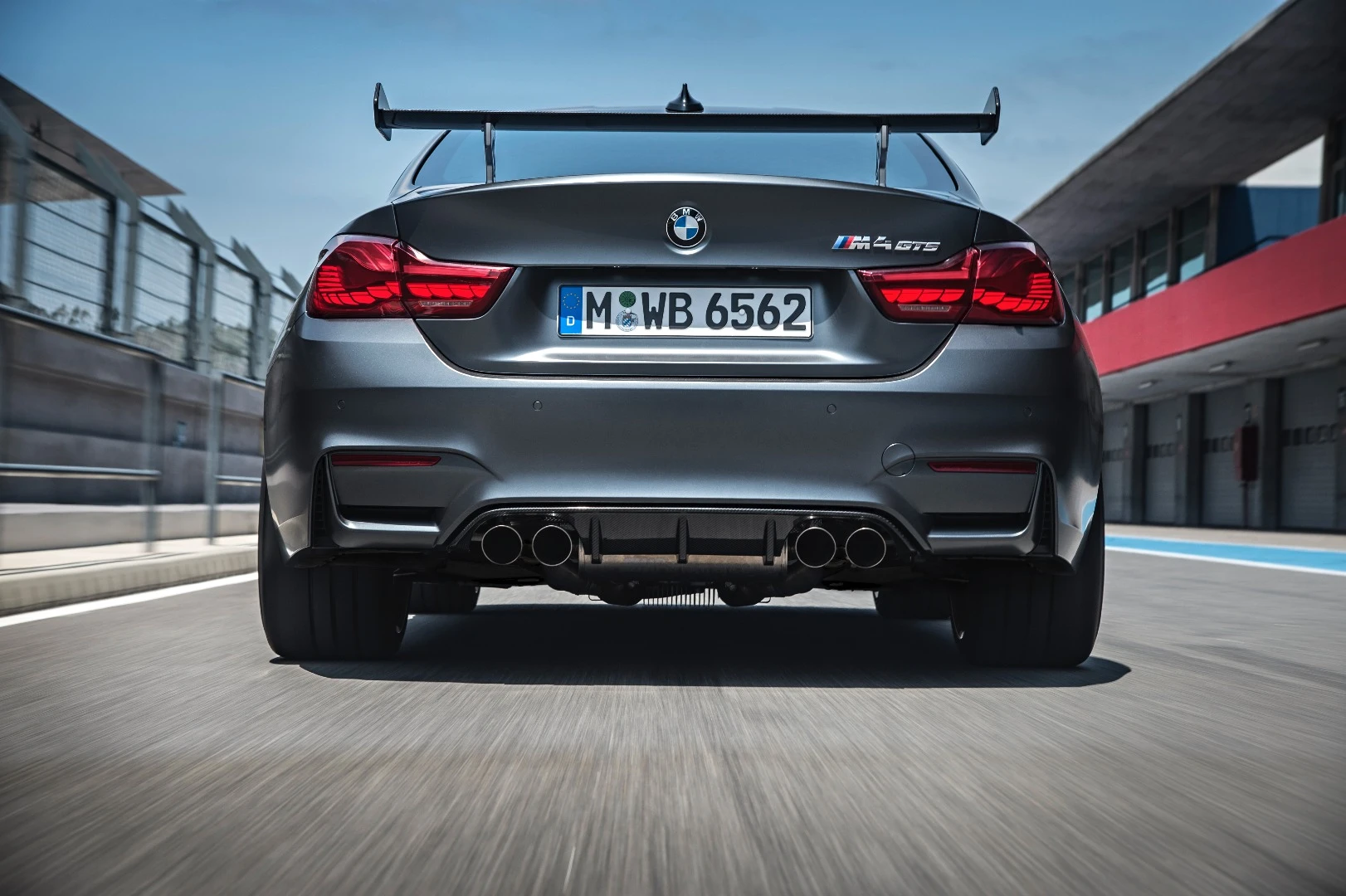

There's no word on the price for the GTS but we're not expecting it to be cheap
38/38
There's no word on the price for the GTS but we're not expecting it to be cheap
View gallery - 38 images

Having previewed water injection in the M4 GTS Concept at Pebble Beach earlier this year, BMW has whipped the covers off a production version. Just 700 examples of the new, lightweight M4 GTS will be built to commemorate 30 years since the original M3 was launched.

Central to the upgrades BMW has fitted to its M4 GTS is a water injection system, which bumps power up to 368 kW (500 hp) and torque up to 600 Nm. That's an extra 59 kW (80 hp) and 50 Nm compared to the standard car, though still 7.5 kW (10 hp) and 50 Nm less than the Mercedes C63S AMG.

BMW has been using water injection to boost the performance of its M4 MotoGP Pace Car, and also previewed the technology in a 1 Series a few months ago, but the M4 GTS is the first production BMW to feature the technology.

Carbon fiber is everywhere on the GTS, and it contributes to a 50 kg weight saving
Carbon fiber is everywhere on the GTS, and it contributes to a 50 kg weight saving

By cooling the combustion temperature, the water injection system improves fuel economy as well as performance. While it produces plenty of extra power and will hit 100 km/h (62 mph) in 3.8 seconds, the GTS uses the same 8.3 l/100km (34 mpg) as the standard M4.

Power is channeled through a remapped version of the seven-speed M-DCT gearbox, which has had the Launch Control and Shift Modes reworked to handle the engine's extra power.

The GTS has also been on a strict diet. The bonnet, front splitter, bootlid and bonnet have all been made of carbon fiber reinforced plastic, as has the adjustable rear wing. That wing works in tandem with the new carbon fiber rear diffuser and the pouting front splitter to reduce lift at the rear axle for greater high-speed stability.

The stripped-back attitude is also evident inside, where BMW has replaced the standard car's front seats with two lightweight carbon bucket seats and ripped the rear ones out, replacing them with a rollcage if the Clubsport Package is specced. The door handles have also been replaced with fabric loops, and the brace hiding behind the instrument panel is made of carbon fiber.

The Clubsport Package includes six-point race harnesses
The Clubsport Package includes six-point race harnesses

All up, the carbon bits on the car keep weight down to 1,510 kg (3329 lb), 52 kg less than the standard car.

Just in case the carbon add-ons and extra performance wasn't enough for you, BMW has made the M4 GTS its first production car to be fitted with OLED lights. Unlike regular LED units, OLEDS are incredibly slim and light up across their whole surface – which opens the door for designers to play with interesting shapes and forms.

Speaking of interesting shapes and forms, the M4 GTS sits on beautiful, intricately detailed wheels finished in acid orange to make it stand out in a crowd. Those wheels are wrapped in Michelin Pilot Sport Cup 2 tires measuring 265/35 R19 up front and 285/30 R20 at the rear, which should provide even more grip than the already-sticky standard car. BMW's engineers have also fitted the car with three-mode coilovers and lightweight carbon ceramic brakes.

There's no word from BMW on the pricing of the GTS yet, but expect to pay a healthy markup over the M4 Coupe, which starts at US$64,200.
