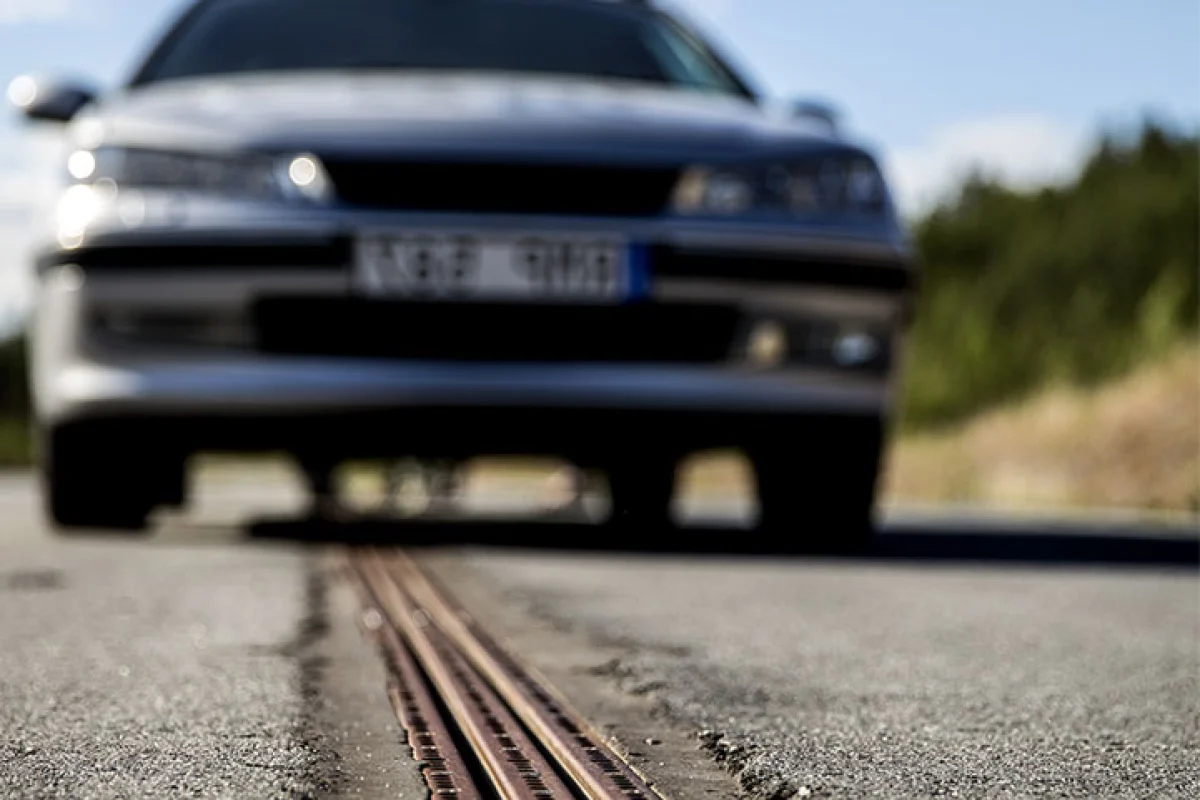

The Swedish project eRoadArlanda powers electric vehicles through a slot car-like track embedded in the road
The Swedish project eRoadArlanda powers electric vehicles through a slot car-like track embedded in the road
View 8 Images
The Swedish project eRoadArlanda powers electric vehicles through a slot car-like track embedded in the road
1/8
The Swedish project eRoadArlanda powers electric vehicles through a slot car-like track embedded in the road

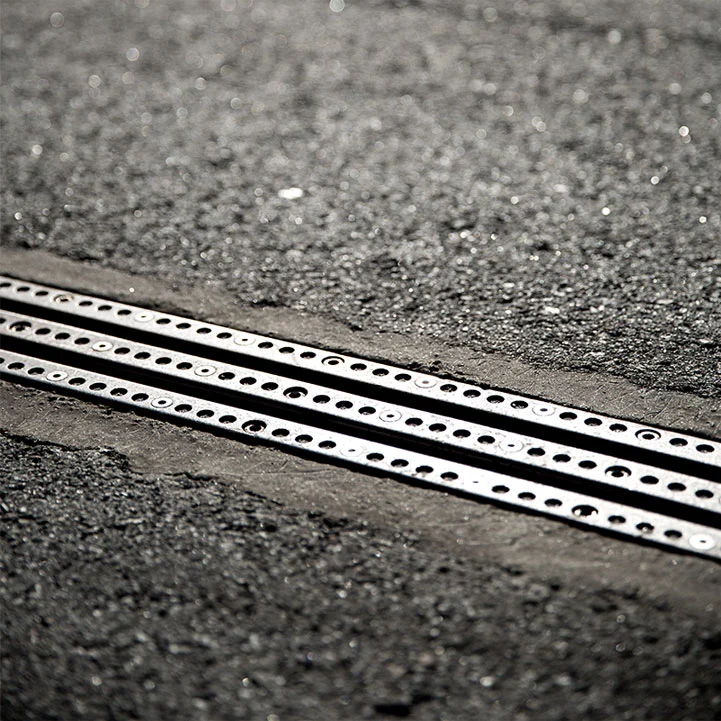

To prevent shocks, the electrified eRoadArlanda rails are earthed at the surface, with the conductor buried deep underneath
2/8
To prevent shocks, the electrified eRoadArlanda rails are earthed at the surface, with the conductor buried deep underneath

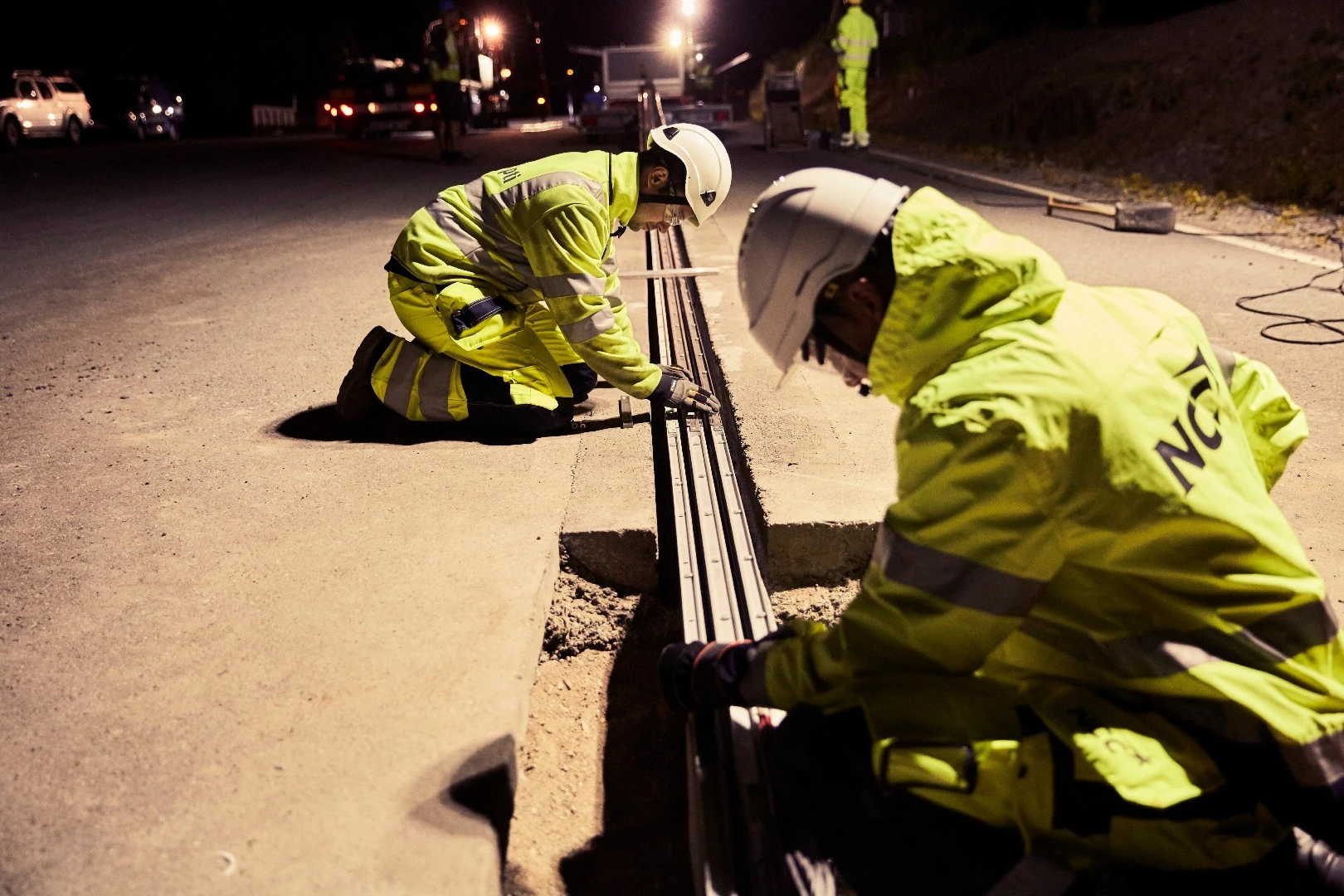

The eRoadArlanda rails being laid in a stretch of public road
3/8
The eRoadArlanda rails being laid in a stretch of public road
In the eRoadArlanda project, electricity is fed from parallel tracks in the road into a vehicle through a retractable arm attached to the bottom of the car
4/8
In the eRoadArlanda project, electricity is fed from parallel tracks in the road into a vehicle through a retractable arm attached to the bottom of the car
Officials cut the ribbon at the inauguration of the public section of eRoadArlanda electrified road
5/8
Officials cut the ribbon at the inauguration of the public section of eRoadArlanda electrified road

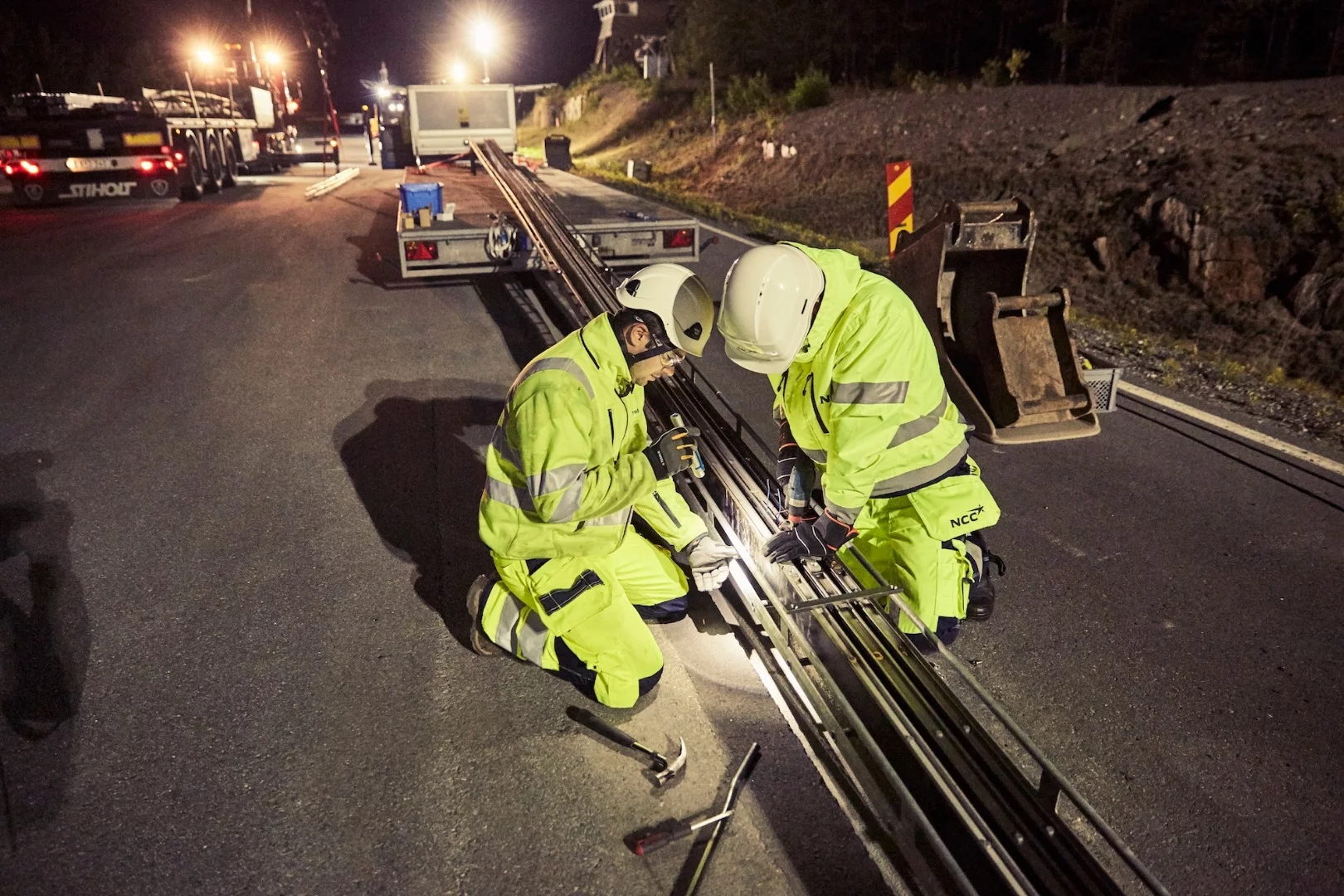

The eRoadArlanda rails being laid in a stretch of public road
6/8
The eRoadArlanda rails being laid in a stretch of public road
The first vehicle to use the new eRoadArlanda section will be a truck run by PostNord
7/8
The first vehicle to use the new eRoadArlanda section will be a truck run by PostNord

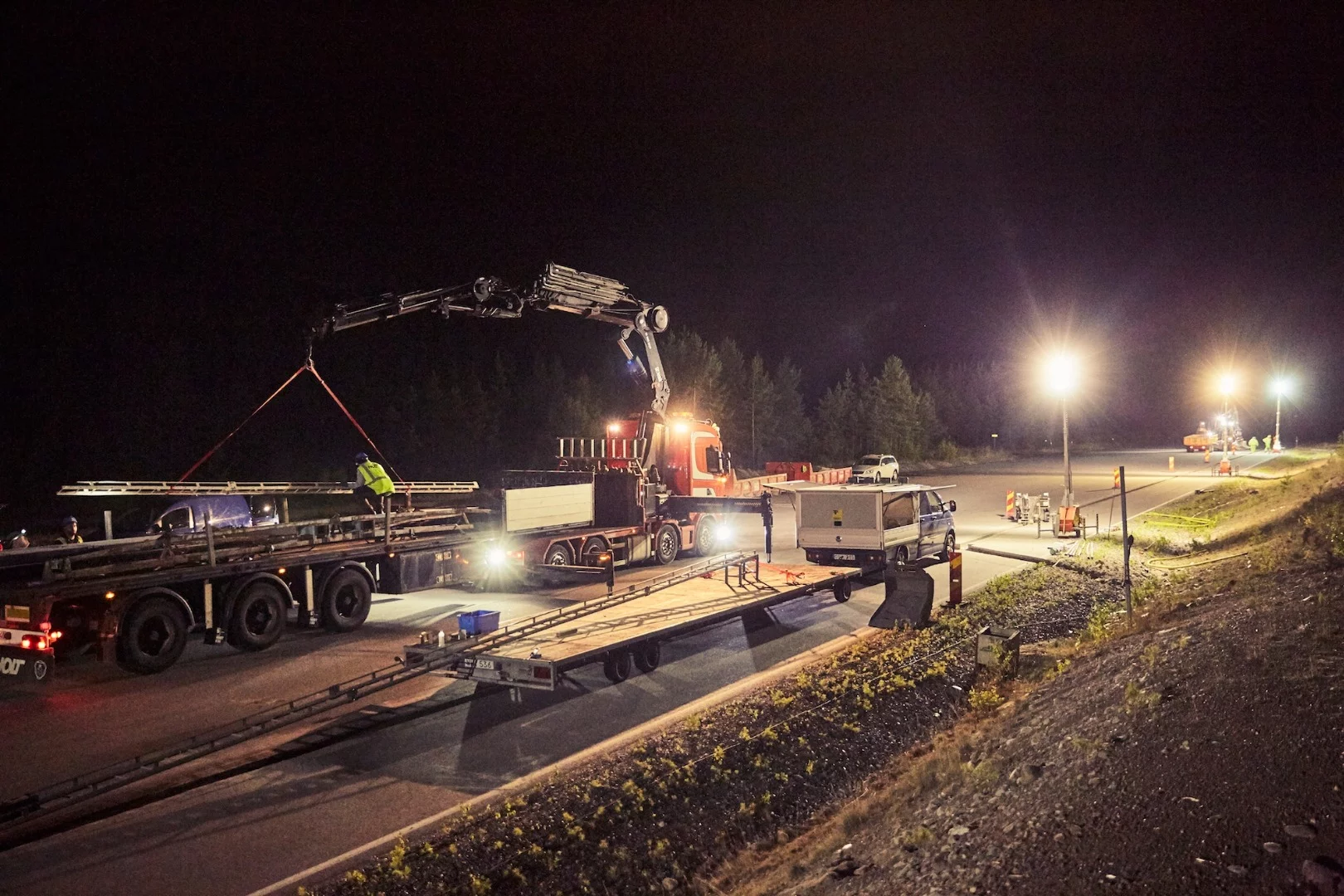

The eRoadArlanda rails being laid in a stretch of public road
8/8
The eRoadArlanda rails being laid in a stretch of public road

In a move that will probably delight anyone who raced slot cars as a kid (or an adult), the Swedish Transport Administration has just opened a 2-km (1.2-mi) stretch of electrified road that works the same way. The project, dubbed eRoadArlanda, involves embedding electric rails into the road surface to power electric vehicles through a contact arm hanging down from under the car.

If electric vehicles are ever going to become mainstream, the infrastructure around them needs to be as convenient for drivers as possible. Charging stations are getting more common and more advanced, and we've seen other systems proposed that would top up cars on the go, like wireless charging lanes or Siemens' eHighways that use overhead cables.

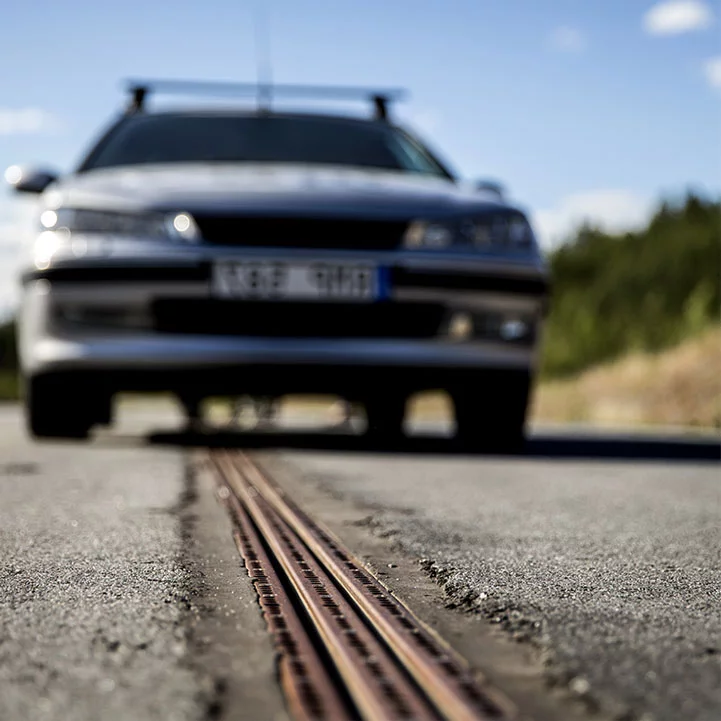

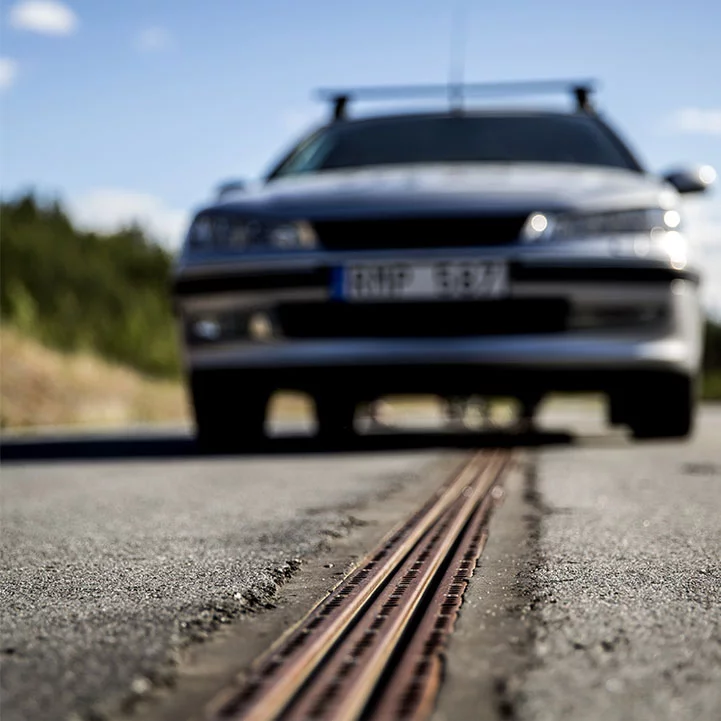

In the eRoadArlanda project, electricity from two parallel tracks in the road is fed into a vehicle through an arm attached to the underside of the car. That might sound restrictive, but the arm is retractable, and hooked up to sensors that tell it to only extend down when it's above the rails. If the car needs to overtake or turn off the road, the arm folds back up out of the way and the vehicle draws power from its battery.

Electrifying the road might sound like a dangerous idea, but the tech has been designed with a few measures in place to protect humans and animals that might walk across it. The track at the surface is earthed to prevent shocks, with the conductor itself buried deeper down – and even then only short sections are powered at a time, as vehicles pass over them. To get zapped, you'd need to be on your hands and knees jamming a fork between the rails, in which case the more immediate danger would be the car speeding towards you.

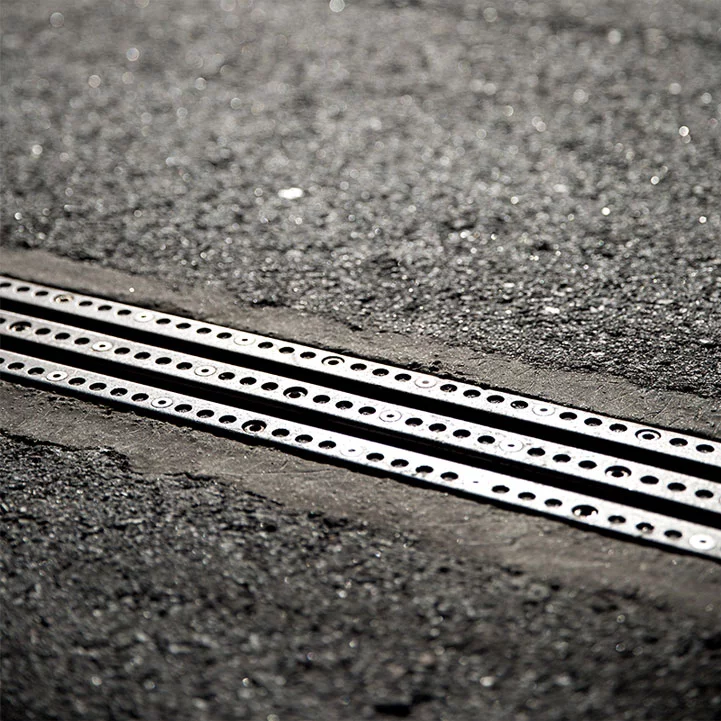

To prevent shocks, the electrified eRoadArlanda rails are earthed at the surface, with the conductor buried deep underneath
To prevent shocks, the electrified eRoadArlanda rails are earthed at the surface, with the conductor buried deep underneath

Rain reportedly won't pose a problem either. Drainage systems are in place along the track, and the contact arm has been designed to push water out of the way – as well as gravel, rocks and other small obstacles. The gap between the rails is also too small to cause a problem for motorbike and bicycle wheels.

After a few years of testing on an enclosed track, the project is now moving onto public roads. The 2-km test rail runs between the cargo terminal at Stockholm Arlanda airport and the Rosersberg logistics site, and will be used by a modified PostNord truck. If that goes well, the Swedish Transport Administration is planning a larger rollout across the country's highways. According to the eRoadArlanda group, electrifying 20,000 km (12,427 mi) of Sweden's roadways would cost about SEK80 billion (US$9.5 billion), but the cost would be recouped within three years.

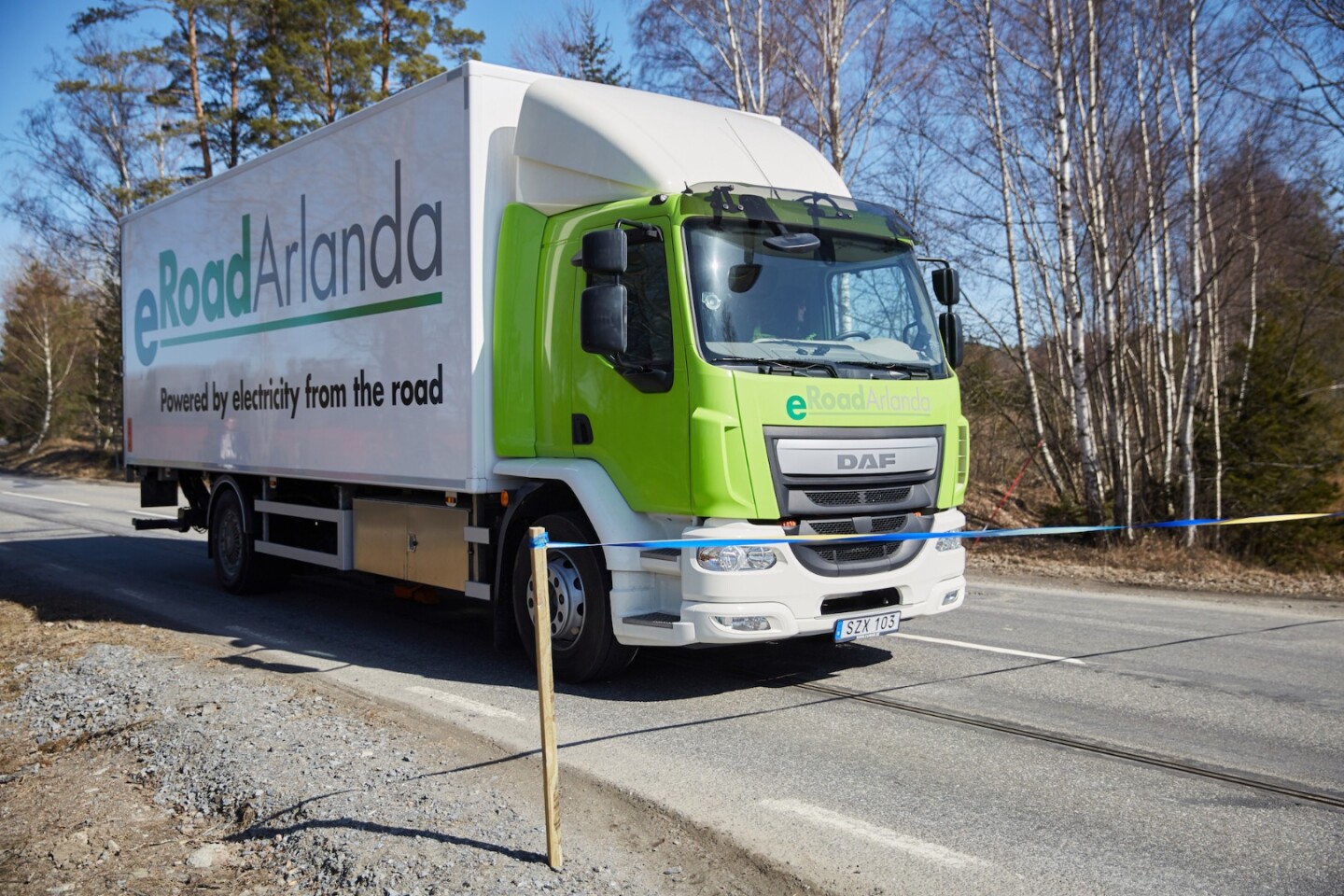

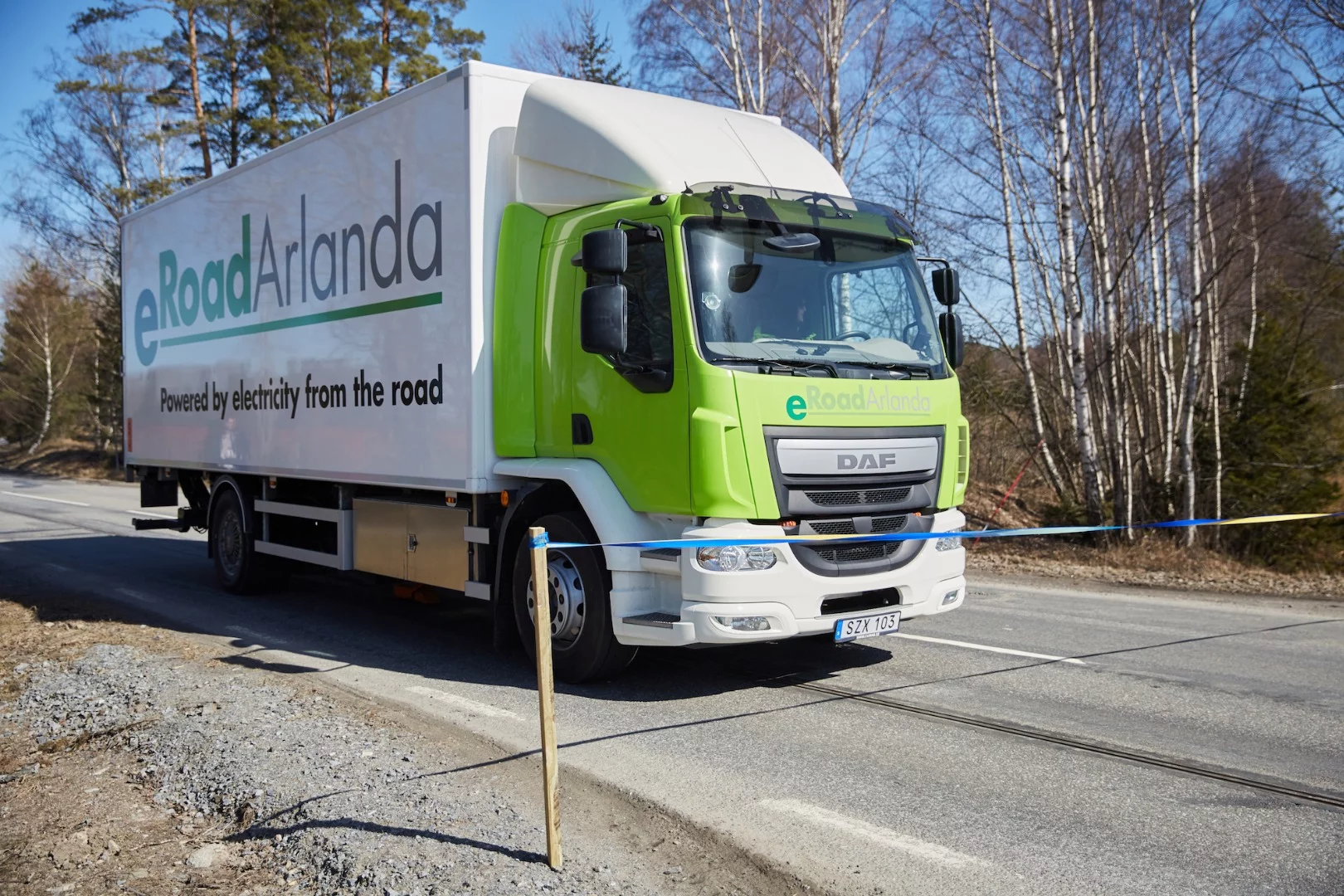

The first vehicle to use the new eRoadArlanda section will be a truck run by PostNord
The first vehicle to use the new eRoadArlanda section will be a truck run by PostNord

The ultimate goal is for the rails to complement the wider electric vehicle infrastructure. Only highways and arterials need to be electrified in this way, while the vehicles can run on battery power on smaller streets and recharged at home or other stations if needed. Rather than trying to combat range anxiety by developing bigger batteries, the project is reducing the length of the journeys between power sources to a distance that current electric cars can already manage.

The group describes the project in the video below.
