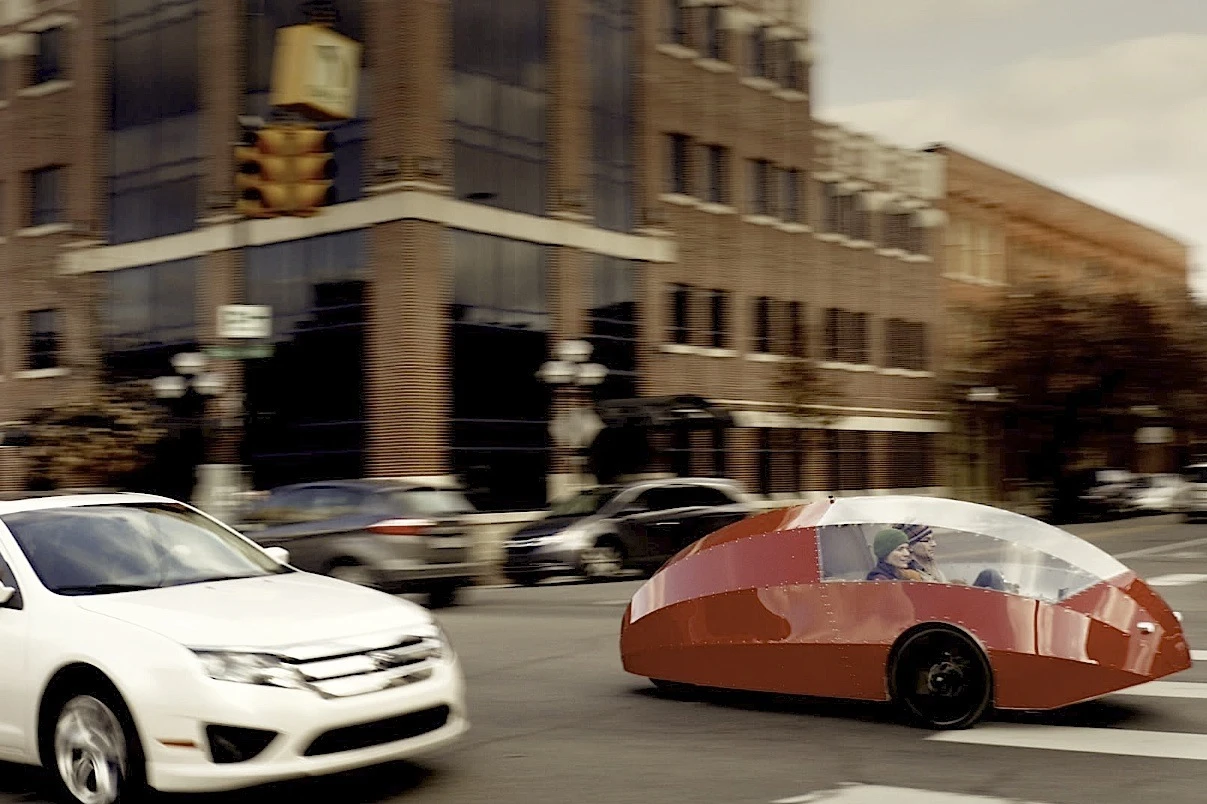

The futuristic looking Zeppelin three-wheeler features an aluminum and polycarbonate exterior and a 750 watt electric rear motor to supplement pedal-power
The futuristic looking Zeppelin three-wheeler features an aluminum and polycarbonate exterior and a 750 watt electric rear motor to supplement pedal-power
View 20 Images

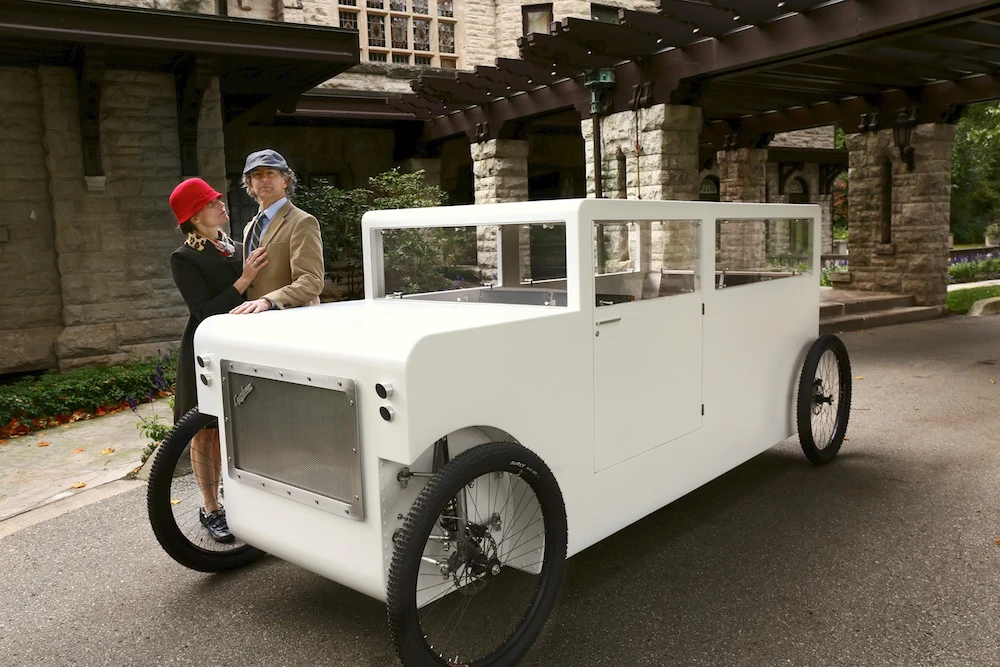

The Zeppelin and Cyclone prototypes push the boundaries of the common human-powered vehicle (HPV)
1/20
The Zeppelin and Cyclone prototypes push the boundaries of the common human-powered vehicle (HPV)
The Zeppelin offers an experience that sits somewhere between a vintage automobile and a tricycle
2/20
The Zeppelin offers an experience that sits somewhere between a vintage automobile and a tricycle

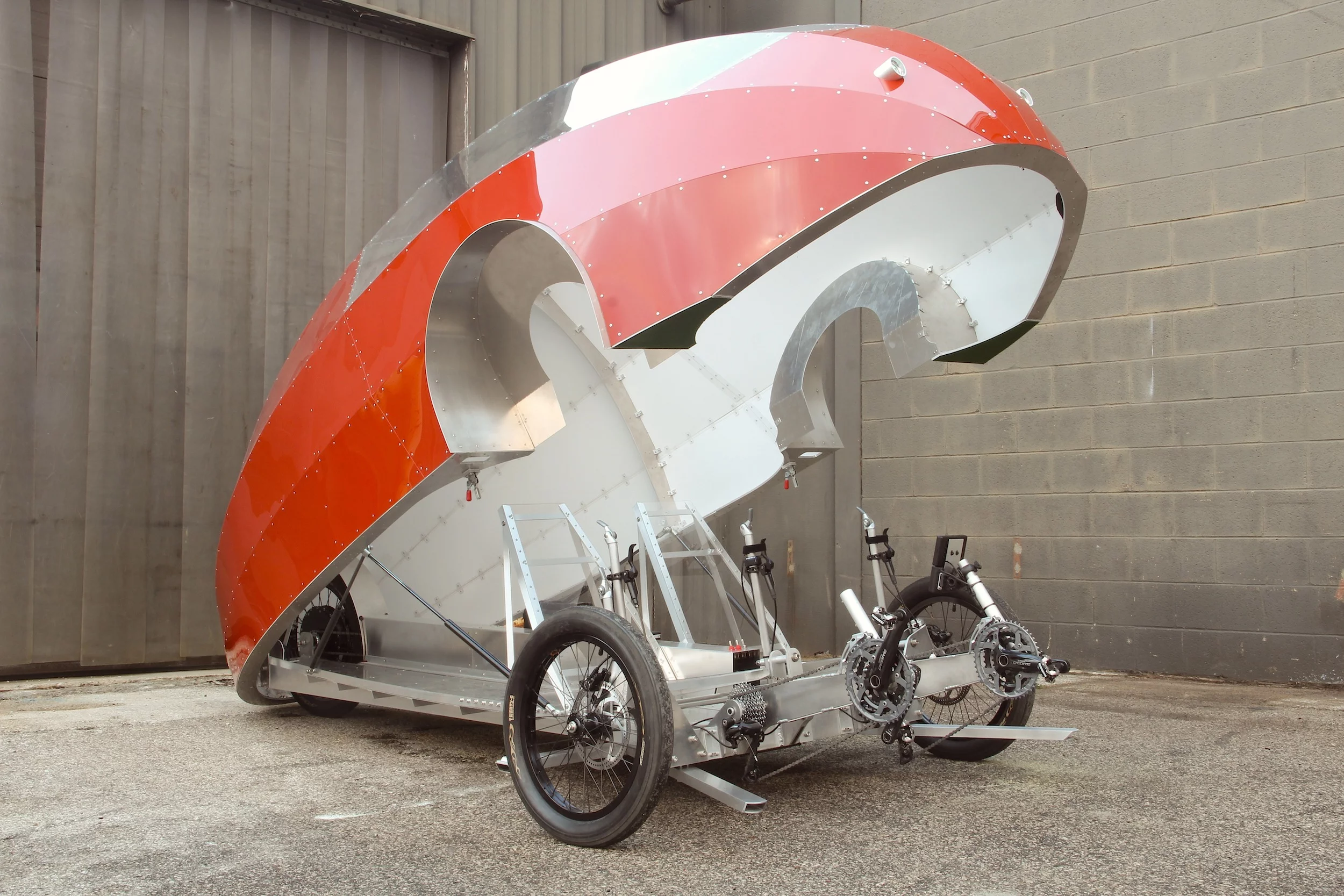

The Zeppelin lightweight body lifts up for easy access
3/20
The Zeppelin lightweight body lifts up for easy access

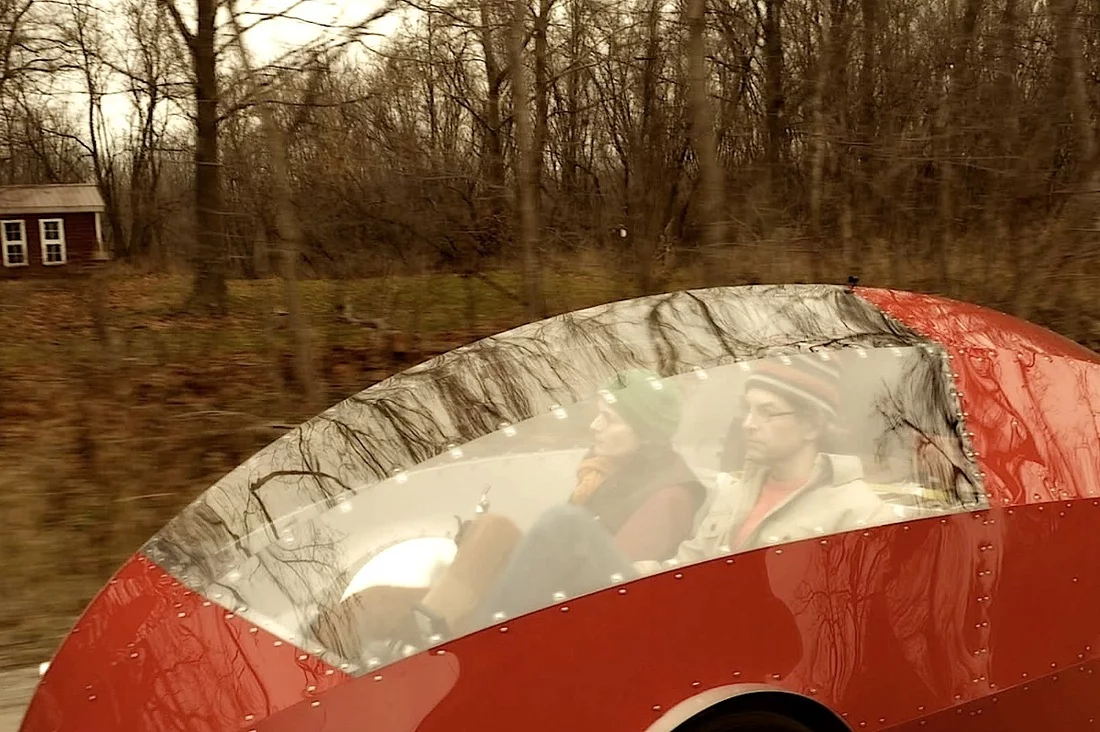

The Zeppelin features an electric motor which can reach a maximum speed of 25mph (40km/h)
4/20
The Zeppelin features an electric motor which can reach a maximum speed of 25mph (40km/h)
The Zeppelin model can be powered by the tandem riders or assisted with the electric motor
5/20
The Zeppelin model can be powered by the tandem riders or assisted with the electric motor

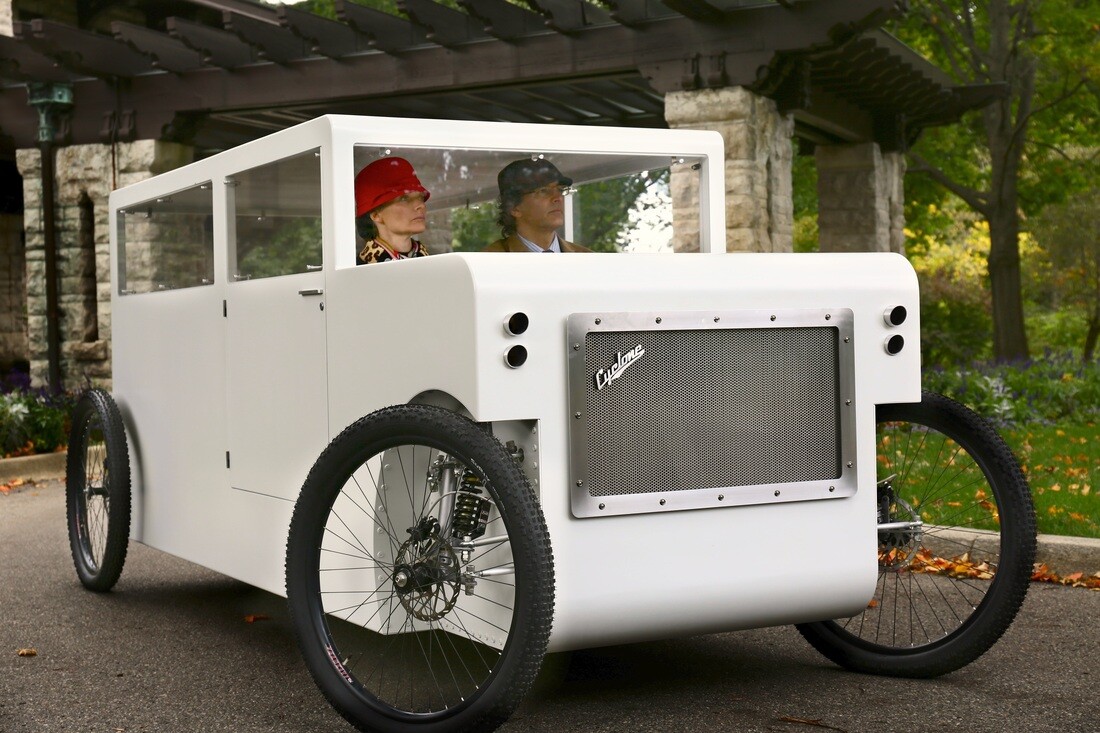

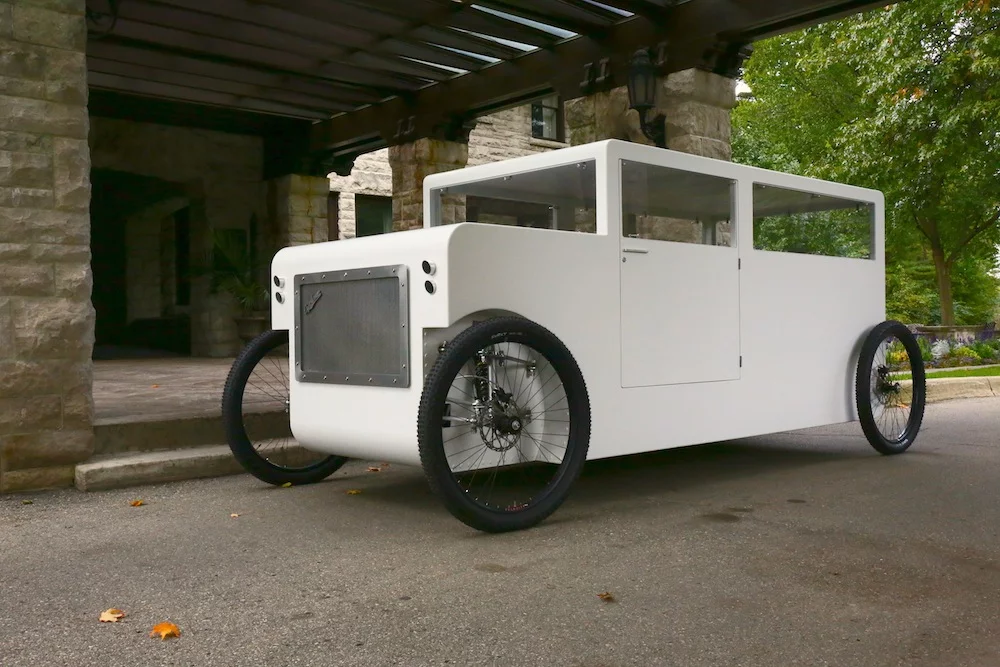

The vintage-inspired Cyclone model features an elegant white exterior shell
6/20
The vintage-inspired Cyclone model features an elegant white exterior shell
The vintage-inspired Cyclone
7/20
The vintage-inspired Cyclone

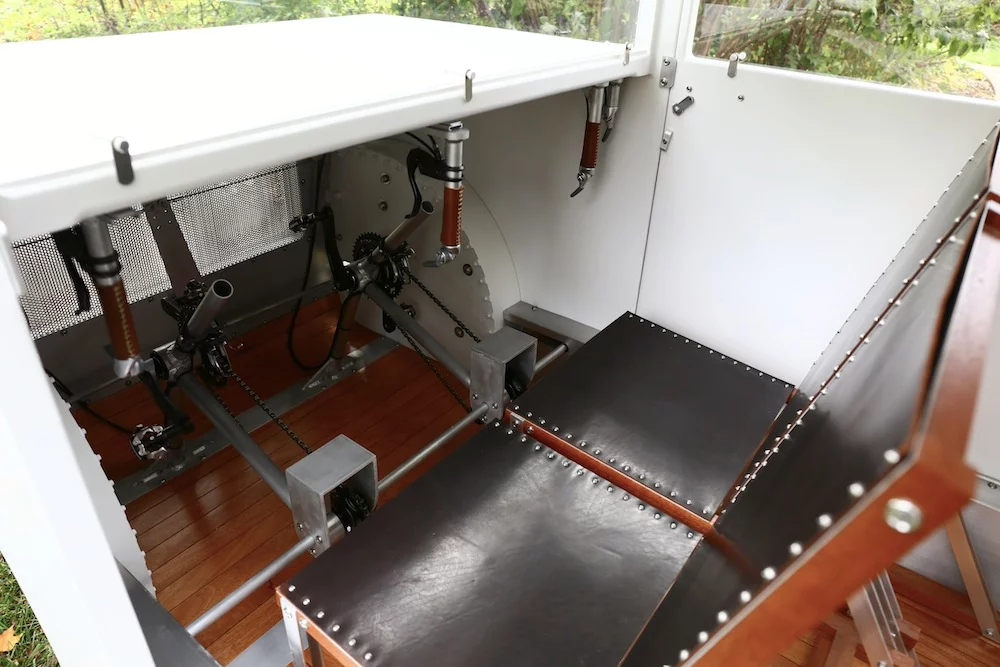

The Cyclone model features mahogany interior flooring and leather seats
8/20
The Cyclone model features mahogany interior flooring and leather seats

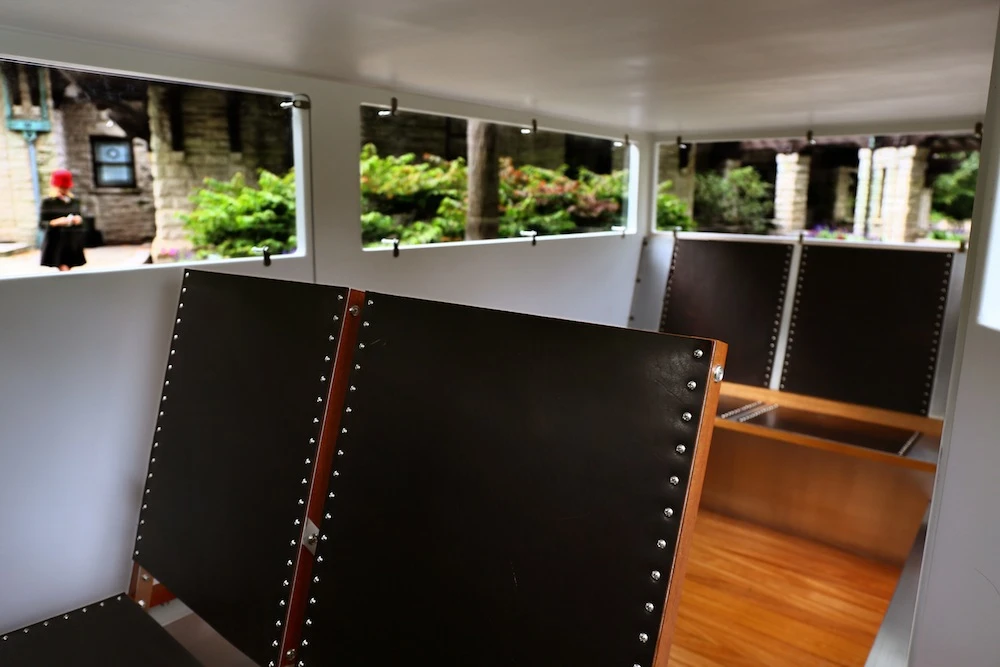

The Cyclone features two additional passenger seats located in the back
9/20
The Cyclone features two additional passenger seats located in the back

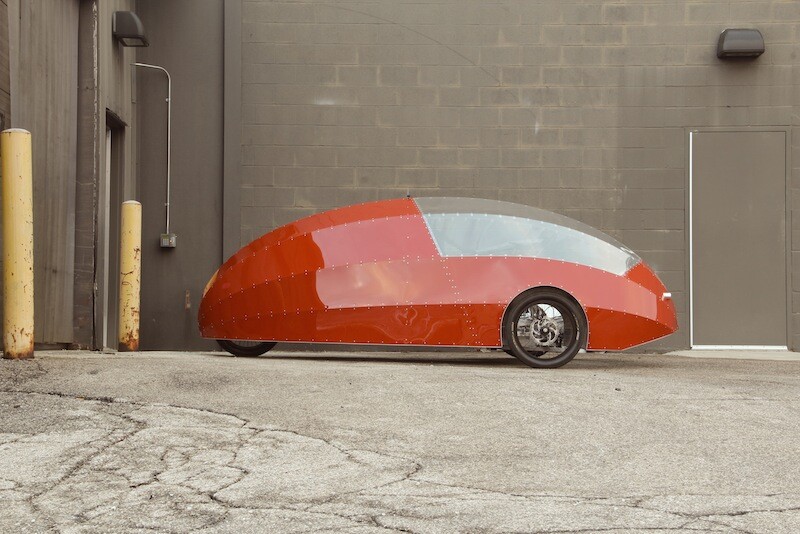

The futuristic looking Zeppelin features an aluminum and polycarbonate exterior
10/20
The futuristic looking Zeppelin features an aluminum and polycarbonate exterior

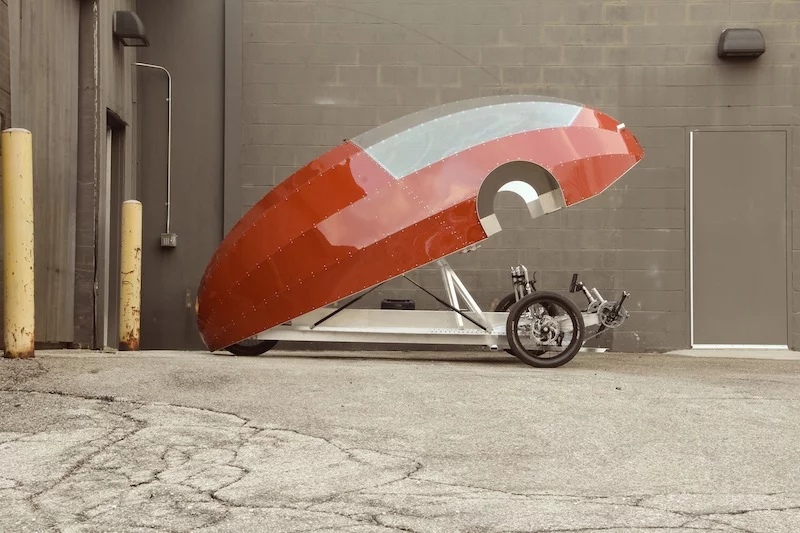

The Zeppelin comes equipped with a 750 watt electric rear motor
11/20
The Zeppelin comes equipped with a 750 watt electric rear motor
The Zeppelin features a traditional three wheel velomobile base structure
12/20
The Zeppelin features a traditional three wheel velomobile base structure

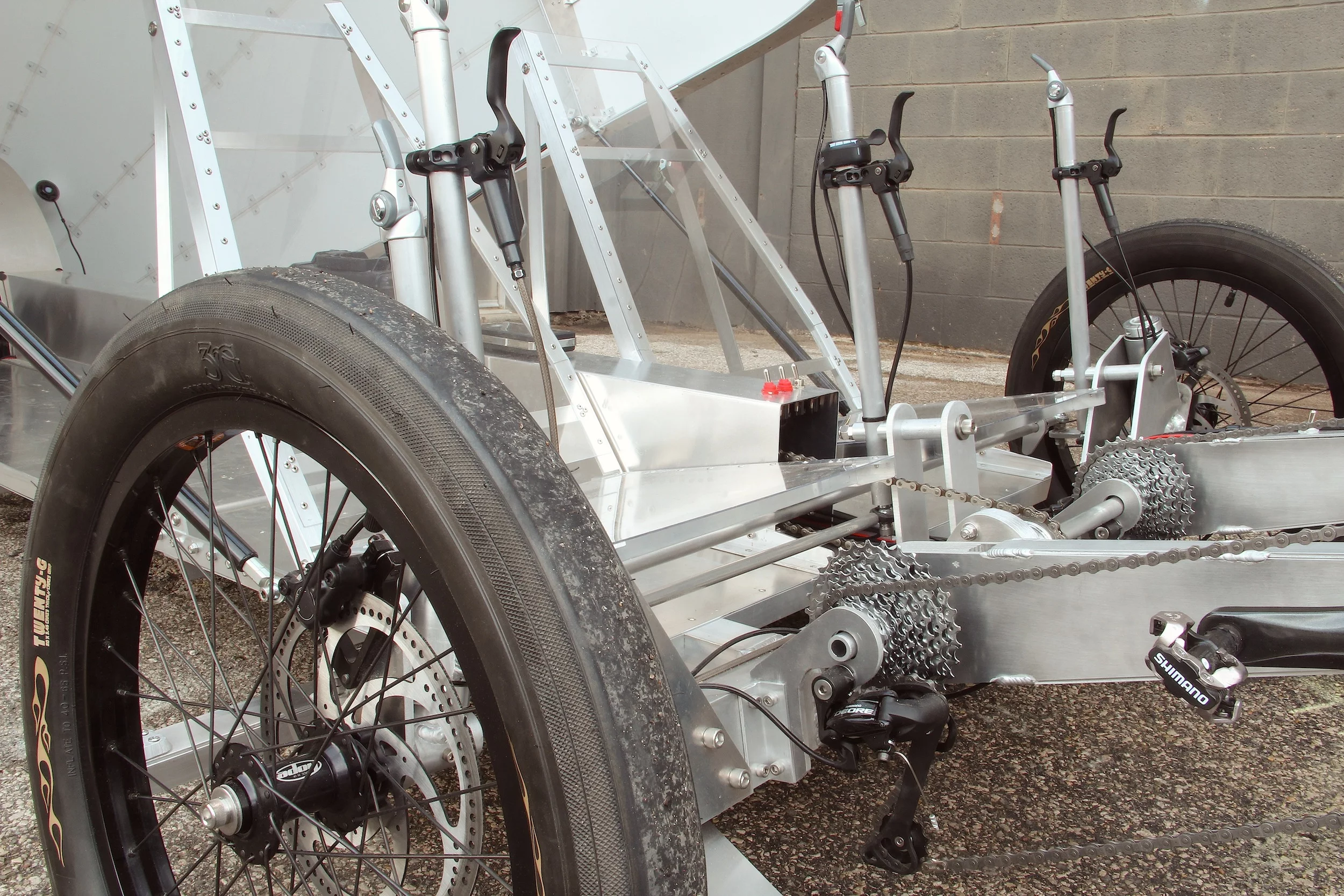

The Zeppelin can be powered by the tandem riders or assisted with the electric motor which can reach a maximum speed of 25mph (40km/h)
13/20
The Zeppelin can be powered by the tandem riders or assisted with the electric motor which can reach a maximum speed of 25mph (40km/h)
The Cyclone prototype was created in CAD software and CNC lasers were used to cut many of the custom aluminum or steel parts
14/20
The Cyclone prototype was created in CAD software and CNC lasers were used to cut many of the custom aluminum or steel parts
The Cyclone looks more like a car than a velomobile
15/20
The Cyclone looks more like a car than a velomobile
The futuristic looking Zeppelin three-wheeler features an aluminum and polycarbonate exterior and a 750 watt electric rear motor to supplement pedal-power
16/20
The futuristic looking Zeppelin three-wheeler features an aluminum and polycarbonate exterior and a 750 watt electric rear motor to supplement pedal-power
Both front seat occupants power the vehicle by pedalling
17/20
Both front seat occupants power the vehicle by pedalling

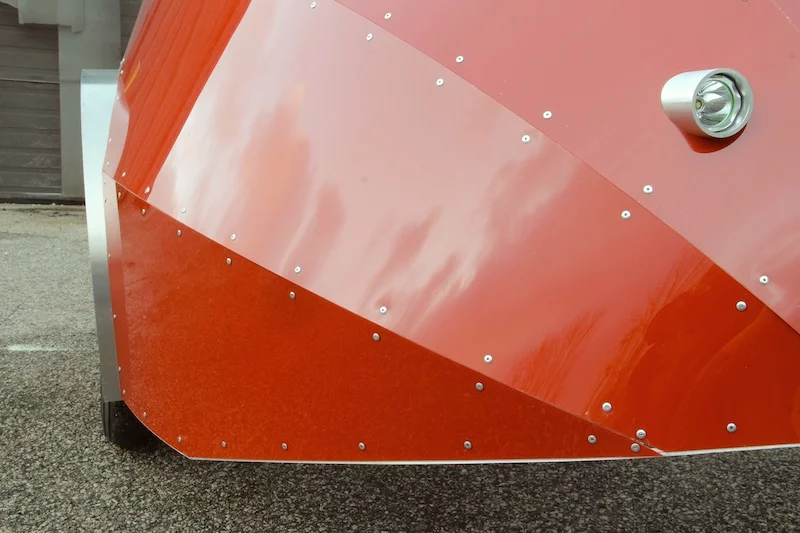

The lightweight Zeppelin weighs in at just 270 lbs (123kg) and can drive for 20 miles (32 km) on a full charge
18/20
The lightweight Zeppelin weighs in at just 270 lbs (123kg) and can drive for 20 miles (32 km) on a full charge

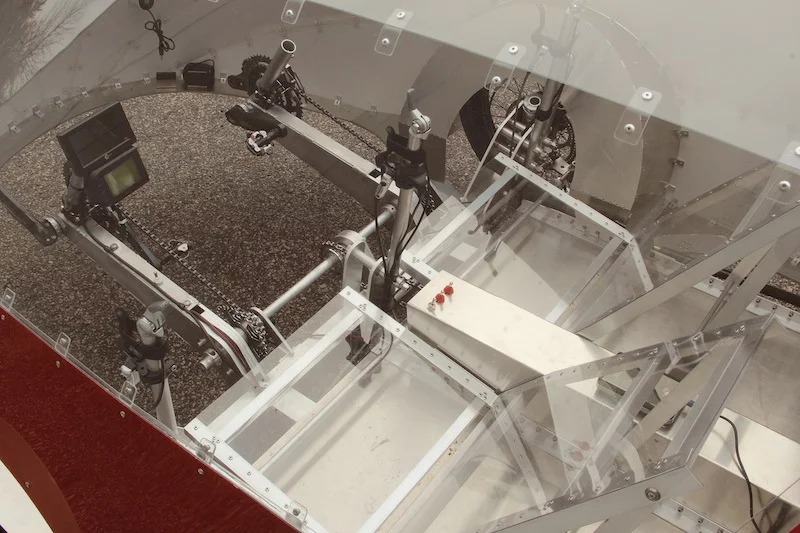

Zeppelin front tandem pedals
19/20
Zeppelin front tandem pedals

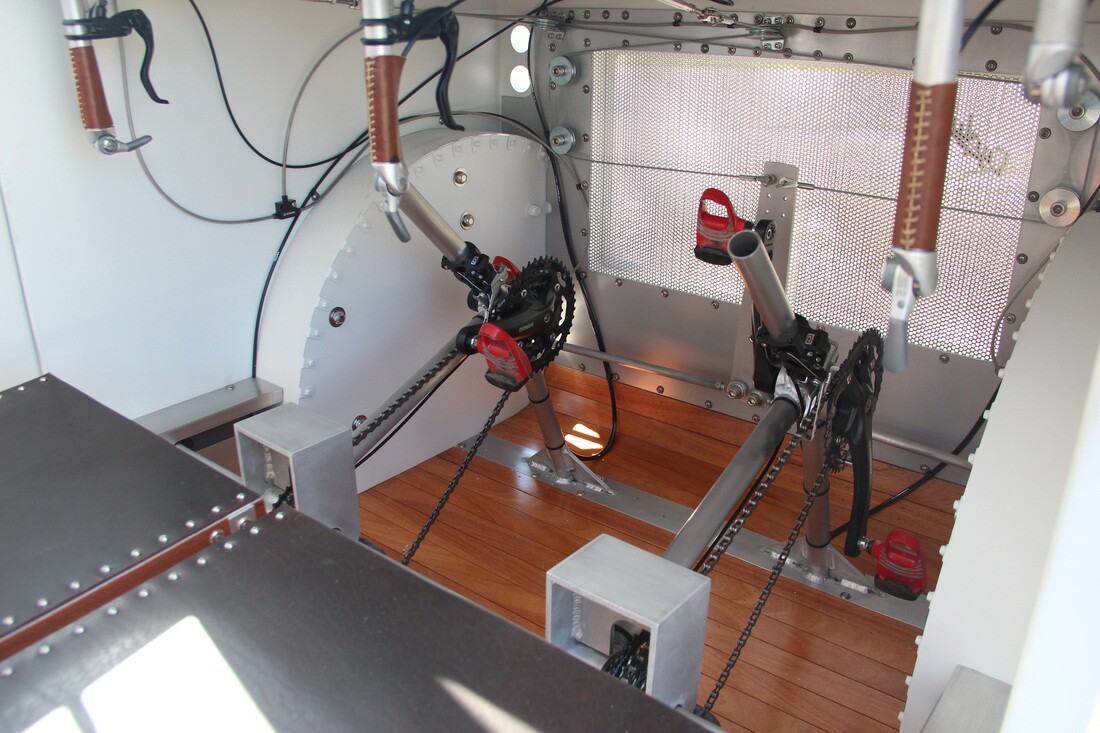

Cyclone front tandem pedals
20/20
Cyclone front tandem pedals
View gallery - 20 images

The team behind The Future People, who brought us the FireFly back in 2013, has recently completed two more human-powered velomobiles which where on display during the 2015 Detroit NAIAS Auto Show. Dubbed Zeppelin and Cyclone, both prototypes push the boundaries of the common human-powered vehicle (HPV) with designs that look to the past and the future.

"Since I was a child I have often found that the things I wanted did not exist," Future People's head designer Cameron Van Dyke tells Gizmag. "That put me in a position to somehow figure out a way to build it myself. When it comes to my transportation choices I have been having a hard time reconciling the chasm between the bicycle option and the car option. The bike is generally not quite large or fast enough for what I need to do, but the car is way too much. This project attempts to create an option that exists between those two extremes."

Both front seat occupants power the vehicle by pedalling
Both front seat occupants power the vehicle by pedalling

In order to create the “future cycles” Van Dyke drew upon his background in furniture design and fabrication while also adopting boat building and traditional bike assembly techniques. The result saw the creation of two distinct prototypes that feature a lightweight aluminum exterior shell, seating for two front riders and rear storage space. Both designs were created in CAD software and CNC lasers were used to cut many of the custom aluminum or steel parts.

"The design methodology was very familiar to me," says Van Dyke. "The challenging part was that I needed to learn how the systems of a vehicle work – particularly steering, suspension, and braking – and how to integrate those systems with a bicycle drive-train. Through many iterations I choose an arrangement that I felt was the most beautiful and simple way possible."

Cyclone front tandem pedals
Cyclone front tandem pedals

The vintage-inspired Cyclone model features an elegant white exterior shell, mahogany interior flooring, leather seats and a four wheel chassis. Both front seat occupants power the vehicle by pedaling and there are two additional passenger seats located in the back.

In contrast, the futuristic looking Zeppelin features an aluminum and polycarbonate exterior, 750 watt electric rear motor and a traditional three wheel velomobile base structure. The model can be powered by the tandem riders or assisted with the electric motor which can reach a maximum speed of 25 mph (40 km/h).

The lightweight model weighs in at 270 lbs (123 kg) and can drive for 20 miles (32 km) on a full charge. According to Van Dyke, in the most parts of the United States the Zeppelin is legally considered a bicycle and can thus be driven without a license, insurance or registration.

The futuristic looking Zeppelin features an aluminum and polycarbonate exterior
The futuristic looking Zeppelin features an aluminum and polycarbonate exterior

Unfortunately the Future People's concept vehicles are not on the market, however Van Dyke did reveal to Gizmag that he was interested in making the designs open source.

"The open source model is one that definitely interests us as a way to share and spread the message. It would be a powerful message to the auto industry if many of us begin to build our own cars. At the moment we are continuing to refine these concepts on our own and decide where to go with idea next. I do hope that others are inspired to try their own experimentation with vehicle alternatives."

See Future People's Cyclone and Zeppelin in full action in the videos below.

Source: The Future People via Designboom

Zeppelin, a human electric hybrid vehicle by The Future People

Cyclone, a human powered vehicle by The Future People
