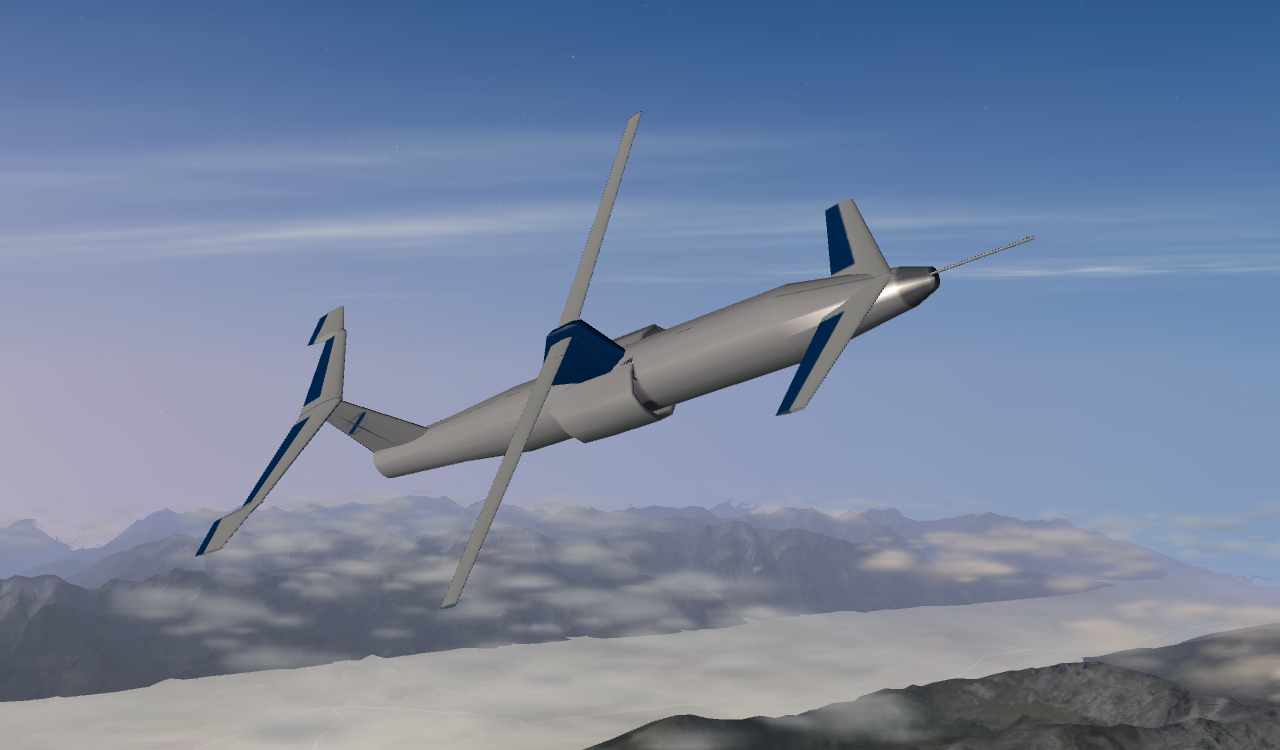

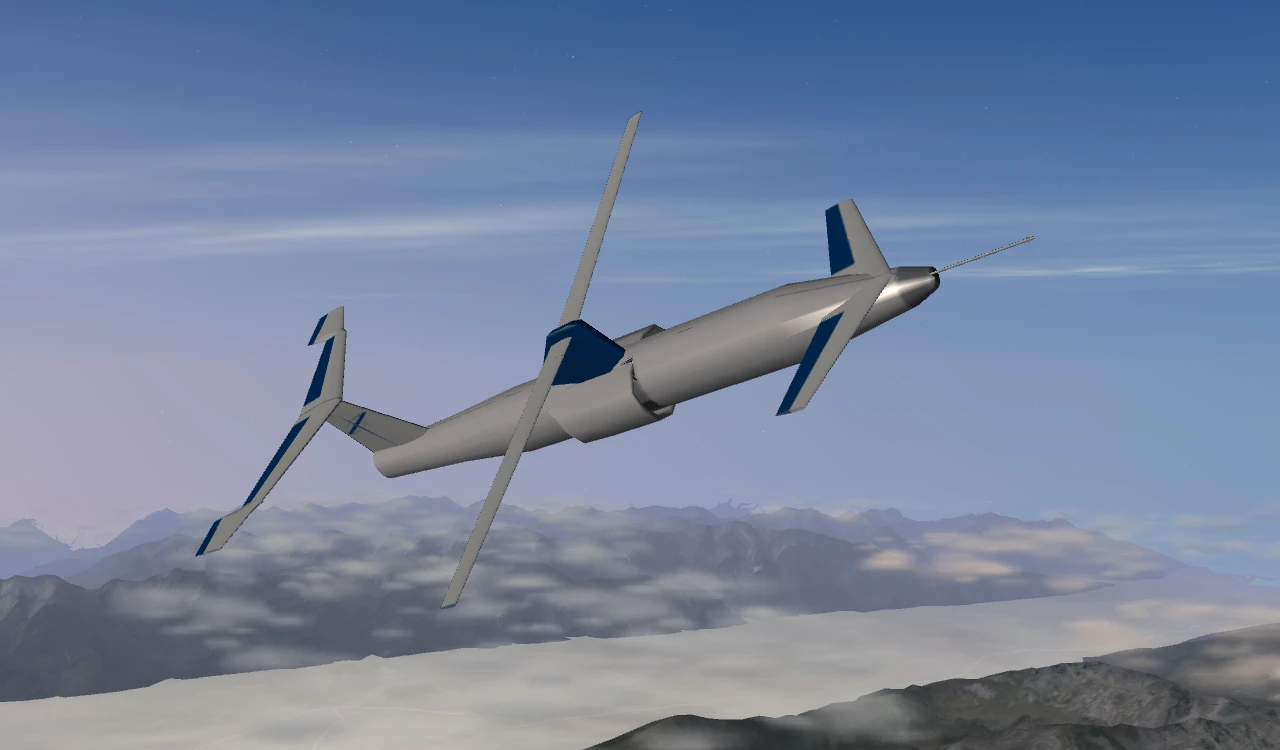

StopRotor Technology's Hybrid RotorWing technology allows for in-flight transition from fixed-wing to rotary flight mode and back
StopRotor Technology's Hybrid RotorWing technology allows for in-flight transition from fixed-wing to rotary flight mode and back
View 42 Images
StopRotor Technology's Hybrid RotorWing technology allows for in-flight transition from fixed-wing to rotary flight mode and back
1/42
StopRotor Technology's Hybrid RotorWing technology allows for in-flight transition from fixed-wing to rotary flight mode and back

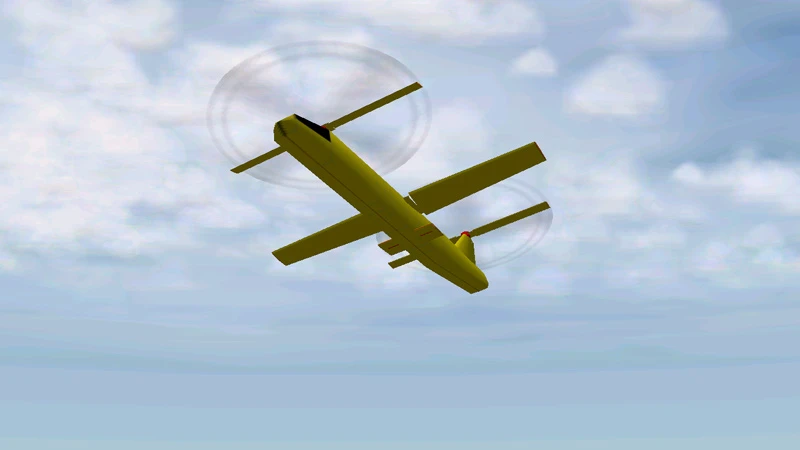

Twin rotor design computer model
2/42
Twin rotor design computer model

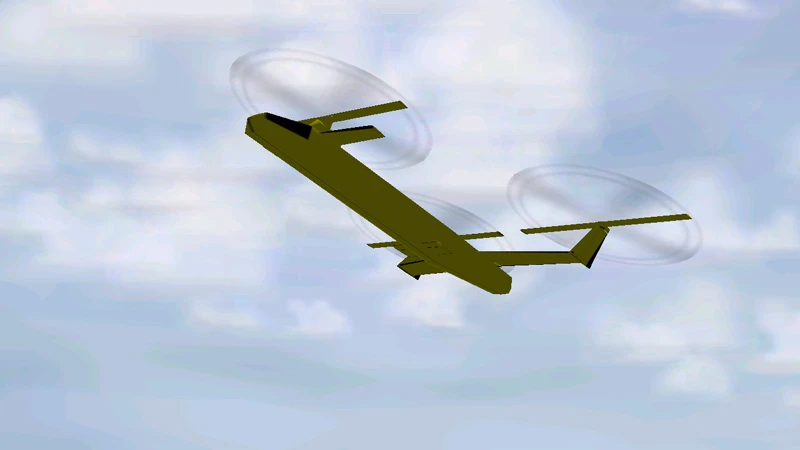

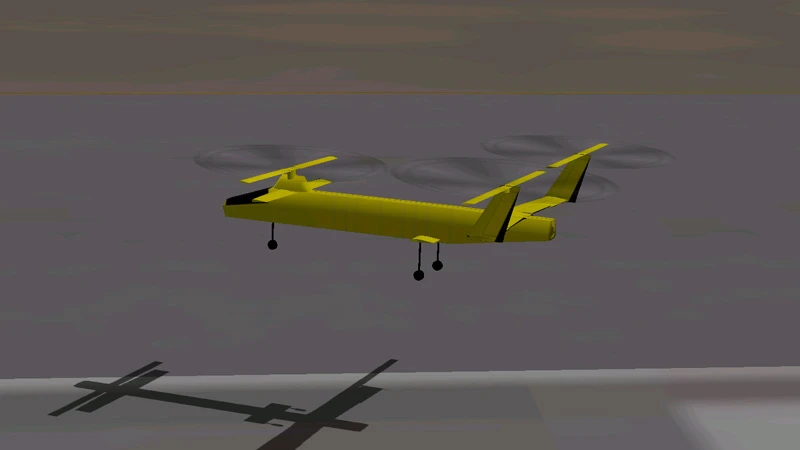

Tri-rotor design computer model
3/42
Tri-rotor design computer model
Tri-rotor design computer model
4/42
Tri-rotor design computer model

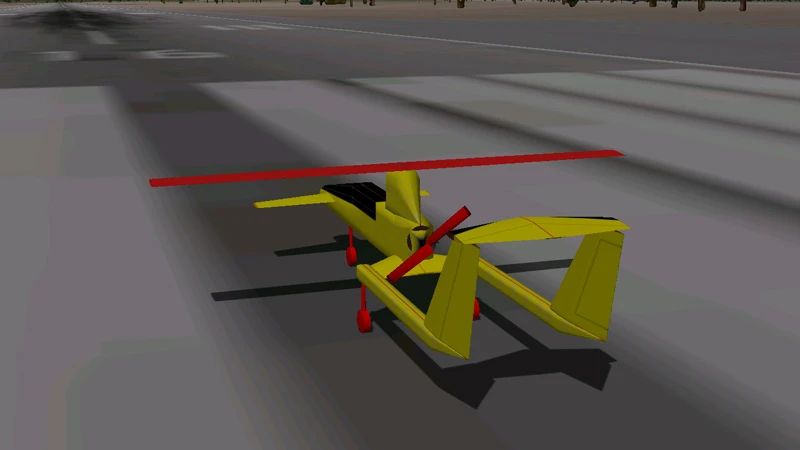

Twin boom pusher prop gyro- plane computer model
5/42
Twin boom pusher prop gyro- plane computer model

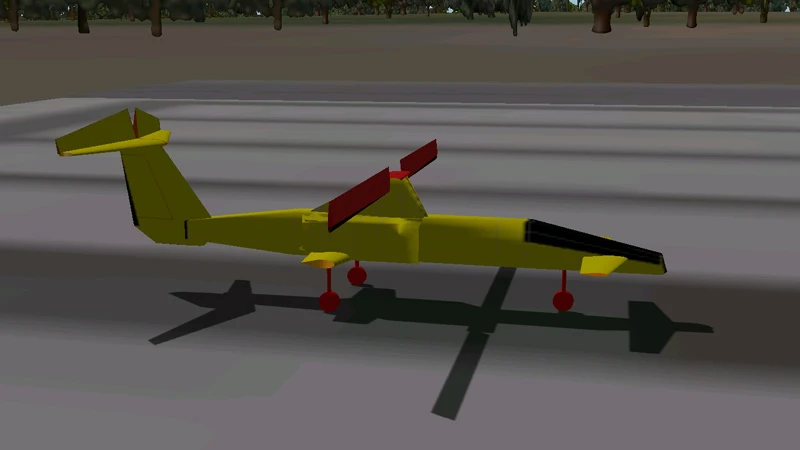

Large incidence RotorWing computer model
6/42
Large incidence RotorWing computer model

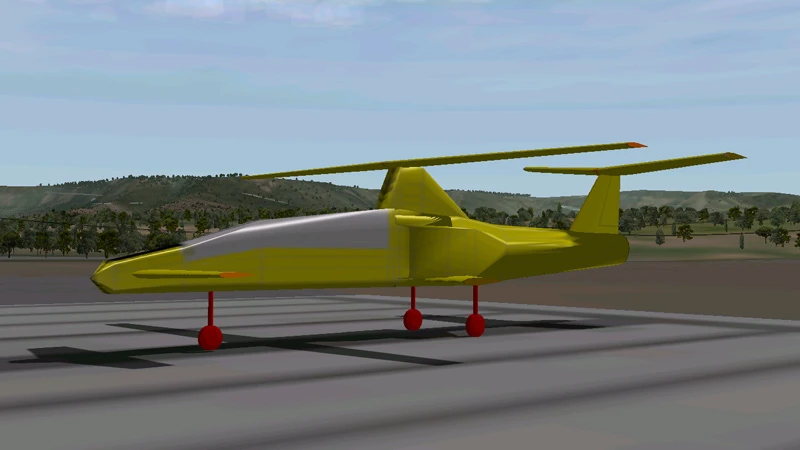

Large T-tail computer model
7/42
Large T-tail computer model

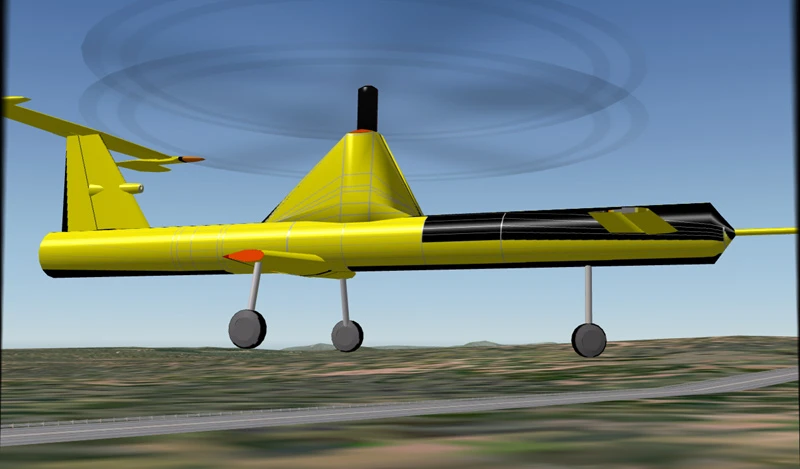

Co-axial computer model
8/42
Co-axial computer model

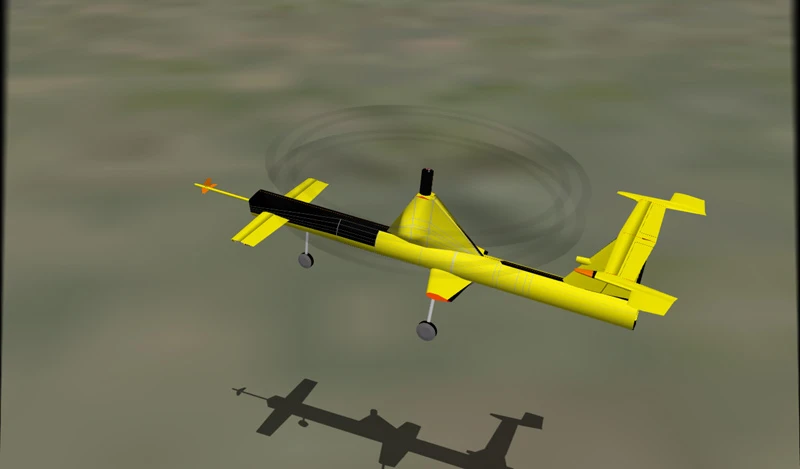

The co-axial design allows a compact rotor craft that does not require a anti torque system on its tail
9/42
The co-axial design allows a compact rotor craft that does not require a anti torque system on its tail

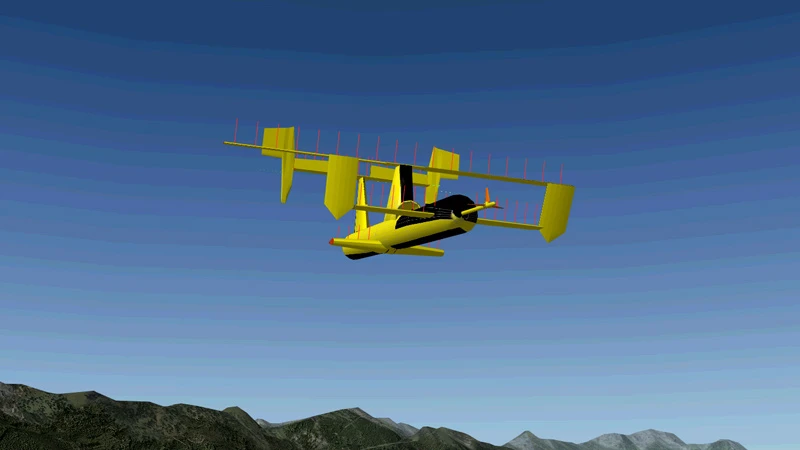

Testing of different flight controls to enable sustained flight in transition envelope
10/42
Testing of different flight controls to enable sustained flight in transition envelope

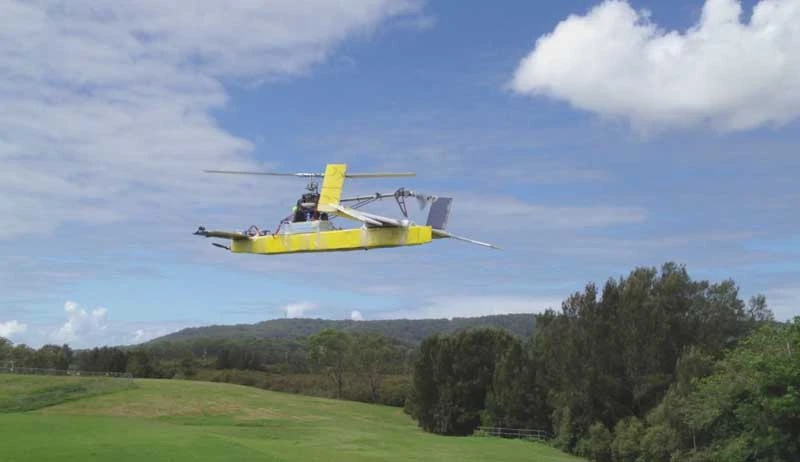

A number of low rear stabilizer version have been tested
11/42
A number of low rear stabilizer version have been tested

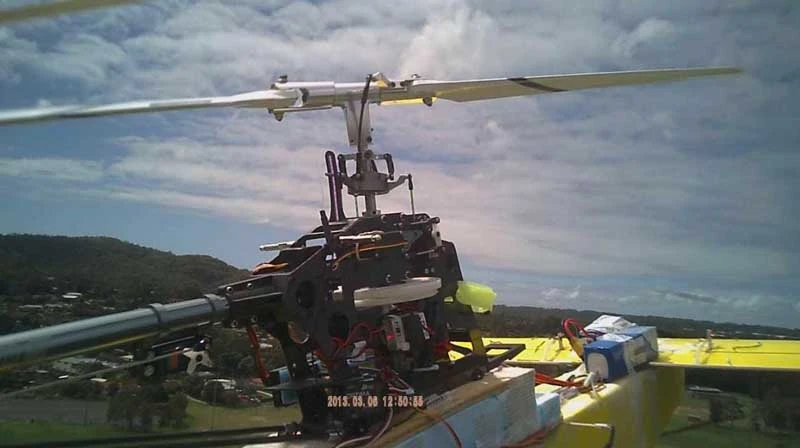

On board image from low tail tests
12/42
On board image from low tail tests

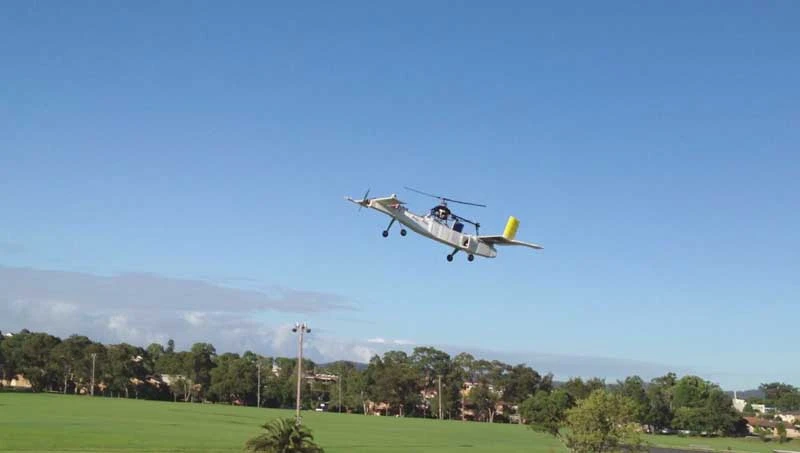

This prototype demonstrates flight with the use of both propeller and electric ducted fan (EDF) unit
13/42
This prototype demonstrates flight with the use of both propeller and electric ducted fan (EDF) unit

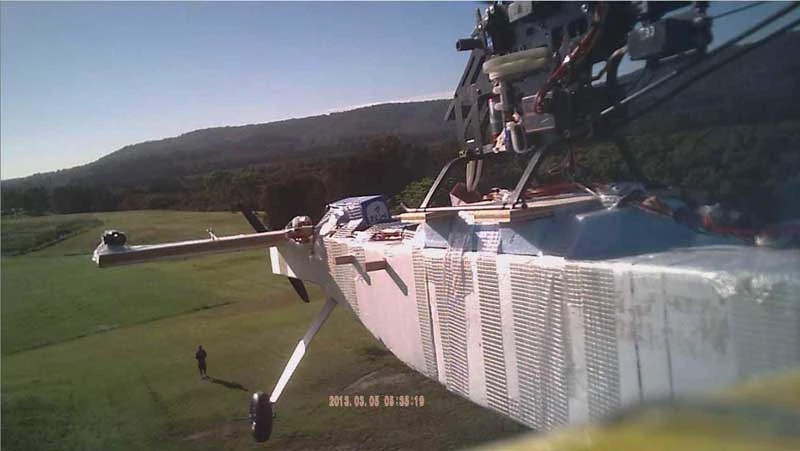

On board cameras are used for recording of each flight which yields valuable information about airflow and handling
14/42
On board cameras are used for recording of each flight which yields valuable information about airflow and handling

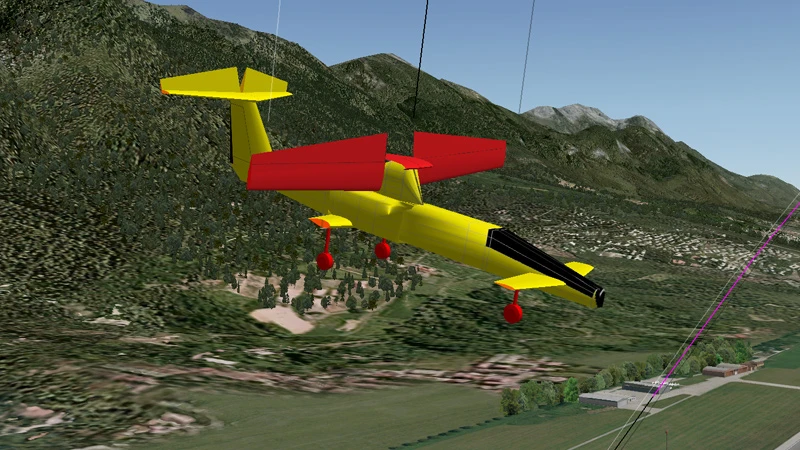

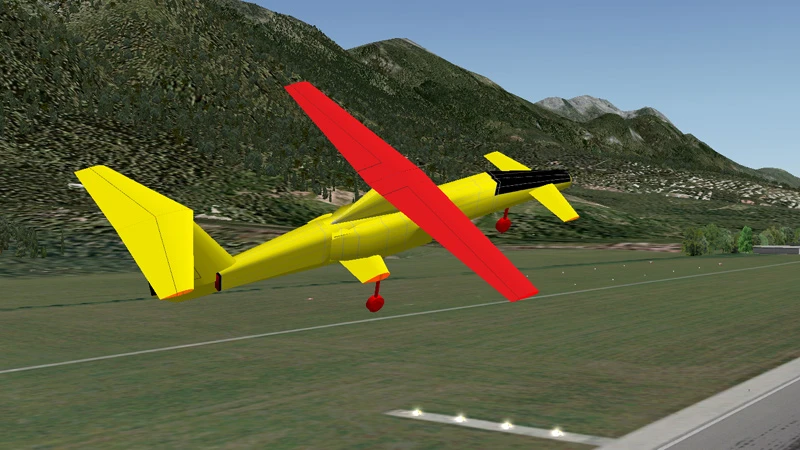

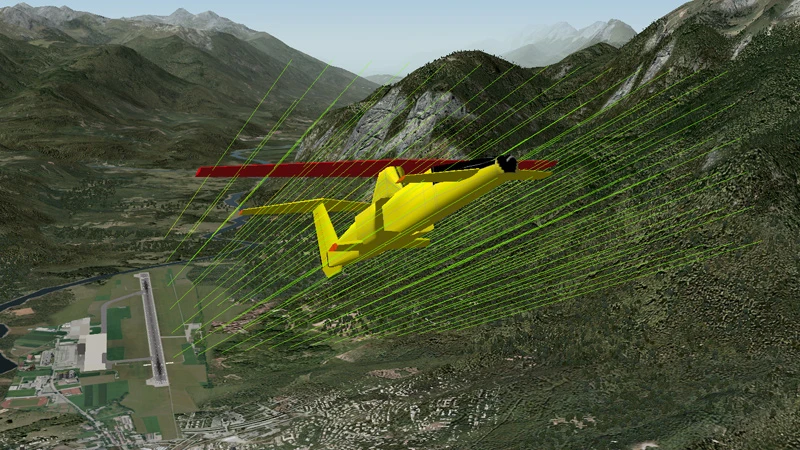

Large incidence deep chord RotorWing prototype
15/42
Large incidence deep chord RotorWing prototype
Large incidence deep chord RotorWing prototype
16/42
Large incidence deep chord RotorWing prototype
Large incidence deep chord RotorWing prototype
17/42
Large incidence deep chord RotorWing prototype
Low tail UAV prototype
18/42
Low tail UAV prototype

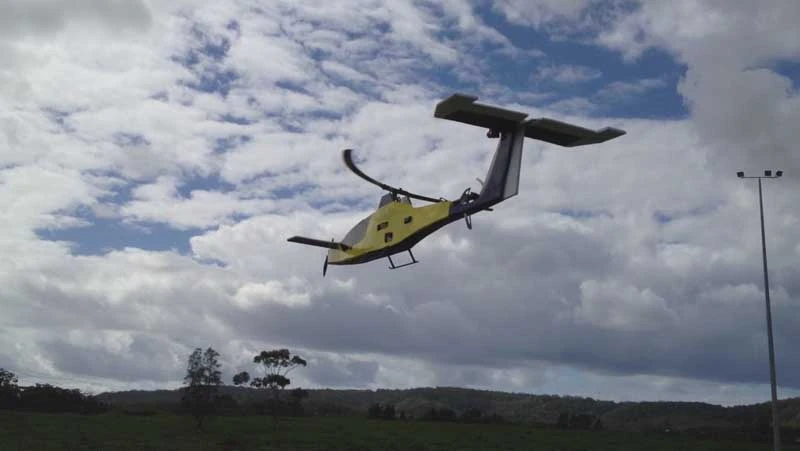

Compound mode testing was demonstrated by this model
19/42
Compound mode testing was demonstrated by this model

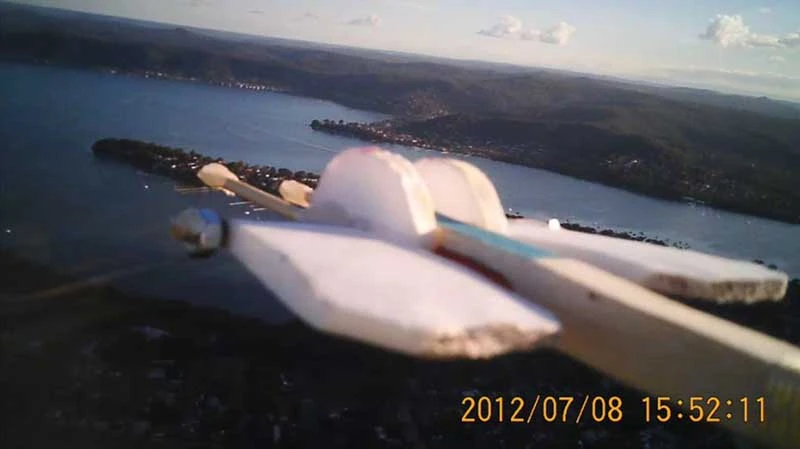

Simple Angle of Attack probe used for relative airflow analysis
20/42
Simple Angle of Attack probe used for relative airflow analysis

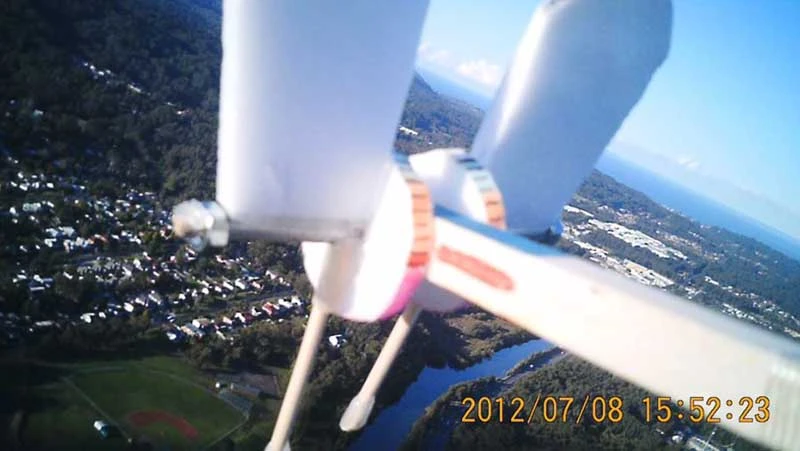

The Angle of Attack probe indicating airflow in alignment with the rotors rotational axis
21/42
The Angle of Attack probe indicating airflow in alignment with the rotors rotational axis

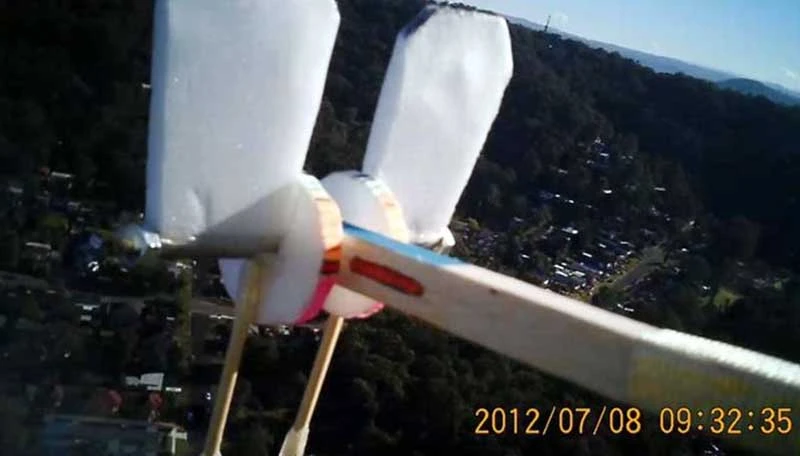

Airflow alignment with the rotors rotational axis is the key to successful transition between flight modes
22/42
Airflow alignment with the rotors rotational axis is the key to successful transition between flight modes

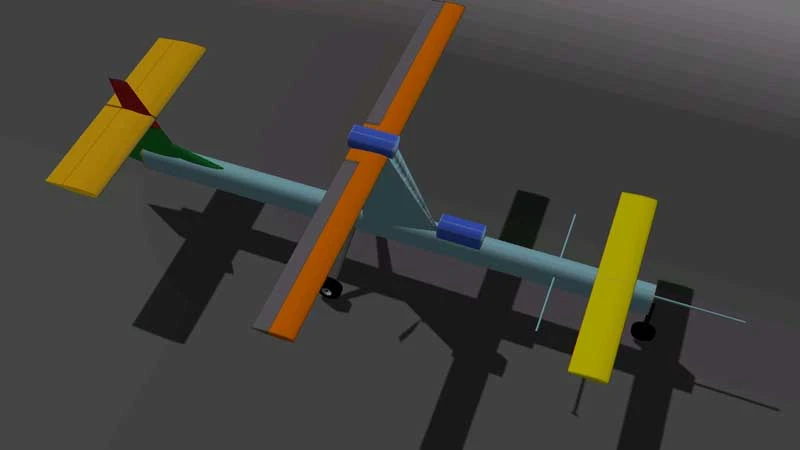

Virtual modelling of radio controlled blue foam model
23/42
Virtual modelling of radio controlled blue foam model
Virtual modelling of radio controlled blue foam model
24/42
Virtual modelling of radio controlled blue foam model

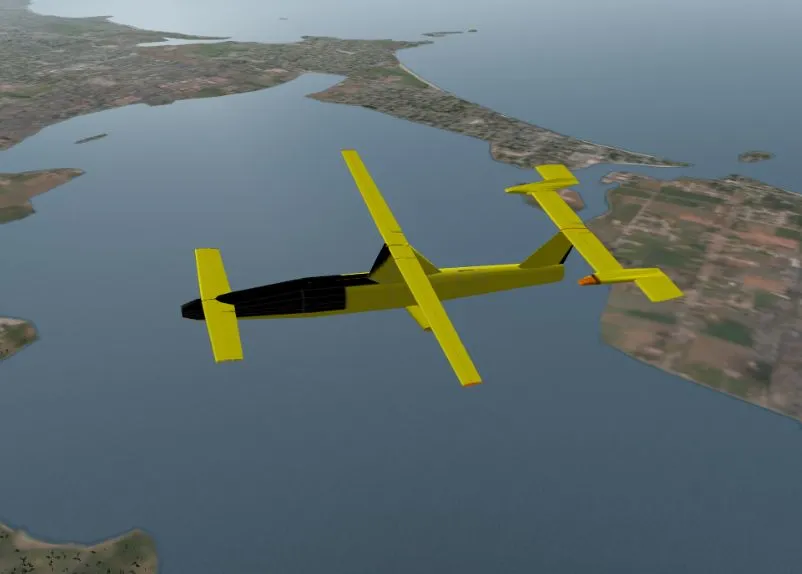

Large virtual prototype. This model showed that the concept is scalable from small radio controlled to large man carrying versions
25/42
Large virtual prototype. This model showed that the concept is scalable from small radio controlled to large man carrying versions

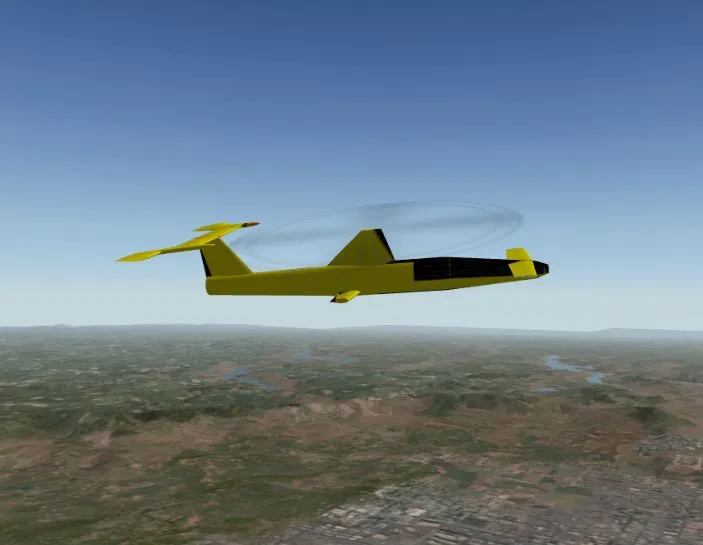

Large man carrying virtual prototype
26/42
Large man carrying virtual prototype

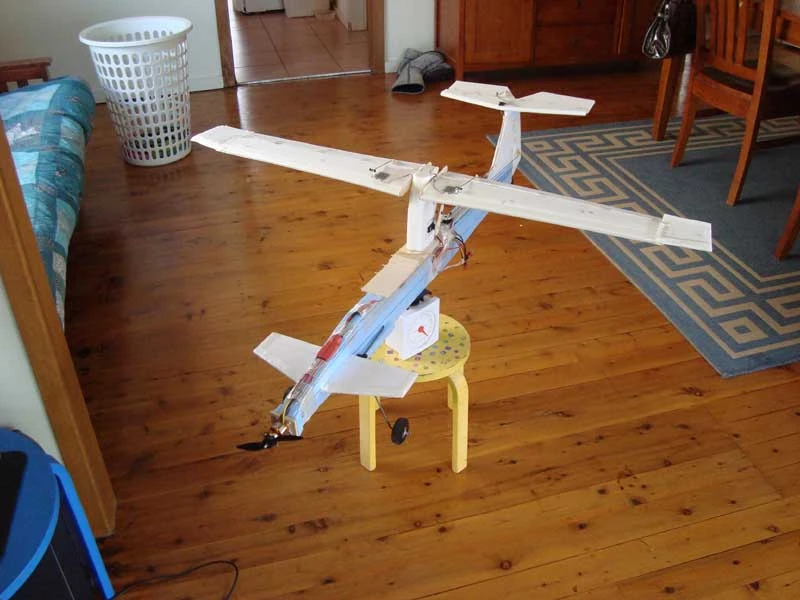

This is an early Variable Incidence Fixed Wing Prototype. It was designed to test proportionally larger variable incidence rotor wing operations
27/42
This is an early Variable Incidence Fixed Wing Prototype. It was designed to test proportionally larger variable incidence rotor wing operations

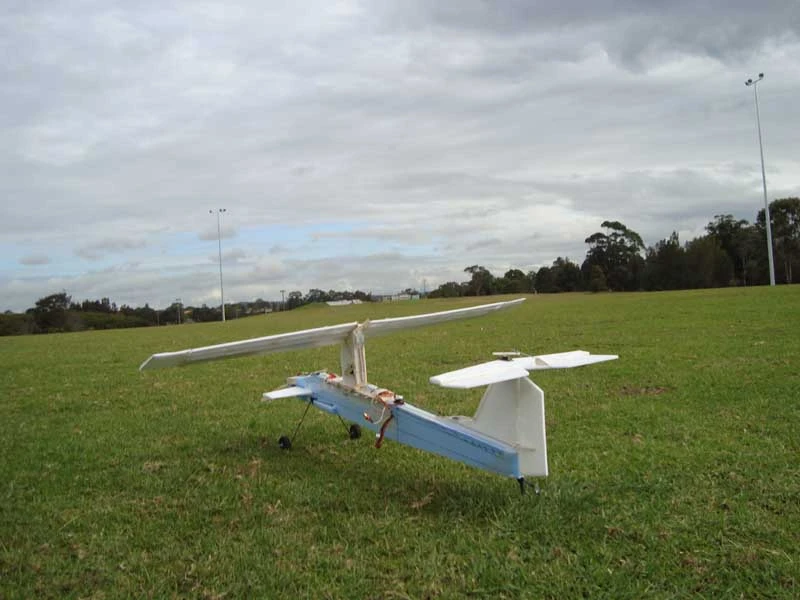

Variable Incidence Fixed Wing Prototype
28/42
Variable Incidence Fixed Wing Prototype

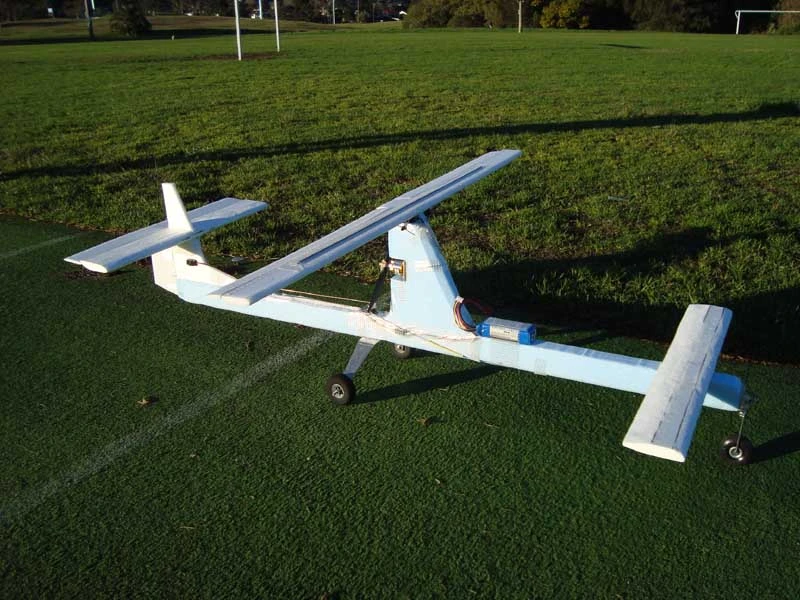

This blue foam prototype demonstrated entry, sustained flight and exit from the transition envelope
29/42
This blue foam prototype demonstrated entry, sustained flight and exit from the transition envelope

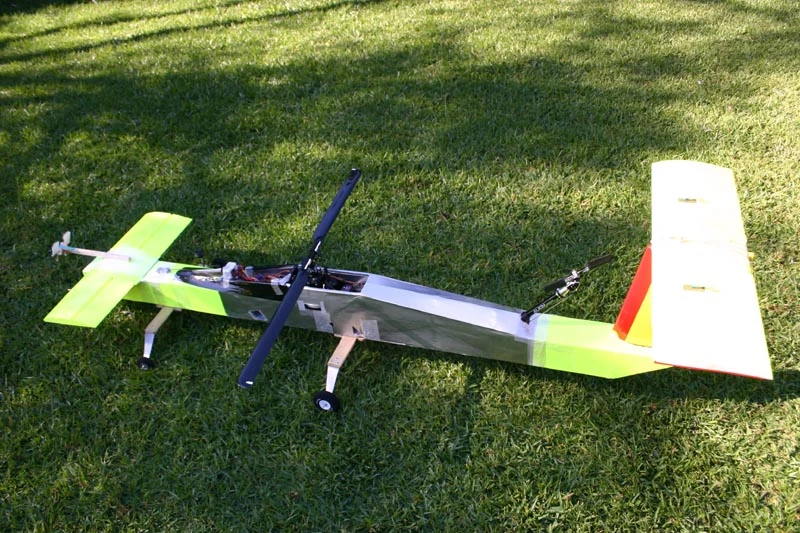

A flying prototype by StopRotor Technology
30/42
A flying prototype by StopRotor Technology

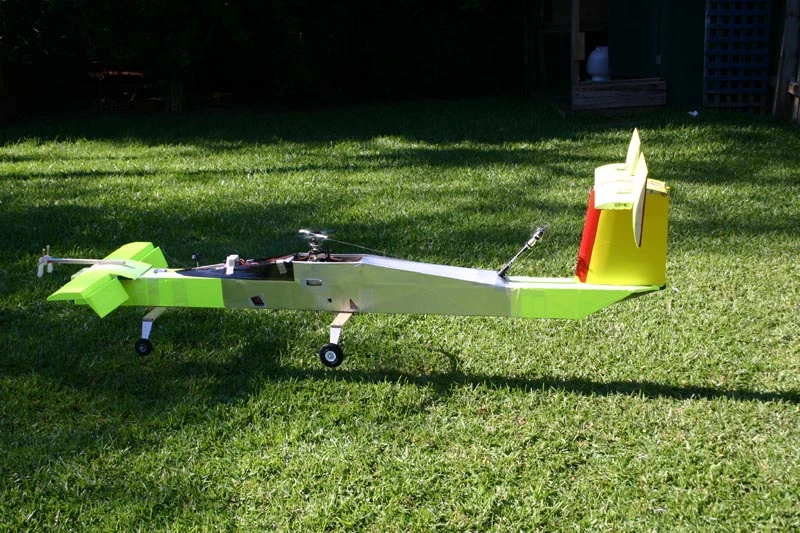

Hybrid RotorWing prototype demonstrating hover with flight controls set for transition envelope operation
31/42
Hybrid RotorWing prototype demonstrating hover with flight controls set for transition envelope operation

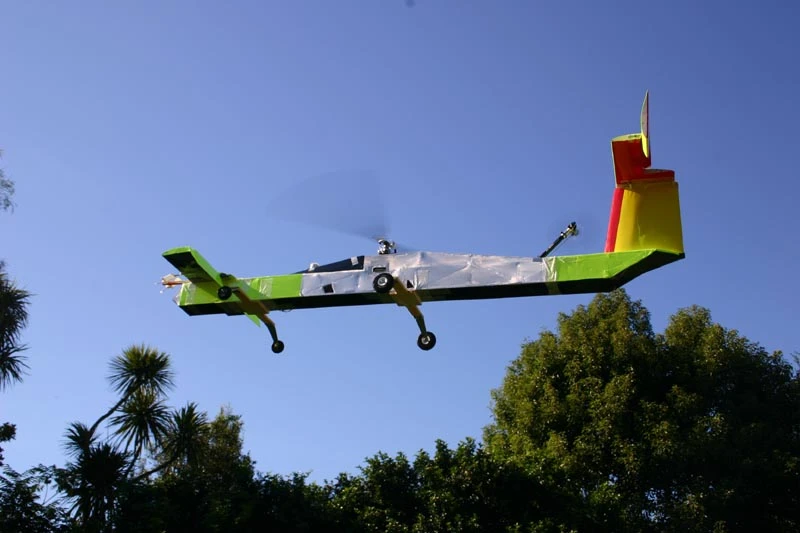

Hybrid RotorWing prototype demonstrating hovering flight
32/42
Hybrid RotorWing prototype demonstrating hovering flight

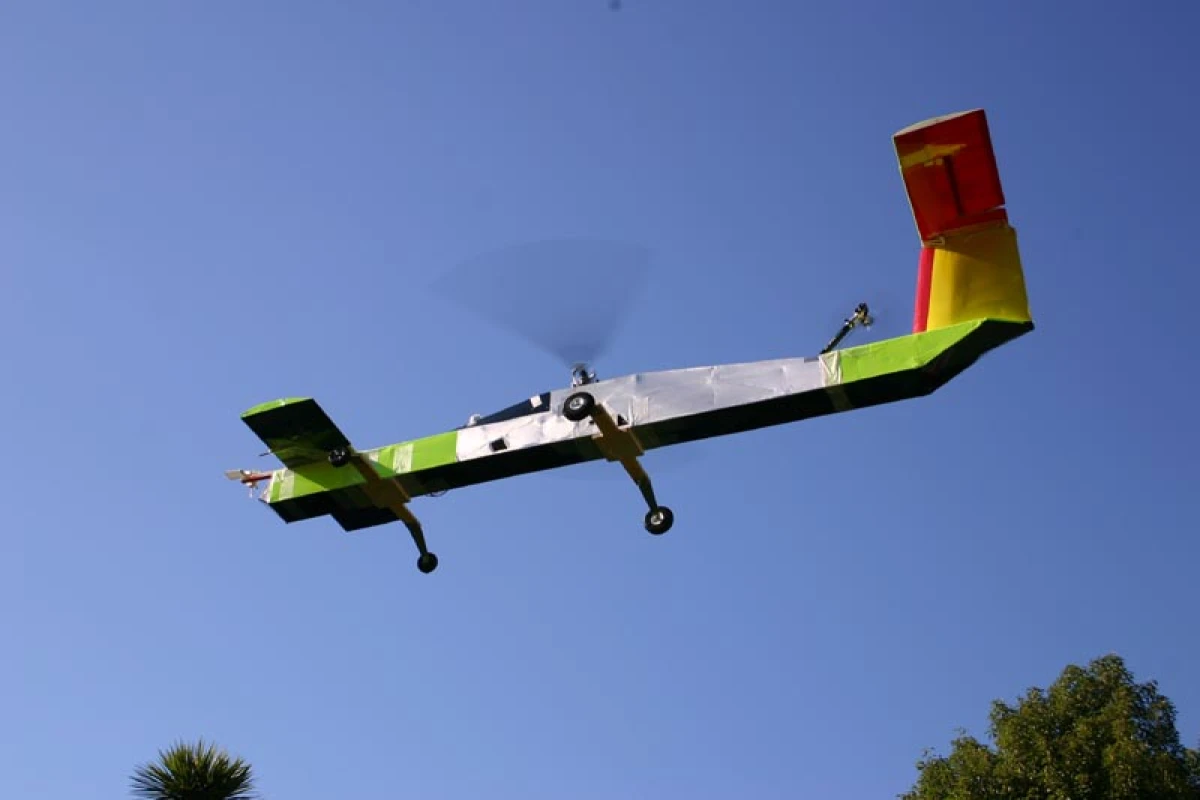

StopRotor Technology's Hybrid RotorWing technology allows for in-flight transition from fixed-wing to rotary flight mode and back
33/42
StopRotor Technology's Hybrid RotorWing technology allows for in-flight transition from fixed-wing to rotary flight mode and back

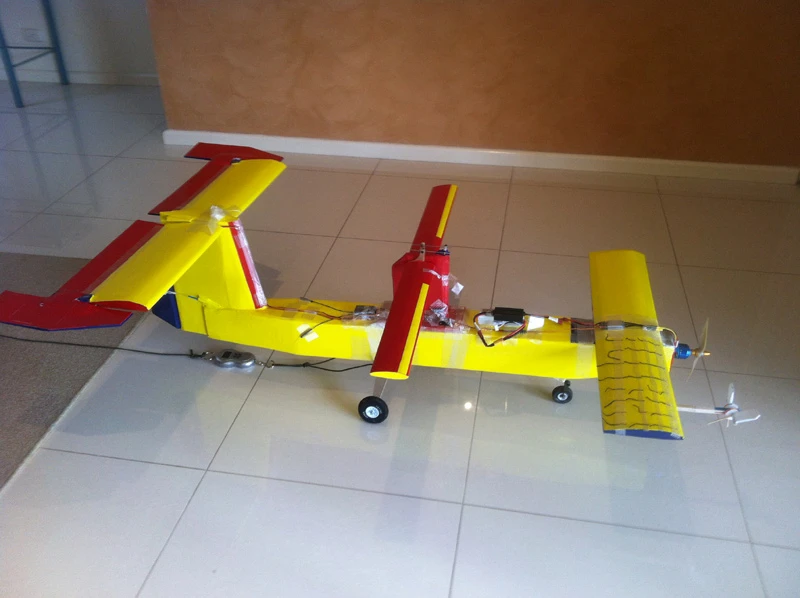

This larger fixed wing prototype was built to be modular
34/42
This larger fixed wing prototype was built to be modular

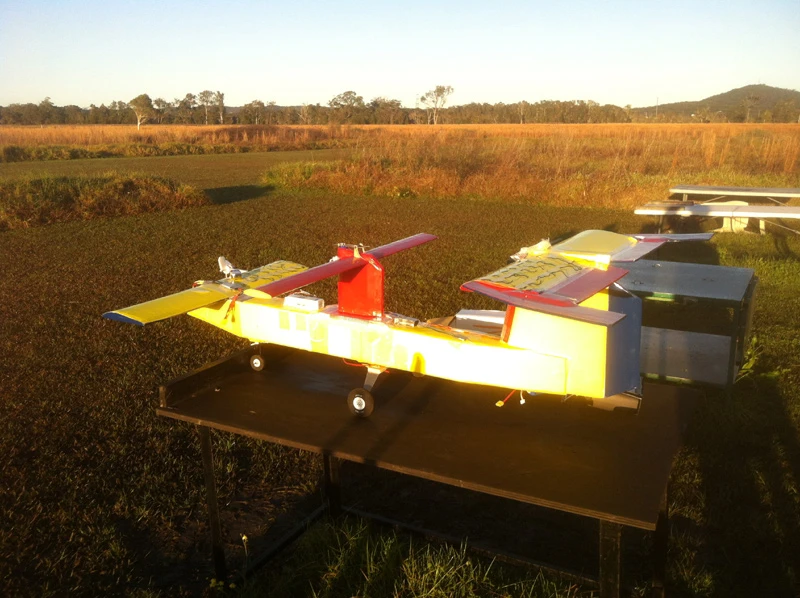

Larger Fixed Wing Prototype
35/42
Larger Fixed Wing Prototype

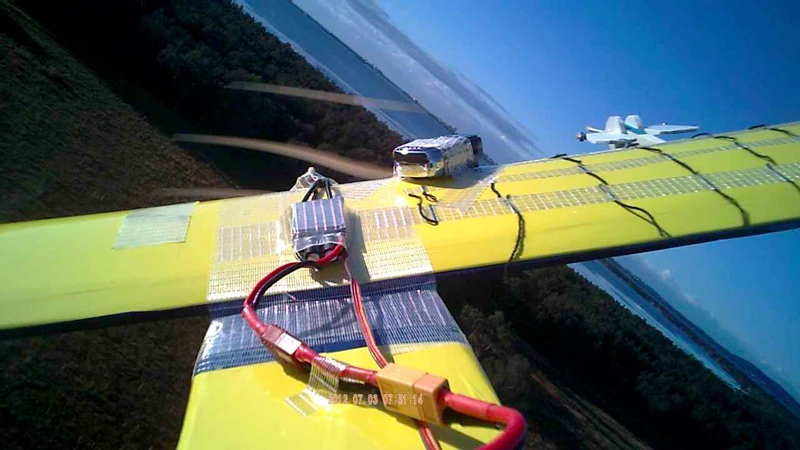

Larger Fixed Wing Prototype first flight
36/42
Larger Fixed Wing Prototype first flight

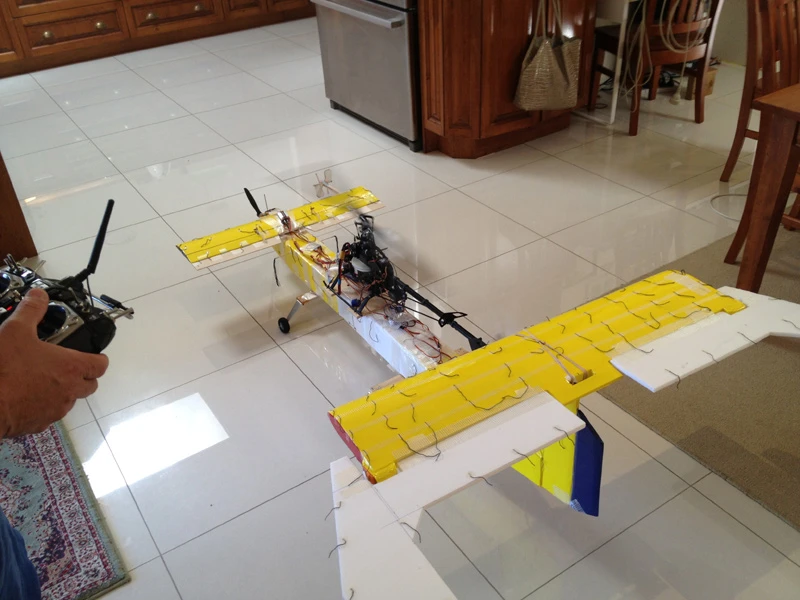

Initial run up of the first rotary wing prototype
37/42
Initial run up of the first rotary wing prototype

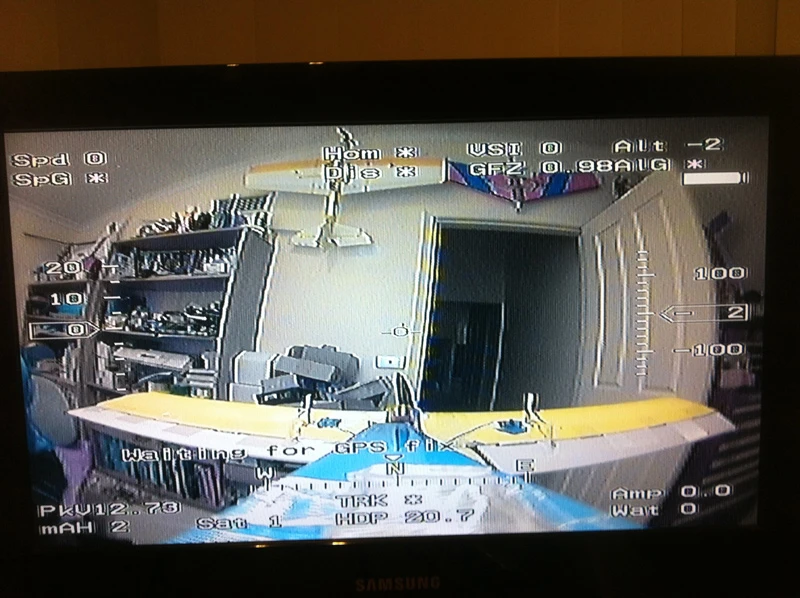

FPV configuration testing
38/42
FPV configuration testing

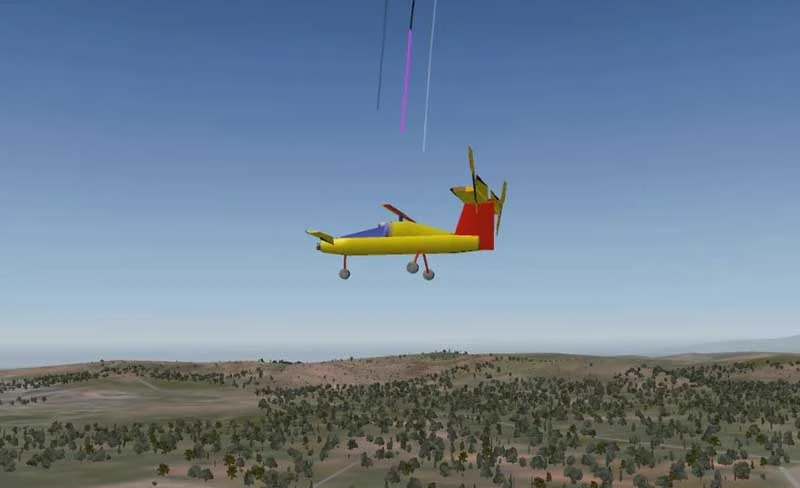

Virtual transition testing of larger radio controlled model
39/42
Virtual transition testing of larger radio controlled model

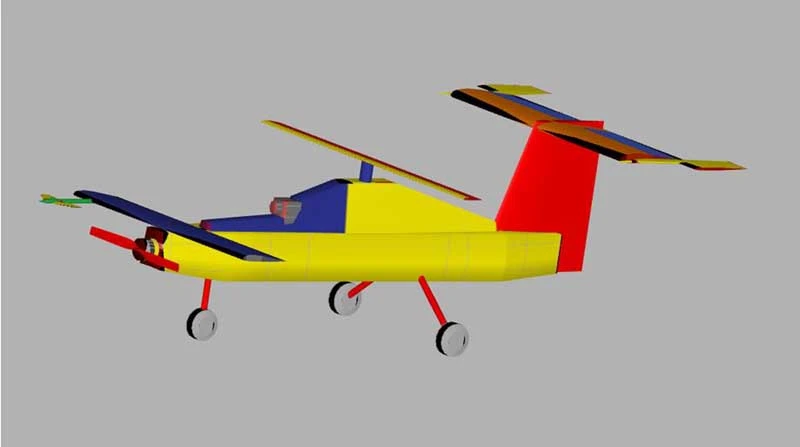

Virtual modelling of larger radio controlled model
40/42
Virtual modelling of larger radio controlled model

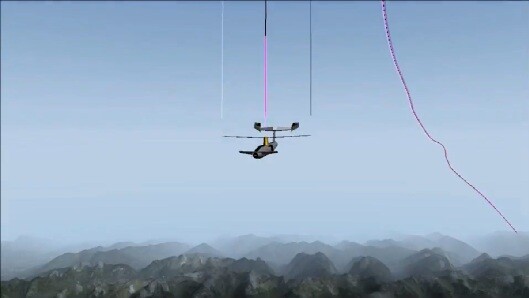

Stopped rotor aircraft changing flight mode
41/42
Stopped rotor aircraft changing flight mode
42/42
View gallery - 42 images

Attempts to combine the vertical take-off and landing (VTOL) capabilities of a helicopter with the high-speed flight and long range capabilities of a fixed-wing aircraft have been tackled in a number of different ways – from tiltrotor designs, such as the V-280 Valor and Project Zero, to fixed rotor aircraft that transition from vertical to horizontal flight, such as the SkyTote and Flexrotor. Australian company StopRotor Technology has taken a different approach with its Hybrid RotorWing design concept which features a main rotor that switches from fixed rotor to fixed wing in mid air.

Similar to the SiMiCon Rotor Craft concept, StopRotor Technology’s Hybrid RotorWing can take off vertically and hover with the main rotor spinning like a helicopter’s, or take off and fly like a conventional fixed wing aircraft. To transition between rotary and fixed wing flight modes, the aircraft is plunged into a fall involving high angle of attack flight that aligns the airflow with the rotation axis of the rotor system. This symmetrical airflow over the main rotor provides a stable environment that allows the blades to be started or stopped.

The design features a powered main rotor, anti torque system and forward propulsion engines. These various components can either all be powered by a single engine with appropriate transmissions, or by multiple engines performing dedicated roles.

Stopped rotor aircraft changing flight mode
Stopped rotor aircraft changing flight mode

The Hybrid RotorWing can operate in five different flight modes.

  • Fixed Wing Flight: where the RotorWing is locked to operate as a fixed wing
  • Rotary Wing Flight: The RotorWing rotates like a helicopter rotor providing sustained hover capability
  • Compound Rotary Wing Flight: where the rotors requirement to produce lift and thrust is off loaded to other lifting surfaces or propulsion engines
  • Autogiro Flight: a form of rotary wing flight where the rotor is driven by the relative airflow and not directly by the engine
  • Transition Flight Mode: where the conversion from fixed to rotary or rotary to fixed wing flight occurs

The company says this versatility translates into unprecedented adaptability with conventional, short or vertical takeoff and landing options, plus on-ground as well as in-flight mode transition with no negative impact on load capacity. The design also features a conventional fuselage that helps open up the technology to a host of applications.
While the StopRotor team says the design is suitable for scaling up to manned applications, the unmanned and remote piloted aerial vehicles market is seen as the natural first step for the technology.

While other potential applications include search and rescue, surveillance and corporate transport, military applications are likely to come first since StopRotor Technology is keen to develop the Hybrid RotorWing for inclusion in DARPA’s VTOL X-Plane program, which was launched in February. The company is looking to collaborate with leading aerospace companies to reach this goal.

"For the past 50 years, we have seen jets go higher and faster while VTOL aircraft speeds have flat-lined and designs have become increasingly complex," said Ashish Bagai of DARPA. "To overcome this problem, DARPA has launched the VTOL X-Plane program to challenge industry and innovative engineers to concurrently push the envelope in four areas: speed, hover efficiency, cruise efficiency and useful load capacity."

StopRotor Technology's Hybrid RotorWing technology allows for in-flight transition from fixed-wing to rotary flight mode and back
StopRotor Technology's Hybrid RotorWing technology allows for in-flight transition from fixed-wing to rotary flight mode and back

So far, a number of physical models built with rapid prototyping have successfully demonstrated the potential behind this approach. Each model had a virtual counterpart, which allowed for numerous designs to be tested and improved upon in a relatively short time frame. While the project is still in very early stages of development, the StopRotor Technology team believes that at the very least it could fulfill a useful role in the rapidly expanding UAV industry.

An overview of the Hybrid RotorWing design and its transition flight mode capabilities are shown in the first video below, with the following videos showing some various prototype test flights.

Source: StopRotor Technology
