Invisible computer mouse cost only $20 to build

Invisible computer mouse cost ...

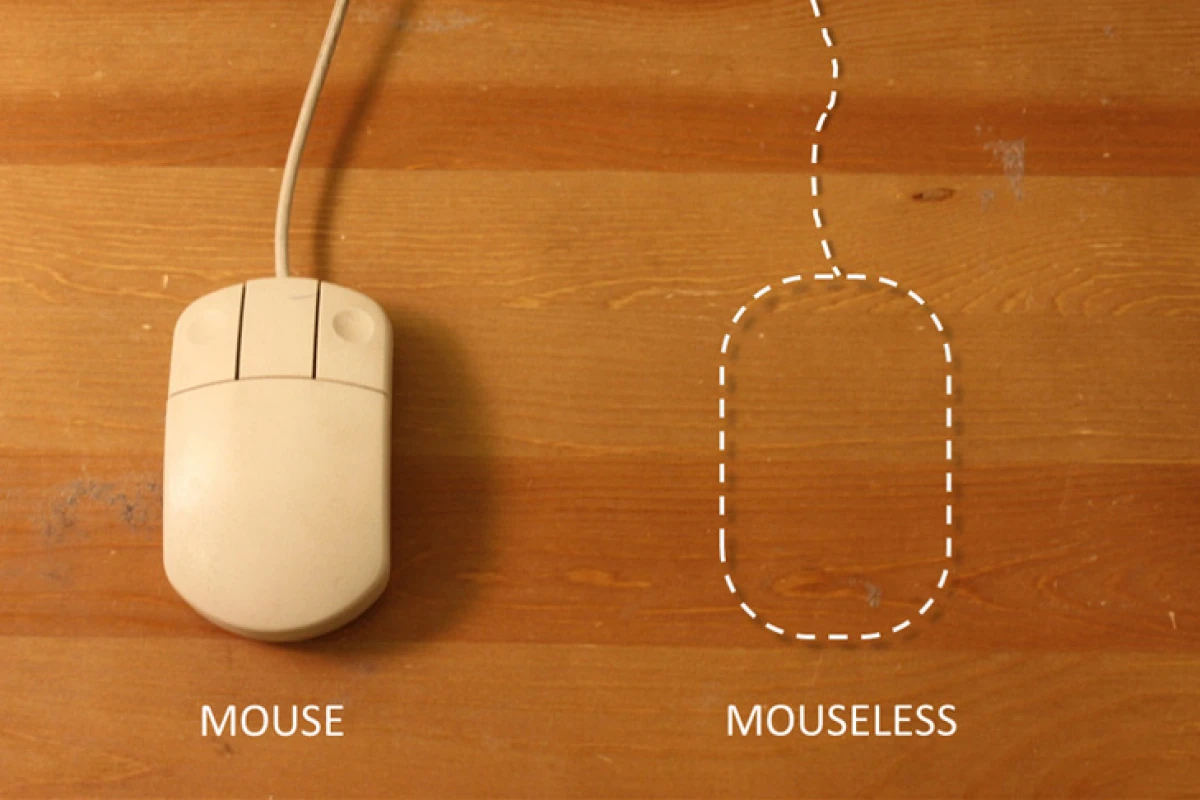

The Mouseless invisible mouse system is the next logical step in input periperhal development
The Mouseless invisible mouse system is the next logical step in input periperhal development
View 6 Images
Demonstrating the Mouseless system
1/6
Demonstrating the Mouseless system

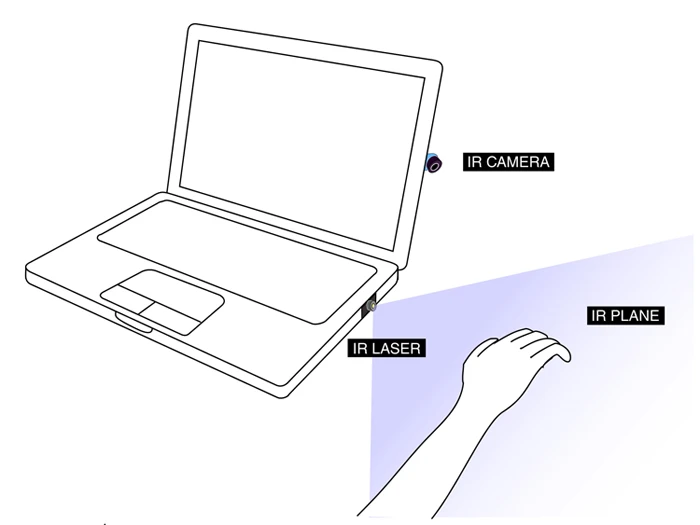

An IR laser sends a beam out just above the surface of a desk, and the camera registers and translates user movement into mouse action
2/6
An IR laser sends a beam out just above the surface of a desk, and the camera registers and translates user movement into mouse action
Can you see the invisible mouse?
3/6
Can you see the invisible mouse?

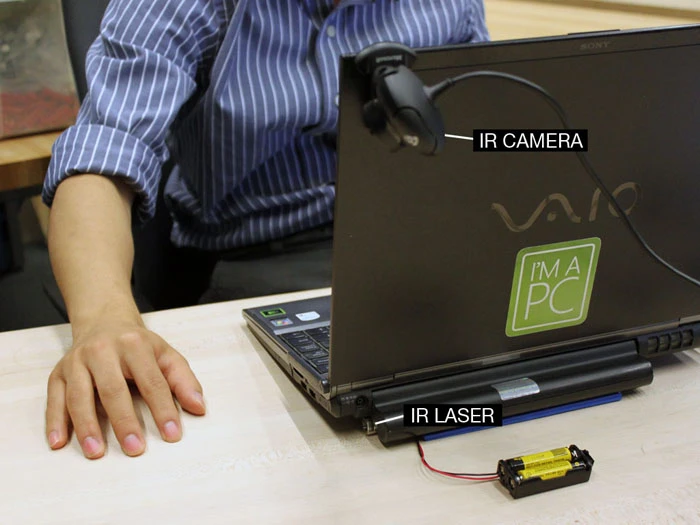

Using an Infrared laser and tracking camera, the Mouseless system registers and interprets a user's hand movement and translates it into onscreen actions
4/6
Using an Infrared laser and tracking camera, the Mouseless system registers and interprets a user's hand movement and translates it into onscreen actions
The Mouseless invisible mouse system is the next logical step in input periperhal development
5/6
The Mouseless invisible mouse system is the next logical step in input periperhal development

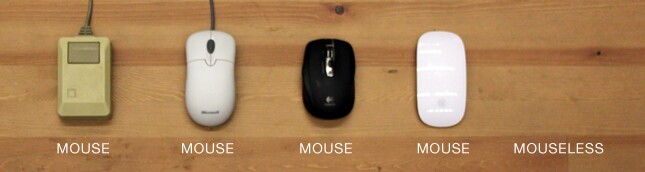

The evolution of the computer mouse
6/6
The evolution of the computer mouse

Pranav Mistry, Pattie Maes and Liyan Chang from MIT's Media Lab have managed to create an invisible computer mouse for just a few dollars. Using an Infrared laser and tracking camera, the Mouseless system registers and interprets a user's hand movement and translates it into onscreen actions such as cursor movement and button clicking.

While others take the familiar input peripheral to new levels by cramming as many buttons as possible onto it or making the surface available for multi-touch interaction or even moving the whole experience to the end of a user's leg, Pranav Mistry and colleagues have dispensed with its physical form altogether.

The evolution of the computer mouse
The evolution of the computer mouse

With their Mouseless prototype, a user's hand movements are tracked with a line-capped Infrared laser beam and an Infrared camera. The beam's plane is aimed just above the surface of the user area and when the user cups the hand, as if holding a physical mouse, this breaks the beam at the points where each finger touches the surface The camera then registers and interprets the changing field shapes and translates them into movement or action, such as clicking and double-clicking.

Demonstrating the Mouseless system
Demonstrating the Mouseless system

The developers are continuing to improve the tracking and recognition algorithms to build up a library of commands, possibly leading to multi-touch gesturing in addition to simple click confirmation.

The prototype system is said to have cost just US$20 to put together and can be seen in action in the following demonstration:

Mouseless - an invisible computer mouse
