Synthetic cilia allow tiny soft-bodied robot to pump and scuttle

Synthetic cilia allow tiny soft-bodied robot to pump and scuttle

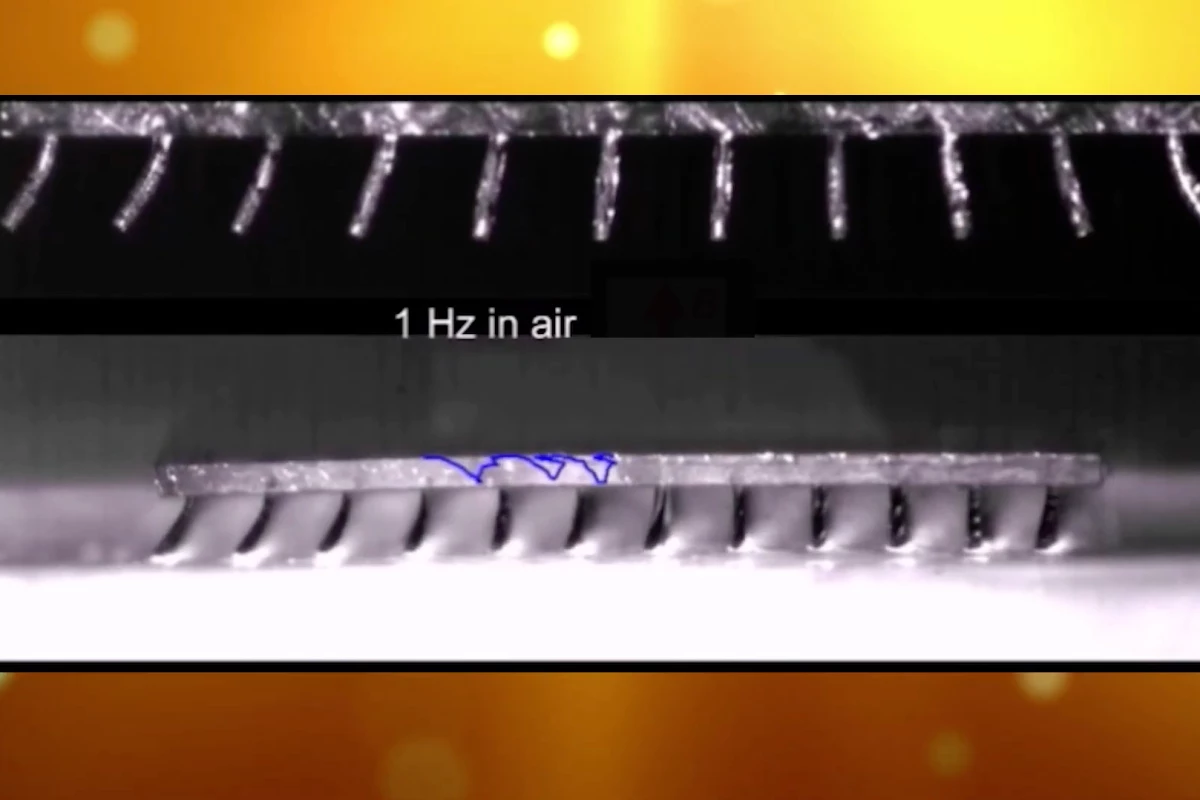

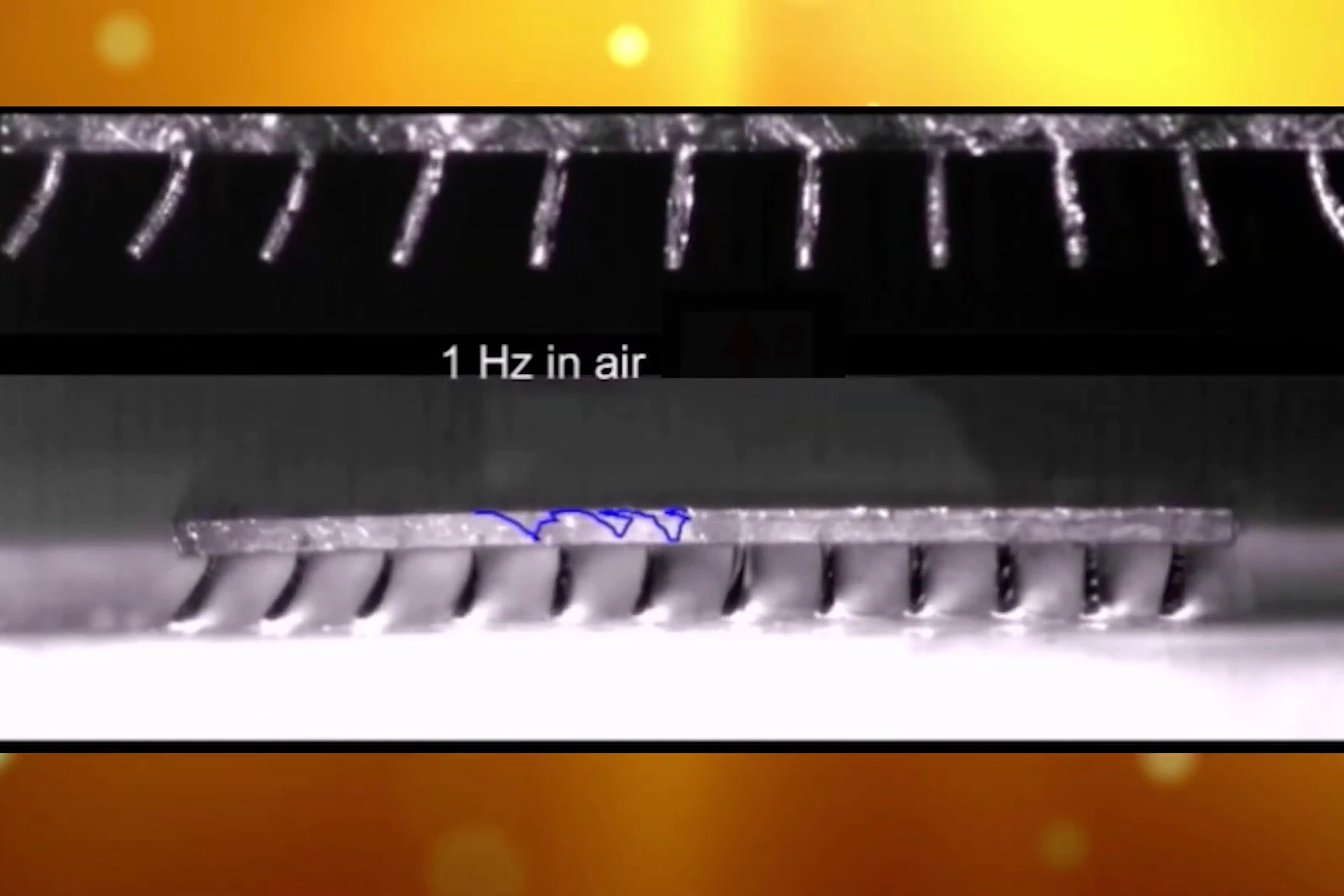

The cilia-propelled micro-robot (middle), with a close-up of its cilia at top
The cilia-propelled micro-robot (middle), with a close-up of its cilia at top
View 1 Image
The cilia-propelled micro-robot (middle), with a close-up of its cilia at top
1/1
The cilia-propelled micro-robot (middle), with a close-up of its cilia at top

Paramecium and certain other microbes move through liquid by whipping back and forth hairlike appendages known as cilia. Scientists have now developed a new type of synthetic cilia, which could find use in micro-robots and more.

Cilia protrude from a microorganism's body, propelling it through liquid environments by repeatedly reaching forward then sweeping back. They don't do so all in unison, but instead start moving separately, one after the other, creating waves that travel down the length of the microbe.

Researchers have created larger-scale artificial cilia before, but the systems have tended to be quite mechanically complex, and too big to incorporate into small devices. A team from The Netherlands' Eindhoven University of Technology, however, recently created a tiny soft-bodied robot that utilizes a much smaller, simpler form of cilia.

To do so, the scientists combined a liquid polymer with carbonyl iron powder particles, then poured that mixture into an array of 50-micrometer-wide cylindrical holes which served as the molds for the cilia. As the polymer proceeded to cure into a rubbery consistency, magnets placed below the molds caused the iron particles to align themselves differently in adjacent cilia – this gave each cilium different magnetic qualities.

The finished 4-mm-long robot consisted of a solid polymer base, with the cilia protruding from one side. When it was placed with the cilia facing upwards – in a water/glycol solution – the application of a rotating magnetic field caused the cilia to move back and forth in waves. This allowed the device to operate somewhat like a pump, as the moving appendages caused the liquid to rapidly flow over it.

When the robot was flipped over, so the cilia were on the bottom, their movement allowed the device to scuttle across a flat surface. It could even crawl up a 45-degree slope, and carry an object weighing 10 times its own weight. And when the direction of the rotating magnetic field was reversed, the robot likewise reversed the direction in which it was travelling.

It is now hoped that once developed further, the technology could find use in applications such as pumps within microfluidic systems, or soft micro-robots utilized to deliver drugs or perform other functions inside patients' bodies.

The research is described in a paper that was recently published in the journal ACS Applied Materials & Interfaces. You can see the robot in action below.

Climbing Robots Powered by Spinning Magnets | Headline Science

Source: American Chemical Society
