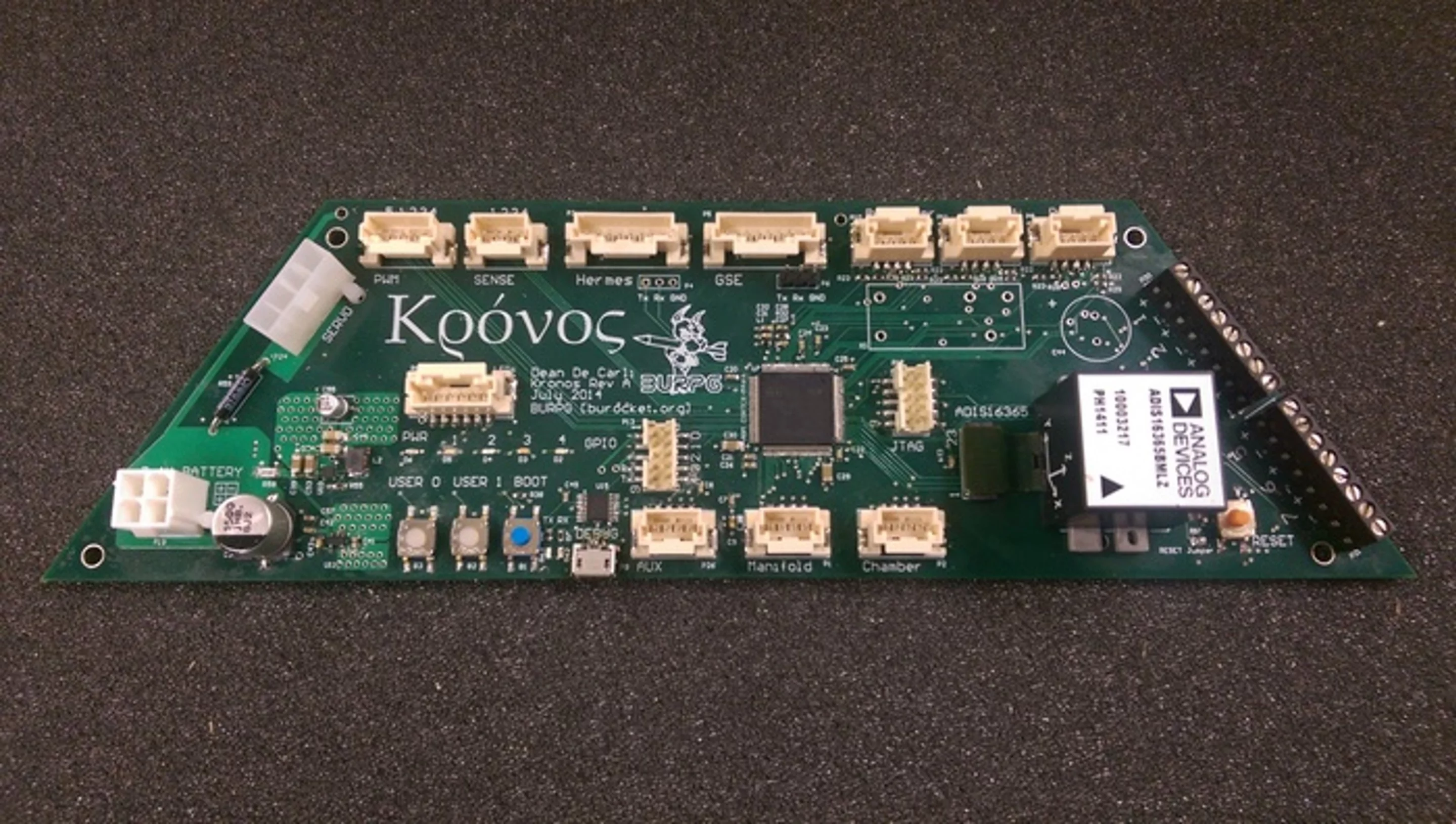

Kronos - the primary flight computer on Starscraper
1/56
Kronos - the primary flight computer on Starscraper
Mk IV oxidizer tank after a cold flow test
2/56
Mk IV oxidizer tank after a cold flow test

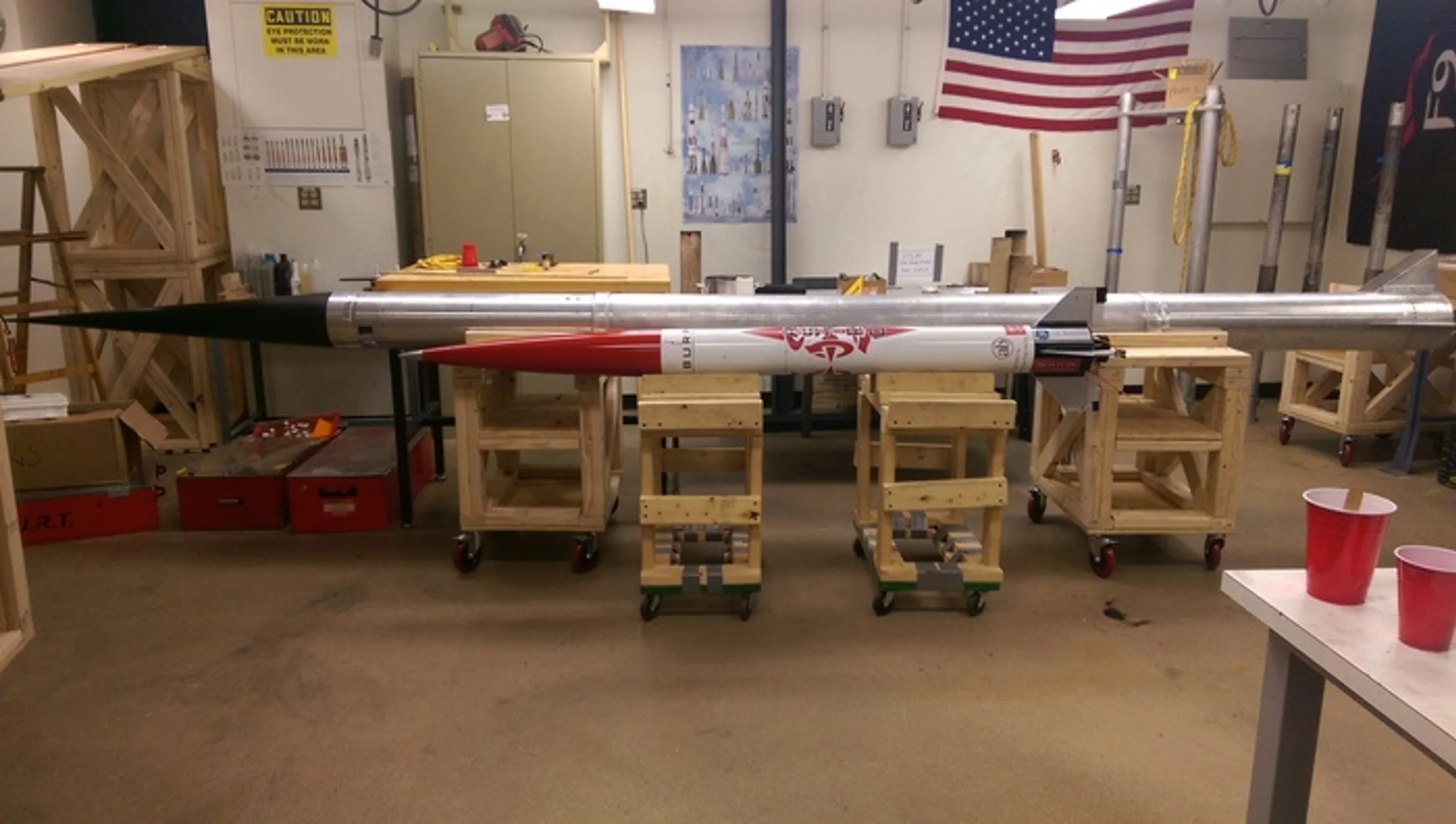

ASTRo (front) and the Mk IV
3/56
ASTRo (front) and the Mk IV
Hyperion Rev. A - Data Acquisition and Fuel and Process Control Board
4/56
Hyperion Rev. A - Data Acquisition and Fuel and Process Control Board

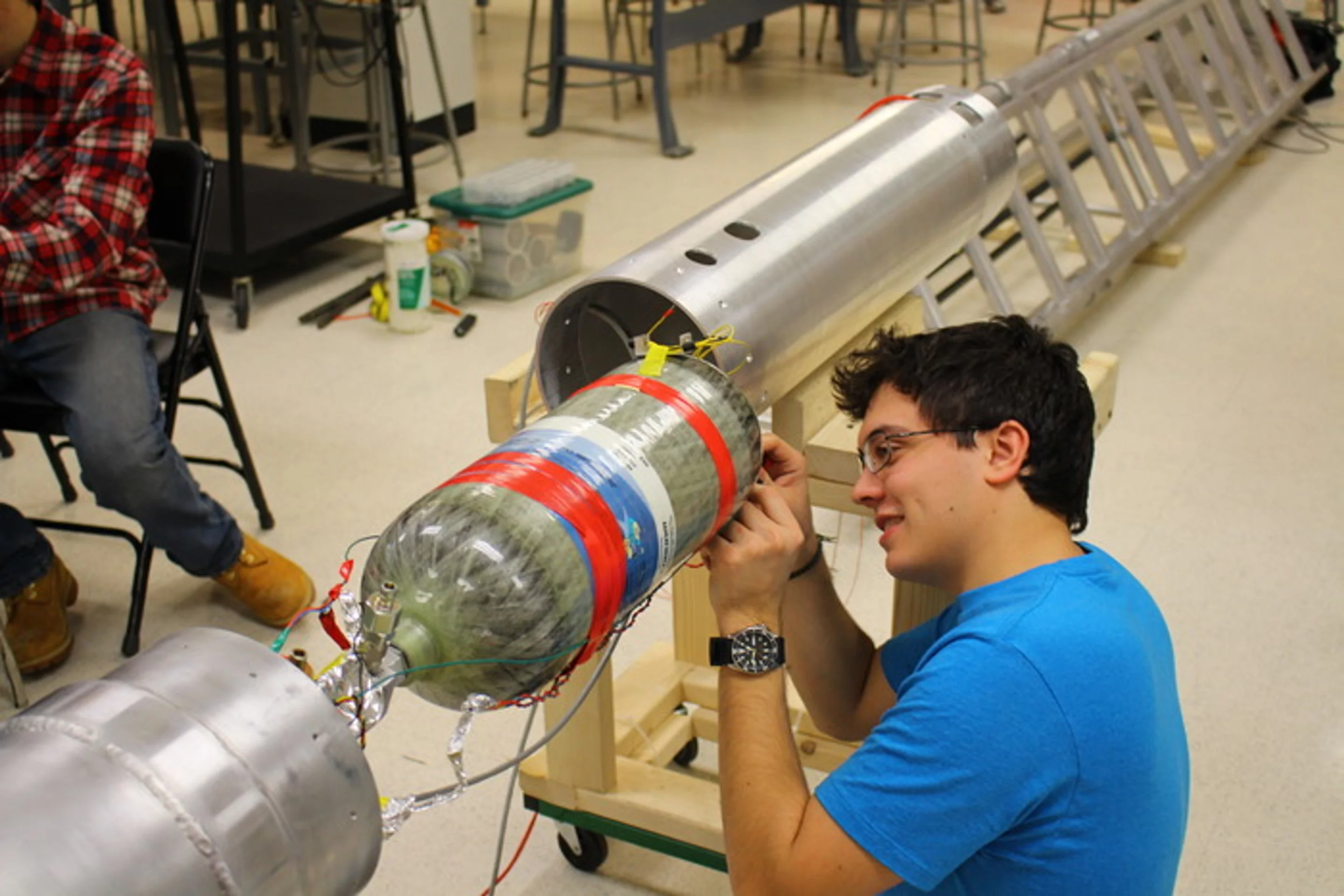

Student installing electronics on the Mk IV motor
5/56
Student installing electronics on the Mk IV motor

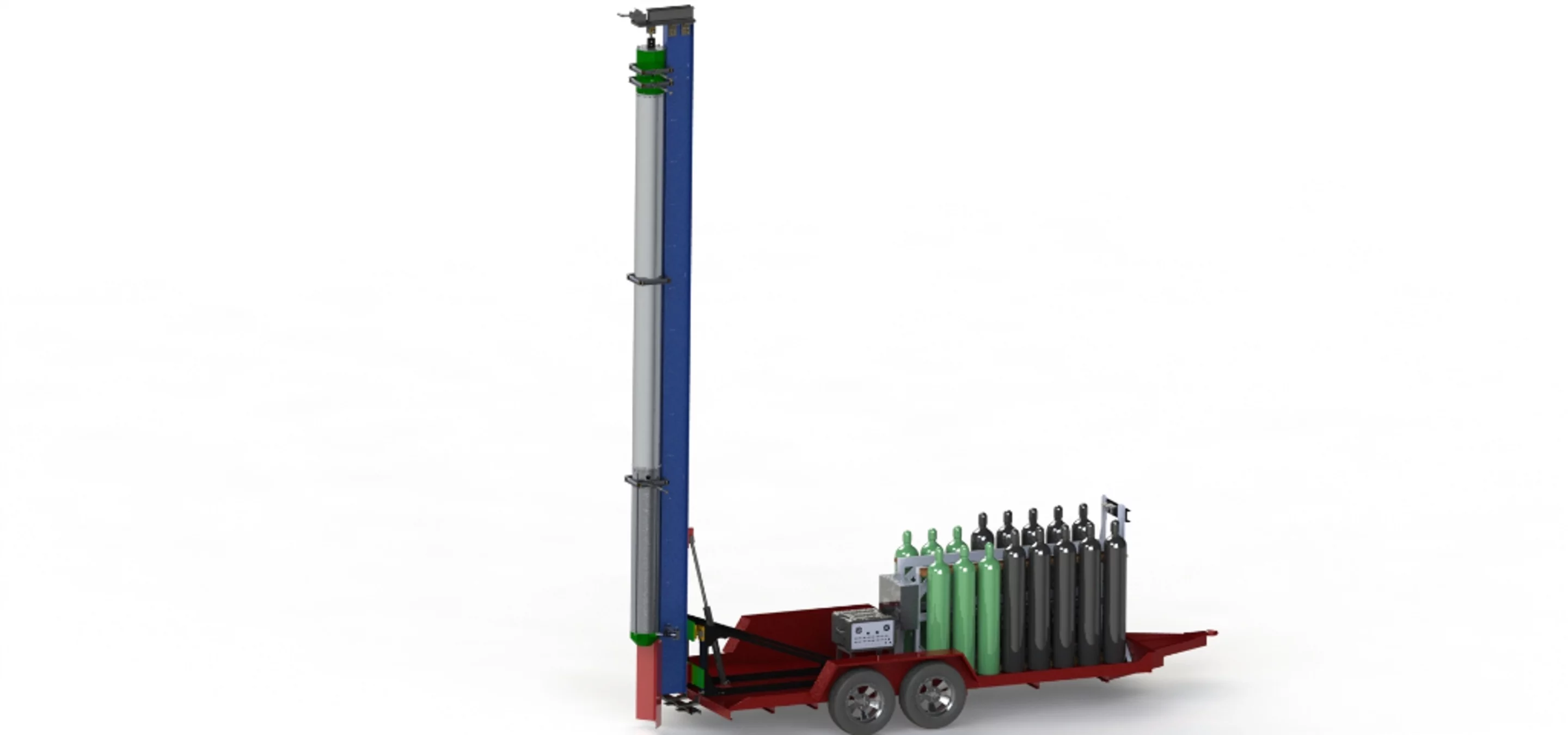

Rendering of Atlas, the transporter and test stand for the Mk V motor
6/56
Rendering of Atlas, the transporter and test stand for the Mk V motor

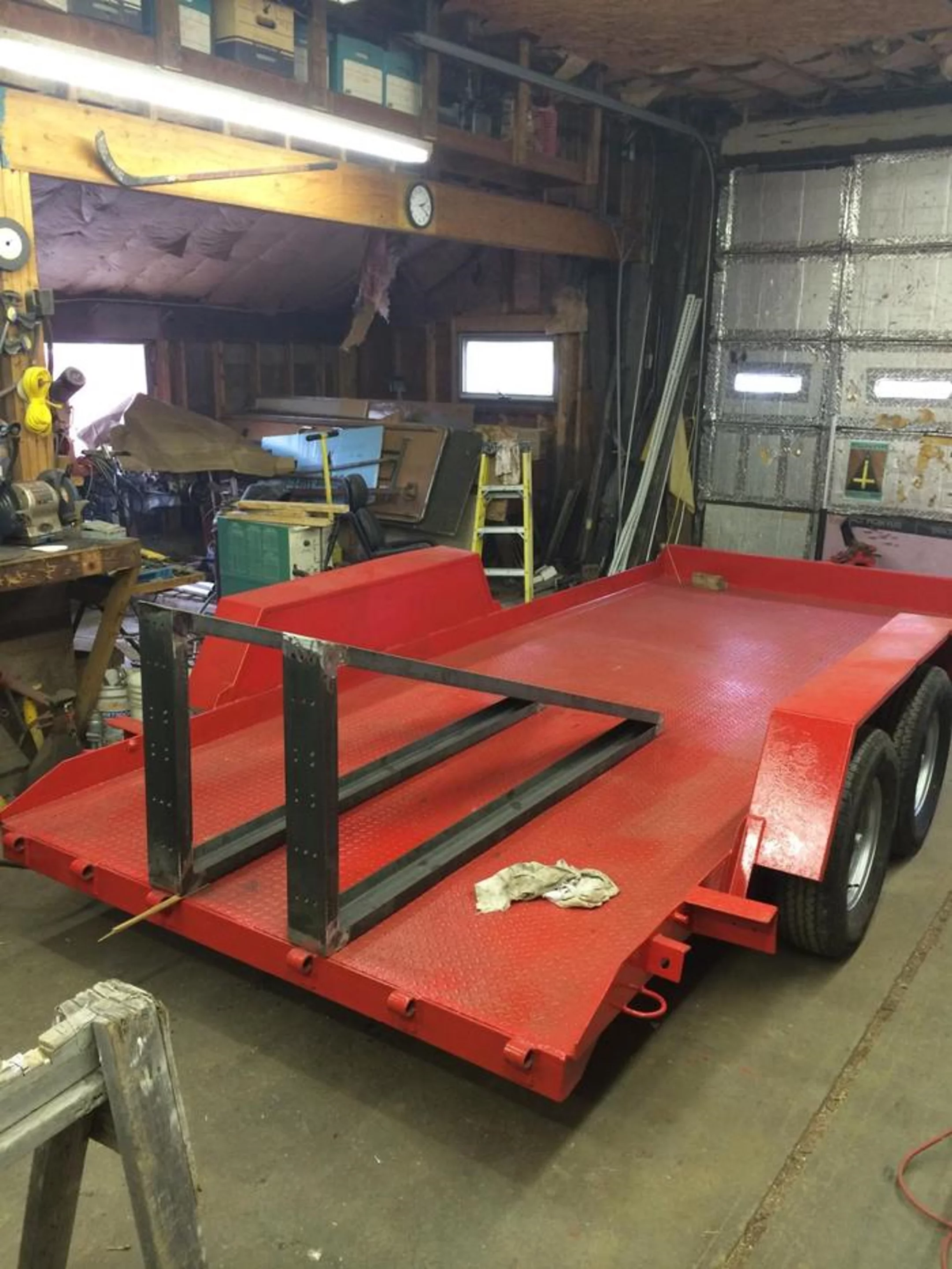

Current state of Atlas, the transporter and test stand for the Mk V motor
7/56
Current state of Atlas, the transporter and test stand for the Mk V motor
Up close view of a Mk IV hot fire test
8/56
Up close view of a Mk IV hot fire test

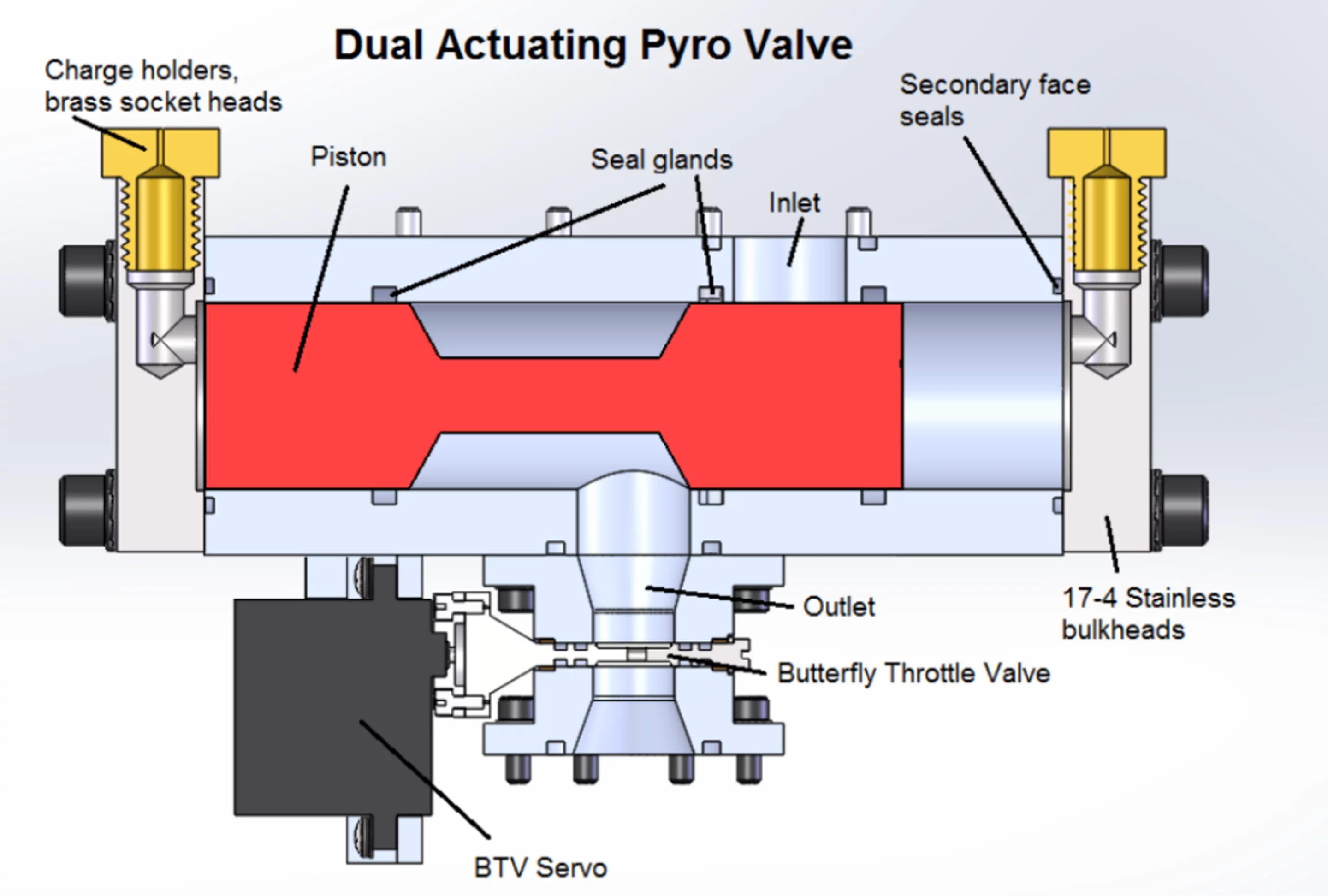

Mk V valve system
9/56
Mk V valve system
The Mk IV on the test stand during a hot fire test
10/56
The Mk IV on the test stand during a hot fire test
Cutaway of the Mk V valve actuator
11/56
Cutaway of the Mk V valve actuator
Early Mk V nozzle concept
12/56
Early Mk V nozzle concept
Mk V expansion ratios
13/56
Mk V expansion ratios
Mk V pressure bottles
14/56
Mk V pressure bottles
Mk V pressure bottle caps
15/56
Mk V pressure bottle caps
Student working on parts for Atlas, the test stand for the Mk V
16/56
Student working on parts for Atlas, the test stand for the Mk V
Mk V oxidizer tank being transported to the lab
17/56
Mk V oxidizer tank being transported to the lab

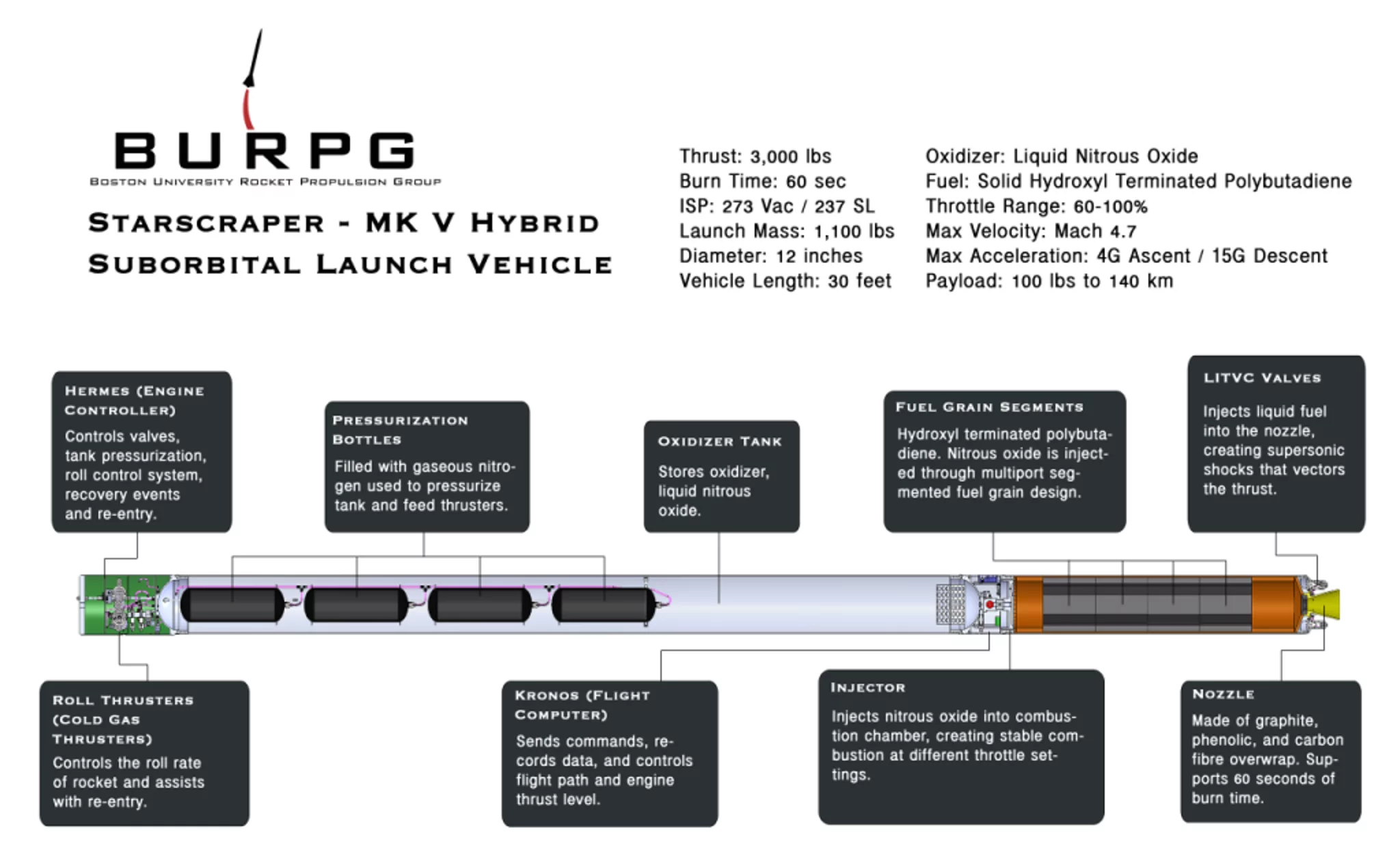

Starscraper infographic
18/56
Starscraper infographic
Starscraper (right) compared to BURPG's Quasar rocket
19/56
Starscraper (right) compared to BURPG's Quasar rocket

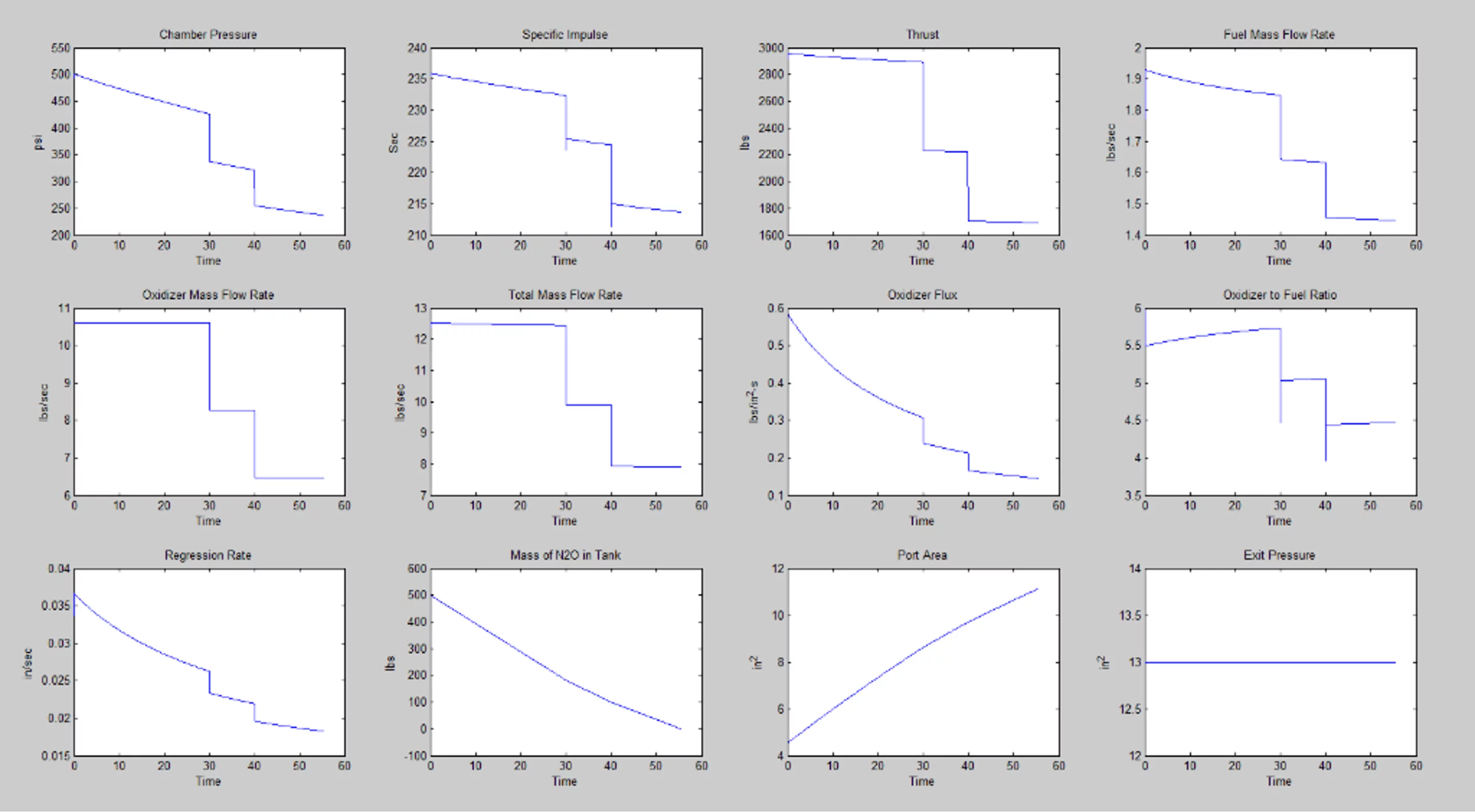

Mk V performance parameters
20/56
Mk V performance parameters
Mk V tank
21/56
Mk V tank

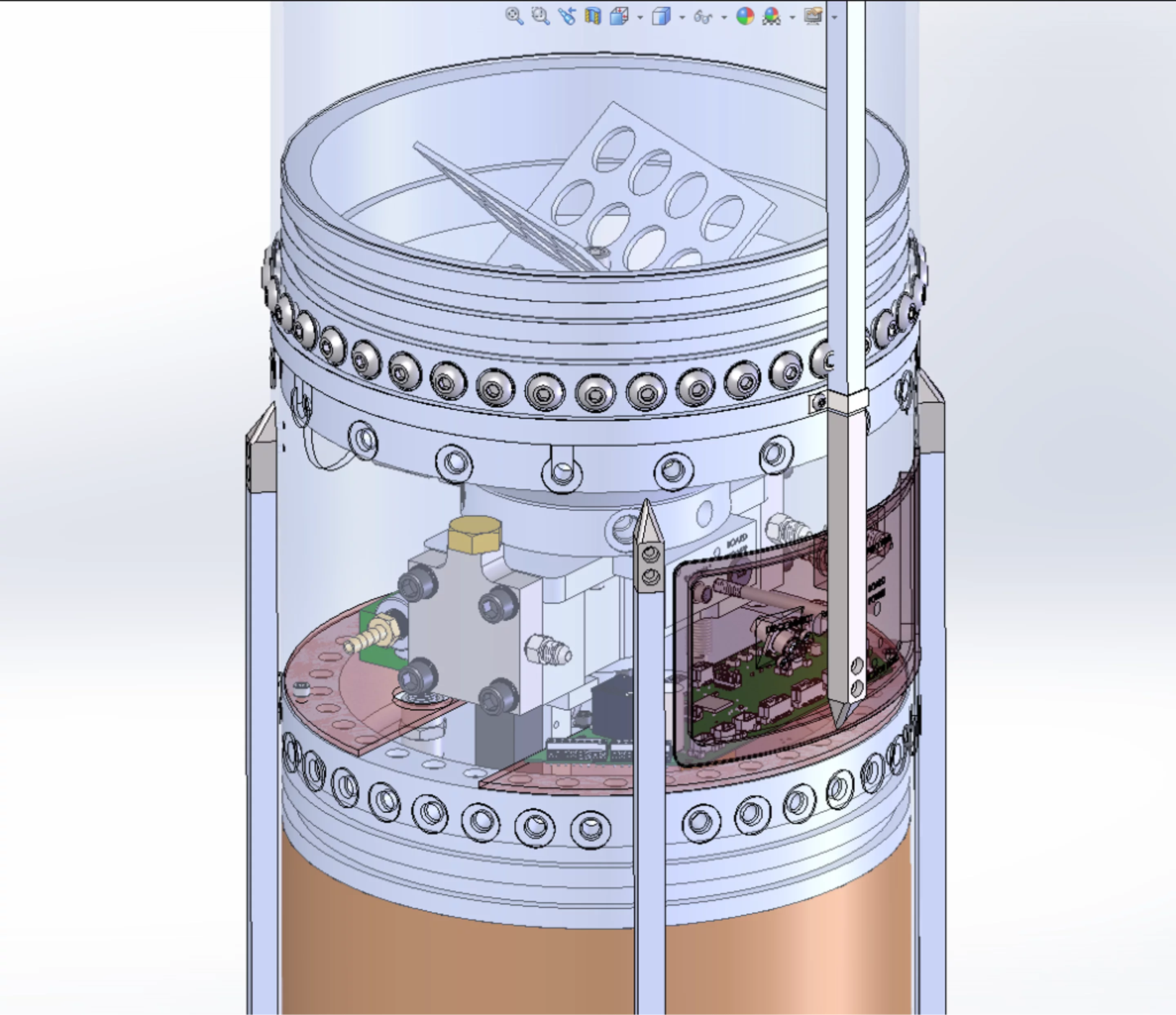

Starscraper oxygen valves
22/56
Starscraper oxygen valves

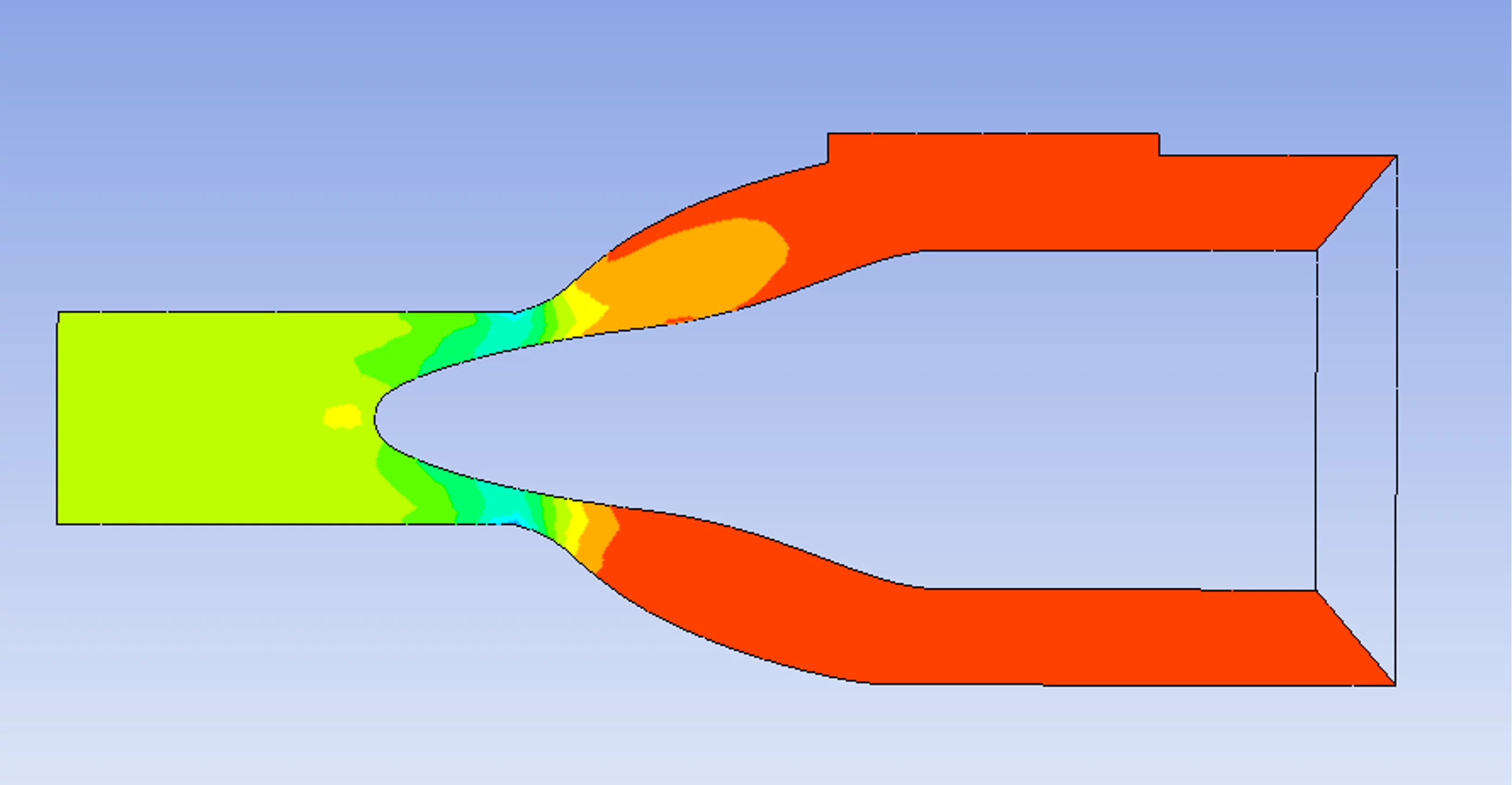

Pressure diagram of the Starscraper's engine
23/56
Pressure diagram of the Starscraper's engine
The Starscraper steers by means of supersonic shock waves
24/56
The Starscraper steers by means of supersonic shock waves

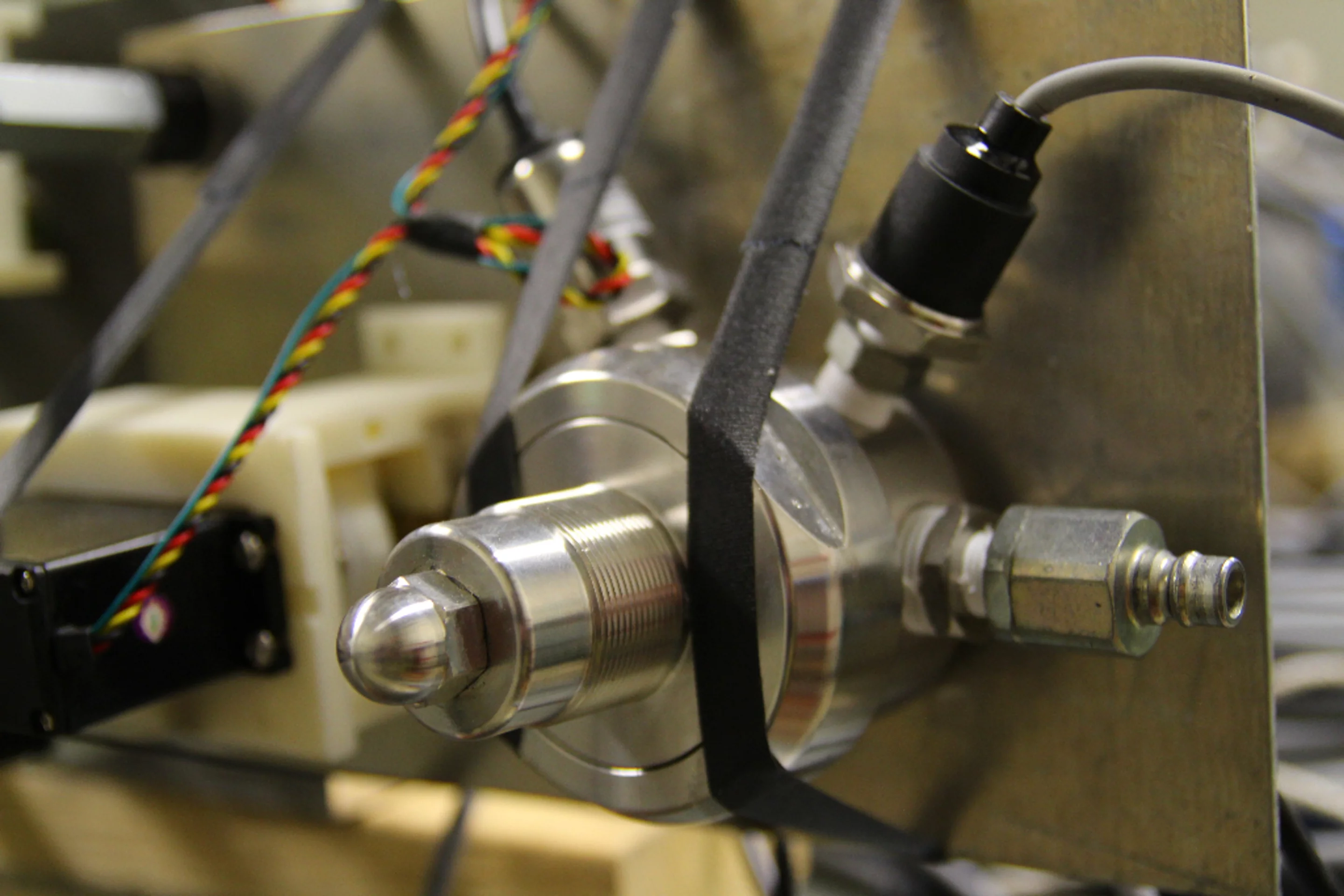

Mk V regulator
25/56
Mk V regulator

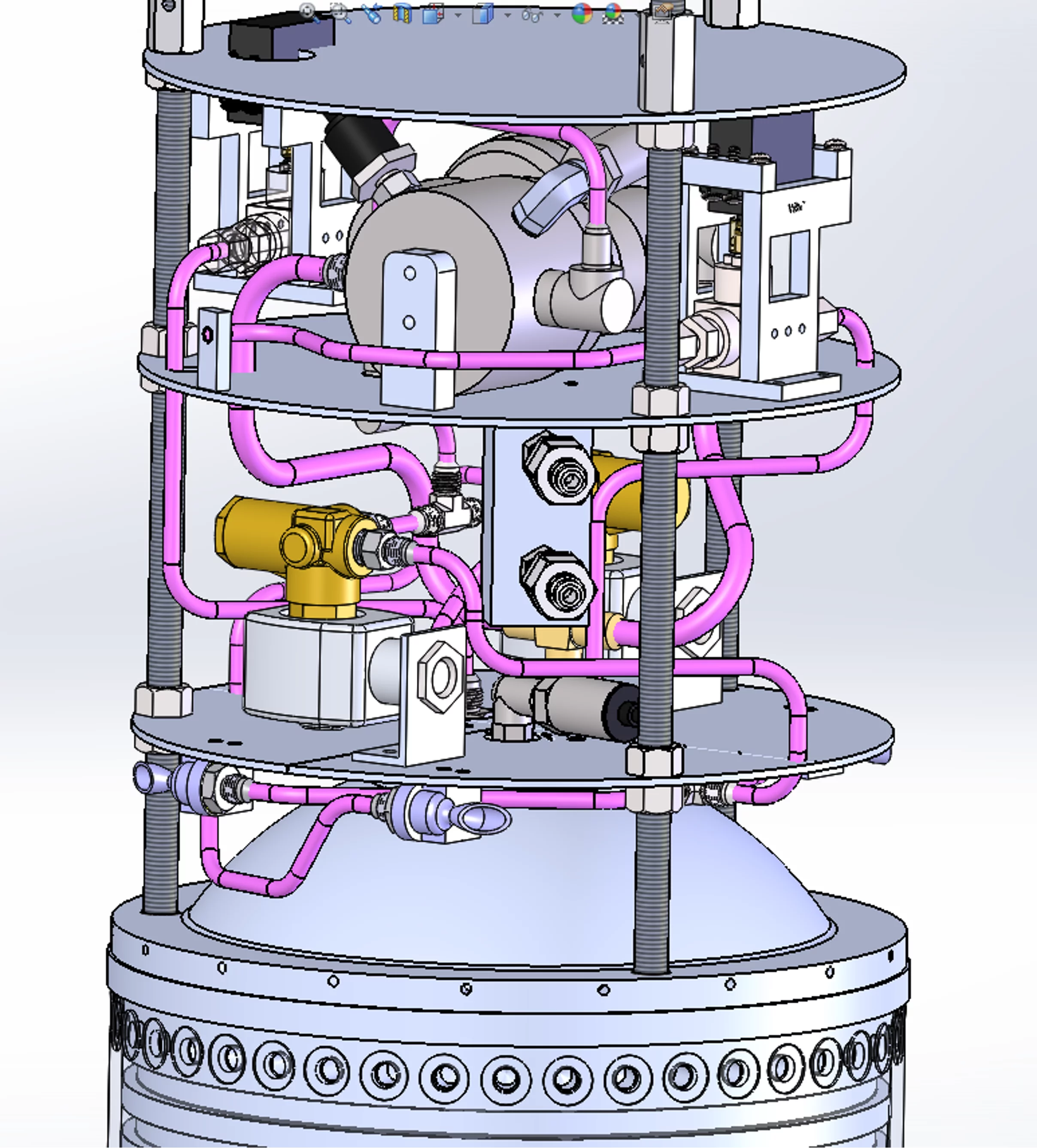

Mk V pressurization system
26/56
Mk V pressurization system
Starscraper valve stack
27/56
Starscraper valve stack

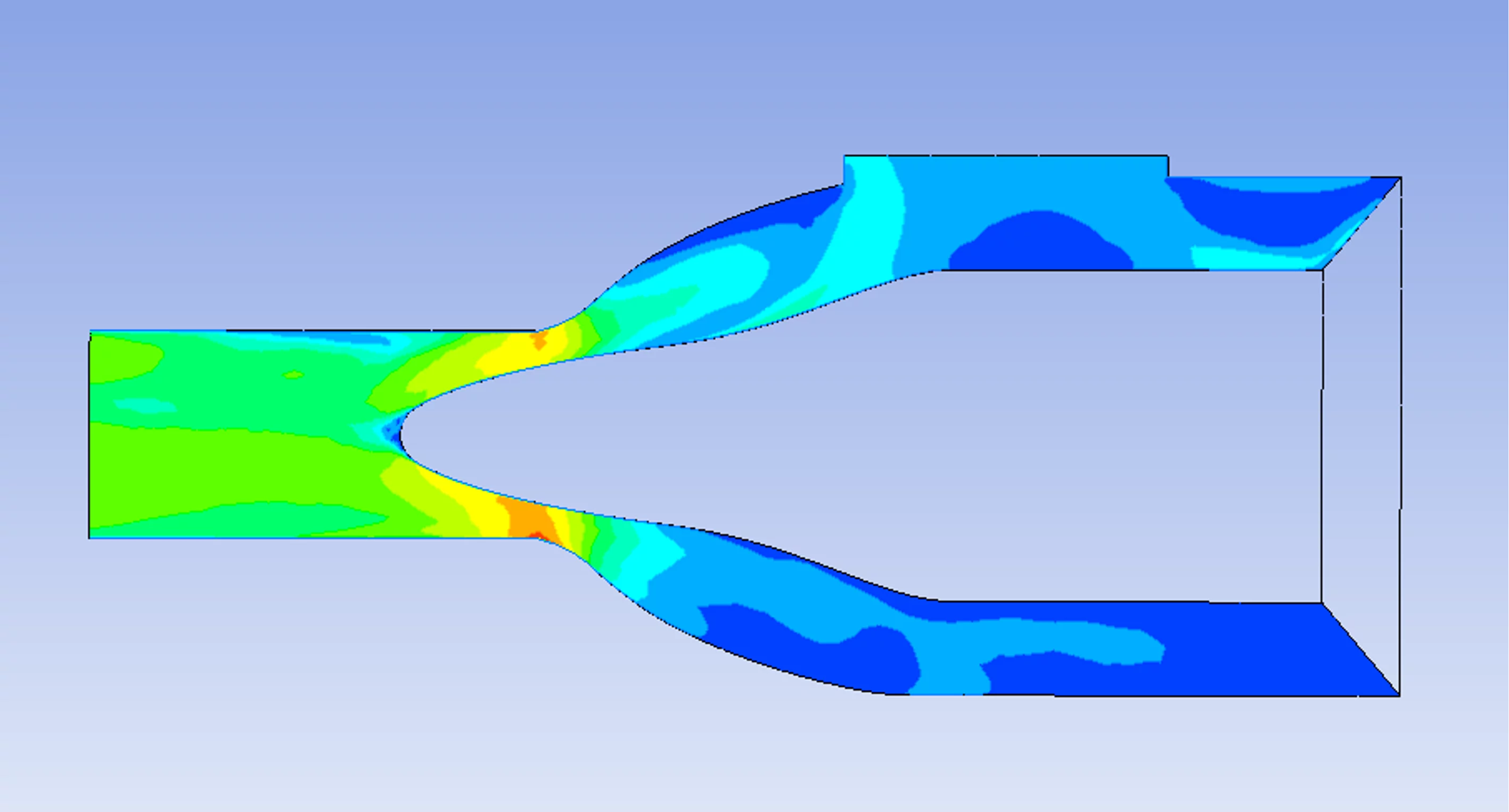

Velocity diagram of the Starscraper engine
28/56
Velocity diagram of the Starscraper engine

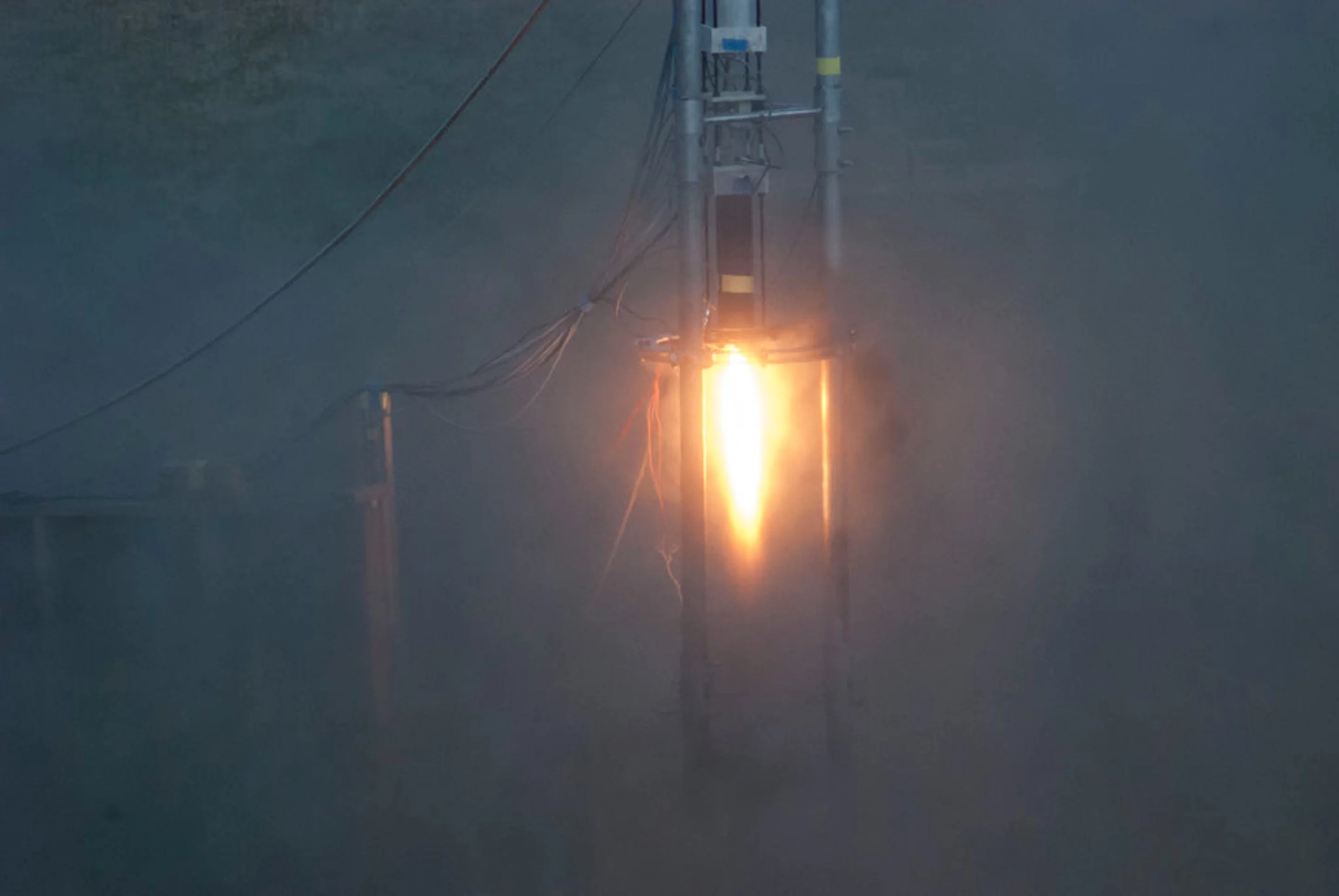

The Mark IIb can be throttled
29/56
The Mark IIb can be throttled

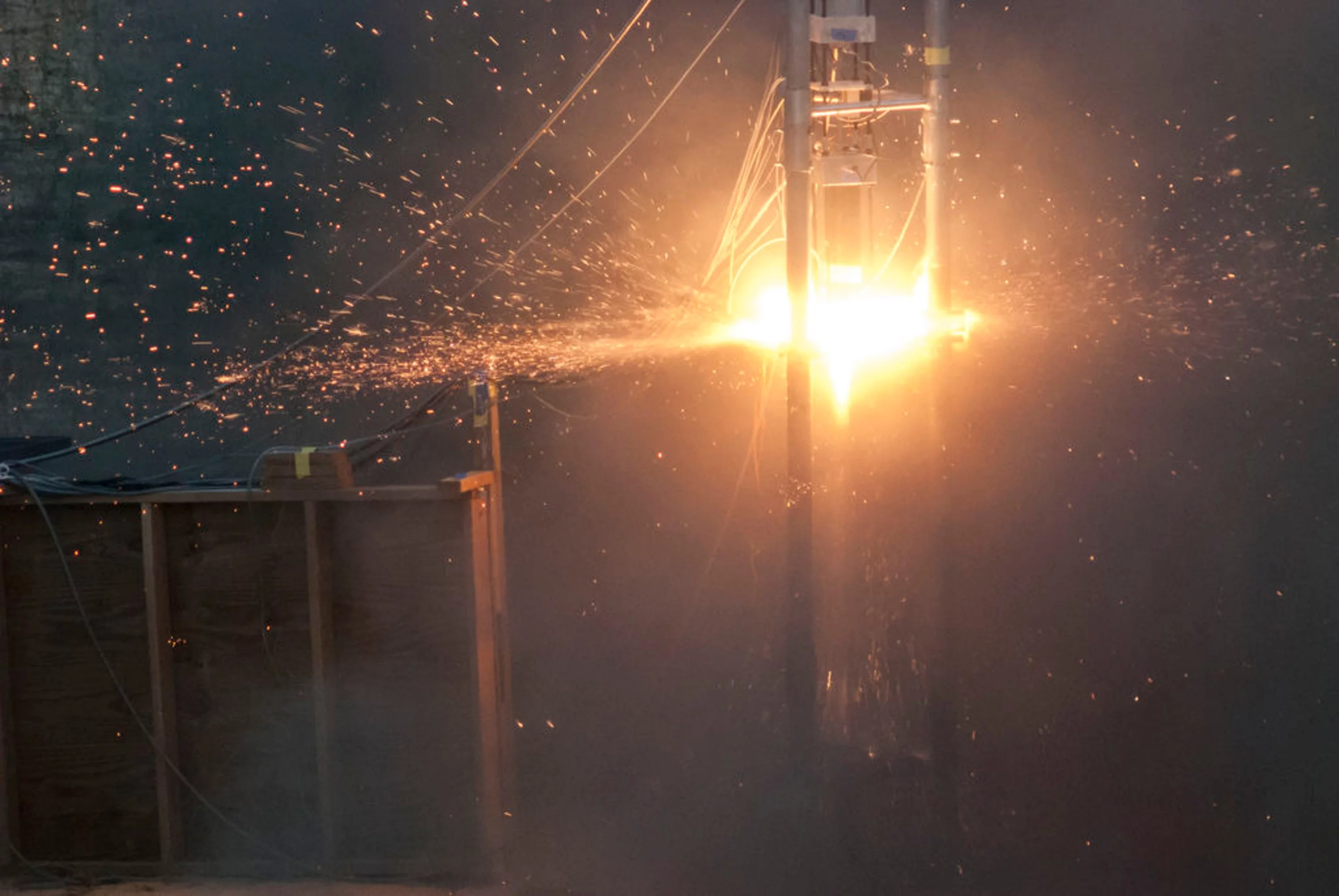

The Mark IIb igniting
30/56
The Mark IIb igniting

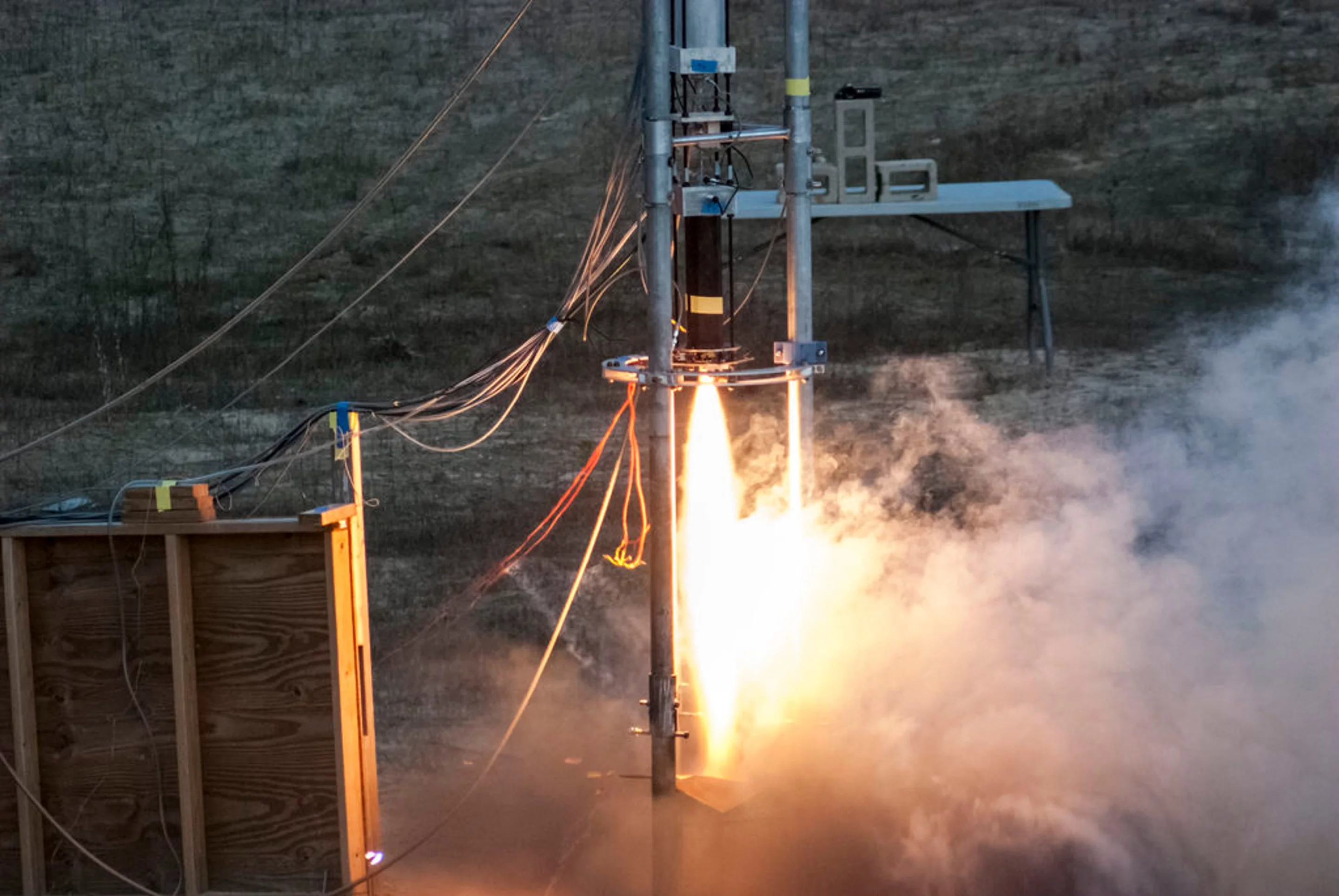

The Mark IIb is a hybrid engine
31/56
The Mark IIb is a hybrid engine

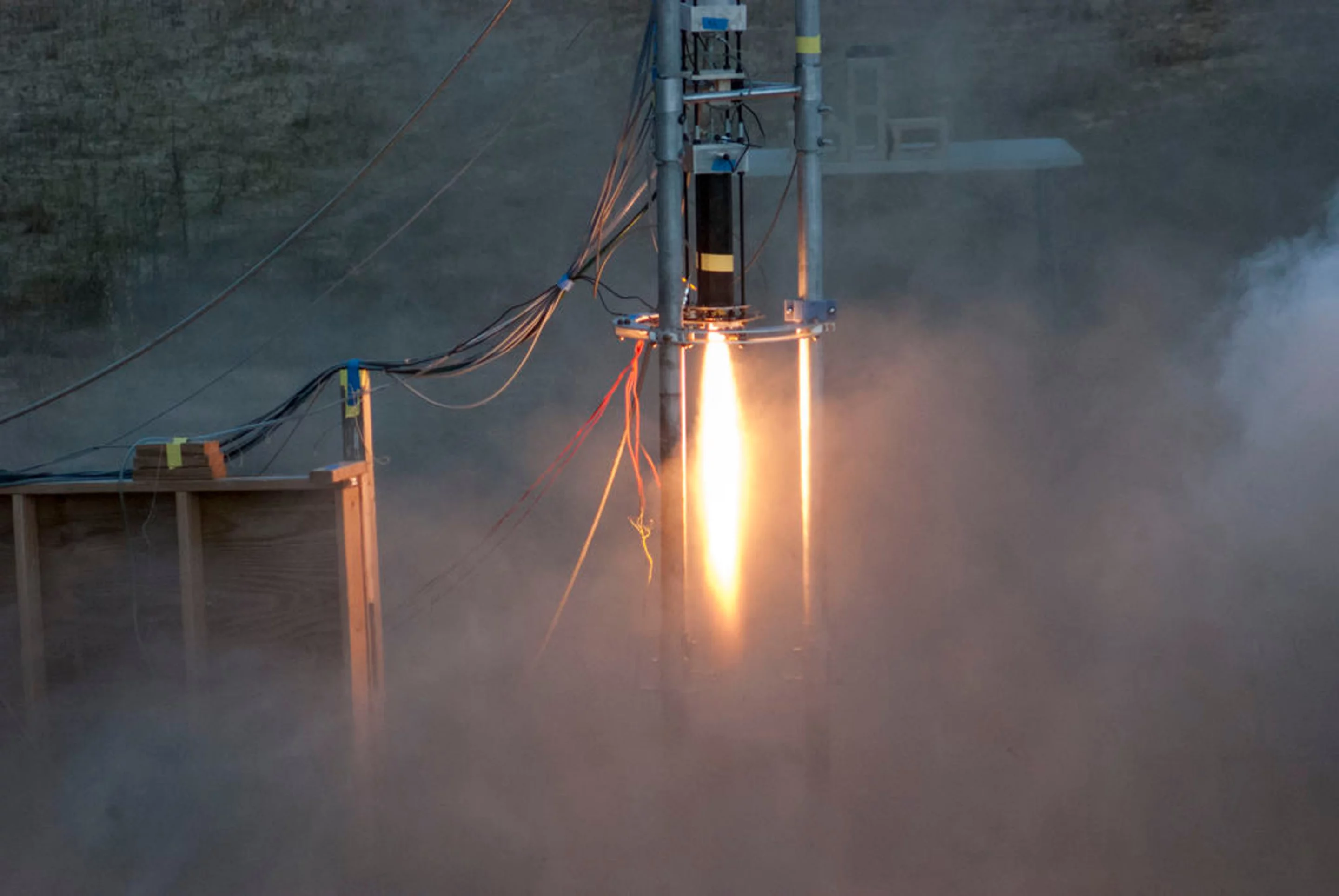

Starscraper project Mark IIb engine test firing
32/56
Starscraper project Mark IIb engine test firing
Mark IIb assembly
33/56
Mark IIb assembly
Mark IIb assembly detail
34/56
Mark IIb assembly detail
Preparing for the Mark IIb test firing
35/56
Preparing for the Mark IIb test firing
Mk IIb detail
36/56
Mk IIb detail

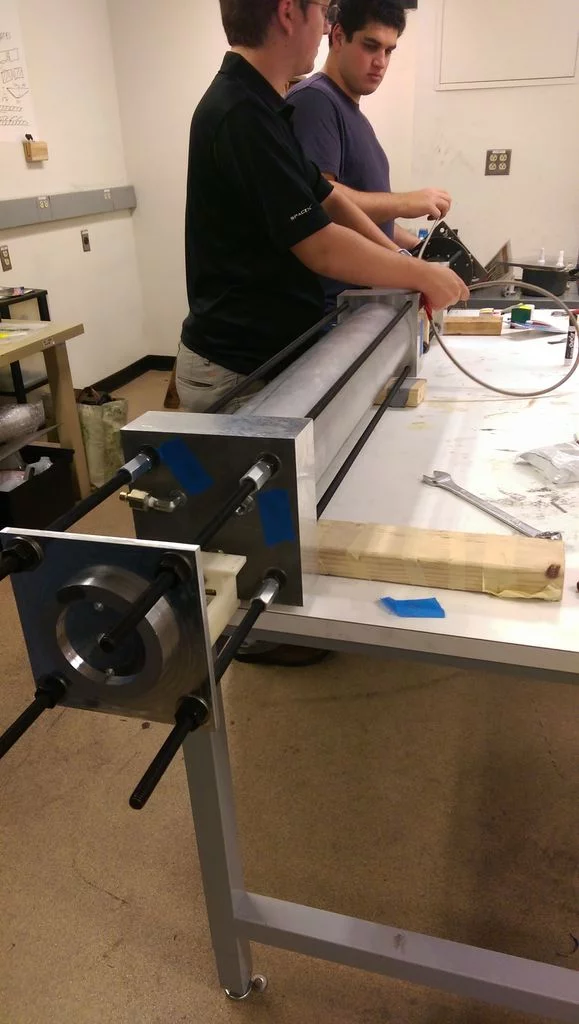

Assembling the Mk IIb
37/56
Assembling the Mk IIb

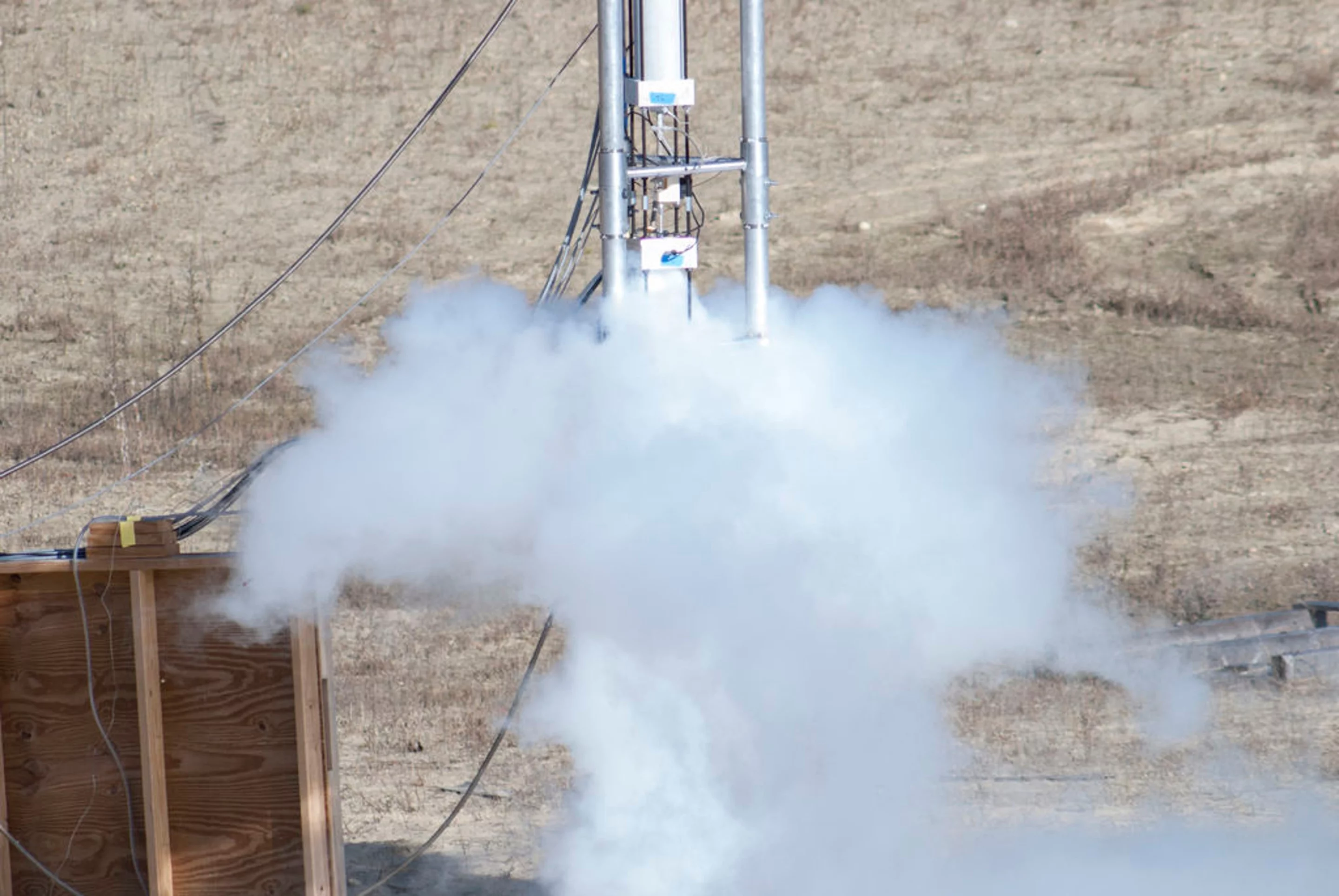

cold firing the Mk IIb
38/56
cold firing the Mk IIb

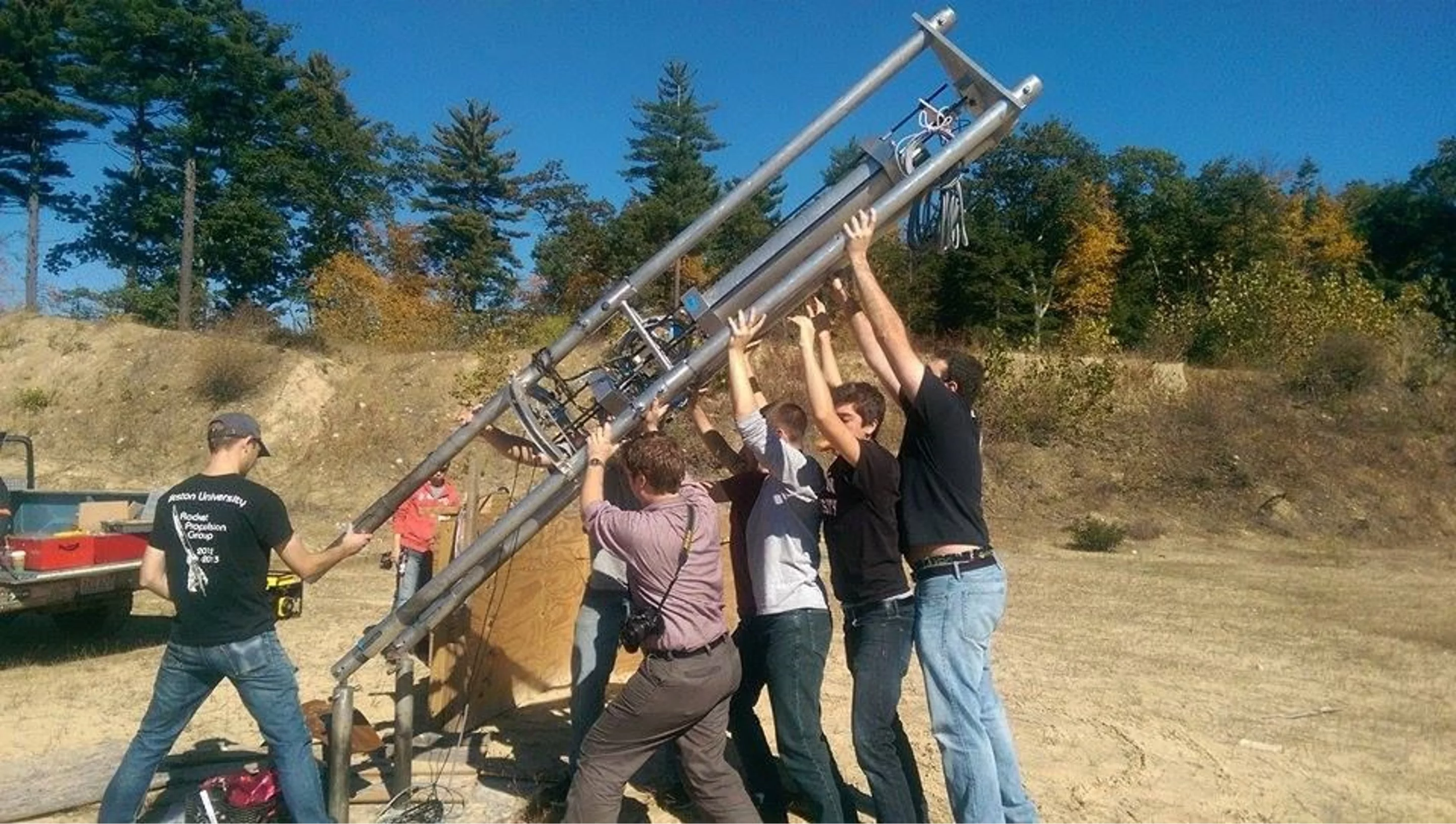

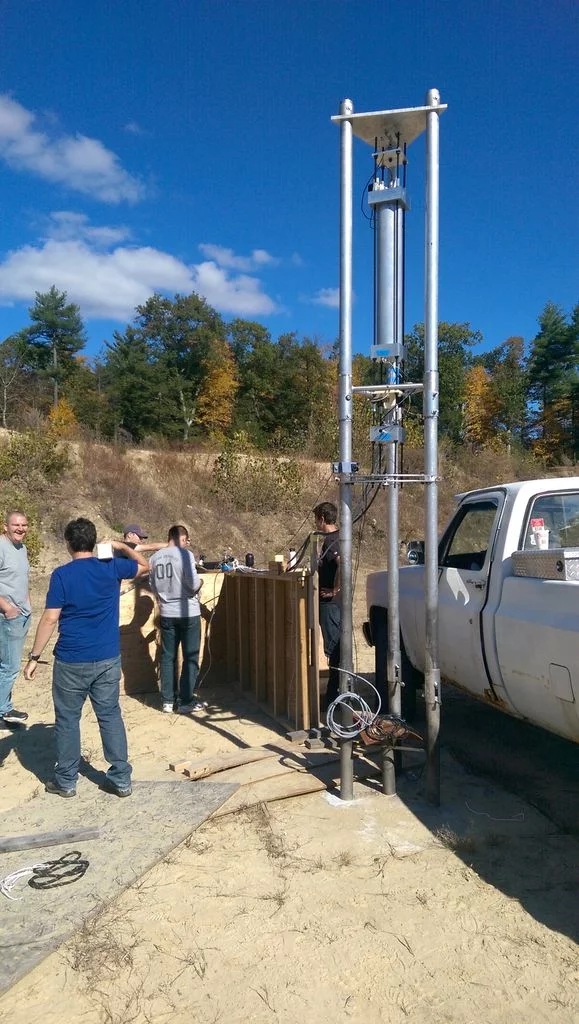

Erecting the Mk IIb test tower
39/56
Erecting the Mk IIb test tower
Preparing the Mk IIb test tower
40/56
Preparing the Mk IIb test tower
Mk IIb test tower
41/56
Mk IIb test tower
Assembling the Mk IIb in its tower
42/56
Assembling the Mk IIb in its tower
Mk IIb ready for test firing
43/56
Mk IIb ready for test firing
The Mk IIb static rocket
44/56
The Mk IIb static rocket

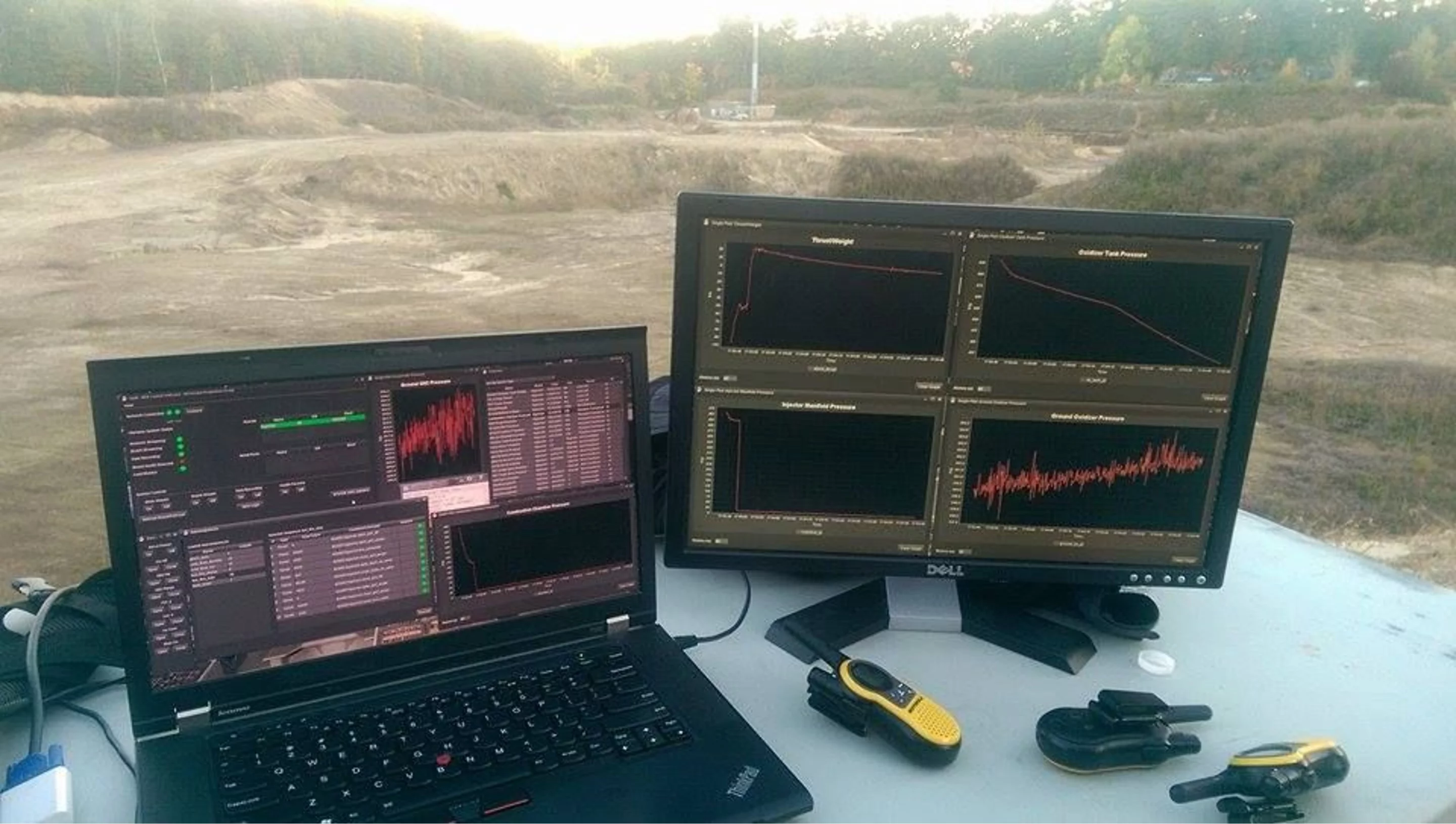

The Mk IIb's control center
45/56
The Mk IIb's control center
Mk IIb prior to firing
46/56
Mk IIb prior to firing

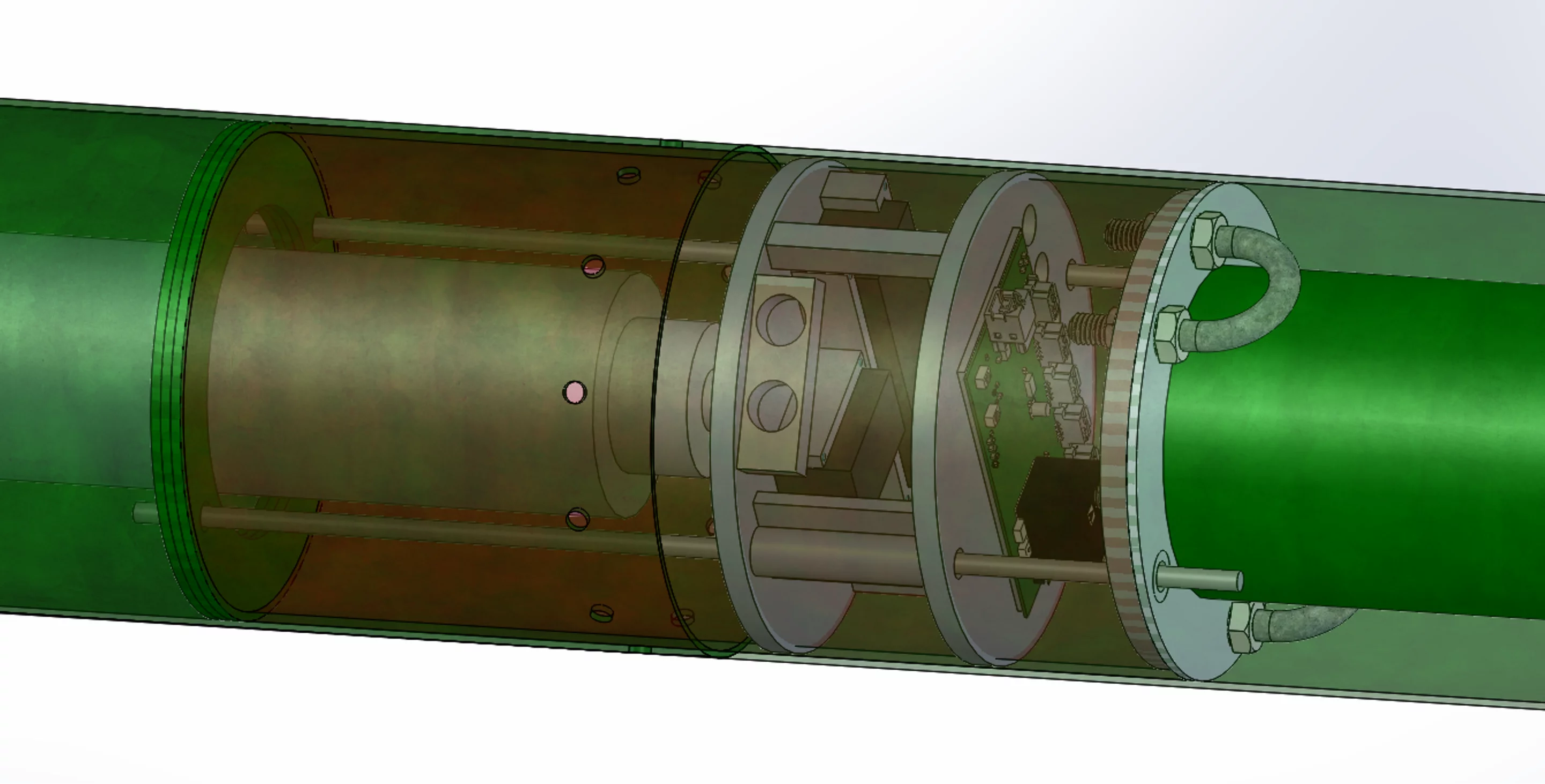

ASTRo avionics bay
47/56
ASTRo avionics bay
ASTRo cross section
48/56
ASTRo cross section
ASTRo cross section
49/56
ASTRo cross section
ASTRo uses 3D printed components
50/56
ASTRo uses 3D printed components
ASTRo (Actively Stabilized Test Rocket)
51/56
ASTRo (Actively Stabilized Test Rocket)

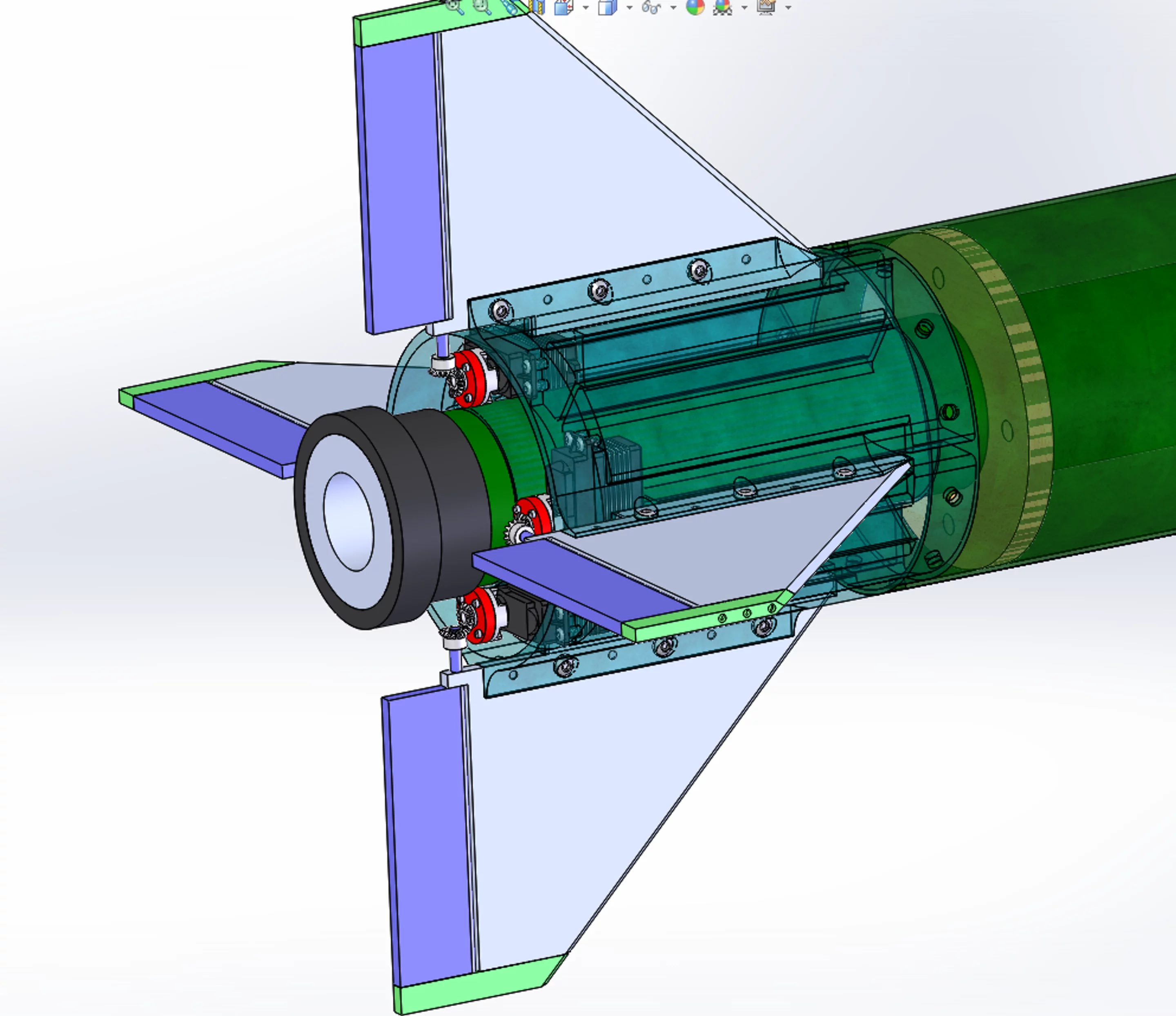

ASTRo system overview
52/56
ASTRo system overview

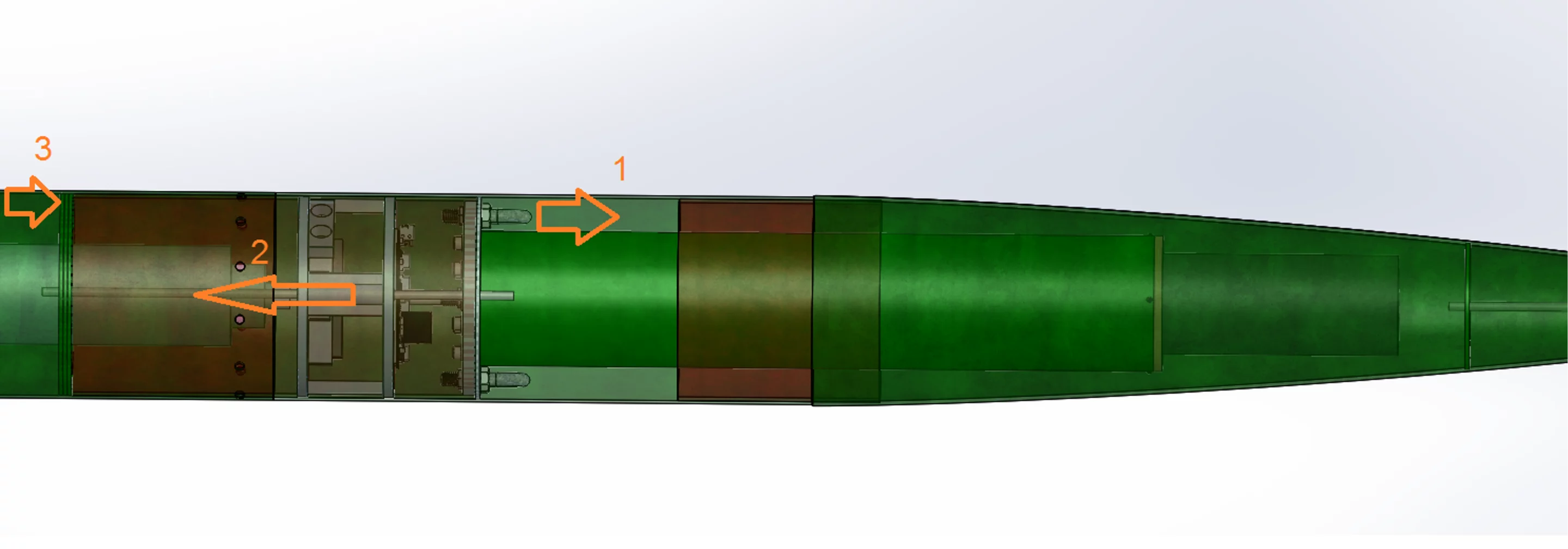

ASTRo recovery load path
53/56
ASTRo recovery load path

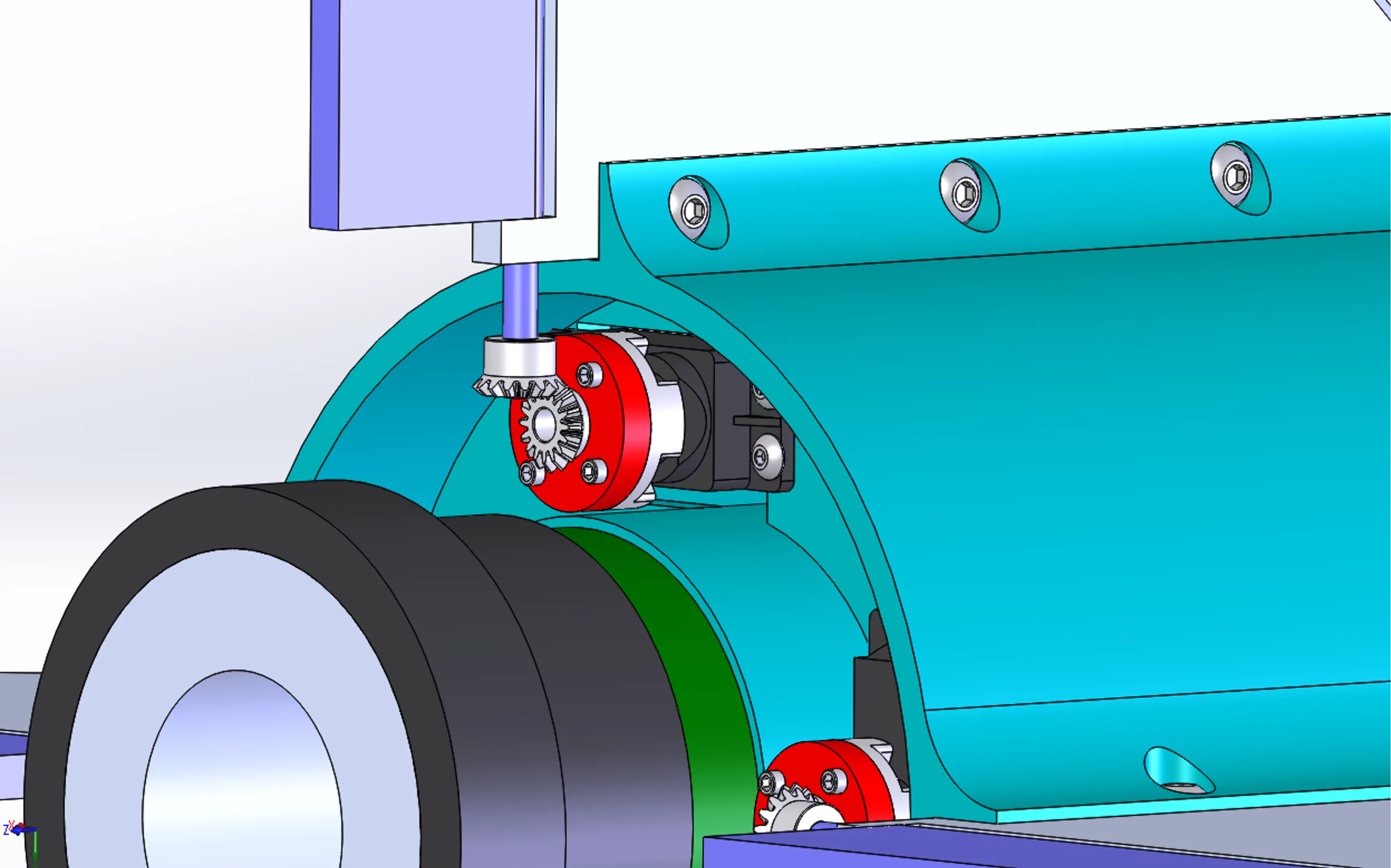

ASTRo linkage system
54/56
ASTRo linkage system

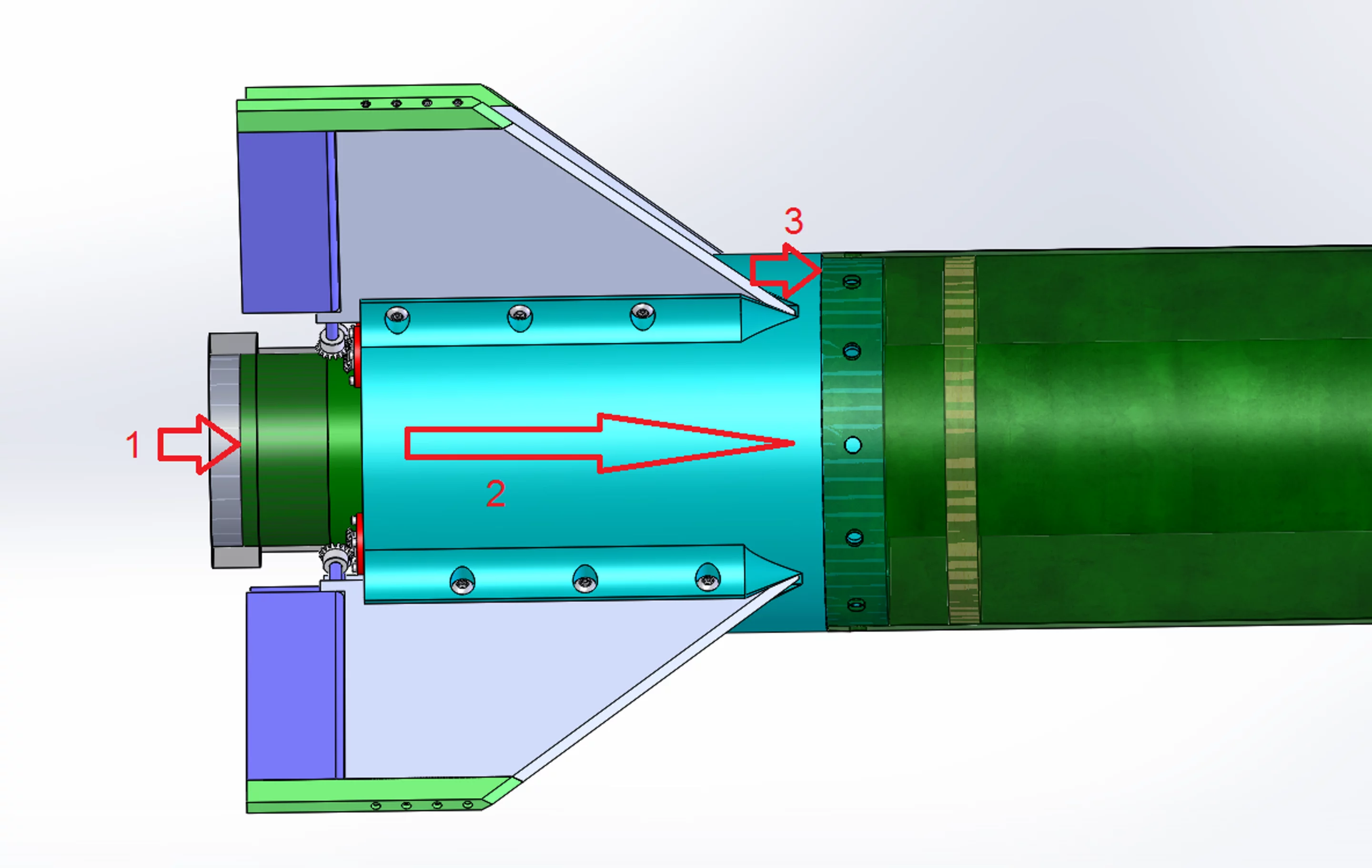

ASTRo thrust load path
55/56
ASTRo thrust load path

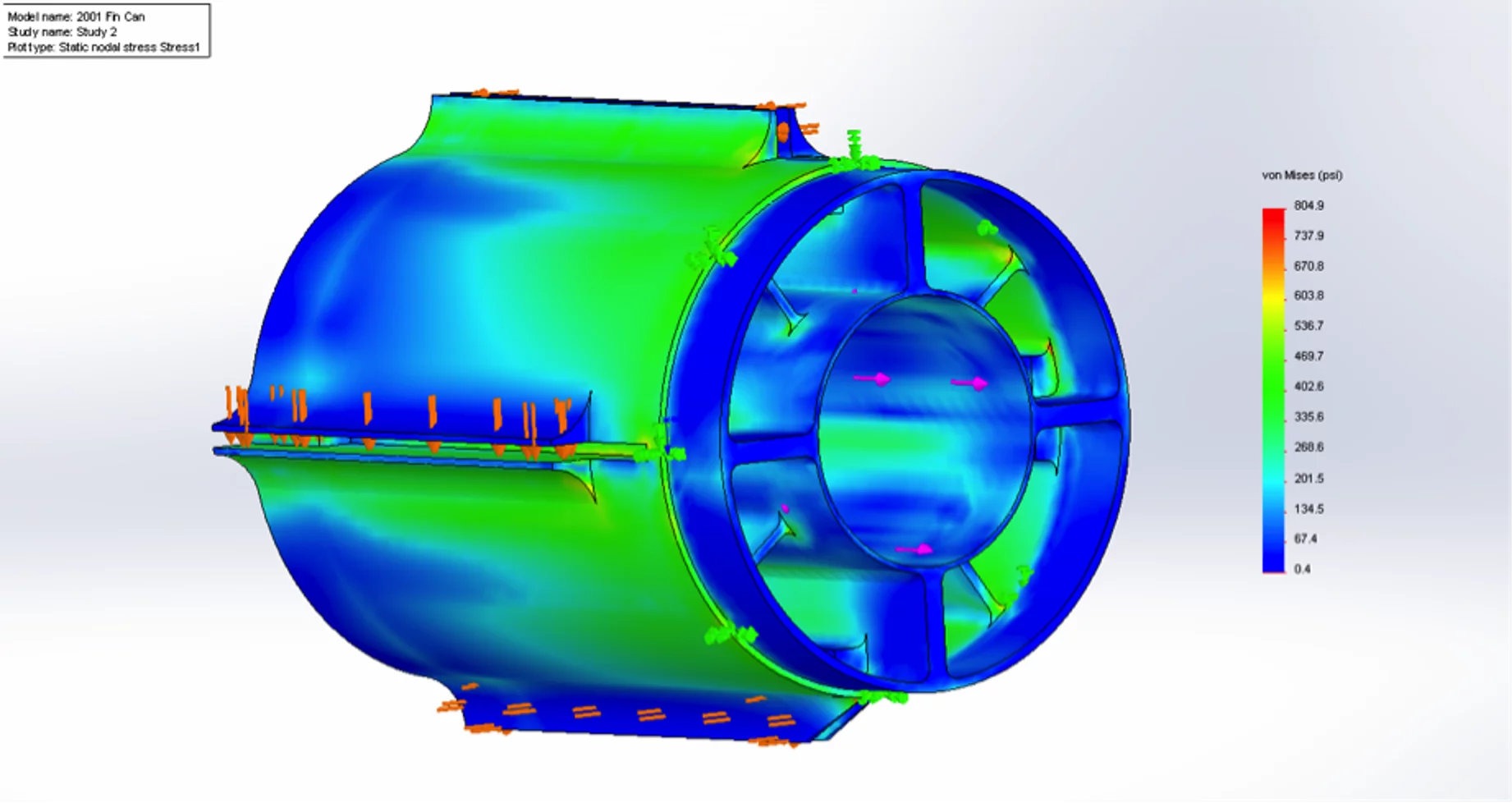

ASTRo fin can
56/56
ASTRo fin can

The International Space Station (ISS) may get all the glory, but suborbital rocket flights still play a vital part in space research. The problem is that even though such flights only go to the edge of space, they are expensive, few in number, and put massive stresses on experiments. Partly funded by a Kickstarter campaign, students at Boston University are developing an inexpensive suborbital rocket for educational purposes that uses new engine designs to create a cheaper, reusable suborbital rocket that's easier on the payload.

Currently, suborbital flights depend on NASA and a few companies that only fly about a hundred times a year at US$1 million a shot. In addition, because the disposable rockets use solid rocket motors, these flights pull 20 Gs of acceleration and produce massive vibrations that make them unsuitable for more delicate experiments.

Boston University Rocket Propulsion Group (BURPG) is an undergraduate group designed to give students hands-on engineering experience by designing and building suborbital rockets at a professional level. Its flagship project, Starscraper, has the goal of building an affordable, reusable suborbital rocket using a hybrid engine that would allow it to reach space without the acceleration and vibration of a solid booster.

Scheduled to fly in July 2015, Starscraper is a suborbital rocket measuring 30 ft (9 m) long and weighing 1,100 lb (499 kg), and it's designed to lift a 100 lb (45 kg) payload to an altitude of 435,000 ft (133,000 m), then return it to Earth.

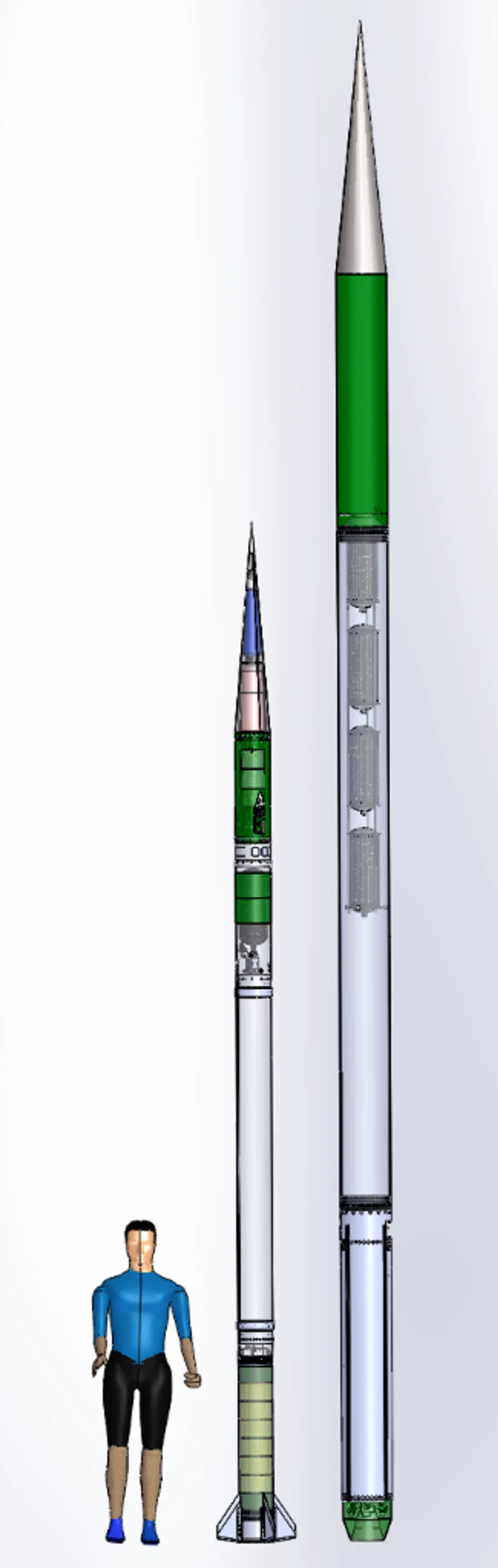

Starscraper (right) compared to BURPG's Quasar rocket
Starscraper (right) compared to BURPG's Quasar rocket

According to BURPG, Starscraper has five major goals. If successful, it will be the highest altitude amateur rocket launch, the highest altitude for a hybrid engine, the first amateur rocket to go into space using a liquid propellant, the first actively-guided amateur rocket to go into space, and the first rocket launched by a university group to space.

At its heart is BURPG's Mk V engine. It's a hybrid engine very similar to those developed by Scaled Composites for Virgin Galactic. Like other hybrid rockets, it uses a liquid oxidizer and a solid fuel. Hybrids are simpler than a purely liquid-fueled rocket, have efficiencies and thrusts equivalent to some classes of hydrocarbon-based liquid-fueled rockets, are throttleable, relatively inexpensive, and are safer to store and operate.

In addition, BURPG says they're not prone to catastrophic failure because the propellants are of two different states of matter, so they can't mix homogeneously. In the case of the Mk V, the fuel is hydroxyl-terminated polybutadiene and the oxidizer is nitrous oxide.

One particularly clever piece of kit on Starscraper is that its actively guided by liquid injection thrust vector. That is, the system generates supersonic shock waves inside the engine to steer the rocket rather than using guidance fins. BURPG says that liquid injection thrust vector is lighter and cheaper than conventional fin vector systems, and that this is the first time such a system has been used on a hybrid rocket.

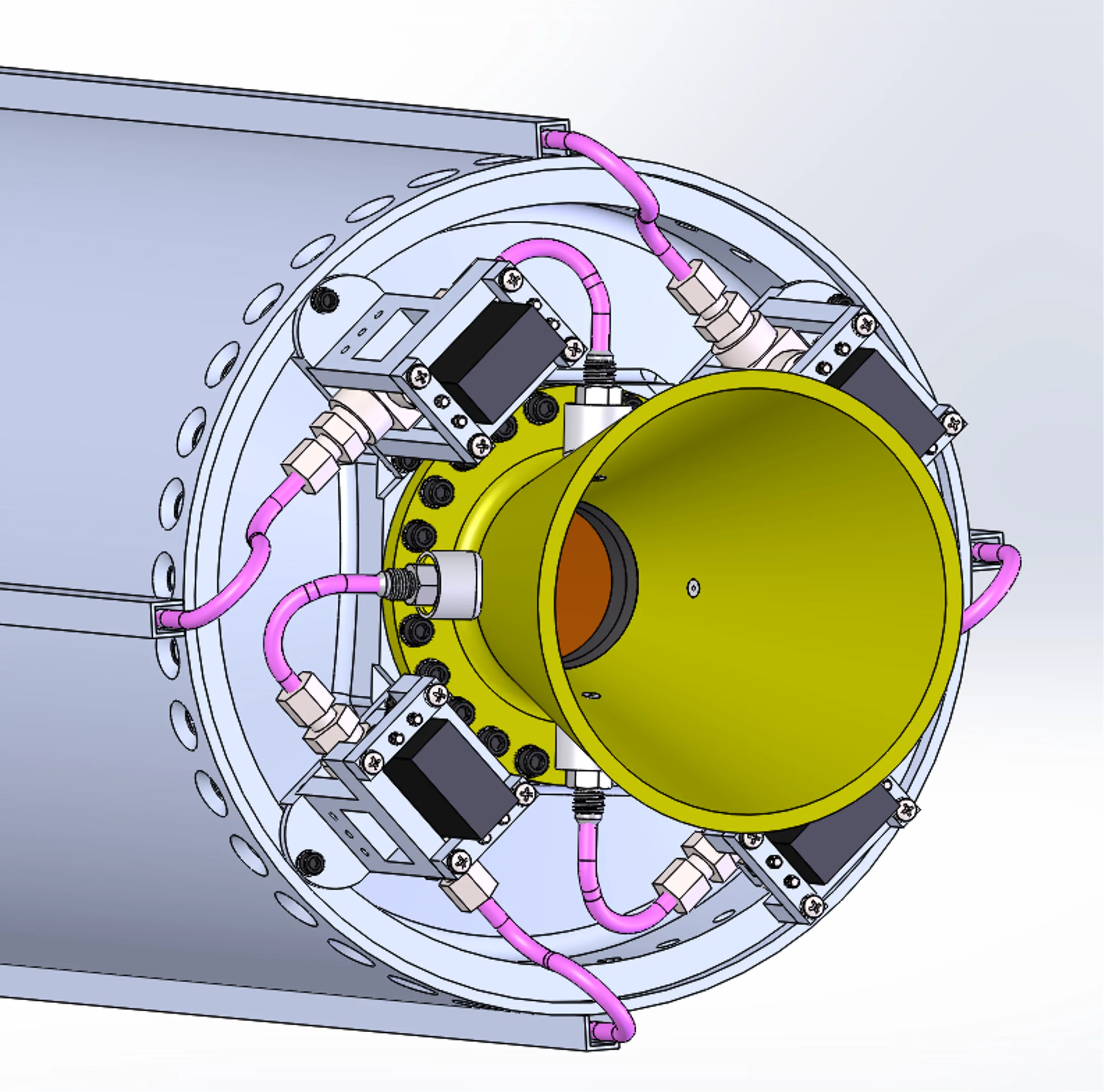

Early Mk V nozzle concept
Early Mk V nozzle concept

Of course, none of this would mean anything if the rocket ended its flight by crashing into the ground or ruined its experiments with a sudden parachute snap. Instead, Starscraper makes a controlled tumble to reduce speed before deploying parachutes at low altitude for a softer descent.

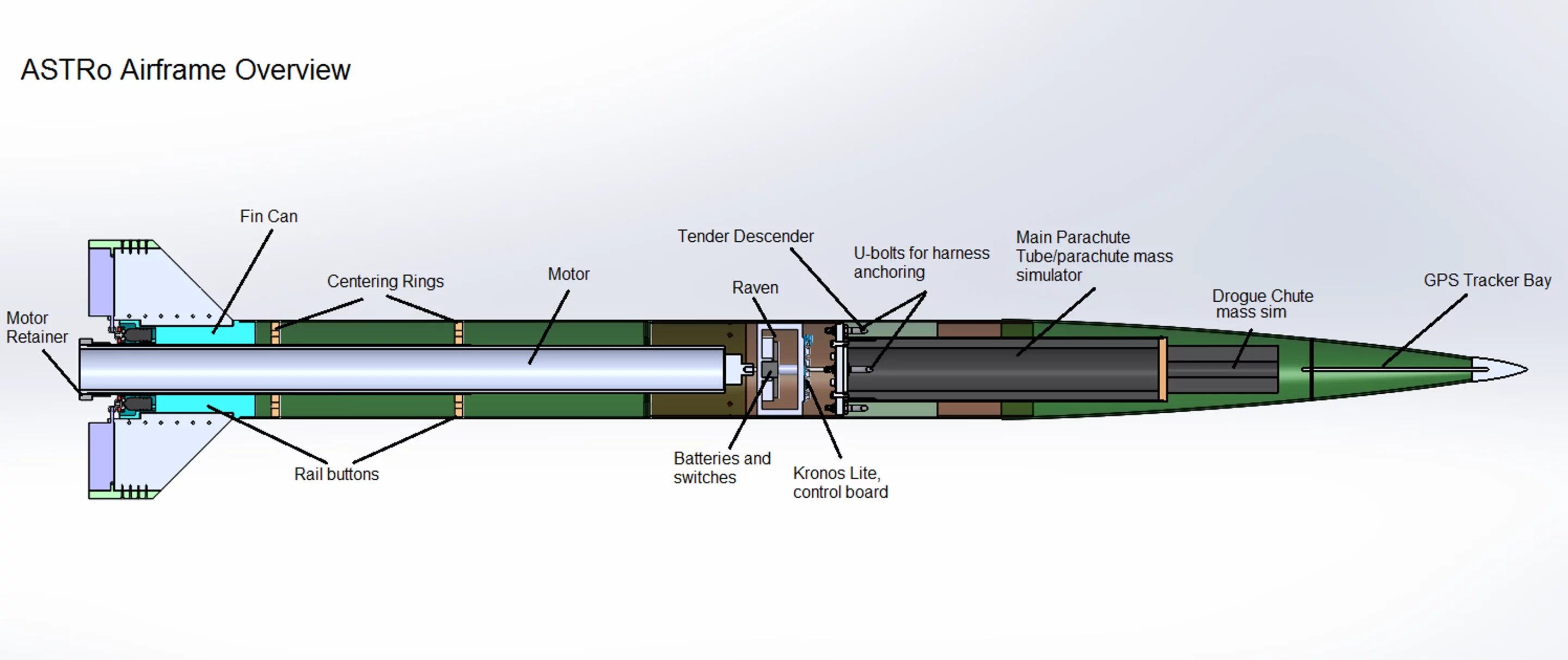

This year, BURPG has been carrying on an extensive test program on a series of engines and rockets in Sudbury, Massachusetts leading up to the July 2015 launch of Starscraper from Black Rock Desert, Nevada. One test series involved the Actively Stabilized Test Rocket (ASTRo), which is a small rocket designed to test Starscraper's guidance algorithm under subsonic, supersonic, and high-angle of attack flights at altitudes ranging from 4,000 to 14,0000 ft (1,200 to 4,200 m). Guidance is particularly important because Starscraper's long burn means that it needs to be pointed on target for an equally long time.

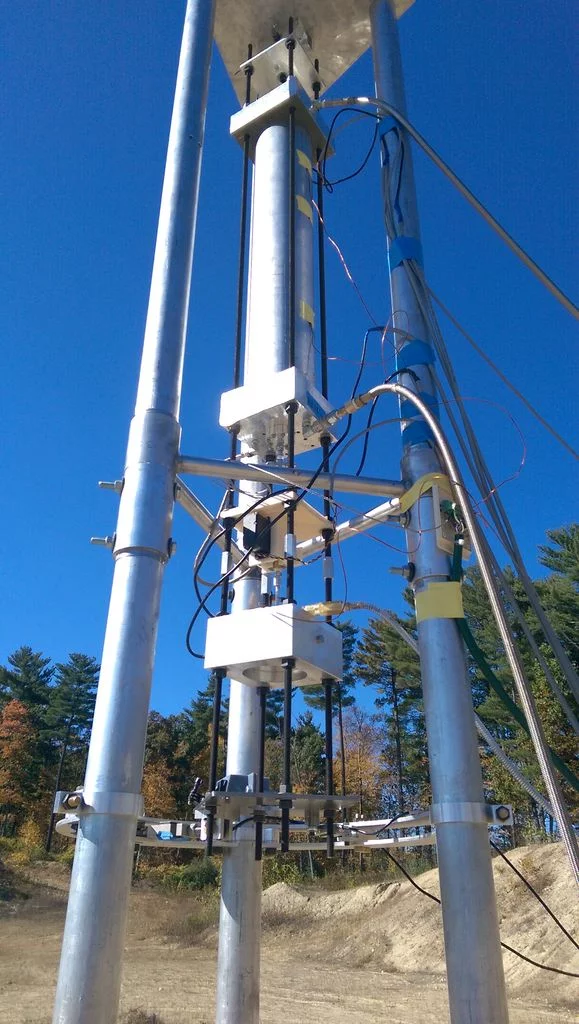

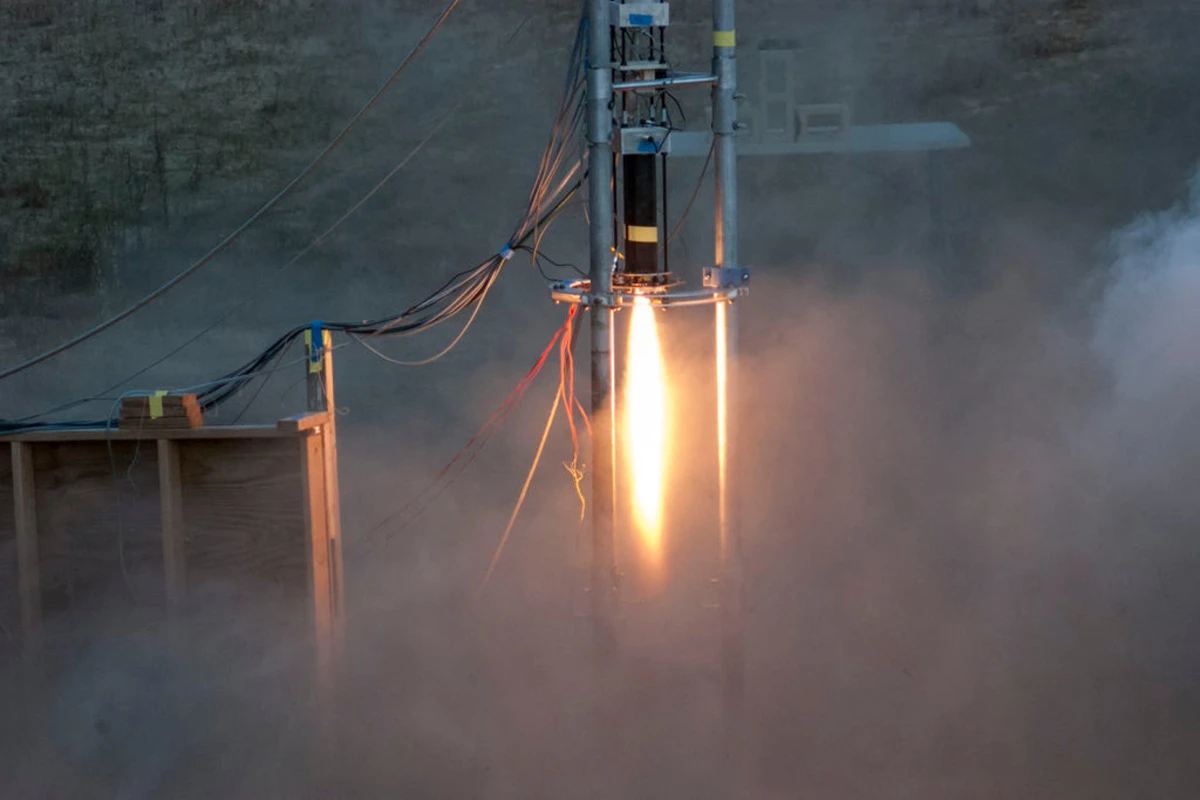

Another was the Mk IIb engine, a static-test rocket capable of generating 200 lb of thrust for 20 seconds which underwent a series of cold and hot firing tests earlier this year to provide data about nitrous decomposition, thrust vector control, long duration nozzles, regenerative cooling, throttling, performance, fuel grain geometry, ground systems, and electronic control systems.

ASTRo (Actively Stabilized Test Rocket)
ASTRo (Actively Stabilized Test Rocket)

So far, BURPG has spent $90,000 on Starscraper and says that it has 60 percent of its needed funds and hopes to raise the balance with a Kickstarter campaign running through January 8. Backer rewards range from prints and photos to a chance to join the team at Starscraper's launch next year.

The video below show a static test of the Mk IIb rocket engine.

Source: BURPG

Mk IIB Large Amplitude LITVC
