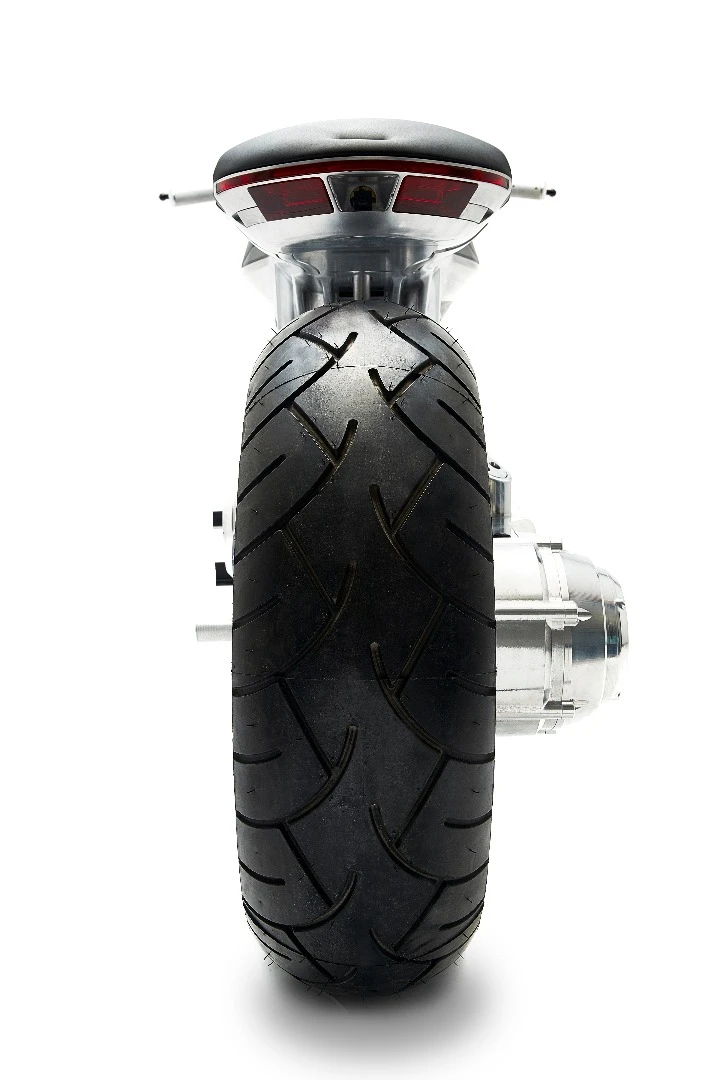

Vanguard Roadster: 240-section rear tyre
5/32
Vanguard Roadster: 240-section rear tyre

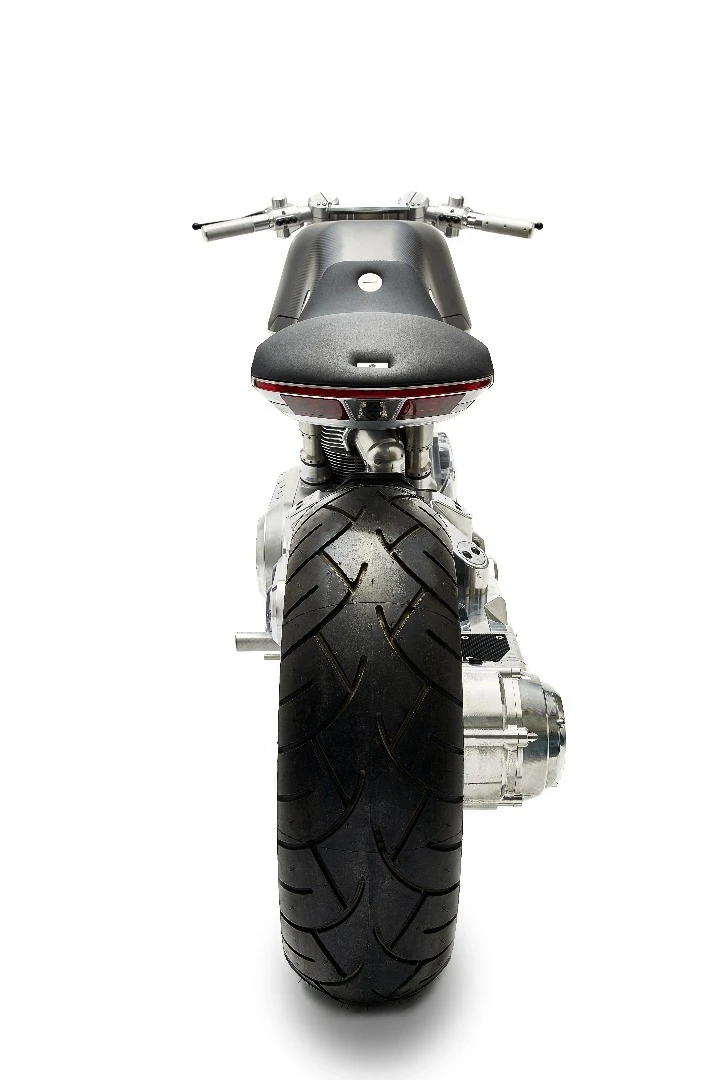

Vanguard Roadster: packs some badonkadonk for an otherwise slim body shape
6/32
Vanguard Roadster: packs some badonkadonk for an otherwise slim body shape

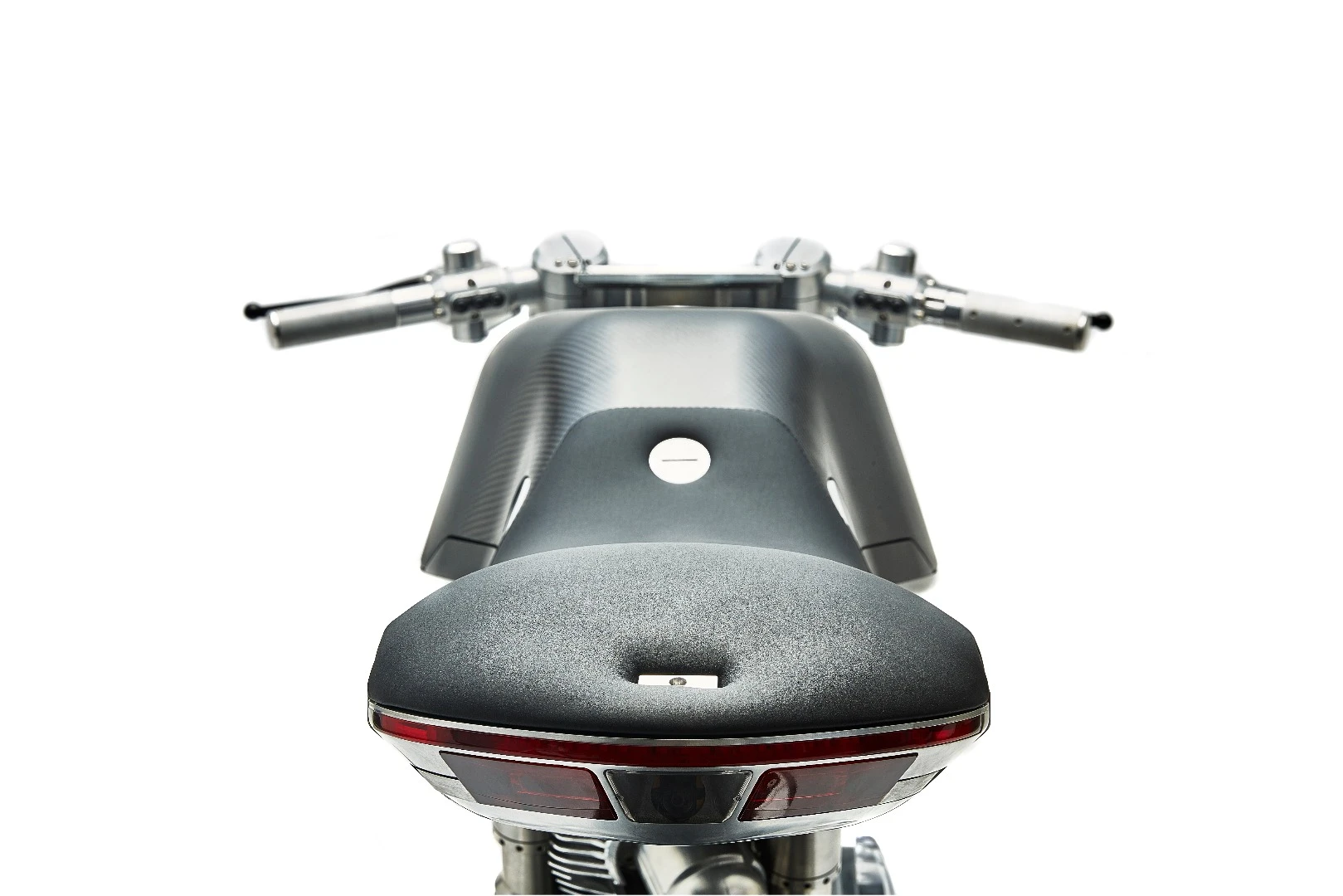

Vanguard Roadster: seat is basic
7/32
Vanguard Roadster: seat is basic
Vanguard Roadster: metallic tail unit
8/32
Vanguard Roadster: metallic tail unit
Vanguard Roadster: tail unit starts looking a bit like the Starship Enterprise when you look too close
9/32
Vanguard Roadster: tail unit starts looking a bit like the Starship Enterprise when you look too close
Vanguard Roadster: Kirk and Spock sit within the tail unit, going where no man has gone before, except you. You've just been there.
10/32
Vanguard Roadster: Kirk and Spock sit within the tail unit, going where no man has gone before, except you. You've just been there.
Vanguard Roadster: 117 cubic inch S&S V-Twin
11/32
Vanguard Roadster: 117 cubic inch S&S V-Twin

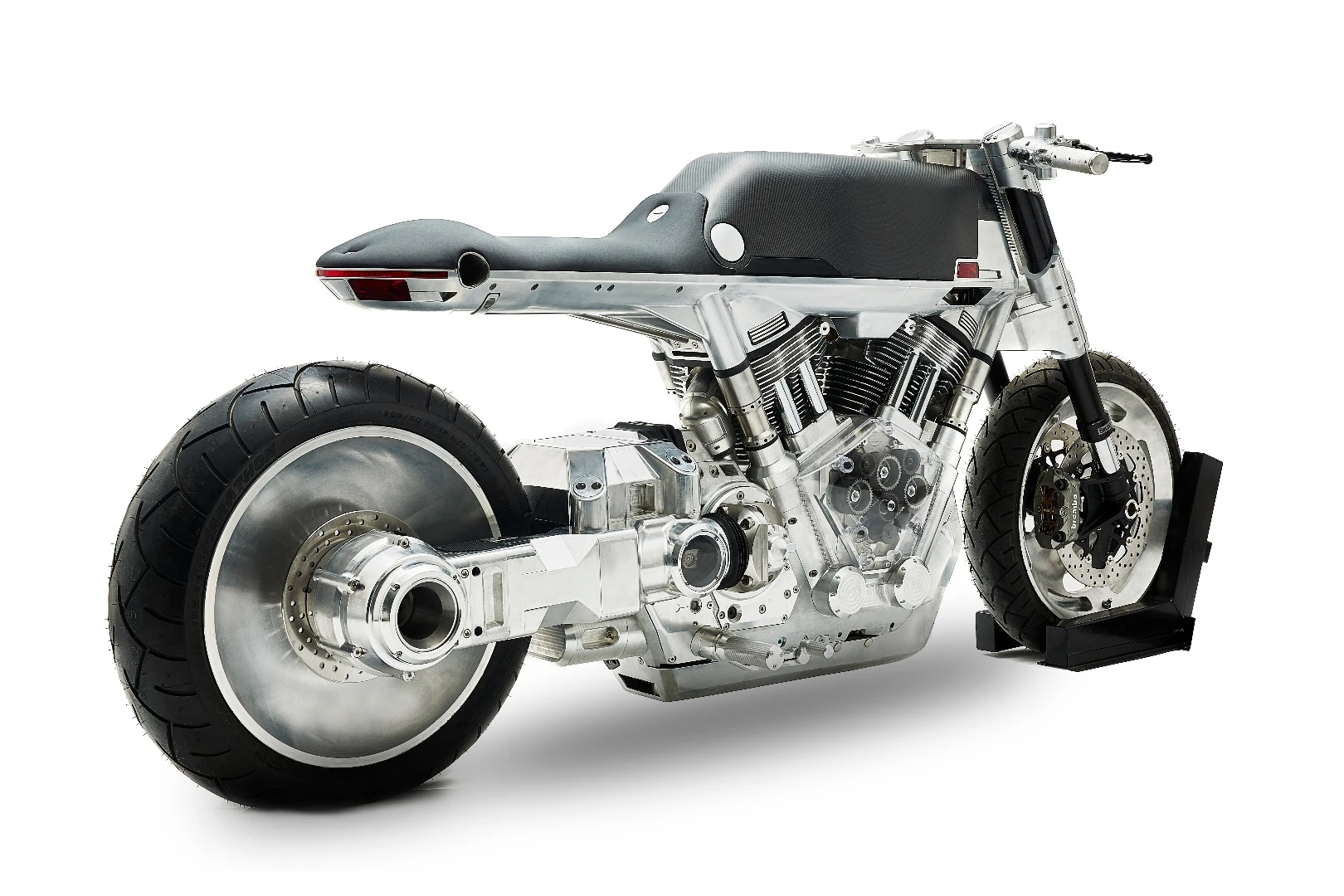

Vanguard Roadster: massive single sided swingarm
12/32
Vanguard Roadster: massive single sided swingarm
Vanguard Roadster: shades of Confederate in this design
13/32
Vanguard Roadster: shades of Confederate in this design
Vanguard Roadster: should be entertaining to watch at idle
14/32
Vanguard Roadster: should be entertaining to watch at idle
Vanguard Roadster: rear shock is isolated from road grime in a giant metal box
15/32
Vanguard Roadster: rear shock is isolated from road grime in a giant metal box
1917cc S&S X-Wedge motor will provide 110 pound-feet of torque
16/32
1917cc S&S X-Wedge motor will provide 110 pound-feet of torque
Vanguard Roadster: exposed belt drives for the cams
17/32
Vanguard Roadster: exposed belt drives for the cams

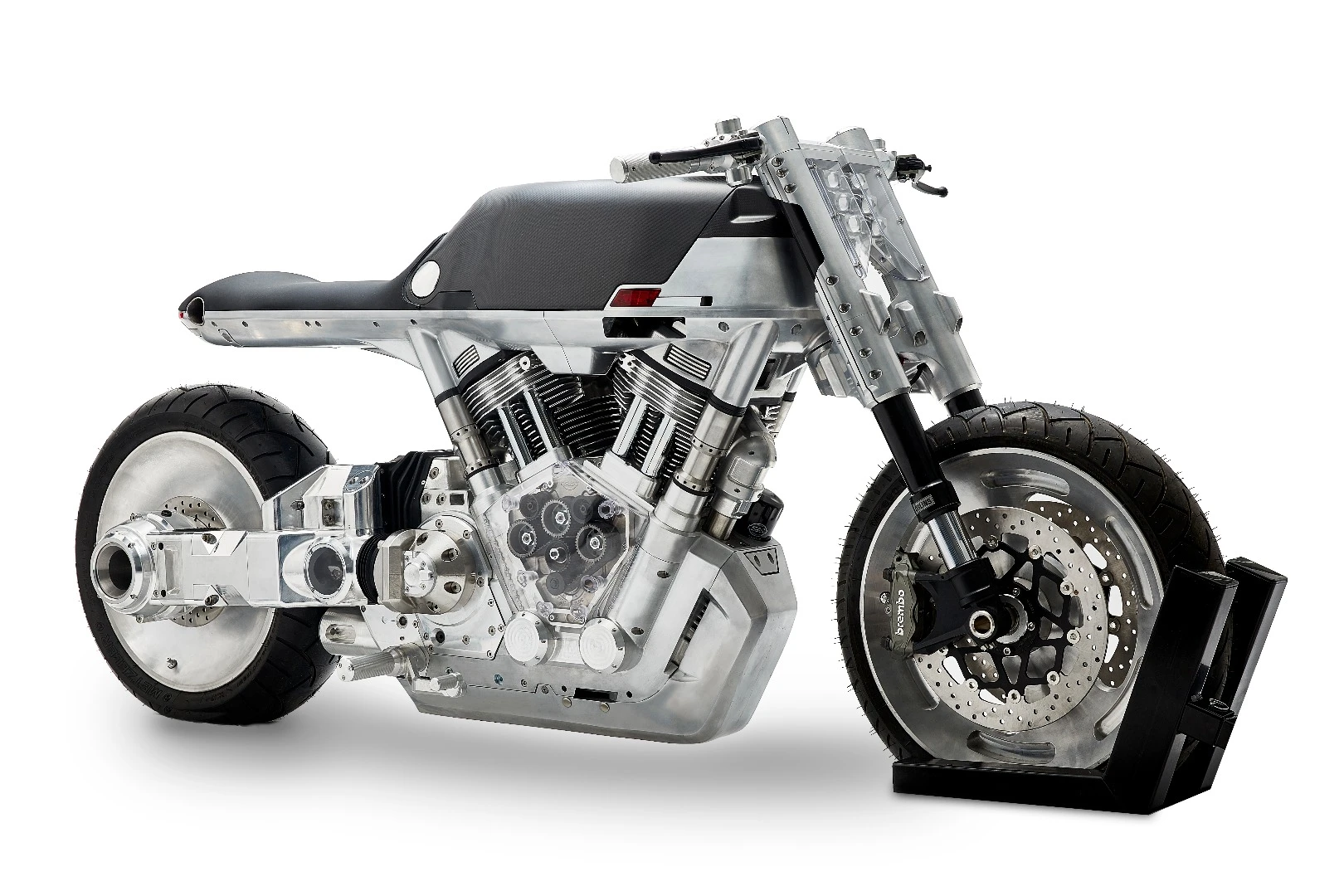

Vanguard Roadster: unmistakeably American
18/32
Vanguard Roadster: unmistakeably American
Vanguard Roadster: 48mm Ohlins forks
19/32
Vanguard Roadster: 48mm Ohlins forks

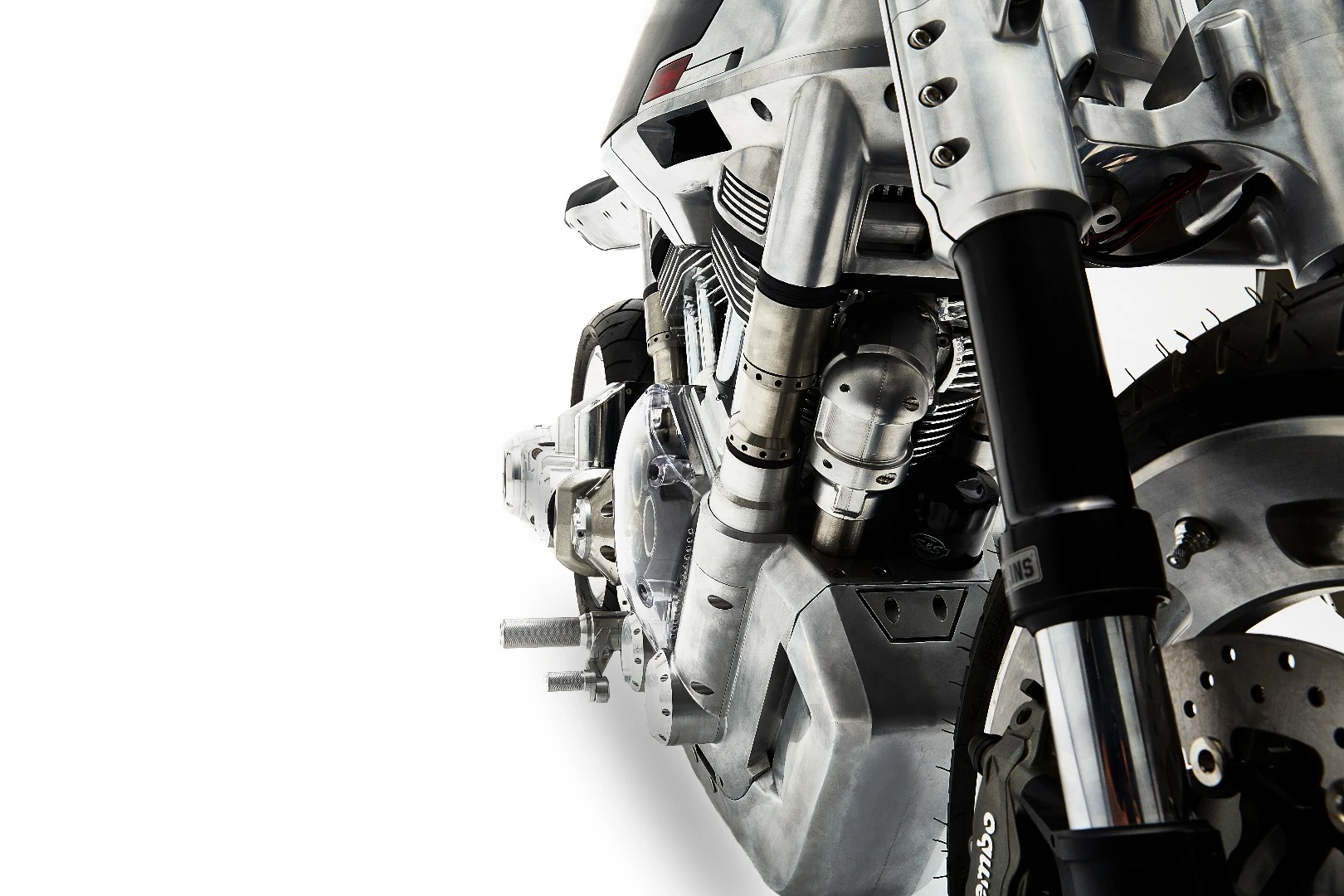

Vanguard Roadster: built like a brick outhouse
20/32
Vanguard Roadster: built like a brick outhouse
Vanguard Roadster: clear headlight unit
21/32
Vanguard Roadster: clear headlight unit
Vanguard Roadster: headlights are completely flat to the fork lines
22/32
Vanguard Roadster: headlights are completely flat to the fork lines

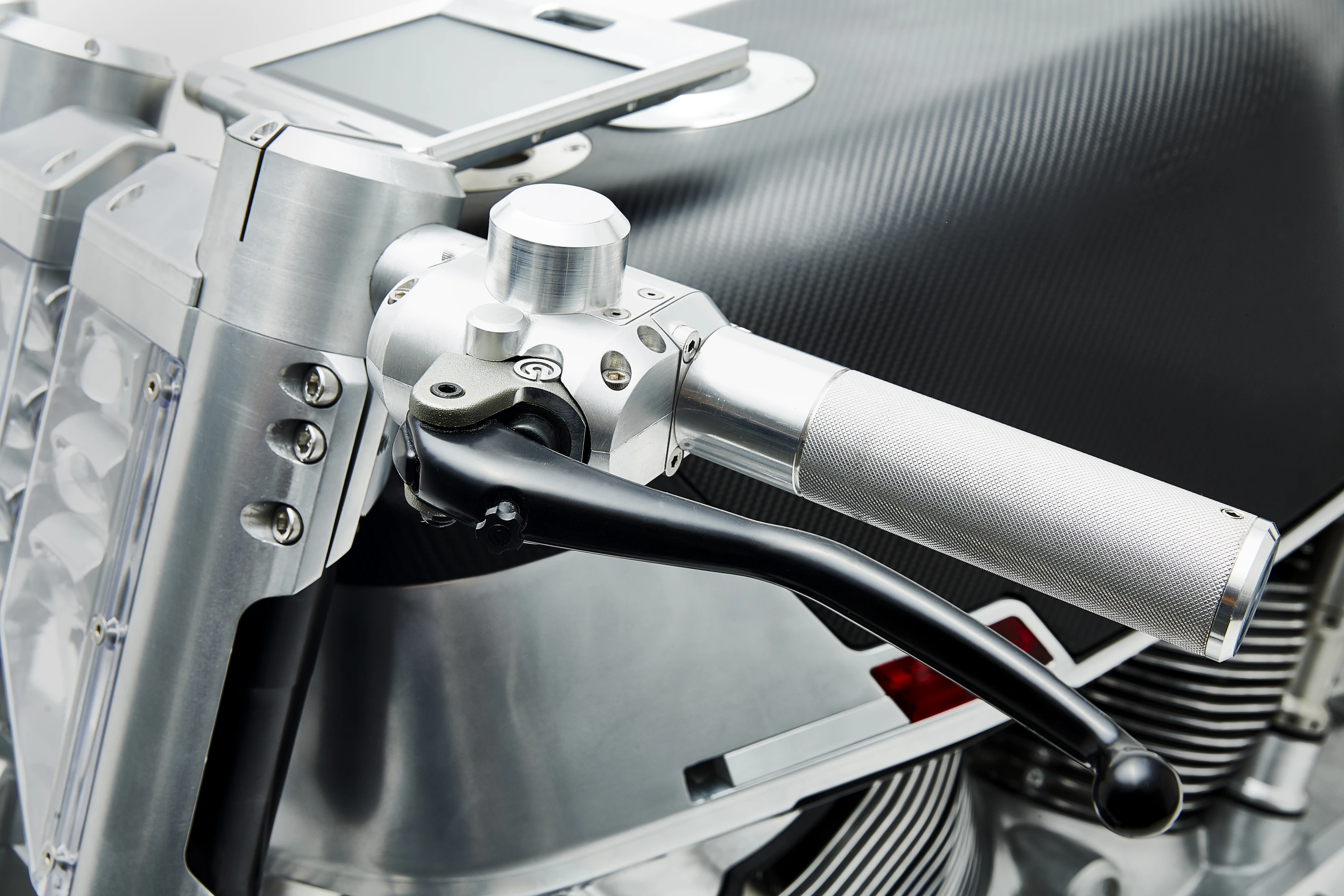

Vanguard Roadster: Brembo clutch lever
23/32
Vanguard Roadster: Brembo clutch lever

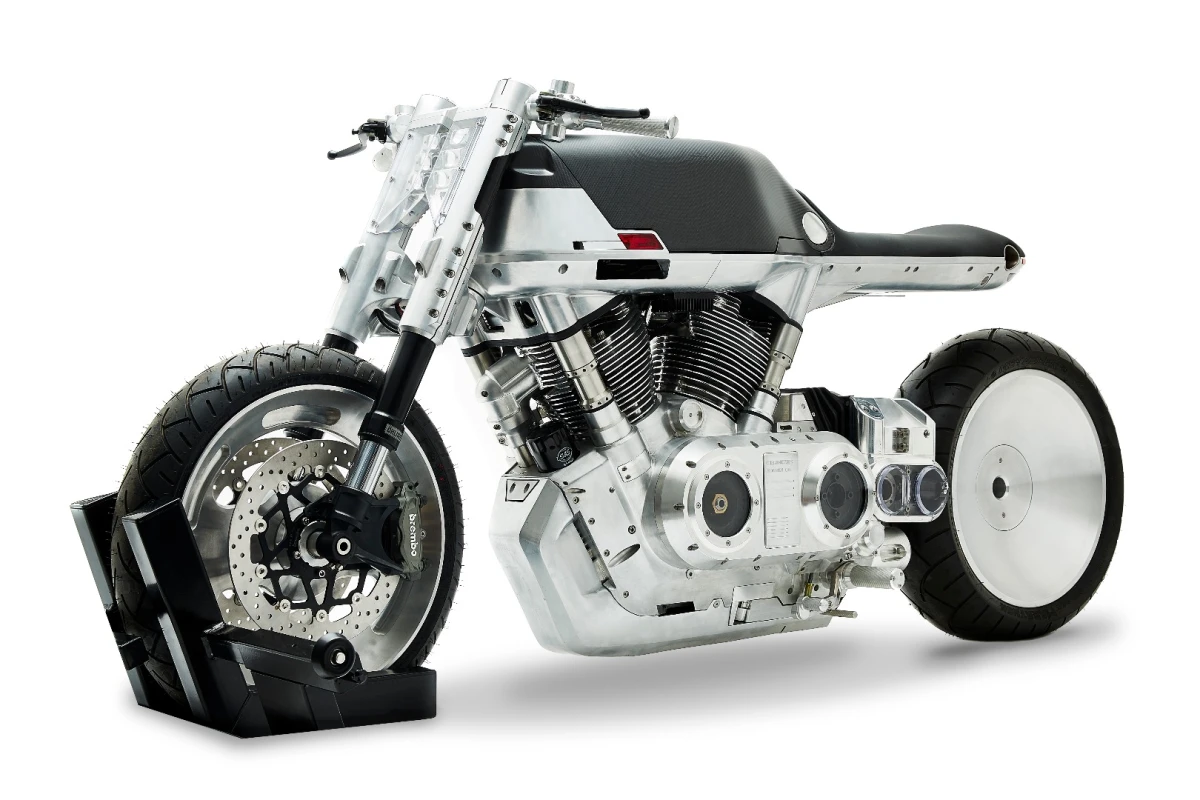

The Roadster is the first of three cycles planned by Vanguard Motorcycles that will include a sportsbike and cruiser
24/32
The Roadster is the first of three cycles planned by Vanguard Motorcycles that will include a sportsbike and cruiser
Vanguard Roadster: to be unveiled at the New York Motorcycle Show
25/32
Vanguard Roadster: to be unveiled at the New York Motorcycle Show

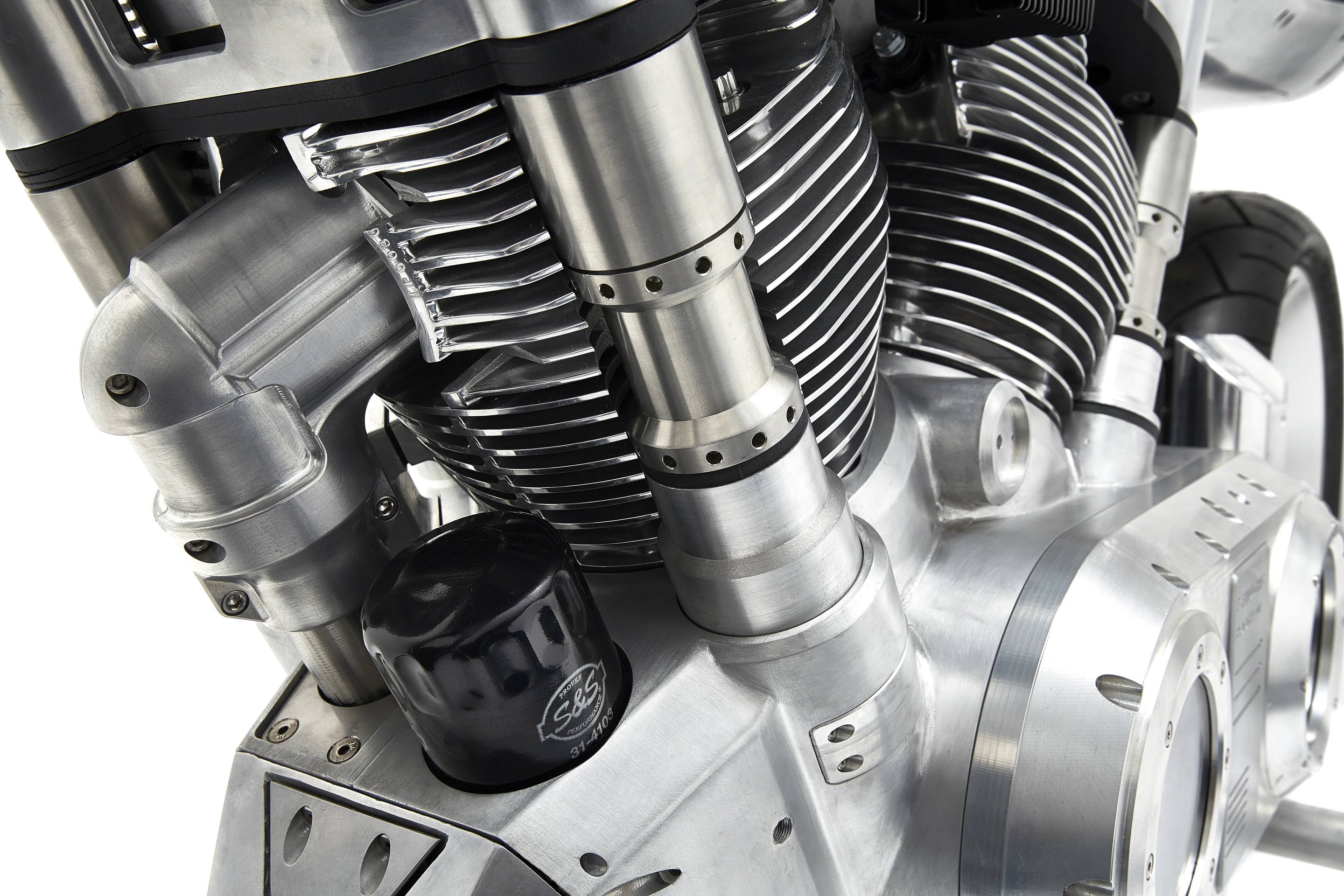

Vanguard Roadster: the frame of the motorcycle is built into the engine
26/32
Vanguard Roadster: the frame of the motorcycle is built into the engine

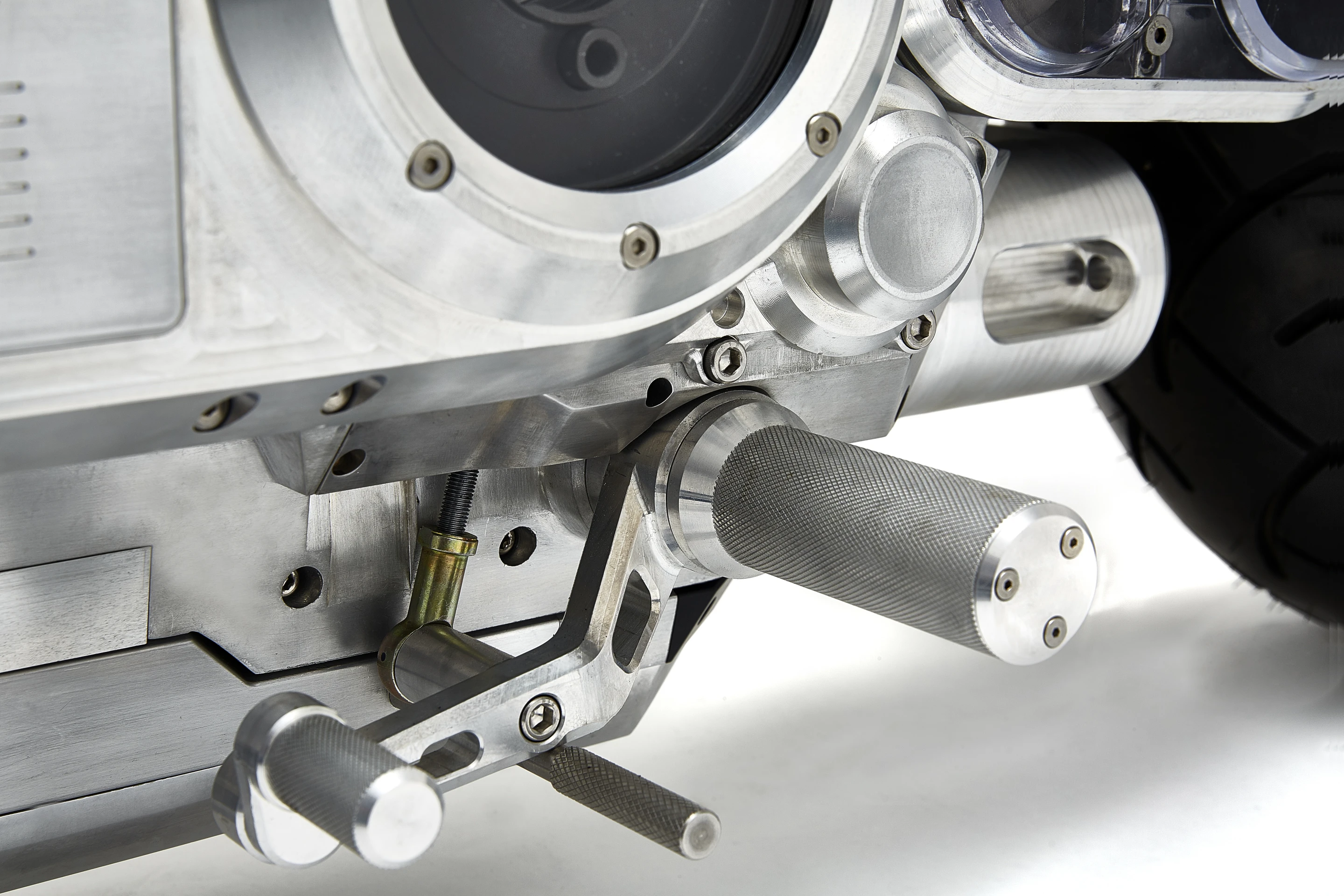

Vanguard Roadster: the chunkiest footpeg we've seen in a while
27/32
Vanguard Roadster: the chunkiest footpeg we've seen in a while
Vanguard Roadster: 56-degree Vee
28/32
Vanguard Roadster: 56-degree Vee
Vanguard Roadster: as metal as it gets
29/32
Vanguard Roadster: as metal as it gets

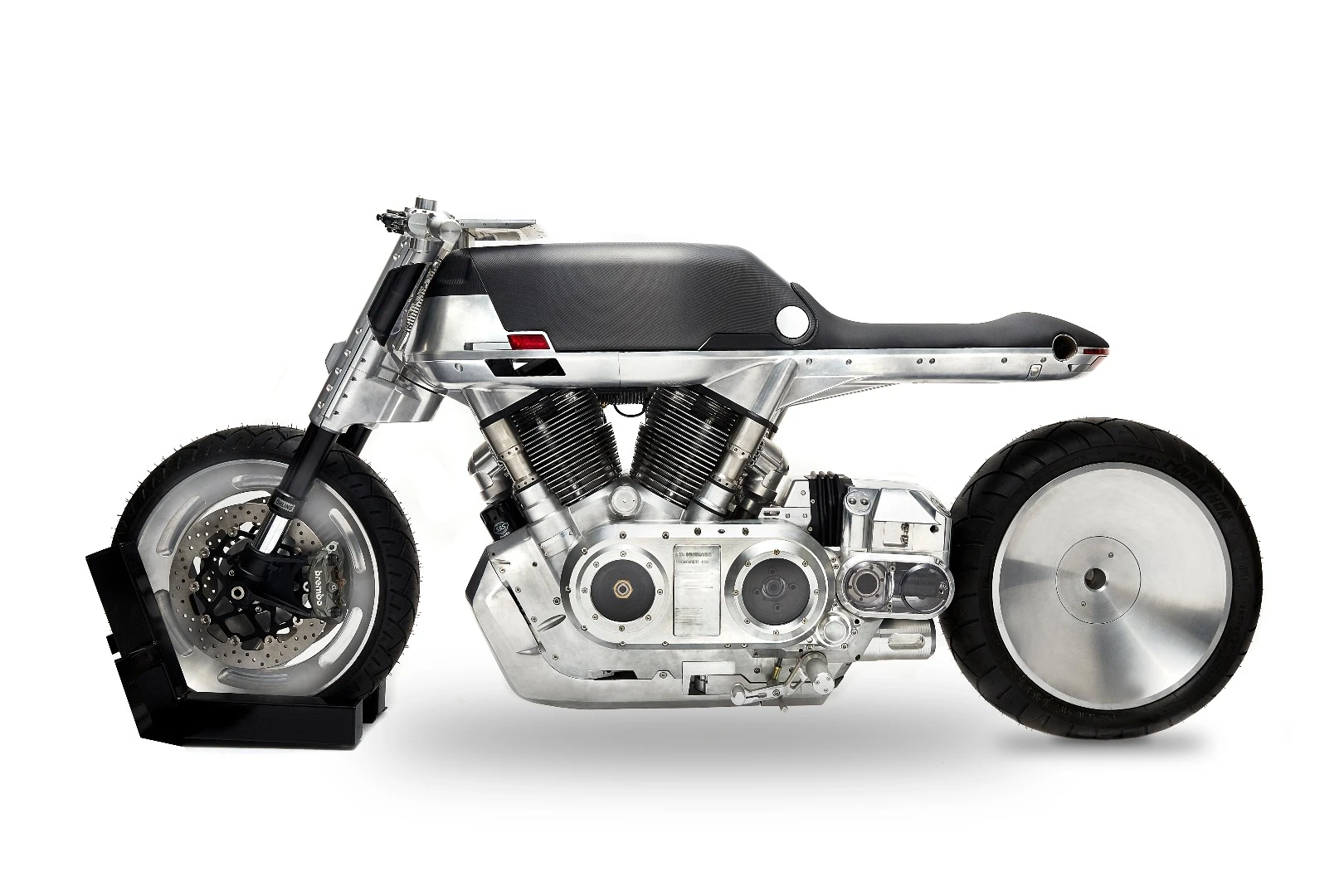

Vanguard Roadster: a unique and unmistakeable design
30/32
Vanguard Roadster: a unique and unmistakeable design
Vanguard Roadster: awkward side profile
31/32
Vanguard Roadster: awkward side profile
Vanguard Roadster: metal tail unit includes an integrated exhaust
32/32
Vanguard Roadster: metal tail unit includes an integrated exhaust
View gallery - 32 images

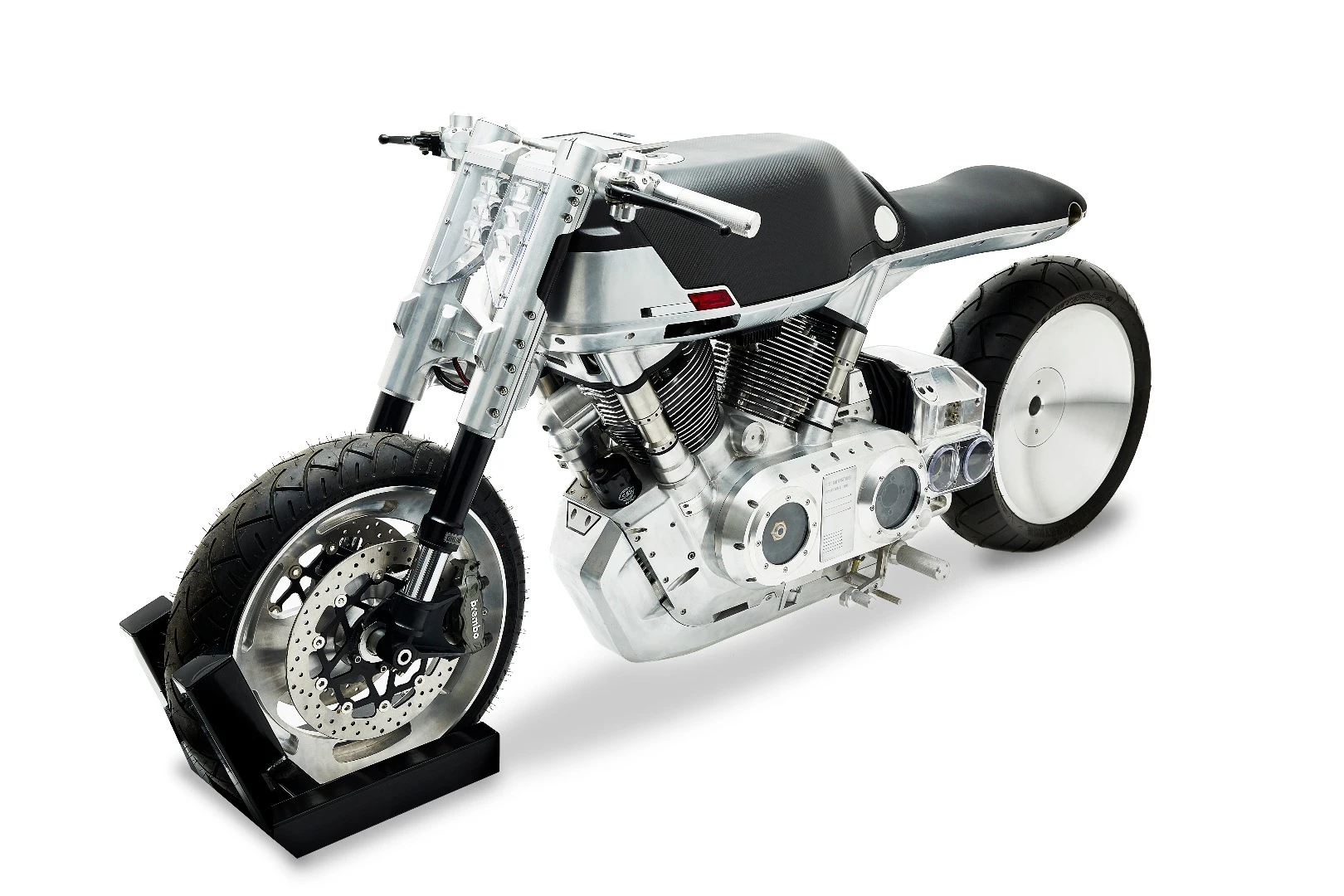

There's a new American motorcycle company on the block. Based in New York and preparing to unleash three new models based around a gigantic, 117 cubic inch (1917cc) S&S v-twin motor, Vanguard Motorcycles is unveiling its first bike at this weekend's New York Motorcycle Show. The Roadster is a massive, frameless nakedbike built around and upon a giant 1917cc v-twin engine. To put it mildly, you're not going to mistake it for anything else.

If the Vanguard Roadster has a theme to its design, that theme is metal. Metal just about everywhere. You get the sense that if the designers thought they could get away with using aircraft grade aluminum for the tires, they would have. The only more egregious use of aluminum I've seen was on the Confederate P120 Fighter Combat back in 2009.

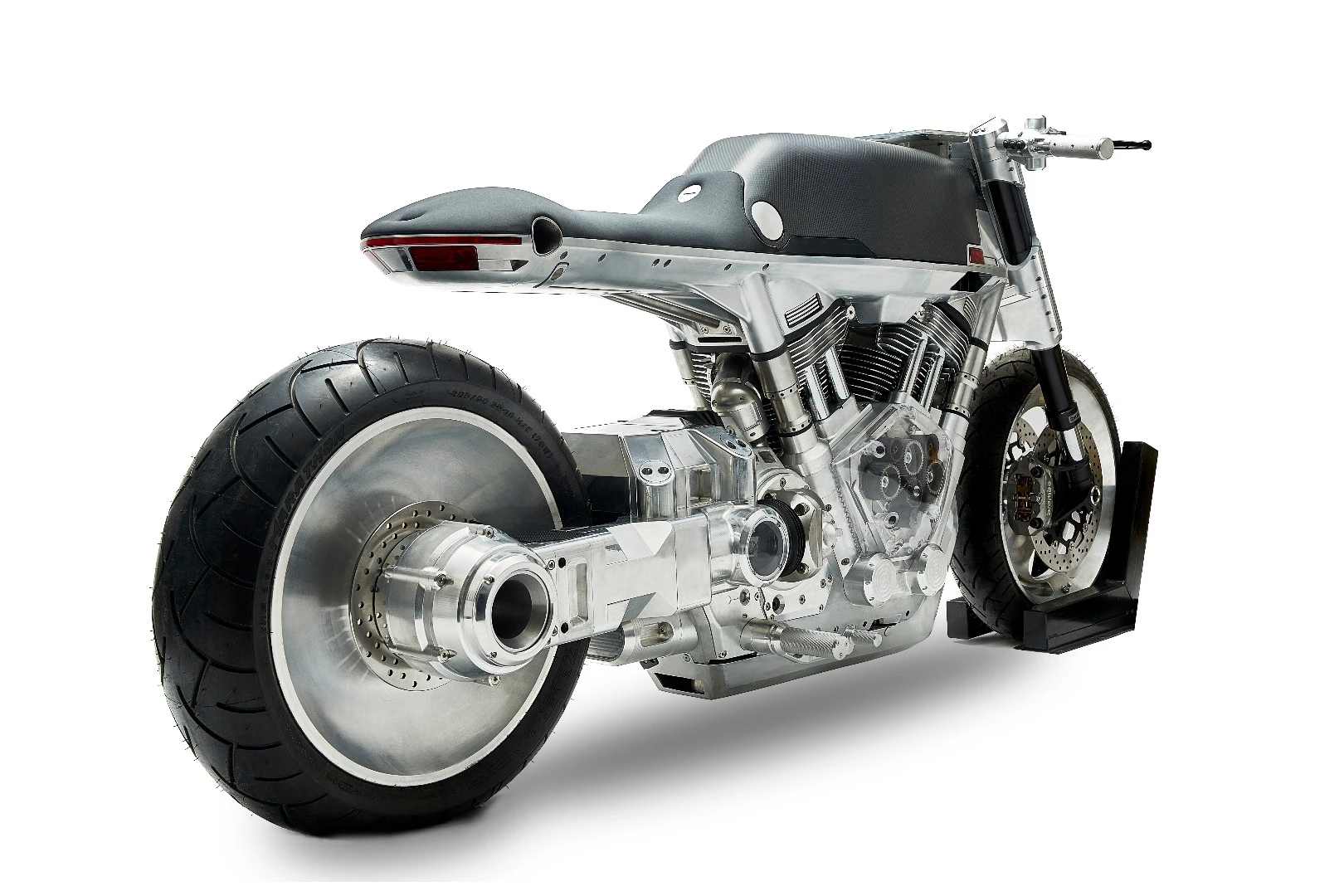

That's no coincidence. If you look at this thing and get a Confederate kind of vibe, that'd be because Vanguard CTO Edward Jacobs was Director of Design for Confederate between 2005 and 2011. In fact Jacobs' partner in Vanguard, CEO Francois-Xavier Terny, was a board member at Confederate for many years, as well. These two gentlemen would appear to have a proud fetish for machined metal, and I'm not ashamed to admit I might share it.

Vanguard Roadster: 117 cubic inch S&S V-Twin
Vanguard Roadster: 117 cubic inch S&S V-Twin

There's a feeling of massive, sturdy overengineering throughout the Roadster, from the giant triple clamps back to the monstrous single-sided swingarm and curved aluminum disc that serves as the 240-section rear wheel.

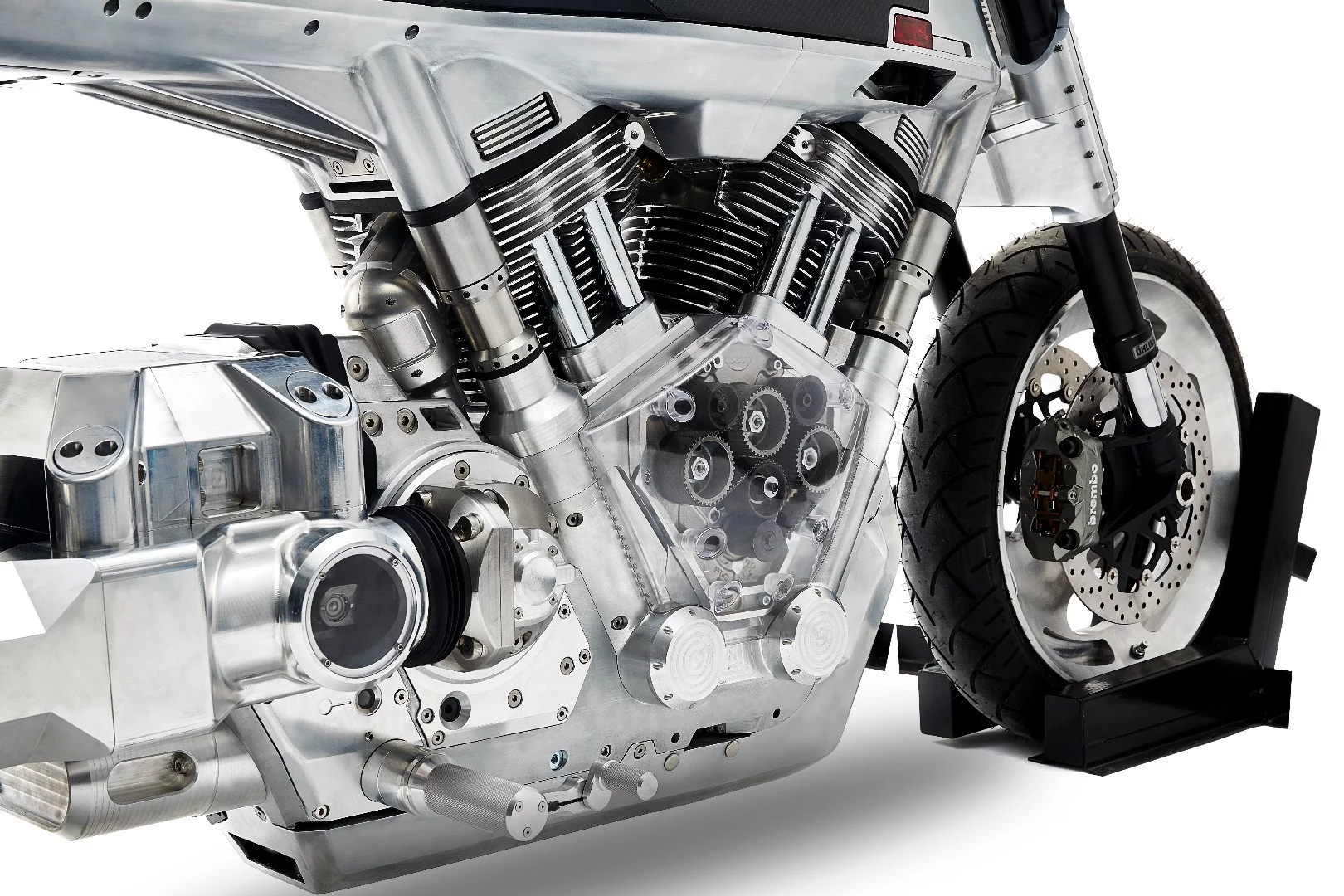

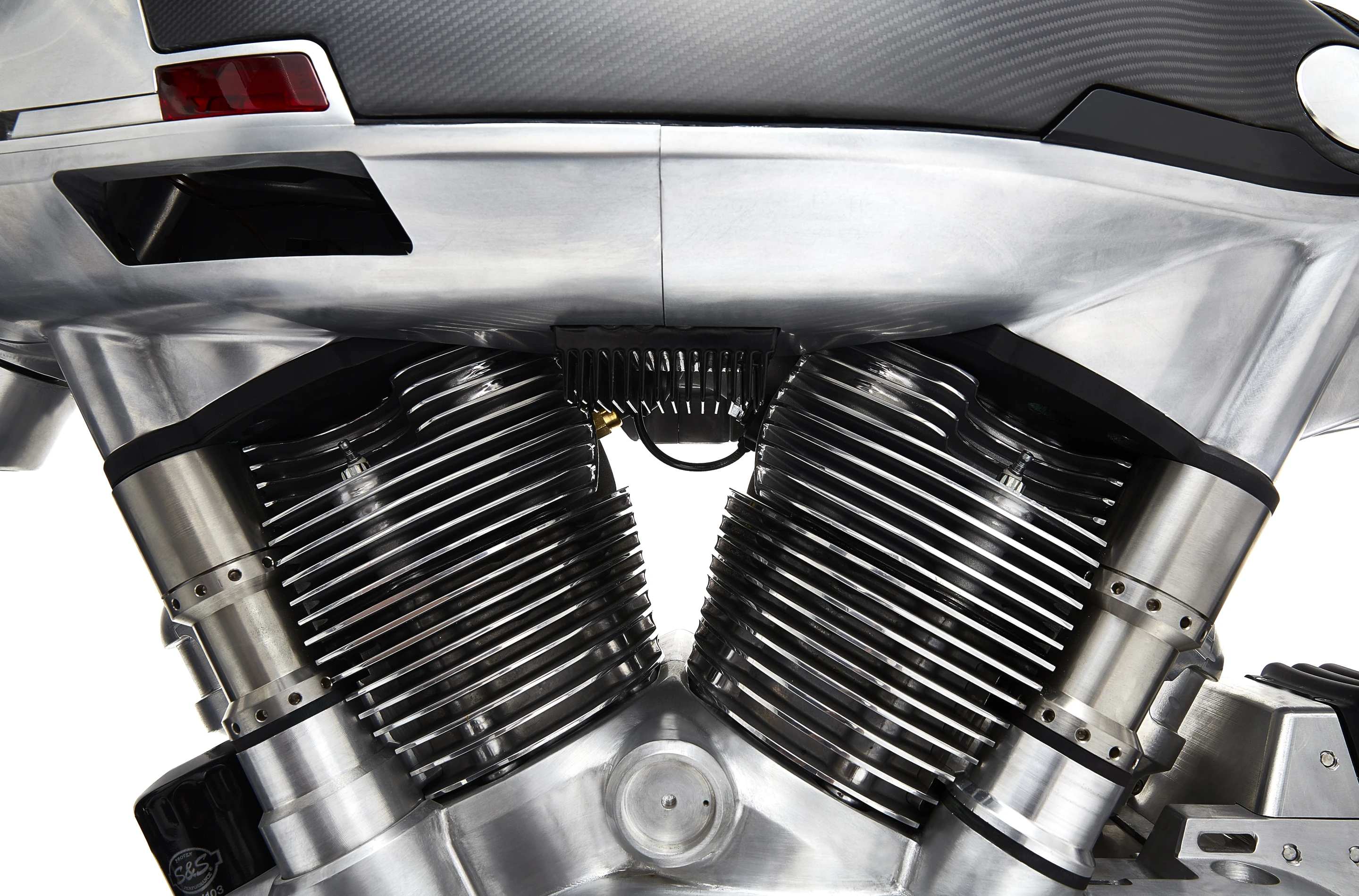

The motor is a modified S&S X-Wedge, a 56-degree v-twin that has been built around as the central structural unit of the bike. The cylinders themselves form a kind of cradle frame, and that whopping swingarm/shaft drive bolts right on behind the rear cylinder.

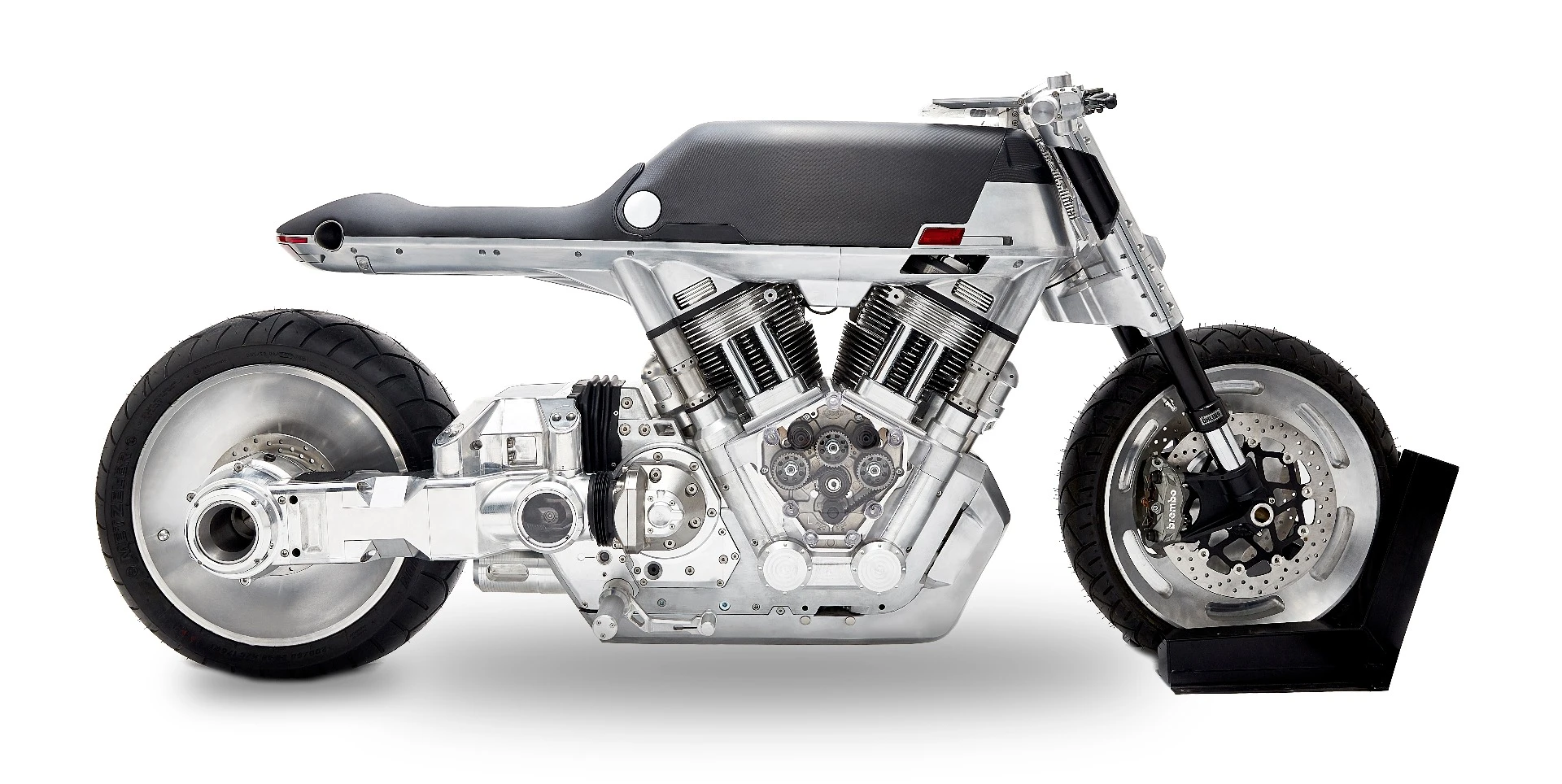

Vanguard Roadster: awkward side profile
Vanguard Roadster: awkward side profile

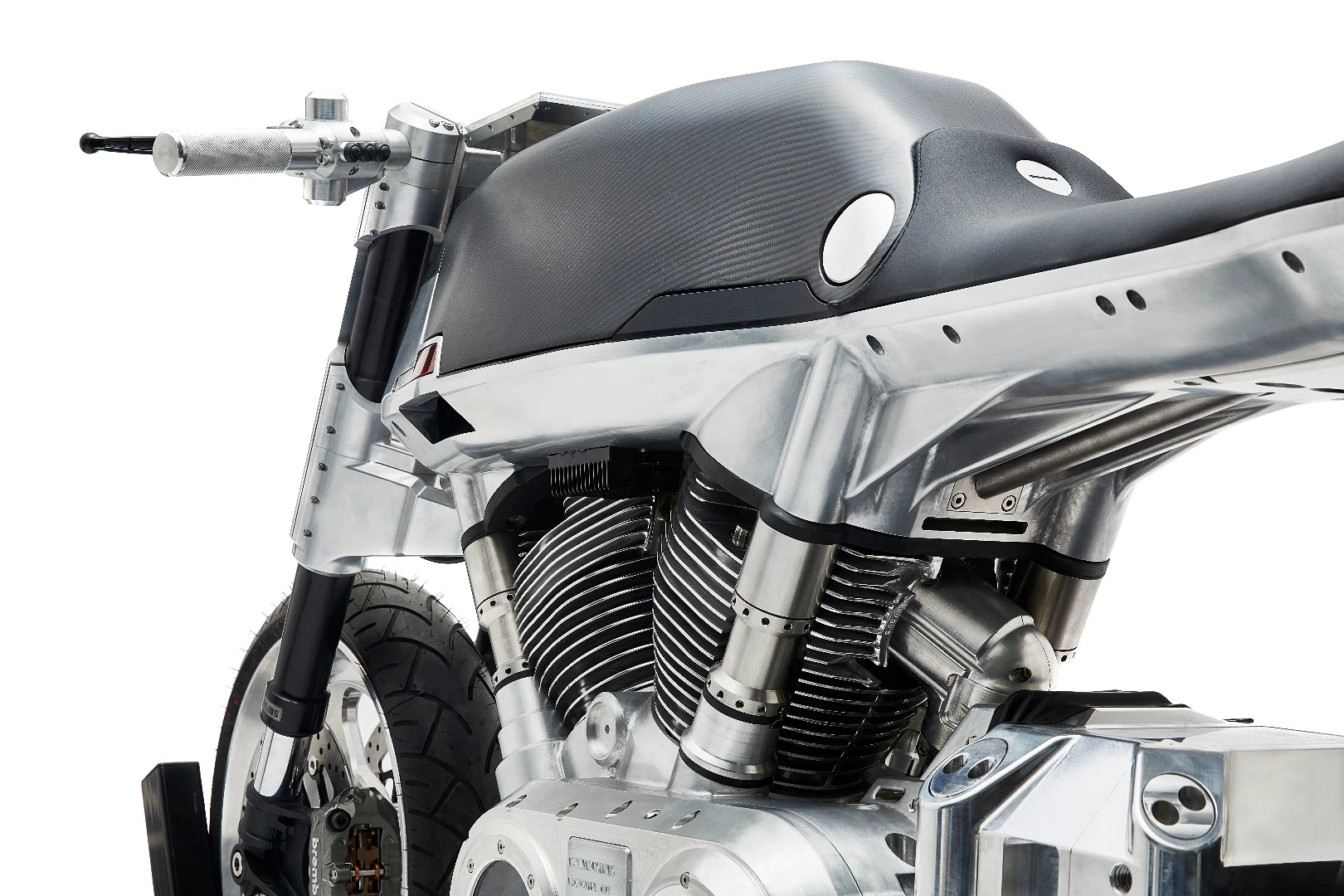

The upper half of the bike sits firmly on top of the cylinder heads, with the lower line of the seat and carbon tank forming a flat aluminum platform. And while each part individually looks great, from the tail unit to the slim 21-liter tank, I find the proportions pretty awkward in concert. Mind you, the details are good enough to save it; the closer you look, the more pornographic the machining becomes.

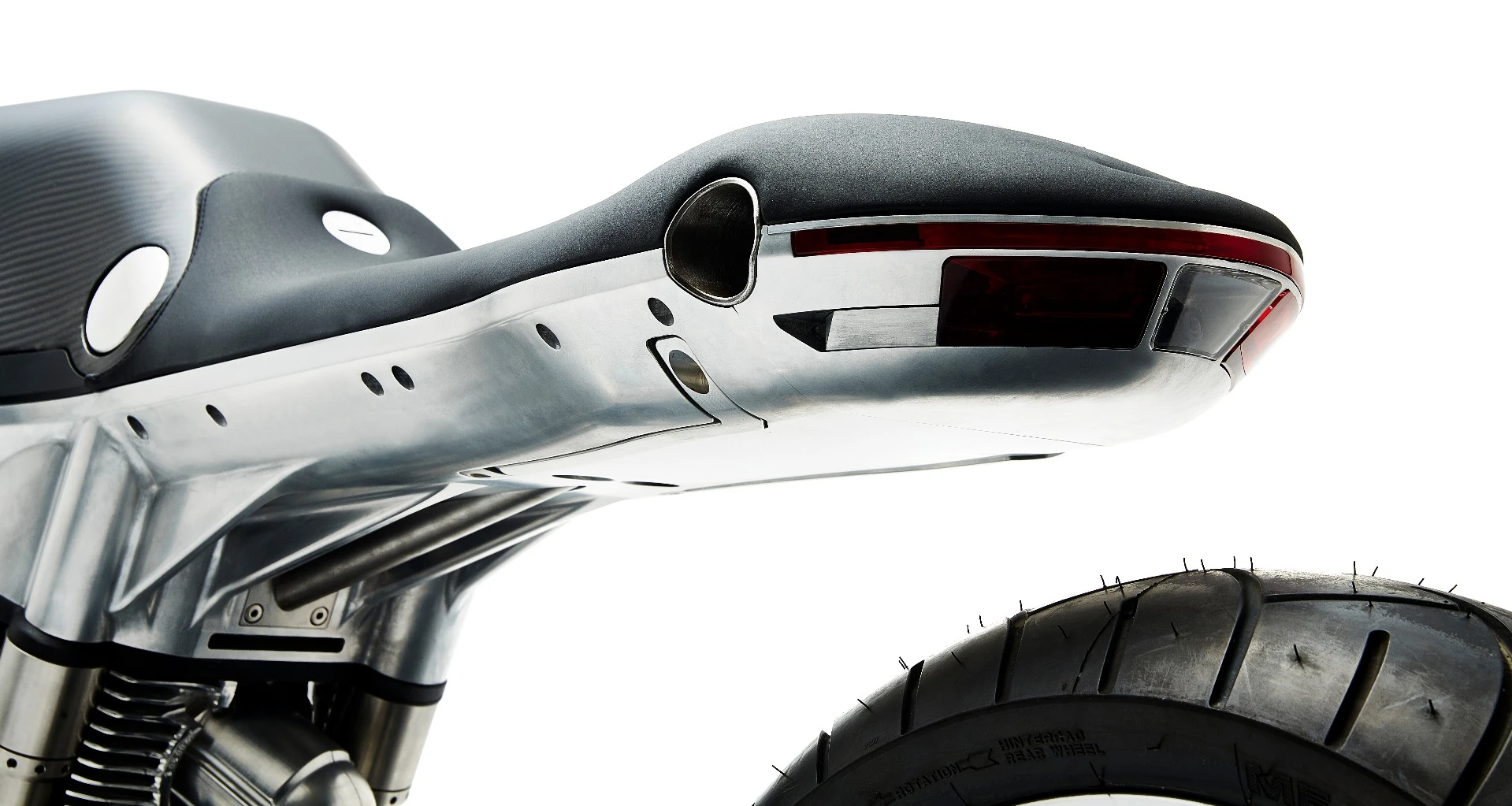

Vanguard Roadster: metal tail unit includes an integrated exhaust
Vanguard Roadster: metal tail unit includes an integrated exhaust

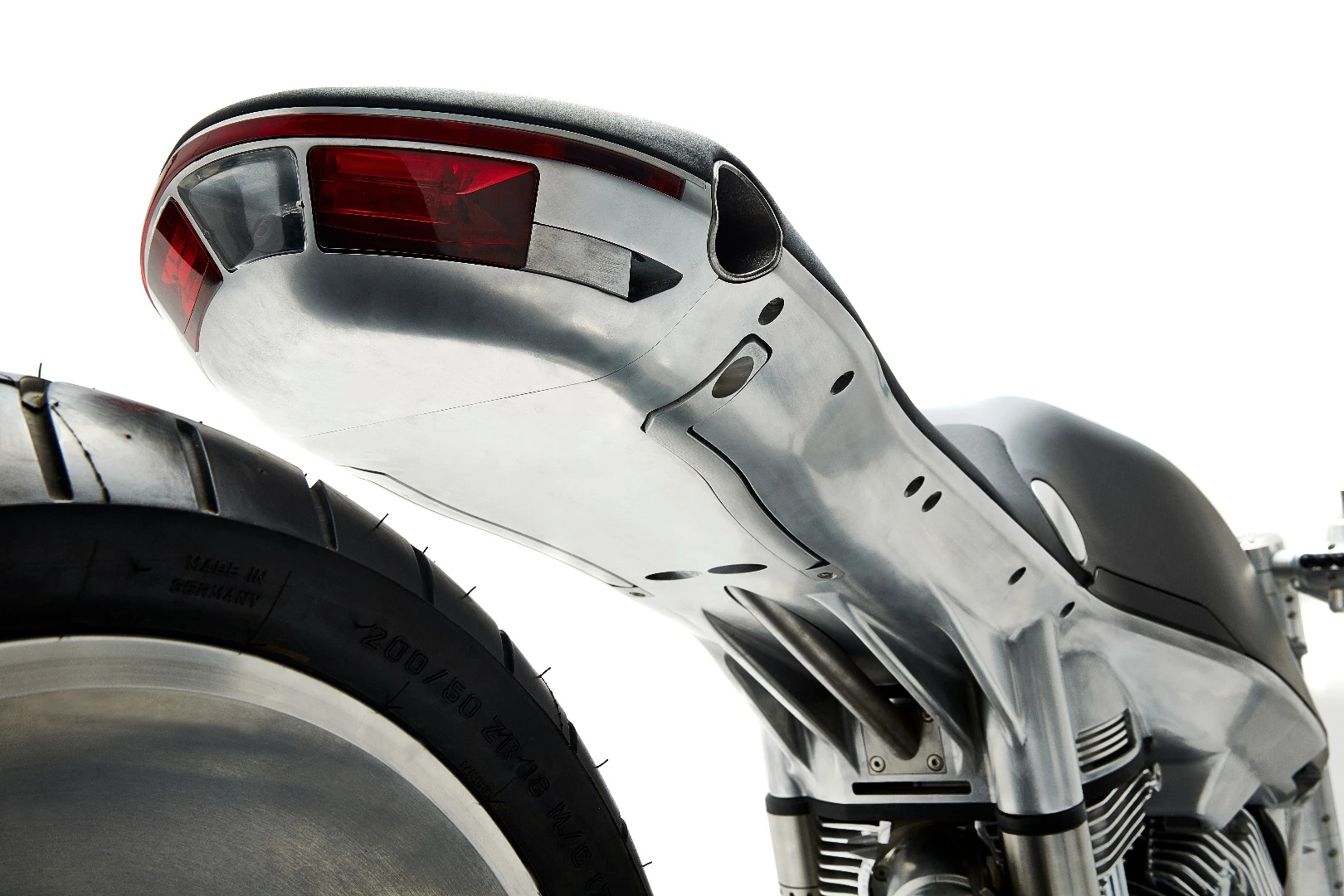

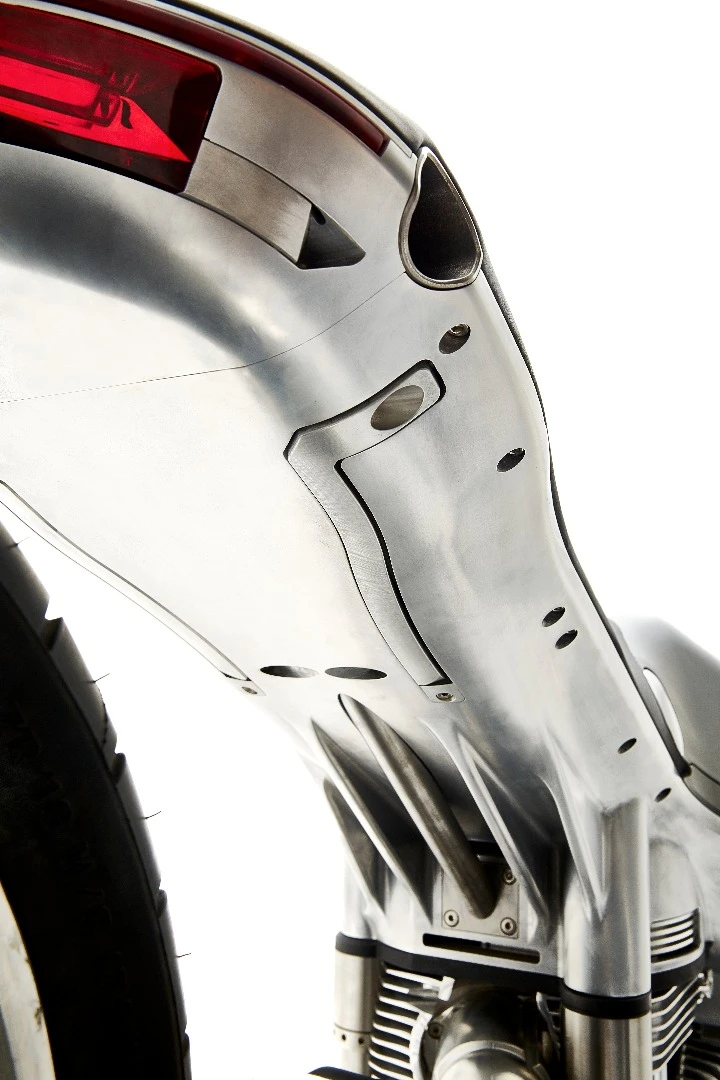

The single-seat tail unit is almost impossibly thin, with minimal seat padding, and from beneath it starts to look like the Starship Enterprise. You can imagine Kirk and Spock peeping out the back, going where no man has gone before. Except you, because you've just been there.

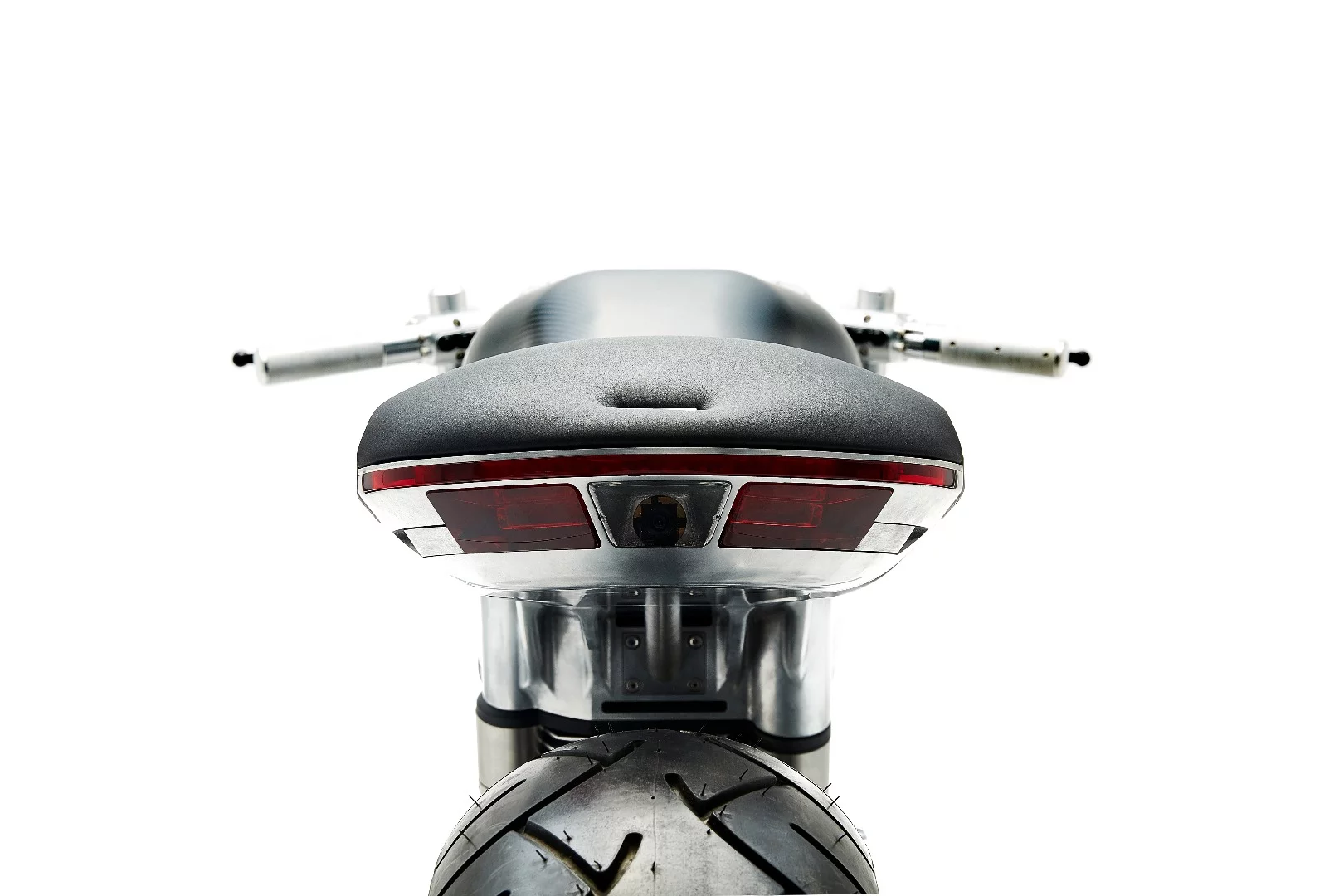

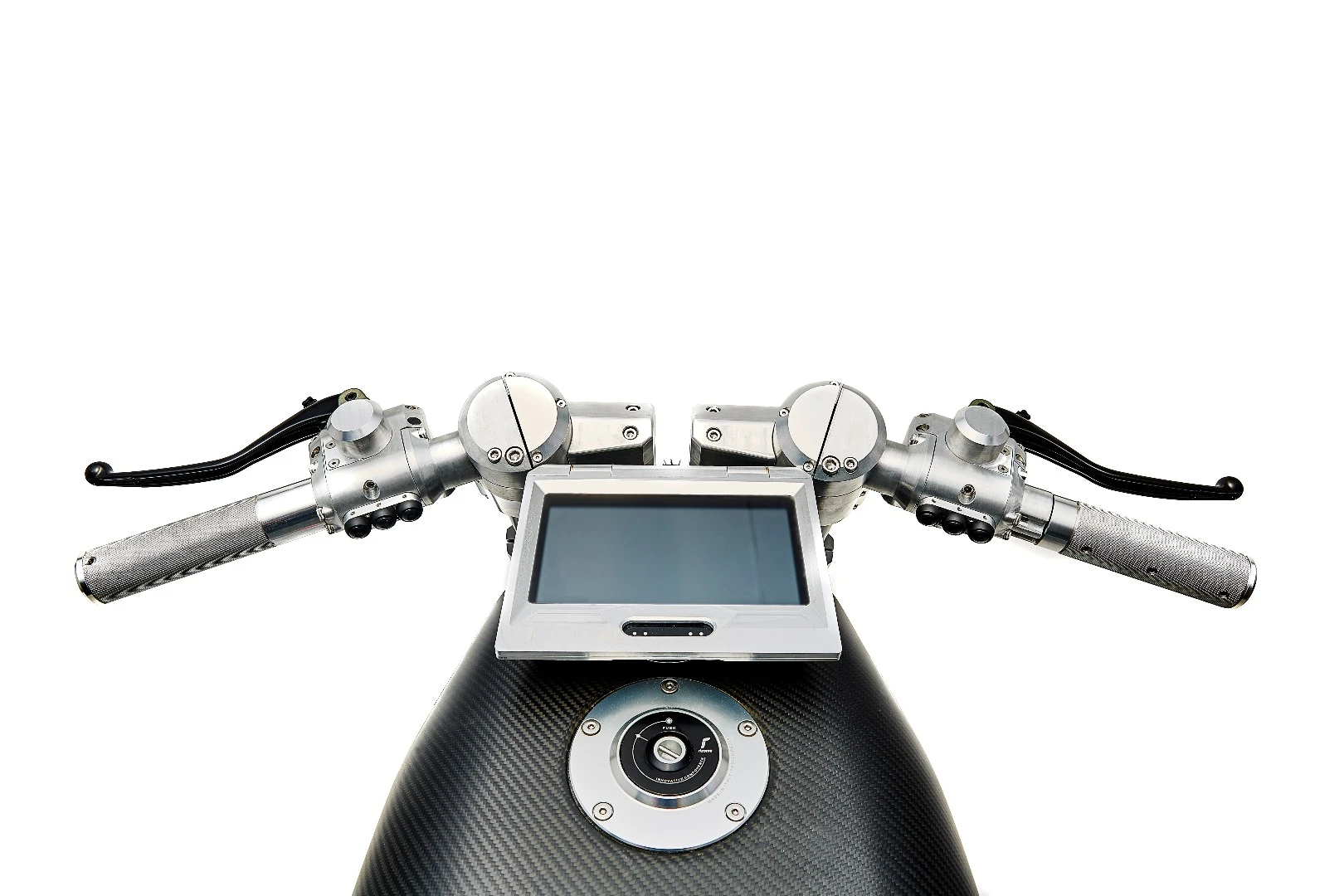

The exhaust is fully integrated, exiting from an anonymous slot at the bottom of the bike. Other interesting touches include the dash, which is a tablet-sized color screen that also serves as a mirror thanks to a rear-facing camera integrated in the tail unit.

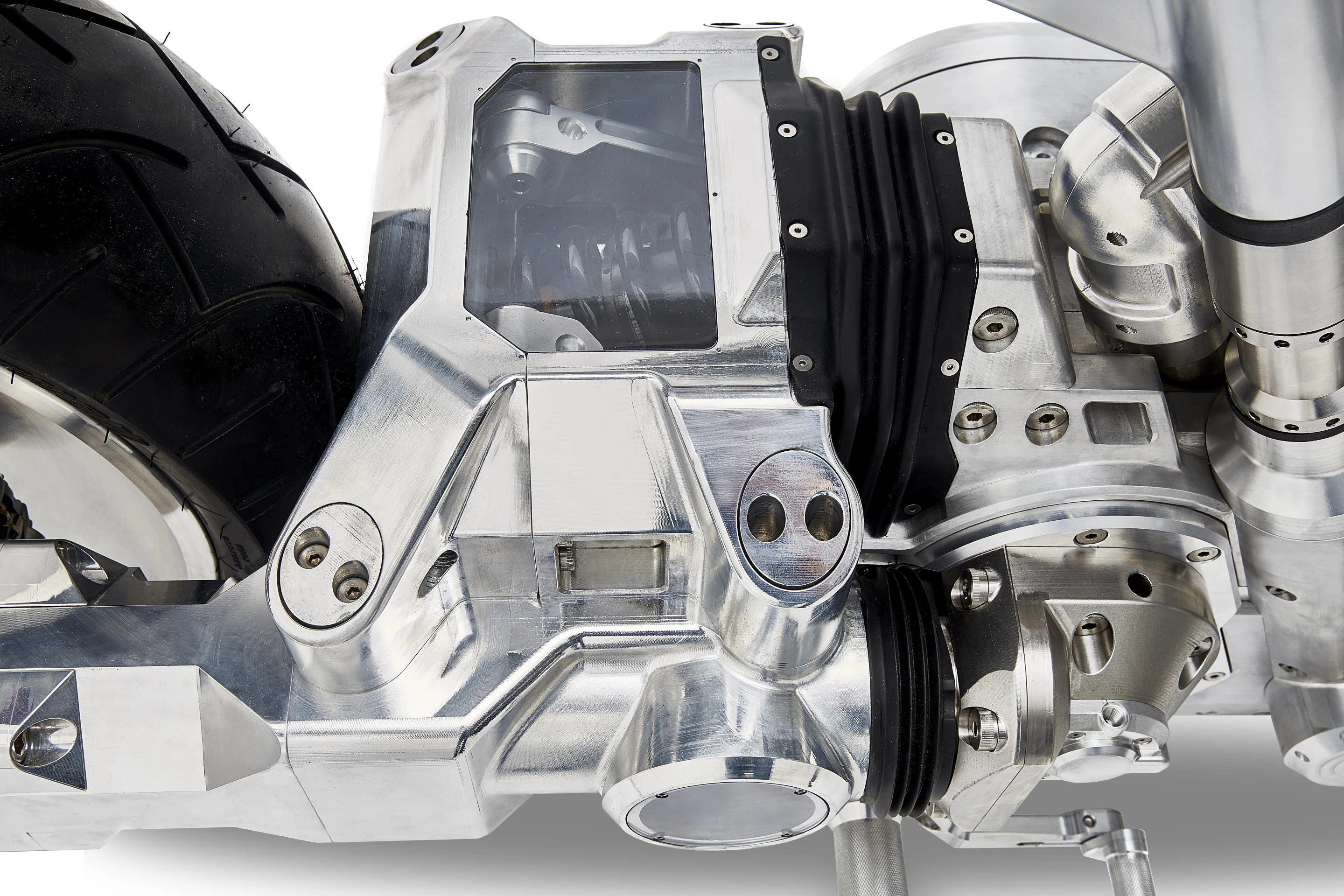

Vanguard Roadster: rear shock is isolated from road grime in a giant metal box
Vanguard Roadster: rear shock is isolated from road grime in a giant metal box

Then there's the rear shock – suspension is black Ohlins gear at either end – which is entirely contained within the swingarm/shaft drive assembly, effectively isolated from road grime in a chunky metal box with a viewing window at the top.

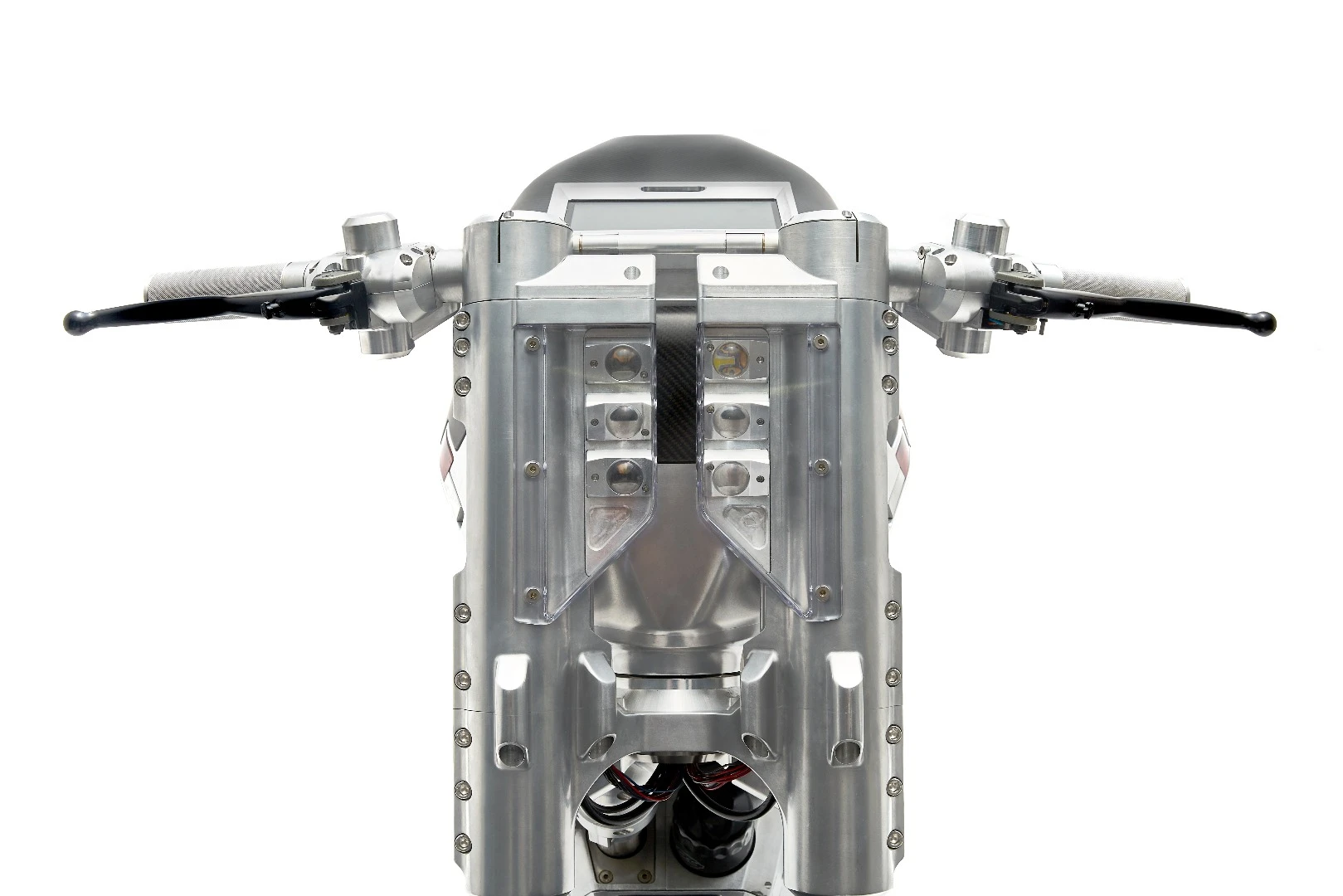

The headlights are barely there, six tiny units (perhaps LED based – the spec sheets don't specify) housed in transparent shards between the front forks. This is the flattest front end I've ever seen on a bike that didn't have a race plate on it.

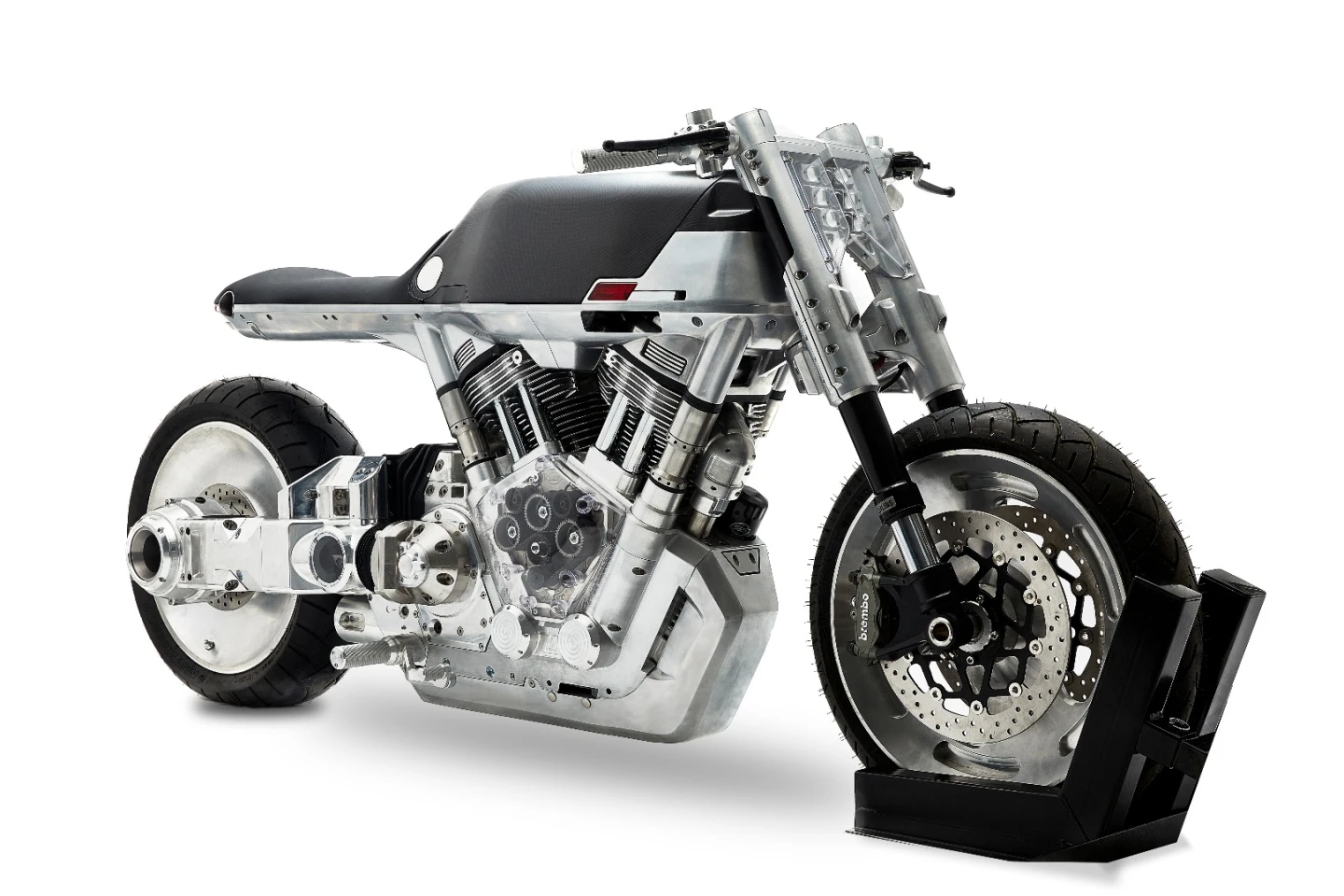

Vanguard Roadster: 48mm Ohlins forks
Vanguard Roadster: 48mm Ohlins forks

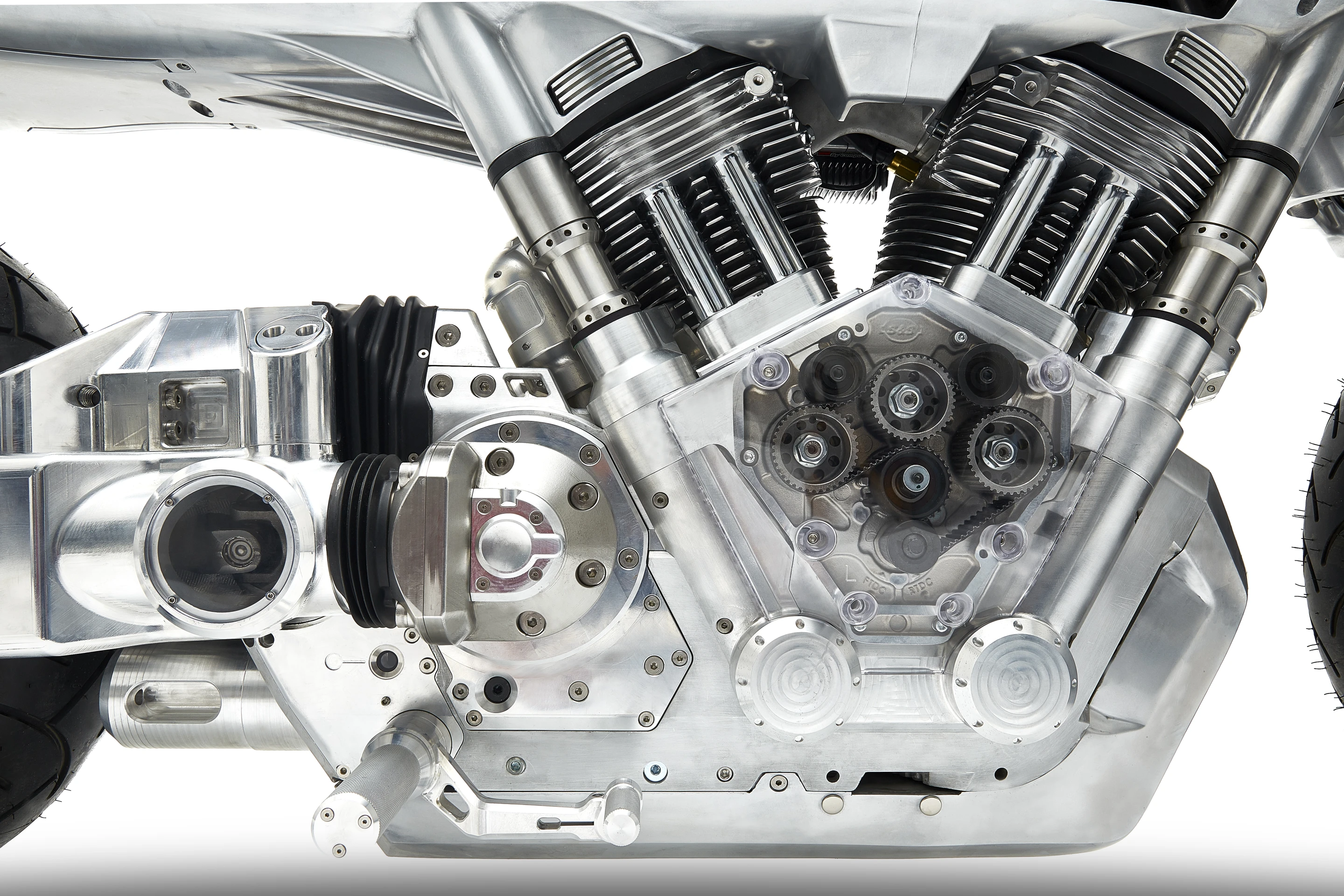

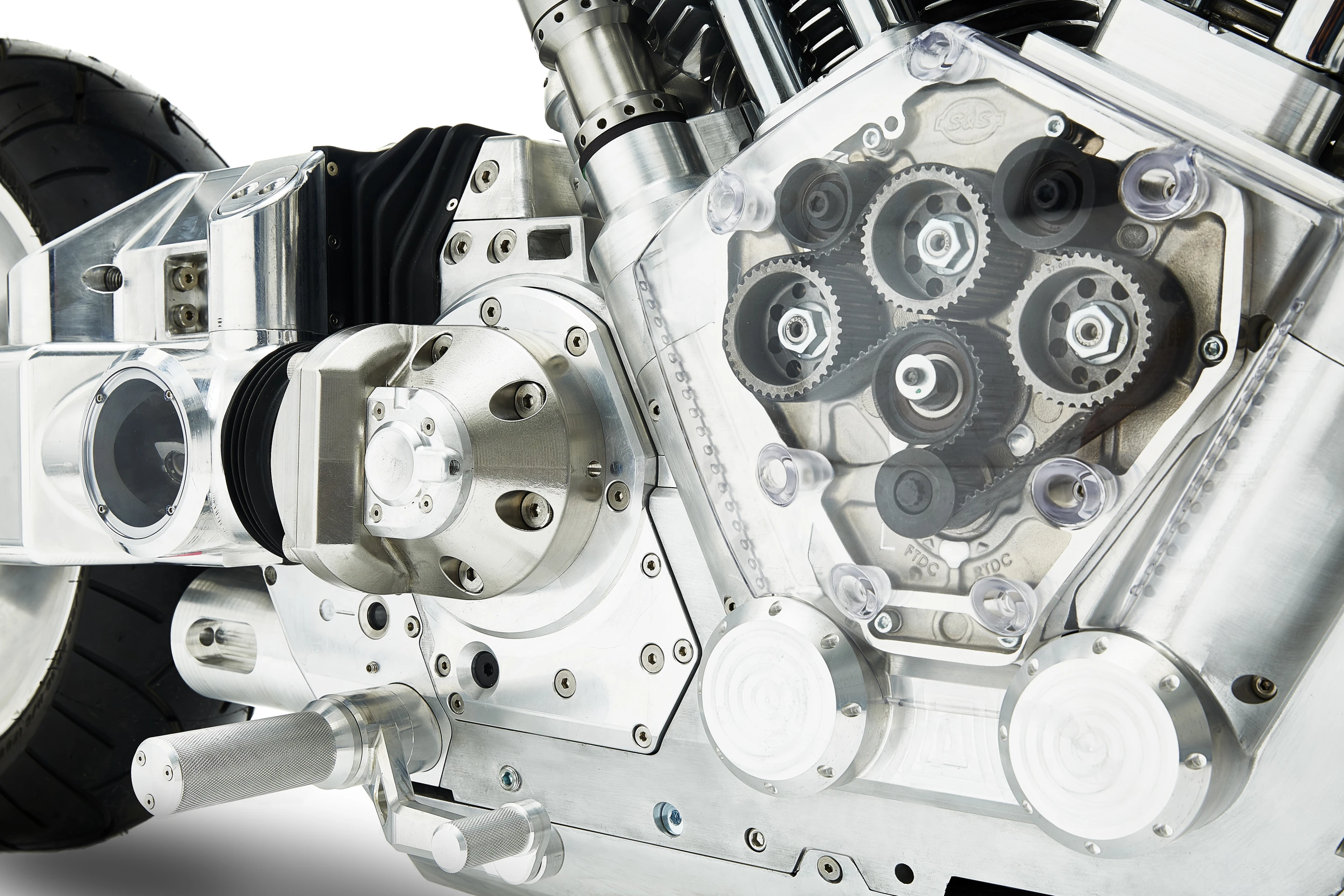

And like many bikes that use that giant, gorgeous S&S X-Wedge motor, the Roadster uses a clear cover over the cam drive belts so you can watch 'em spinning as you idle at the lights.

The overall target weight for the bike is 550 lb (250 kg), which is about 110 lb (50 kg) overweight compared to most naked bikes, but still surprisingly light given that it looks like it's built to survive a head-on with an 18-wheeler. And while no horsepower figures are provided, that giant 117 ci v-twin will smash out more than enough torque to make this a true tarmac-ripper.

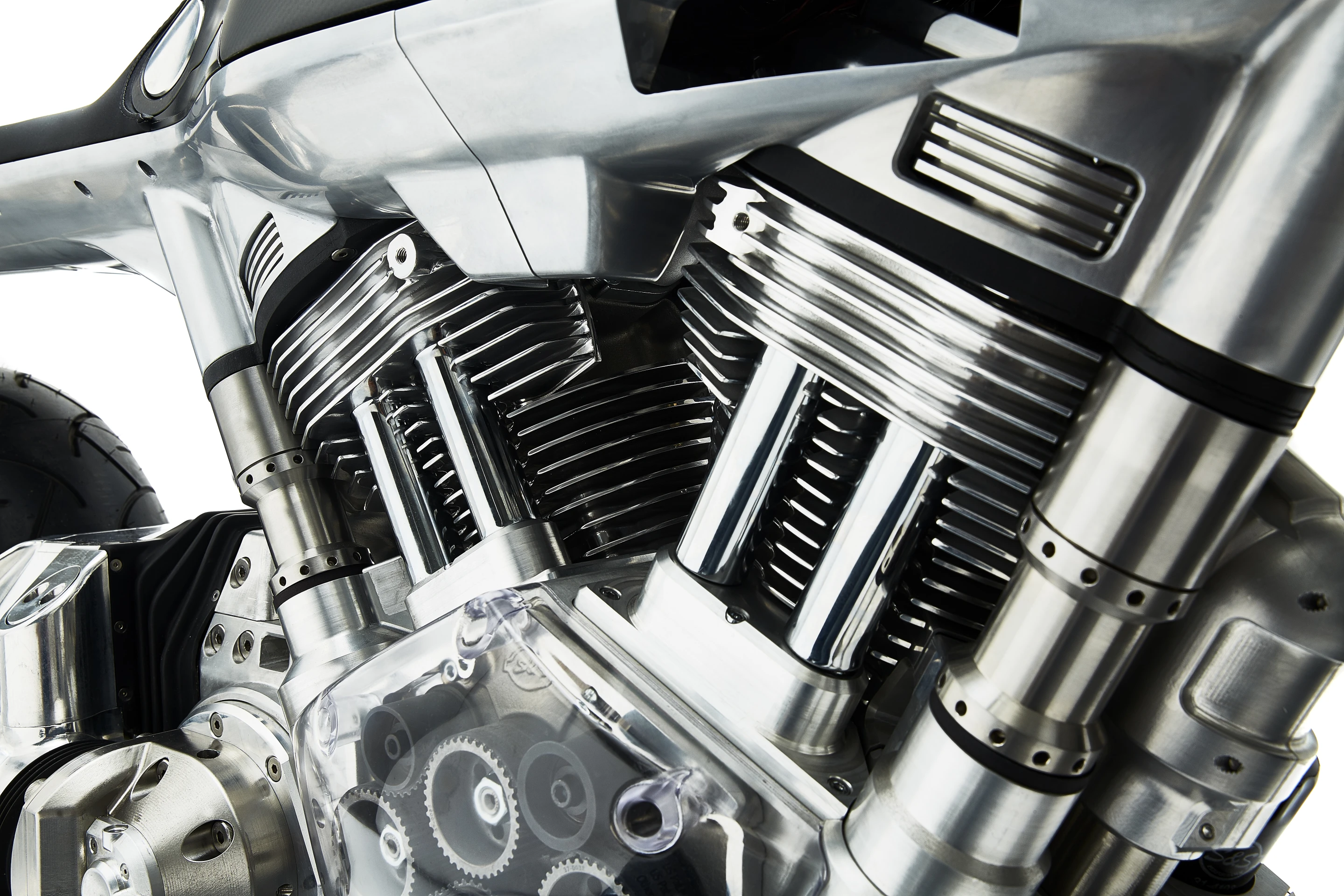

1917cc S&S X-Wedge motor will provide 110 pound-feet of torque
1917cc S&S X-Wedge motor will provide 110 pound-feet of torque

At US$29,995, with production slated for 2018, the Vanguard Roadster is at the premium end of the market, certainly – but another way to look at it might be that it offers Confederate-level presence at a much cheaper price point. It's less than half the price of a Keanu motorbike, too.

The company says this first motorcycle will soon be joined by two more models built on the same platform – a cruiser and a sportsbike. It'll be very interesting to see how this chunky metal machine translates to the sportsbike, in particular.

We look forward to seeing a lot more of Vanguard in the coming years, with the Roadster set to enter production in 2018. You can catch the working prototype in the flesh next weekend, December 9-11 at the Javits Center in Manhattan.

Source: Vanguard Motorcycles
