BigDog grabs, lifts, and throws cinder blocks with its new arm

BigDog grabs, lifts, and throw...

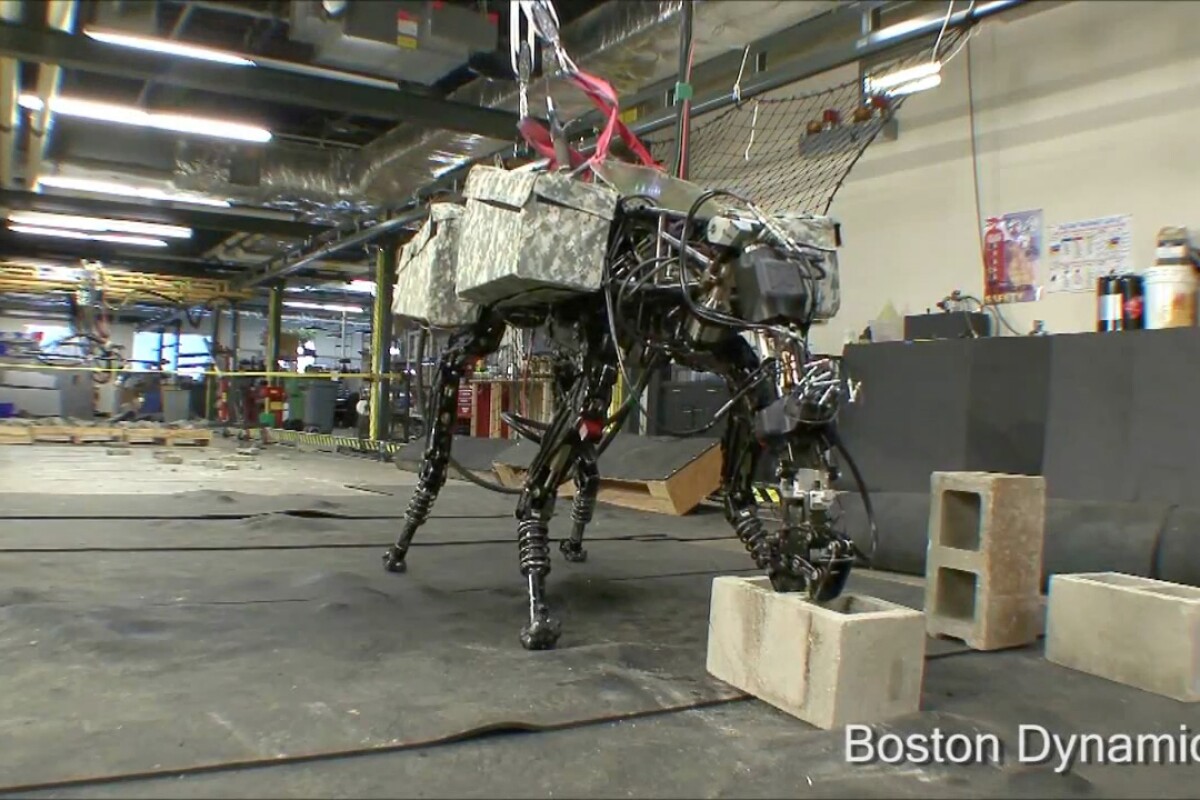

Boston Dynamics' quadruped robot BigDog grabs a cinder block from the floor using its new arm attachment
Boston Dynamics' quadruped robot BigDog grabs a cinder block from the floor using its new arm attachment
View 5 Images

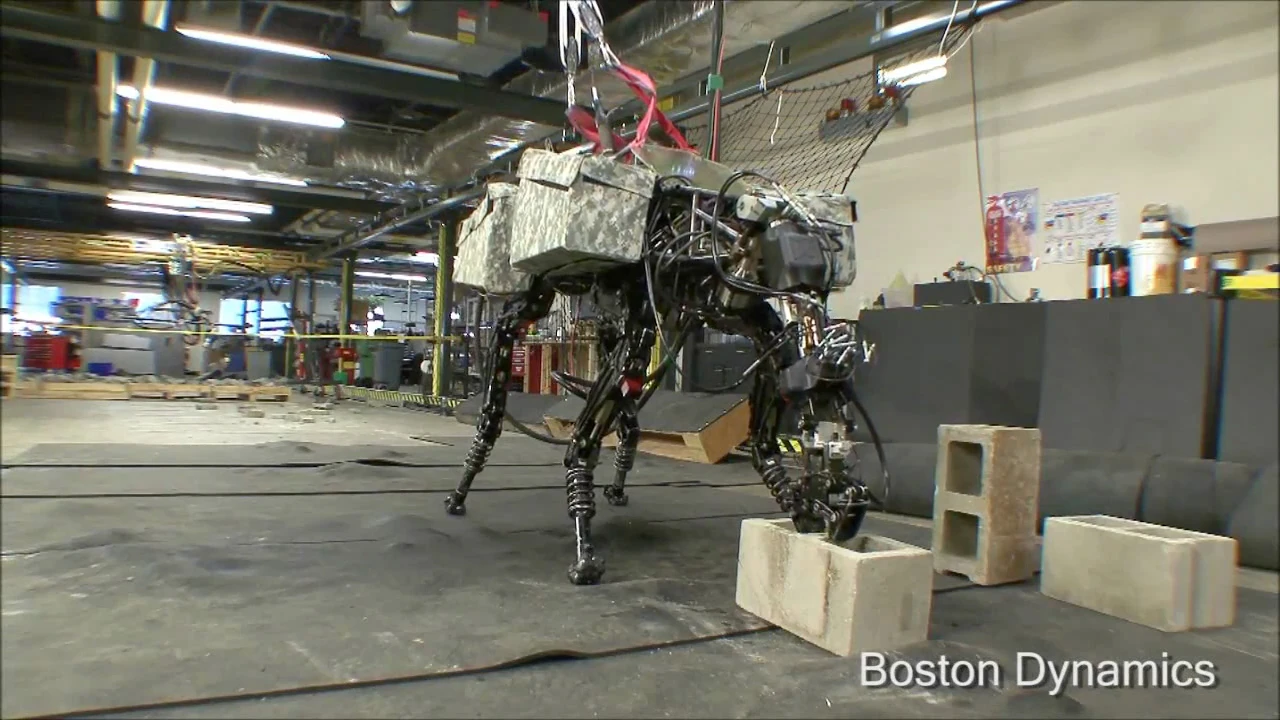

Boston Dynamics' quadruped robot BigDog grabs a cinder block from the floor using its new arm attachment
1/5
Boston Dynamics' quadruped robot BigDog grabs a cinder block from the floor using its new arm attachment

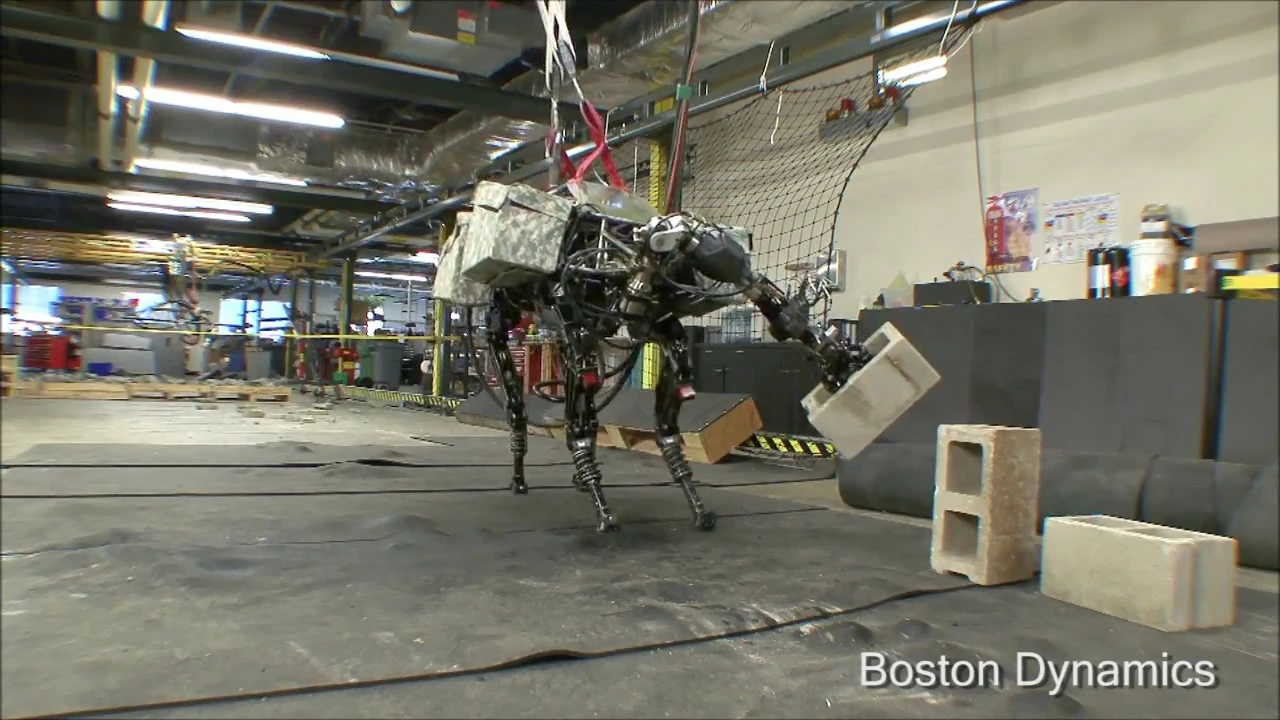

BigDog winds up to throw the cinder block
2/5
BigDog winds up to throw the cinder block

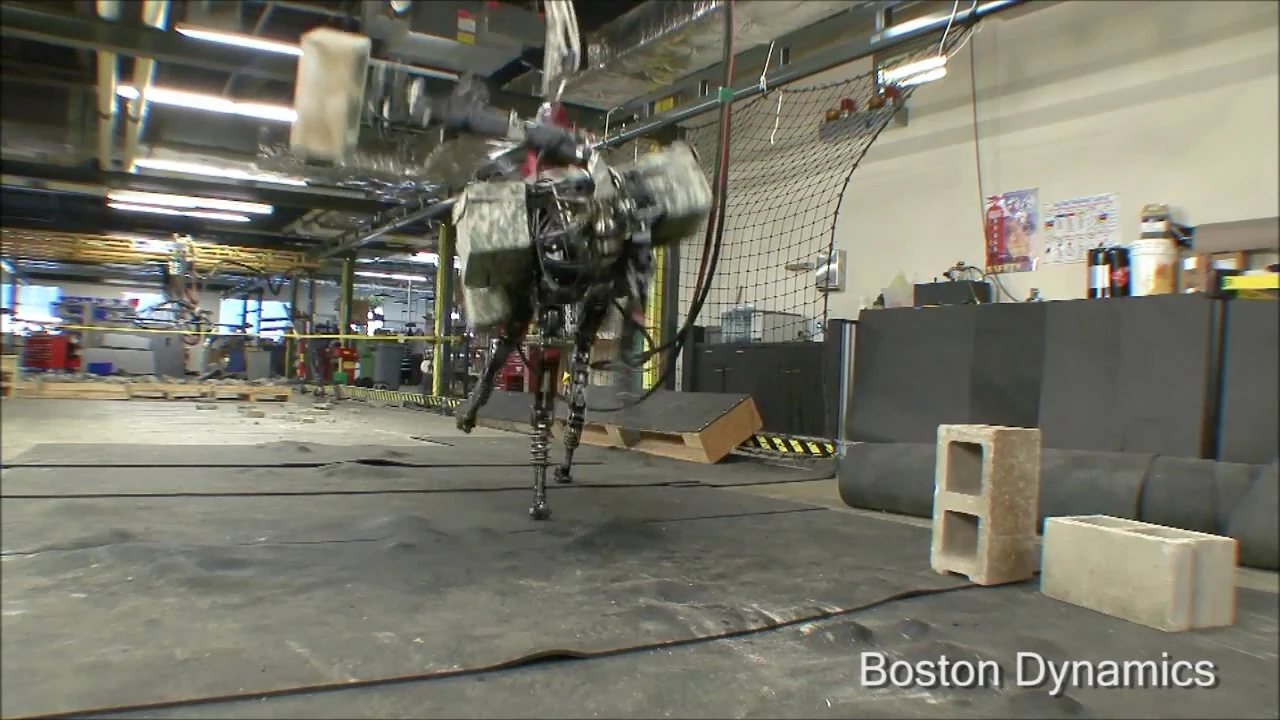

Using the forces of its entire body, BigDog throws the cinder block over its shoulder - the block lands several feet away
3/5
Using the forces of its entire body, BigDog throws the cinder block over its shoulder - the block lands several feet away

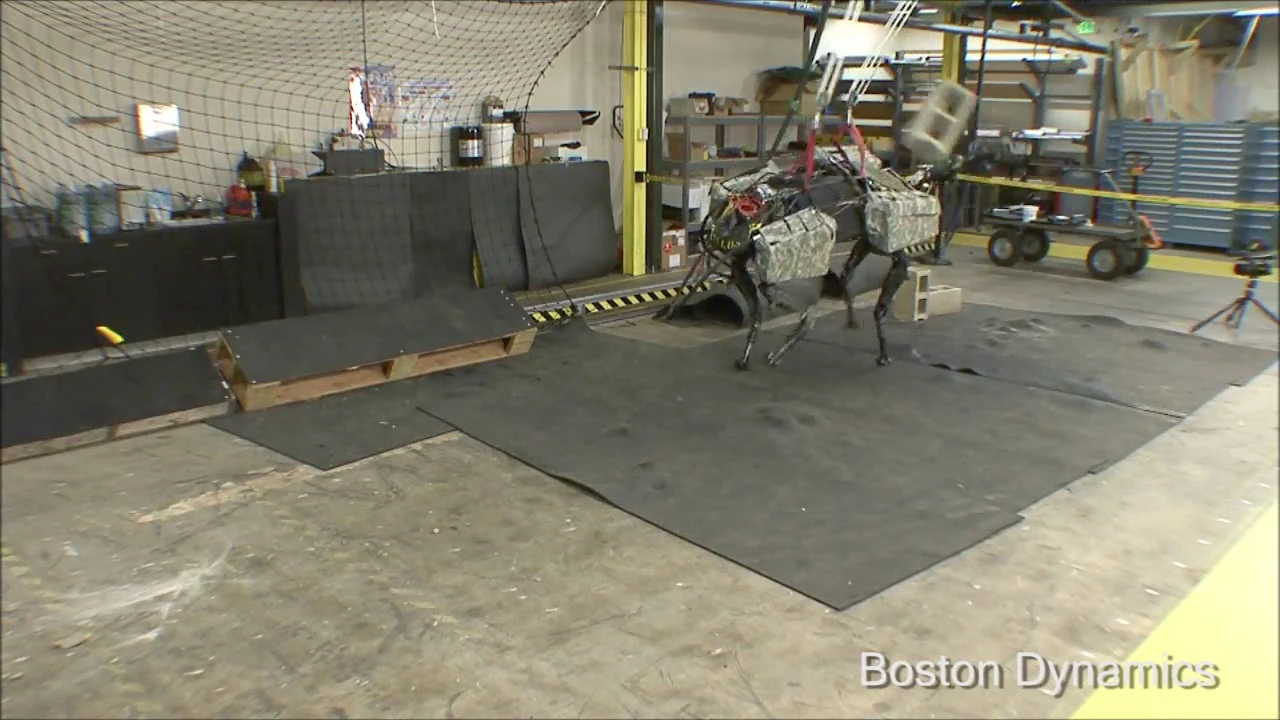

A different view of the throw
4/5
A different view of the throw

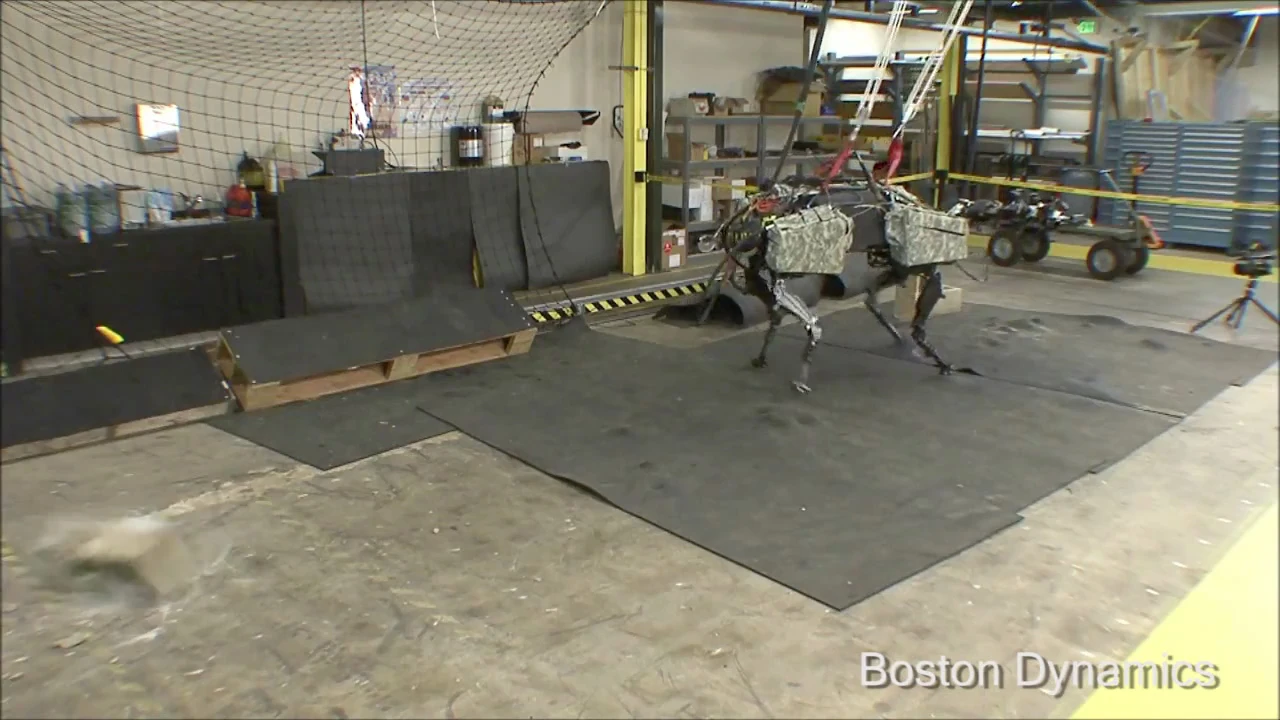

The cinder block lands several feet away from the robot's position
5/5
The cinder block lands several feet away from the robot's position

Boston Dynamics' BigDog may have already been replaced by the beefier LS3, but that doesn't mean it's totally obsolete. Today the company unveiled a version of the quadruped equipped with an arm where a head (or tail) would go. As can be seen in the following video, it's powerful enough to lift and toss a heavy cinder block.

Key to this work, funded by the U.S. Army Research Laboratory, is that BigDog uses the dynamic forces of its whole body to help it throw the cinder block. It begins by taking several steps to the side before quickly accelerating as it swings its arm, temporarily launching itself into the air in the process. This approach is similar to the way an athlete winds up before throwing a discus, for example, and greatly enhances the robot's throwing power. Since few robots are as capable as BigDog when it comes to balance, it's an excellent platform to test these sorts of strenuous actions.

It's somewhat puzzling that BigDog's new configuration doesn't include two arms, which is a form factor that has been explored by researchers in the past. Back in the early 1990s, the Japanese government unveiled a nuclear plant inspection robot with a humanoid upper-body that walked on four legs. The idea was to combine the stability of a four-legged robot with the manipulation capabilities of a human. More recently, a team at the Italian Institute of Technology has shown plans that would add a pair of arms to their quadruped HyQ, presumably for the same reasons.

Dynamic Robot Manipulation

Perhaps with an arm or two BigDog – which has cost tens of millions to develop so far – could still help soldiers do some heavy lifting while its descendant is transporting gear out in the field. If a new version of BigDog had two arms to work with, it could presumably lift even heavier objects.

Source: Boston Dynamics via YouTube
