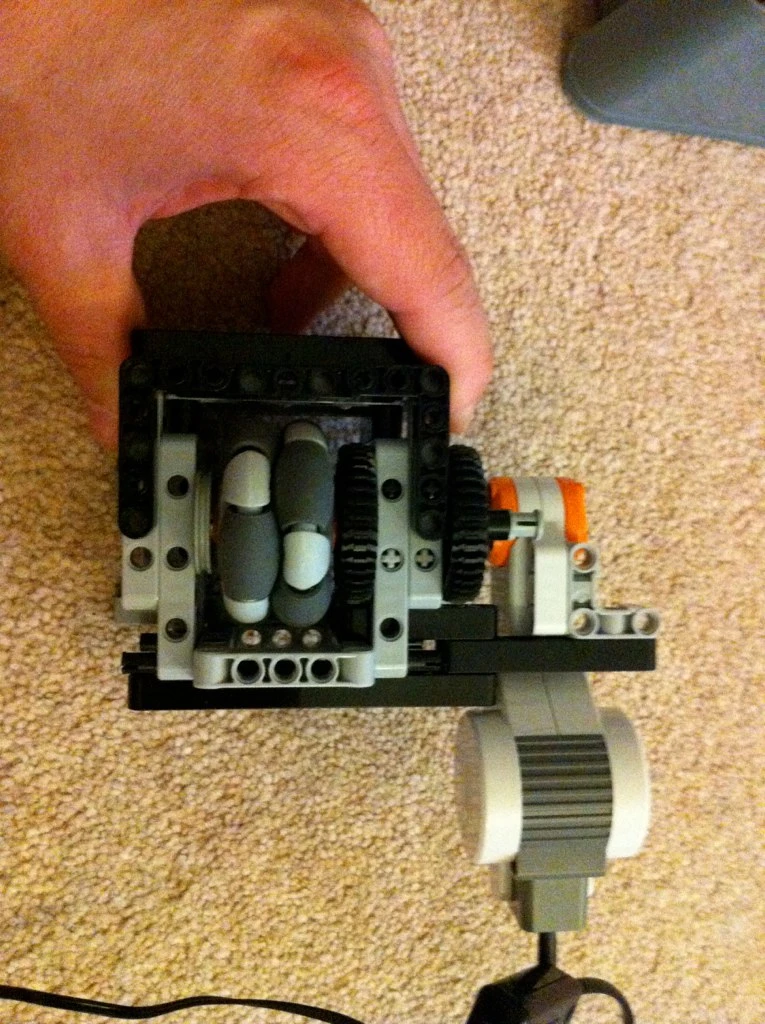

A drive unit for the LEGO Wheelchair
1/13
A drive unit for the LEGO Wheelchair

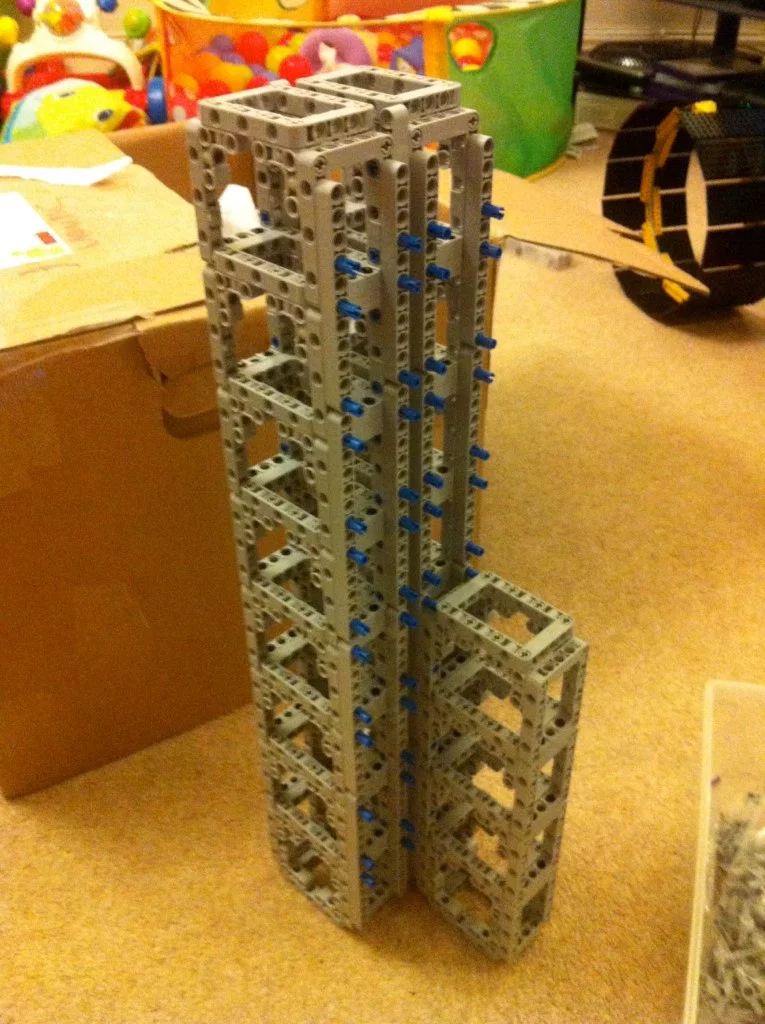

The main body is made up from lots of LEGO Technic components
2/13
The main body is made up from lots of LEGO Technic components

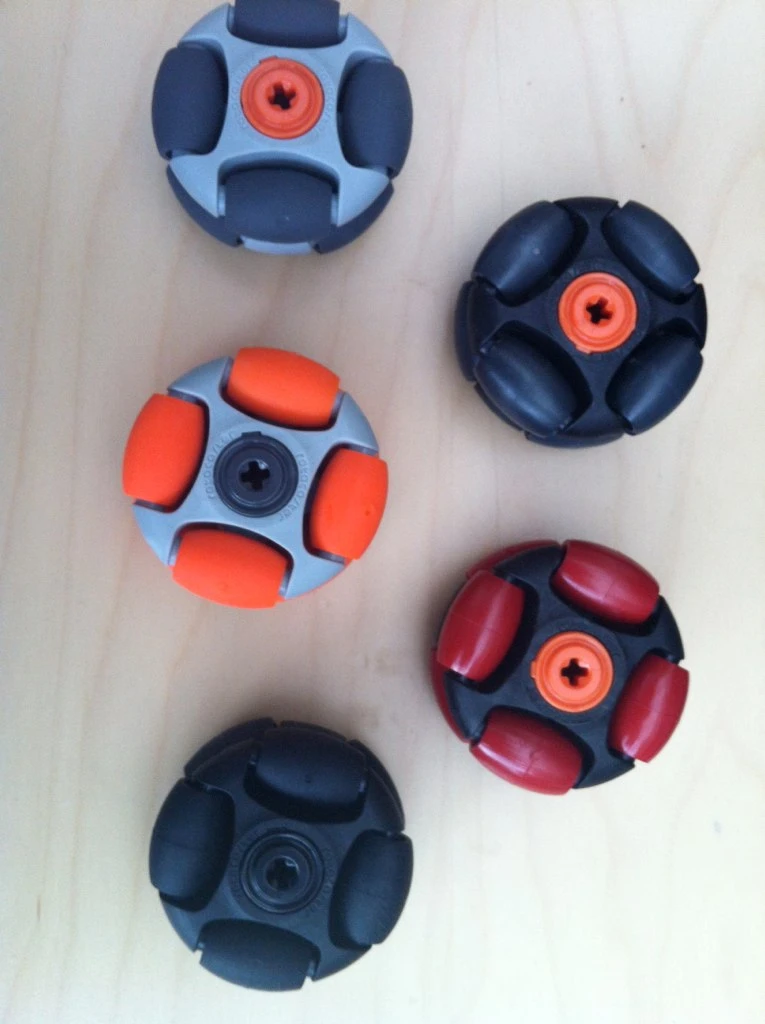

The Rotacaster wheels will cater for sideways movements in a future version
3/13
The Rotacaster wheels will cater for sideways movements in a future version

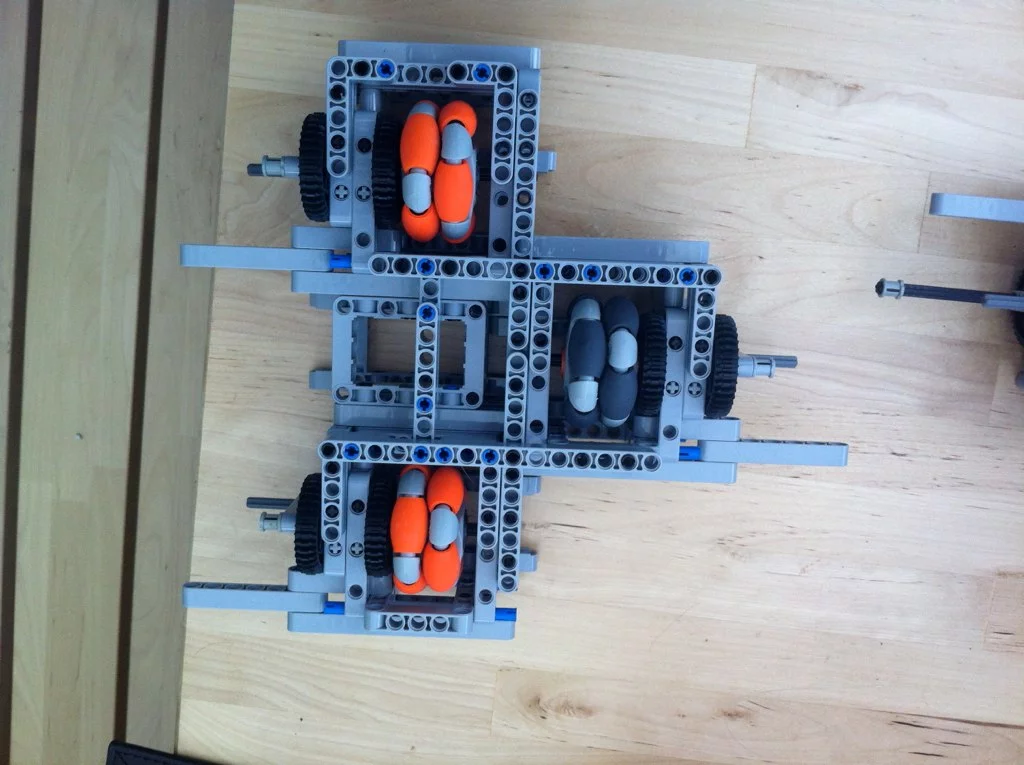

The wheel housing starts to take shape
4/13
The wheel housing starts to take shape
Simon Burfield making sure that the main body can withstand his weight
5/13
Simon Burfield making sure that the main body can withstand his weight

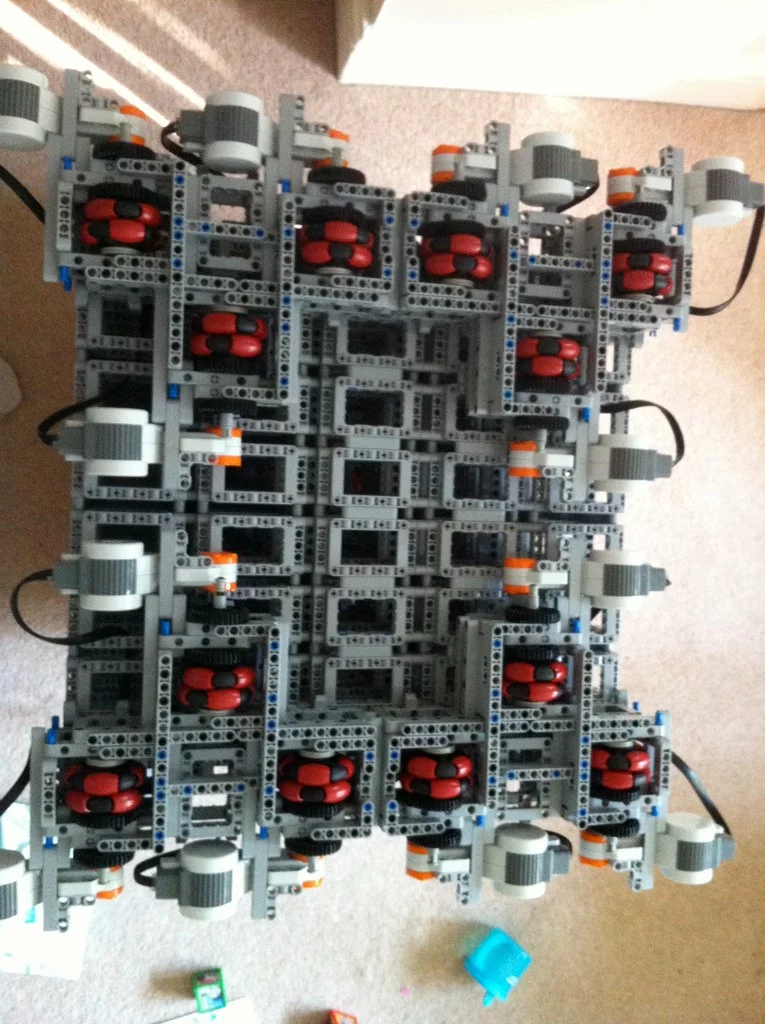

The 12 Rotacaster multi-directional wheels in place
6/13
The 12 Rotacaster multi-directional wheels in place

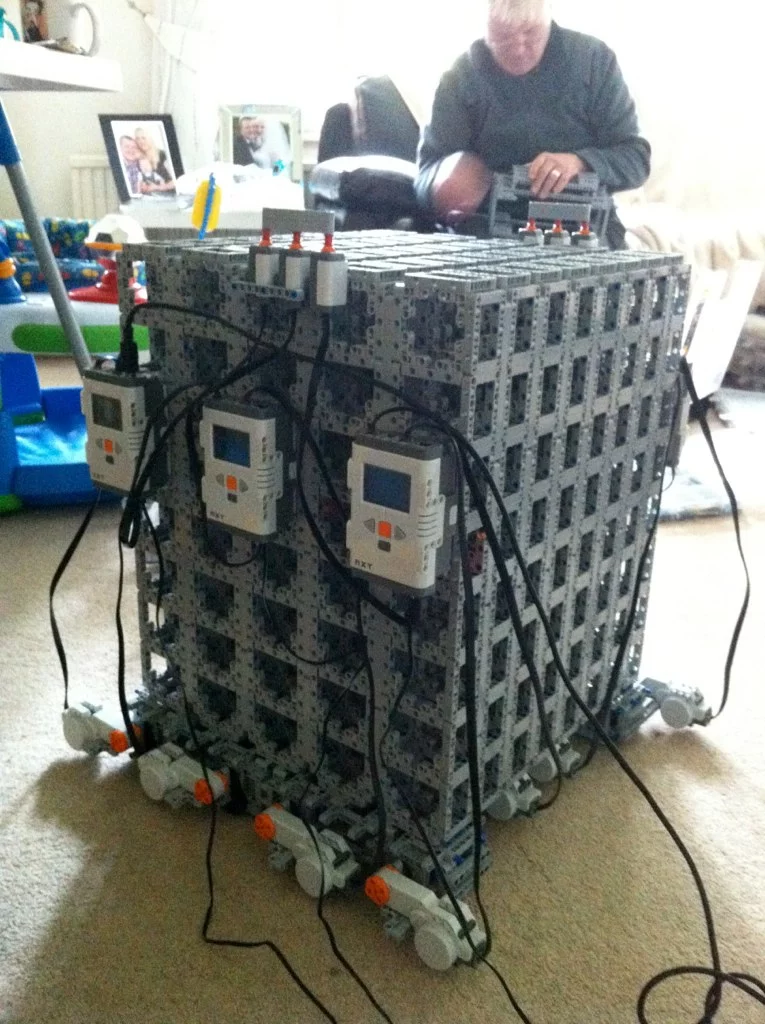

The LEGO Wheelchair has six LEGO Mindstorms NXT for movement, each connected to two NXT motors and two touch sensors
7/13
The LEGO Wheelchair has six LEGO Mindstorms NXT for movement, each connected to two NXT motors and two touch sensors

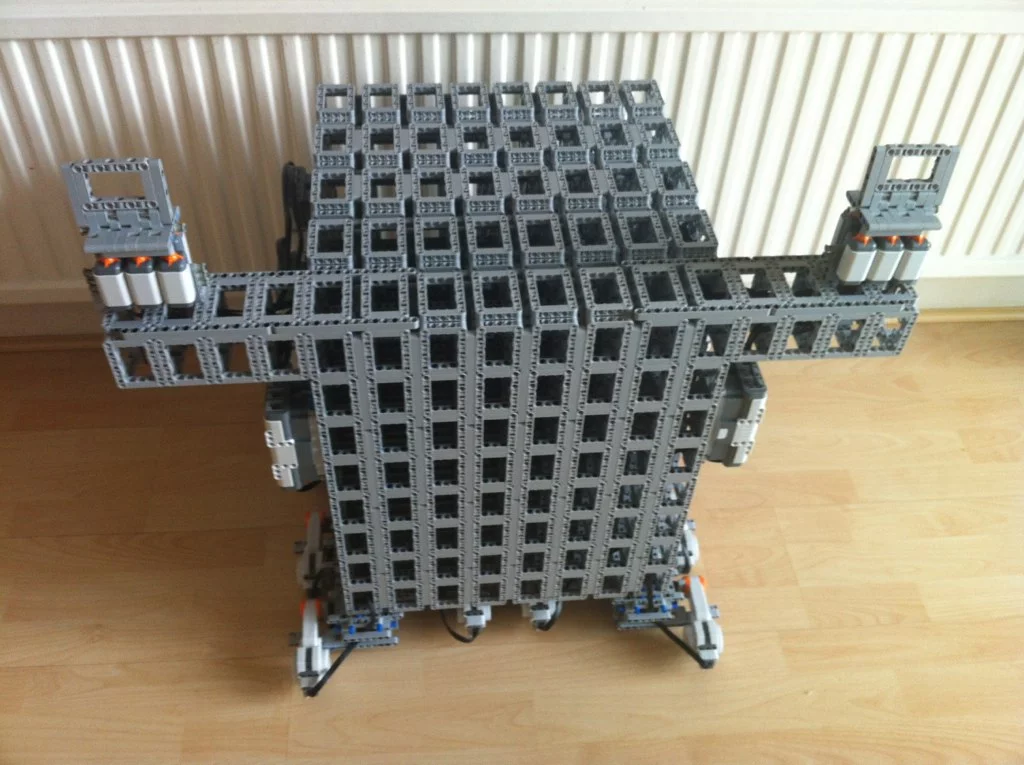

The main body block with robot wheels and Mindstorms NXT units in place
8/13
The main body block with robot wheels and Mindstorms NXT units in place

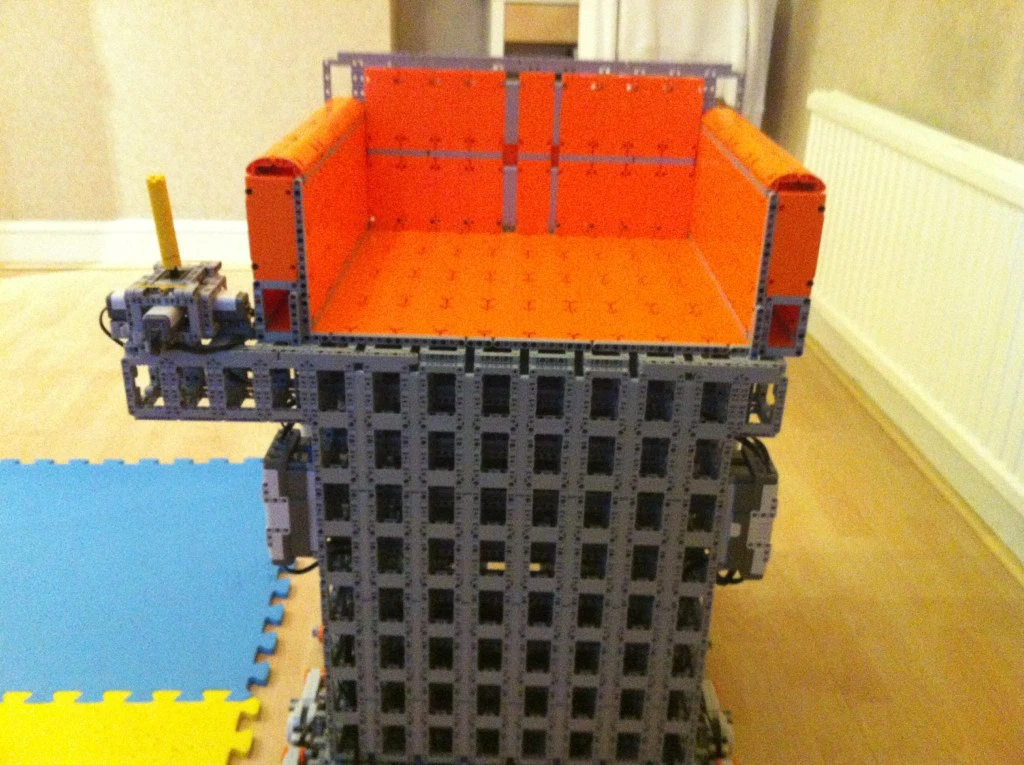

The LEGO Wheelchair version 0.8
9/13
The LEGO Wheelchair version 0.8

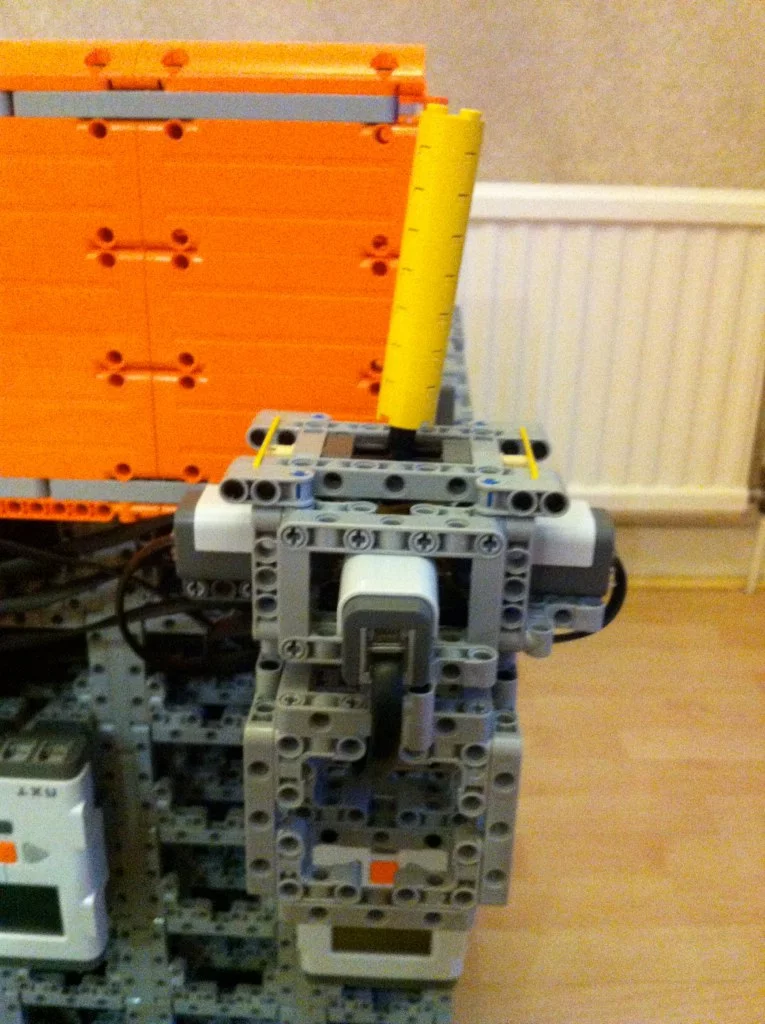

The LEGO joystick is connected to four touch sensors to run forward and backwards, and turn left and right
10/13
The LEGO joystick is connected to four touch sensors to run forward and backwards, and turn left and right

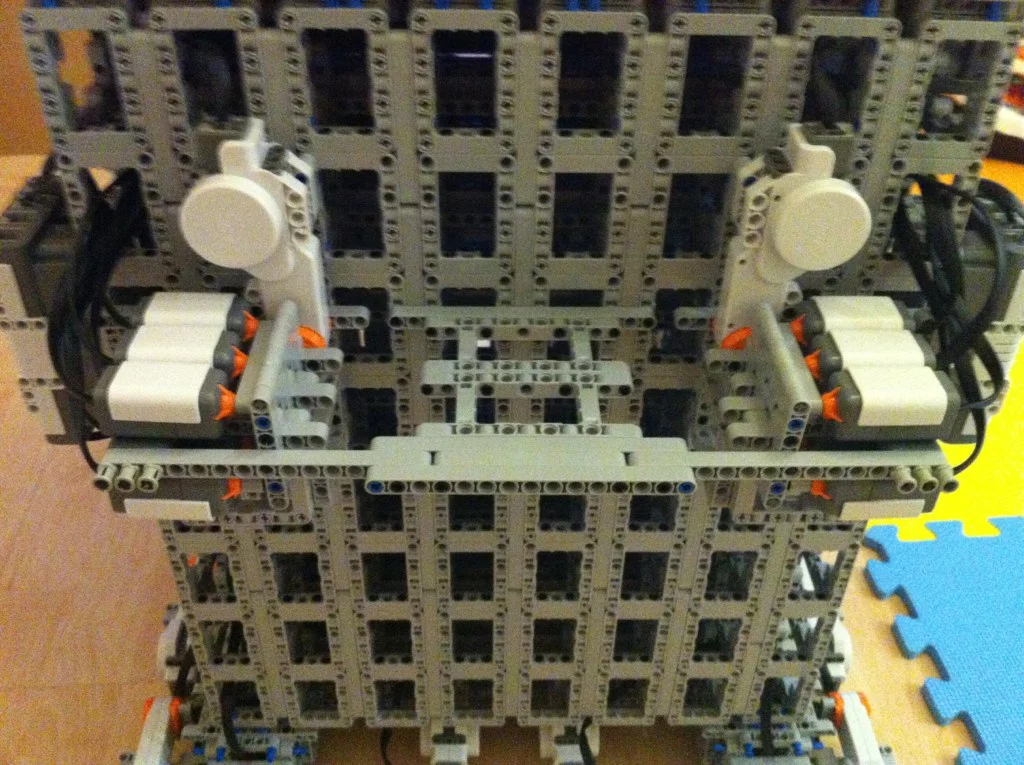

Main directional switching unit controlling 6 NXT's and 12 motors
11/13
Main directional switching unit controlling 6 NXT's and 12 motors

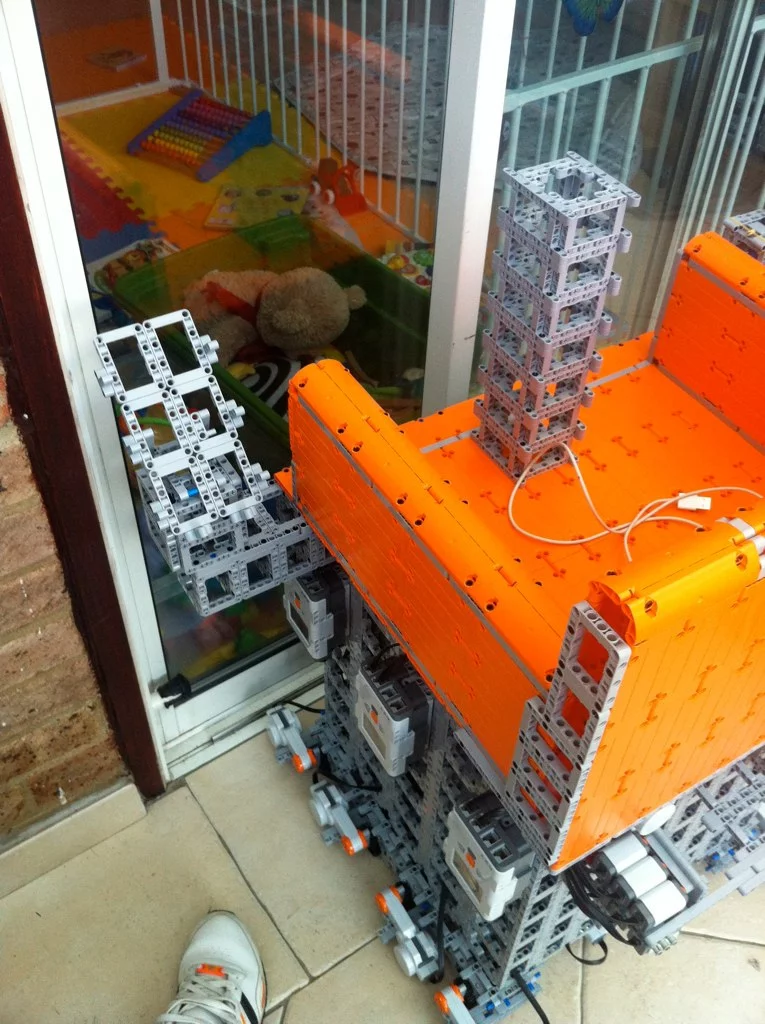

Carrier for Remote Phone control
12/13
Carrier for Remote Phone control

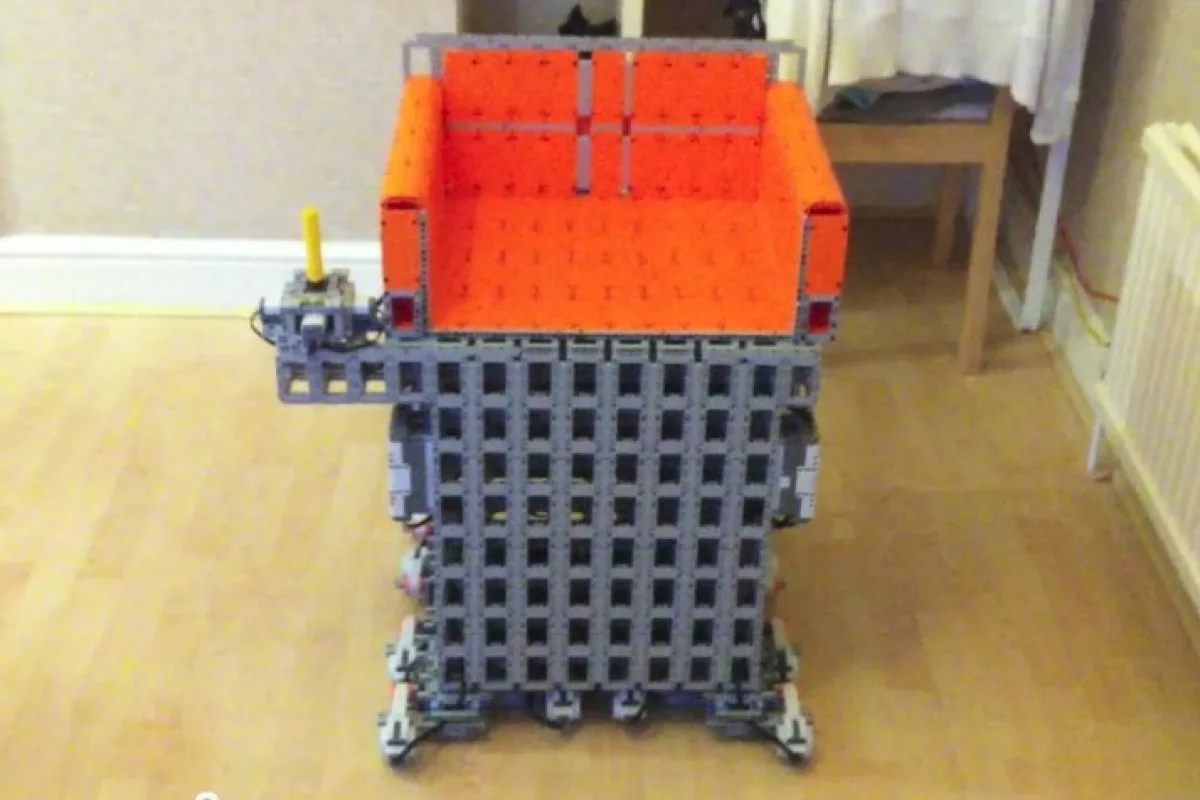

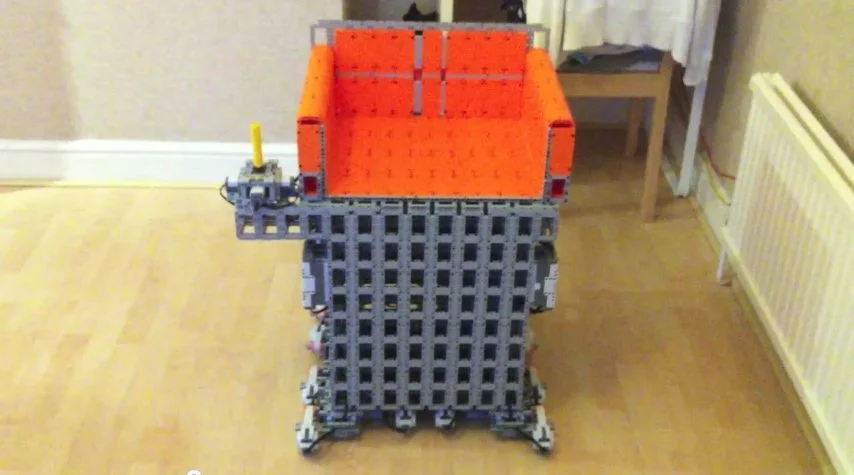

Simon Burfield has created a wheelchair from LEGO Technic and Mindstorms components and some Rotacaster robot wheels
13/13
Simon Burfield has created a wheelchair from LEGO Technic and Mindstorms components and some Rotacaster robot wheels

Back in June we demonstrated the incredible versatility of LEGO and the mind-boggling talent of those who spend hours and hours snapping together tiny bits of plastic to create something awesome. One contender for the next round is the LEGO Wheelchair built by Simon Burfield.

The LEGO Group began producing plastic interlocking bricks in the late 1940s and has since released thousands of themed sets that encourage young minds to create and build. The introduction of the Technic series allowed for more advanced models, and LEGO entered the robotics market in 1998 with the first generation of LEGO Mindstorms, followed in 2006 by the launch of the Mindstorms NXT system (with included robotics toolkit).

Simon Burfield making sure that the main body can withstand his weight
Simon Burfield making sure that the main body can withstand his weight

Dedicated LEGO builder Simon Burfield has pieced together a whole lot of LEGO Technic components, connected up seven NXT micro-computers and installed a dozen robot wheels to make a LEGO Wheelchair capable of carrying an occupant weighing 90 kg (198 pounds). His prototype is programmed in RobotC 3.0 programming language for robotics and is constantly evolving, but the latest version features:

  • six LEGO Mindstorms NXT for movement, each connected to two NXT motors and two touch sensors
  • one more Mindstorms NXT for controlling direction, with four touch sensors and two motors
  • 12 Rotacaster multi-directional wheels, which will allow for sideways movement in a later tweak
  • a joystick that's connected to four touch sensors to run forward and backwards, and turn left and right

Next on the list of things to add is wireless Android remote functionality.
The short video below shows Mrs Burford taking the latest version for a spin.

Source: Burf
