BMW explores hydrogen fuel cell power in new 5 Series GT prototype

By Scott Collie
July 03, 2015
BMW explores hydrogen fuel cell power in new 5 Series GT prototype
BMW's 5 Series GT prototype turns hydrogen gas into electric power
BMW's 5 Series GT prototype turns hydrogen gas into electric power
View 33 Images
BMW showed off a slinky hydrogen concept based on the i8
1/33
BMW showed off a slinky hydrogen concept based on the i8
2/33
3/33

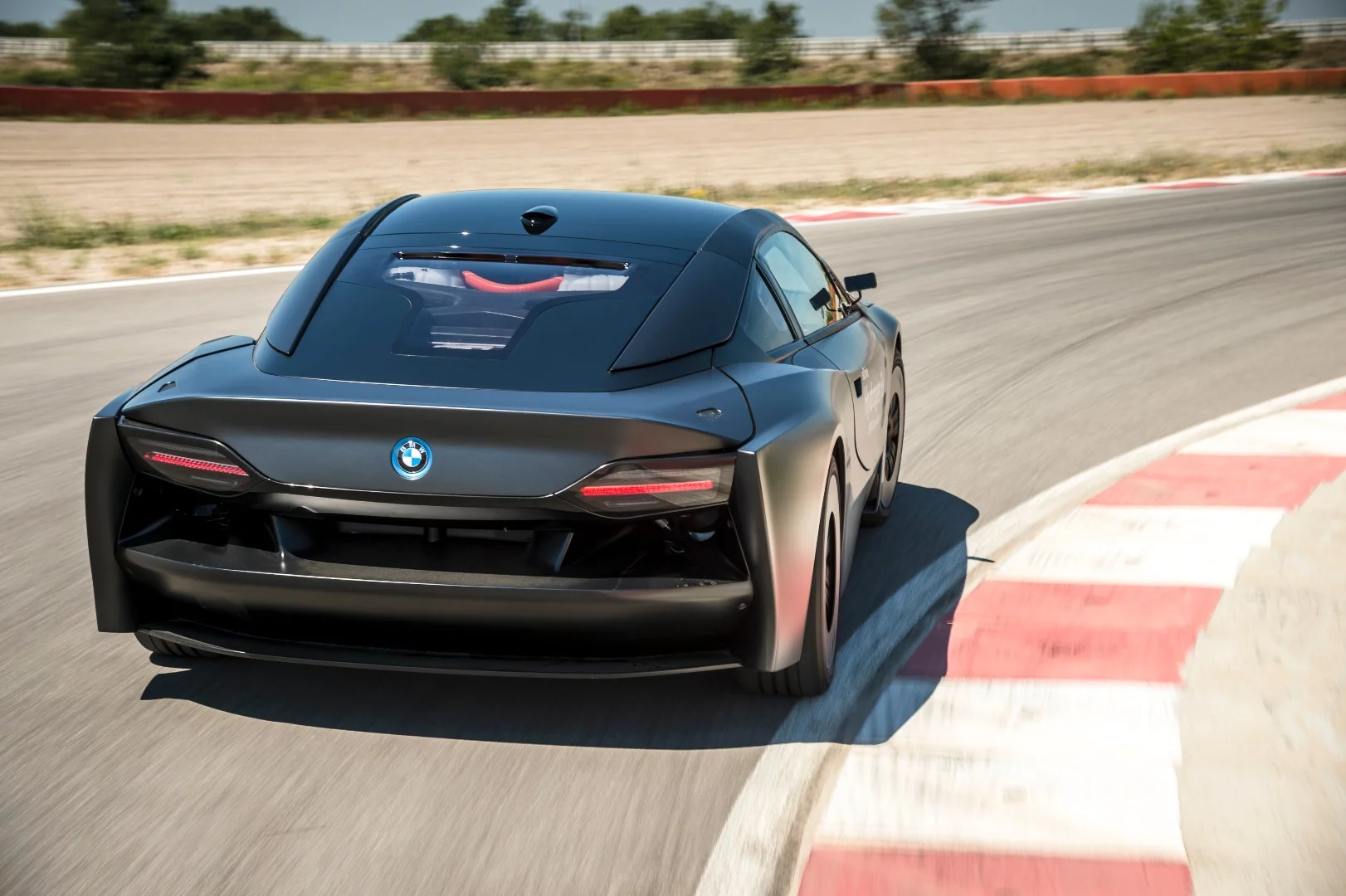

Although details are scarce, BMW's stylists have clearly spent some time making it look slick
4/33
Although details are scarce, BMW's stylists have clearly spent some time making it look slick

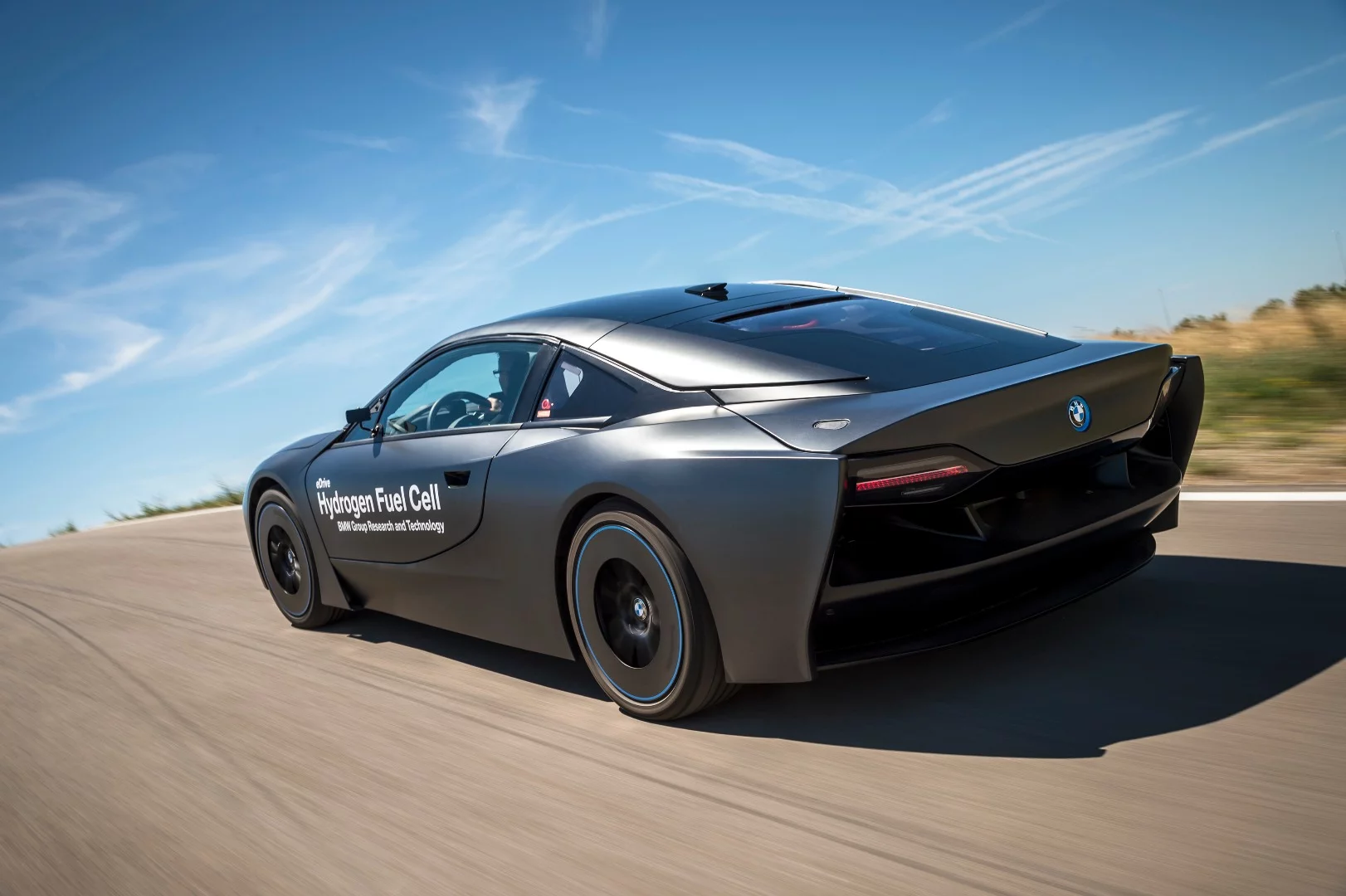

BMW's hydrogen fuel cell prototype in action
5/33
BMW's hydrogen fuel cell prototype in action
6/33
7/33

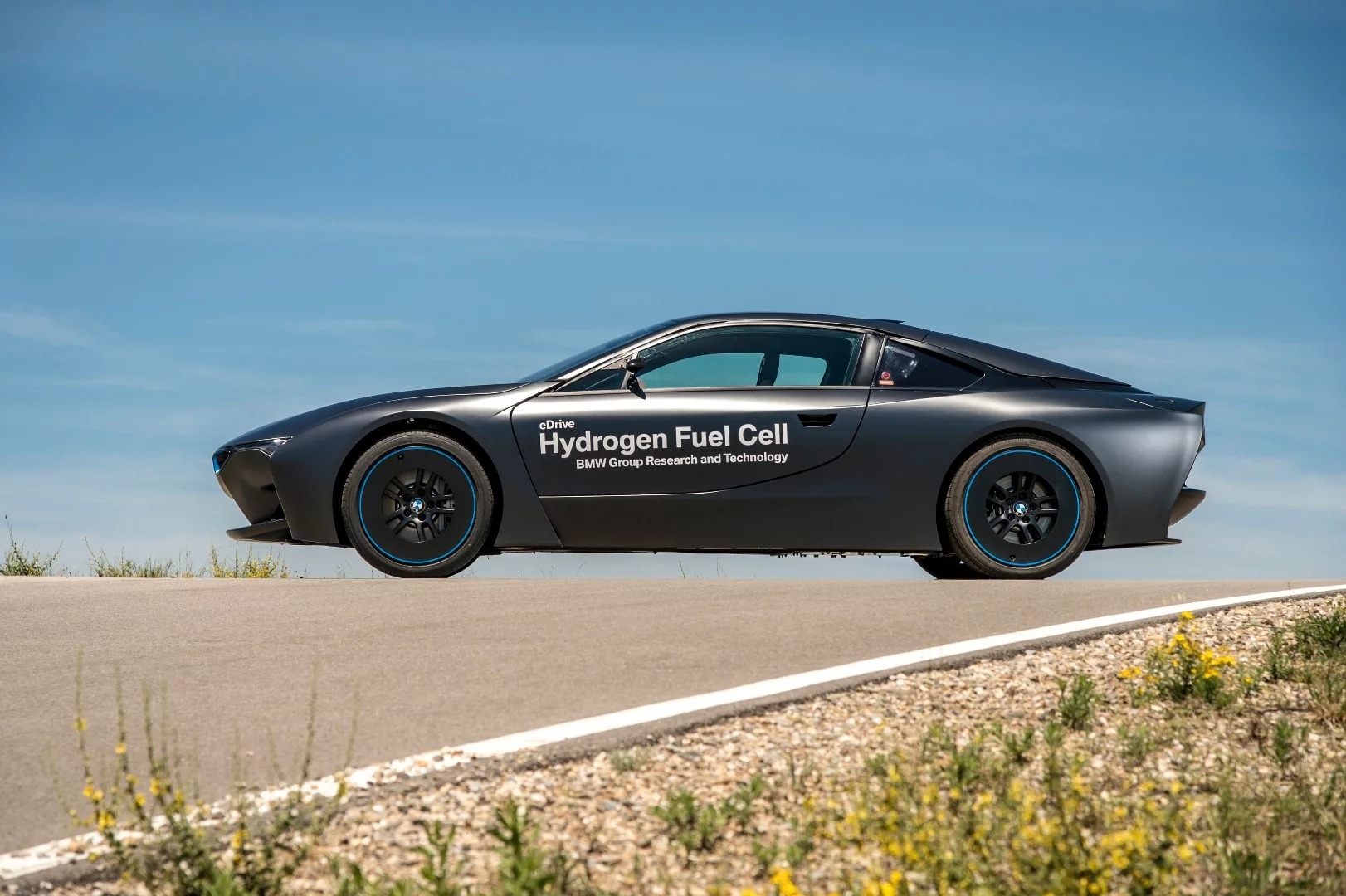

The car is reportedly built on an i8 platform
8/33
The car is reportedly built on an i8 platform

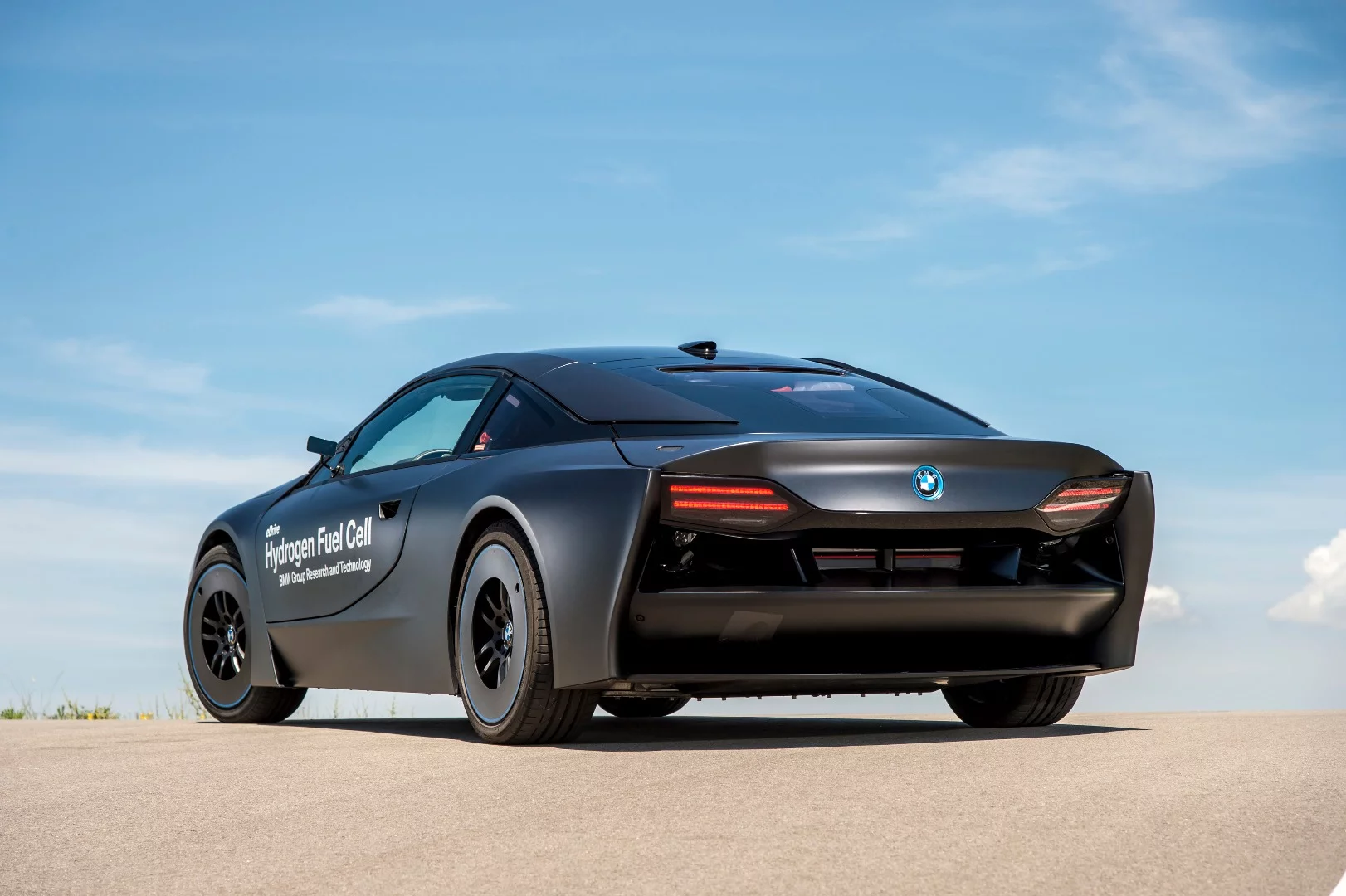

Hydrogen power has never looked so good
9/33
Hydrogen power has never looked so good
BMW's concept takes the shape of a 5 Series Gran Turismo
10/33
BMW's concept takes the shape of a 5 Series Gran Turismo

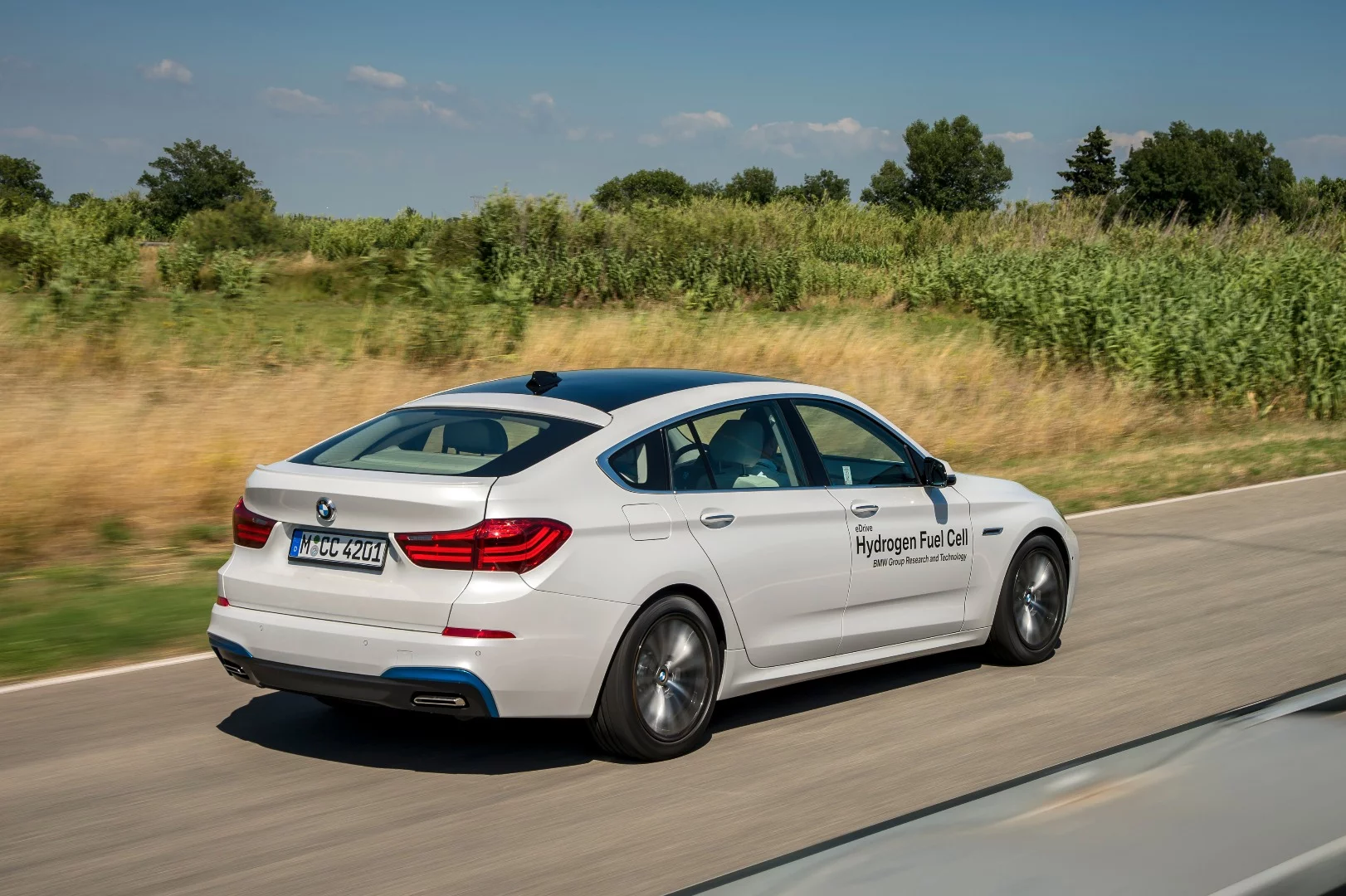

Power comes from an electric motor, fuelled by hydrogen
11/33
Power comes from an electric motor, fuelled by hydrogen

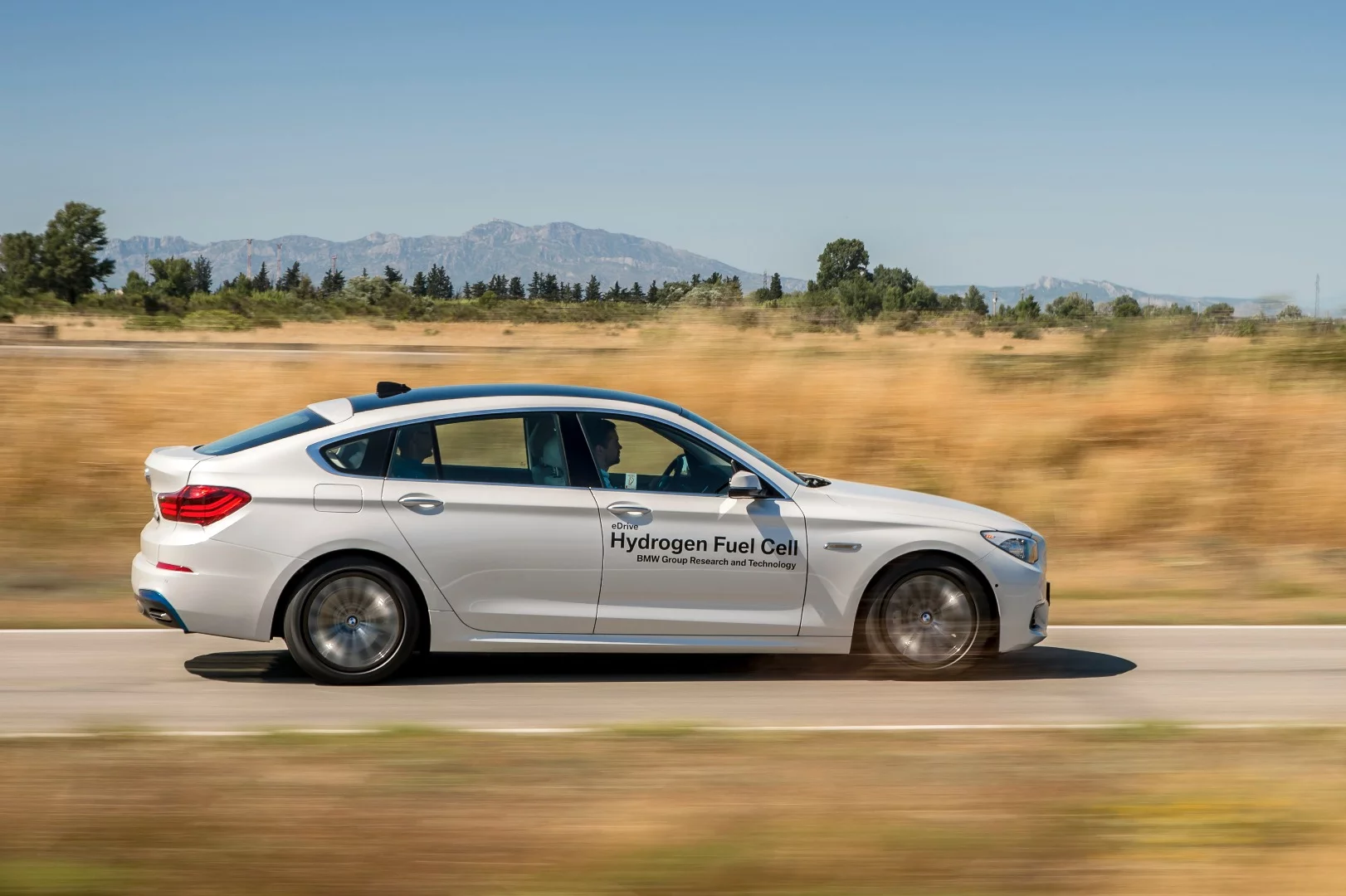

The concept is fuelled by a tank that runs between the front and rear axles
12/33
The concept is fuelled by a tank that runs between the front and rear axles

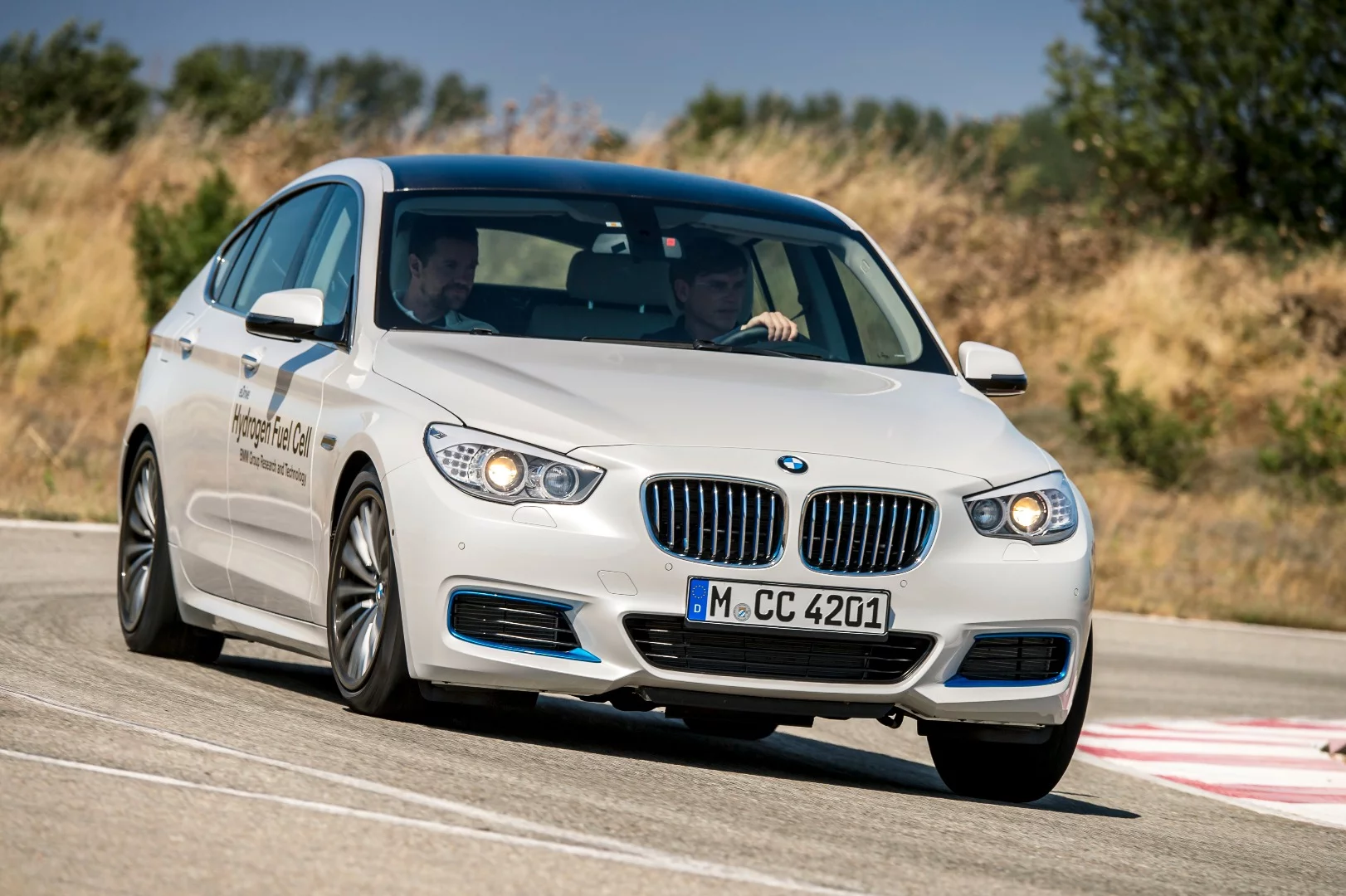

Hydrogen fuel aside, the BMW should drive like any other electric powered car
13/33
Hydrogen fuel aside, the BMW should drive like any other electric powered car

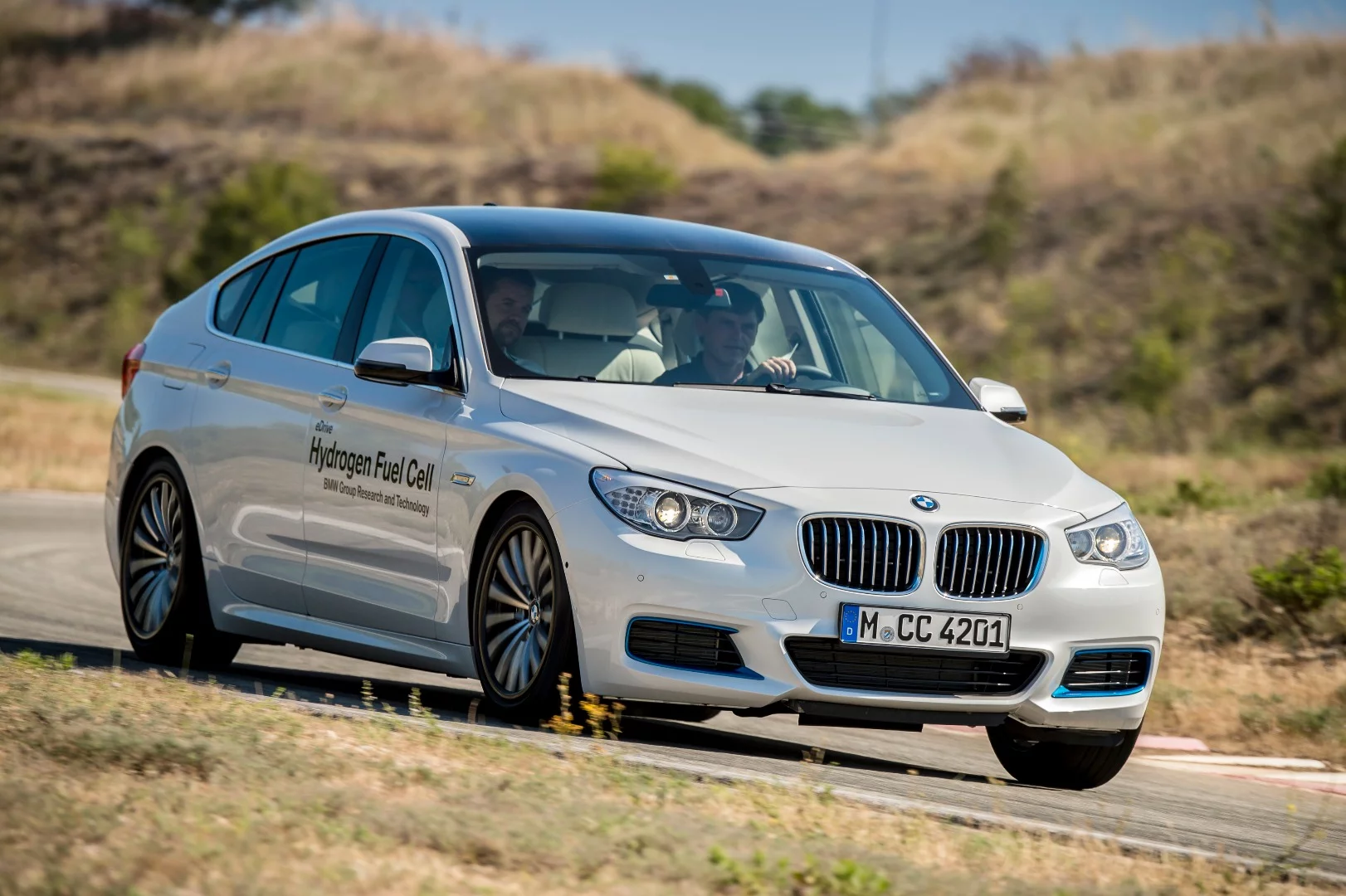

BMW's 5 Series GT prototype turns hydrogen gas into electric power
14/33
BMW's 5 Series GT prototype turns hydrogen gas into electric power

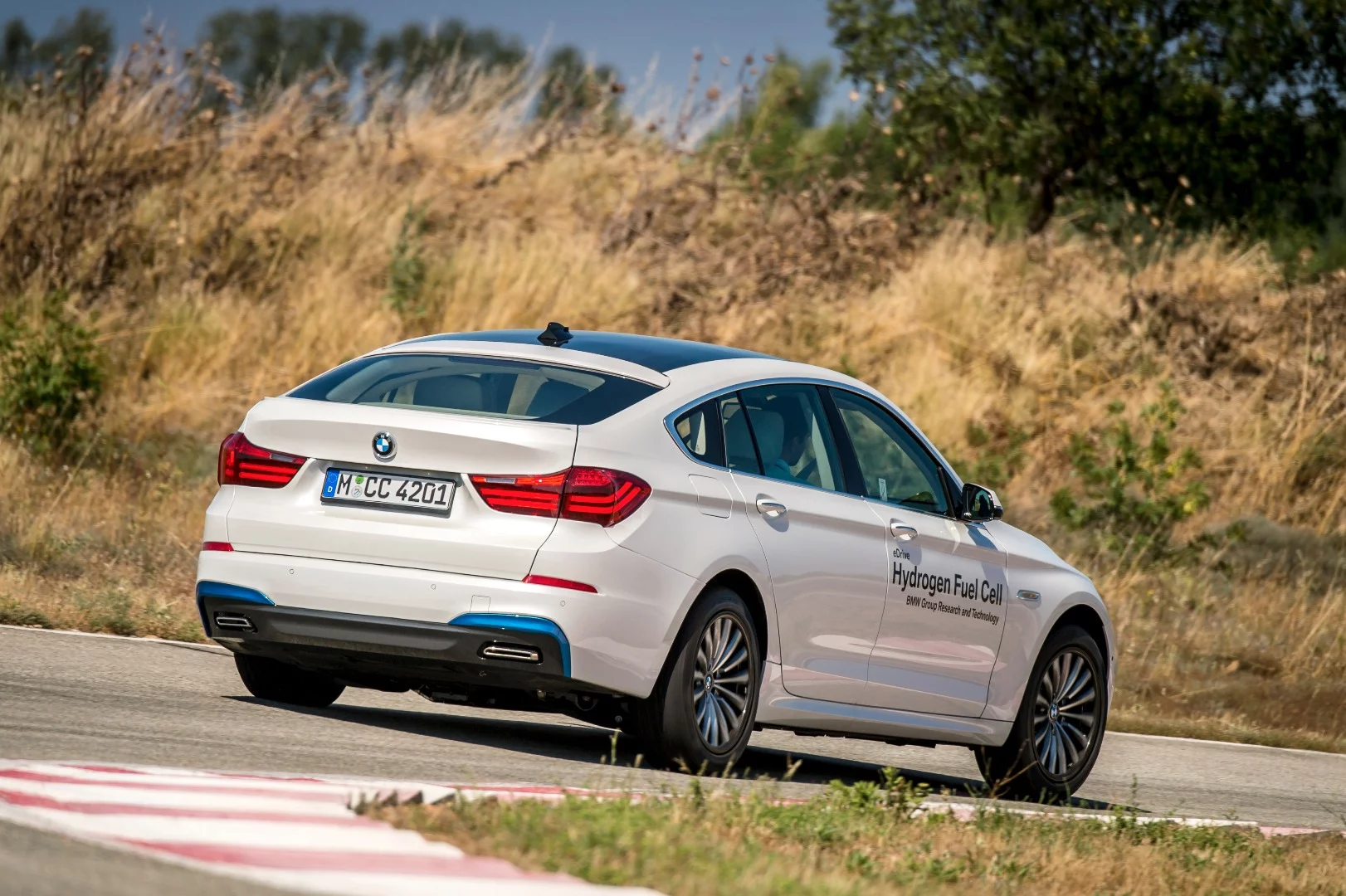

The hydrogen powertrain creates electricity and emits only water vapour
15/33
The hydrogen powertrain creates electricity and emits only water vapour

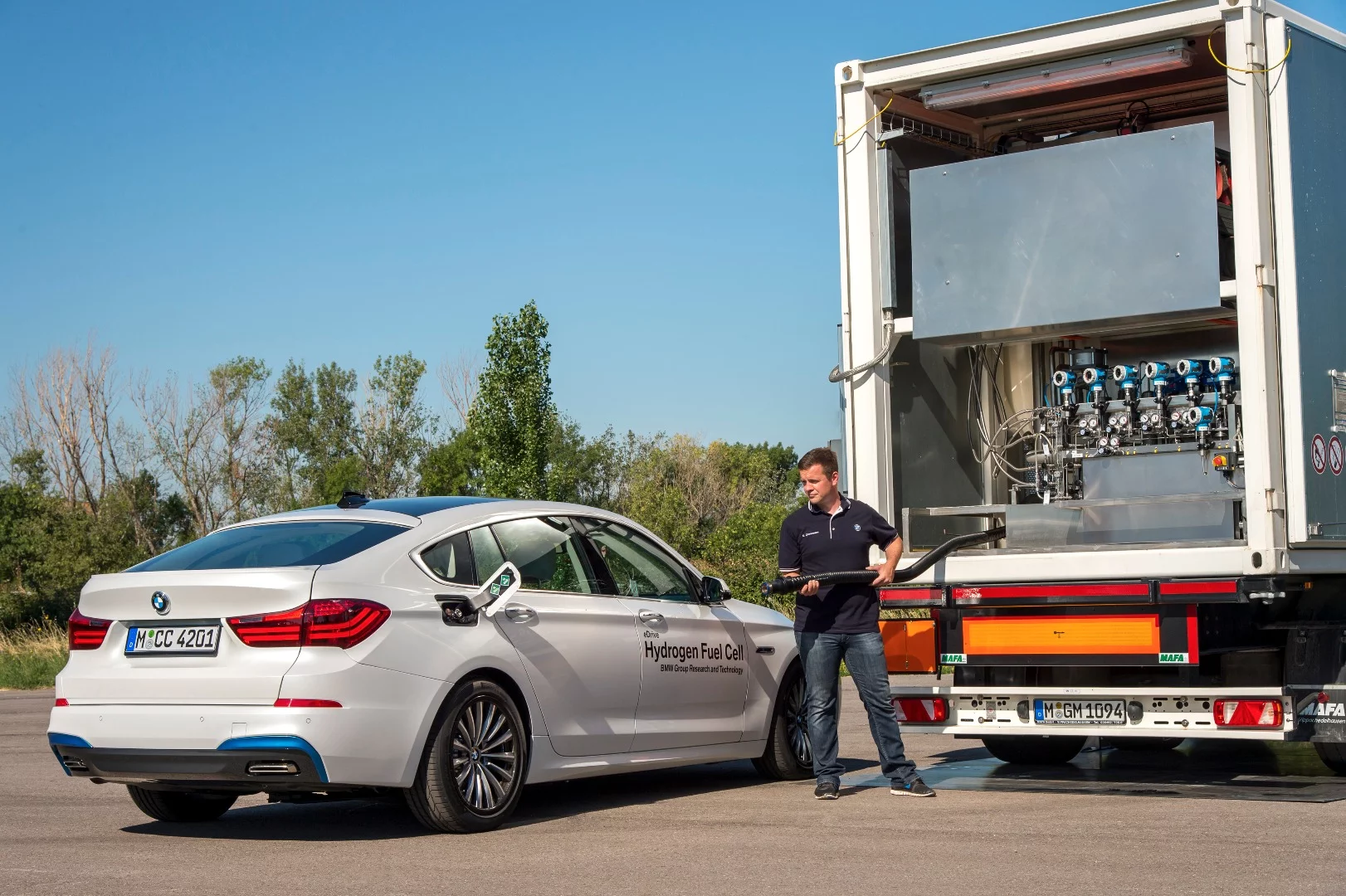

Filling up a hydrogen car isn't much more complex than filling up a petrol or diesel car
16/33
Filling up a hydrogen car isn't much more complex than filling up a petrol or diesel car

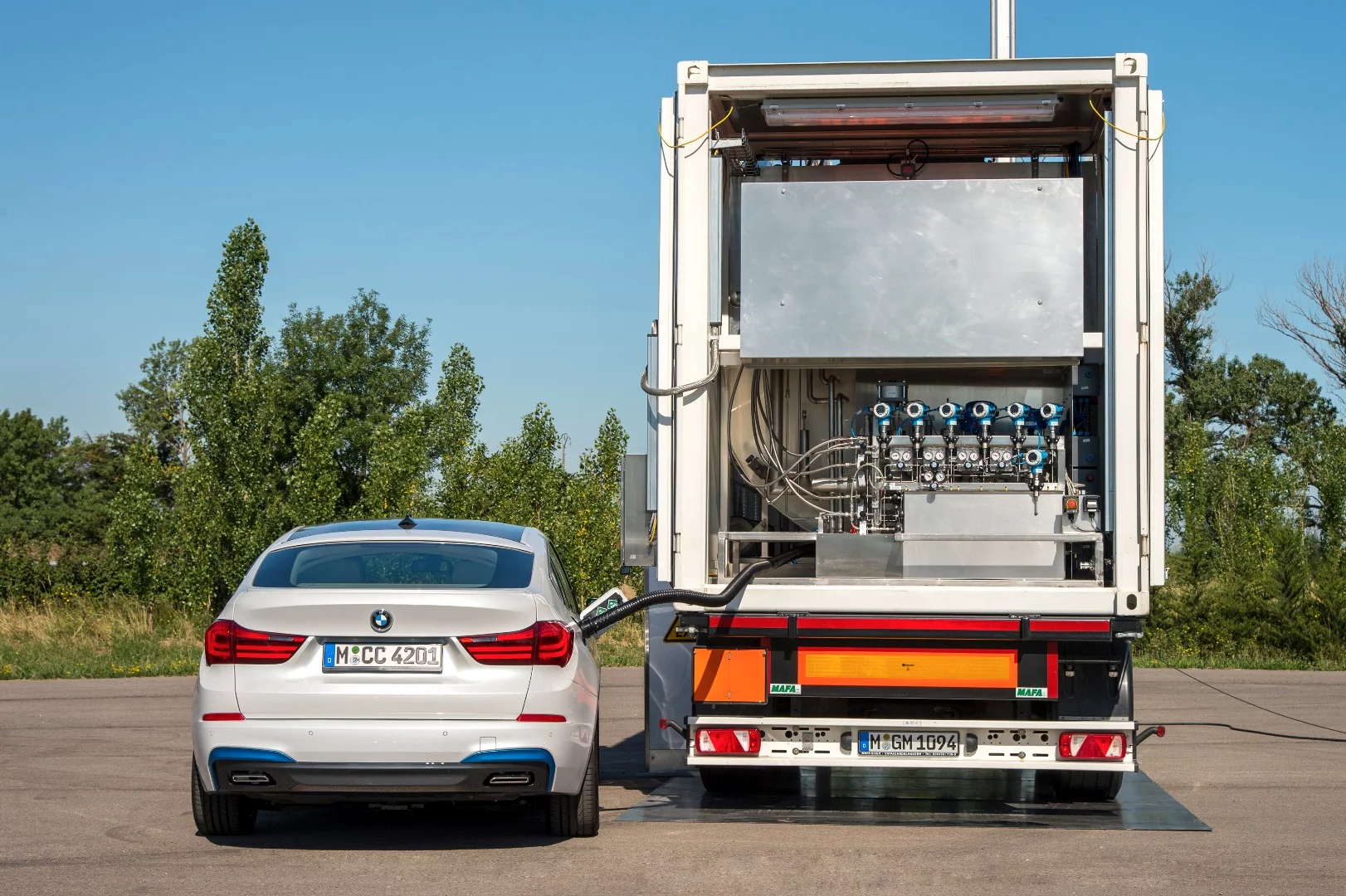

BMW stores the hydrogen gas in a pratented tank at 350 bar
17/33
BMW stores the hydrogen gas in a pratented tank at 350 bar

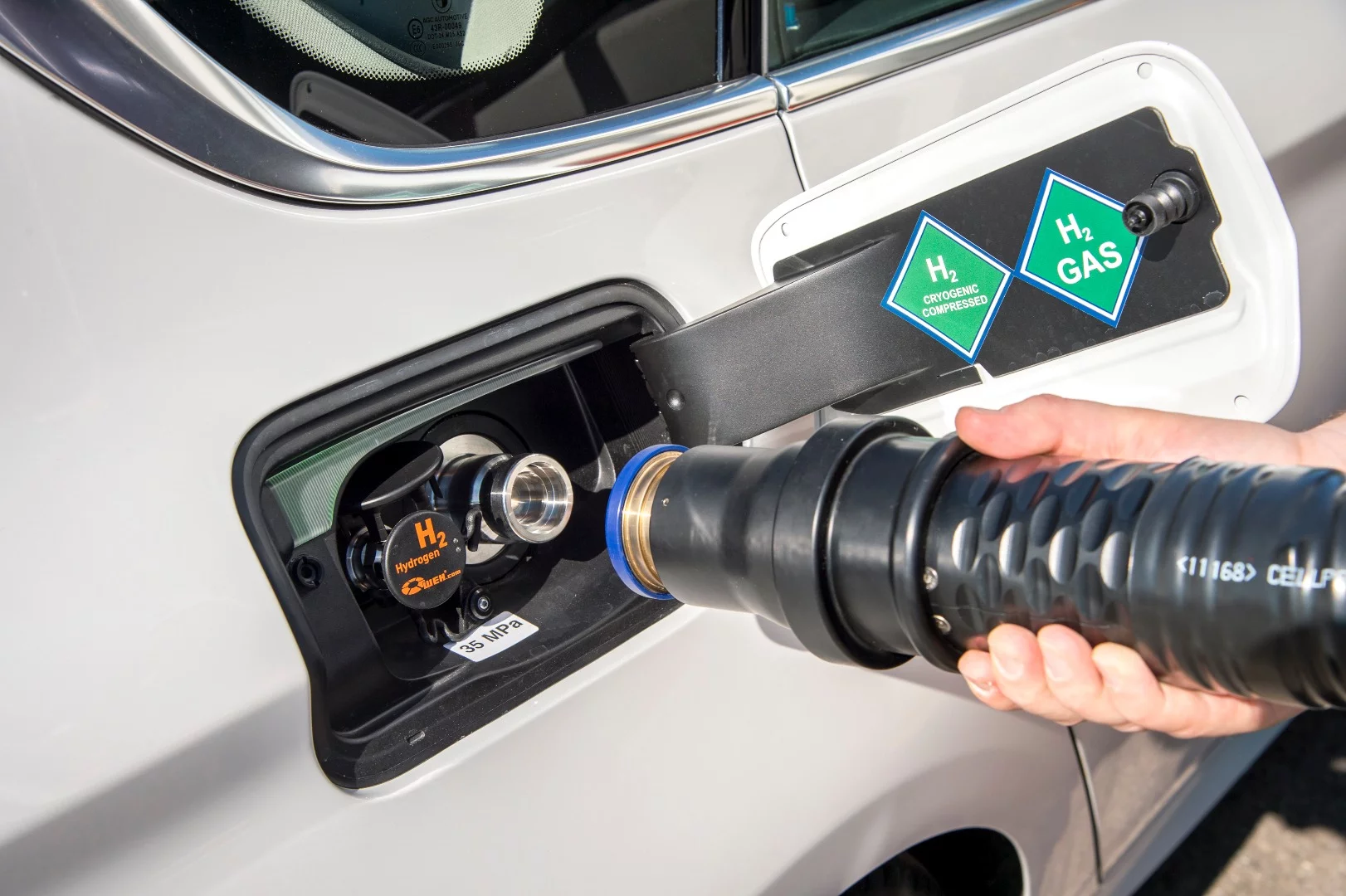

Filling the tank takes under 5 minutes
18/33
Filling the tank takes under 5 minutes

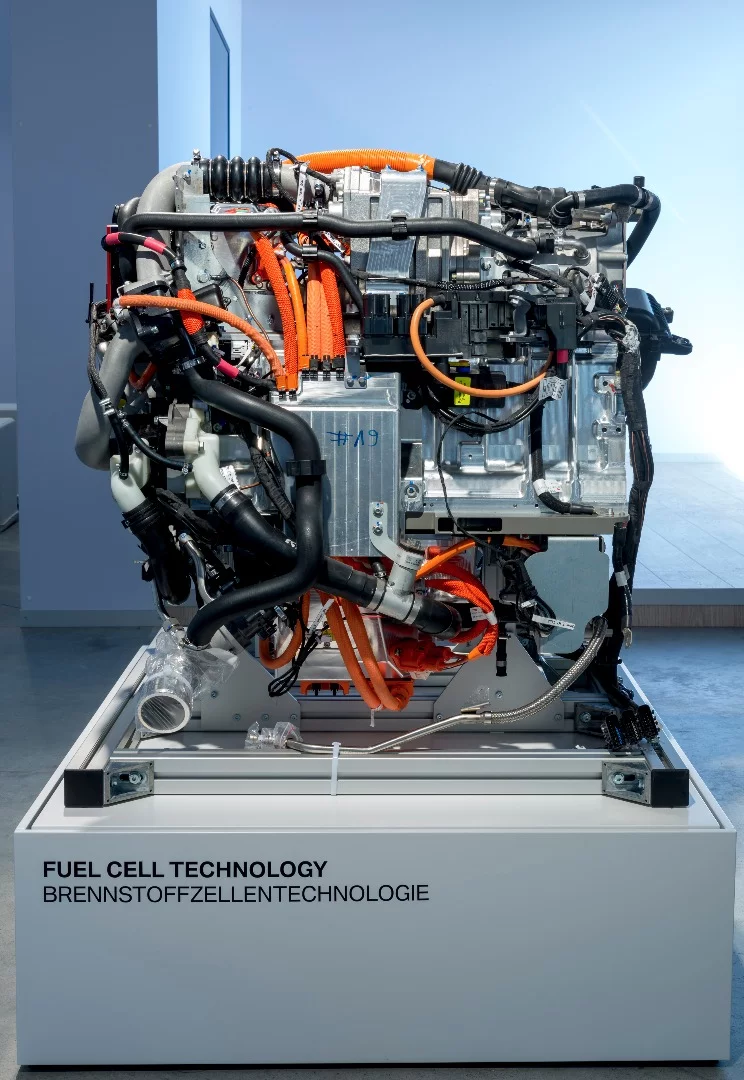

BMW's hydrogen technology has been developed in conjunction with Toyota
19/33
BMW's hydrogen technology has been developed in conjunction with Toyota
The hydrogen gas is converted into electricity, which powers a 245 hp motor
20/33
The hydrogen gas is converted into electricity, which powers a 245 hp motor

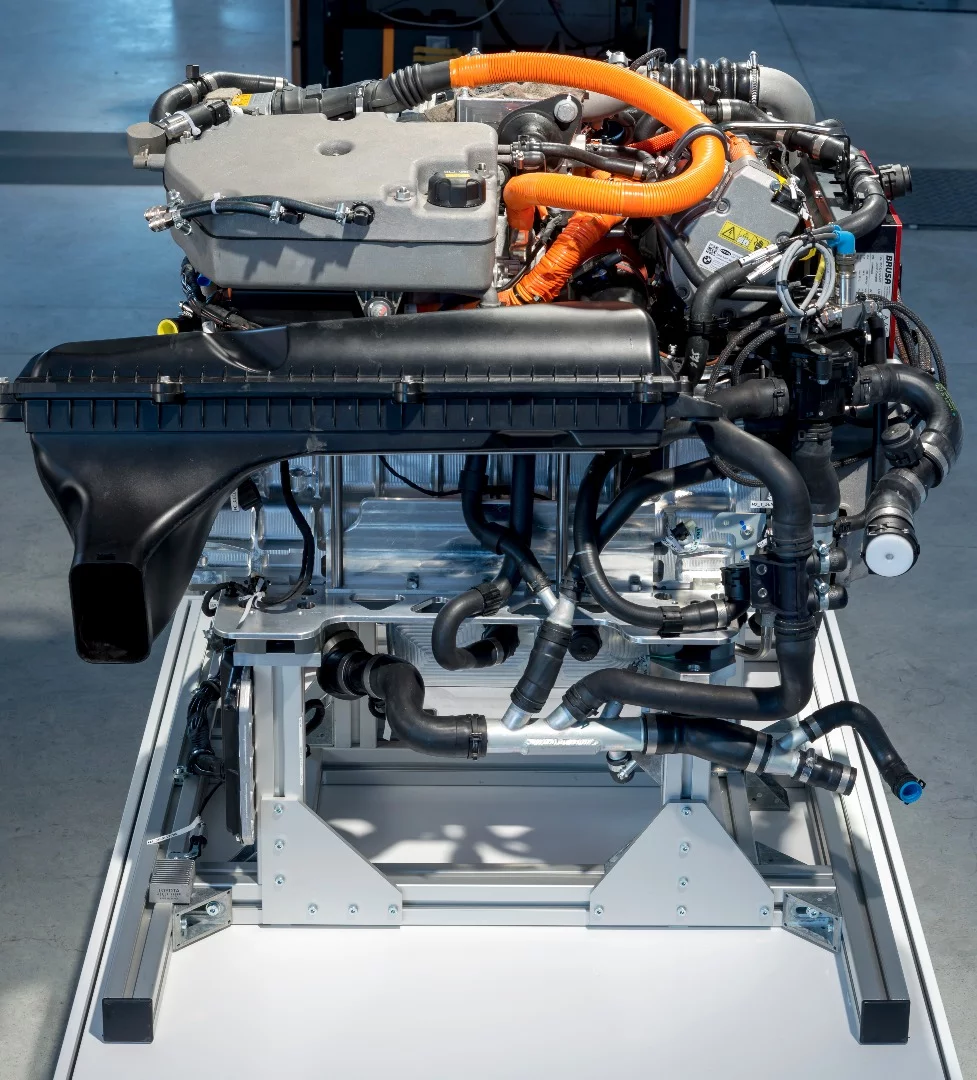

The electric powerplant makes 245 hp, and the car will run for 300 miles without needing to be filled up
21/33
The electric powerplant makes 245 hp, and the car will run for 300 miles without needing to be filled up

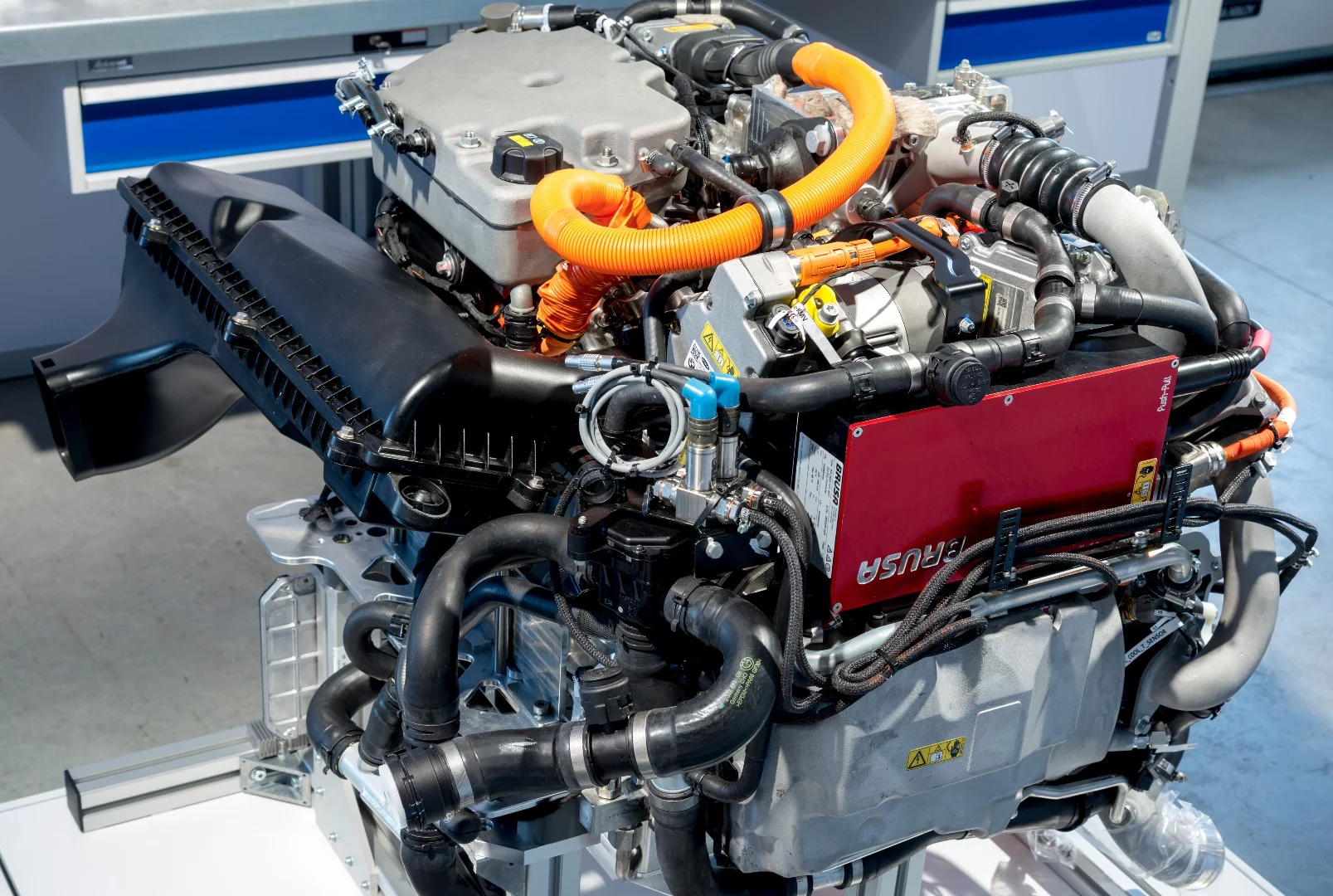

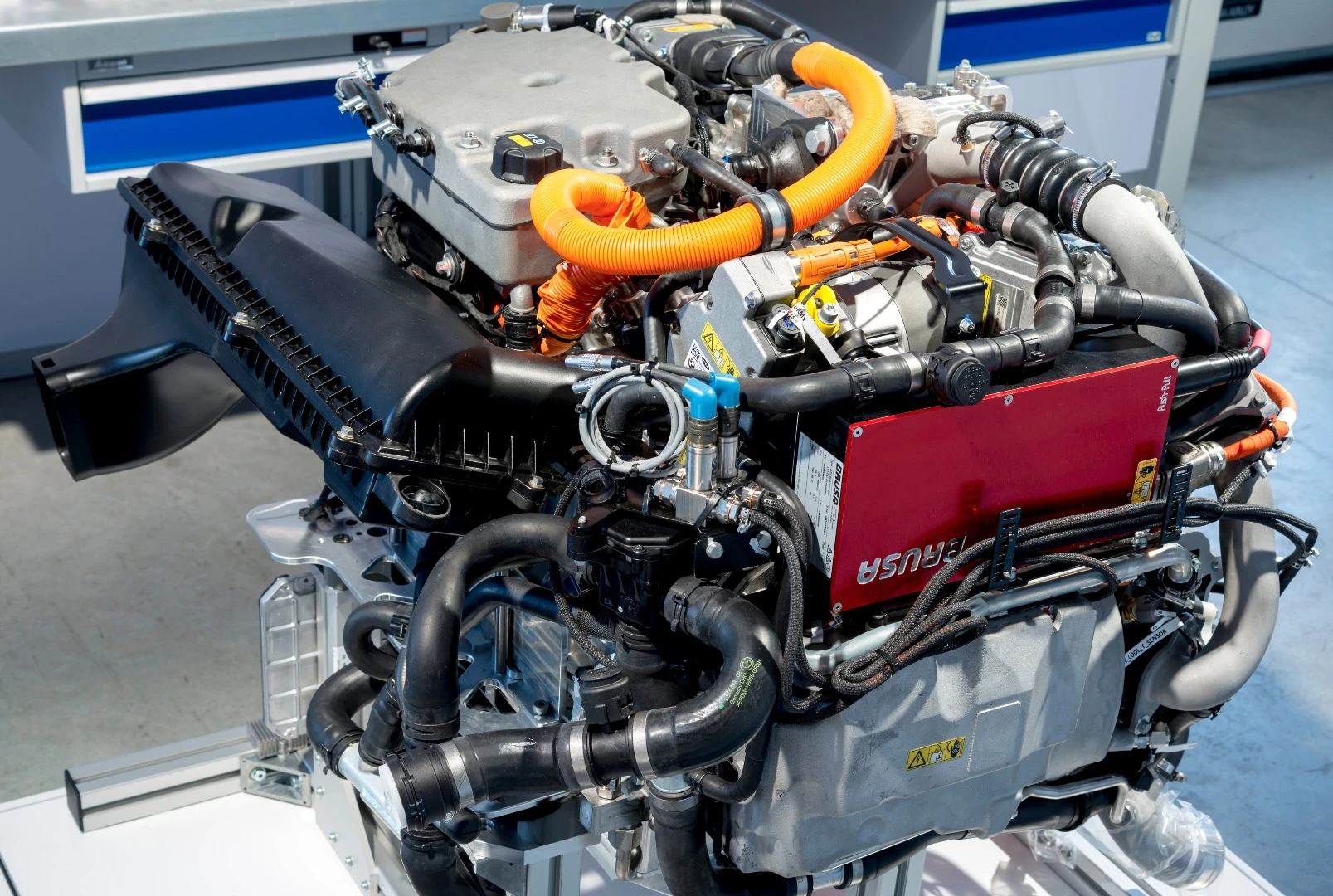

There is a small battery fitted to the 5 Series concept, which can store a small amount of energy
22/33
There is a small battery fitted to the 5 Series concept, which can store a small amount of energy

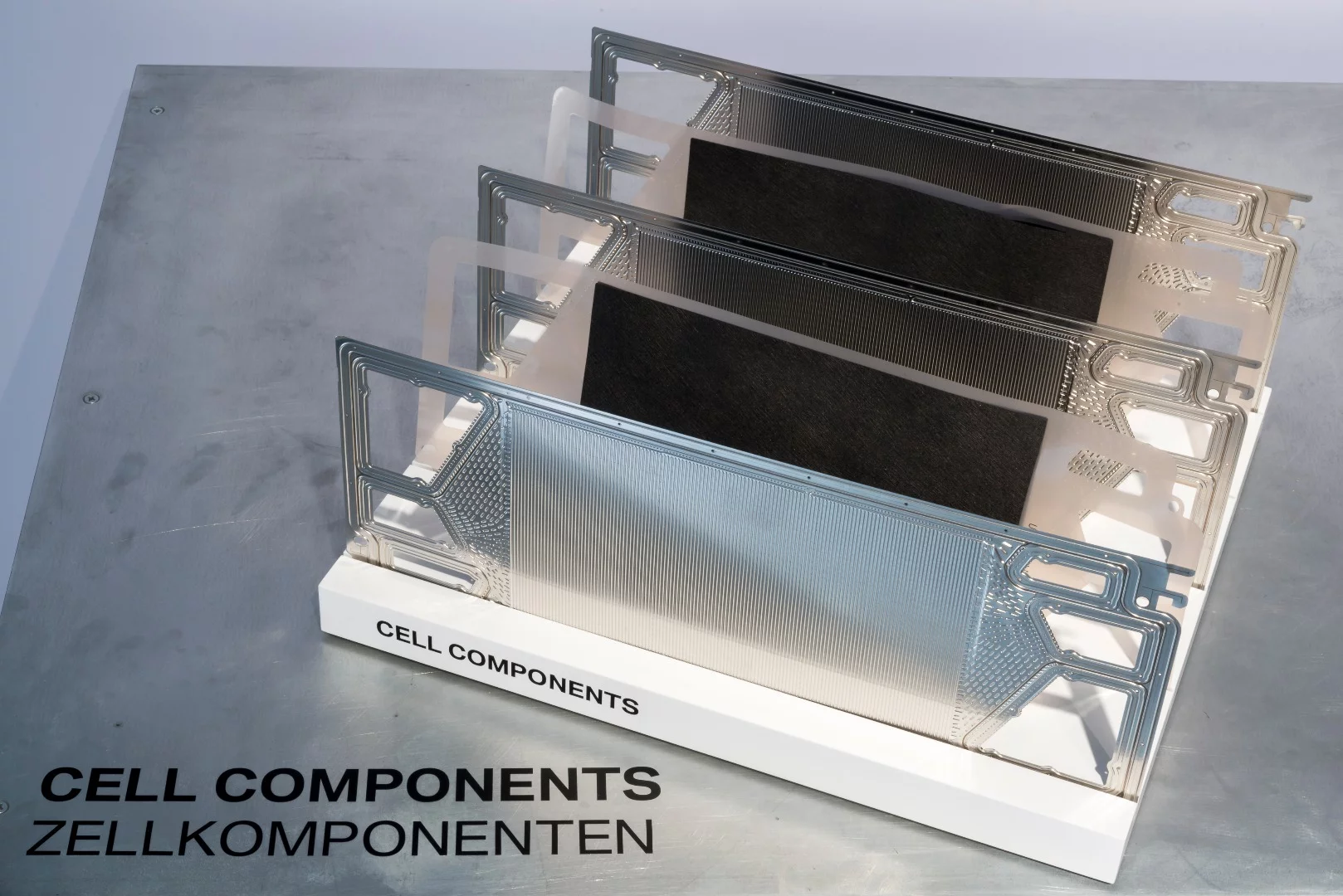

BMW's breakdown of the fuel cell components
23/33
BMW's breakdown of the fuel cell components

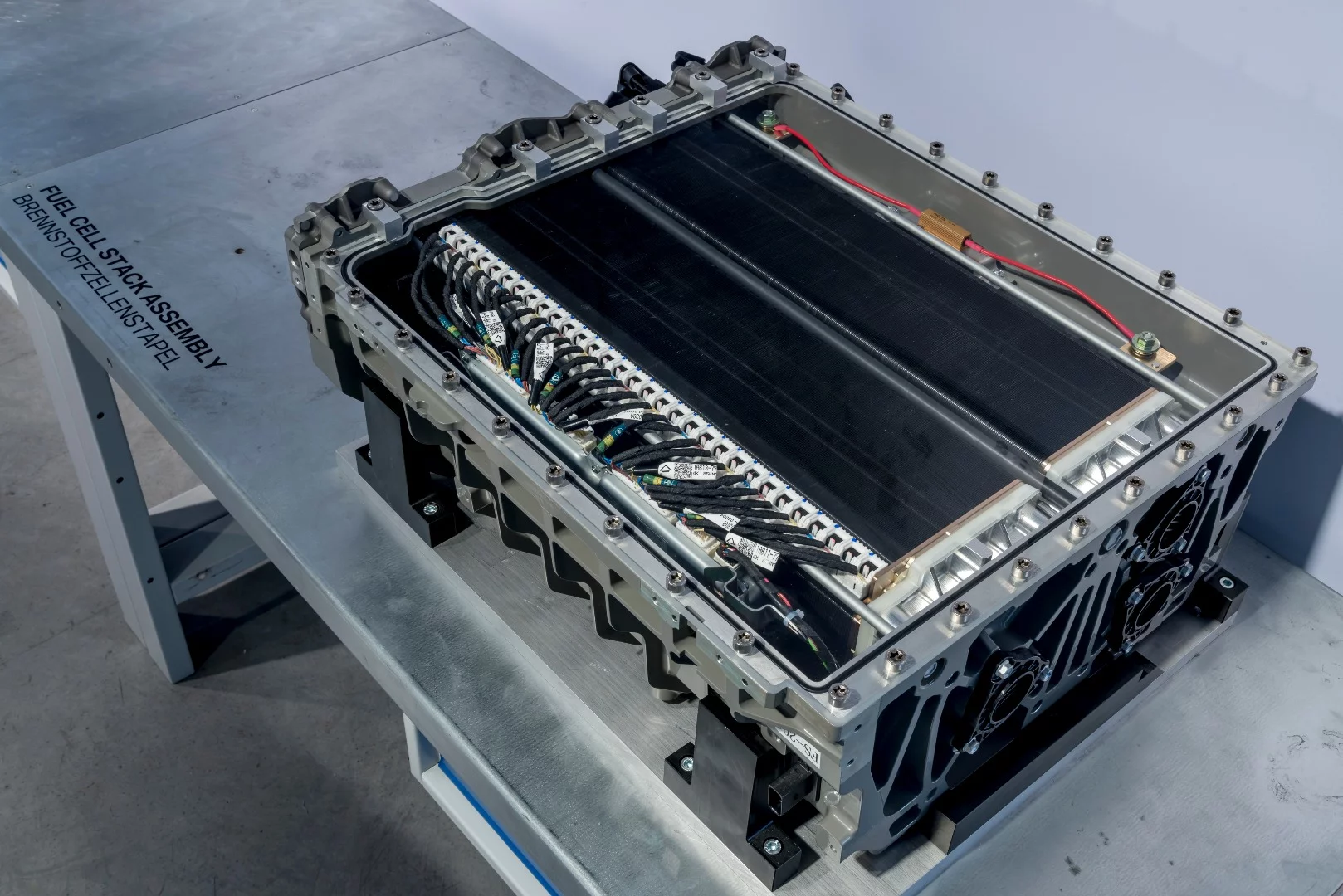

One of BMW's fuel stack assemblys
24/33
One of BMW's fuel stack assemblys

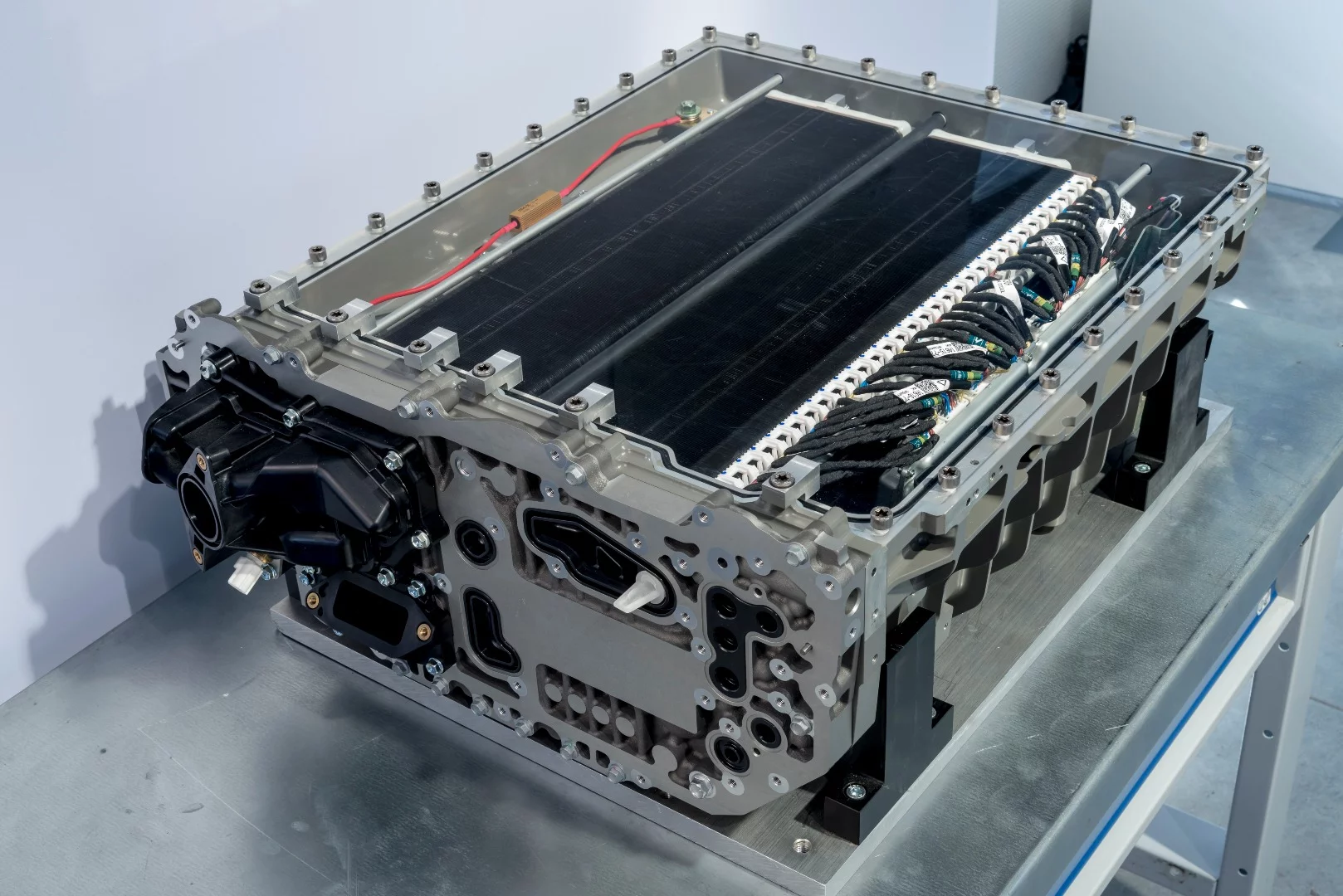

The fuel cells, as well as their housing and ancillary components are a result of BMW's partnership with Toyota
25/33
The fuel cells, as well as their housing and ancillary components are a result of BMW's partnership with Toyota

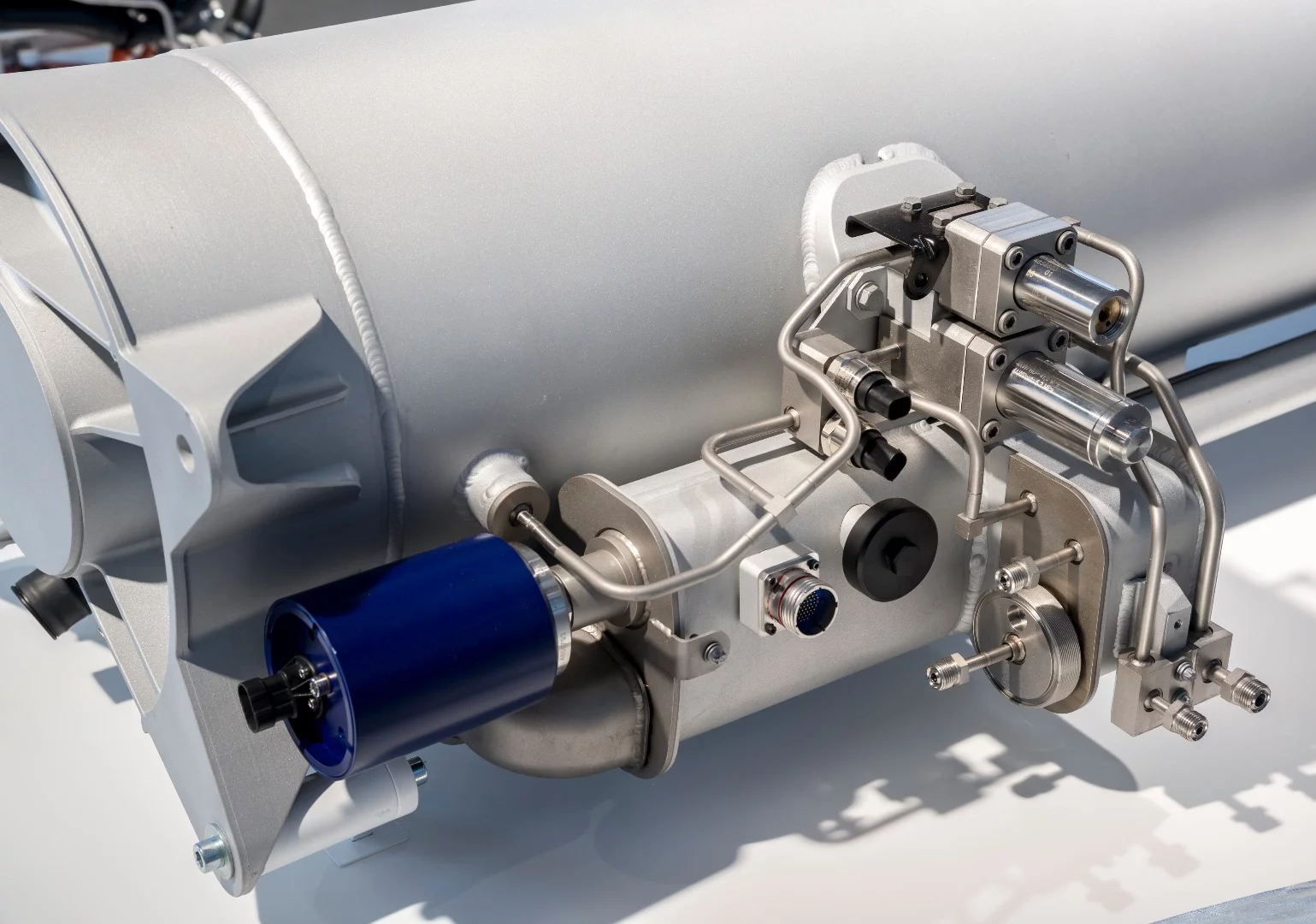

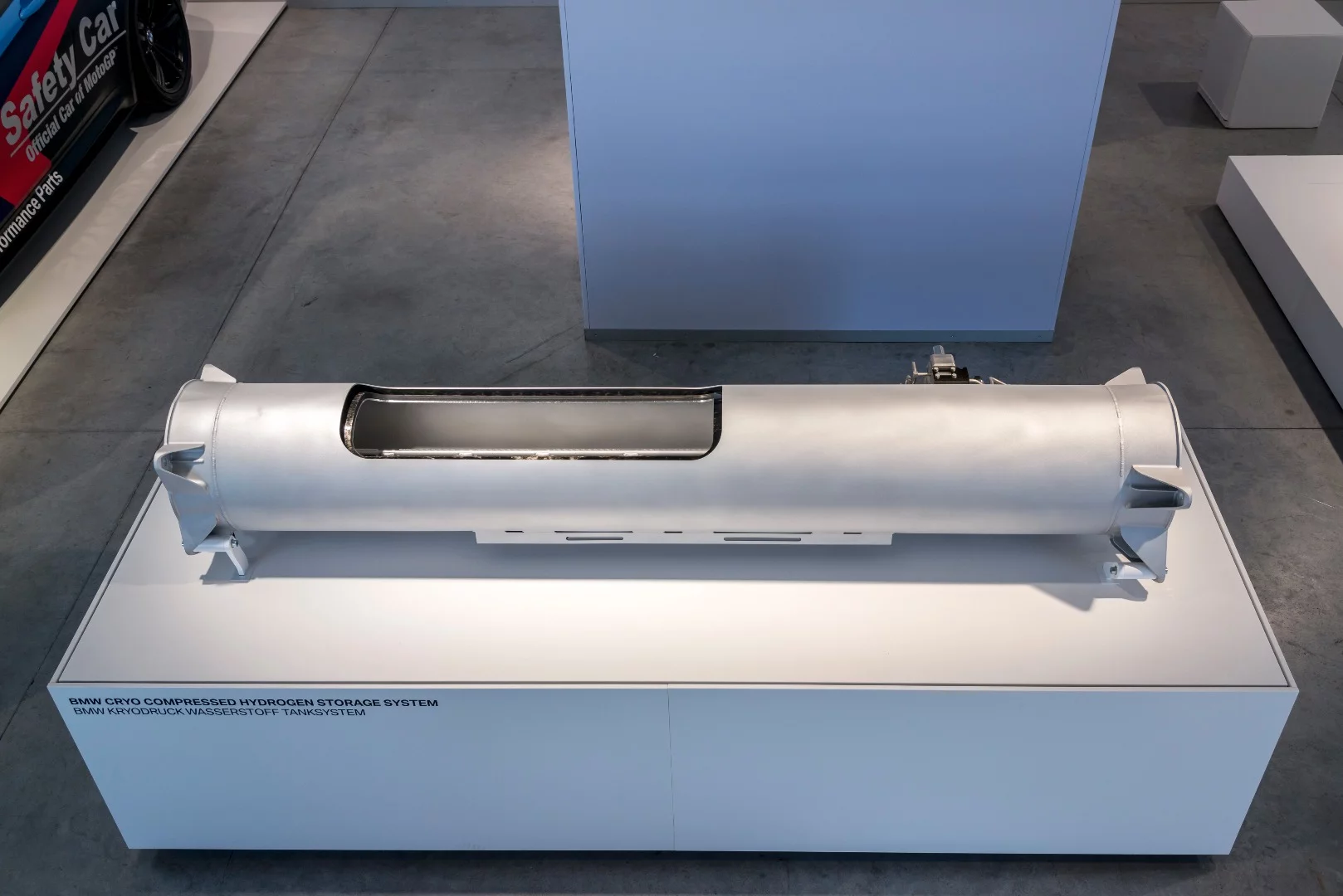

BMW's hydrogen storage system is patented
26/33
BMW's hydrogen storage system is patented

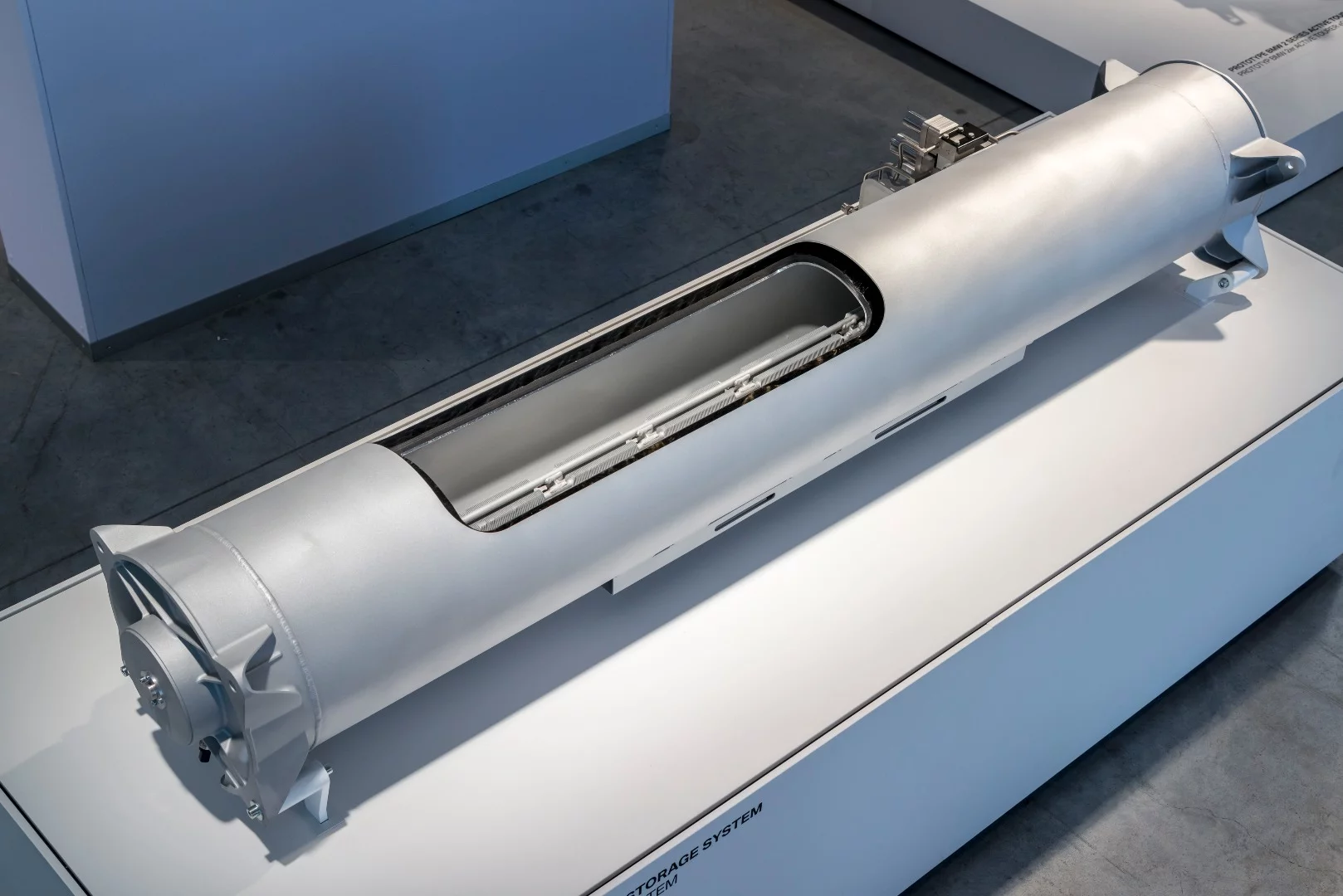

The hydrogen is stored at 350 bar
27/33
The hydrogen is stored at 350 bar

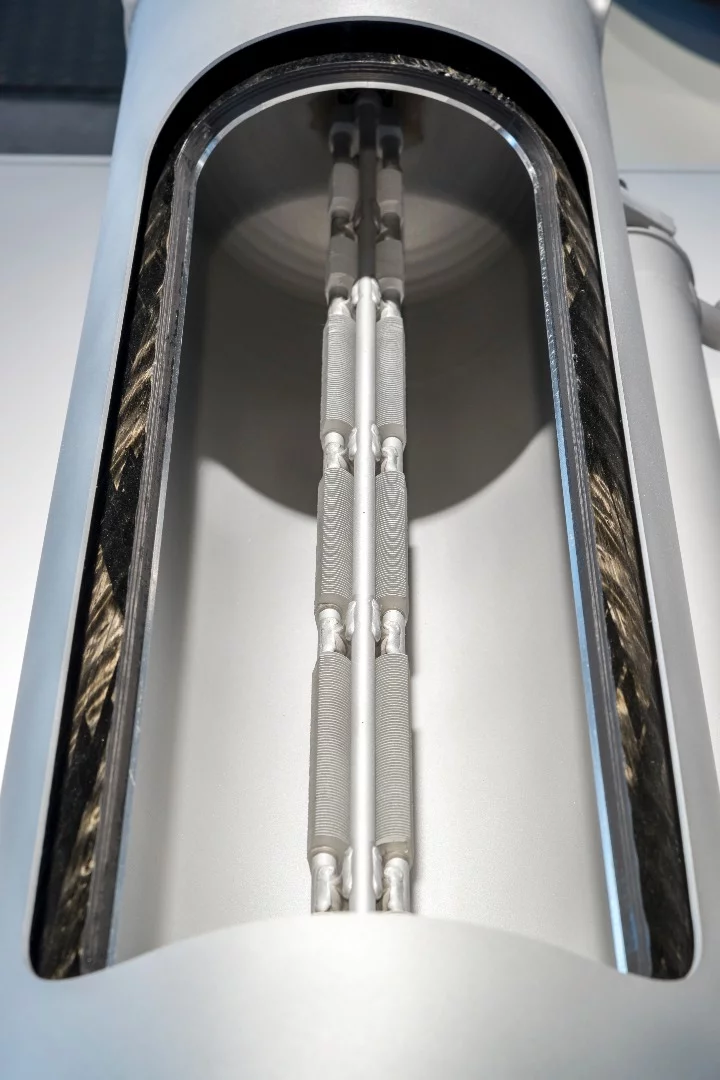

BMW and Toyota are trying to working to make hydrogen cars production viable
28/33
BMW and Toyota are trying to working to make hydrogen cars production viable
29/33
30/33

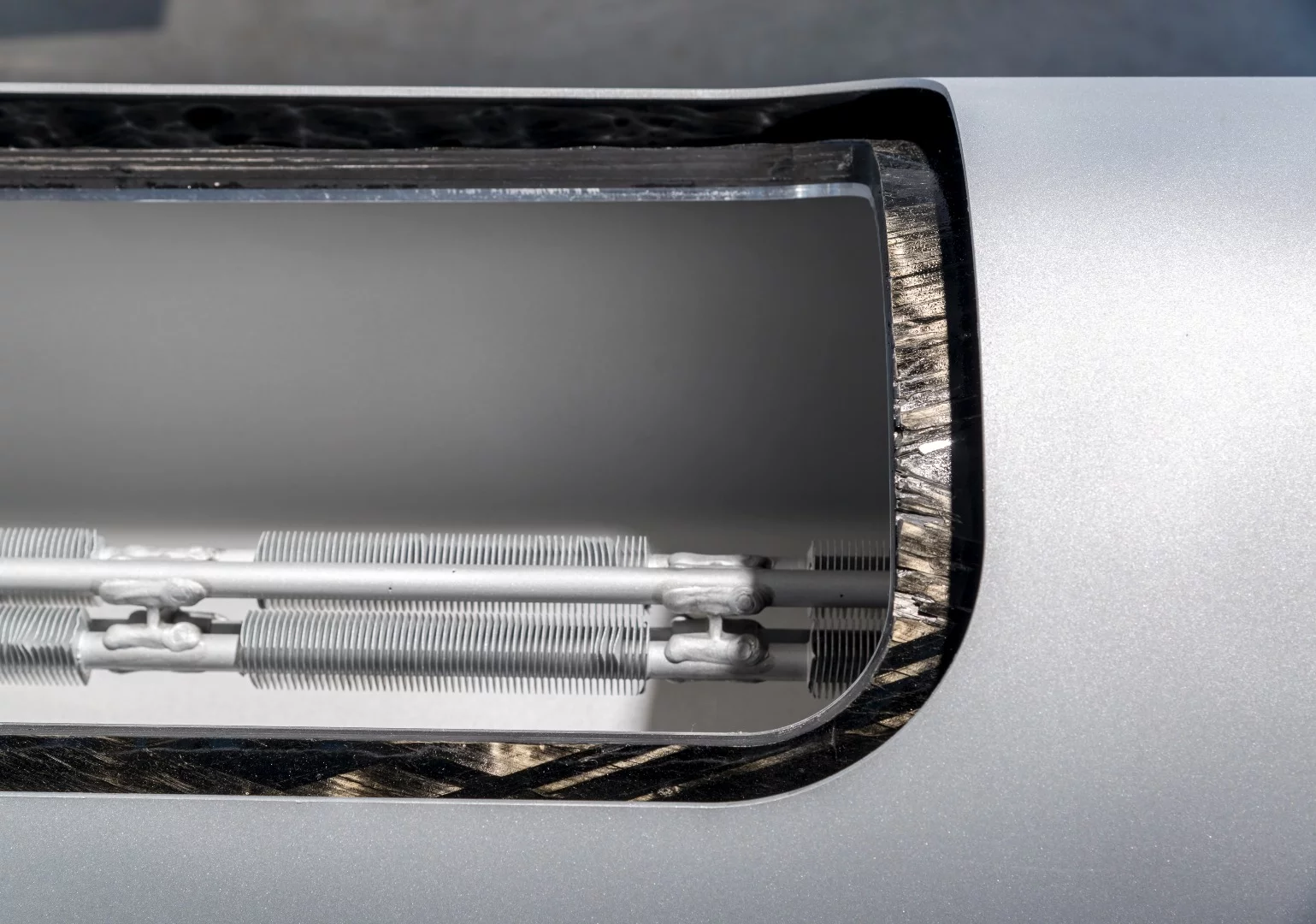

BMW is
31/33
BMW is

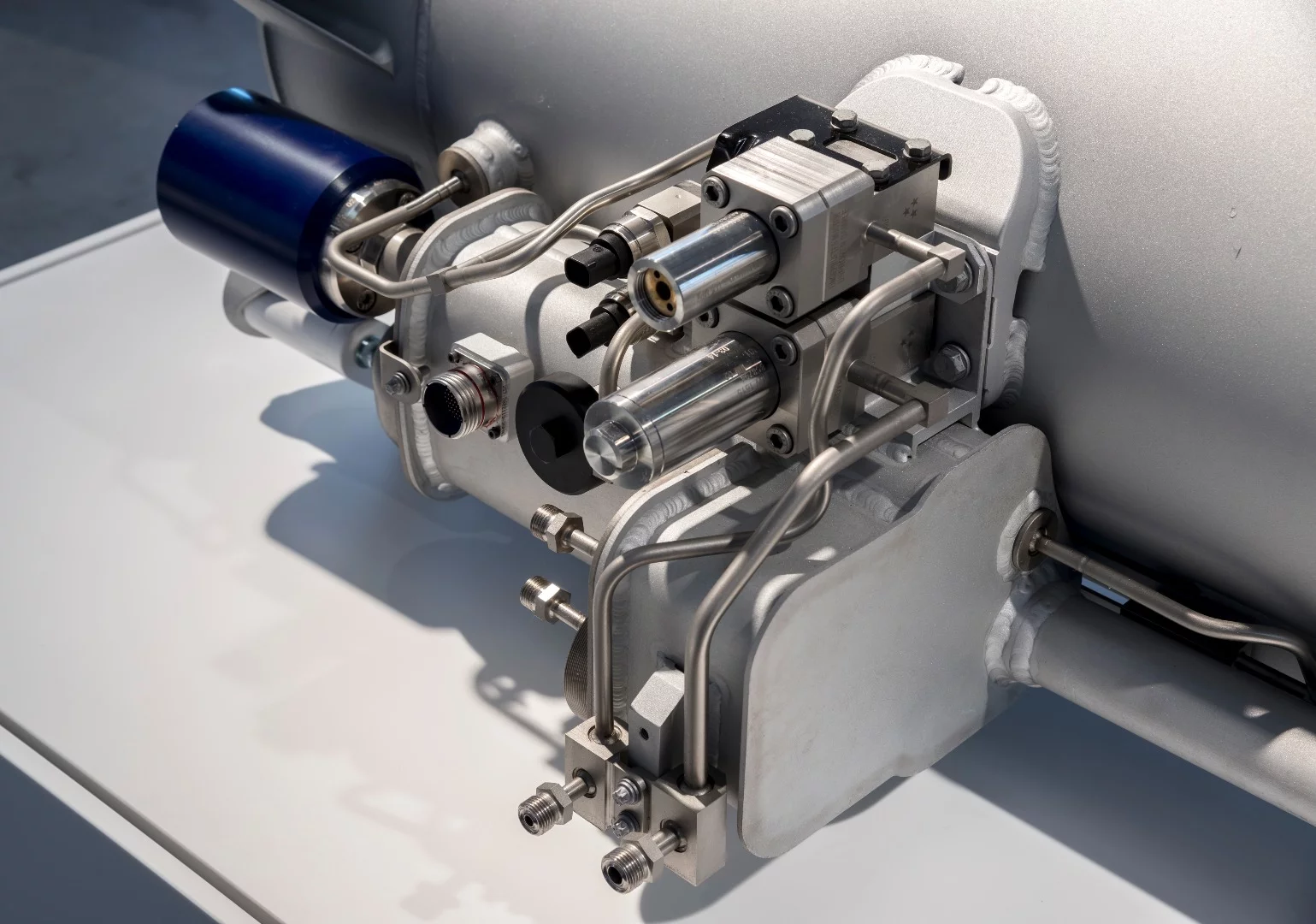

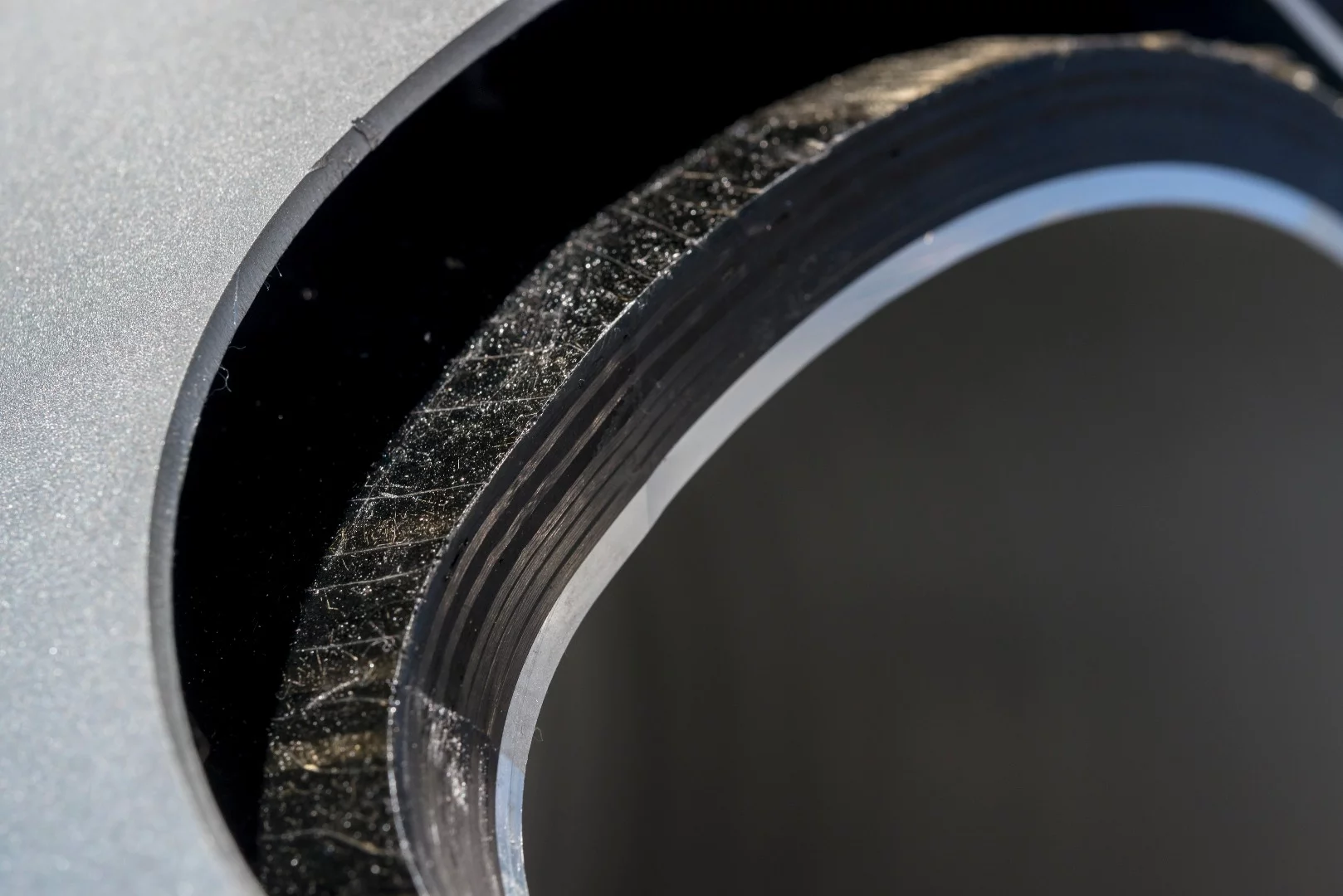

Storing hydrogen is a complex business
32/33
Storing hydrogen is a complex business

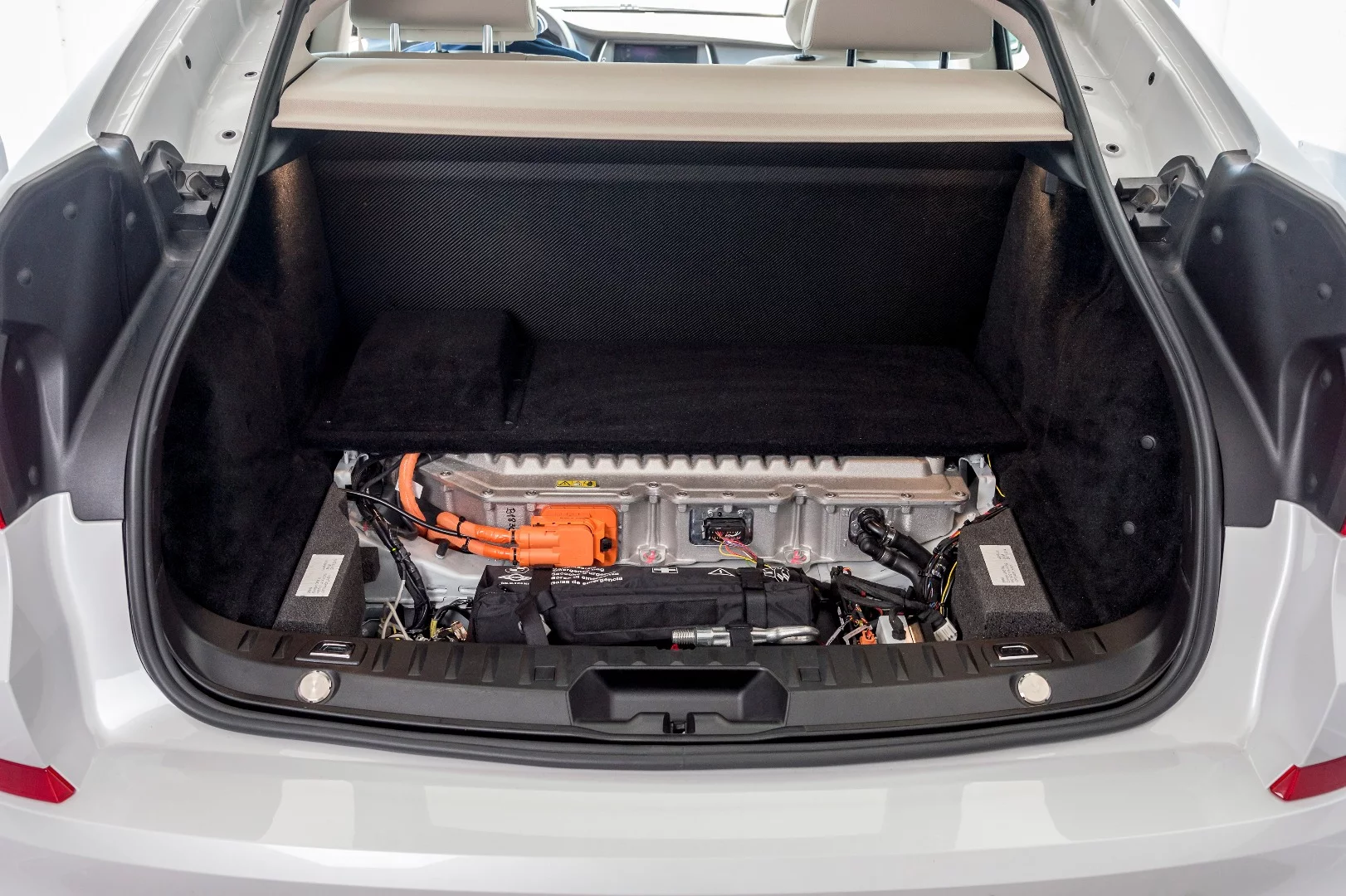

The car's hydrogen/electric hardware doesn't take up too much space
33/33
The car's hydrogen/electric hardware doesn't take up too much space
View gallery - 33 images

Hydrogen has been touted as one of the most promising alternatives to our current dependence on fossil fuels to power cars because it fits our current driving habits. Whereas plug-in electric vehicles have limited range and take a long time to recharge, hydrogen fuel cell electric vehicles can be refueled in a matter of minutes from a pump that looks similar to a fuel pump. BMW has continued its development of hydrogen technology with a new 5 Series GT based prototype, which can drive for 500 km (311 miles) before it needs to be topped up.

Powering the 5 Series GT is a 180 kW (245 hp) electric motor, with a high voltage battery designed for interim energy storage. The car's hydrogen is stored in a tank built into a tunnel between the front and rear axles, and is a patented design for storing gaseous hydrogen at low temperature and 350 bar pressure.

This tank can be topped up in under five minutes, and the process will be familiar to anyone who has filled a gasoline car up before, although hydrogen fillers need to be insulated and locked into place before use.

The car's fuel cell, which draws on technology developed as a part of BMW and Toyota's fuel cell partnership, converts hydrogen gas into electrical energy and water vapour for emission-free motoring without the range anxiety that comes with battery-supplied electric power.

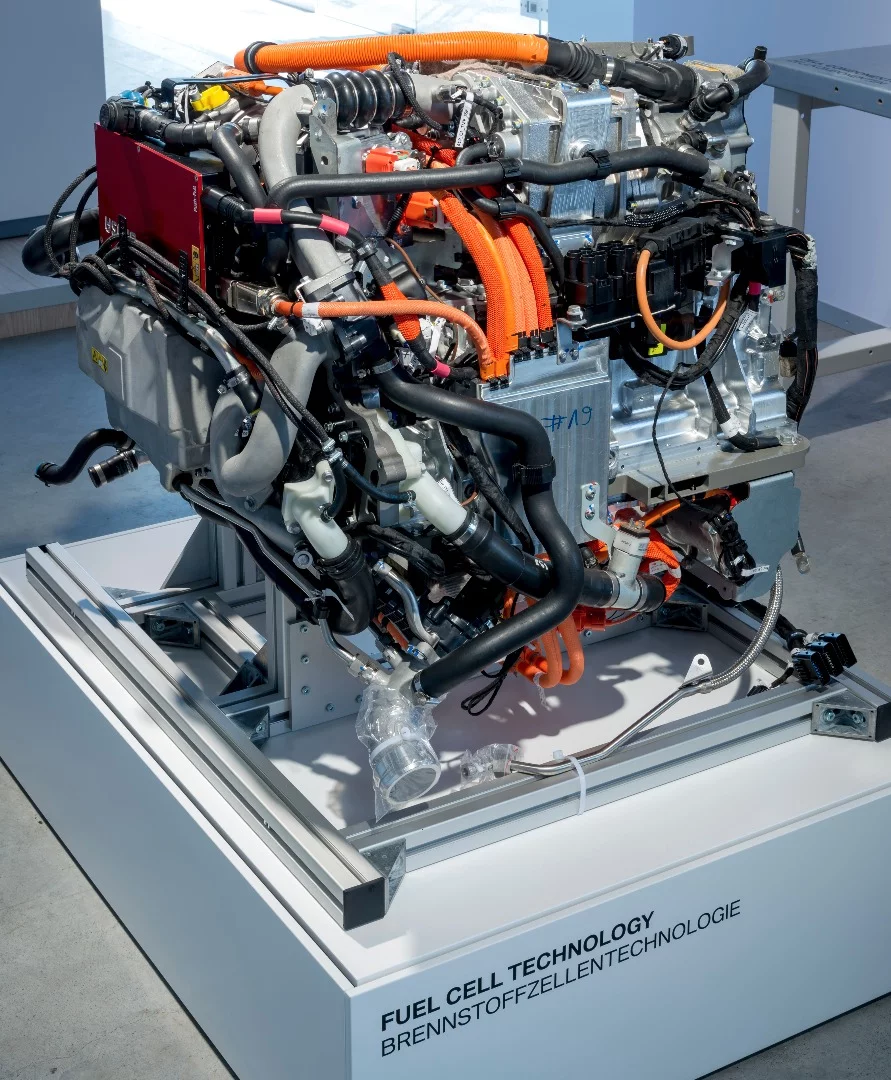

The hydrogen gas is converted into electricity, which powers a 245 hp motor
The hydrogen gas is converted into electricity, which powers a 245 hp motor

Toyota and BMW are aiming for their strategic partnership to have an initial group of production components ready by 2020. Both brands are also wary of committing to hydrogen if the refueling infrastructure isn't sufficient, so much of their work is based around creating technological standards that can be used to make fuel cell cars easier to use and increasing their reach to consumers.

Already the technology is becoming more mainstream, with the production Toyota Mirai set to launch later this year. Toyota has also been pushing for a wider network of hydrogen filling stations to be built around the US, and the company has invested in creating a chain of hydrogen filling stations across New York, New Jersey, Massachusetts, Connecticut and Rhode Island.

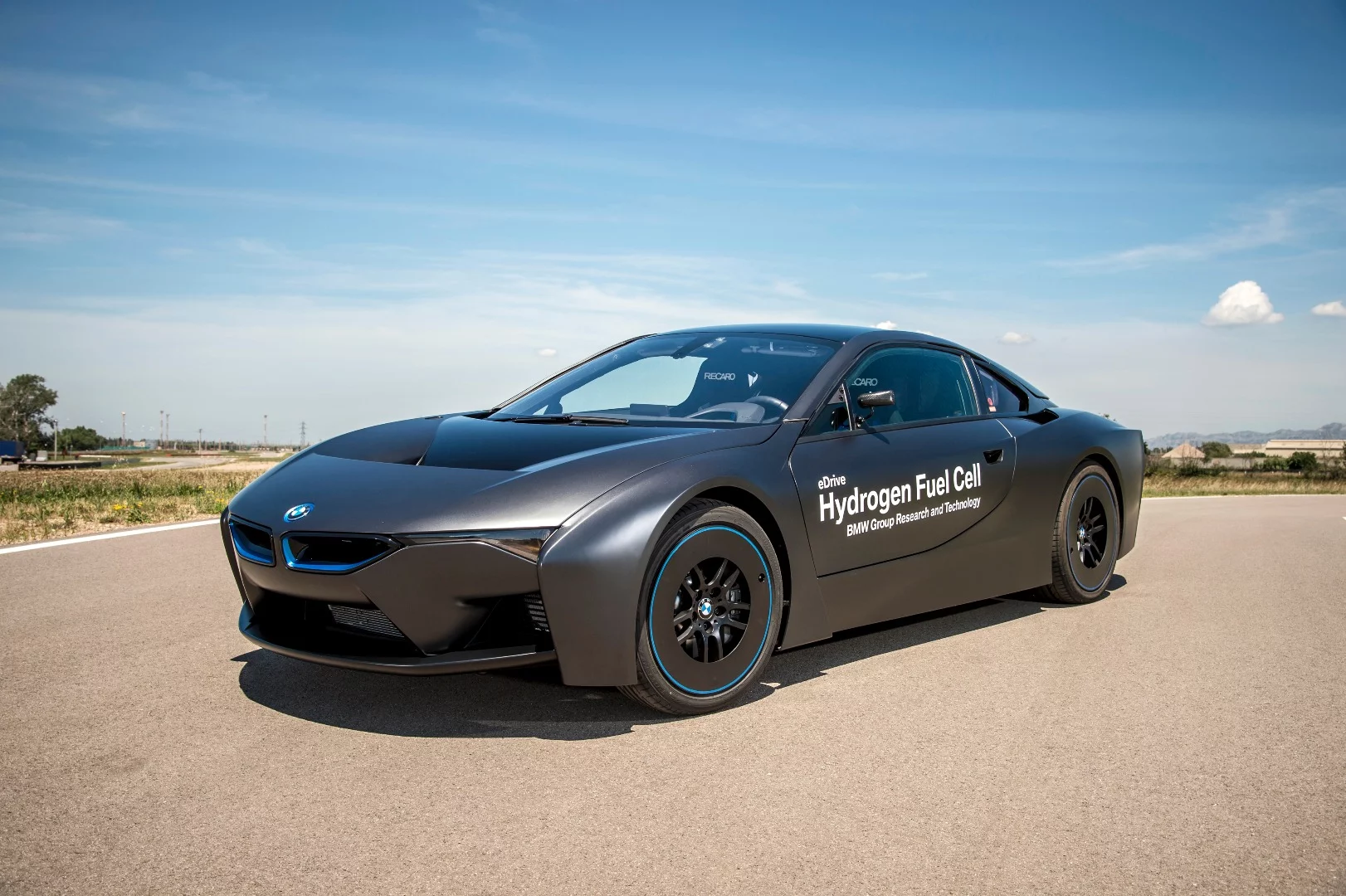

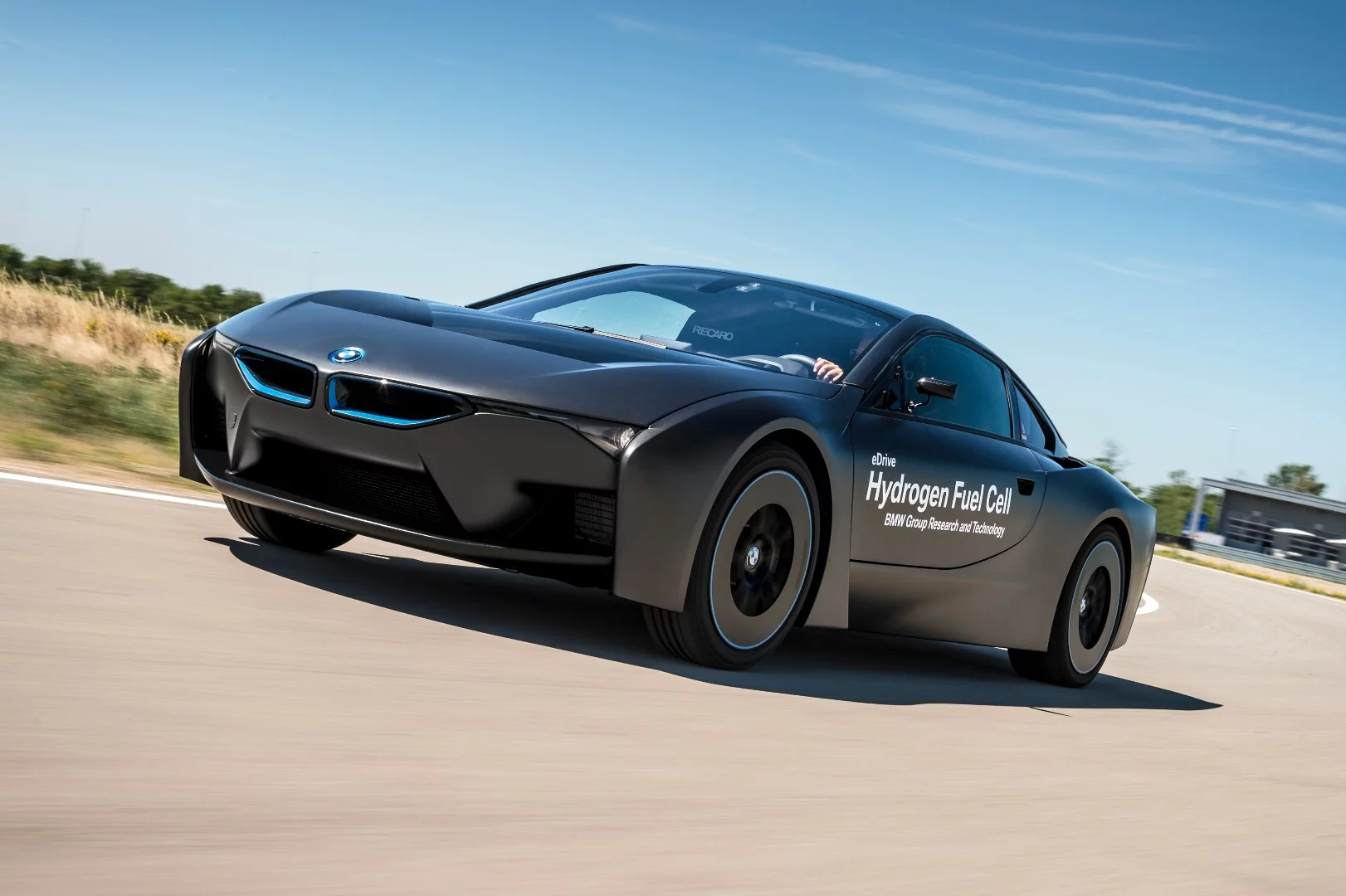

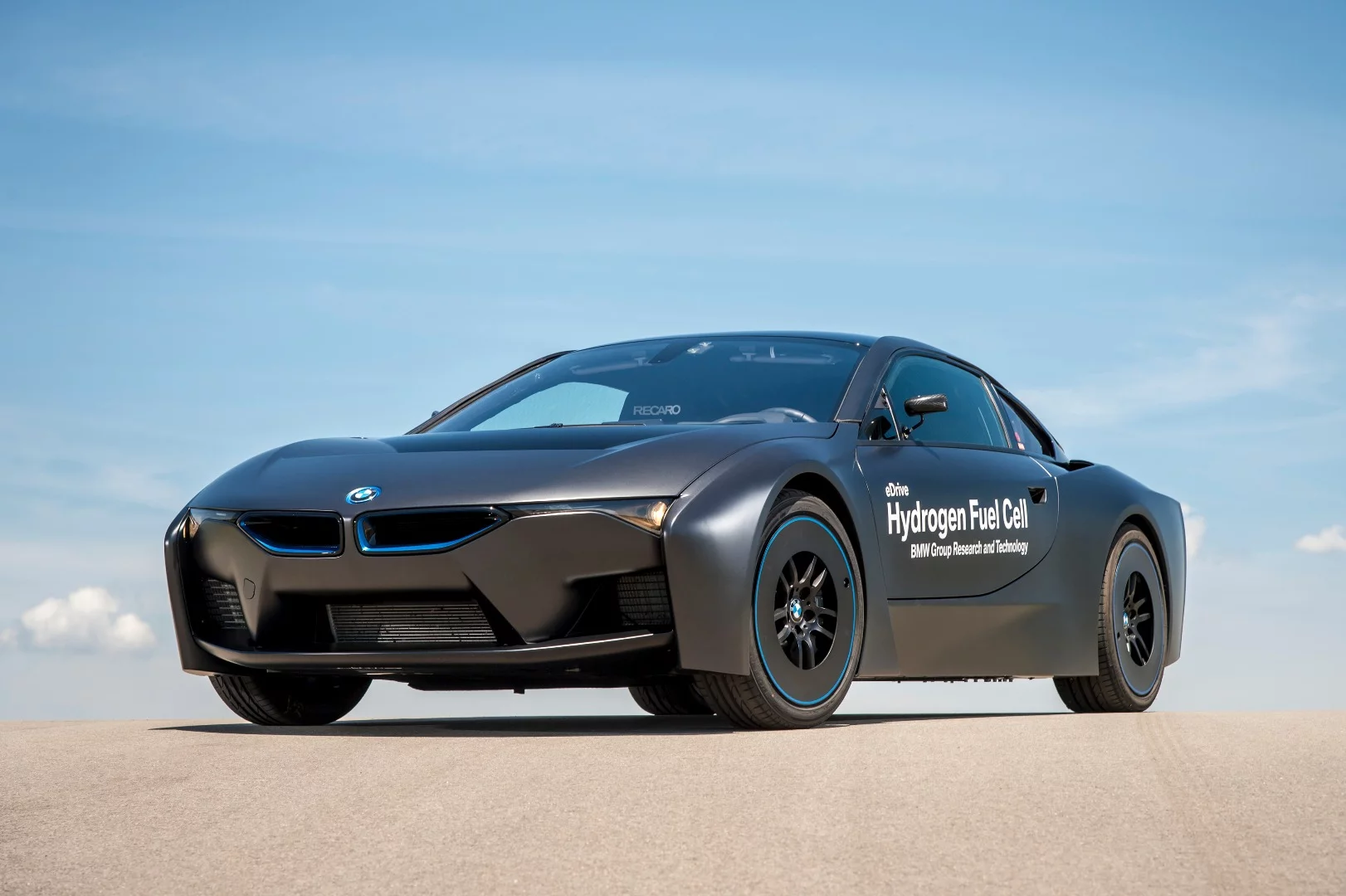

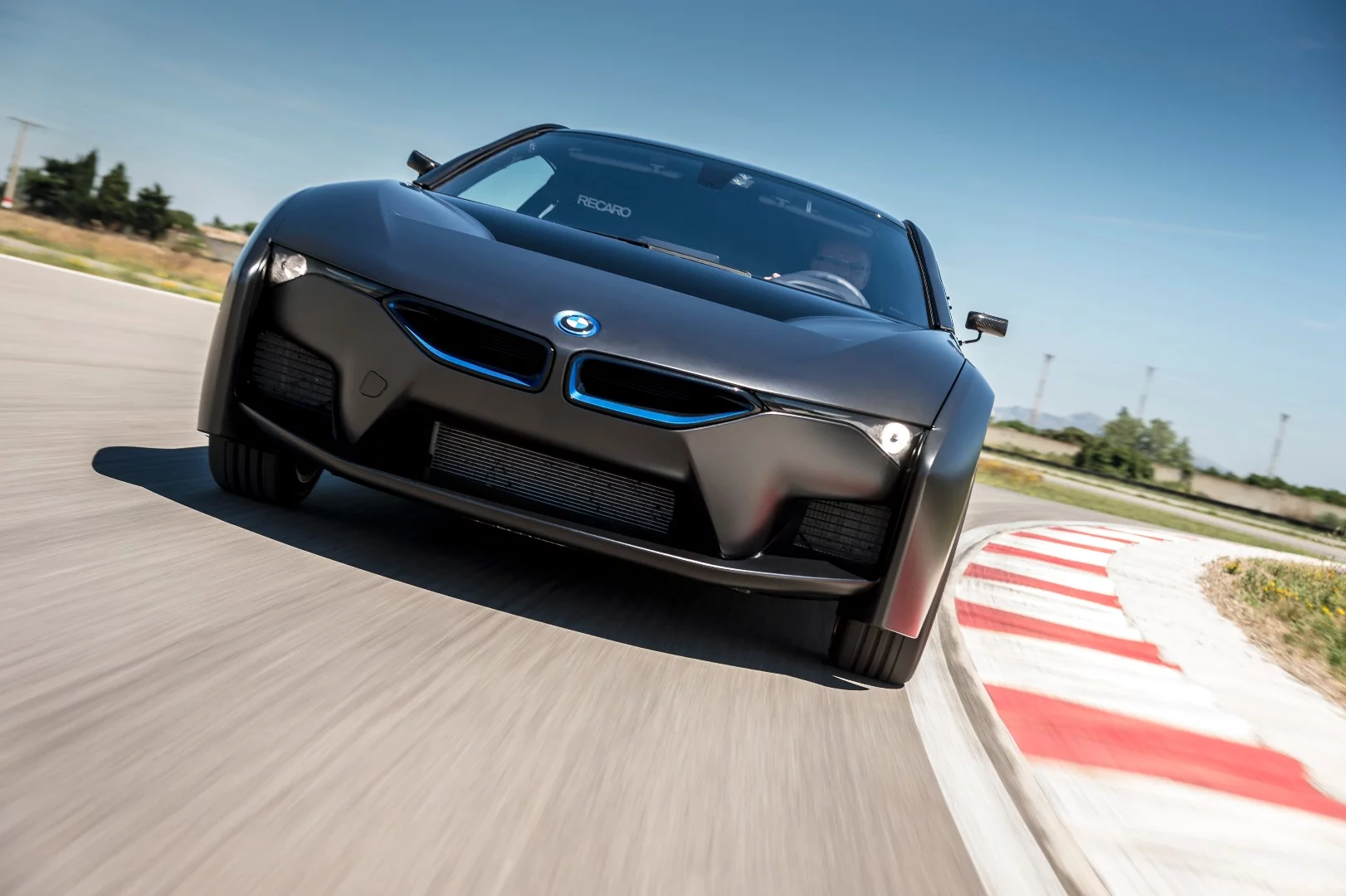

BMW showed off a slinky hydrogen concept based on the i8
BMW showed off a slinky hydrogen concept based on the i8

There was more to the BMW's hydrogen reveal than a practical 5 Series GT. Details are scarce, but BMW also showed off a matte-black hydrogen prototype with i8-aping looks. We know very little about the car beyond reports that it's based on a development i8 platform, and is powered by a similar hydrogen powertrain to that shown off in the 5 Series GT.

Have a flick through the gallery to check out it and the 5 Series GT prototype.

Source: BMW

View gallery - 33 images

Tags

AutomotiveBMWHydrogenElectric
