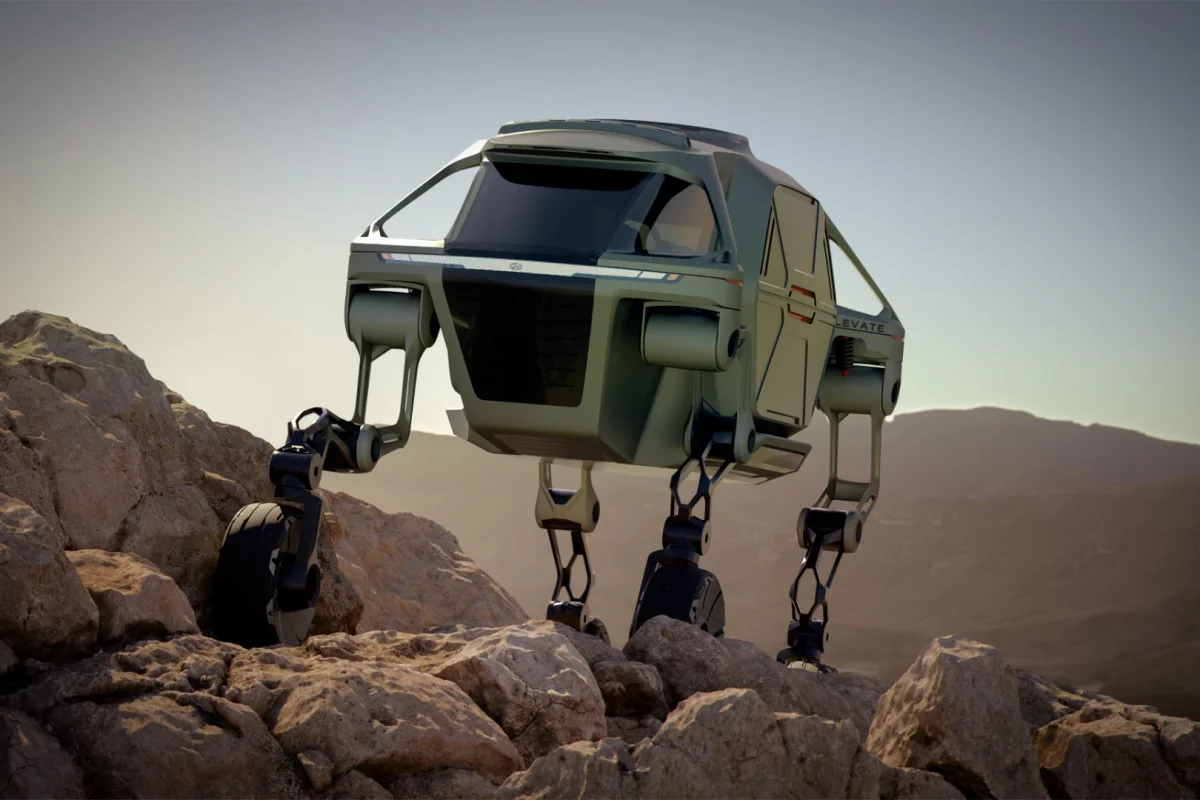

The articulated legs of the Elevate allow it to stand up and walk over obstacles that would chew regular off-road vehicles to pieces
The articulated legs of the Elevate allow it to stand up and walk over obstacles that would chew regular off-road vehicles to pieces
View 15 Images
When the Elevate's legs compact down, it drives like a regular car at highway speeds, relying on a passive suspension system to eat up bumps
1/15
When the Elevate's legs compact down, it drives like a regular car at highway speeds, relying on a passive suspension system to eat up bumps

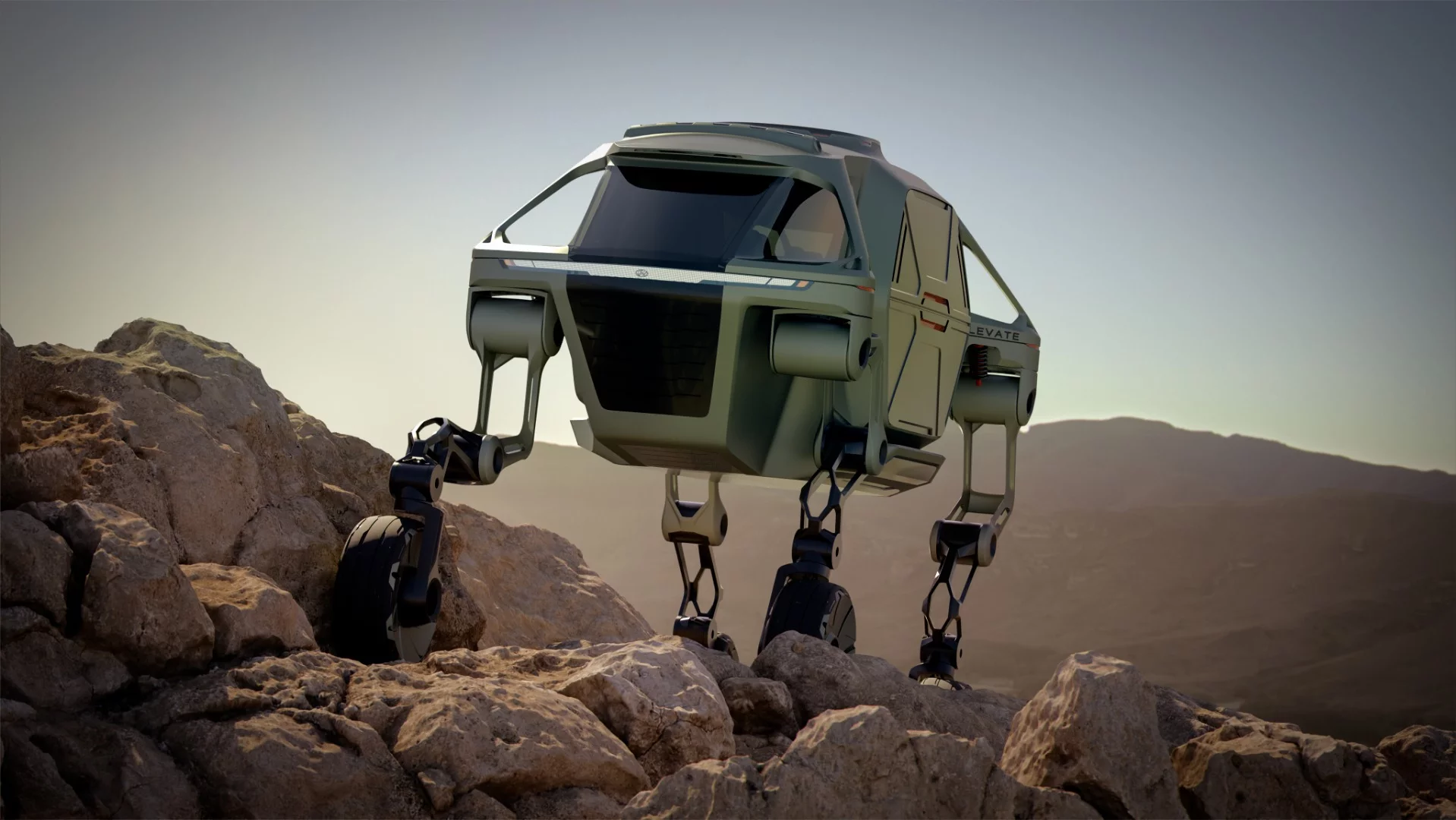

The articulated legs of the Elevate allow it to stand up and walk over obstacles that would chew regular off-road vehicles to pieces
2/15
The articulated legs of the Elevate allow it to stand up and walk over obstacles that would chew regular off-road vehicles to pieces
In addition to emergency response, Hyundai sees the Elevate finding use as a taxi for the disabled
3/15
In addition to emergency response, Hyundai sees the Elevate finding use as a taxi for the disabled
We're not sure you're likely to slide off the road in the Elevate, but if you do, simply walk out of the snowbank
4/15
We're not sure you're likely to slide off the road in the Elevate, but if you do, simply walk out of the snowbank

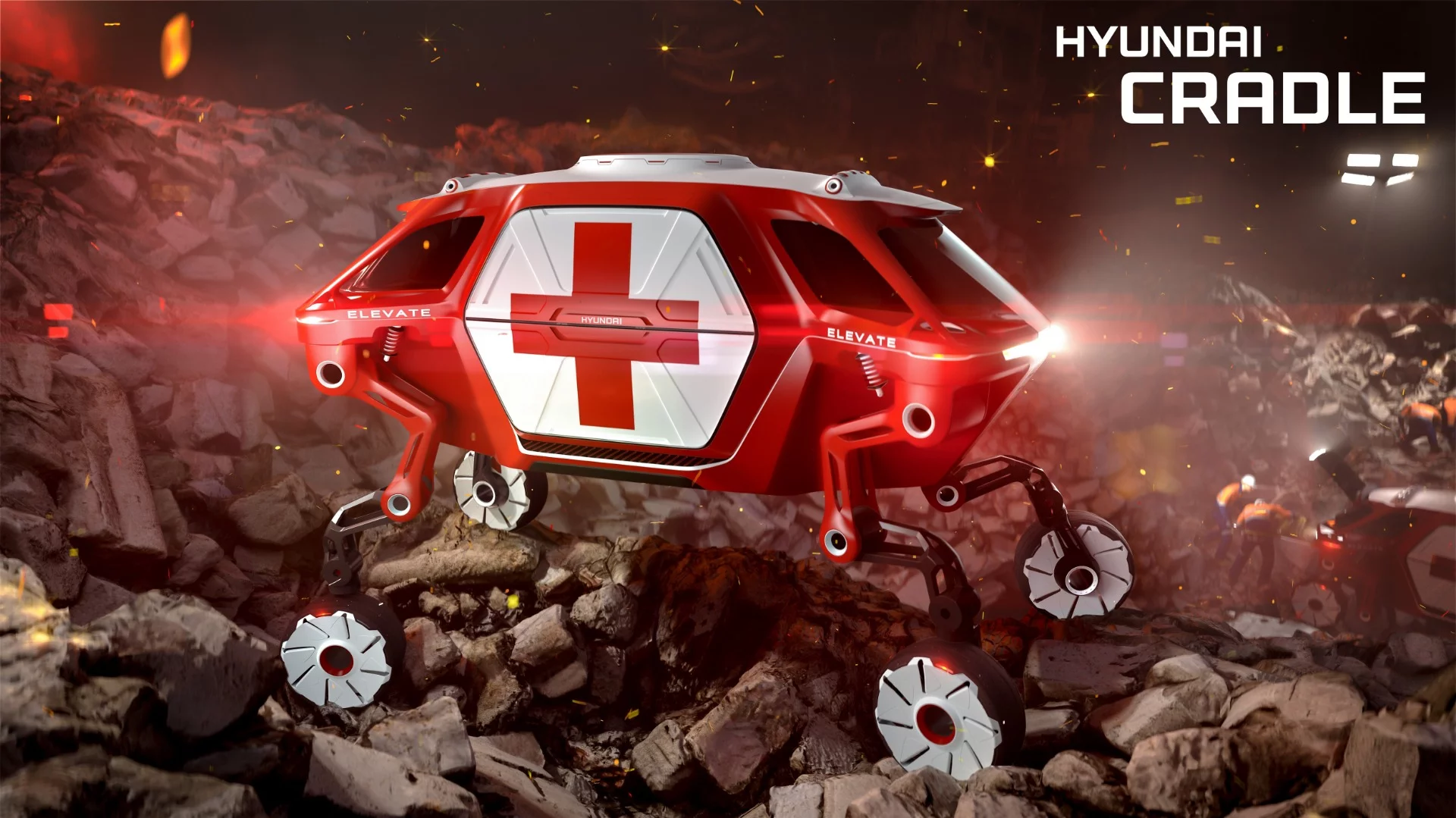

Hyundai revealed the Elevate at CES 2019
5/15
Hyundai revealed the Elevate at CES 2019
We reckon the Elevate could be used for high-flying fun, too
6/15
We reckon the Elevate could be used for high-flying fun, too

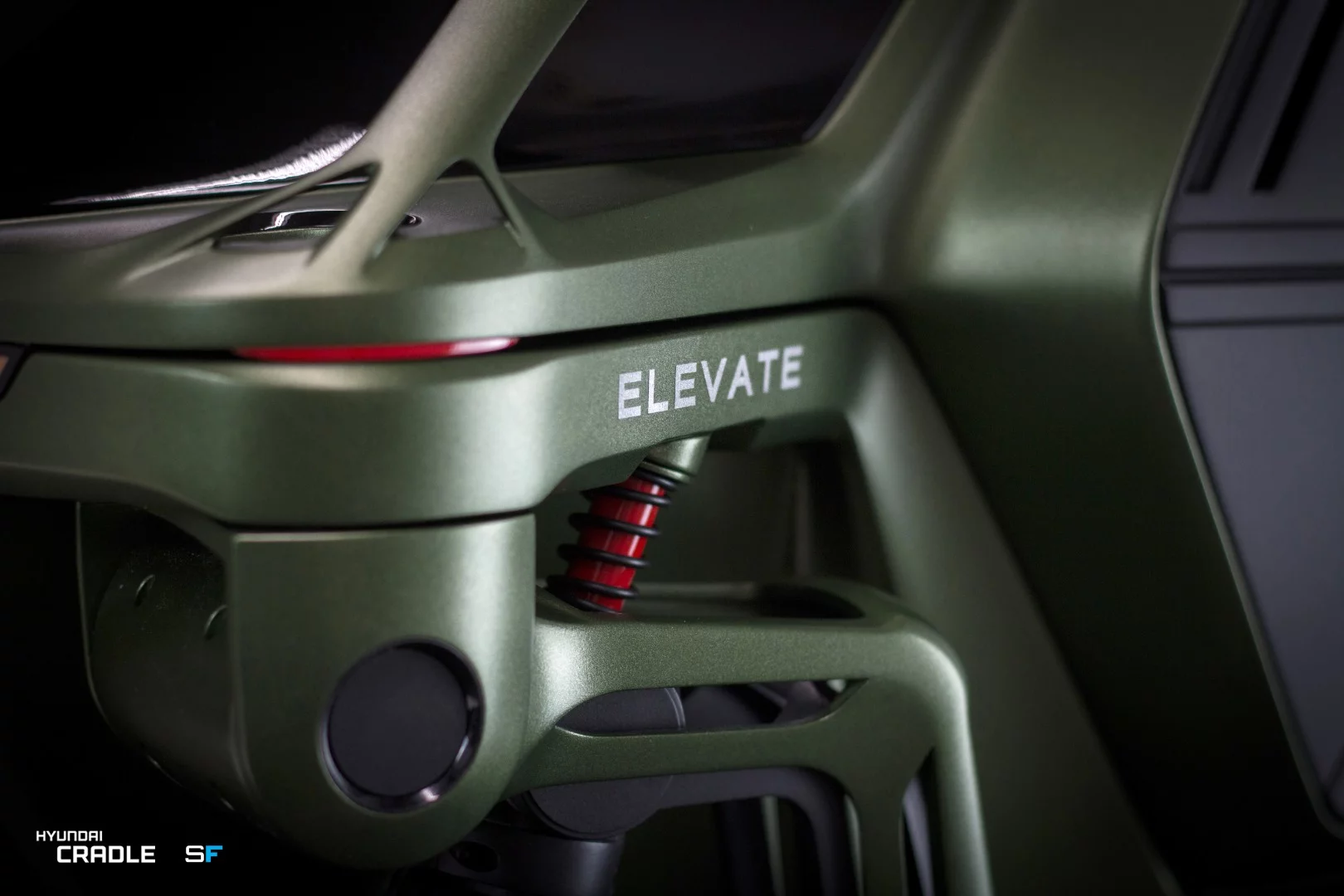

Integrated springs come into play when the legs fold up and the actuated joints are cut off from the battery
7/15
Integrated springs come into play when the legs fold up and the actuated joints are cut off from the battery

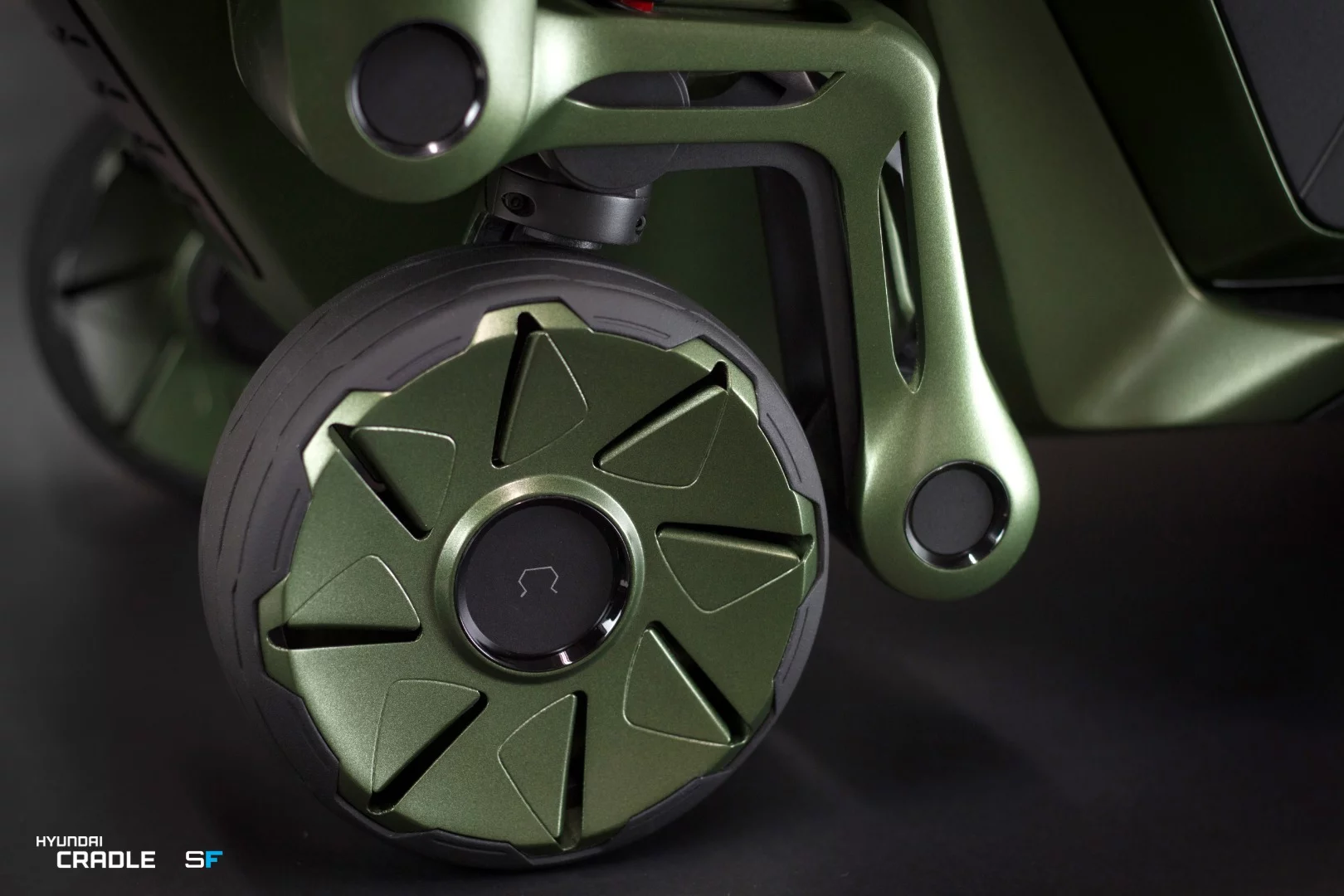

Each wheel is powered by an electric hub motor
8/15
Each wheel is powered by an electric hub motor

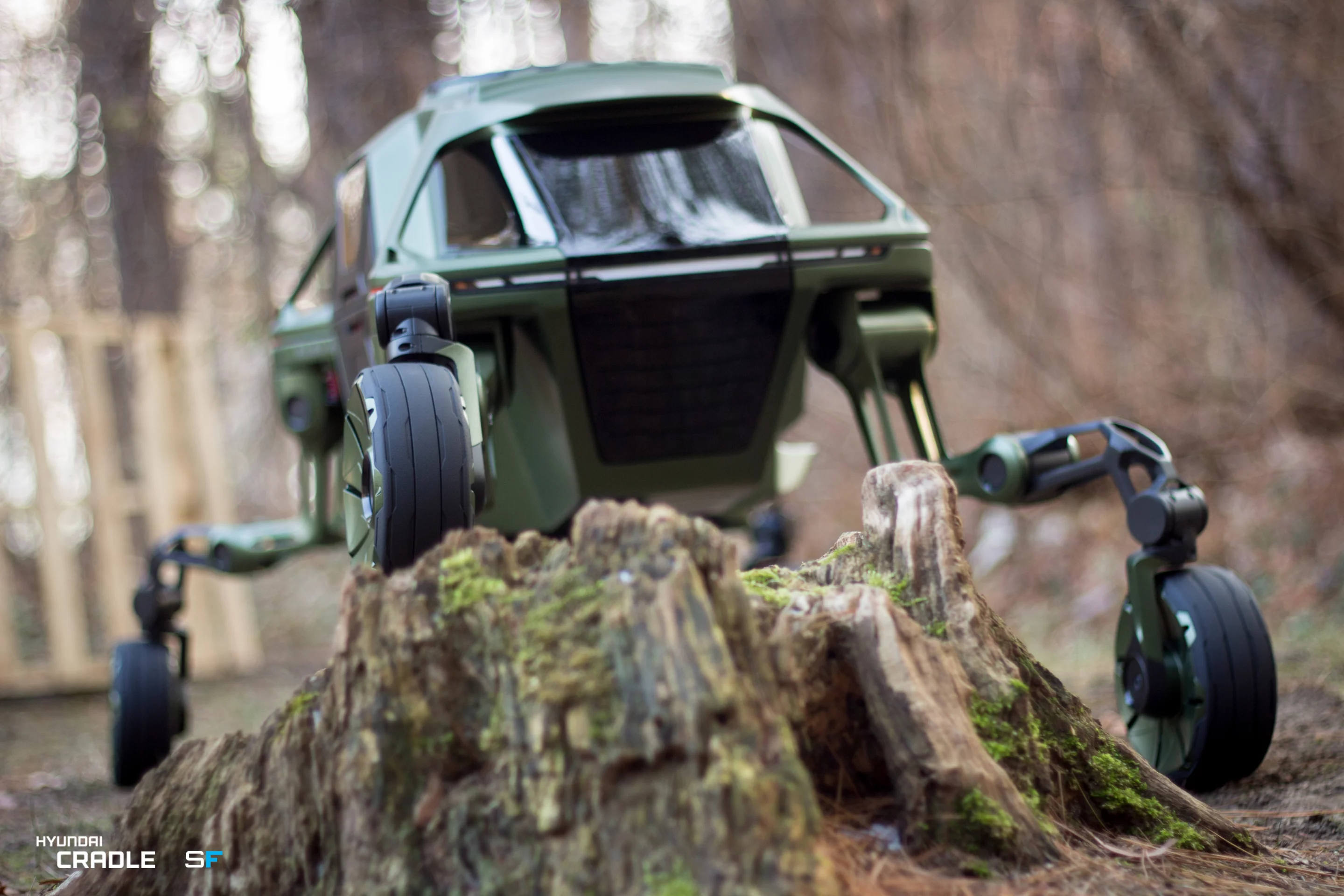

The idea of the Elevate is to get responders into the heart of the disaster zone
9/15
The idea of the Elevate is to get responders into the heart of the disaster zone

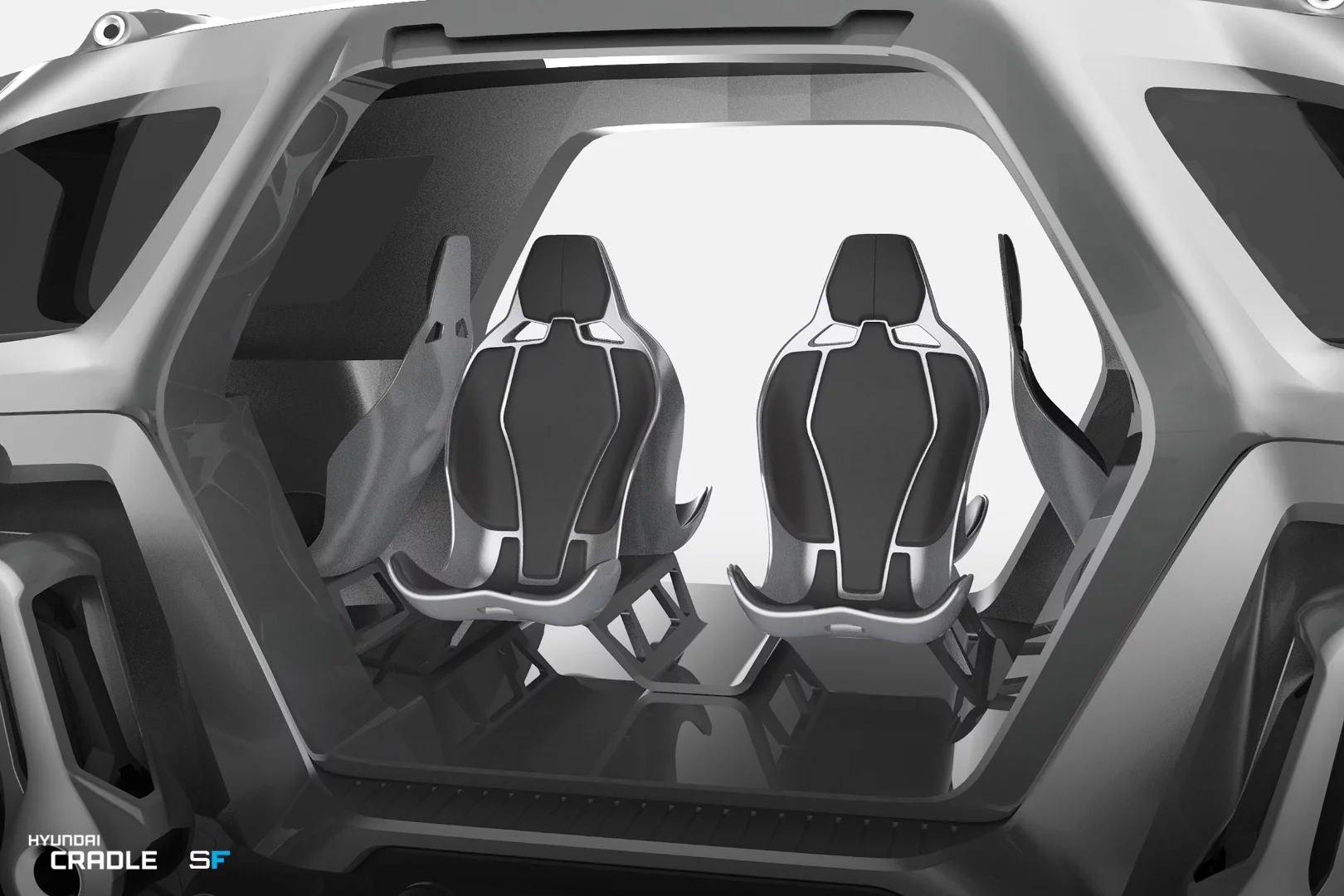

The interior and body would vary based upon specific use
10/15
The interior and body would vary based upon specific use

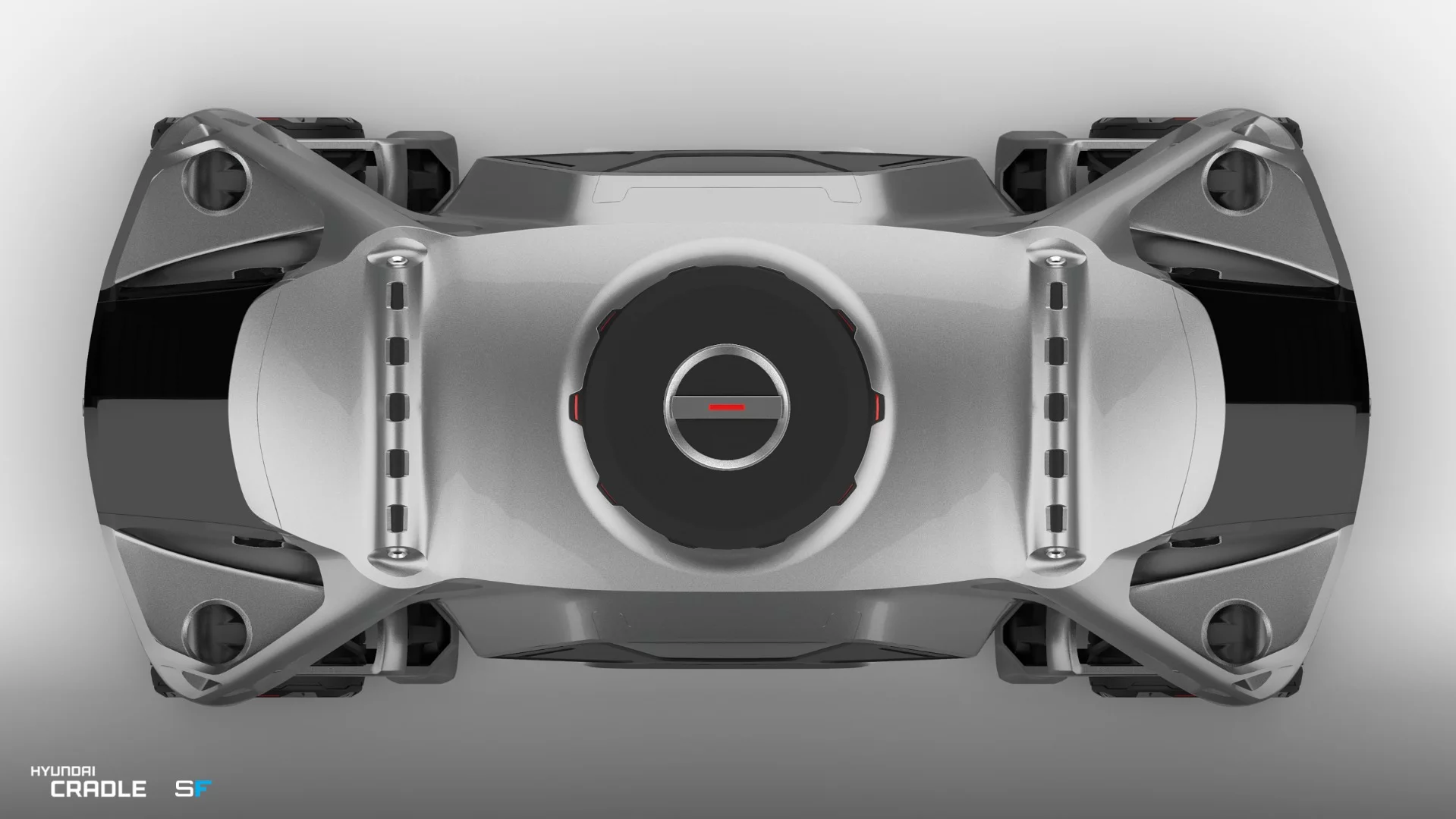

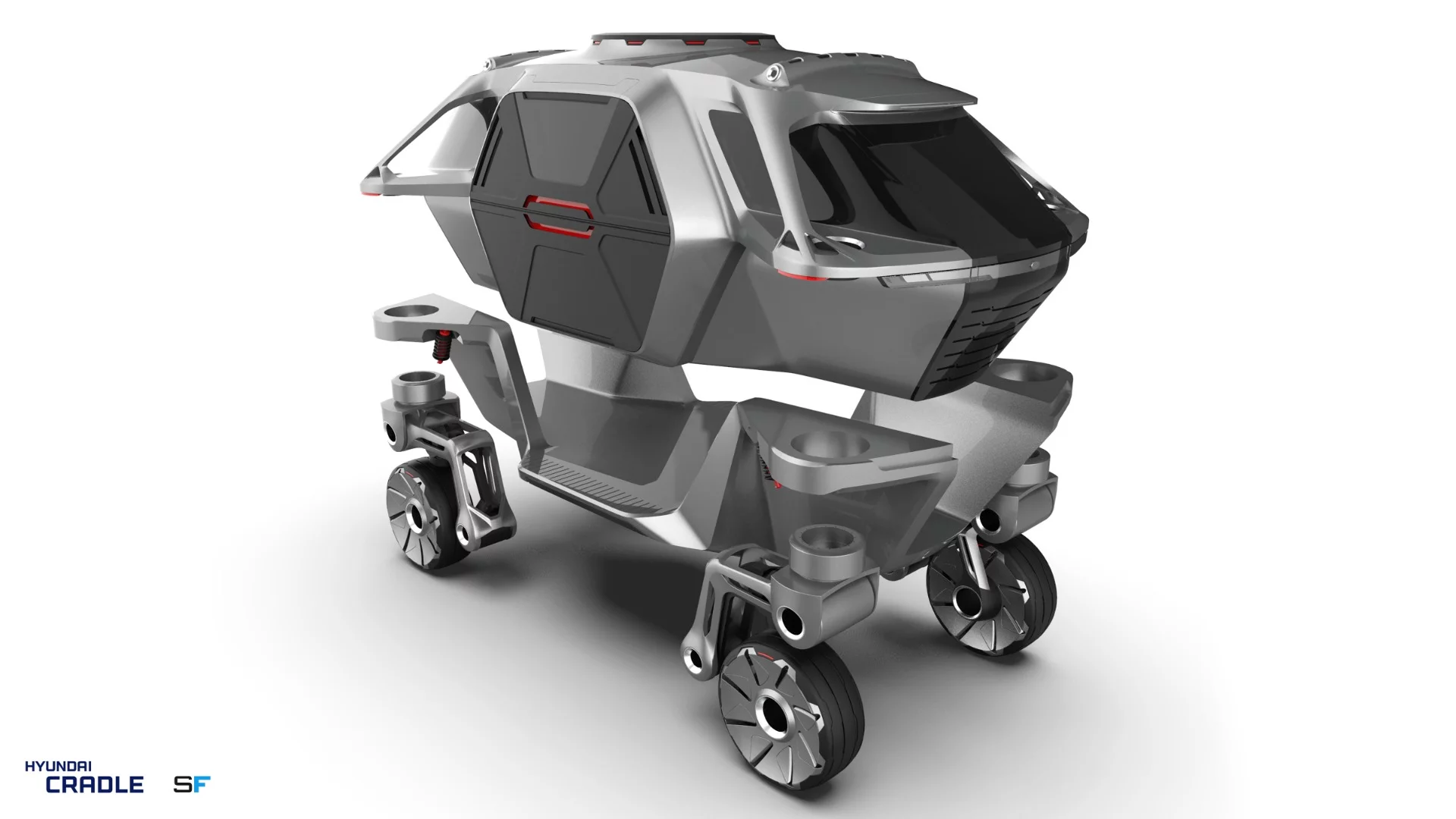

Hyundai Elevate concept
11/15
Hyundai Elevate concept
Hyundai Elevate concept
12/15
Hyundai Elevate concept

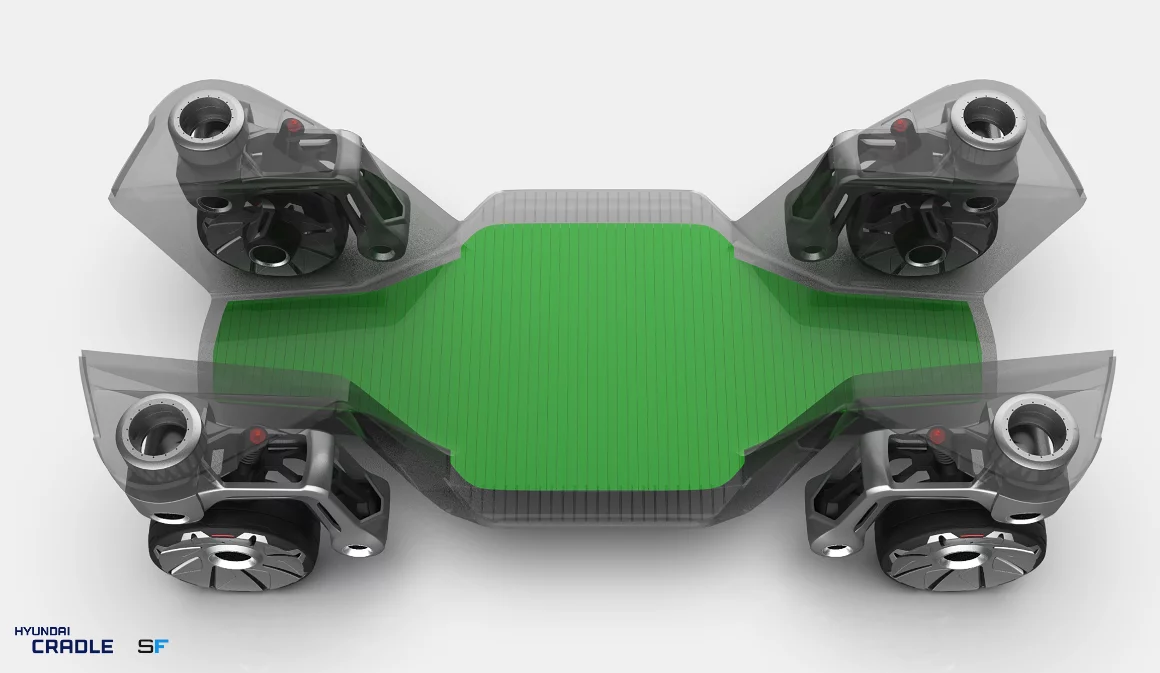

The cradle chassis with wheeled legs could accept various body styles
13/15
The cradle chassis with wheeled legs could accept various body styles

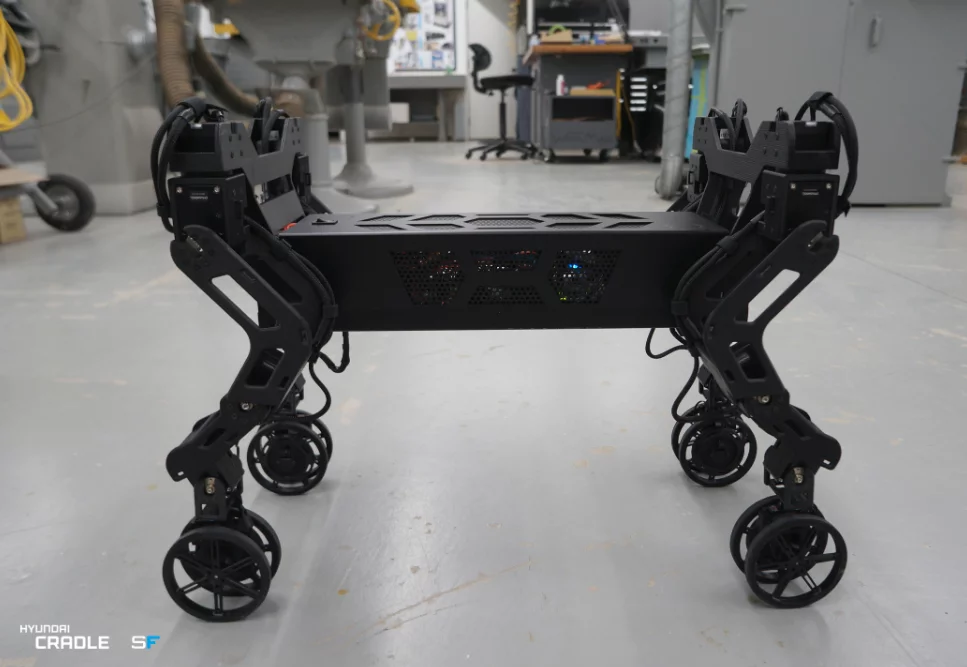

Hyundai Elevate scale model
14/15
Hyundai Elevate scale model
Hyundai Elevate concept
15/15
Hyundai Elevate concept
View gallery - 15 images

Imagine if an emergency vehicle could not only bring the team of responders to the edge of the disaster zone but actually step right in, striding over top flaming rubble to get responders exactly where they need to be. Forget last mile, that's last 100 yards. And that's the all-new Hyundai Elevate concept, moving through the world on fully articulated wheeled legs that let it climb vertical walls, hop over crevasses, crawl like a reptile and quietly cruise the highway on a sunny day.

Developed in a partnership between Hyundai's CRADLE disruptive innovations incubator and Detroit product innovation studio Sundberg-Ferar, the Elevate blends the worlds of robotic and automotive design to become an "ultimate mobility vehicle" (UMV). The concept has been in the works for well over two years and was imagined specifically with emergency response in mind.

"When a tsunami or earthquake hits, current rescue vehicles can only deliver first responders to the edge of the debris field," explains John Suh, Hyundai vice president. "They have to go the rest of the way by foot. Elevate can drive to the scene and climb right over flood debris or crumbled concrete."

Hyundai Elevate concept
Hyundai Elevate concept

In order to achieve this level of mobile autonomy, the Elevate leaves behind conventions like axles and suspension wishbones, replacing them with individually powered wheels mounted to robotic legs. Each leg includes five degrees of movement via integrated vertical and horizontal hip joints, a knee joint, an ankle joint and a rotational steering joint that spins the wheel 360 degrees around a vertical axis. Hub motors in the wheels team to provide propulsive power.

During normal highway driving, the legs compact inward toward the body, allowing the Elevate to drive along like any electric car. A passive suspension system takes over cushioning in this mode, and power to the leg joint actuators is cut to improve range and efficiency.

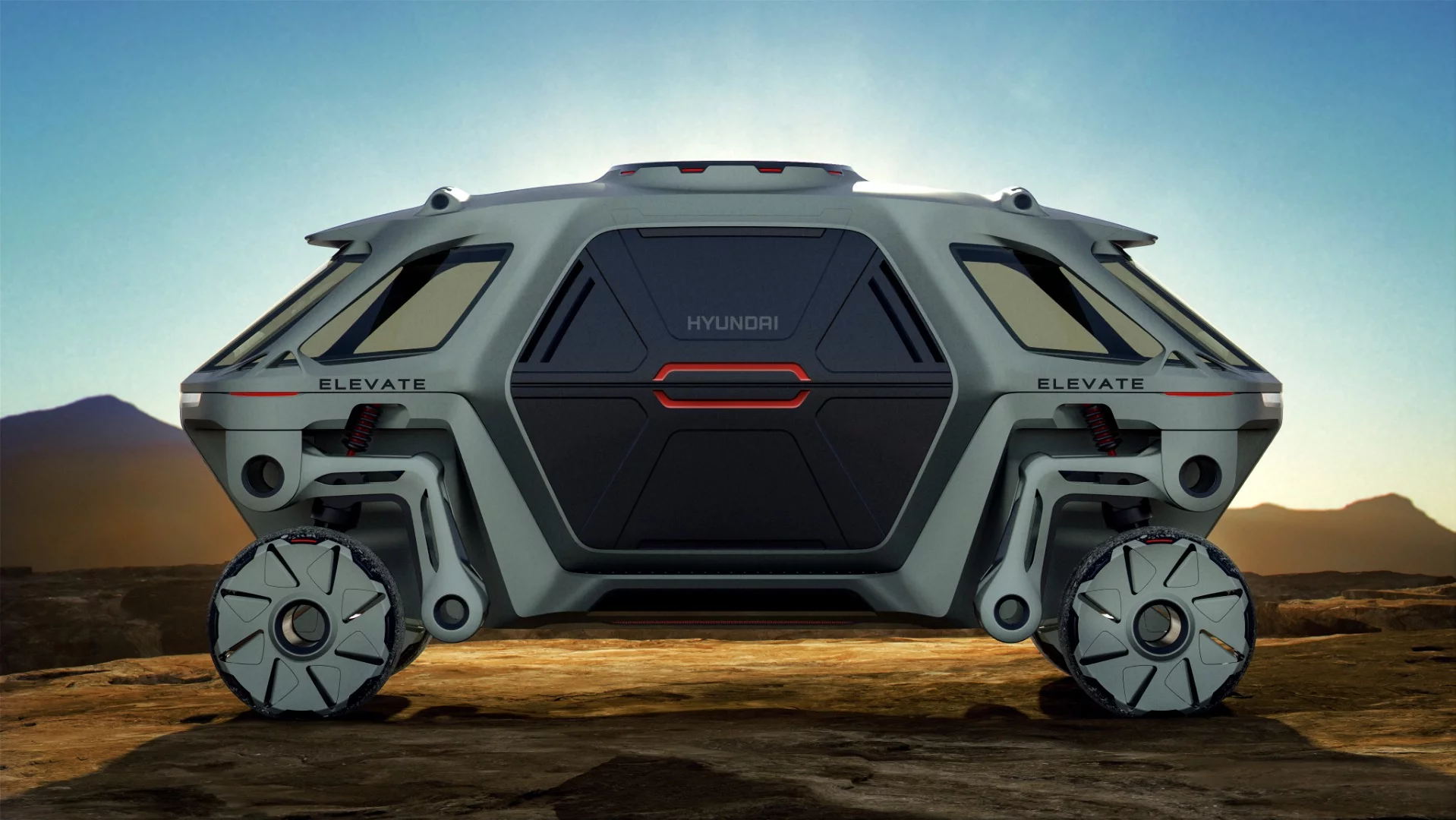

When the Elevate's legs compact down, it drives like a regular car at highway speeds, relying on a passive suspension system to eat up bumps
When the Elevate's legs compact down, it drives like a regular car at highway speeds, relying on a passive suspension system to eat up bumps

When flat ground gives way to ultra-bumpy rock or rubble, the Elevate can use the height and power of its legs to react, standing tall and clearing large obstacles, crawling along like a reptile, climbing walls up to 5 feet (1.5 m) high, stepping over holes up to 5 feet across or spreading its track to a full 15 feet (4.6 m). In this way, the driver can negotiate terrain that would be deemed impassable for any other auto, defeating obstacles like large boulders, deep snow and steep hills, all while the vehicle body stays completely level.

Suddenly, vehicles like the Jeep Gladiator and Action Mobil Pure Zetros don't look quite so "go anywhere" as they used to.

The drive motors and electric actuators powering the Elevate are wired to a 66-kWh battery pack. Project engineers arrived at the battery size by running simulations of the Rubicon Trail, and determining the onboard battery capacity required to power the leg articulation and propulsion involved in traveling the entirety of the rugged 22-mile (35-km) American trail.

Emergency response remains a major driver behind the design, but it's not the only use Hyundai and Sundberg-Ferar have come up with. In fact, the Elevate is modular, the legged electric chassis able to accept various body types for different use cases.

In addition to emergency response, Hyundai sees the Elevate finding use as a taxi for the disabled
In addition to emergency response, Hyundai sees the Elevate finding use as a taxi for the disabled

"People living with disabilities worldwide that don't have access to an ADA ramp could hail an autonomous Hyundai Elevate that could walk up to their front door, level itself, and allow their wheelchair to roll right in," Suh gives as another example.

Hyundai debuted the Elevate concept at CES 2019 on Tuesday. You won't be seeing it walking past your living room window just yet, but you can have a closer look in the video below.

Project Elevate | Hyundai

Source: Hyundai and Sundberg-Ferar
