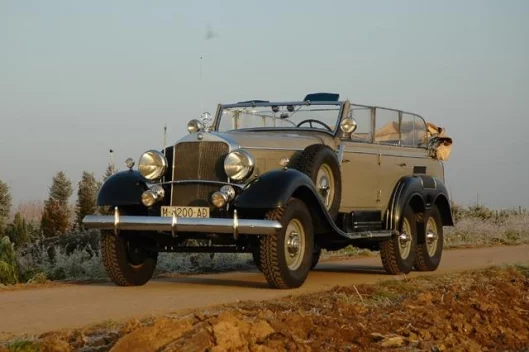

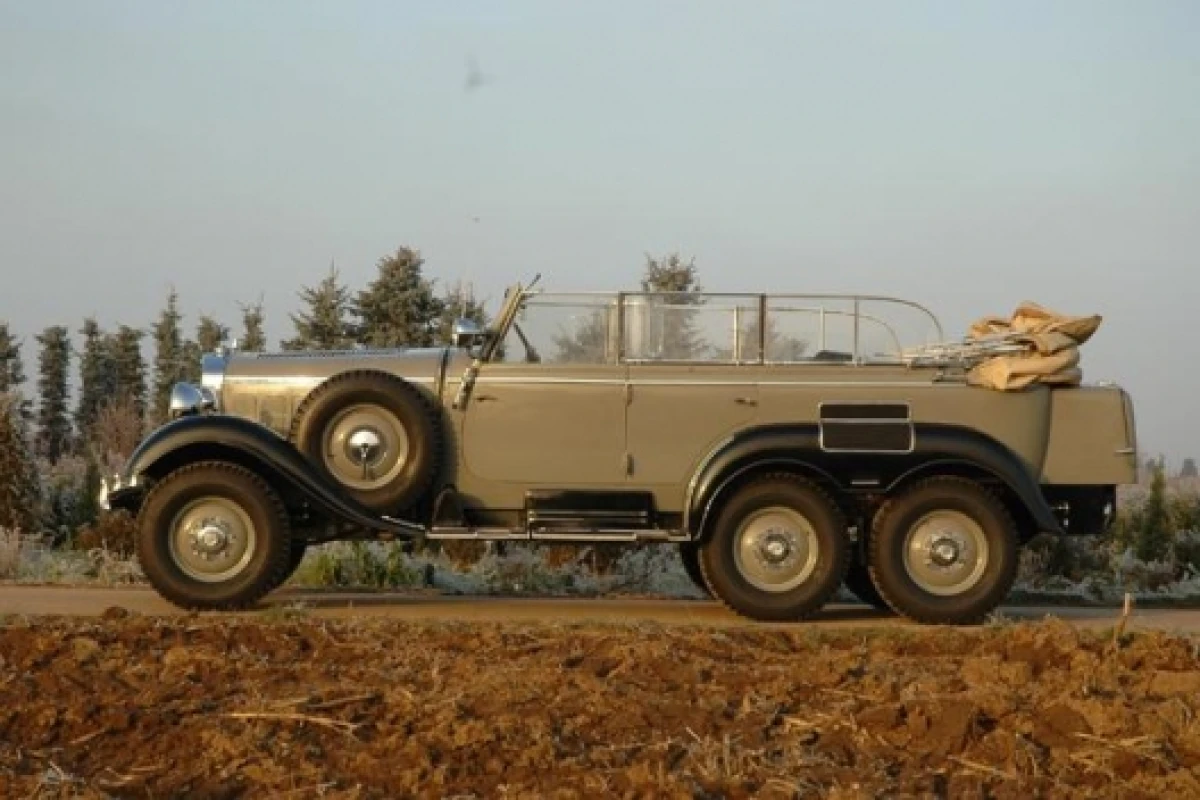

The extremely rare Mercedes-Benz G4 offroader, fully operational with completely overhauled mechanical components but with all the deliberately retained traces of its venerable age.
The extremely rare Mercedes-Benz G4 offroader, fully operational with completely overhauled mechanical components but with all the deliberately retained traces of its venerable age.
View 9 Images
1/9
The extremely rare Mercedes-Benz G4 offroader, fully operational with completely overhauled mechanical components but with all the deliberately retained traces of its venerable age.
2/9
The extremely rare Mercedes-Benz G4 offroader, fully operational with completely overhauled mechanical components but with all the deliberately retained traces of its venerable age.

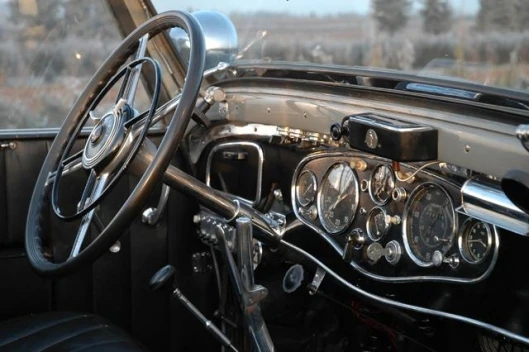

The dashboard of the G4 - exquisite detail
3/9
The dashboard of the G4 - exquisite detail

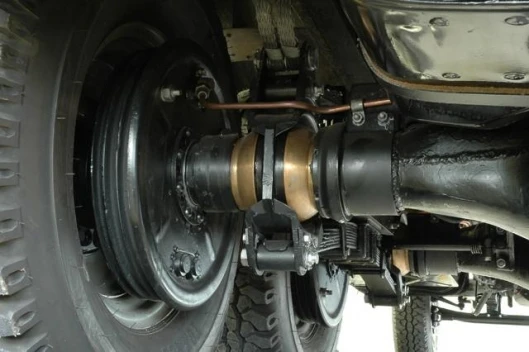

The 1939 G4 rear axle in detail
4/9
The 1939 G4 rear axle in detail

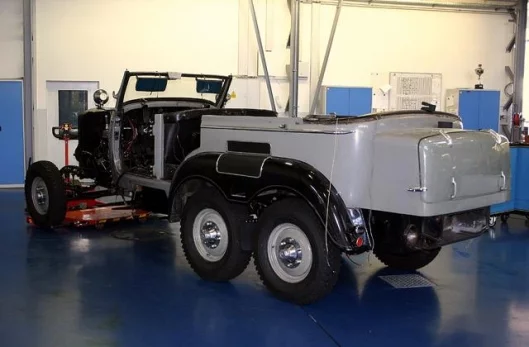

The body back in place.
5/9
The body back in place.

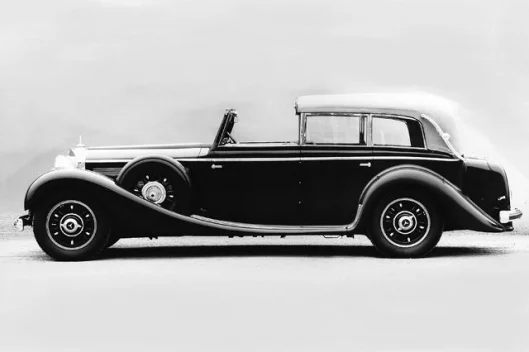

When the imposing 770 "Grand Mercedes" was introduced at the 1938 Berlin Motor Show, it was a vehicle of the highest order. Technical highlights included included an oval tubular frame, independent wheel suspension with coil springs at the front, a De Dio
6/9
When the imposing 770 "Grand Mercedes" was introduced at the 1938 Berlin Motor Show, it was a vehicle of the highest order. Technical highlights included included an oval tubular frame, independent wheel suspension with coil springs at the front, a De Dio

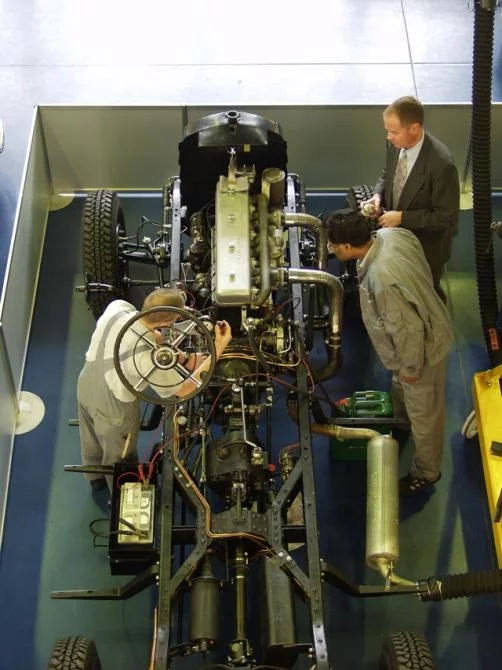

Craftsmen going about their work on this rare vehicle.
7/9
Craftsmen going about their work on this rare vehicle.

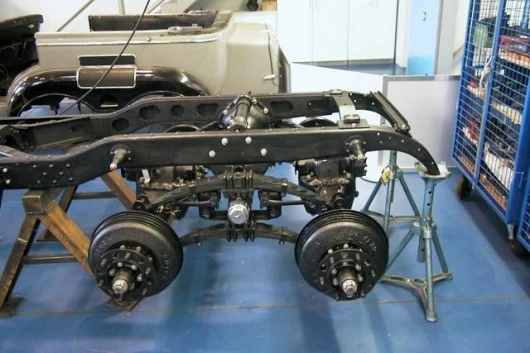

The 1939 Mercedes-Benz G4 offroader: Fitting of the rear axles.
8/9
The 1939 Mercedes-Benz G4 offroader: Fitting of the rear axles.

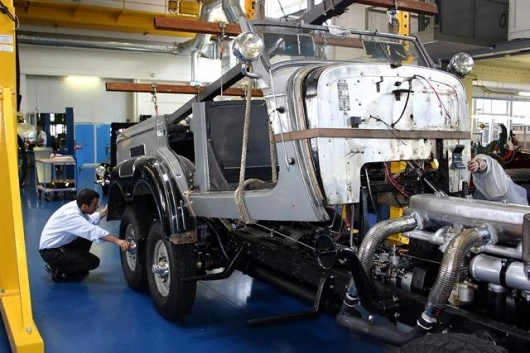

The bodywork is mounted back to the chassis
9/9
The bodywork is mounted back to the chassis
View gallery - 9 images

February 6, 2005 The 1939 Mercedes-Benz G4 offroader is an extremely rare vehicle: originally a gift to Spanish dictator General Franco and now owned by the Spanish royal family, it is one of just a few surviving units of this three-axle offroader originally developed for the German army – just three of the total of 57 units built are still considered absolutely authentic with a meticulously documented history. A no-expense-spared, three-year restoration was recently undertaken at the Mercedes-Benz Classic Centre with a correspondingly unusual request: the G4 was to be restored to a technically impeccable condition but was to retain its unique patina acquired in the course of its 66-year life. The restoration of the vehicle was a gift from Mercedes-Benz España to the Spanish Royal family and makes for fascinating reading:

The 1939 Mercedes-Benz G4 offroader is an extremely rare vehicle: owned by the Spanish royal family is one of just a few surviving units of this three-axle offroader – just three of the total of 57 units built in the 1930s are still considered absolutely authentic, plus a handful of others without such meticulously documented history.

The restoration order placed with the Mercedes-Benz Classic Center was correspondingly unusual: the G4 was to be restored to a technically impeccable condition but was to retain its unique patina acquired in the course of its 66-year life.

A first quick glance may therefore seem disturbing for a vehicle that has just undergone three years of painstaking restoration. That’s because the restorers deliberately refrained from removing the traces of use in the interior and minor blemishes in the bodywork. These traces and blemishes were left on request of the owners, as they testify to the G4’s history and authenticity.

Before the G4 joined the Spanish royal fleet, it was used by General Francisco Franco who had been given this car as a present from Germany in the first year of his 36 year rule. Since Franco’s death in 1976, the offroader has been lovingly serviced and maintained by the Royal Guard – the Madrid-based Guard hold the automotive classics in the royal fleet in high esteem.

When it was decided to have the G4 restored by the Mercedes-Benz Classic Center, together with an equally extraordinary car of its day and age, a Mercedes-Benz 770, the cars were given an almost ceremonial farewell in Madrid, and an armed escort accompanied the truck convoy to the French border.

The cars arrived at the Mercedes-Benz Classic Center in Fellbach near Stuttgart in September 2001. The large 770 limousine is still there, undergoing restoration. The work on the G4, completed in December 2004, is a present by Mercedes-Benz España to the Spanish royal family.

The first inspection of the G4 in the workshop of the Classic Center revealed numerous traces of use over the years but the vehicle was otherwise in excellent condition overall.

In a first step, the soft-top was removed and the bodywork was lifted off with utmost care to gain access to the chassis. In the course of the subsequent painstaking restoration, no component, however small, remained untouched. All the mechanical components were disassembled, cleaned, repaired and put together again – an attention to detail that was responsible for consuming three years of restoration work.

The experts reconstructed several functions of the elaborate engineering and made them operational again. The original parts were retained wherever this was possible – another brief for the restoration work. The extent of this is illustrated by the fact that every screw, every bolt and every sleeve was scrupulously inspected, re-machined and returned to its original position whenever possible.

Another example: the inner components of the exhaust system, which were still operational, were left in their original condition whereas the dilapidated exterior components underwent true-to-the-original restoration. Non-original components were replaced by components re-produced on the basis of the old blueprints.

The three axles of the offroader were completely dismantled and overhauled. The mechanical drive assemblies proved to be in extremely good condition, yet they are a good example for the scope of work invested. It took a 20-ton press in the Mercedes-Benz factory in Untertürkheim to loosen the rigid shafts on the rear axles. The numerous gearwheels were cleaned in a special process based on diesel fuel because the latter’s oily consistency ensured clean surfaces yet retained a protective grease film.

After the completion of the work, it was not possible to use modern lubricants into the axle housings because they would have had a corrosive effects on the bronze components in the differentials. The required oil also had to have a high shear resistance, so a lengthy search was undertaken for the best possible solution, with the experts ultimately deciding in favor of a special castor-based lubricant.

Finding the right tyres was a similararly exacting process. To be restored to a fully operational condition, the G4 needed eight new tyres including the spares and these were not easy to come by, given the required dimensions, the stability to match the vehicle’s high weight plus the appropriate offroad tread. Quite some time passed by before the right tires were located in America.

The G4 has four forward gears, gears two through to four being synchronized. A countershaft transmission serves as a reduction gear, making four additional crawler gears available. For operation in difficult terrain, the differentials are self-locking, an engineering feature that was unique for offroaders at the time the G4 was built and for quite some time to come.

The G4 is powered by an M24 II eight-cylinder in-line engine with a displacement of 5.4 liters – very similar to the engine which was also used in the 540 K sports car, though without a supercharger to boost performance at high speeds. The designers of the G4 decided against a supercharger because the car, weighing some 3.7 tons, has a top speed of just 67 km/h – the tires do not permit any higher speeds. It is this massive weight that accounts for the G4’s somewhat limited offroad capabilities.

The aim of restoration was “an impeccable technical condition”, and this also meant roadworthiness. Hence, the scope of work also included the repair of the brakes, a dual-circuit system testifying to the high technical standard of the overall design. Not only did the mechanical components have to be overhauled, new brake lines also had to be installed, which had to be specially manufactured: copper cables in the required dimensions and strength were just not available “off the shelf”.

The same applies to the fuel lines which had to also be specially manufactured. The clean, symmetrical layout of the cables in the chassis almost resembles a work of art. Numerous innovative features of the vehicle are evident - the driver is offered additional braking assistance in order to decelerate the massive vehicle effectively. A piston operated by a vacuum cylinder additionally acts on the brake pedal via a cable mechanism. This technical feature, including a leather sleeve in the vacuum reservoir, had to be fully reconstructed.

The designers of the G4 played it safe as far as fuel supply wass concerned: the car has two electric fuel pumps, plus a mechanical pump and, in case all three fail, the engine can still be supplied with gasoline from a spare gravity fuel tank.After the restoration, the chassis with all its components looked very much as it did in the 1930s, i.e. rather austere as the paint coat of numerous parts had not been sprayed on but applied by means of a brush, resulting in corresponding surfaces. This method was therefore also used in restoration, maximum originality being the top priority at all times.

The G4 has numerous electric functions and therefore a highly complex circuitry. Unfortunately, a wiring-diagram was no longer available so the entire electrical system had to be reconstructed with painstaking attention to detail and a new cable harness was manufactured, which proved to be a highly complex undertaking. For instance, the G4 features a central switch which shuts off all electricity consumers, with only the electric components required for engine operation still being supplied.

Every single switch on the G4 was dismounted and repaired, at times with the most delicate tools which are reminiscent of a dentist rather than an automotive expert. Even the pale blue illumination of the Virgin Mary badge attached to the cockpit is in working order again, thanks to specially modified miniature light bulbs. All gauges were overhauled, and the precision of the electric clock was monitored and adjusted over the course of many weeks.

Today, it indicates the time almost as precisely as a modern quartz clock. The orange-colored plastic in the direction indicators was beyond repair and had to be replaced. After intensive treatment, the tubular radio plays again as it did before. And when required, attention is drawn to the car by four horns - two for city traffic and two louder ones for overland trips – or a siren.

The bodywork remained largely untouched – the brief had been to refrain from cosmetic restoration. The specialists cleaned the paint coat and polished the chrome parts, but that was largely the extent of it. Only the lower sections of the doors showed signs of rust which was removed as a matter of course. The bodywork’s sheet metal is lined on the inside with stabilizing wooden elements, a customary construction for cars at the time. These wooden elements were in good condition and were therefore merely cleaned and impregnated with a special fluid to protect them from drying out.The interior reveals traces of the car’s age of more than 65 years but is otherwise in almost impeccable condition – not least thanks to the care lavished on the car by the Royal Guard. Gentle restoration work will, if at all, be carried out in Spain where people have plenty of experience in the repair of valuable horse-drawn carriages, for instance – an expertise from which the G4 will be able to benefit.

After the restoration of the royal G4’s chassis, the car was taken to the test track on the premises of the Mercedes-Benz plant in Untertürkheim for trial driving to check on the perfect functioning of all components.

After the tests, the finishing touches were added to the engineering and the last adjustments were made. Then came the great moment: the bodywork was mounted back to the chassis, repeating the act of “wedding”, as this is known in automotive lingo, and the G4 came back into being, 66 years after its first completion in 1939.

And now, the fleet of the Spanish royal family includes a truly unique vehicle, the extremely rare Mercedes-Benz G4 offroader, fully operational with completely overhauled mechanical components but with all the deliberately retained traces of its venerable age. It is thus a very special witness to contemporary and engineering history.General information: Mercedes-Benz G4 (W 31 series)

General data:Wheelbase: 3100 + 950 mmFront/rear track width: 1620/1570/1570 mmDimensions (length x width x height): 5360-5720 x 1870 x 1900 mm (with soft-top)Turning circle: 17 metersWeight: approx. 3700 kg (in ready-to-drive condition)Permissible gross weight: 4400 kgTop speed permitted by the tires: 67 km/h Fuel consumption: 28 liters/100 km (urban), 38 liters/100 km (offroad)Fuel tank capacity: 90 liters, on some units 140 litersEngineDaimler-Benz M24 or M24 II eight-cylinder in-line engineTotal displacement: initially 5018 cc, later 5401 ccBore x stroke: 86 x 108 mm / 88 x 111 mmOutput: 100 hp / 110 hp at 3400/minTorque: 28.8 mkg at 1400/minCompression ratio: 1:5.6 / 1:5.2Mixture formation: one double carburetorValves: overhead, lateral camshaft, driven by spur gearsCooling: pump, 26 liters of waterLubrication: force-feed, ten liters of oilBattery: 12 V 60 Ah / 12 V 105 AhAlternator: 130 kWStarter motor: 1.5 hp / 1.8 hp

TransmissionFour driven rear wheels, two self-locking differentialsClutch: single-plate dry clutchTransmission: four-speed manual and countershaft transmissionRatios: I/4.10, II/2.21, III/1.49, IV/1.00Drive ratios of countershaft transmission: road/1.00, offroad/3.06

Chassis Box-section frameFront wheel suspension: rigid axle, semi-elliptic springsRear wheel suspension: two rigid axles, one semi-elliptic spring for two wheels on each sideSteering: helical spindleBrakes: dual-circuit system, hydraulic with vacuum assistance, acting on front and rear wheels; mechanical hand-operated parking brake, acting on front wheelsLubrication: centralWheels: steel disc wheels with drop center rims, size L 4.00 F x 17; with self-sealing tires: size 6.00 F x 17Tires: 7.5-17 with offroad tread (normal or self-sealing)
