Toyota reveals Project Portal Beta fuel cell truck

By Aaron Turpen
July 31, 2018
Toyota reveals Project Portal Beta fuel cell truck
The new Project Portal Beta truck builds on the lessons learned from the Alpha truck introduced in 2017
The new Project Portal Beta truck builds on the lessons learned from the Alpha truck introduced in 2017
View 6 Images
The Beta, or Project Portal 2.0, truck has a similar drivetrain to the original
1/6
The Beta, or Project Portal 2.0, truck has a similar drivetrain to the original
Andrew Lund, chief engineer for Project Portal, at the Beta truck’s launch
2/6
Andrew Lund, chief engineer for Project Portal, at the Beta truck’s launch

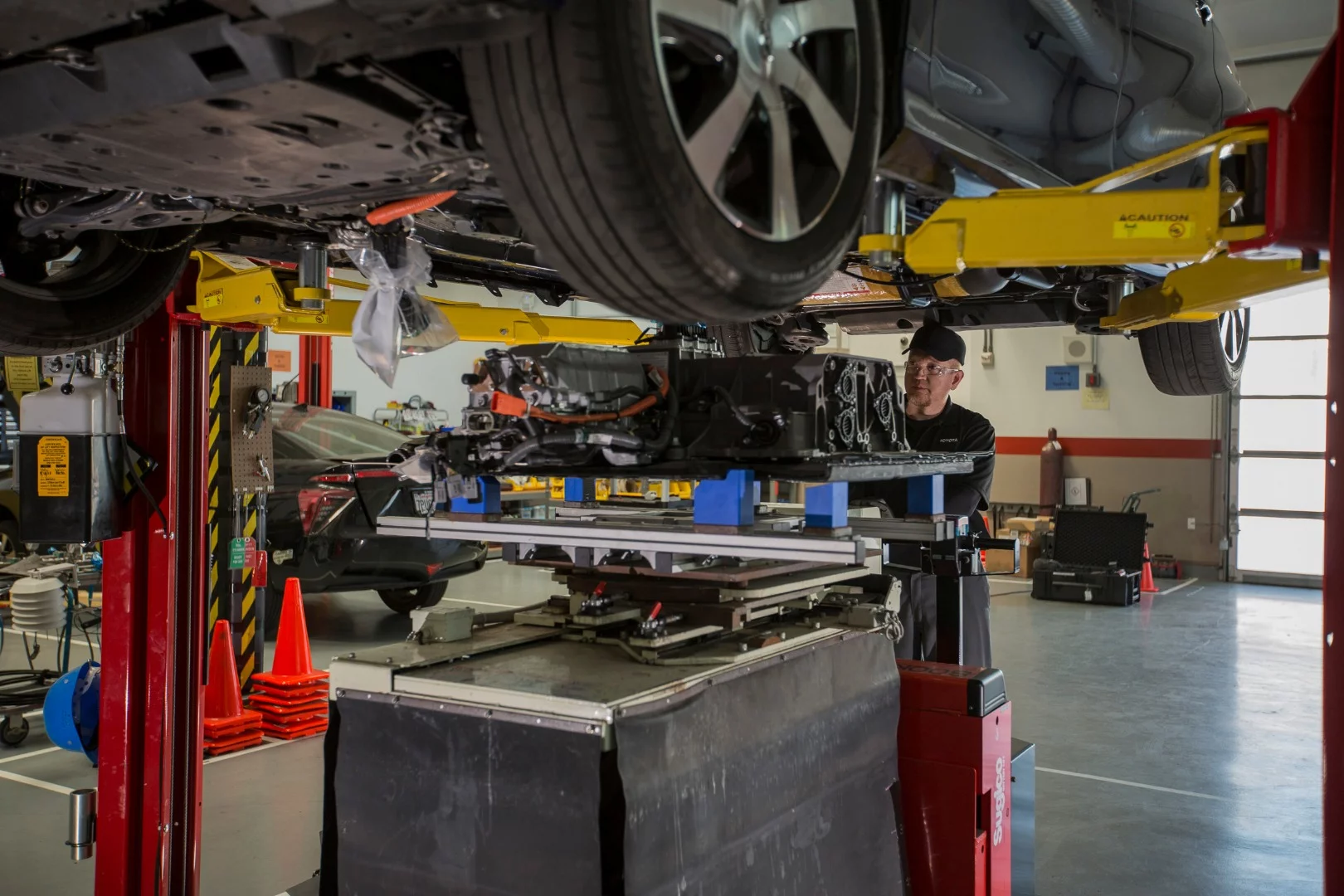

Design engineering for the Beta truck came after over 10,000 miles of real-world use were put on the original
3/6
Design engineering for the Beta truck came after over 10,000 miles of real-world use were put on the original

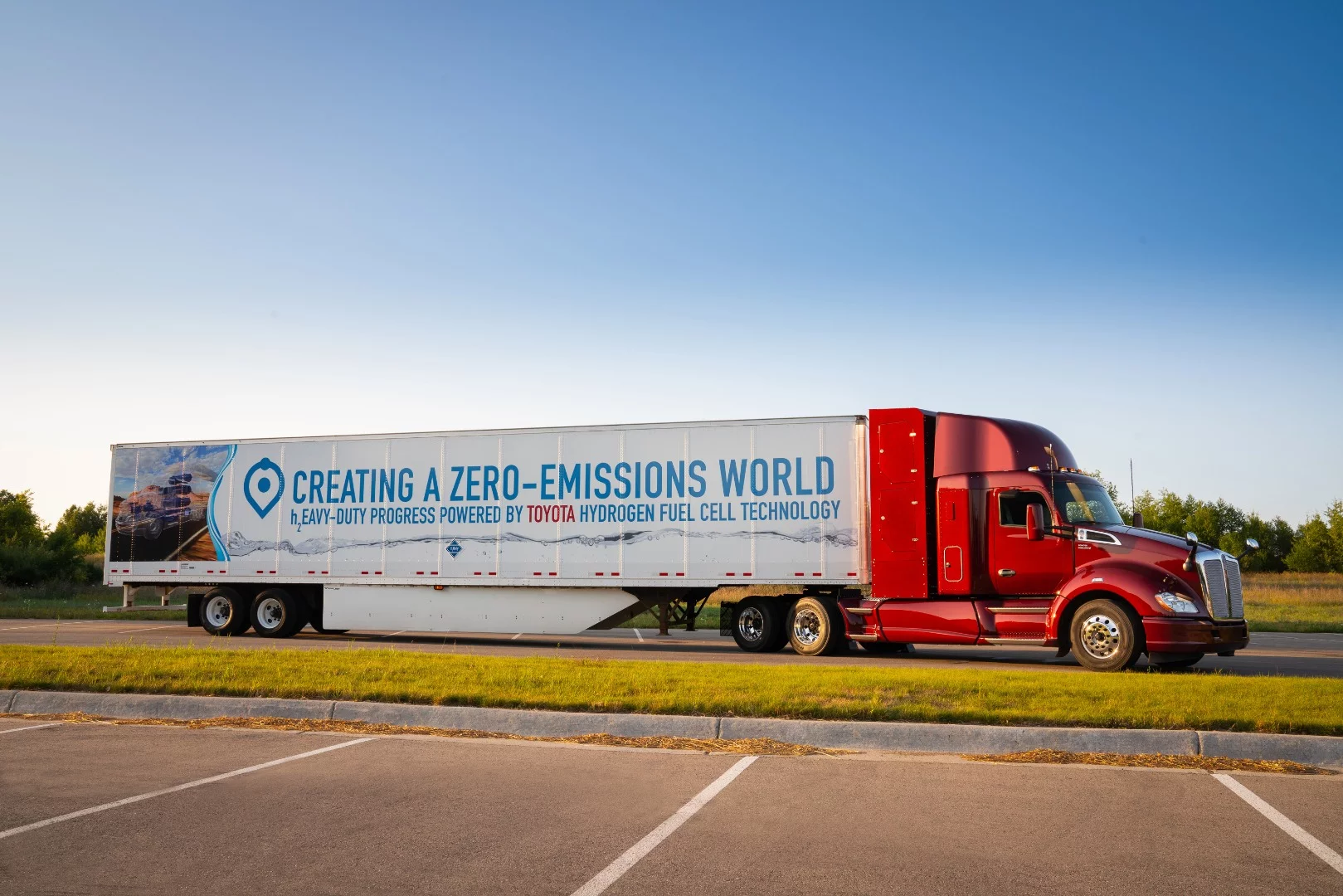

The Project Portal Beta truck has over 300 miles of range, about 50 percent more than the Alpha truck
4/6
The Project Portal Beta truck has over 300 miles of range, about 50 percent more than the Alpha truck
Committed to hydrogen and fuel cells, Toyota plans to build a huge megawatt-sized facility at the Port of Long Beach for hydrogen production on-site
5/6
Committed to hydrogen and fuel cells, Toyota plans to build a huge megawatt-sized facility at the Port of Long Beach for hydrogen production on-site
The new Project Portal Beta truck builds on the lessons learned from the Alpha truck introduced in 2017
6/6
The new Project Portal Beta truck builds on the lessons learned from the Alpha truck introduced in 2017
View gallery - 6 images

Toyota has unveiled its second prototype of the Project Portal hydrogen fuel cell truck. This "Beta," as Toyota refers to it internally, is the second iteration of the truck, adding more range, more room in the cab, and better usability. This is a more commercially-viable truck, Toyota says.

The new Project Portal Beta truck builds on the lessons learned from the Alpha truck introduced in 2017. That original rendition has logged more than 10,000 miles (16,093 km) of real-world drayage (container moving) operations in the Ports of Long Beach and Los Angeles. The Alpha truck continues to run as Toyota prepares to send the Beta truck into the same workspace later this year.

"We needed to move beyond a proof of concept, which the first truck accomplished, to something that is not only better than the original but is also more commercially viable," said Andrew Lund, chief engineer for Project Portal at the Beta truck's launch.

The Project Portal Beta truck has over 300 miles of range, about 50 percent more than the Alpha truck
The Project Portal Beta truck has over 300 miles of range, about 50 percent more than the Alpha truck

The Beta, or Project Portal 2.0, truck has a similar drivetrain to the original, using the same motors for the same 670-plus horsepower (500 kW) and 1,325 pound-feet (1,796 Nm) of torque. The electronics, wiring, 12-kWh battery, and fuel cell technologies used in the Toyota Mirai fuel cell vehicle are being used in the Project Portal trucks. What's changed with the Beta edition is an added capacity for hydrogen storage to extend range by about 50 percent.

At the same time, hydrogen storage tanks have been reconfigured to add more interior room without extending the wheelbase or affecting trailering operations. Toyota did this and created more usability and refinement to accommodate the driver and those who work around the truck. The truck also anticipates the company's installation of a huge hydrogen fueling station at the ports.

The Tri-Gen facility will be the first megawatt-sized carbonate fuel cell power generation plant in the world. Using 100 percent renewables, the plant will utilize agricultural waste to generate the water and hydrogen required to support the logistics of the project trucks and electricity for use in the Port of Long Beach.

You can see the build process, in the following video.

Source: Toyota

Toyota Project Portal Fuel Cell Truck Build in Time Lapse

View gallery - 6 images
