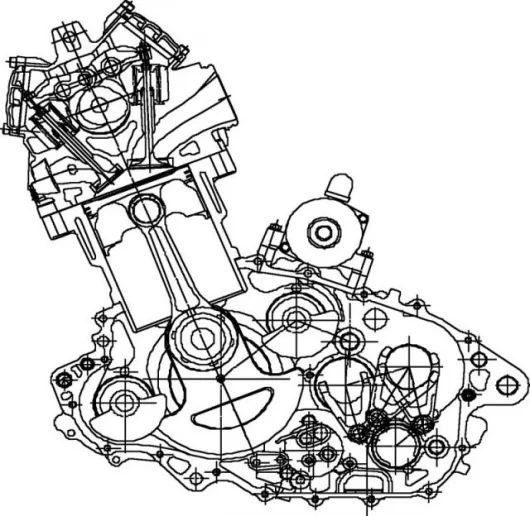

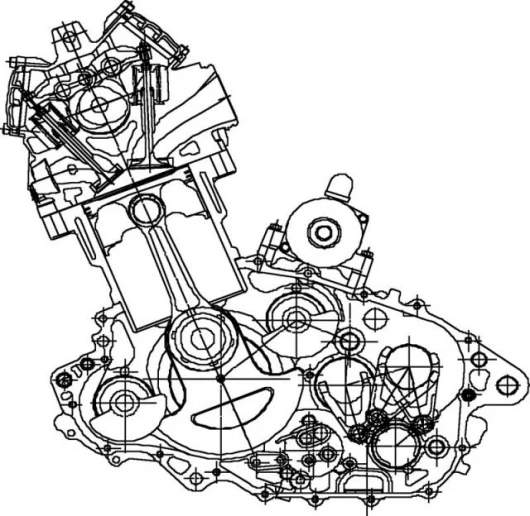

The 700cc motor
3/15
The 700cc motor
Big drifties - woo woo
4/15
Big drifties - woo woo
5/15

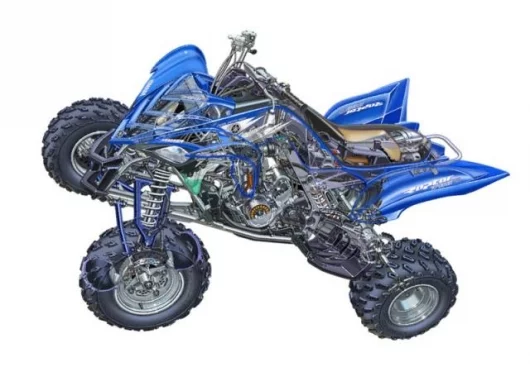

Cutaway drawing of Raptor
6/15
Cutaway drawing of Raptor

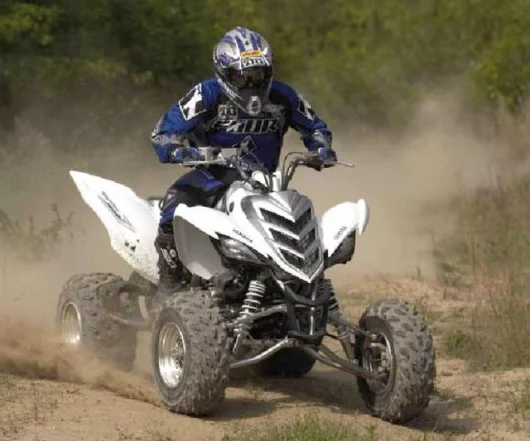

Raptor
7/15
Raptor

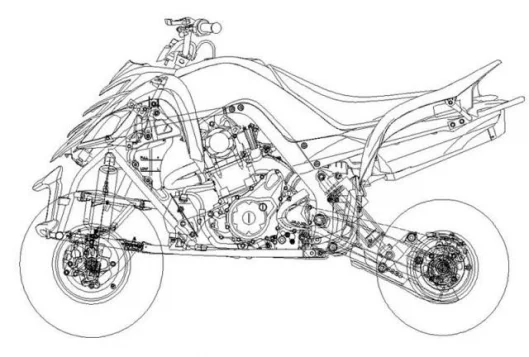

Detailed line-drawing of the Raptor
8/15
Detailed line-drawing of the Raptor

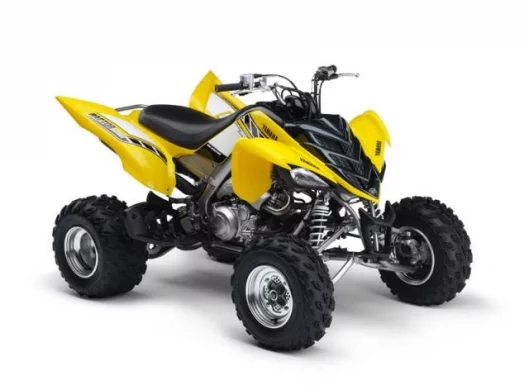

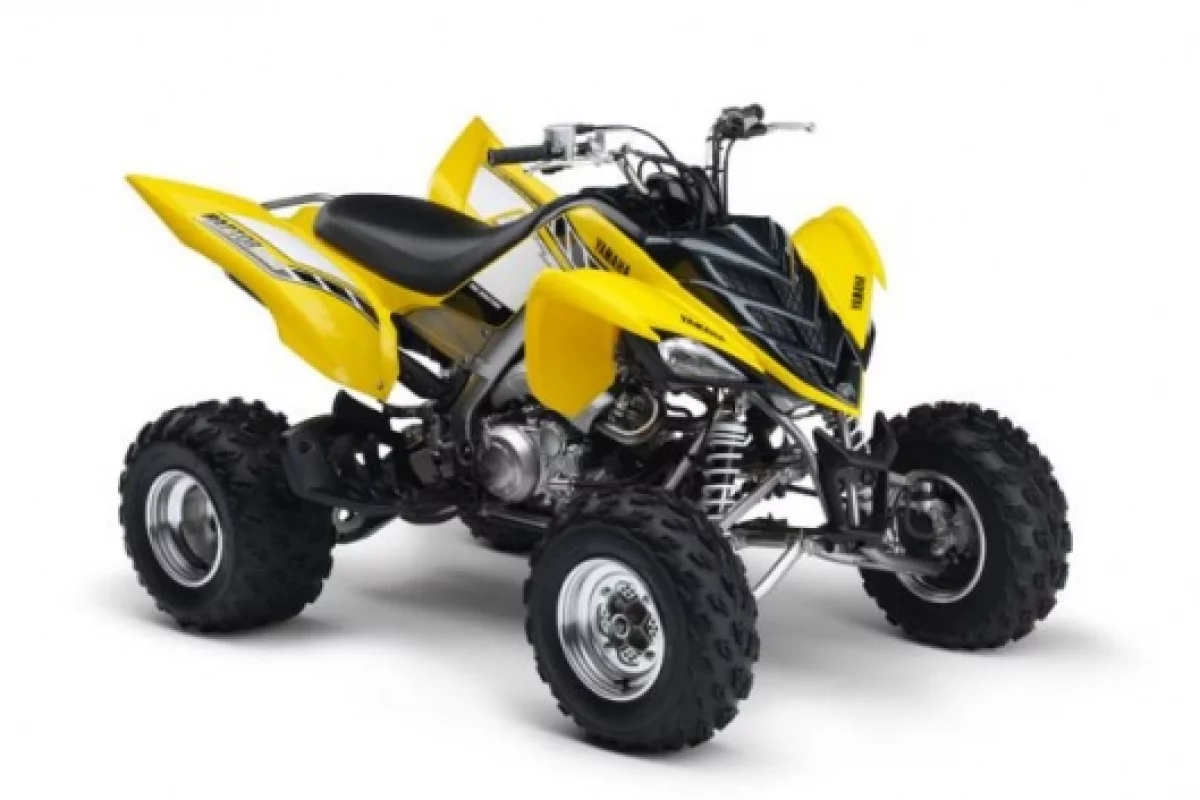

The Yellow and black anniversary model
9/15
The Yellow and black anniversary model

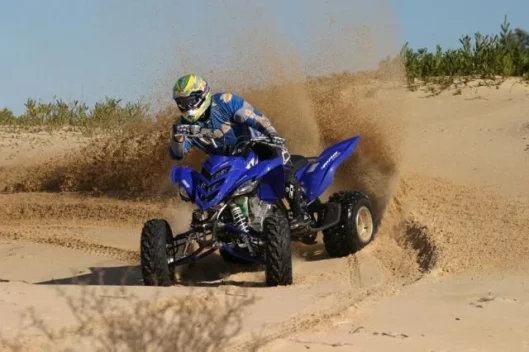

Raptor 700
10/15
Raptor 700

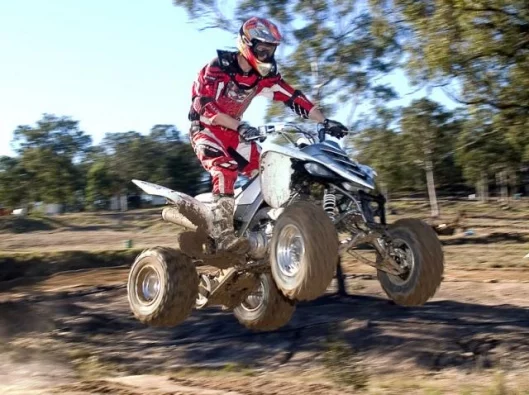

Raptor 700 on the MX track
11/15
Raptor 700 on the MX track
The Raptor in the dunes
12/15
The Raptor in the dunes

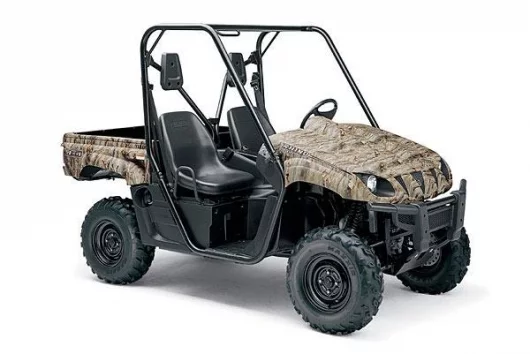

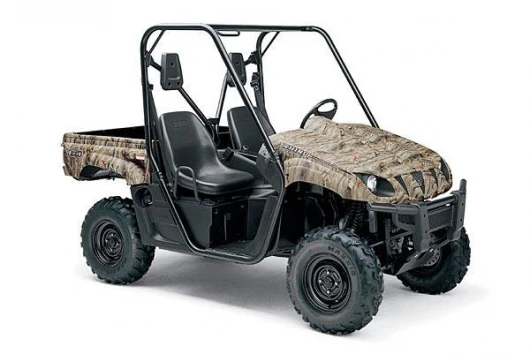

The Rhino
13/15
The Rhino

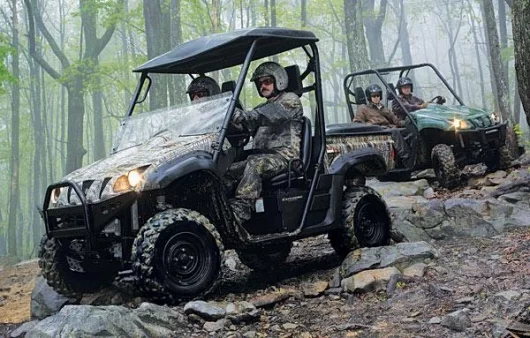

Hunting, camping, traversing distances in wild conditions - the Rhino
14/15
Hunting, camping, traversing distances in wild conditions - the Rhino

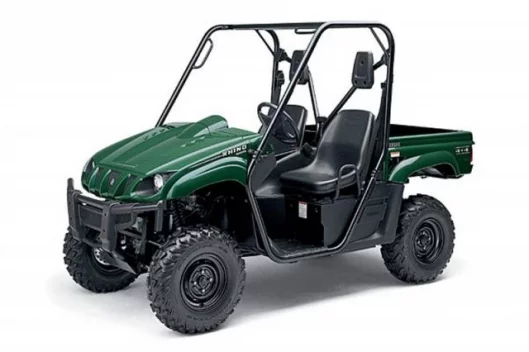

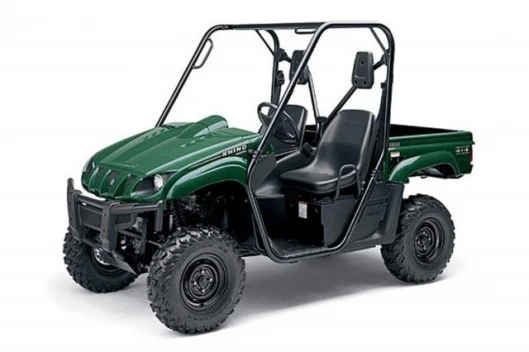

The Rhino - miniature go-anywhere 4WD ATV
15/15
The Rhino - miniature go-anywhere 4WD ATV
View gallery - 15 images

One of the fiercest competitors and most consistently innovative companies on the world recreational vehicle scene turns 50 this year and Yamaha Motor is promoting its rich history by releasing 50th anniversary models of each of its flagships. Yamaha diverged into two separate and distinctly different companies – one making all things musical, the other all things motorised and recreational, with many spin-off high tech businesses such as the company’s US$1,000,000 VTOL UAV. Both sides of the company enjoy a world class reputation and both have achieved significant status in the historical development of their chosen endeavours. Yamaha’s piano teaching methods changed the world and the company’s ingenious teaching guitar threatens to play a groundbreaking role in the democratisation of music too. On the motorised side of things, the company makes almost everything, from four wheeled lightweight hunting and camping vehicles, through to the ultimate roadgoing race bike, Valentino Rossi’s MotoGP championship winning bike for the last few seasons. Rossi’s bike displaces 990cc and produces 220+ horsepower and weighs in around 150 kilograms. But when we saw the new 50th anniversary 700 Raptor, we figured it deserves a mention on account of being one of the prettiest recreational weapons we’ve ever seen. With all the attitude of an exocet missile, the Raptor 700 beastie has a fuel-injected four-valve 700cc motor, and it weighs … wait for it … 180 kilograms. The engine is tuned for responsiveness and it’s a single cylinder, so likely to be putting out just a fraction of the power of Rossi’s engine. But it does have a razor-sharp fuel-injected motor with so much mid-range that you can pull high speed roosts for 100 metres at a time when you find the right conditions.

One of the fiercest competitors and most consistently innovative companies on the world recreational vehicle scene turns 50 this year and Yamaha Motor is promoting its rich history by releasing 50th anniversary models of each of its flagships. Yamaha diverged into two separate and distinctly different companies – one making all things musical, the other all things motorised and recreational, with many spin-off high tech businesses such as the company’s US$1,000,000 VTOL UAV.

Both sides of the company enjoy a world class reputation and both have achieved significant status in the historical development of their chosen endeavours. Yamaha’s piano teaching methods changed the world and the company’s ingenious teaching guitar threatens to play a groundbreaking role in the democratisation of music too.

On the motorised side of things, the company makes almost everything, from four wheeled lightweight hunting and camping vehicles, through to the ultimate roadgoing race bike, Valentino Rossi’s MotoGP championship winning bike for the last few seasons.

Rossi’s bike displaces 990cc and produces 220+ horsepower and weighs in around 150 kilograms. But when we saw the new 50th anniversary 700 Raptor, we figured it deserves a mention on account of being one of the prettiest recreational weapons we’ve ever seen. With all the attitude of an exocet missile, the Raptor 700 beastie has a fuel-injected four-valve 700cc motor, and it weighs … wait for it … 180 kilograms. The engine is tuned for responsiveness and it’s a single cylinder, so likely to be putting out just a fraction of the power of Rossi’s engine. But it does have a razor-sharp fuel-injected motor with so much mid-range that you can pull high speed roosts for 100 metres at a time when you find the right conditions.

The versatile Raptor ATV is now available in Yamaha’s unique 50th Anniversary yellow and black colour scheme which is a nod to Yamaha’s racing heritage and a bygone era when champion riders like Kenny Roberts and Bob Hannah won on yellow and black machines.

Yamaha launched Yamaha Blue and Racing White models of the fuel injected, liquid cooled 700cc machine earlier this year.

The new model Raptor has been met with ‘rapturous’ reviews from the press. It features electric start, which fires the four-stroke dry sump engine into life and a five speed box means there’s a gear for every situation, with a reverse gear to further boost versatility.

The chassis features a mix of high tensile steel and lightweight aluminium for the perfect rigidity balance. Together with a new aluminium swingarm, plush, long travel suspension and wide radial tyres the Raptor offers quick and responsive handling.

Braking from the dual hydraulic twin piston, 160mm disc front brakes is fierce, and the rear disc brake now incorporates a bar operated, maintenance free parking brake.

Sleek bodywork wraps up the slick package that bristles with trick bits such as the YZ-inspired seat, an R1-style LED tail-light, oval muffler, LED indicator lights and wide, high-grip footpegs.Main features:

    Fuel injection for instant power, no carb fiddling (especially at different atmospheric levels) and no choke lever application44mm big bore Mikuni throttle body optimises new engine’s output.Long nose, 12 hole fuel injector for efficient fuel atomisationFuel injection system diagnostic tool connector for convenient engine managementCompact cylinder head design reduces weight and increases combustion efficiency. Needle roller bearing rocker arms improve fuel consumption and torqueNew forged piston with 9.2:1 compression ratio for light weight and durabilityCarburised Chrome-Moly alloy rod and enlarged crankshaft pin diameters to allow increased displacement and torqueTwin engine balancer system to reduce vibrationYZ/WR auto decompression for easy starting, less weight and increased powerCompact, low friction camchain tensioner for reduced friction and low weightAll aluminium cylinder with ceramic composite coating for low weight and increased cooling and wear resistanceDry sump reduces engine height and concentrates mass for improved handlingIncreased engine mounting points (four) for reduced vibrationFoam filter for quick and easy servicingTrick stainless two-into-one pipe with oval silencerWide ratio five speed box with reverse gear for ease of operationIncreased clutch capacity improves gear shifting

Chassis

    High tensile front frame and gravity cast aluminium main frame mates to a die cast aluminium swingarm to offer perfect rigidity balance and weight reductionTrick new mudguards increase rider mobilityLightweight grab bars front and rear Double aluminium/steel wishbone suspension features forged aluminium steering knuckle with quick replace lower ball joint for optimum suspension, reduced weight and easy maintenanceNew Kayaba front suspension units feature dual rate springs and new design damper for sports ridingTwo-piston front brake calipers for awesome braking performancePiggyback rear SOQI shock features compression and rebound damping, new gas-oil damper, aluminium cylinder and chamber with remote reservoir for plush action and less weightEccentric axle chain adjuster for quick and easy servicingNew maintenance free parking brake works with smaller rear disc that reduces weight and increases ground clearanceNew radial Dunlop tyres feature changed tread pattern and wider rear (900mm) for increased traction 11 litre plastic fuel tank with integral fuel pump pressure regulator for fuel injection systemSmaller and more stylish multi-reflector dual headlights Smart YZF-R1 style LED tail lightCompact ECU for weight reductionLED indicator lights for weight reduction, legibility, maintenance and power saving
