Fubi folding bike has all the characteristics of a "regular" bike

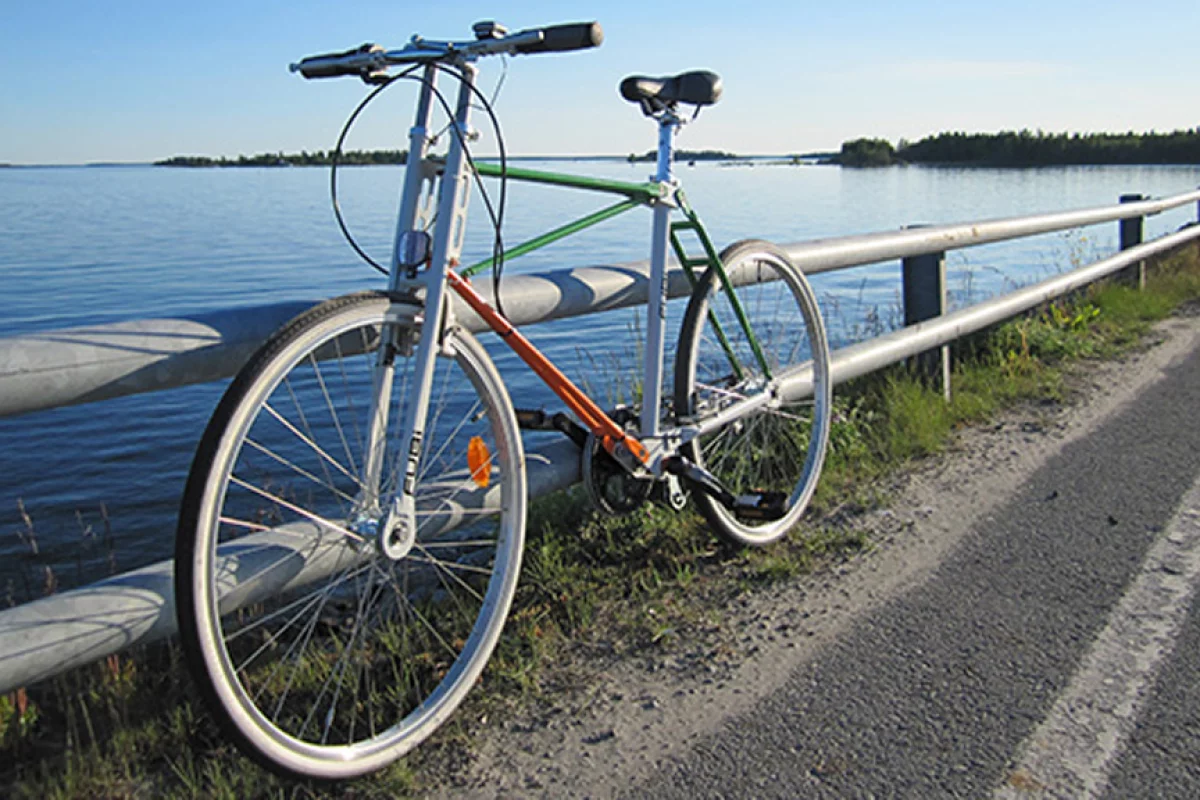

The Fubi folding bicycle prototype
The Fubi folding bicycle prototype
View 5 Images

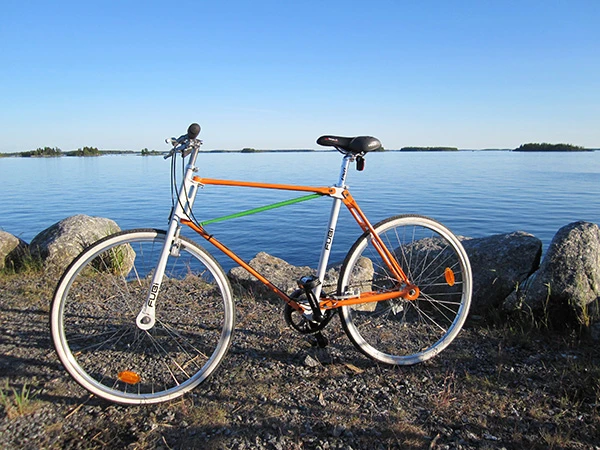

The Fubi folding bicycle
1/5

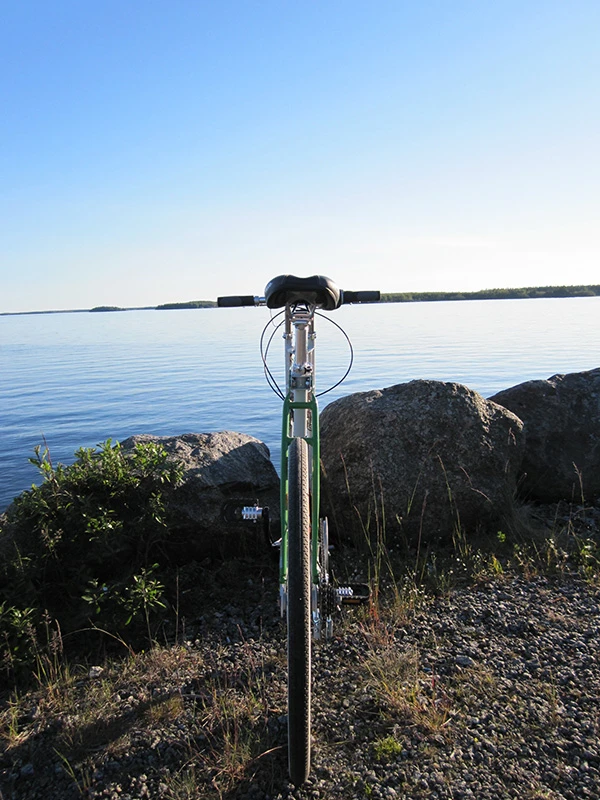

The Fubi folding bicycle
The Fubi folding bicycle
2/5
The Fubi folding bicycle
The Fubi folding bicycle
3/5
The Fubi folding bicycle
The Fubi folding bicycle
4/5
The Fubi folding bicycle
The Fubi folding bicycle prototype
5/5
The Fubi folding bicycle prototype

Sick and tired of having his bike stolen while studying in Stockholm, Ulf Laxström decided to design a foldable bike that was easy to store inside, but retained the functionality and styling of standard full-sized bicycles. His solution was the Fubi (an abbreviation for “Future bike”) that Laxström says has all the characteristics of a “regular” bike, with its ability to fold up just an added bonus.

Currently the Fubi is still a prototype with Laxström aiming to test and perfect the cycle so it meets all the function, design, durability and safety requirements consumers expect. To this end he says a significant part of the development work will be conducted by contractors who specialize in different areas.

When folded up and without the wheels the Fubi fits inside a small golf bag and can be easily stored under a bed or in the trunk of a car. At this stage a wrench is used to tighten bolts as the bike is assembled, but Laxström says these will be replaced with quick release locks when the bike goes into production. Although, Laxström envisions the Fubi will be sold as a kit and will need tools for initial assembly.

The Fubi is made up of foldable and collapsible steel tubing and Laxström hopes to release the bike in three sizes – 25-, 26- and 28-inches. The current prototype is a 26-inch model with seven gears, a wheelbase of 1,080mm, overall length of 1,230mm, width from handlebar tip to handlebar tip of 600mm and weight of around 12kg when assembled. When folded up the bike measures 825mm long x 250mm high x 165mm wide (not including the wheels).

The first video below shows how the Fubi is assembled, while the second shows a speed test carried out by a racing cyclist. Laxström can be contacted for more information on his Fubi via his website.

FUBi CARBON folding bike

FUBi, Fast speed test!

5 comments
Ferdi Zebua
But then, how is this better than a Montague Paratrooper, or other full-size (read: 26-inch wheel) offerings from Dahon and others?
Gary Ares
This is innovation in my book. It is a unique design that I\'d love to ride, touch and feel before I delve further with thoughts. It looks like 1 wrench does all the coupling which would be great. The wheels look bomb and theft proof as well. Maybe it\'s the new city bike; Can I hear a verse of \"New York, New York\"? Check out this unique little folder as well - 2 styles; std pedal, and electric; http://velomini.com
xdigitor
How is this an innovation? you buy bikes like this in a box from k mart and put it together exactly the same way, in fact i think there are fewer steps in the supermarket version. And how would you carry all these components with you lets say if you are to travel by train?
Gadgeteer
Looks like it takes a lot of time and a lot of dirty, oily work. Would have been easier just to buy a Kryptonite Fahgettaboudit chain. Or being in Europe, Abus is a good alternative for high security locks.
Bert Cebular
Nice work. It seems that it would provide a sold ride using the triangular principle. Taking bikes apart rather than folding them has a few side effects tough. You lose pieces, they get banged up or damage something else. As xdigitor says, it does not seem to have fewer steps than a wallmart bike assembly. If you want to go all out on a full-size besides the obvious Dahon Matrix (one of my favorites) then try this wonderful bike: http://www.gizmag.com/ifmode-folding-bicycle/11349/ Bert, folding bike enthusiast
