Michelin's concept tire comes wrapped in "rechargeable" 3D-printed treads

Michelin's Vision concept tire features a 3D-printed tread that can be "recharged" when necessary
Michelin's Vision concept tire features a 3D-printed tread that can be "recharged" when necessary
View 4 Images

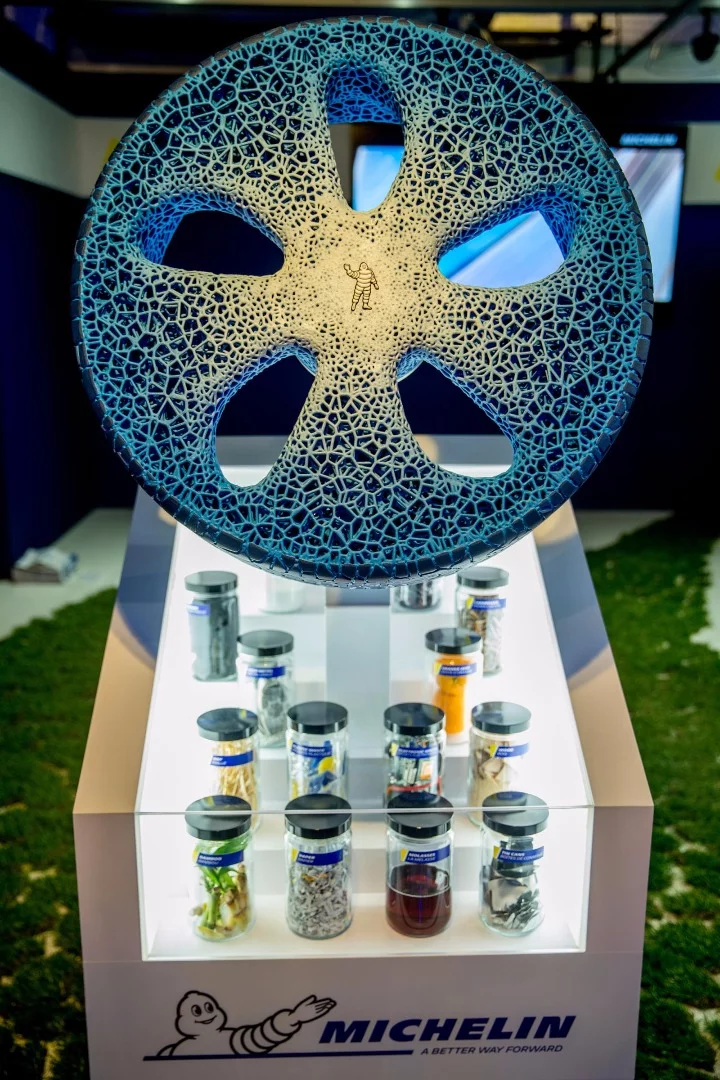

The Vision concept tire and wheel combination envisioned by Michelin
1/4
The Vision concept tire and wheel combination envisioned by Michelin
Some of the chemical ingredients that are the basis of the Vision concept tire by Michelin
2/4
Some of the chemical ingredients that are the basis of the Vision concept tire by Michelin

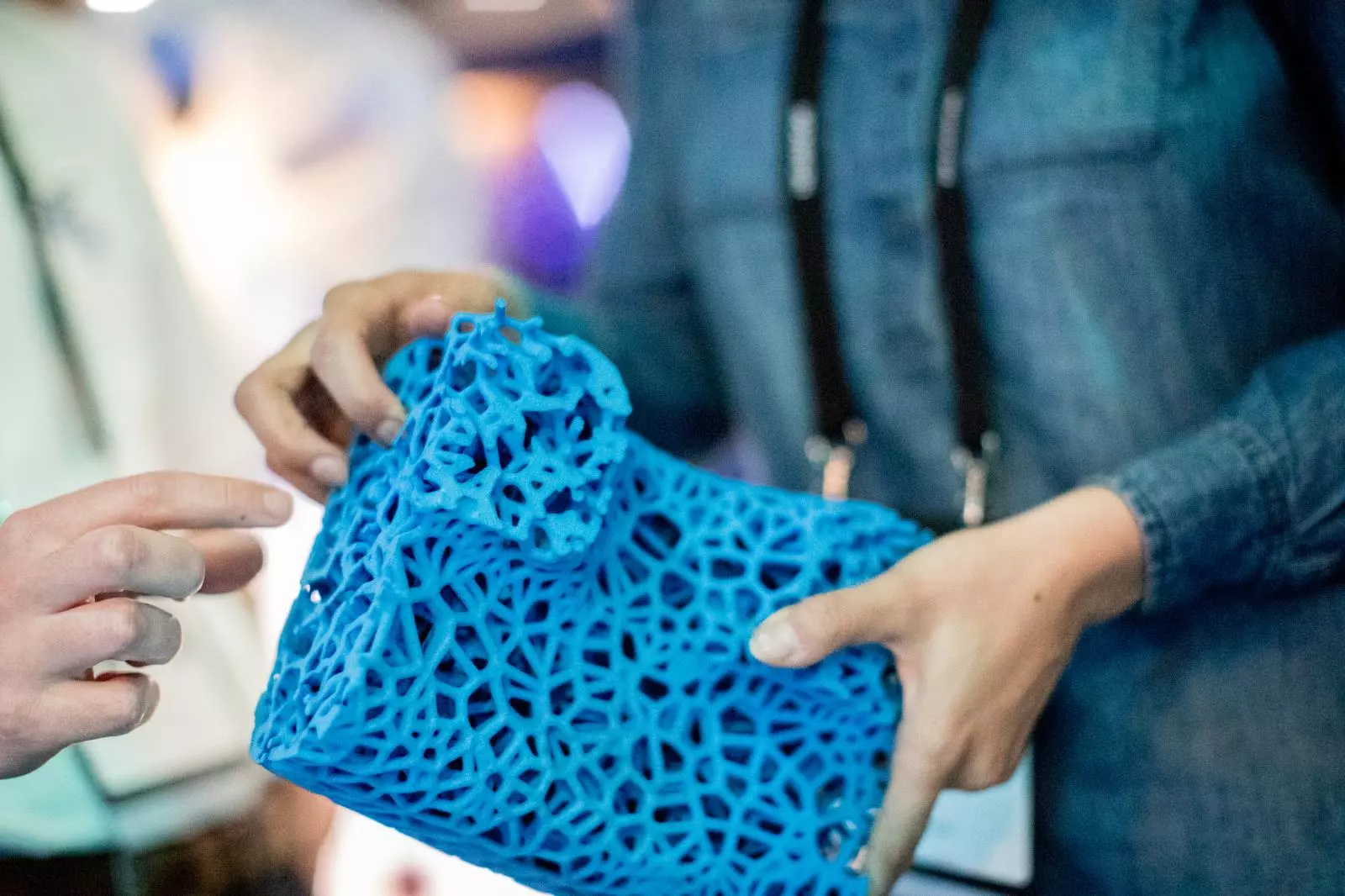

An example of the aveolar structure that enables the Vision tire to be airless
3/4
An example of the aveolar structure that enables the Vision tire to be airless

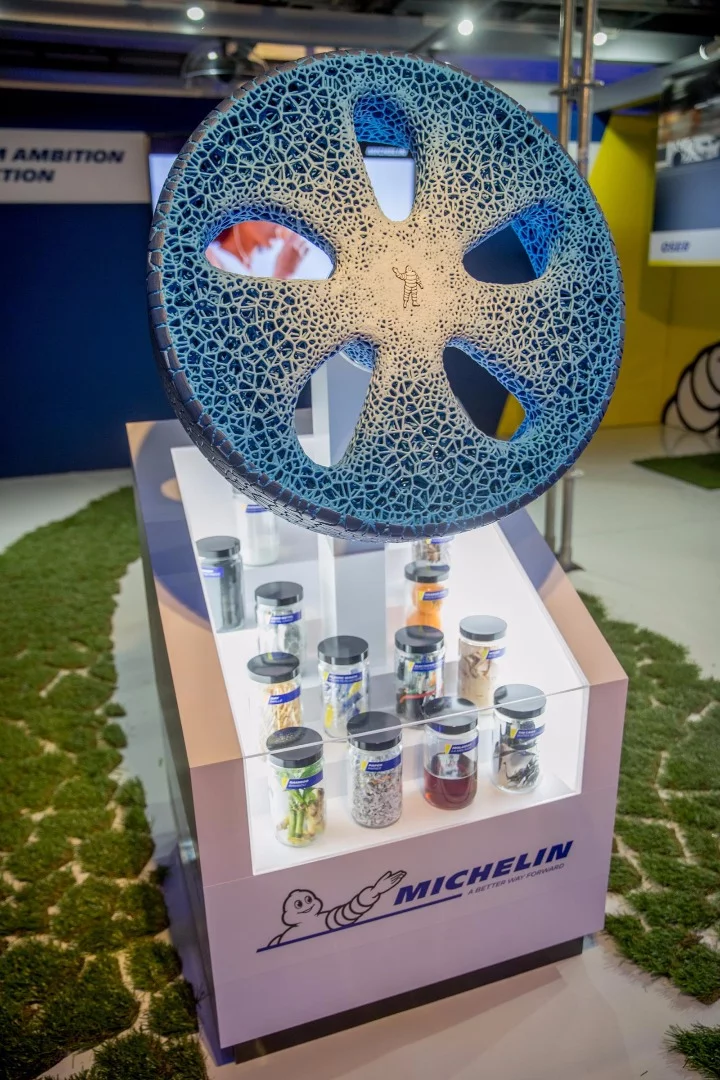

Michelin's Vision concept tire features a 3D-printed tread that can be "recharged" when necessary
4/4
Michelin's Vision concept tire features a 3D-printed tread that can be "recharged" when necessary

Aside from trotting out a new tread pattern every year or so, you might think there's not a lot manufacturers could do to improve the humble car tire. But advances in materials, sensors and manufacturing techniques are opening up new possibilities. Michelin is exploring this potential with its Vision concept tire that is airless, 3D printed, equipped with sensors, biodegradable, and not just a tire, but a tire and wheel in one.

Unveiled at a global symposium on urban mobility challenges it hosted this week in Montreal, Canada, Michelin's Vision tire is constructed using 3D printing technology. This enables an airless interior architecture that mimics alveolar structures (such as the air sacs of the lungs) that is solid in the center and more flexible on the outside, resulting in a tire that is immune to blowouts or going flat.

The core of the tire, which also functions as a wheel and can be reused, would be made from organic materials that are bio-sourced and biodegradable. 3D printing allows the amount of rubber tread applied on the outside of the tire to be optimized to meet the specific needs of the driver while keeping the amount of rubber required to a minimum – and the tread can even be topped up, or "recharged," when it wears down or the driver is headed for different road conditions.

An example of the aveolar structure that enables the Vision tire to be airless
An example of the aveolar structure that enables the Vision tire to be airless

Although the Vision's tread would still be made mostly of rubber, Michelin is envisioning the day when materials such as straw or wood chips could be used to make butadiene, a key ingredient in making synthetic rubber today.

The condition of the tires would also be monitored in real time using embedded sensors. The owner would receive information about the tire's condition and possibly use an accompanying app to make an appointment to change the tread for a particular use, like going skiing.

Michelin isn't saying when any of these innovations will be implemented, let alone when the Vision might be available for purchase, but Mostapha El-Oulhani, the designer who headed the Vision Project, said the promise of the concept tire is within reach.

"Given how we developed it, the Vision concept tire is a showcase of our expertise as well as a promise of the future," says El-Oulhani. "We wanted the Vision to be realistic since no purpose is served by designing objects or services that we know pertinently are unrealistic."

Source: Michelin

3 comments
JohnVolk
Most tires on todays cars last through the lifetime of the tire and do not need to be changed out for things like skiing trips. With a very thin tread on these new tires and the need to change it for different road conditions, it seems the drivers will be doing a lot more tire changing, then they do now.
sk8dad
Interesting concept. I hope, as the concept matures, that the designers would think it wise to cover up all those voids to avoid accumulation of mud, debris, and critters.
Eddy
Didn't Bridgestone have an experimental airless tyre on show a long while ago? That went well .......not. Still not one on the market for cars or 4WD who really need one yet.
