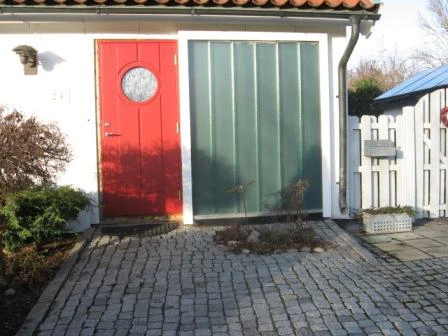

Soltech also offers glass wall panels
1/6
Soltech also offers glass wall panels

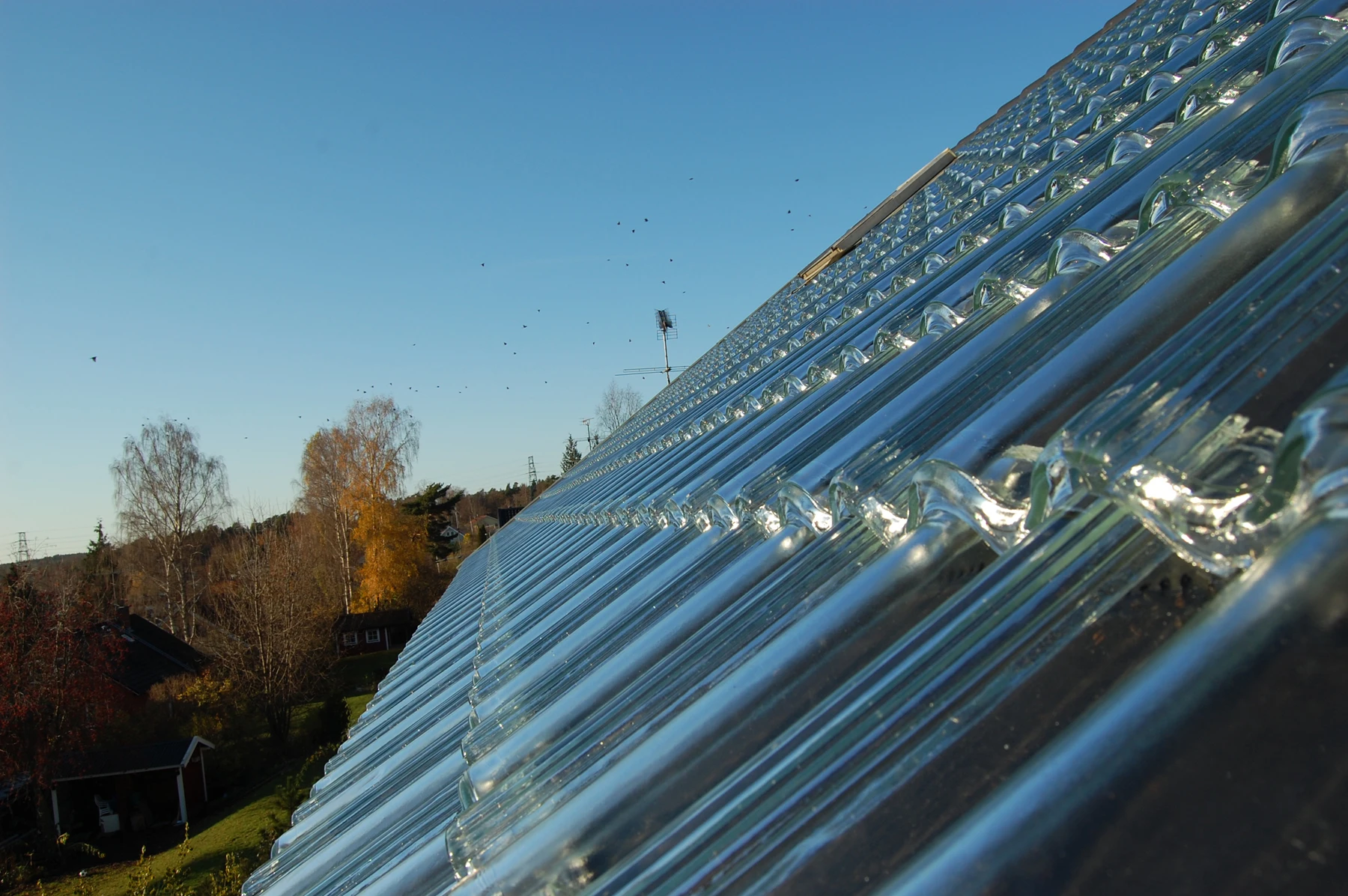

Soltech Energy glass tiles
2/6
Soltech Energy glass tiles
Soltech Energy glass tiles help cut energy bills
3/6
Soltech Energy glass tiles help cut energy bills

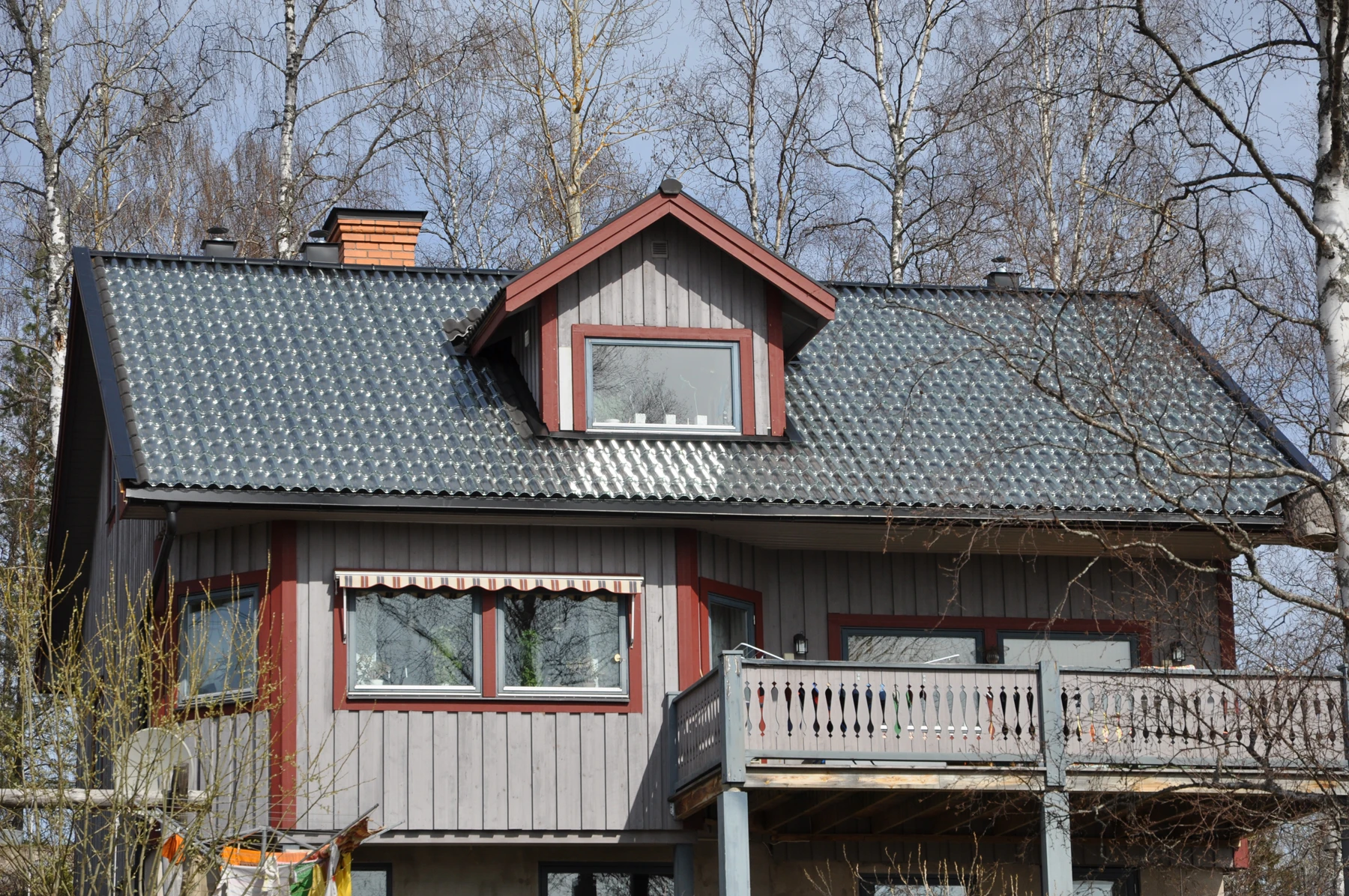

Soltech Energy glass tiles
4/6
Soltech Energy glass tiles

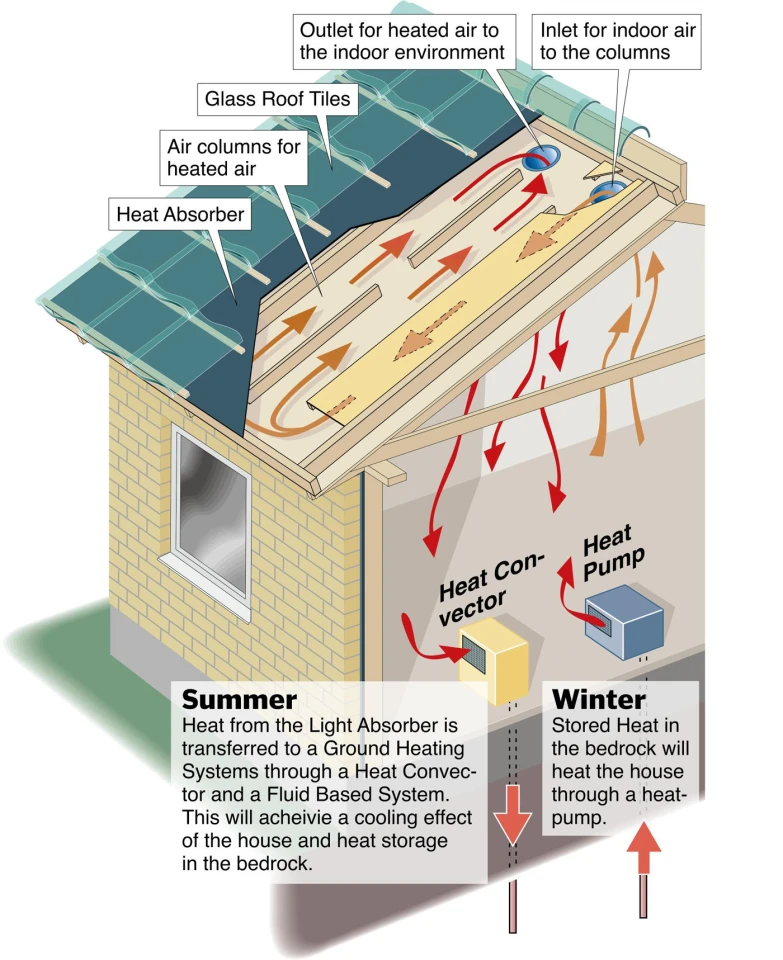

The Soltech Energy system
5/6
The Soltech Energy system
Soltech Energy glass tiles
6/6
Soltech Energy glass tiles
View gallery - 6 images

Swedish company, Soltech Energy, recently received the gold medal for this year’s hottest new material at the Nordbygg 2010 trade fair in Stockholm, Sweden. The award was fitting because it was for the company’s home heating system that features roof tiles made out of glass. The tiles, which are made from ordinary glass, weigh about the same as the clay roof tiles they replace but allow the sun to heat air that is then used to heat the house and cut energy bills.

Thankfully, although the tiles themselves are transparent, they are backed by a special black absorption fabric so sticky beaks won’t be able to sit on the roof and watch what’s going on inside. This fabric absorbs the sun’s rays, which heats the air underneath, with the air formed into columns by beams within the roof to ensure it is heated sufficiently.

The most common way to connect the system to a house’s existing heating system would be to a water based heating system via an accumulation tank but the system is also designed to be integrated with both air and water based systems, such as a ground source heat pump, air heat pump, pellet boiler or electric boiler – the only requirement is some form of central heating system.

The Soltech Energy system
The Soltech Energy system

This setup allows the system to heat the house during winter and transfer the heat absorbed in summer to a ground heating system through a heat convector and a fluid based system to help achieve a cooling effect.

Depending on factors such as climate, roof angle and house direction, the system should generate around 350 kWh heat per square meter (10.76 square ft).

If your roof isn’t suited to tiles, Soltech Energy also offers glass wall panels that can be tailored to individual houses and benefit from the lower angle of the incoming rays of sunlight during the winter.

Via inhabitat

View gallery - 6 images
4 comments
Tomáš Kapler
WHAT??? Those glass tiles are something what is normaly sold for hundred years at least in czech republic. I got them on our house from about 1915! We use them to bring sun under the roof
rlawlis
Even if around for a long time appears to be a good idea.
Denis Klanac
that glass would also be a hell of a lot stronger than clay or concrete roof tiles. wonder if you can get the an Australia?
Ralf Biernacki
Making glass roof tiles, but coating them with a black inner liner is totally moronic---it does away with the tiles biggest potential selling point, which is providing plentiful illumination to dim attic spaces. And don't be misled by the supposed "heat-absorbing" quality of the liner. It only absorbs what has gotten through the tile in the first place. Without the liner, the heat would be absorbed by whatever the sunlight illuminated within the house, which would actually provide more heat inside (on the greenhouse principle) than the liner does.
