Mercedes flags 500 km EV platform, wireless charging and a hydrogen hybrid

Mercedes flags 500 km EV platform, wireless charging and a hydrogen hybrid
Mercedes will use this platform to underpin its future electric cars
Mercedes will use this platform to underpin its future electric cars
View 14 Images
The GLC F-Cell has 4 kg of hydrogen stored in the floor
1/14
The GLC F-Cell has 4 kg of hydrogen stored in the floor
There's a 9 kWh battery working with the hydrogen fuel cell
2/14
There's a 9 kWh battery working with the hydrogen fuel cell
The bits and pieces giving the F-Cell power
3/14
The bits and pieces giving the F-Cell power

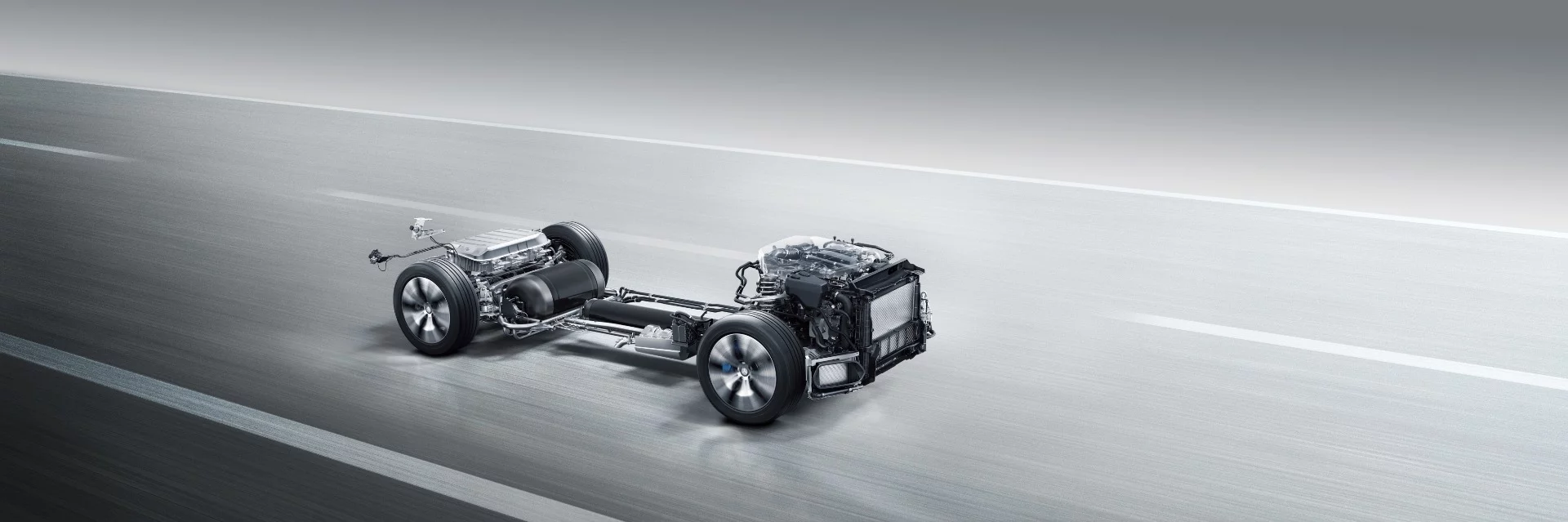

The F-Cell has a range of around 500 km
4/14
The F-Cell has a range of around 500 km

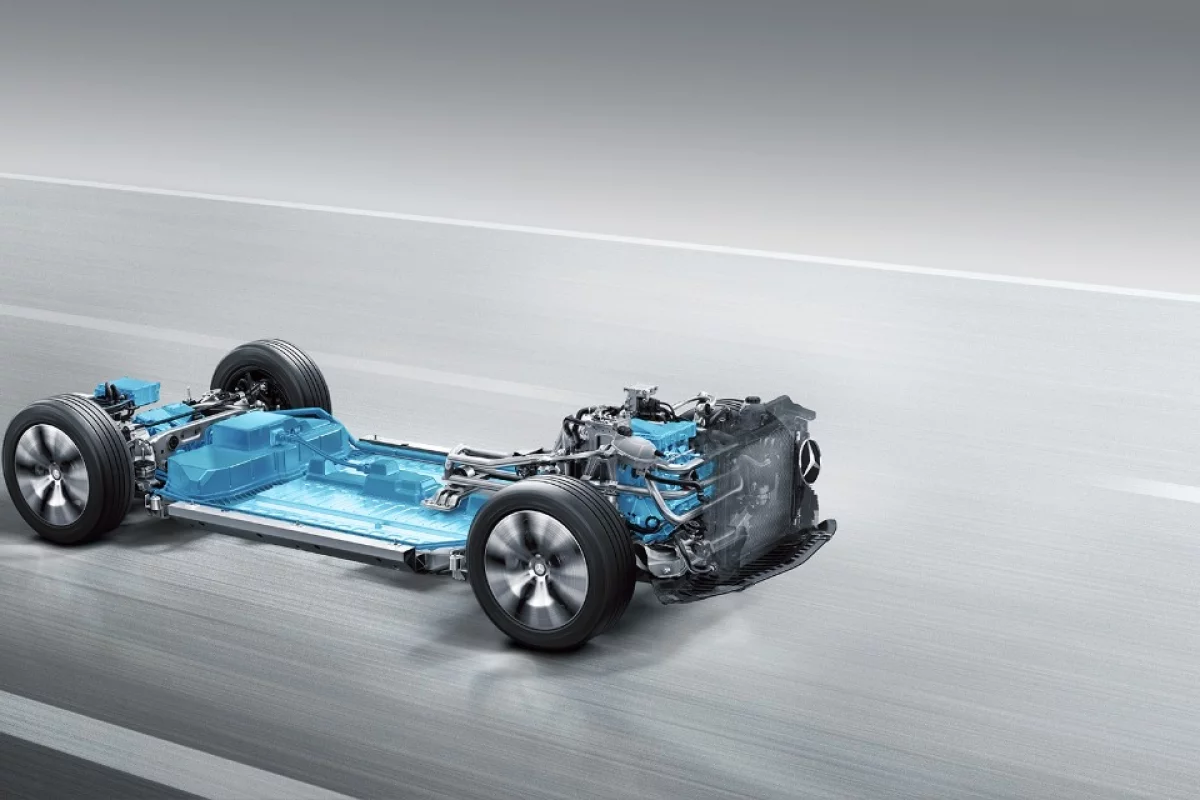

Mercedes will use this platform to underpin its future electric cars
5/14
Mercedes will use this platform to underpin its future electric cars
Mercedes says its EV platform will offer up about 500 km of range
6/14
Mercedes says its EV platform will offer up about 500 km of range
The F-Cell is built under the body of regular GLC
7/14
The F-Cell is built under the body of regular GLC

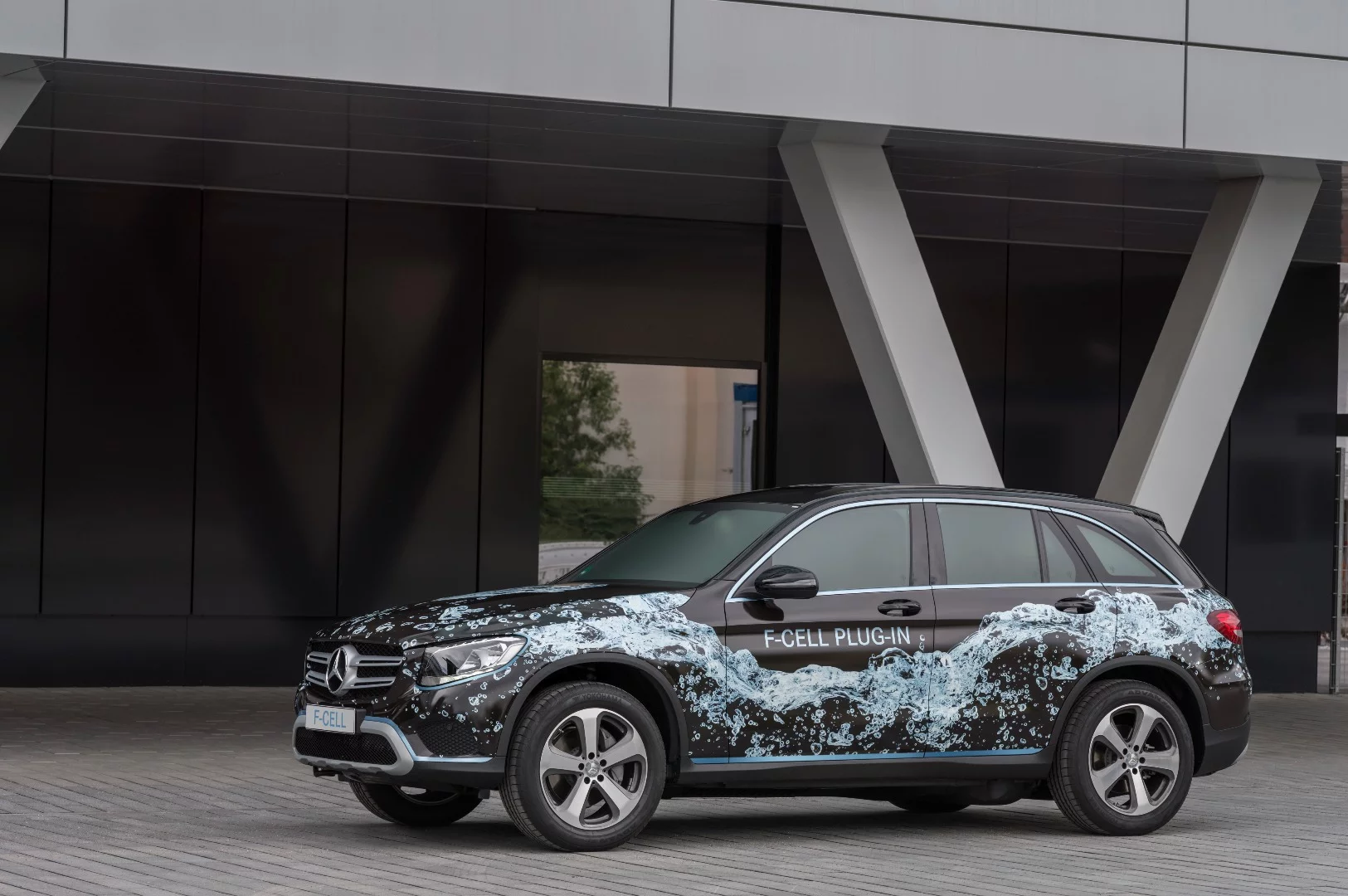

The F-Cell can be fuelled up at any hydrogen station
8/14
The F-Cell can be fuelled up at any hydrogen station

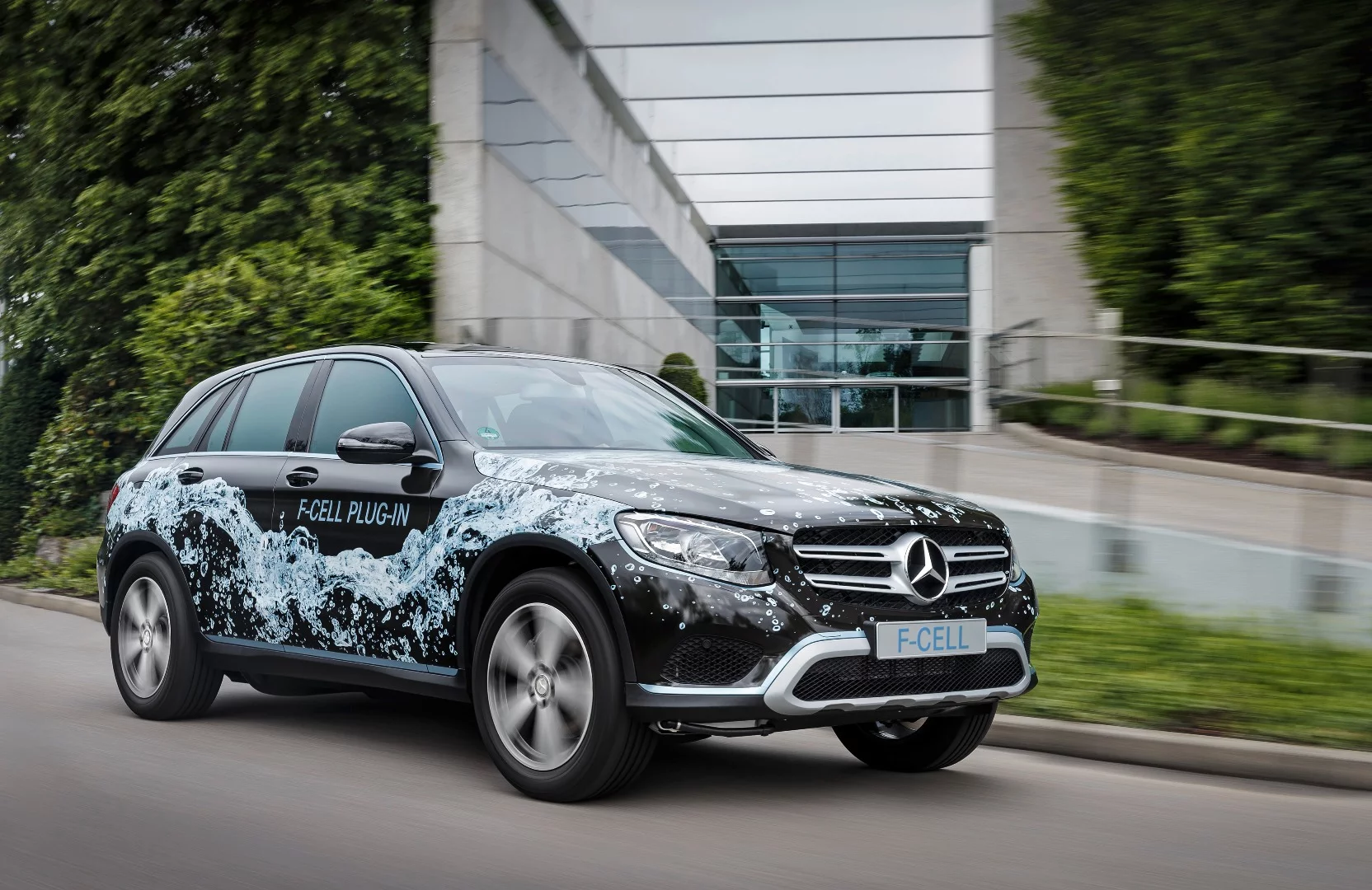

The F-Cell can cover 50 km on one charge
9/14
The F-Cell can cover 50 km on one charge
The 9 kWh battery in the GLC should be enough to cover most people's daily commute
10/14
The 9 kWh battery in the GLC should be enough to cover most people's daily commute

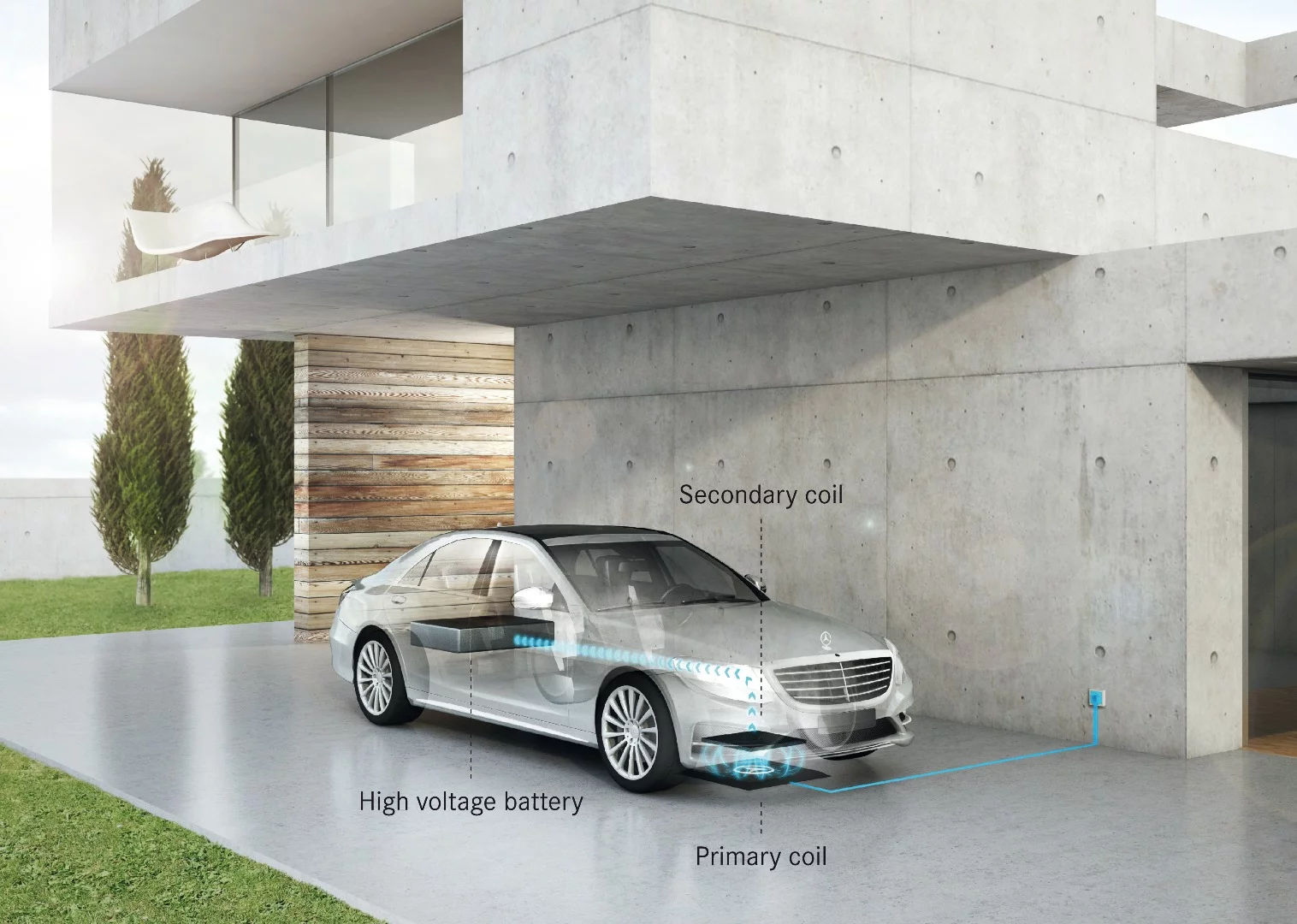

Mercedes' induction charging system
11/14
Mercedes' induction charging system
The wireless charging system will launch on the S500e next year
12/14
The wireless charging system will launch on the S500e next year

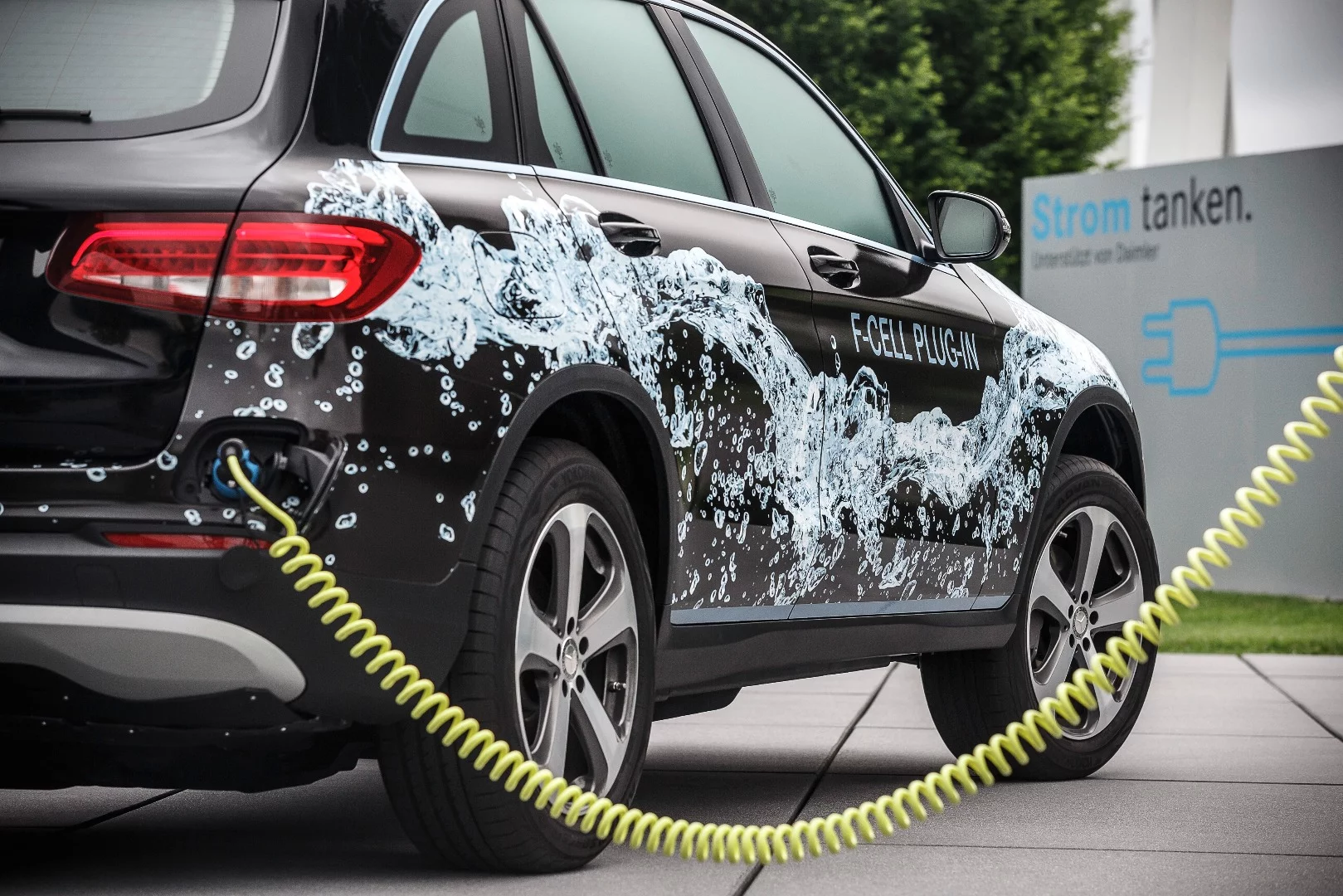

The F-Cell plug-in hybrid being, well, plugged in
13/14
The F-Cell plug-in hybrid being, well, plugged in
14/14
View gallery - 14 images

As alternative powertrains move towards the mainstream, there is increasing pressure to create versatile platforms capable of handling a range of propulsion systems without huge development costs on each individual model. Volvo has SPA, Volkswagen has MQB and now Mercedes has used TecDay in Stuttgart to announce a dedicated platform for pure electric cars, alongside plans for wireless EV charging and a hydrogen plug-in hybrid SUV.

The biggest hurdles to broader adoption of electric vehicles can be put into two columns: cost and range. On the cost front, the adoption of a dedicated electric vehicle platform allows parts to be shared, which makes it cheaper for Mercedes to develop and produce cars.

That logic is nothing new, and everyone from BMW to Subaru is creating modular underpinnings able to be used and adapted across a whole range of different sized cars. Where the Mercedes EV platform aims to set itself apart is with range, and lots of it.

Mercedes says its EV platform will offer up about 500 km of range
Mercedes says its EV platform will offer up about 500 km of range

Thanks to lithium-ion batteries from a Daimler subsidiary called Accumotive, the German giant claims its future electric cars will be able to cover more than 500 km (311 mi) on a single charge, putting their range up there with the best Tesla can manage at the moment.

Even with this range boost, the company accepts the fact battery power won't be able to cover everybody's full range of driving needs. They will, however, be useful for 90 percent of around-town driving and even the occasional longer jaunt, provided you know there's charging at the other end of your trip.

"You can blame a sports car for not offering room for nine, an RV for not fitting in an underground car park and a smart electric drive for not being suitable for driving from Hamburg to Rome," said Dr. Thomas Weber, who is responsible for Research and Development within Daimler. "But that is misleading. An electric vehicle is certainly not the right answer yet for people who regularly drive long distances between cities or on the motorway."

The F-Cell plug-in hybrid being, well, plugged in
The F-Cell plug-in hybrid being, well, plugged in

"But who actually does that?" he continued. "In reality, the usage profile of many cars is actually quite different. If you're a motorist, ask yourself how many days a year you drive more than 50 or 100 kilometers at a stretch."

Weber is also positive about the pace at which electric technology will progress over the next decade. As well expecting the energy density of batteries to double over the next 10 years, he says costs will be cut in half as post-lithium-ion battery technologies like lithium-sulphur become widespread.

In the meantime, Mercedes will focus on rolling out hybrid technology across its whole range. Those hybrids won't just combine gas power with batteries, but also fuel cells in the new GLC F-Cell Hybrid SUV.

Drawing on experience gained with hydrogen buses, Mercedes is promising a pure electric range of about 50 km (31 mi) from the 9 kWh plug-in battery. Drawing on 4 kg (9 lb) of hydrogen stored in floor-mounted carbon fiber tanks, the total combined range is expected to be around 500 km.

The wireless charging system will launch on the S500e next year
The wireless charging system will launch on the S500e next year

Charging up your hybrid battery is set to become less of a hassle, too, come the launch of next year's update for the S500e. Mercedes has been refining the system has been in testing since 2015, and transmits energy from a floor-mounted primary coil to a secondary coil in the car's floor. The driver is alerted when the system is within range, at which point charging starts.

Source: Daimler

View gallery - 14 images
