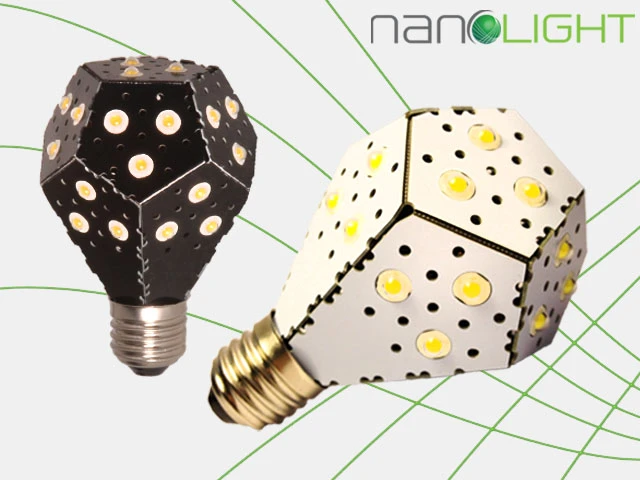

The NanoLight LED’s are directly attached to a printed circuit board that is folded to resemble the stereotypical light bulb shape (Image: NanoLight)
The NanoLight LED’s are directly attached to a printed circuit board that is folded to resemble the stereotypical light bulb shape (Image: NanoLight)
View 14 Images
The NanoLight LED light bulb are available in Black or White versions (Image: NanoLight)
1/14
The NanoLight LED light bulb are available in Black or White versions (Image: NanoLight)

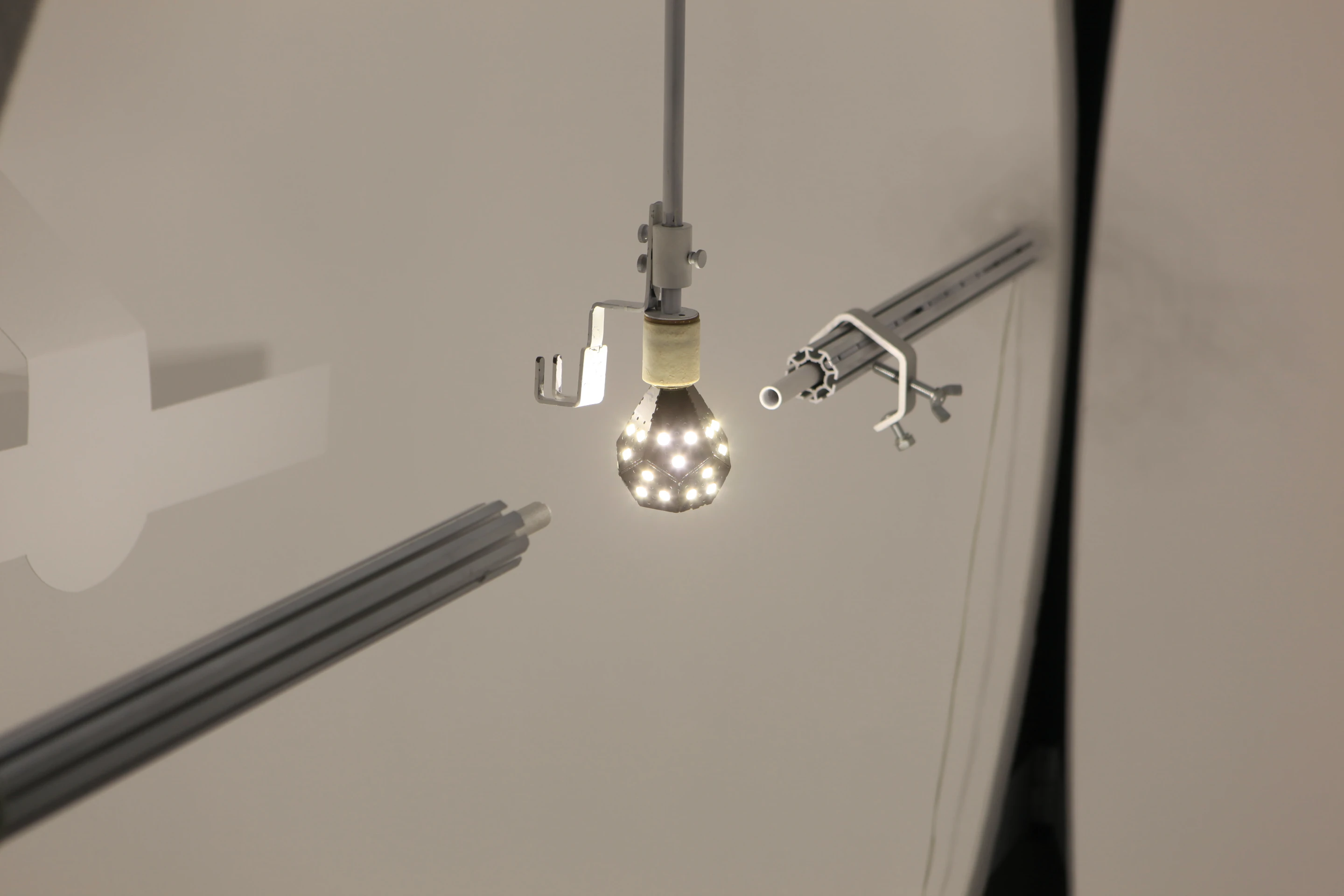

The NanoLight has been extensively tested at two independent testing facilities in order to ensure brightness distribution, sufficient luminous output, and color temperature (Image: NanoLight)
2/14
The NanoLight has been extensively tested at two independent testing facilities in order to ensure brightness distribution, sufficient luminous output, and color temperature (Image: NanoLight)

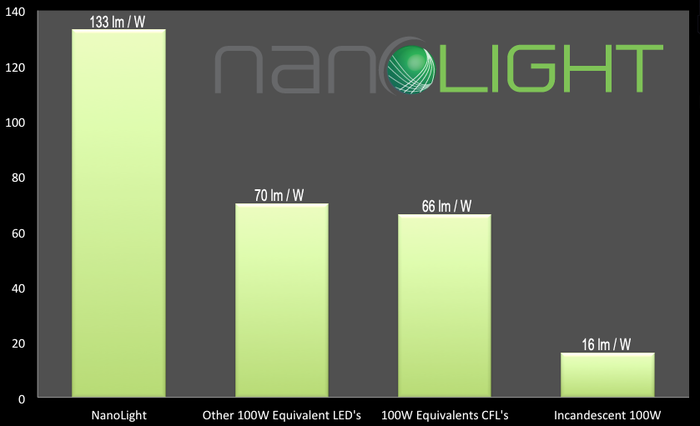

The NanoLight operates at 133 lumens per watt - the above chart shows the company's own comparison to other light bulbs on the market (Image: NanoLight)
3/14
The NanoLight operates at 133 lumens per watt - the above chart shows the company's own comparison to other light bulbs on the market (Image: NanoLight)

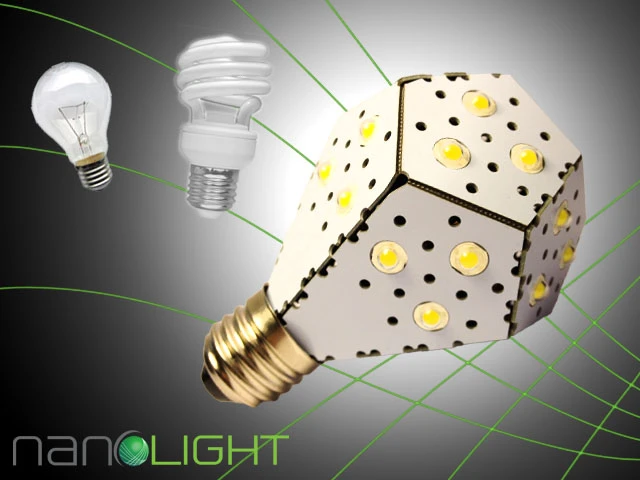

The alternative to a 100-watt incandescent bulb has until recently been a compact fluorescent light (Image: NanoLight)
4/14
The alternative to a 100-watt incandescent bulb has until recently been a compact fluorescent light (Image: NanoLight)

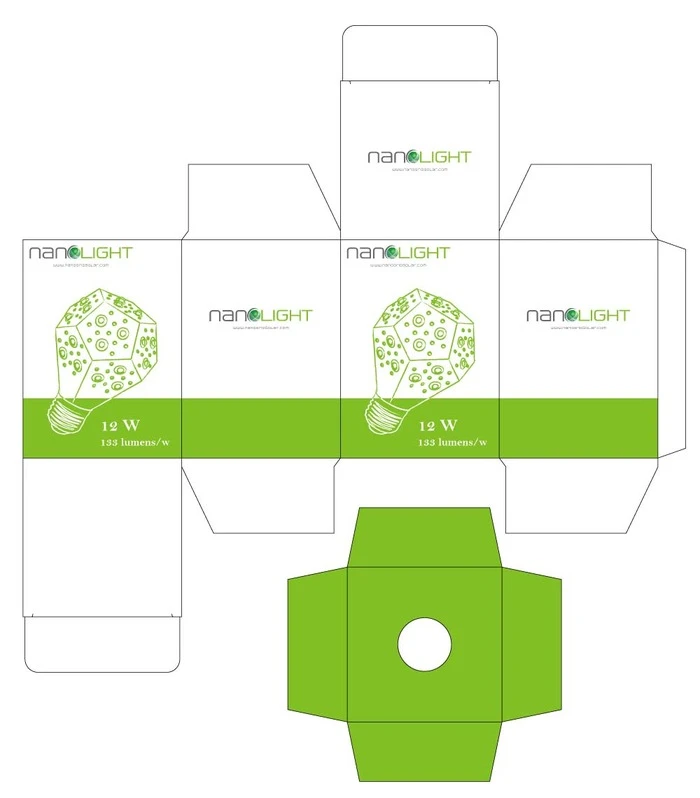

Packaging for the new 75 to 100-watt equivalent NanoLight LED bulbs (Image: NanoLight)
5/14
Packaging for the new 75 to 100-watt equivalent NanoLight LED bulbs (Image: NanoLight)
The NanoLight LED’s are directly attached to a printed circuit board that is folded to resemble the stereotypical light bulb shape (Image: NanoLight)
6/14
The NanoLight LED’s are directly attached to a printed circuit board that is folded to resemble the stereotypical light bulb shape (Image: NanoLight)

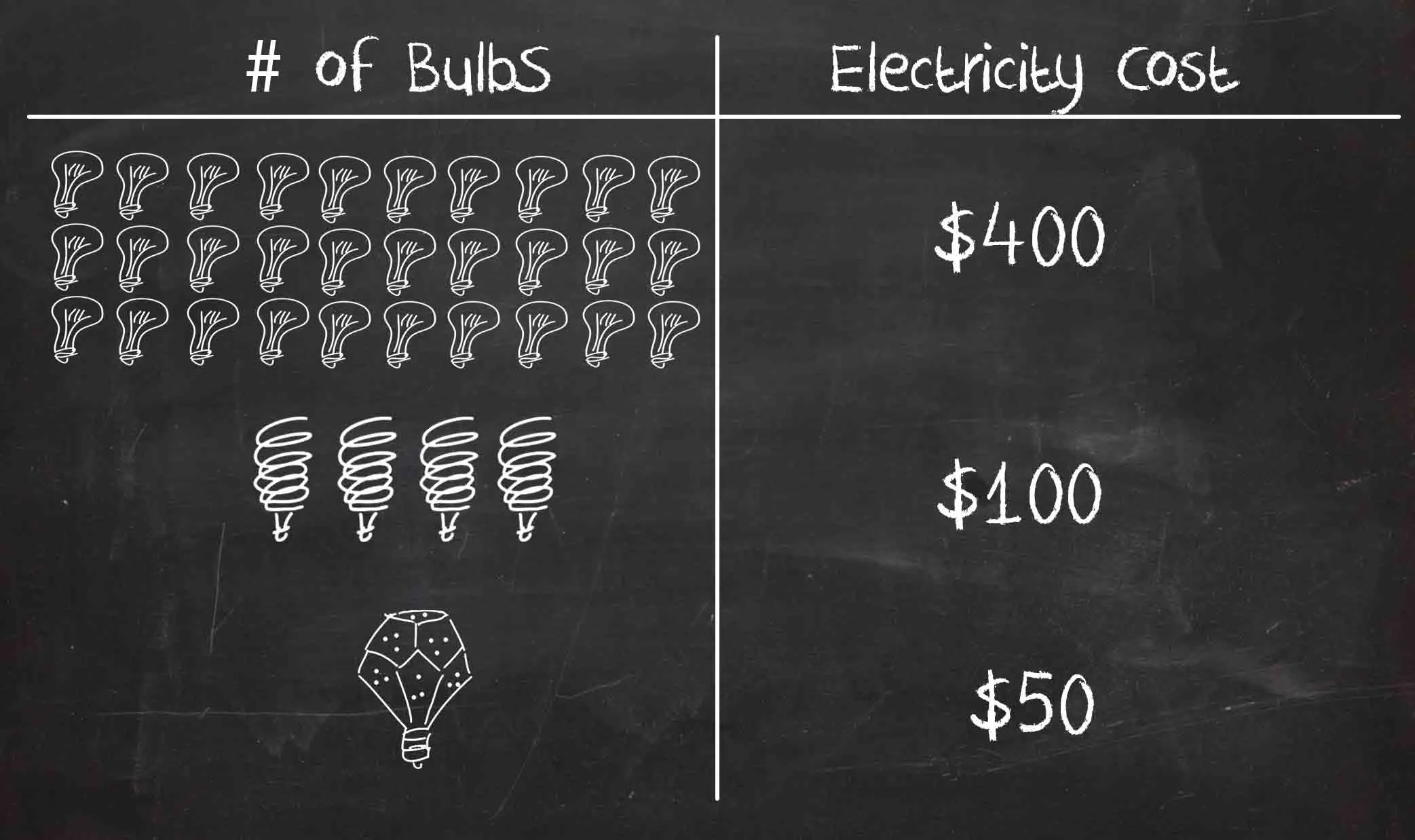

NanoLight’s estimates show that over 30,000 hours of usage an LED bulb can save a consumer around seven times the expense of an equivalent periods usage of incandescent bulbs (Image: NanoLight)
7/14
NanoLight’s estimates show that over 30,000 hours of usage an LED bulb can save a consumer around seven times the expense of an equivalent periods usage of incandescent bulbs (Image: NanoLight)

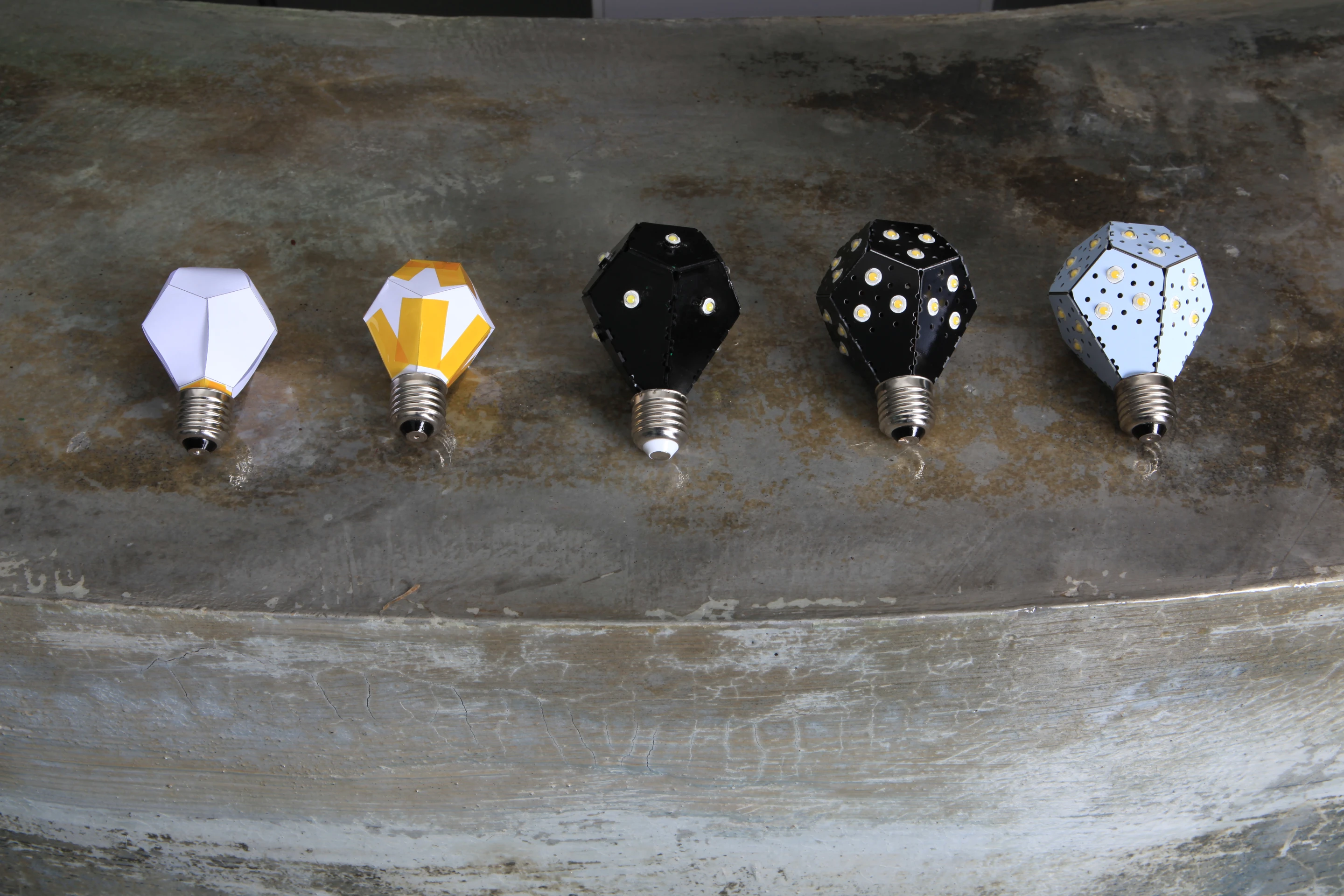

The NanoLight team went through various prototype designs (Image: NanoLight)
8/14
The NanoLight team went through various prototype designs (Image: NanoLight)

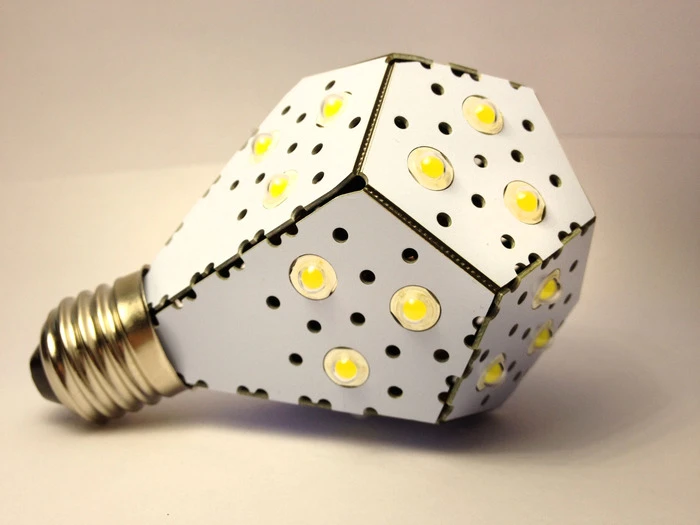

The NanoLight has mercury-free construction for environmental friendliness (Image: NanoLight)
9/14
The NanoLight has mercury-free construction for environmental friendliness (Image: NanoLight)

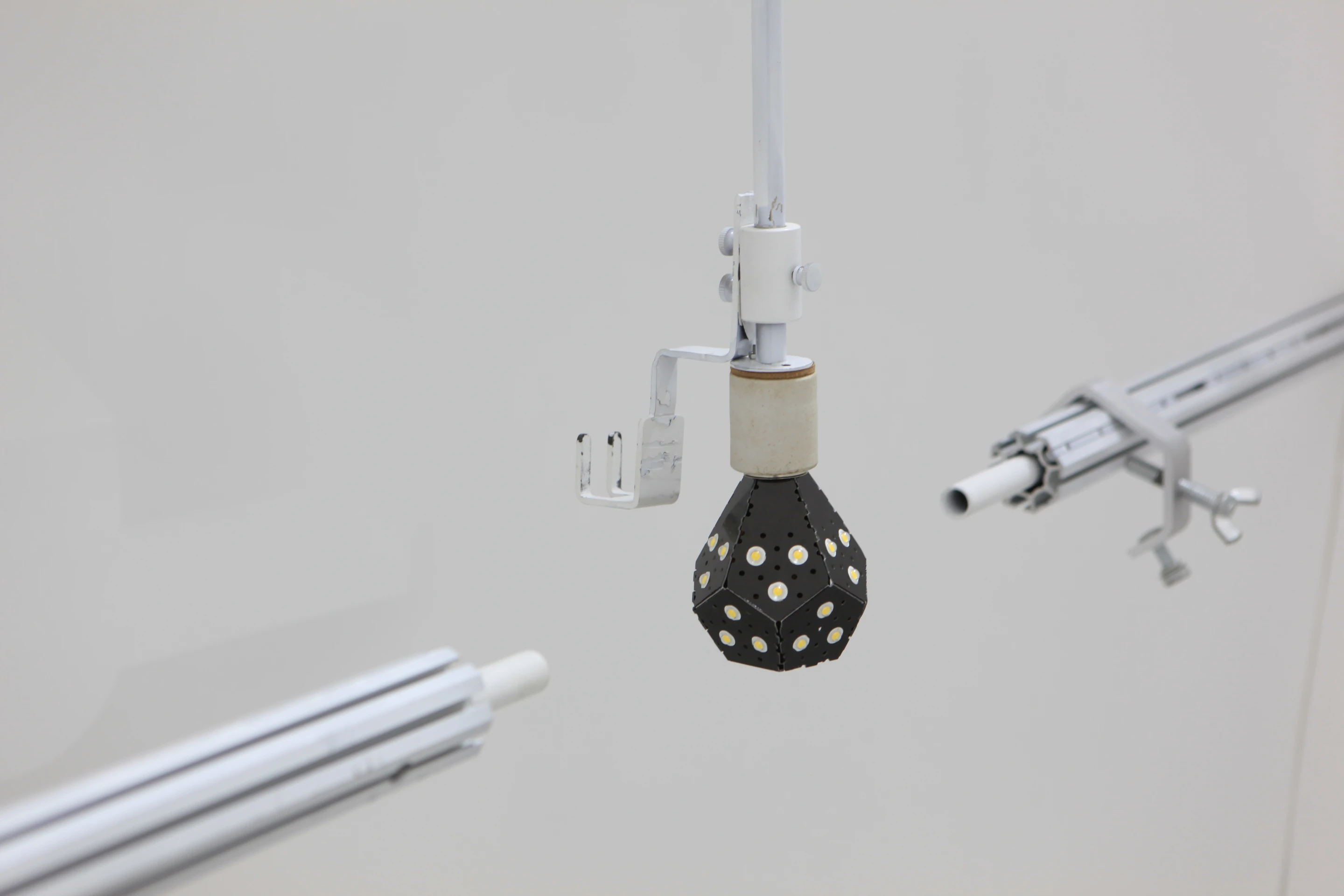

The power consumption has been verified using two independent professional grade power meters during the testing process (Image: NanoLight)
10/14
The power consumption has been verified using two independent professional grade power meters during the testing process (Image: NanoLight)

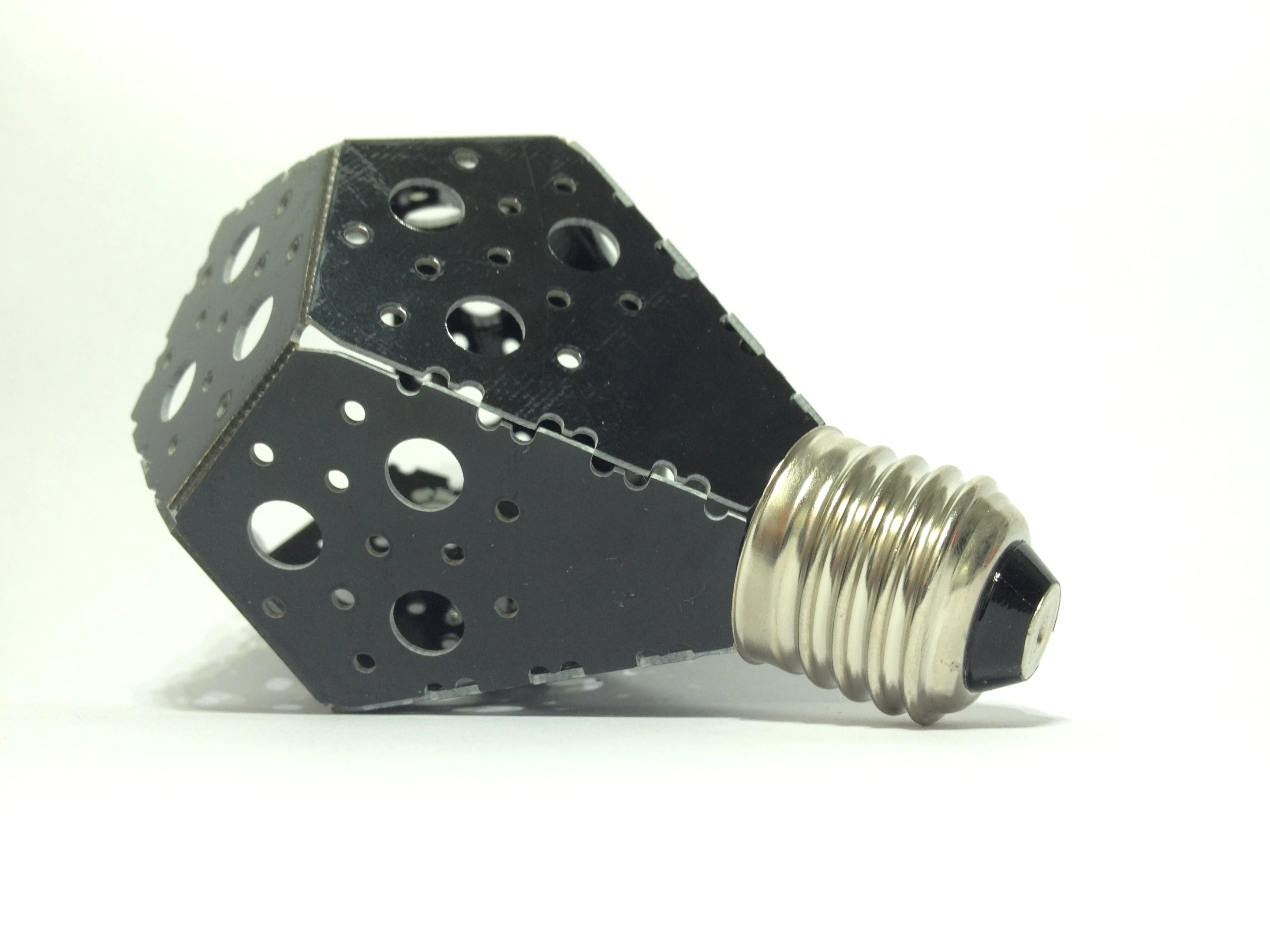

Electronic components are mounted onto the PCB (Printed Circuit Board) using mostly SMT (Surface Mount Technology) (Image: NanoLight)
11/14
Electronic components are mounted onto the PCB (Printed Circuit Board) using mostly SMT (Surface Mount Technology) (Image: NanoLight)

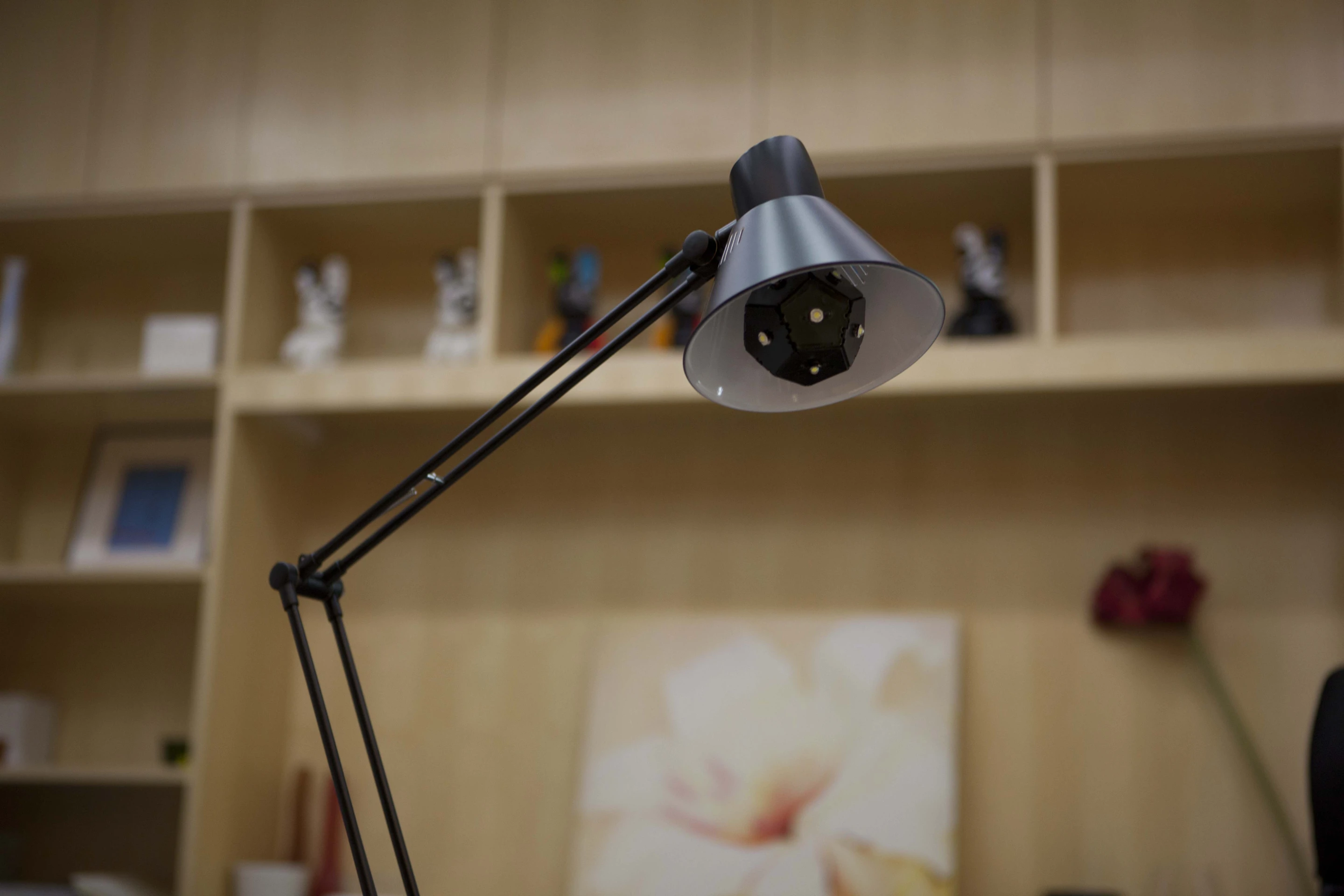

The NanoLight comes in either 220V AC (Europe / Asia Pacific) or 120V AC (North America / Japan) to support all countries (Image: NanoLight)
12/14
The NanoLight comes in either 220V AC (Europe / Asia Pacific) or 120V AC (North America / Japan) to support all countries (Image: NanoLight)

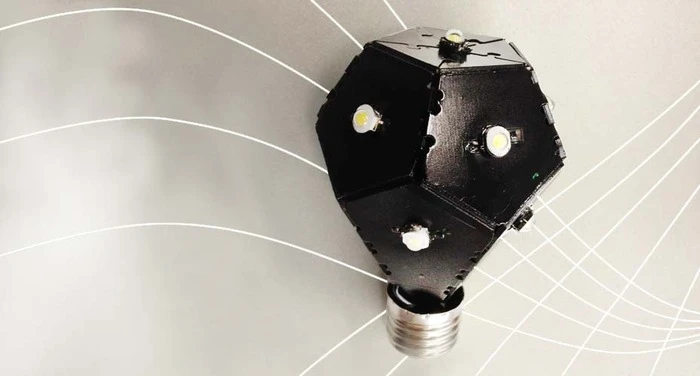

The NanoLight has a standard E26/E27 base (Image: NanoLight)
13/14
The NanoLight has a standard E26/E27 base (Image: NanoLight)

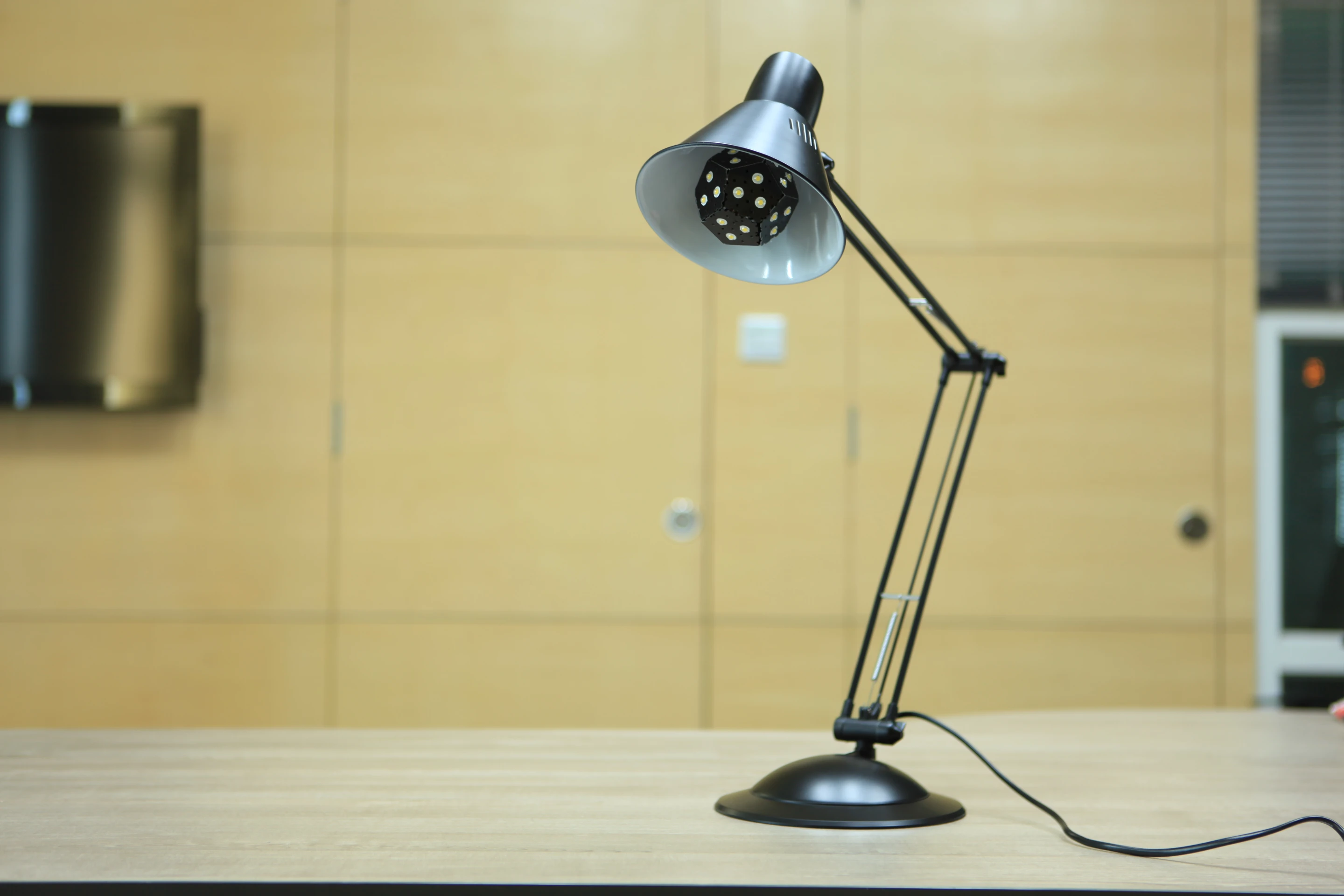

The light output meets or exceeds 1600 lumens for the 12W version and 1200 lumens for the 10W version (Image: NanoLight)
14/14
The light output meets or exceeds 1600 lumens for the 12W version and 1200 lumens for the 10W version (Image: NanoLight)
View gallery - 14 images

Until recently LED light bulb manufacturers have struggled to find a solution in the 75 to 100-watt range which successfully replaces the soon-to-be redundant, energy crunching 100 W incandescent bulb in terms of size and brightness. Three friends from the University of Toronto are the latest to offer a feasible product to match the classic 100 W bulb without compromising on electricity consumption with their proposed NanoLight LED light bulbs.

Gimmy Chu, Tom Rodinger and Christian Yan of NanoLight met during a university solar car project back in 2005. With a shared enthusiasm for sustainable products they joined forces again three years ago and aim to launch three models of the Nanolight in the near future through the funding platform Kickstarter. The trio hopes their products will prove that true 100 W equivalent LED lighting can be achieved and that NanoLight can make good its claim as “the worlds most energy efficient light bulb.”

NanoLight’s signature product is a 12 W LED bulb that provides the equivalent of a 100 W classic bulb and gives off 1600 lumens. Whilst the 60 W LED range has proved successful, manufacture of higher wattage equivalents that fit into current light fixtures has been difficult. LED lights produce less heat then traditional bulbs, but this heat becomes an issue that shortens the lifespan and efficiency of the LEDs when the volume is increased for a higher wattage effect.

The NanoLight products claim to have addressed the LED heat issues and are also billed as omnidirectional, which is not a feature of the average LED bulb. The NanoLight LED’s are directly attached to a printed circuit board that is folded to resemble the stereotypical light bulb shape. The product testing that can be seen in the videos below shows that the LEDs withstand the heat issues within this format.

Although manufactured electronic circuit boards are well established, the folded design of the NanoLight will provide challenges for the team. Using surface mounting technology, the individual components will be placed into predefined positions and will require a low temperature soldering process to secure the components. Once this has been achieved a process will take place to assemble the circuit board into its bulb shape and secure on the screw base light fitting which is the current available option.

The NanoLight operates at 133 lumens per watt - the above chart shows the company's own comparison to other light bulbs on the market (Image: NanoLight)
The NanoLight operates at 133 lumens per watt - the above chart shows the company's own comparison to other light bulbs on the market (Image: NanoLight)

The alternative to a 100 W incandescent bulb has until recently been a compact fluorescent light, if you have the time for them to warm up to maximum light output. The LED is a much more pleasing alternative not only for using less harmful materials during manufacture, but also by providing an instant warm neutral white full light on request and lasting a lot longer with an estimated lifespan of 30,000 hours.

In addition to the 12 W NanoLight, a 10 W NanoLight (75 W equivalent) and a 12 W NanoLight (1800+ Lumens) are also in the pipe. These three models are available in 120V AC and 220-240V AC versions to cater to different geographic regions. The NanoLight team has also received high demand for a dimmable version and are already working on a prototype model that can achieve this.

The current price of LED bulbs is high and the 100 W NanoLight will run at around US$50 per unit. Despite this, NanoLight estimates that over a period of 30,000 hours of usage an LED bulb can save a consumer around seven times the expense of an equivalent periods usage of incandescent bulbs.

Other recent (and heavyweight) entrants into the 100-watt equivalent LED market include the Phillips 22 W LED and the 20 W bulb from Osram Sylvania, a division of Germany's Siemens AG.

The video below provides more information on the production and testing of the NanoLights.
