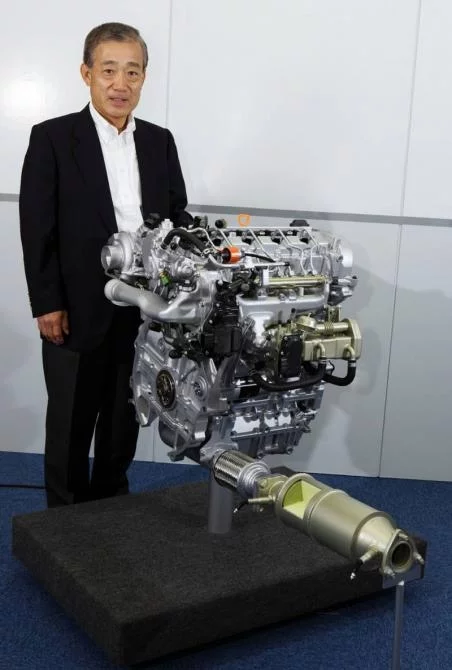

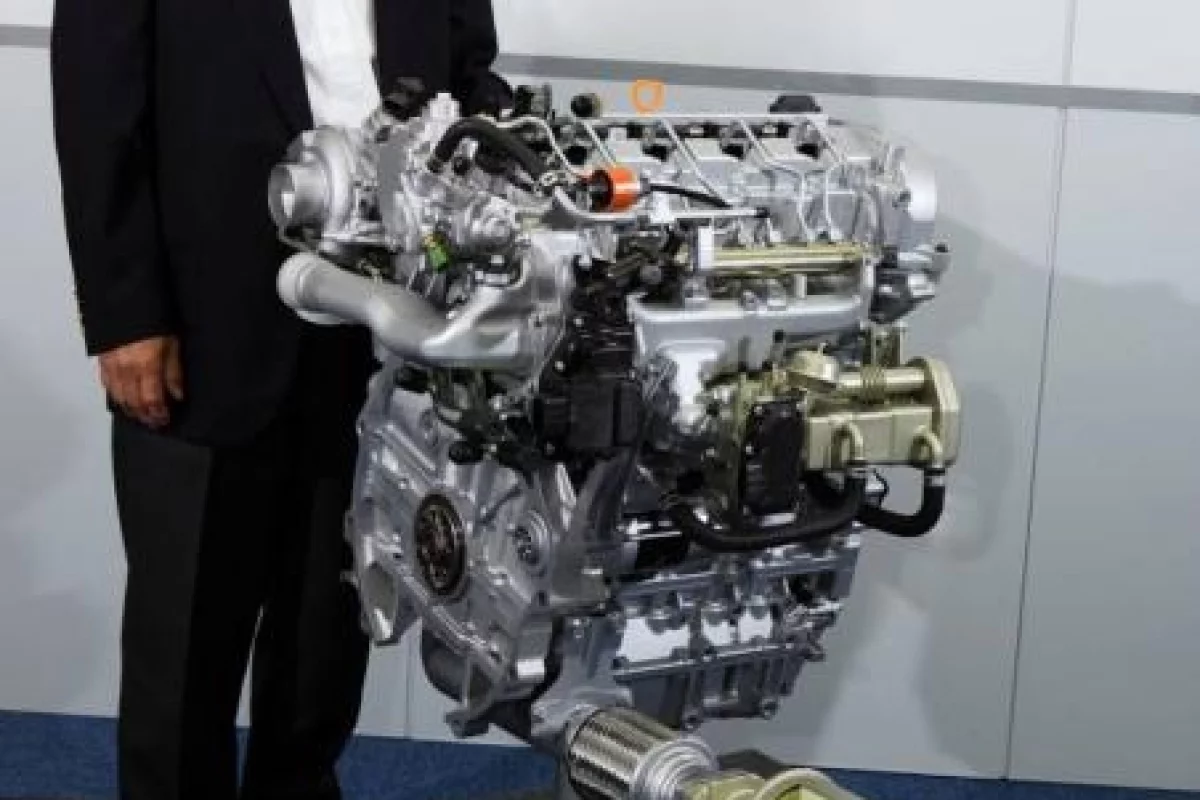

Honda shows next-generation diesel engine

Honda shows next-generation diesel engine
View 4 Images
1/4
2/4
3/4
4/4
View gallery - 4 images

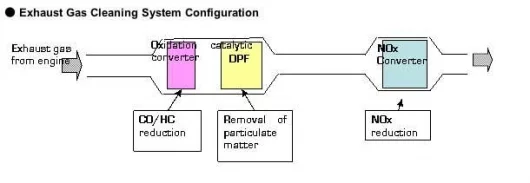

October 2, 2006 Honda has developed a next-generation diesel engine that reduces exhaust gas emissions to a level equal to a petrol engine and expects to have the engine available in its U.S. market cars within three years. The engine employs an NOx catalytic converter that enables a reduction in NOx emissions sufficient to meet stringent U.S. Environmental Protection Agency (EPA) Tier II Bin 5 emission requirements. This catalytic converter uses the reductive reaction of ammonia generated within the catalytic converter to “detoxify” nitrogen oxide (NOx) by turning it into harmless nitrogen (N2).

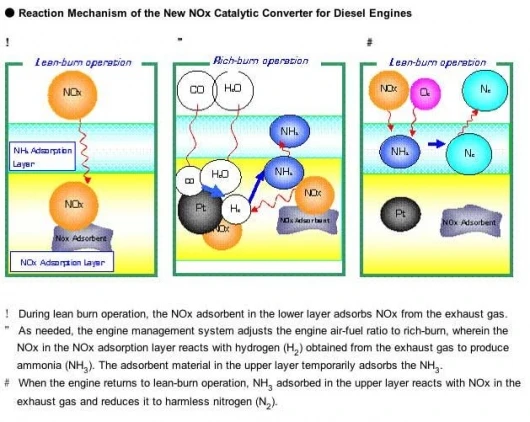

The new catalytic converter utilizes a two-layer structure: one layer adsorbs NOx from the exhaust gas and converts a portion of it into ammonia, while the other layer adsorbs the resulting ammonia, and uses it later in a reaction that converts the remaining NOx in the exhaust into nitrogen (N2). Ammonia is a highly effective reagent for reducing NOx into N2 in an oxygen-rich, lean-burn atmosphere. This ability to generate and store ammonia within the catalytic converter has enabled Honda to create a compact, lightweight NOx reduction system for diesel engines. The system also features enhanced NOx reduction performance at 200–300ºC, the main temperature range of diesel engines.

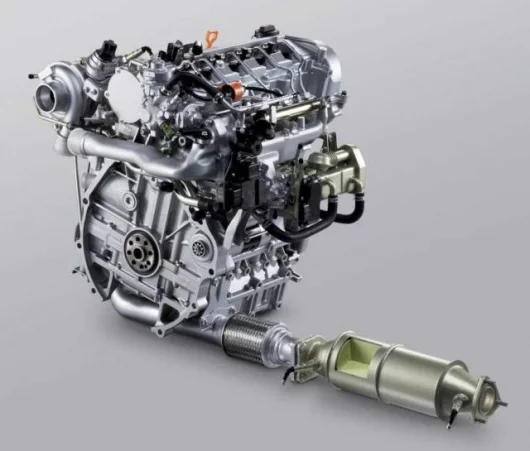

Honda designed the catalytic converter for use with its 2.2 i-CTDi diesel engine, known for its performance and quiet, clean operation since its introduction in 2003 on the European Accord model. By further advancing combustion control, the 2.2 i-CTDi delivers cleaner exhaust to the NOx catalytic converter. Honda achieved this by optimizing the combustion chamber configuration, reducing fuel injection time with a 2,000-bar common rail injection system and boosting the efficiency of the EGR (exhaust gas recirculation) system. Thanks to these improvements, Honda has reduced the amount of NOx and soot normally found in engine exhaust, while increasing power output.

Along with developing technology for cleaning exhaust gas, Honda plans to address other technical challenges in developing clean diesel engines, such as handling diesel fuels with different cetane numbers and meeting U.S. On-Board Diagnostic System requirements.

Petrol engines presently employ three-way catalytic converters that offer NOx reduction rates as high as 99%, but this performance is possible only at the stoichiometric air-fuel ratio. In the oxygen-rich environment of a lean-burn diesel engine, three-way catalytic converters only reduce NOx levels by approximately 10%. Honda’s new catalytic converter efficiently reduces NOx in a lean-burn atmosphere, enabling diesel engines to rival petrol engines in cleanliness. The compact system is also easy to install in passenger vehicles.
