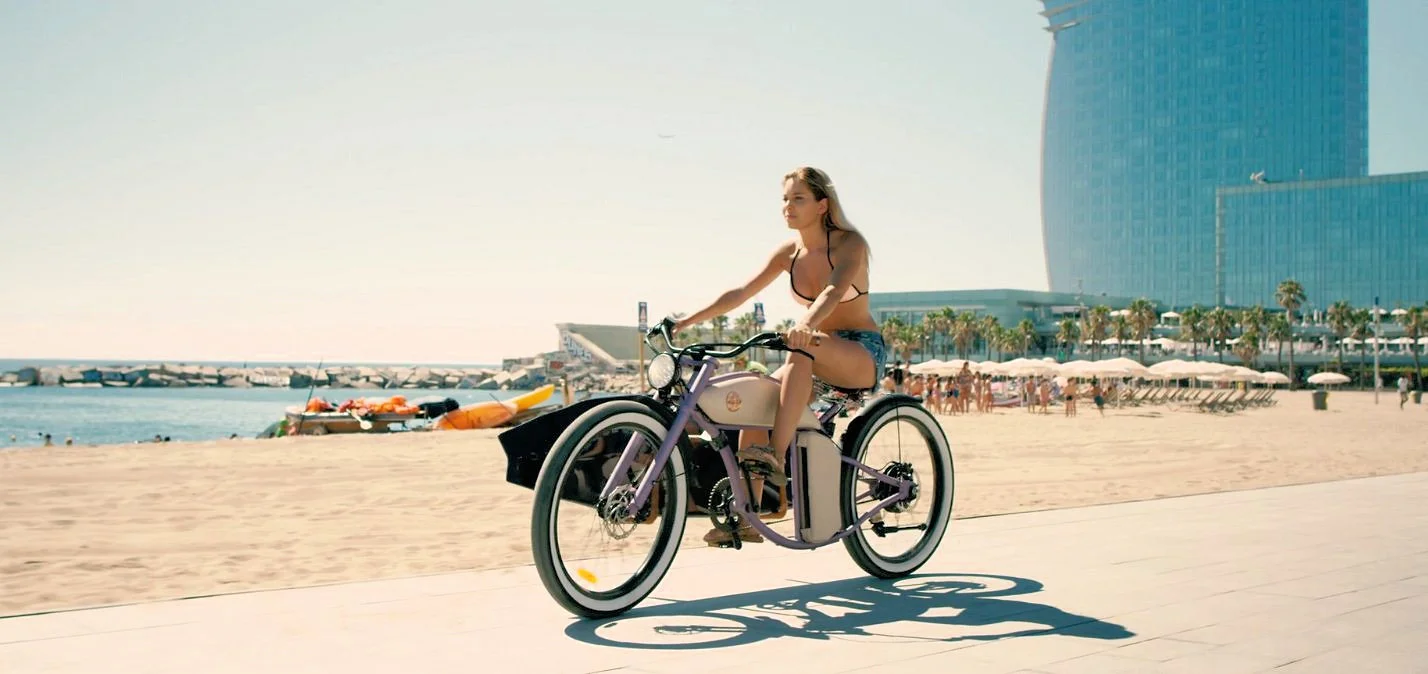

Emission-free surfboard transport courtesy of the Cruzer from Rayvolt
Emission-free surfboard transport courtesy of the Cruzer from Rayvolt
View 12 Images

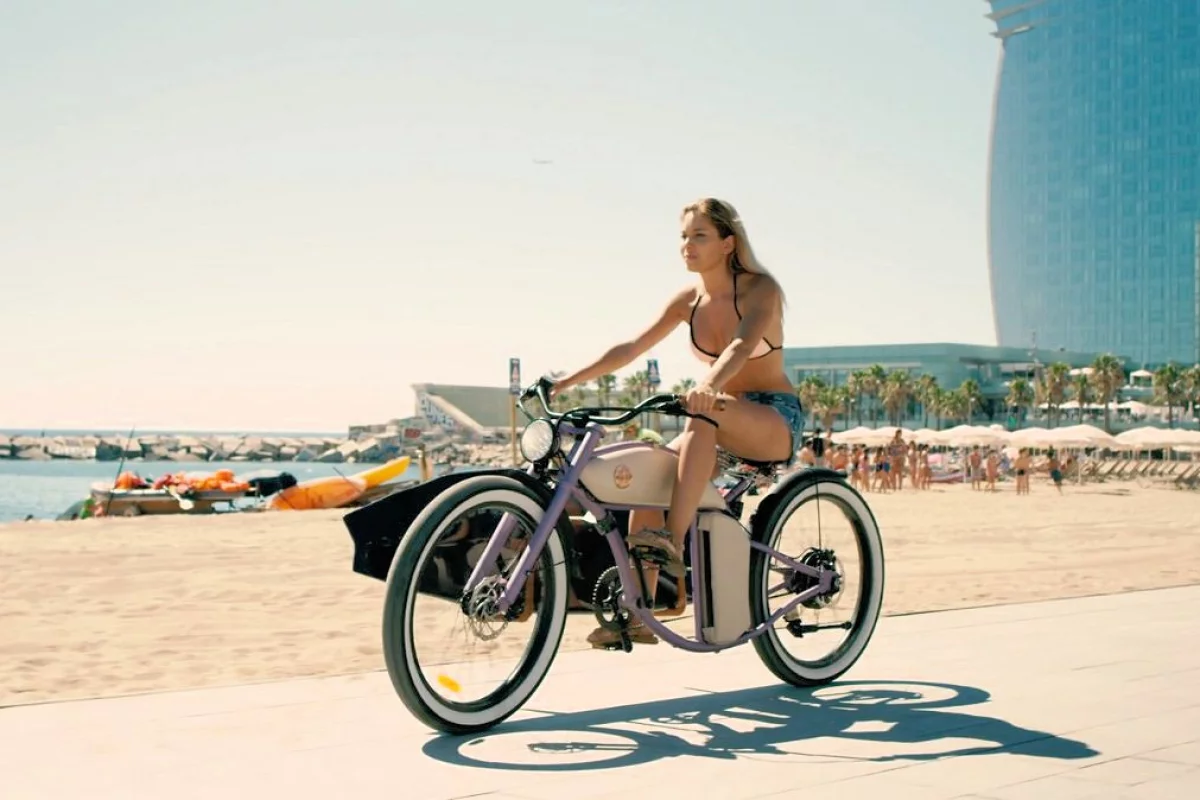

Emission-free surfboard transport courtesy of the Cruzer from Rayvolt
1/12
Emission-free surfboard transport courtesy of the Cruzer from Rayvolt

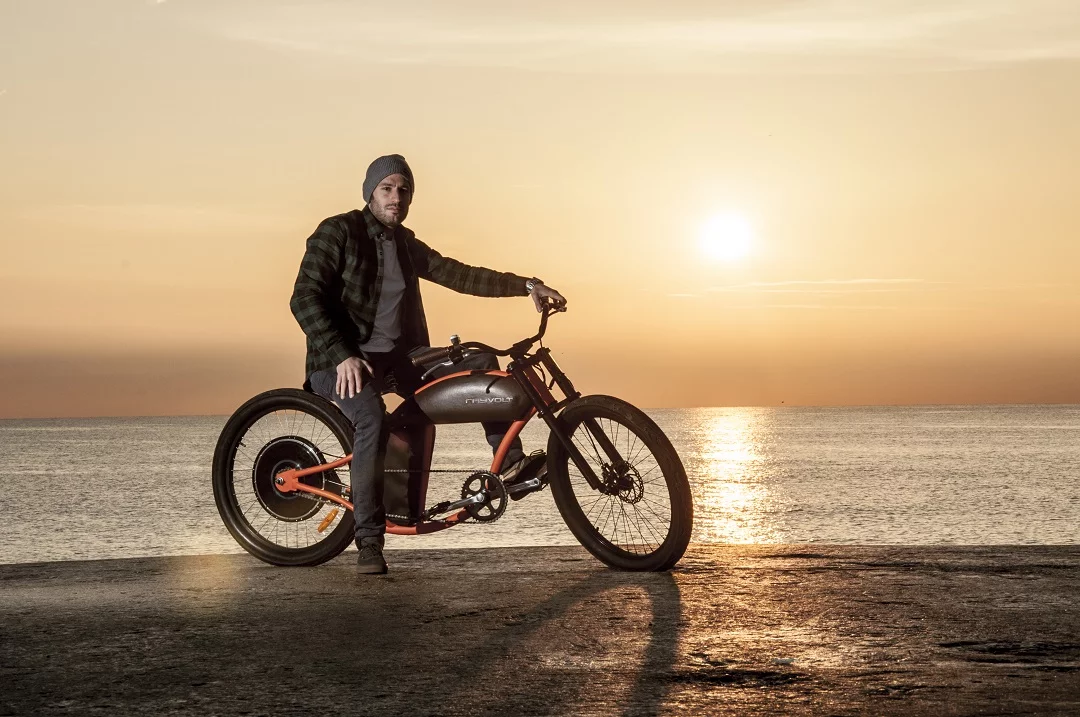

The Cruzer is available with a 250 W or 1,000 W hub motor
2/12
The Cruzer is available with a 250 W or 1,000 W hub motor

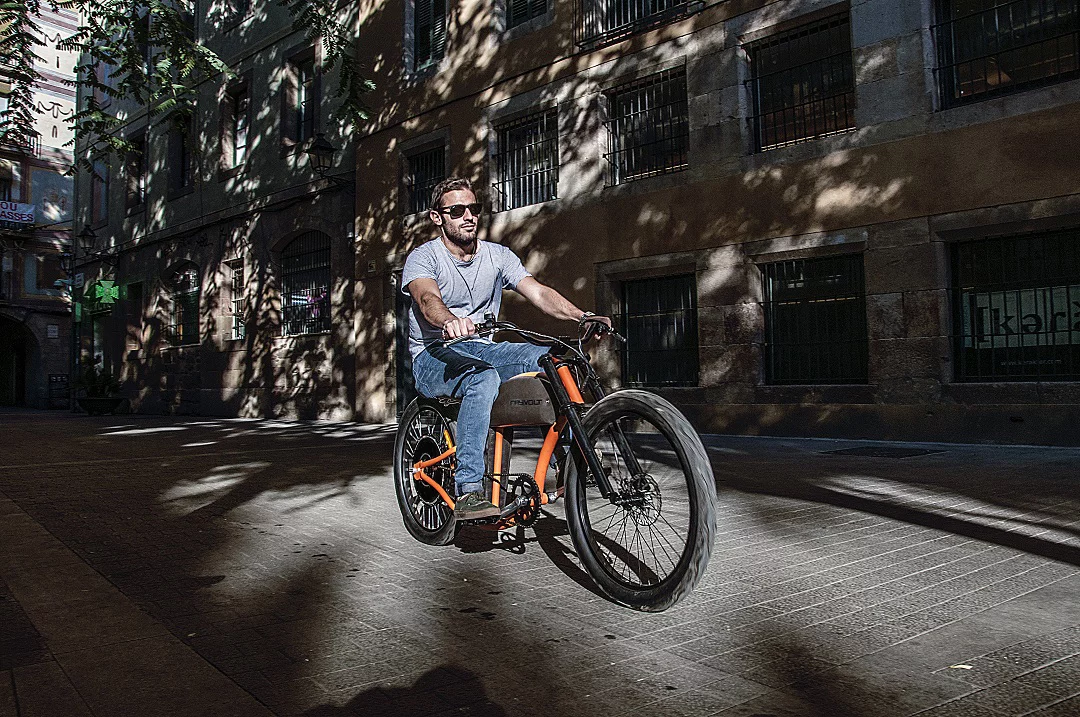

The Cruzer comes in two frame sizes and two wheel size options
3/12
The Cruzer comes in two frame sizes and two wheel size options
Retro cool combined with modern electric assist technology: the Cruzer from Rayvolt
4/12
Retro cool combined with modern electric assist technology: the Cruzer from Rayvolt
The Cruzer e-bike being used to pull a hydro-board along the coastline
5/12
The Cruzer e-bike being used to pull a hydro-board along the coastline

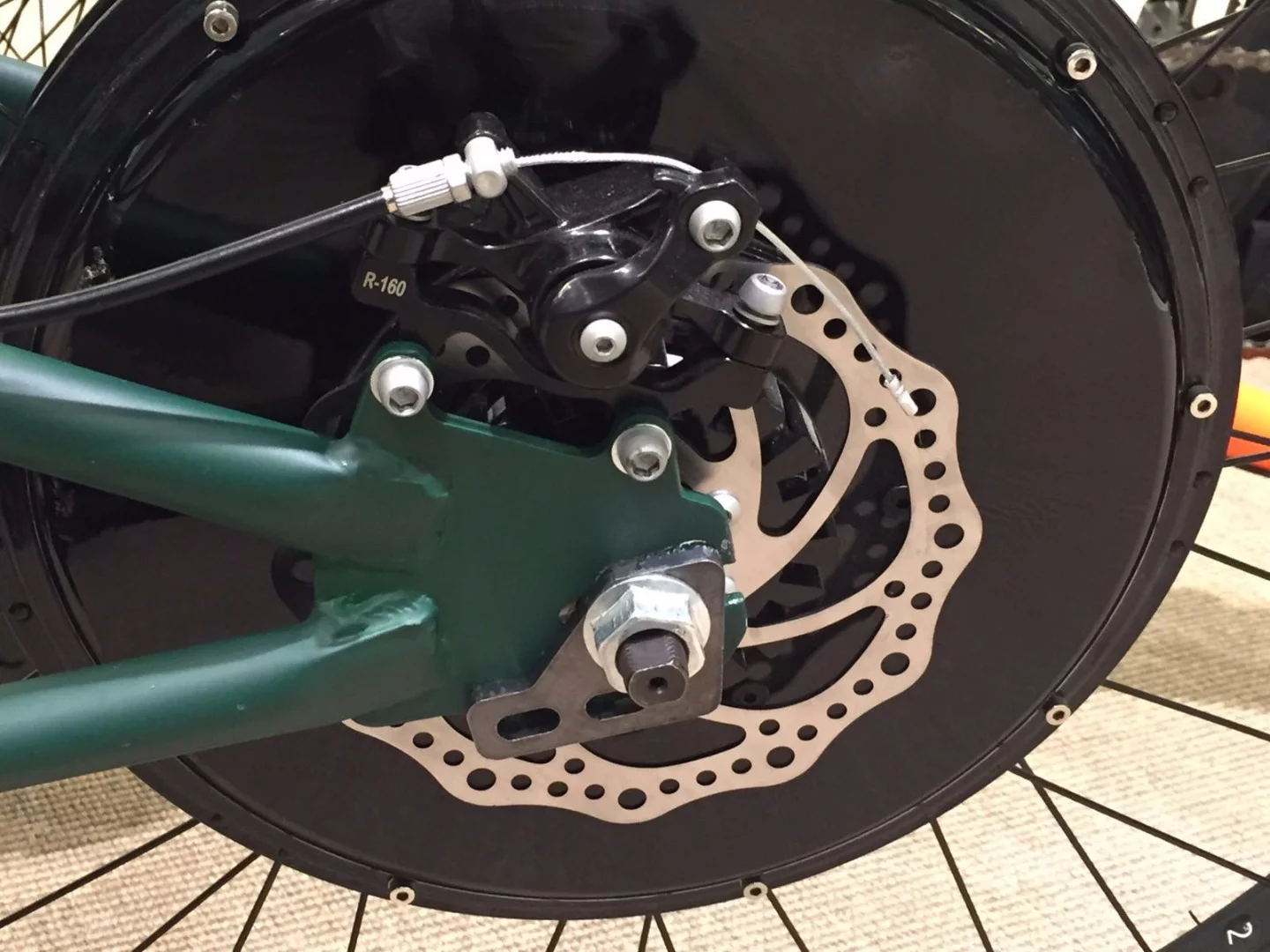

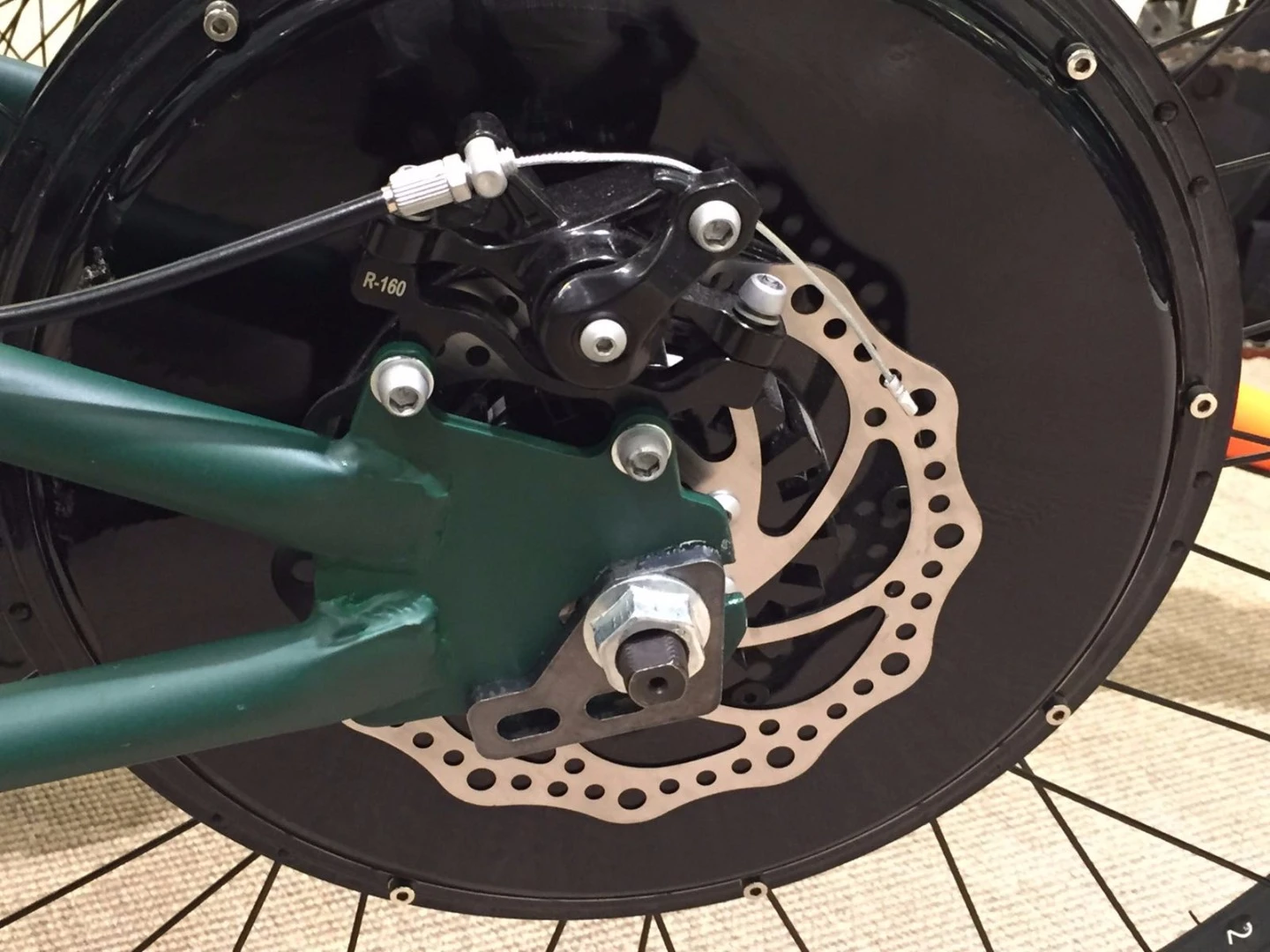

The Cruzer benefits from disk braking front and rear, with regen topping up the batteries
6/12
The Cruzer benefits from disk braking front and rear, with regen topping up the batteries

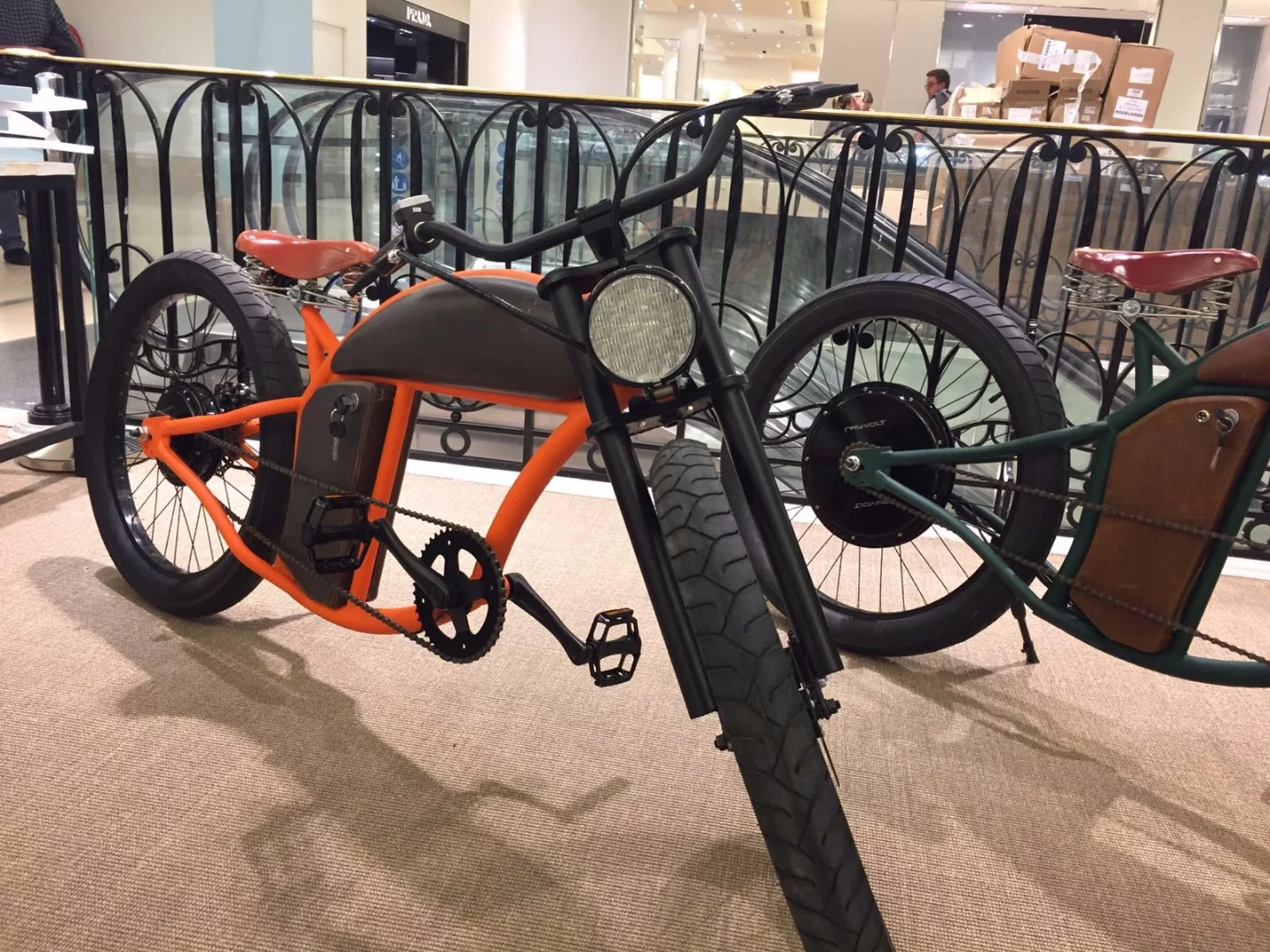

Interestingly, Rayvolt uses only solar power during production of the Cruzer
7/12
Interestingly, Rayvolt uses only solar power during production of the Cruzer

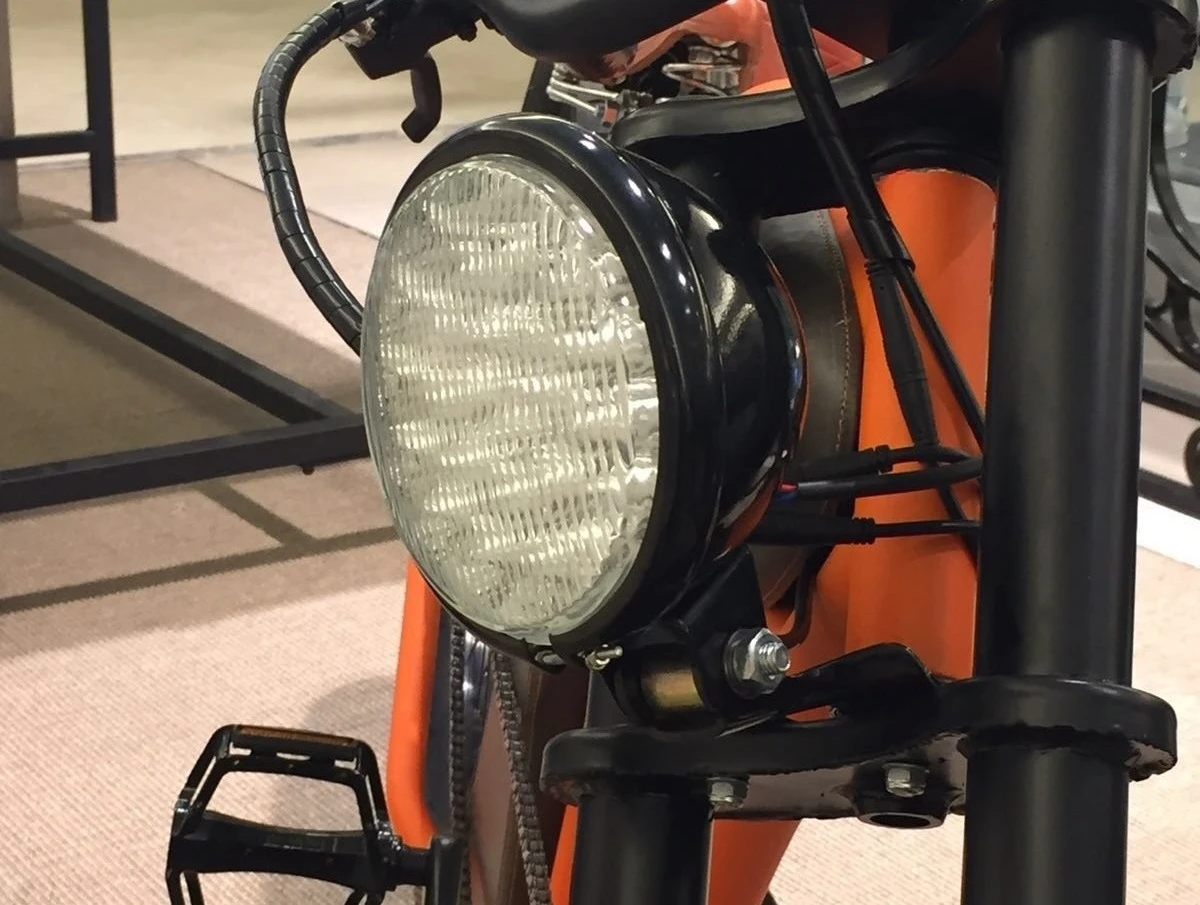

The Cruzer has LED lighting front and rear
8/12
The Cruzer has LED lighting front and rear

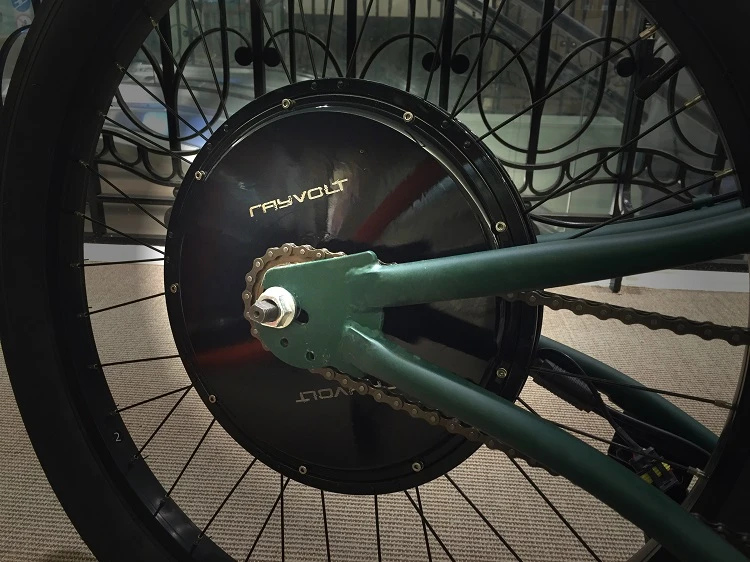

The Cruzer is available with a 1,000 W hub motor
9/12
The Cruzer is available with a 1,000 W hub motor

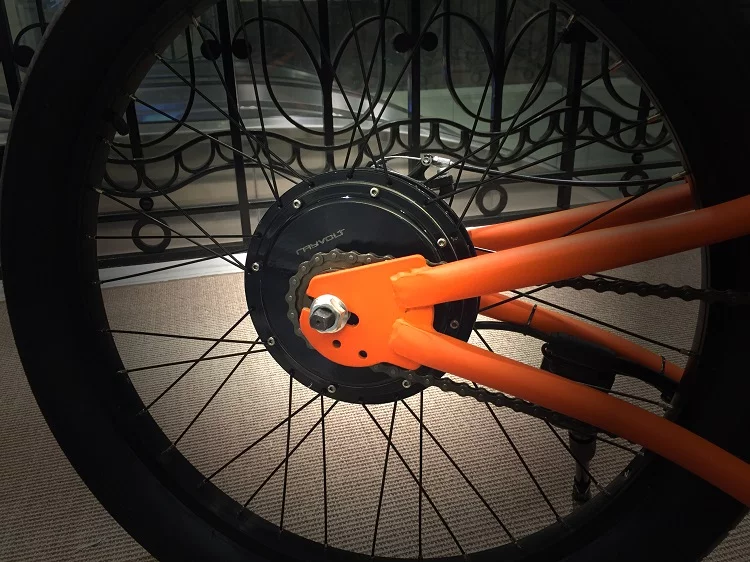

The Cruzer is available with a 250 W hub motor
10/12
The Cruzer is available with a 250 W hub motor

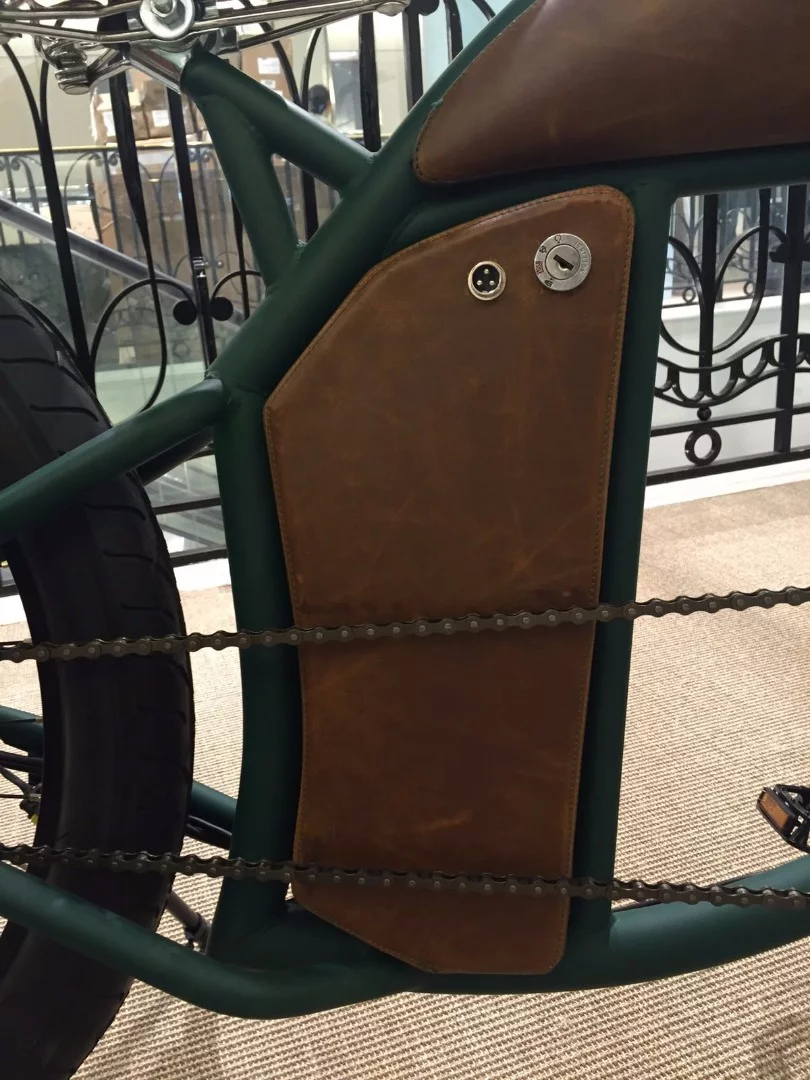

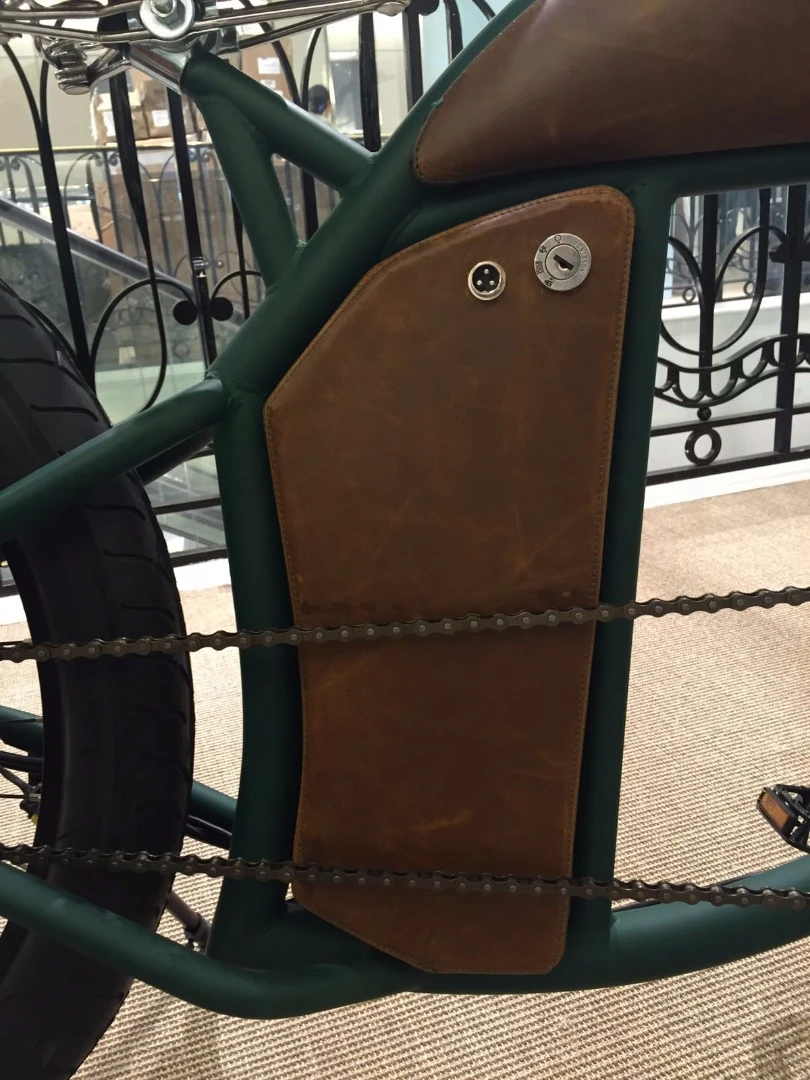

Lockable housing low in the Cruzer's steel frame contains Samsung Li-ion battery packs
11/12
Lockable housing low in the Cruzer's steel frame contains Samsung Li-ion battery packs

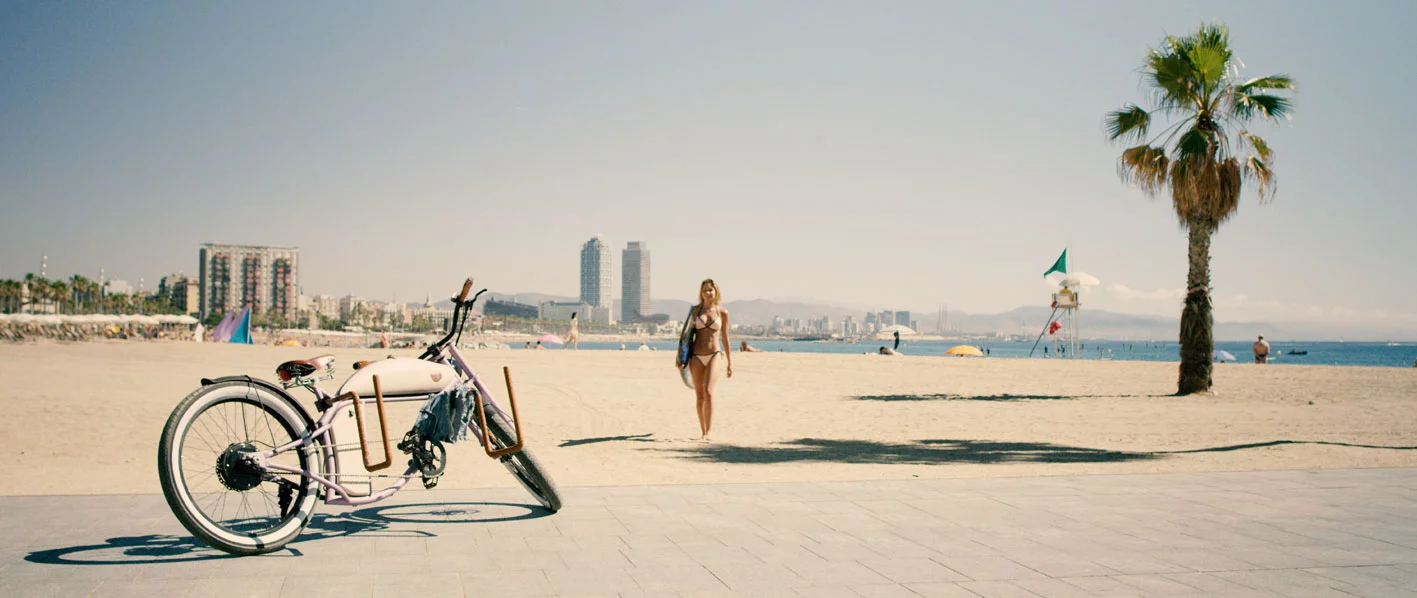

Not shown here, but Rayvolt can supply an optional cover that rocks PV cells to charge the Cruzer's batteries while baking in the sun
12/12
Not shown here, but Rayvolt can supply an optional cover that rocks PV cells to charge the Cruzer's batteries while baking in the sun
View gallery - 12 images

Surfers looking to transport their boards to the beach on two wheels could take inspiration from Deus ex Machina's Honda Super Cub, but those wanting to go emission-free may find the Cruzer of interest. The cafe racer/board tracker-styled e-bike can be supplied with a surfboard cradle, and will make its Eurobike debut next week.

Aesthetically somewhere between the Ruffian and the Avionics e-bike, the Cruzer's rear wheel hub motor comes in 250 watt or 1,000 W flavors, the latter being more suited for off-road adventures. Maker Rayvolt says that its retro e-bike can provide electric assist up to 45 km/h (28 mph), but the model making its way to next week's Eurobike expo in Friedrichshafen, southern Germany, has been speed-restricted to 25 km/h.

Lockable housing low in the steel frame contains Samsung Li-ion battery packs in 48 V/10.5 Ah/567 Wh or 48 V/22 Ah/1,134 Wh sizes. Rayvolt offers a smart charger or fast charger, and the option of a PV-packed bike cover that can top up the Cruzer's battery pack while it bakes in the sun. Regen braking should also help eke out more juice from the battery.

Retro cool combined with modern electric assist technology: the Cruzer from Rayvolt
Retro cool combined with modern electric assist technology: the Cruzer from Rayvolt

A proprietary control system connects to the rear hub via Bluetooth, allowing the rider to adjust pedal assist, check speed and keep an eye on battery status using an app running on a paired smartphone or using a dedicated control unit with 4.5 inch HD touch display. The control system can also activate the Cruzer's anti-theft system.

The e-bike's frame comes in two sizes – 1,294 or 1,466 mm (51 or 58 in) from front wheel hub to rear – and two wheel sizes are also available, 24- or 26-inch. Elsewhere, there's front and rear LED lighting, disk braking and a thumb throttle to get riders moving without pedaling.

Interestingly, Rayvolt uses only solar power during production, which adds to the e-bike's green appeal. The Rayvolt Cruzer Eurobike model is available in orange, green or gray for €2,700 to €3,500 (about US$3,000 to $4,100), depending on configuration. Have a look at the promo video below to see the e-bike in action.
